SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................417
▫ Maintenance Plan ..................... .417
▫ Heavy Duty Use Of The Vehicle ............421
 ENGINE COMPARTMENT .................422
▫ 3.6L Engine ......................... .422
▫ 5.7L Engine ......................... .423
▫ Checking Oil Level .....................424
▫ Adding Washer Fluid .................. .424
▫ Maintenance-Free Battery .................424
 DEALER SERVICE .......................425
▫ Engine Oil .......................... .426
▫ Engine Oil Filter .......................428
▫ Engine Air Cleaner Filter .................428
▫ Air Conditioner Maintenance ..............428▫
Accessory Drive Belt Inspection ............432
▫ Body Lubrication ..................... .433
▫ Windshield Wiper Blades .................434
▫ Exhaust System ....................... .438
▫ Cooling System ....................... .440
▫ Brake System ........................ .445
▫ Automatic Transmission ..................446
▫ Front/Rear Axle Fluid .................. .447
▫ Transfer Case ........................ .448
 RAISING THE VEHICLE ..................448
 TIRES ............................... .449
▫ Tire Safety Information ..................449
▫ Tir

es — General Information ..............458
▫ Tire Types ........................... .464
8

Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained at the correct level. Check
the oil level at regular intervals, such as every fuel stop.
The best time to check the engine oil level is about five
minutes after a fully warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Always
maintain the oil level within the SAFE zone on the dipstick.
Adding one quart of oil when the reading is at the bottom
of the SAFE zone will result in a reading at the top of the
safe zone on these engines.
CAUTION!
Overfilling or underfilling will cause oil aeration or
loss of oil pressure. This could damage your engine.
Adding Washer Fluid
The instrument cluster display will indicate when the
washer fluid level is low. When the sensor detects a low
fluid level, the windshield will light on the vehicle graphic
outline and the “WASHER FLUID LOW” message will be
displayed.The fluid reservoir for the windshield washers and the rear
window washer is shared. The fluid reservoir is located in
the engine compartment, be sure to check the fluid level at
regular intervals. Fill the reservoir with windshield washer
solvent only (not radiator antifreeze). When refilling the
washer fluid reservoir, take some washer fluid and apply it
to a cloth or towel and wipe clean the wiper blades, this
will help blade performance. To prevent freeze-up of your
windshield washer system in cold weather, select a solu-
tion or mixture that meets or exceeds the temperature
range of your climate. This rating information can be found
on most washer fluid containers.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around the
washer solution.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic mainte-
nance required.
424 SERVICING AND MAINTENANCE

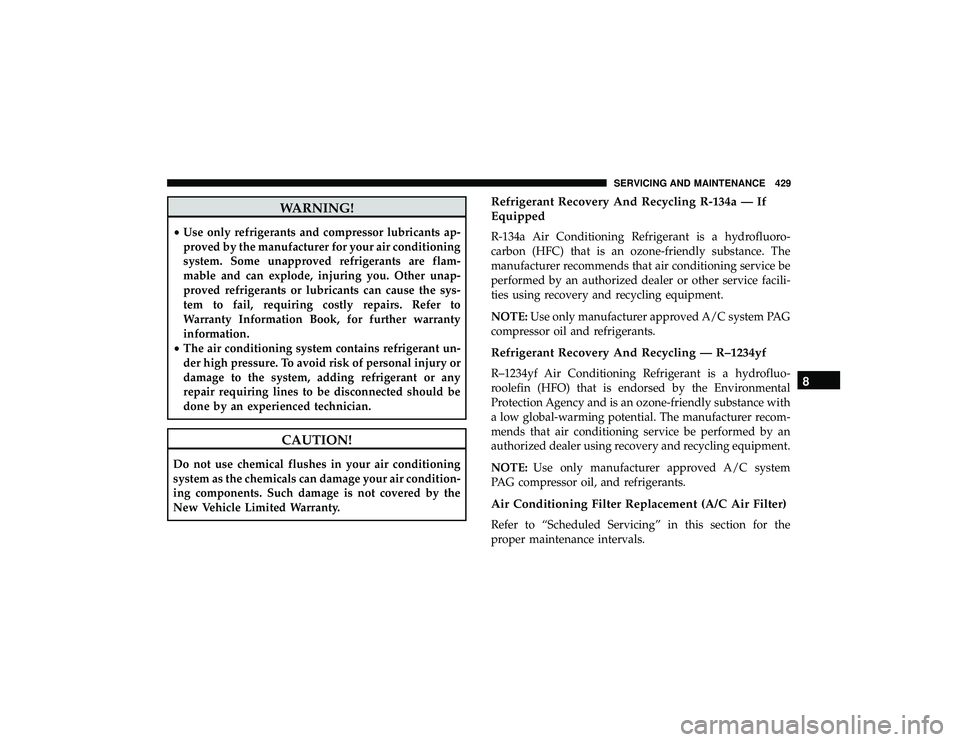

WARNING!
•Use only refrigerants and compressor lubricants ap-
proved by the manufacturer for your air conditioning
system. Some unapproved refrigerants are flam-
mable and can explode, injuring you. Other unap-
proved refrigerants or lubricants can cause the sys-
tem to fail, requiring costly repairs. Refer to
Warranty Information Book, for further warranty
information.
• The air conditioning system contains refrigerant un-
der high pressure. To avoid risk of personal injury or
damage to the system, adding refrigerant or any
repair requiring lines to be disconnected should be
done by an experienced technician.
CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air condition-
ing components. Such damage is not covered by the
New Vehicle Limited Warranty.
Refrigerant Recovery And Recycling R-134a — If
Equipped
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is an ozone-friendly substance. The
manufacturer recommends that air conditioning service be
performed by an authorized dealer or other service facili-
ties using recovery and recycling equipment.
NOTE: Use only manufacturer approved A/C system PAG
compressor oil and refrigerants.
Refrigerant Recovery And Recycling — R–1234yf
R–1234yf Air Conditioning Refrigerant is a hydrofluo-
roolefin (HFO) that is endorsed by the Environmental
Protection Agency and is an ozone-friendly substance with
a low global-warming potential. The manufacturer recom-
mends that air conditioning service be performed by an
authorized dealer using recovery and recycling equipment.
NOTE: Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.
Air Conditioning Filter Replacement (A/C Air Filter)
Refer to “Scheduled Servicing” in this section for the
proper maintenance intervals.
8
SERVICING AND MAINTENANCE 429

Rear Axle Fluid Level Check
The rear axle oil level needs to be no lower than 1/8 inch
(3 mm) below the bottom of the fill hole.
The rear axle fill and drain plugs should be tightened to 22
to 29 ft lbs (30 to 40 N·m).
CAUTION!
Do not overtighten the plugs as it could damage them
and cause them to leak.
Selection Of Lubricant
Use only the manufacturer’s recommended fluid. Refer to
“Fluids And Lubricants” in “Technical Specifications” for
further information.
Transfer Case
Fluid Level Check
For normal service, periodic fluid level checks are not
required. When the vehicle is serviced for other reasons the
exterior surfaces of the transfer case assembly should be
inspected. If oil leakage is suspected inspect the fluid level.
Refer to “Fluids And Lubricants” in “Technical Specifica-
tions” for further information.
Adding Fluid
Add fluid at the filler hole, until it runs out of the hole,
when the vehicle is in a level position.
Drain
First remove fill plug, then remove drain plug. Recom-
mended tightening torque for drain and fill plugs is 15 to
25 ft lbs (20 to 34 N·m).
CAUTION!
When installing plugs, do not overtighten. You could
damage them and cause them to leak.
Selection Of Lubricant
Use only the manufacturer’s recommended fluid. Refer to
“Fluids And Lubricants” in “Technical Specifications” for
further information.
RAISING THE VEHICLE
In the case where it is necessary to raise the vehicle, go to
an authorized dealer or service station.
448 SERVICING AND MAINTENANCE

Anti-Lock Warning Light.....................166
Apple CarPlay ........................... .569
Arming System Security Alarm ...........................31
Assist, Hill Start .......................... .176
Audio Systems (Radio) .......................493
Auto Down Power Windows ..................105
Automatic Headlights ........................76
Automatic High Beams .......................75
Automatic Temperature Control (ATC) ...........101
Automatic Transmission ..................263, 274
Adding Fluid .......................... .447
Fluid And Filter Change ...................447
Fluid Change .......................... .447
Fluid Level Check .....................446, 447
Fluid Type ......................... .446, 489
Special Additives ........................ .446
Automatic Transmission Limp Home Mode ........280
Auxiliary Driving Systems ....................184
Auxiliary Electrical Outlet (Power Outlet) .........130
Auxiliary Power Outlet ..................... .130
Axle Fluid .............................. .489
Battery .............................. .160, 424
Charging System Light ................... .160Keyless Key Fob Replacement
................21
Battery Saver Feature .........................78
Belts, Seat ............................... .255
Blind Spot Monitoring .......................184
Body Mechanism Lubrication ..................433
B-Pillar Location .......................... .454
Brake Assist System ........................ .176
Brake Control System, Electronic ................175
Brake Fluid .......................... .445, 489
Brake System ......................... .445, 479
Anti-Lock (ABS) ........................ .479
Fluid Check ........................... .445
Master Cylinder ........................ .445
Parking .............................. .270
W arning

Light.......................... .159
Brake/Transmission Interlock ..................273
Bulb Replacement .......................378, 380
Bulbs, Light ............................. .257
Camera, Rear ............................ .338
Capacities, Fluid .......................... .486
Caps, Filler Oil (Engine) ........................ .422, 427
Radiator (Coolant Pressure) .................443
Carbon Monoxide Warning ................254, 485
12
INDEX 581
