wiper blades DODGE DURANGO 2019 Owners Manual

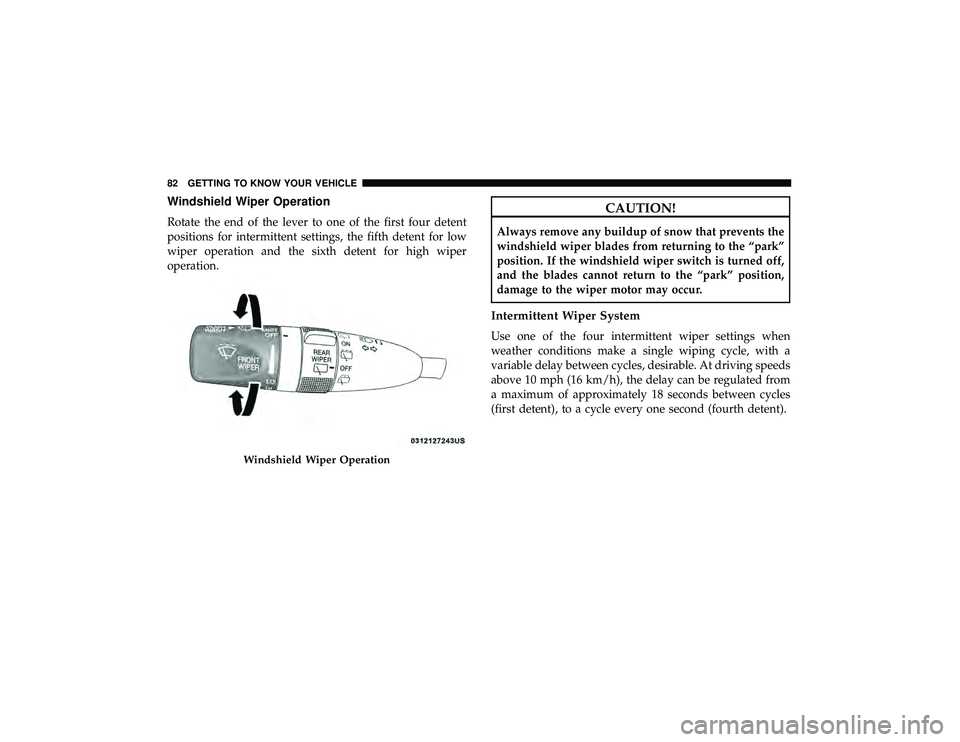

Windshield Wiper Operation
Rotate the end of the lever to one of the first four detent
positions for intermittent settings, the fifth detent for low
wiper operation and the sixth detent for high wiper
operation.
CAUTION!
Always remove any buildup of snow that prevents the
windshield wiper blades from returning to the “park”
position. If the windshield wiper switch is turned off,
and the blades cannot return to the “park” position,
damage to the wiper motor may occur.
Intermittent Wiper System
Use one of the four intermittent wiper settings when
weather conditions make a single wiping cycle, with a
variable delay between cycles, desirable. At driving speeds
above 10 mph (16 km/h), the delay can be regulated from
a maximum of approximately 18 seconds between cycles
(first detent), to a cycle every one second (fourth detent).
Windshield Wiper Operation
82 GETTING TO KNOW YOUR VEHICLE

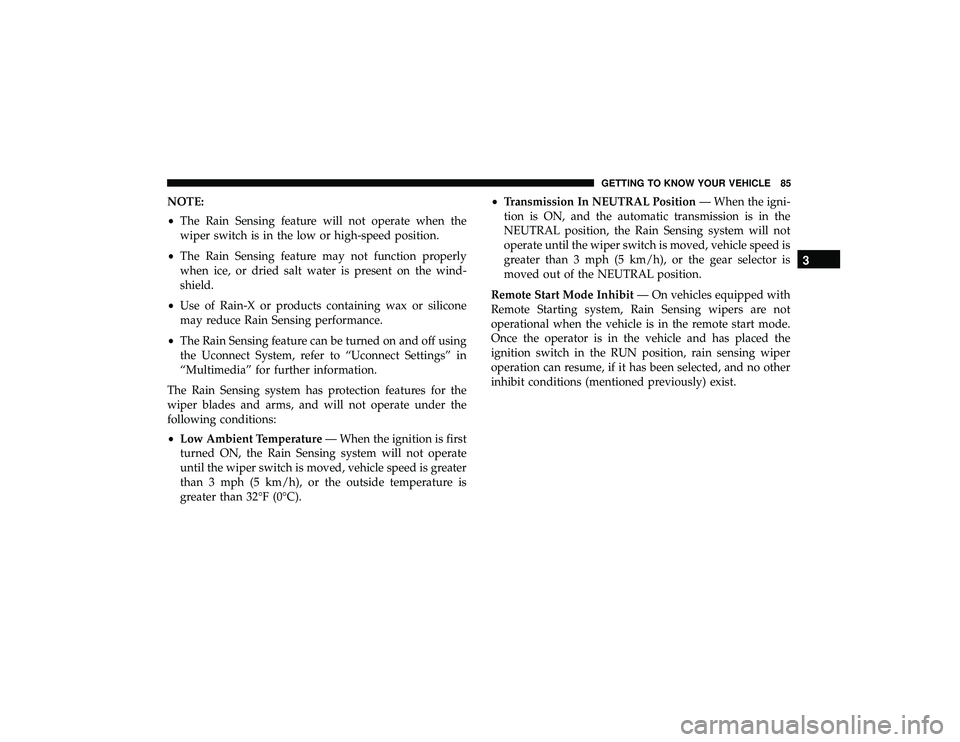

NOTE:
•The Rain Sensing feature will not operate when the
wiper switch is in the low or high-speed position.
• The Rain Sensing feature may not function properly
when ice, or dried salt water is present on the wind-
shield.
• Use of Rain-X or products containing wax or silicone
may reduce Rain Sensing performance.
• The Rain Sensing feature can be turned on and off using
the Uconnect System, refer to “Uconnect Settings” in
“Multimedia” for further information.
The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:
• Low Ambient Temperature — When the ignition is first
turned ON, the Rain Sensing system will not operate
until the wiper switch is moved, vehicle speed is greater
than 3 mph (5 km/h), or the outside temperature is
greater than 32°F (0°C). •
Transmission In NEUTRAL Position — When the igni-
tion is ON, and the automatic transmission is in the
NEUTRAL position, the Rain Sensing system will not
operate until the wiper switch is moved, vehicle speed is
greater than 3 mph (5 km/h), or the gear selector is
moved out of the NEUTRAL position.
Remote Start Mode Inhibit — On vehicles equipped with
Remote Starting system, Rain Sensing wipers are not
operational when the vehicle is in the remote start mode.
Once the operator is in the vehicle and has placed the
ignition switch in the RUN position, rain sensing wiper
operation can resume, if it has been selected, and no other
inhibit conditions (mentioned previously) exist.
3
GETTING TO KNOW YOUR VEHICLE 85

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................417
▫ Maintenance Plan ..................... .417
▫ Heavy Duty Use Of The Vehicle ............421
 ENGINE COMPARTMENT .................422
▫ 3.6L Engine ......................... .422
▫ 5.7L Engine ......................... .423
▫ Checking Oil Level .....................424
▫ Adding Washer Fluid .................. .424
▫ Maintenance-Free Battery .................424
 DEALER SERVICE .......................425
▫ Engine Oil .......................... .426
▫ Engine Oil Filter .......................428
▫ Engine Air Cleaner Filter .................428
▫ Air Conditioner Maintenance ..............428▫
Accessory Drive Belt Inspection ............432
▫ Body Lubrication ..................... .433
▫ Windshield Wiper Blades .................434
▫ Exhaust System ....................... .438
▫ Cooling System ....................... .440
▫ Brake System ........................ .445
▫ Automatic Transmission ..................446
▫ Front/Rear Axle Fluid .................. .447
▫ Transfer Case ........................ .448
 RAISING THE VEHICLE ..................448
 TIRES ............................... .449
▫ Tire Safety Information ..................449
▫ Tir

es — General Information ..............458
▫ Tire Types ........................... .464
8

Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained at the correct level. Check
the oil level at regular intervals, such as every fuel stop.
The best time to check the engine oil level is about five
minutes after a fully warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Always
maintain the oil level within the SAFE zone on the dipstick.
Adding one quart of oil when the reading is at the bottom
of the SAFE zone will result in a reading at the top of the
safe zone on these engines.
CAUTION!
Overfilling or underfilling will cause oil aeration or
loss of oil pressure. This could damage your engine.
Adding Washer Fluid
The instrument cluster display will indicate when the
washer fluid level is low. When the sensor detects a low
fluid level, the windshield will light on the vehicle graphic
outline and the “WASHER FLUID LOW” message will be
displayed.The fluid reservoir for the windshield washers and the rear
window washer is shared. The fluid reservoir is located in
the engine compartment, be sure to check the fluid level at
regular intervals. Fill the reservoir with windshield washer
solvent only (not radiator antifreeze). When refilling the
washer fluid reservoir, take some washer fluid and apply it
to a cloth or towel and wipe clean the wiper blades, this
will help blade performance. To prevent freeze-up of your
windshield washer system in cold weather, select a solu-
tion or mixture that meets or exceeds the temperature
range of your climate. This rating information can be found
on most washer fluid containers.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around the
washer solution.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic mainte-
nance required.
424 SERVICING AND MAINTENANCE

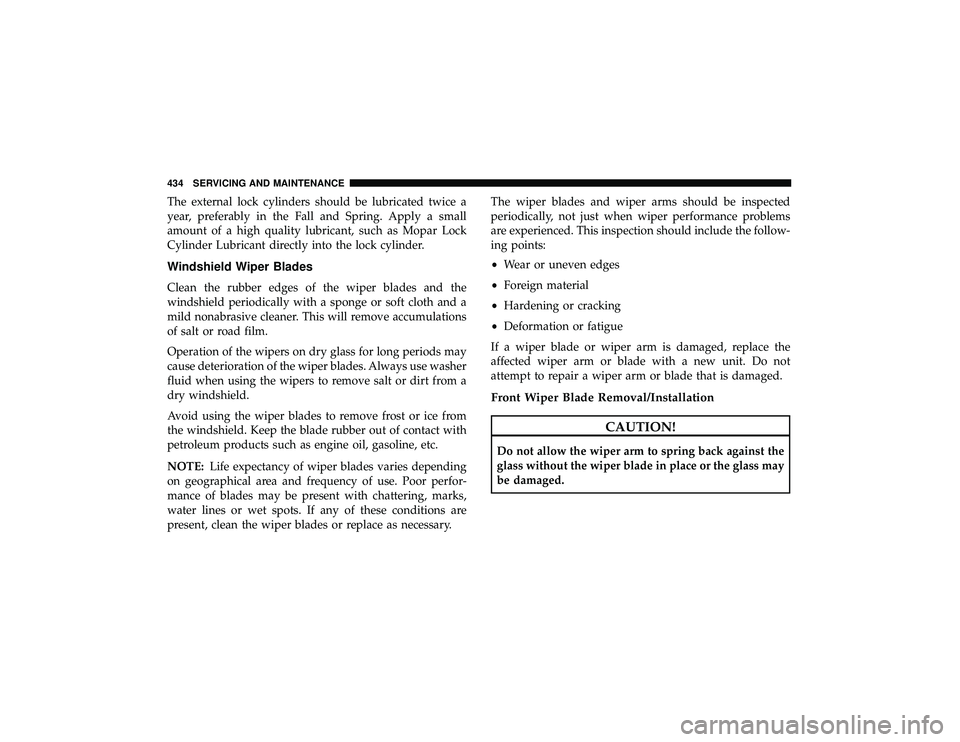

The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as Mopar Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary. The wiper blades and wiper arms should be inspected
periodically, not just when wiper performance problems
are experienced. This inspection should include the follow-
ing points:
•
Wear or uneven edges
• Foreign material
• Hardening or cracking
• Deformation or fatigue
If a wiper blade or wiper arm is damaged, replace the
affected wiper arm or blade with a new unit. Do not
attempt to repair a wiper arm or blade that is damaged.
Front Wiper Blade Removal/Installation
CAUTION!
Do not allow the wiper arm to spring back against the
glass without the wiper blade in place or the glass may
be damaged.
434 SERVICING AND MAINTENANCE

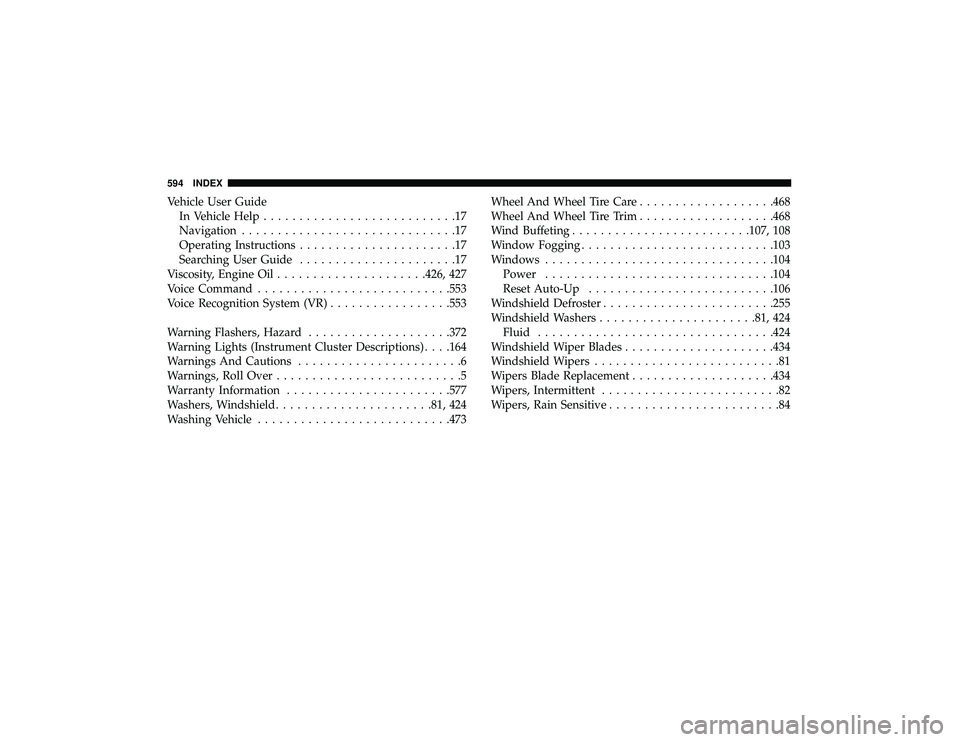

Vehicle User GuideIn Vehicle Help ...........................17
Navigation ..............................17
Operating Instructions ......................17
Searching User Guide ......................17
Viscosity, Engine Oil .....................426, 427
Voice Command .......................... .553
Voice Recognition System (VR) .................553
Warning Flashers, Hazard ....................372
Warning Lights (Instrument Cluster Descriptions) . . . .164
Warnings And Cautions .......................6
Warnings, Roll Over ..........................5
Warranty Information .......................577
Washers, Windshield ..................... .81, 424
Washing Vehicle .......................... .473Wheel And Wheel Tire Care
...................468
Wheel And Wheel Tire Trim ...................468
Wind Buffeting ........................ .107, 108
Window Fogging .......................... .103
Windows ............................... .104
Power ............................... .104
Reset Auto-Up ......................... .106
Windshield Defroster ....................... .255
Windshield Washers ..................... .81, 424
Fluid ................................ .424
Windshield Wiper Blades .....................434
Windshield Wipers ..........................81
Wipers Blade Replacement ....................434
Wipers, Intermittent .........................82
Wipers, Rain Sensitive ........................84
594 INDEX
