DODGE DURANGO SRT 2018 Owners Manual

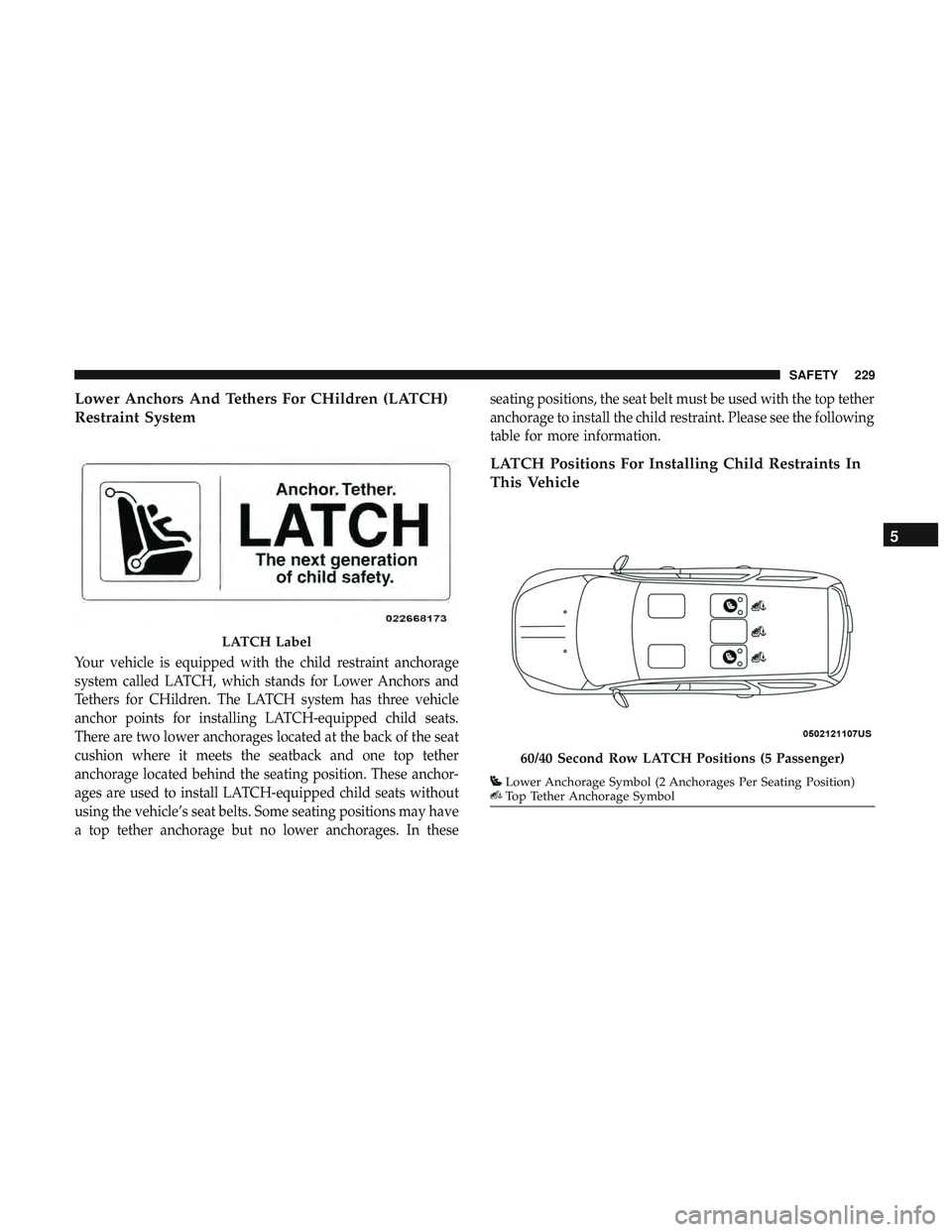

Lower Anchors And Tethers For CHildren (LATCH)
Restraint System
Your vehicle is equipped with the child restraint anchorage
system called LATCH, which stands for Lower Anchors and
Tethers for CHildren. The LATCH system has three vehicle
anchor points for installing LATCH-equipped child seats.
There are two lower anchorages located at the back of the seat
cushion where it meets the seatback and one top tether
anchorage located behind the seating position. These anchor-
ages are used to install LATCH-equipped child seats without
using the vehicle’s seat belts. Some seating positions may have
a top tether anchorage but no lower anchorages. In theseseating positions, the seat belt must be used with the top tether
anchorage to install the child restraint. Please see the following
table for more information.
LATCH Positions For Installing Child Restraints In
This Vehicle
LATCH Label
60/40 Second Row LATCH Positions (5 Passenger)
Lower Anchorage Symbol (2 Anchorages Per Seating Position)Top Tether Anchorage Symbol
5
SAFETY 229

Frequently Asked Questions About Installing Child Restraints With LATCH
What is the weight limit (child’s weight +
weight of the child restraint) for using the LATCH anchorage system to attach the child restraint? 65 lbs
(29.5 kg) Use the LATCH anchorage system until the combined
weight of the child and the child restraint is 65 lbs
(29.5 kg). Use the seat belt and tether anchor instead of the LATCH system once the combined weight is more than 65 lbs (29.5 kg).

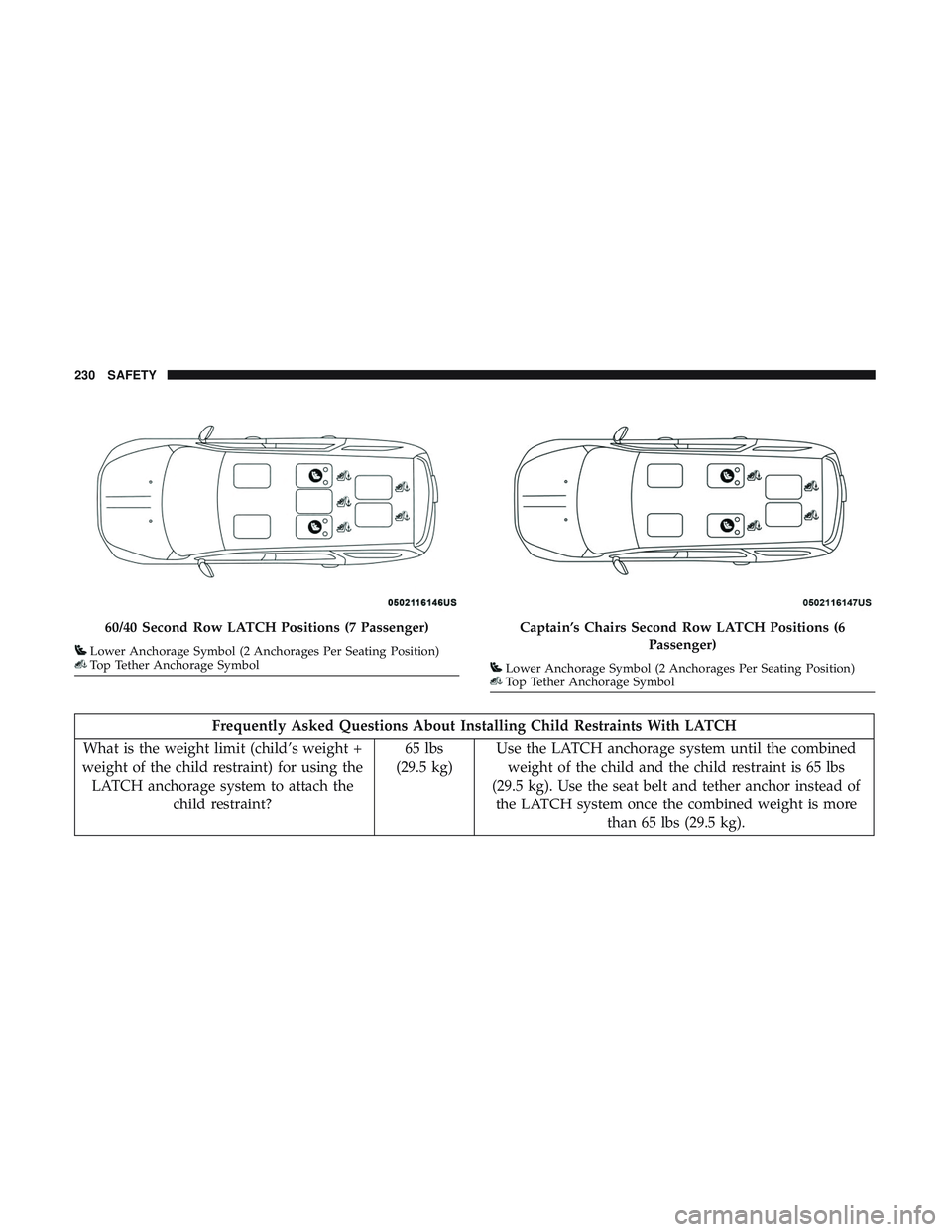

60/40 Second Row LATCH Positions (7 Passenger)
Lower Anchorage Symbol (2 Anchorages Per Seating Position)Top Tether Anchorage Symbol
Captain’s Chairs Second Row LATCH Positions (6
Passenger)
Lower Anchorage Symbol (2 Anchorages Per Seating Position)Top Tether Anchorage Symbol
230 SAFETY

Frequently Asked Questions About Installing Child Restraints With LATCH
Can the LATCH anchorages and the seat belt be used together to attach a rear-
facing or forward-facing child restraint? No Do not use the seat belt when you use the LATCH an-
chorage system to attach a rear-facing or forward-facing child restraint.
Booster seats may be attached to the LATCH anchorages if allowed by the booster seat manufacturer. See yourbooster seat owner ’s manual for more information.
Can a child seat be installed in the center position using the inner LATCH lower anchorages? No – 5 Pas-
senger
N/A — 6
Passenger No—7
Passenger 7 and 5 Passenger: Use the seat belt and tether anchor to
install a child seat in the center seating position.
Can two child restraints be attached using a common lower LATCH anchorage? No Never “share” a LATCH anchorage with two or more
child restraints. If the center position does not have dedi-cated LATCH lower anchorages, use the seat belt to in-
stall a child seat in the center position next to a child seat using the LATCH anchorages in an outboard position.
Can the rear-facing child restraint touch the back of the front passenger seat? Yes The child seat may touch the back of the front passenger
seat if the child restraint manufacturer also allows con-tact. See your child restraint owner ’s manual for more information.
5
SAFETY 231

Frequently Asked Questions About Installing Child Restraints With LATCH

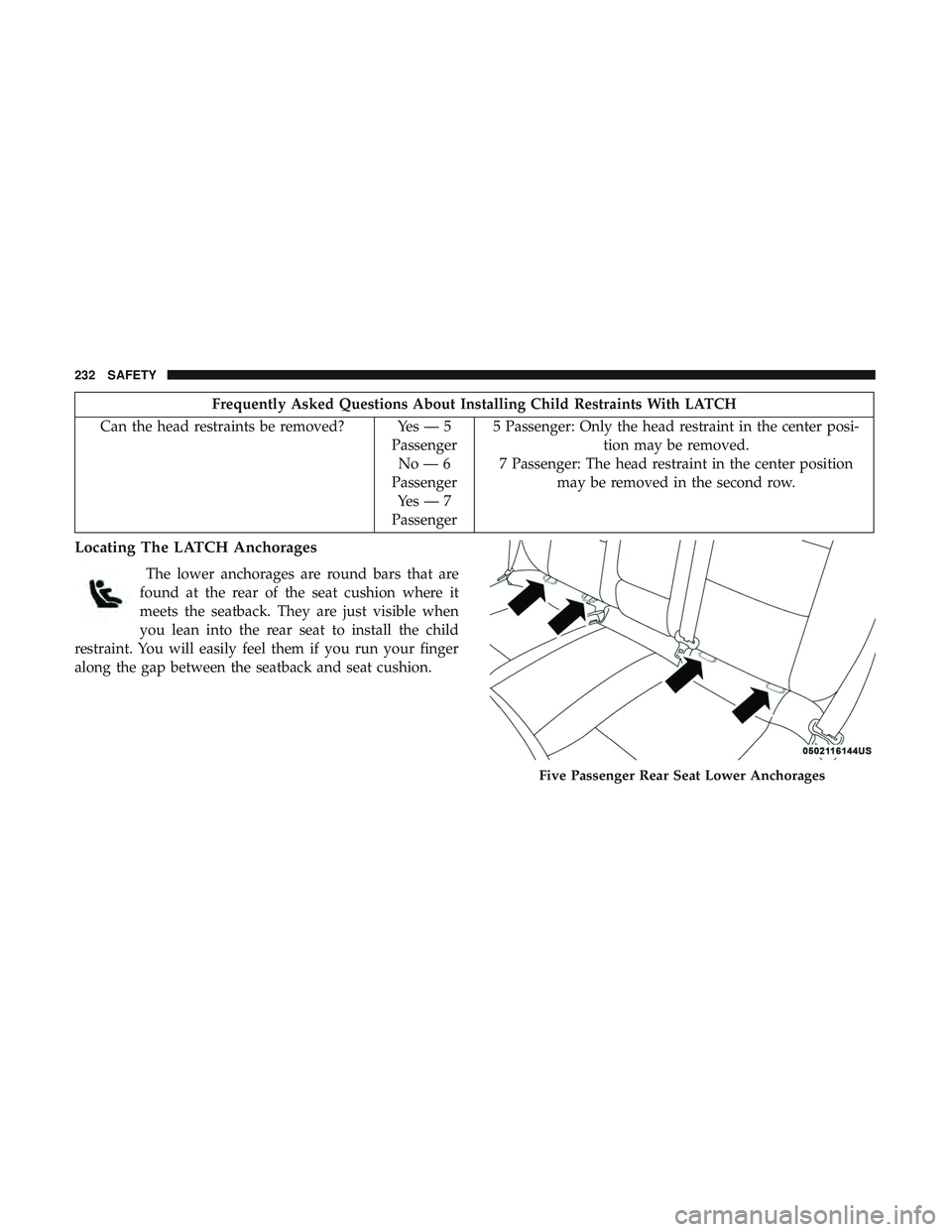

Can the head restraints be removed? Yes — 5 PassengerNo—6
Passenger Yes—7
Passenger 5 Passenger: Only the head restraint in the center posi-
tion may be removed.
7 Passenger: The head restraint in the center position may be removed in the second row.
Locating The LATCH Anchorages
The lower anchorages are round bars that are
found at the rear of the seat cushion where it
meets the seatback. They are just visible when
you lean into the rear seat to install the child
restraint. You will easily feel them if you run your finger
along the gap between the seatback and seat cushion.
Five Passenger Rear Seat Lower Anchorages
232 SAFETY

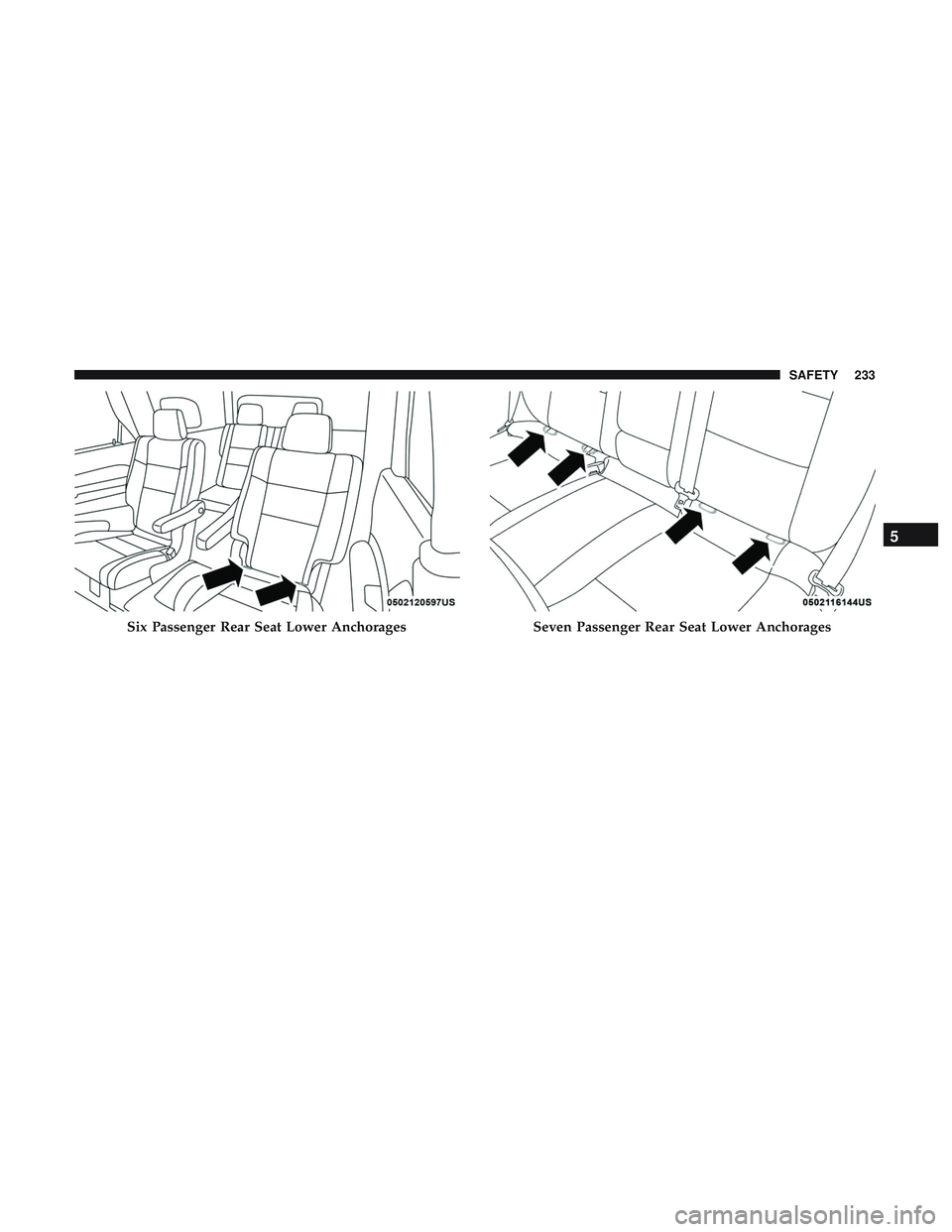

Six Passenger Rear Seat Lower AnchoragesSeven Passenger Rear Seat Lower Anchorages
5
SAFETY 233

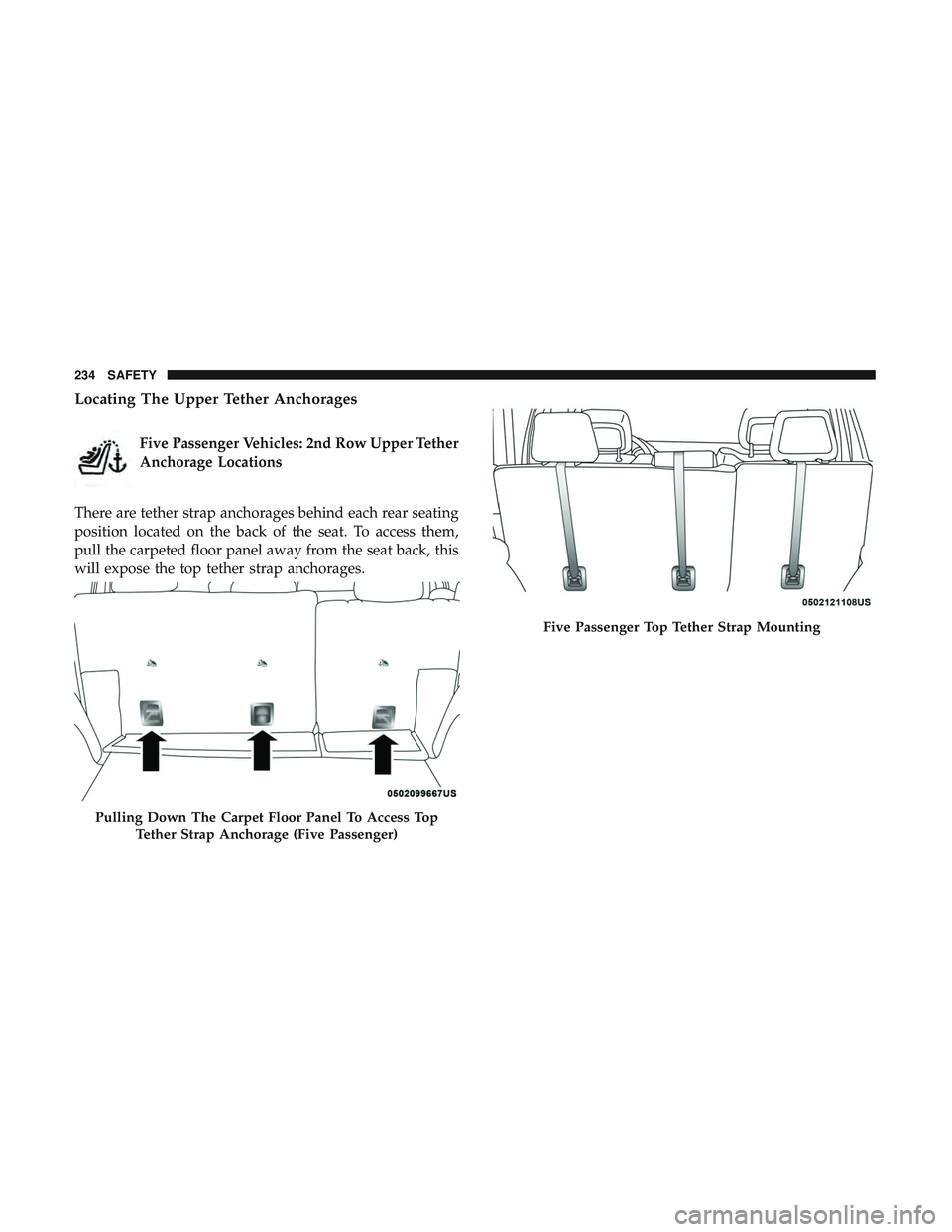

Locating The Upper Tether Anchorages
Five Passenger Vehicles: 2nd Row Upper Tether
Anchorage Locations
There are tether strap anchorages behind each rear seating
position located on the back of the seat. To access them,
pull the carpeted floor panel away from the seat back, this
will expose the top tether strap anchorages.
Pulling Down The Carpet Floor Panel To Access Top Tether Strap Anchorage (Five Passenger)
Five Passenger Top Tether Strap Mounting
234 SAFETY

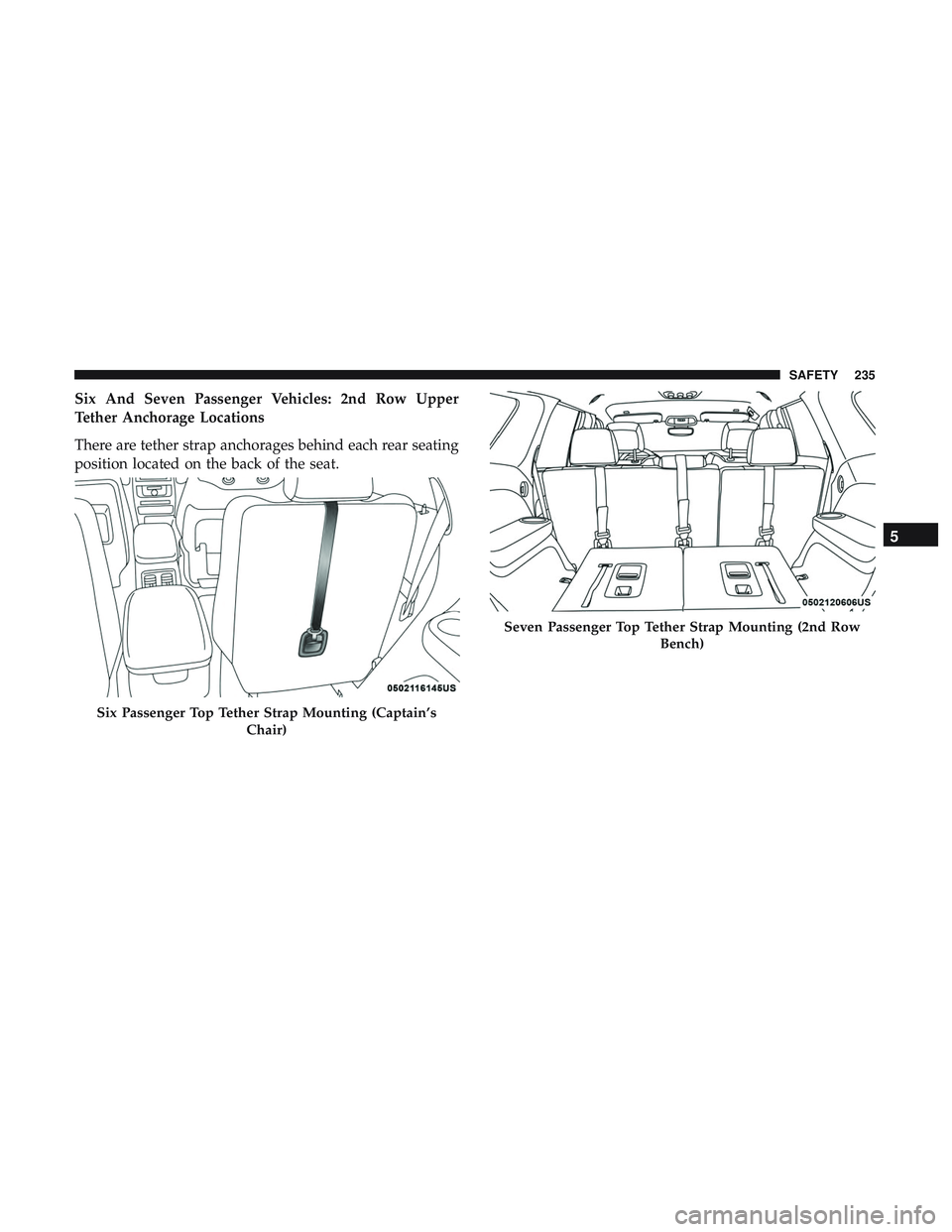

Six And Seven Passenger Vehicles: 2nd Row Upper
Tether Anchorage Locations
There are tether strap anchorages behind each rear seating
position located on the back of the seat.
Six Passenger Top Tether Strap Mounting (Captain’sChair)
Seven Passenger Top Tether Strap Mounting (2nd Row Bench)
5
SAFETY 235

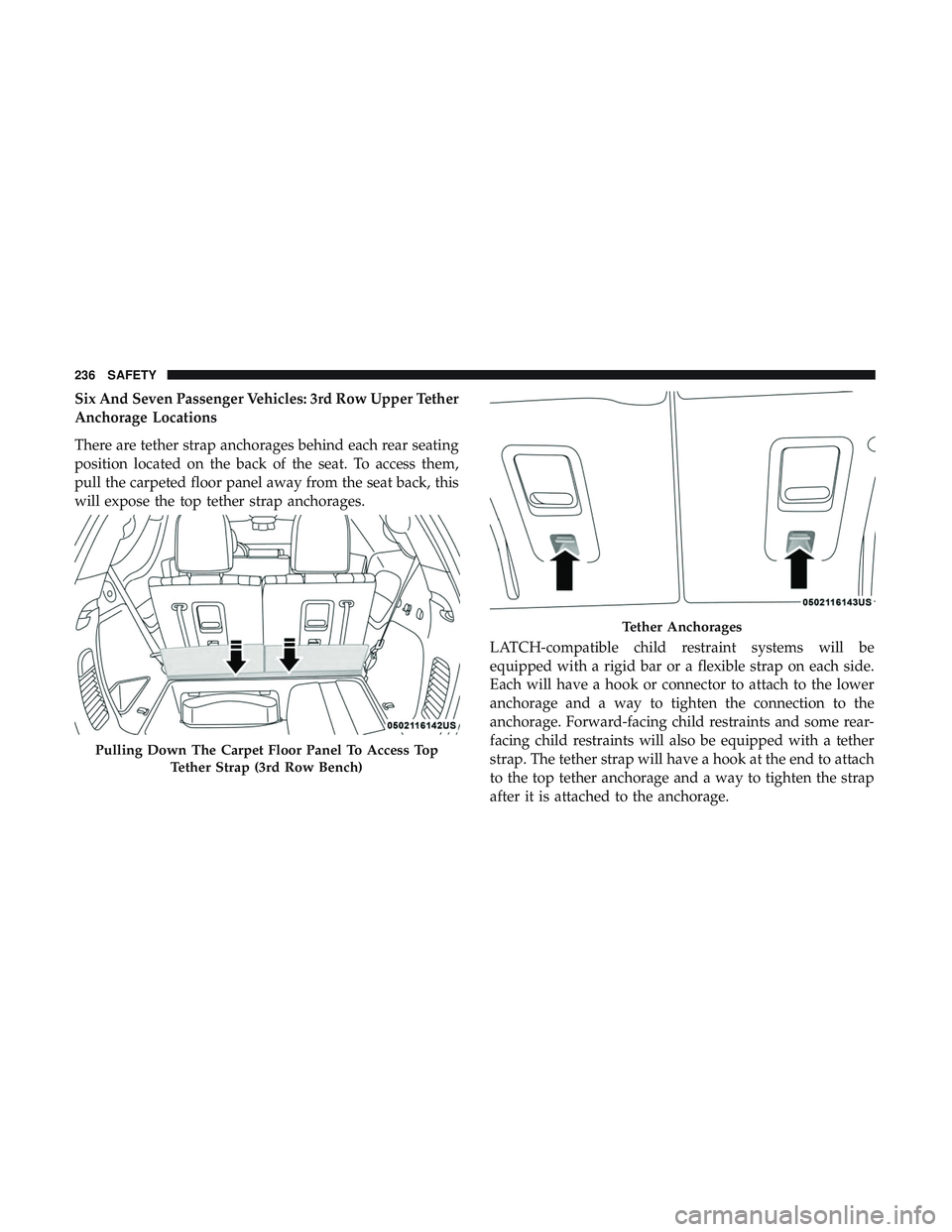

Six And Seven Passenger Vehicles: 3rd Row Upper Tether
Anchorage Locations
There are tether strap anchorages behind each rear seating
position located on the back of the seat. To access them,
pull the carpeted floor panel away from the seat back, this
will expose the top tether strap anchorages.LATCH-compatible child restraint systems will be
equipped with a rigid bar or a flexible strap on each side.
Each will have a hook or connector to attach to the lower
anchorage and a way to tighten the connection to the
anchorage. Forward-facing child restraints and some rear-
facing child restraints will also be equipped with a tether
strap. The tether strap will have a hook at the end to attach
to the top tether anchorage and a way to tighten the strap
after it is attached to the anchorage.
Pulling Down The Carpet Floor Panel To Access TopTether Strap (3rd Row Bench)
Tether Anchorages
236 SAFETY

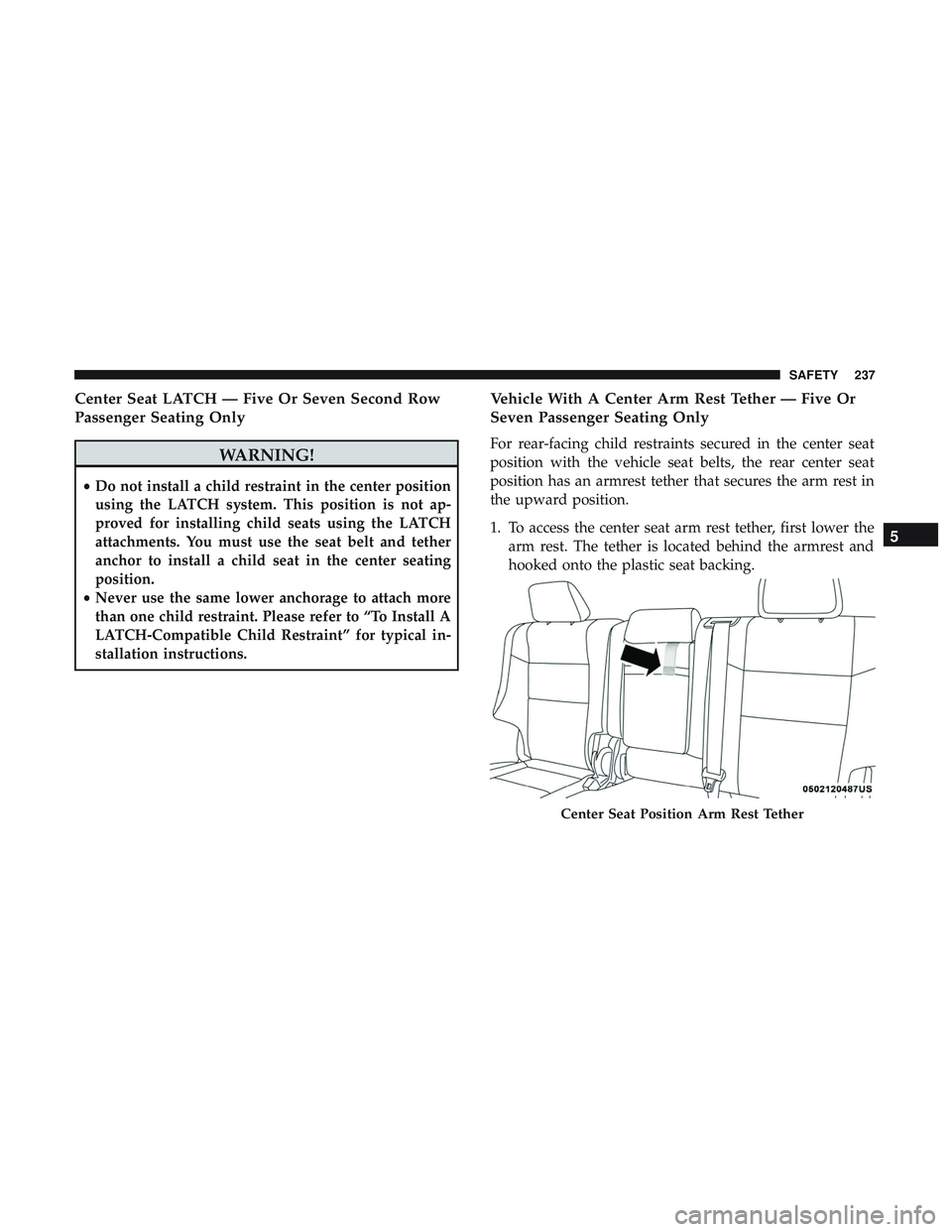

Center Seat LATCH — Five Or Seven Second Row
Passenger Seating Only
WARNING!
•Do not install a child restraint in the center position
using the LATCH system. This position is not ap-
proved for installing child seats using the LATCH
attachments. You must use the seat belt and tether
anchor to install a child seat in the center seating
position.
• Never use the same lower anchorage to attach more
than one child restraint. Please refer to “To Install A
LATCH-Compatible Child Restraint” for typical in-
stallation instructions.
Vehicle With A Center Arm Rest Tether — Five Or
Seven Passenger Seating Only
For rear-facing child restraints secured in the center seat
position with the vehicle seat belts, the rear center seat
position has an armrest tether that secures the arm rest in
the upward position.
1. To access the center seat arm rest tether, first lower the
arm rest. The tether is located behind the armrest and
hooked onto the plastic seat backing.
Center Seat Position Arm Rest Tether
5
SAFETY 237

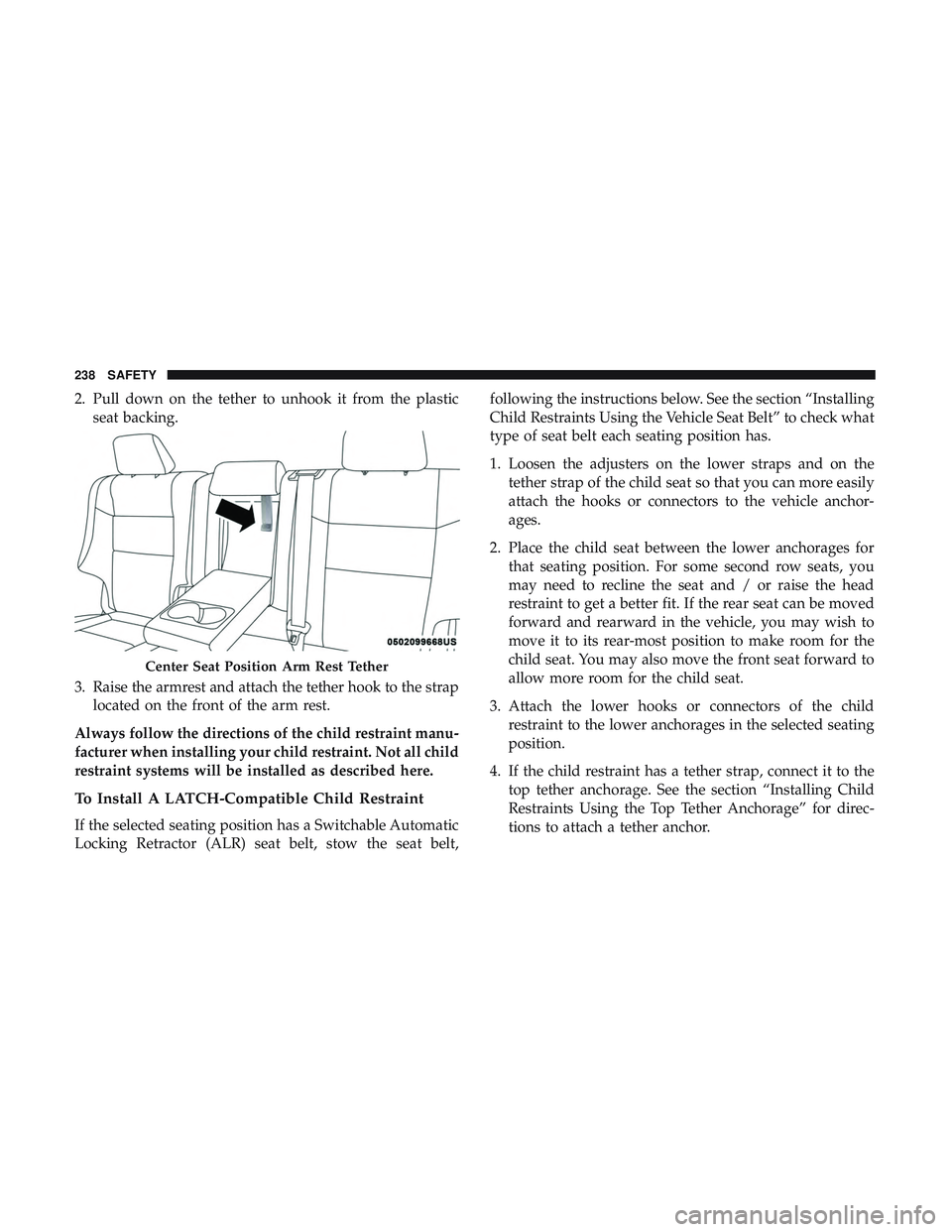

2. Pull down on the tether to unhook it from the plasticseat backing.
3. Raise the armrest and attach the tether hook to the strap located on the front of the arm rest.
Always follow the directions of the child restraint manu-
facturer when installing your child restraint. Not all child
restraint systems will be installed as described here.
To Install A LATCH-Compatible Child Restraint
If the selected seating position has a Switchable Automatic
Locking Retractor (ALR) seat belt, stow the seat belt, following the instructions below. See the section “Installing
Child Restraints Using the Vehicle Seat Belt” to check what
type of seat belt each seating position has.
1. Loosen the adjusters on the lower straps and on the
tether strap of the child seat so that you can more easily
attach the hooks or connectors to the vehicle anchor-
ages.
2. Place the child seat between the lower anchorages for that seating position. For some second row seats, you
may need to recline the seat and / or raise the head
restraint to get a better fit. If the rear seat can be moved
forward and rearward in the vehicle, you may wish to
move it to its rear-most position to make room for the
child seat. You may also move the front seat forward to
allow more room for the child seat.
3. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the selected seating
position.
4. If the child restraint has a tether strap, connect it to the top tether anchorage. See the section “Installing Child
Restraints Using the Top Tether Anchorage” for direc-
tions to attach a tether anchor.
Center Seat Position Arm Rest Tether
