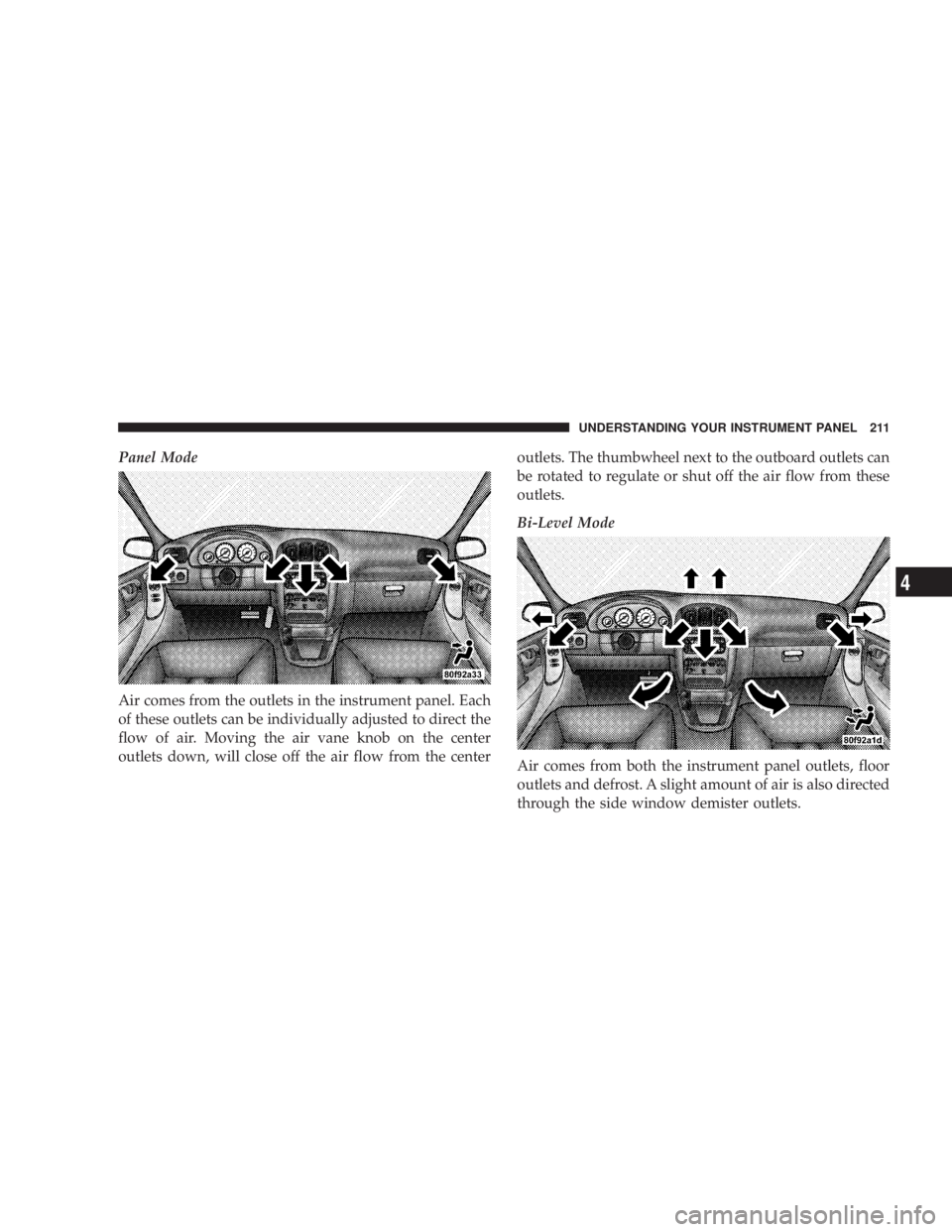

Panel Mode
Air comes from the outlets in the instrument panel. Each
of these outlets can be individually adjusted to direct the
flow of air. Moving the air vane knob on the center
outlets down, will close off the air flow from the center outlets. The thumbwheel next to the outboard outlets can
be rotated to regulate or shut off the air flow from these
outlets.
Bi-Level Mode
Air comes from both the instrument panel outlets, floor
outlets and defrost. A slight amount of air is also directed
through the side window demister outlets. UNDERSTANDING YOUR INSTRUMENT PANEL 211
4
Page 212 of 397

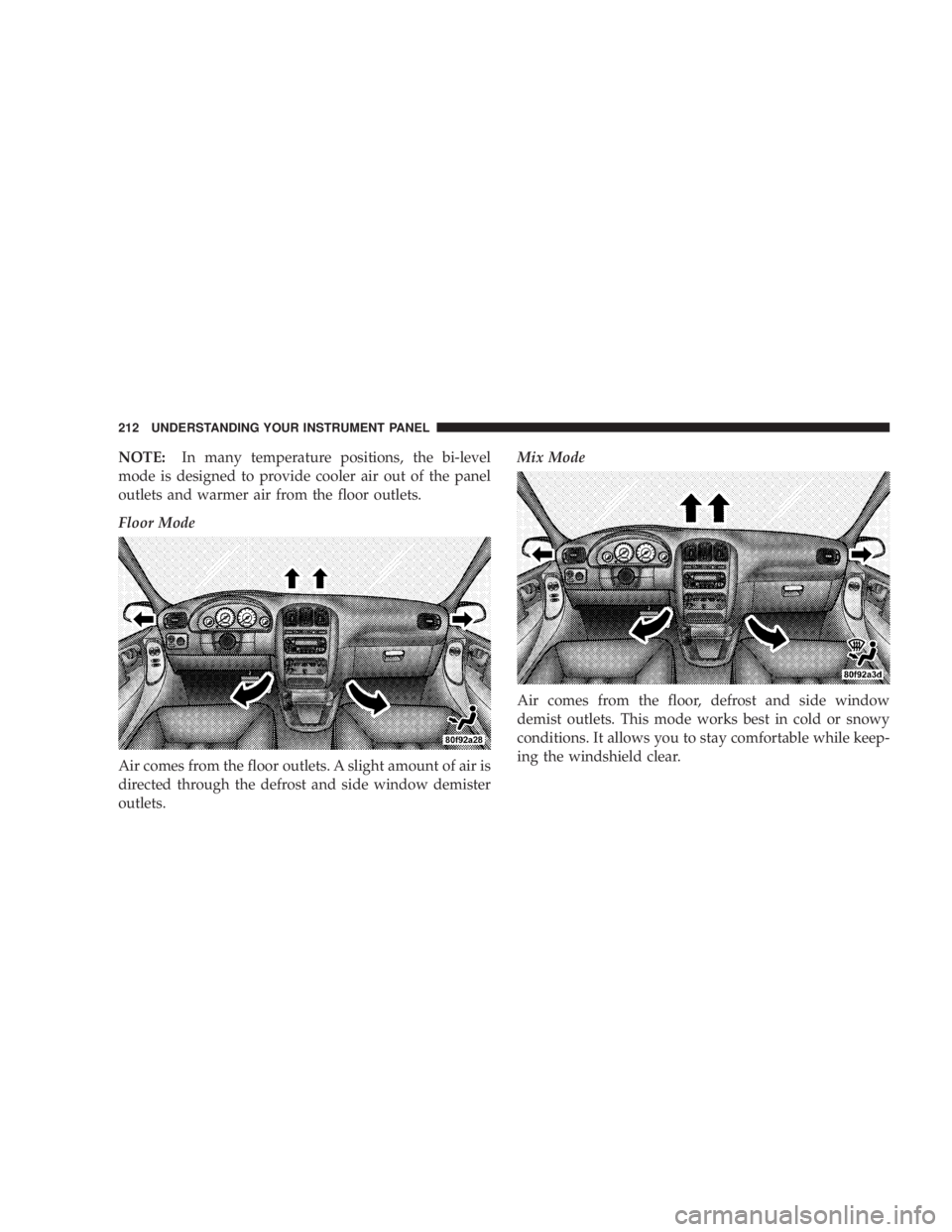

NOTE: In many temperature positions, the bi-level
mode is designed to provide cooler air out of the panel
outlets and warmer air from the floor outlets.
Floor Mode
Air comes from the floor outlets. A slight amount of air is
directed through the defrost and side window demister
outlets. Mix Mode
Air comes from the floor, defrost and side window
demist outlets. This mode works best in cold or snowy
conditions. It allows you to stay comfortable while keep-
ing the windshield clear.212 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 213 of 397

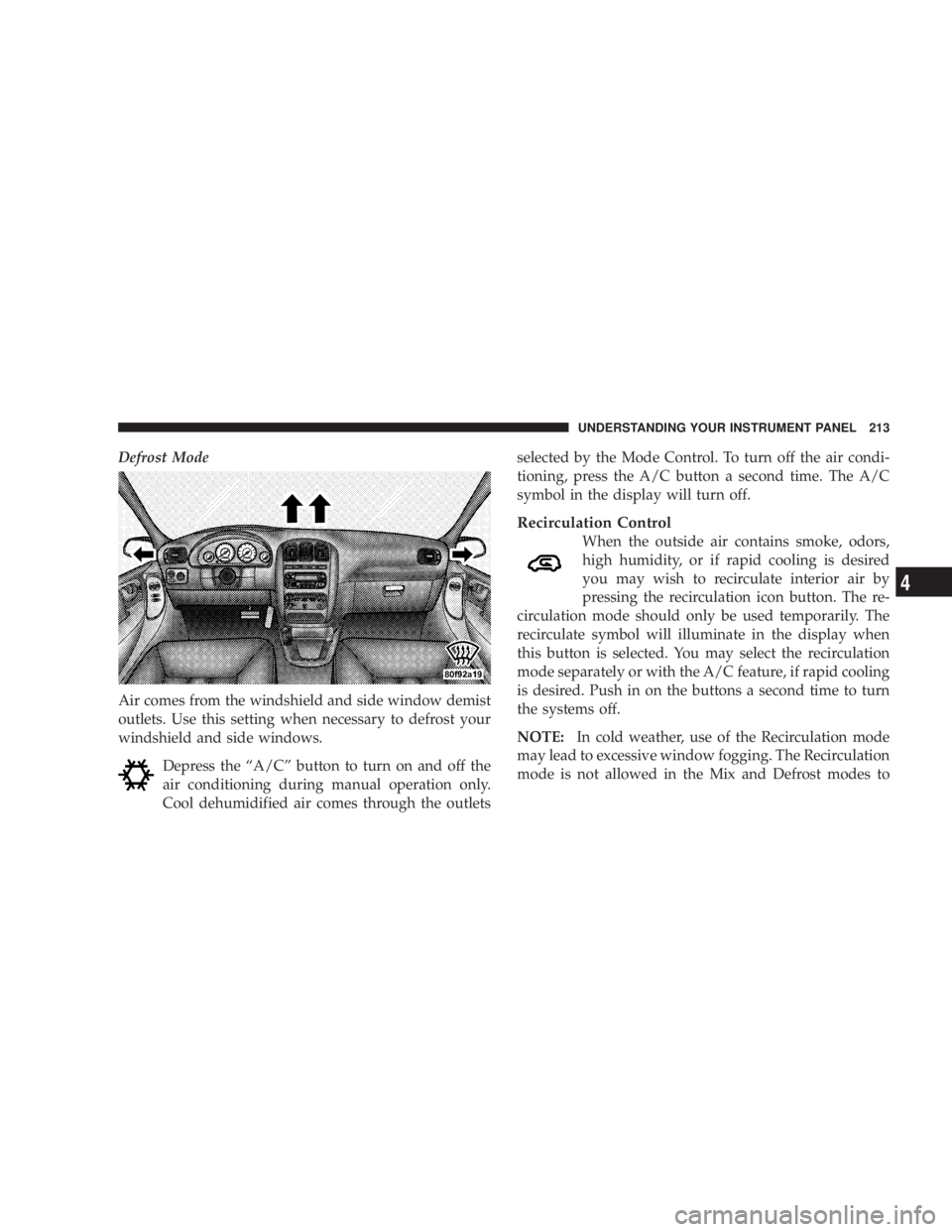

Defrost Mode
Air comes from the windshield and side window demist
outlets. Use this setting when necessary to defrost your
windshield and side windows.
Depress the ªA/Cº button to turn on and off the
air conditioning during manual operation only.
Cool dehumidified air comes through the outlets selected by the Mode Control. To turn off the air condi-
tioning, press the A/C button a second time. The A/C
symbol in the display will turn off.
Recirculation Control
When the outside air contains smoke, odors,
high humidity, or if rapid cooling is desired
you may wish to recirculate interior air by
pressing the recirculation icon button. The re-
circulation mode should only be used temporarily. The
recirculate symbol will illuminate in the display when
this button is selected. You may select the recirculation
mode separately or with the A/C feature, if rapid cooling
is desired. Push in on the buttons a second time to turn
the systems off.
NOTE: In cold weather, use of the Recirculation mode
may lead to excessive window fogging. The Recirculation
mode is not allowed in the Mix and Defrost modes to UNDERSTANDING YOUR INSTRUMENT PANEL 213
4
Page 214 of 397

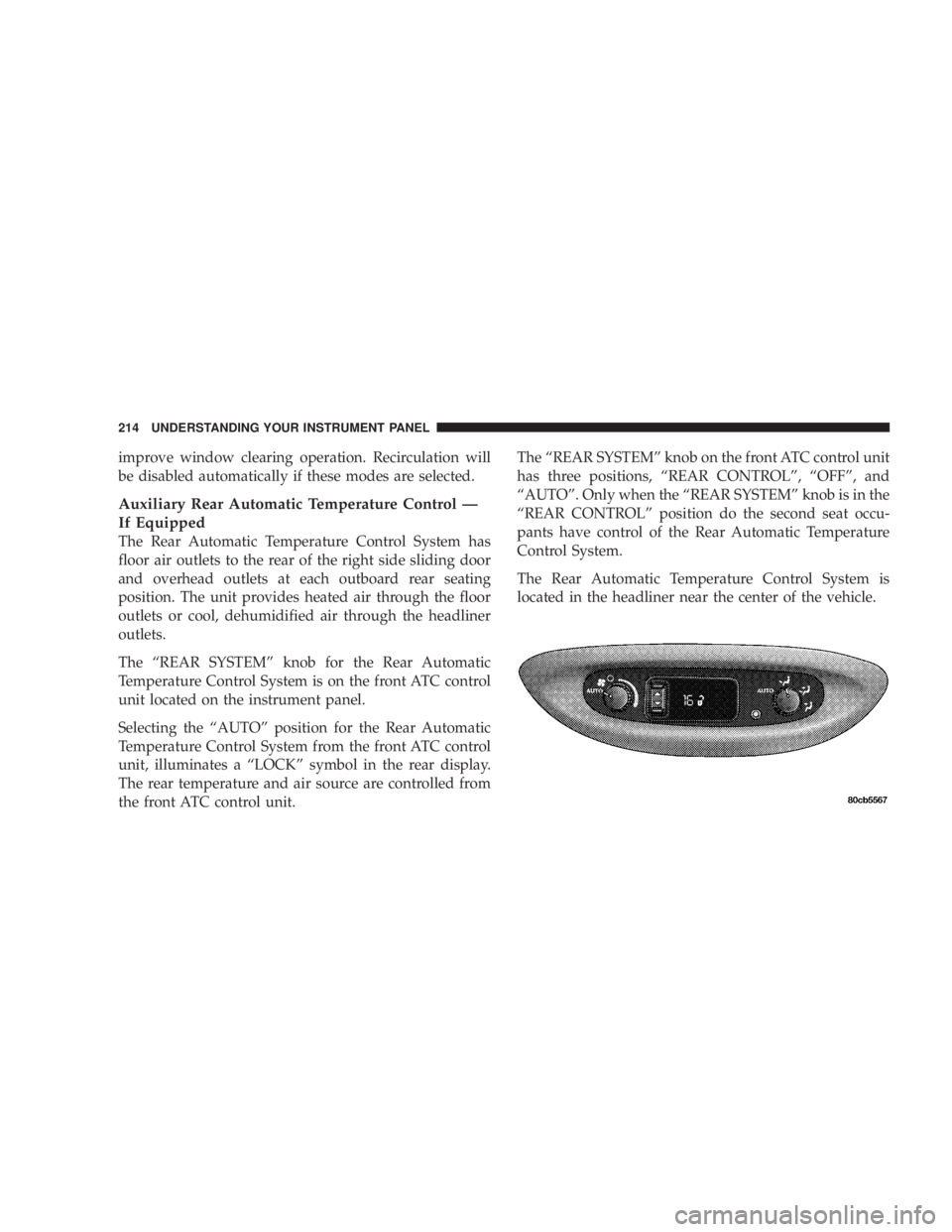

improve window clearing operation. Recirculation will
be disabled automatically if these modes are selected.
Auxiliary Rear Automatic Temperature Control Ð
If Equipped
The Rear Automatic Temperature Control System has
floor air outlets to the rear of the right side sliding door
and overhead outlets at each outboard rear seating
position. The unit provides heated air through the floor
outlets or cool, dehumidified air through the headliner
outlets.
The ªREAR SYSTEMº knob for the Rear Automatic
Temperature Control System is on the front ATC control
unit located on the instrument panel.
Selecting the ªAUTOº position for the Rear Automatic
Temperature Control System from the front ATC control
unit, illuminates a ªLOCKº symbol in the rear display.
The rear temperature and air source are controlled from
the front ATC control unit. The ªREAR SYSTEMº knob on the front ATC control unit
has three positions, ªREAR CONTROLº, ªOFFº, and
ªAUTOº. Only when the ªREAR SYSTEMº knob is in the
ªREAR CONTROLº position do the second seat occu-
pants have control of the Rear Automatic Temperature
Control System.
The Rear Automatic Temperature Control System is
located in the headliner near the center of the vehicle.214 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 215 of 397

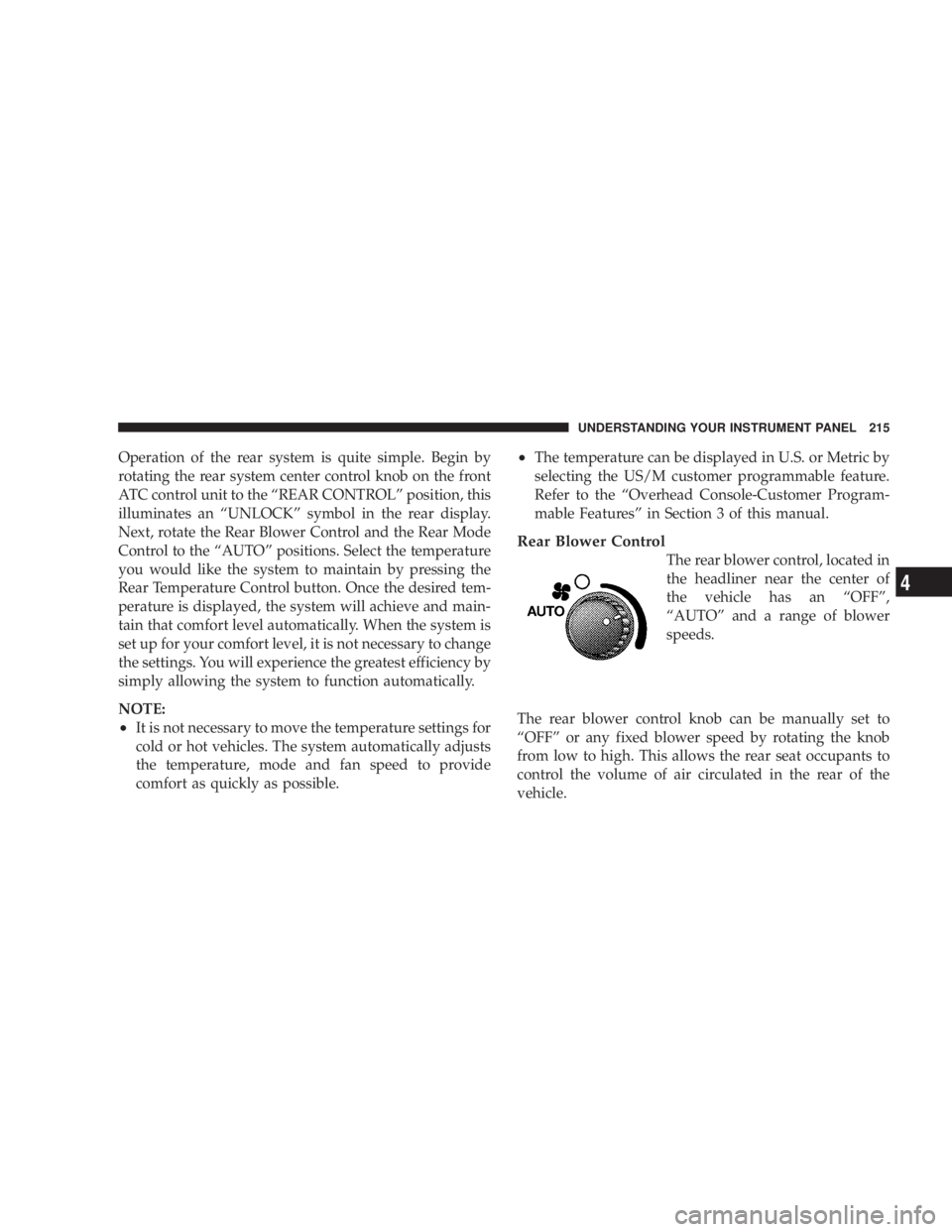

Operation of the rear system is quite simple. Begin by
rotating the rear system center control knob on the front
ATC control unit to the ªREAR CONTROLº position, this
illuminates an ªUNLOCKº symbol in the rear display.
Next, rotate the Rear Blower Control and the Rear Mode
Control to the ªAUTOº positions. Select the temperature
you would like the system to maintain by pressing the
Rear Temperature Control button. Once the desired tem-
perature is displayed, the system will achieve and main-
tain that comfort level automatically. When the system is
set up for your comfort level, it is not necessary to change
the settings. You will experience the greatest efficiency by
simply allowing the system to function automatically.
NOTE:
² It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode and fan speed to provide
comfort as quickly as possible. ² The temperature can be displayed in U.S. or Metric by
selecting the US/M customer programmable feature.
Refer to the ªOverhead Console-Customer Program-
mable Featuresº in Section 3 of this manual.
Rear Blower Control
The rear blower control, located in
the headliner near the center of
the vehicle has an ªOFFº,
ªAUTOº and a range of blower
speeds.
The rear blower control knob can be manually set to
ªOFFº or any fixed blower speed by rotating the knob
from low to high. This allows the rear seat occupants to
control the volume of air circulated in the rear of the
vehicle. UNDERSTANDING YOUR INSTRUMENT PANEL 215
4
Page 216 of 397

CAUTION!Interior air enters the Rear Automatic Temperature
Control System through an intake grille located in
the passenger side trim panel behind the third seat.
The heater outlets are located in the passenger side
trim panel just behind the sliding door. Do not block
or place objects directly in front of the inlet grille or
heater outlets. The electrical system could overload
causing damage to the blower motor.
Rear Temperature Control
To change the temperature in the rear of the vehicle, press
the temperature control button down for cold and up for
heated air. Rear Mode Control
The Rear Mode Control, located in
the headliner near the center of
the vehicle can be used to select
between Auto, Headliner, Bi-
Level and Floor modes.
Auto Mode
The rear system automatically maintains the correct
mode and comfort level desired by the rear seat occu-
pants.
Floor Mode
Air comes from the floor outlets.216 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 217 of 397

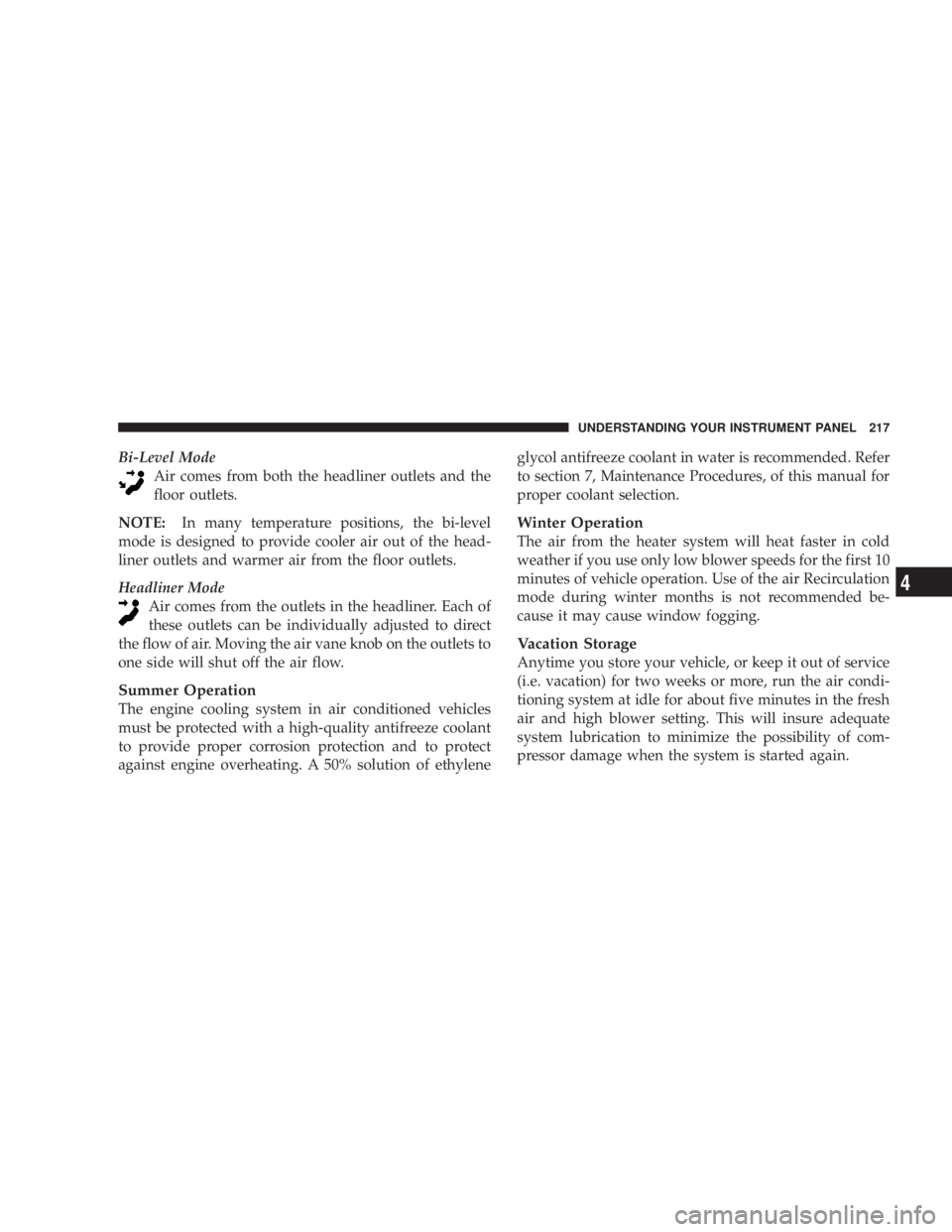

Bi-Level Mode
Air comes from both the headliner outlets and the
floor outlets.
NOTE: In many temperature positions, the bi-level
mode is designed to provide cooler air out of the head-
liner outlets and warmer air from the floor outlets.
Headliner Mode
Air comes from the outlets in the headliner. Each of
these outlets can be individually adjusted to direct
the flow of air. Moving the air vane knob on the outlets to
one side will shut off the air flow.
Summer Operation
The engine cooling system in air conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A 50% solution of ethylene glycol antifreeze coolant in water is recommended. Refer
to section 7, Maintenance Procedures, of this manual for
proper coolant selection.
Winter Operation
The air from the heater system will heat faster in cold
weather if you use only low blower speeds for the first 10
minutes of vehicle operation. Use of the air Recirculation
mode during winter months is not recommended be-
cause it may cause window fogging.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e. vacation) for two weeks or more, run the air condi-
tioning system at idle for about five minutes in the fresh
air and high blower setting. This will insure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again. UNDERSTANDING YOUR INSTRUMENT PANEL 217
4
Page 218 of 397

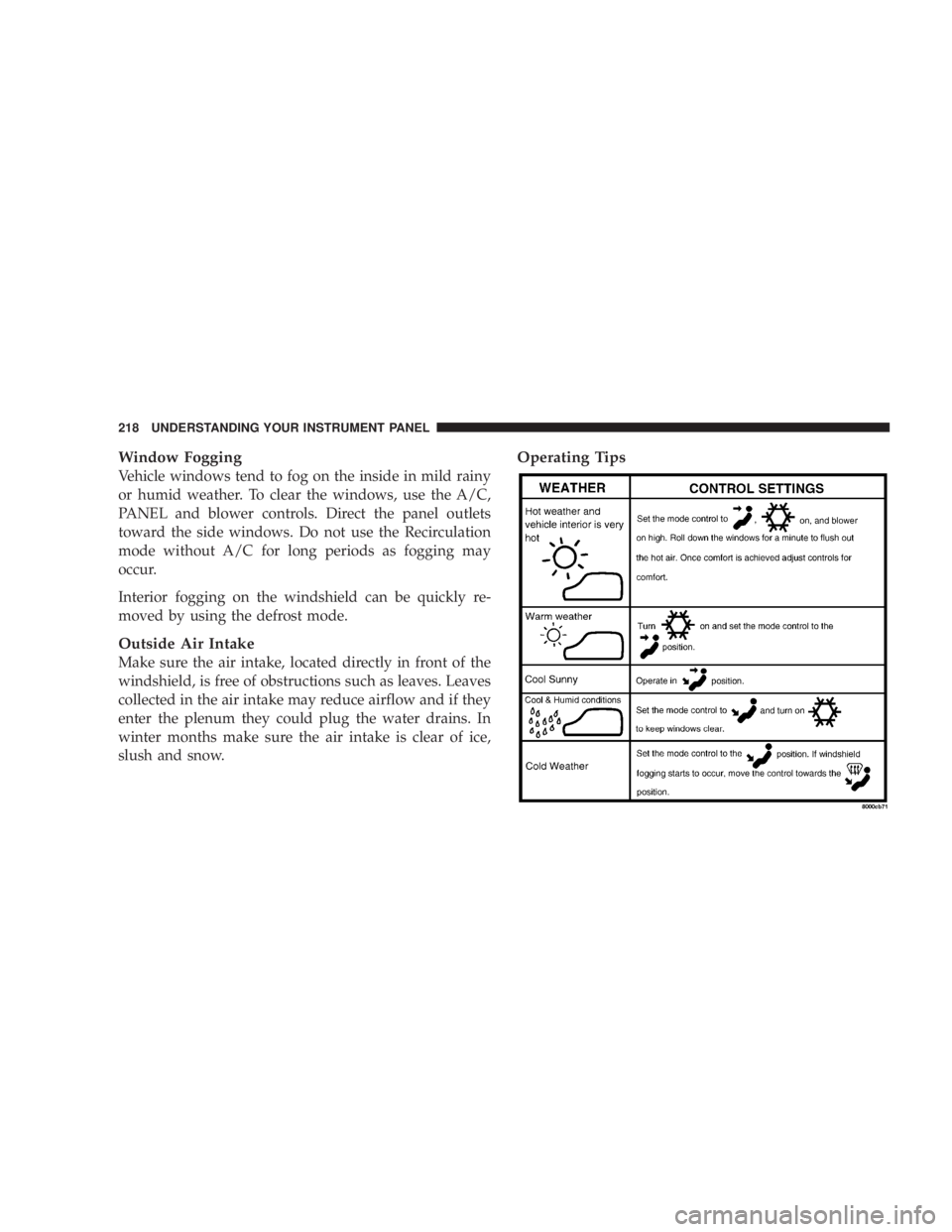

Window Fogging
Vehicle windows tend to fog on the inside in mild rainy
or humid weather. To clear the windows, use the A/C,
PANEL and blower controls. Direct the panel outlets
toward the side windows. Do not use the Recirculation
mode without A/C for long periods as fogging may
occur.
Interior fogging on the windshield can be quickly re-
moved by using the defrost mode.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow and if they
enter the plenum they could plug the water drains. In
winter months make sure the air intake is clear of ice,
slush and snow. Operating Tips218 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 219 of 397

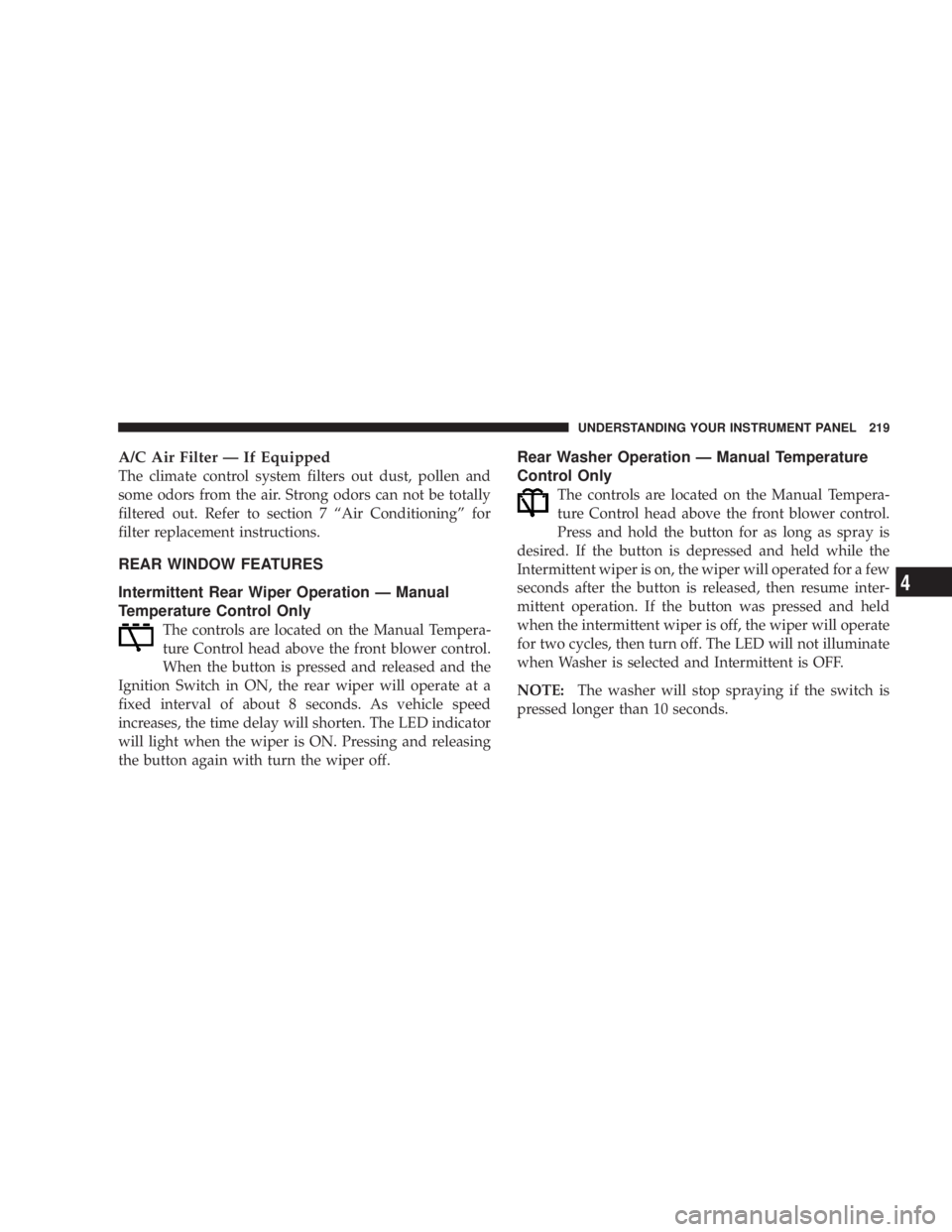

A/C Air Filter Ð If Equipped
The climate control system filters out dust, pollen and
some odors from the air. Strong odors can not be totally
filtered out. Refer to section 7 ªAir Conditioningº for
filter replacement instructions.
REAR WINDOW FEATURES
Intermittent Rear Wiper Operation Ð Manual
Temperature Control Only
The controls are located on the Manual Tempera-
ture Control head above the front blower control.
When the button is pressed and released and the
Ignition Switch in ON, the rear wiper will operate at a
fixed interval of about 8 seconds. As vehicle speed
increases, the time delay will shorten. The LED indicator
will light when the wiper is ON. Pressing and releasing
the button again with turn the wiper off. Rear Washer Operation Ð Manual Temperature
Control Only
The controls are located on the Manual Tempera-
ture Control head above the front blower control.
Press and hold the button for as long as spray is
desired. If the button is depressed and held while the
Intermittent wiper is on, the wiper will operated for a few
seconds after the button is released, then resume inter-
mittent operation. If the button was pressed and held
when the intermittent wiper is off, the wiper will operate
for two cycles, then turn off. The LED will not illuminate
when Washer is selected and Intermittent is OFF.
NOTE: The washer will stop spraying if the switch is
pressed longer than 10 seconds. UNDERSTANDING YOUR INSTRUMENT PANEL 219
4
Page 220 of 397

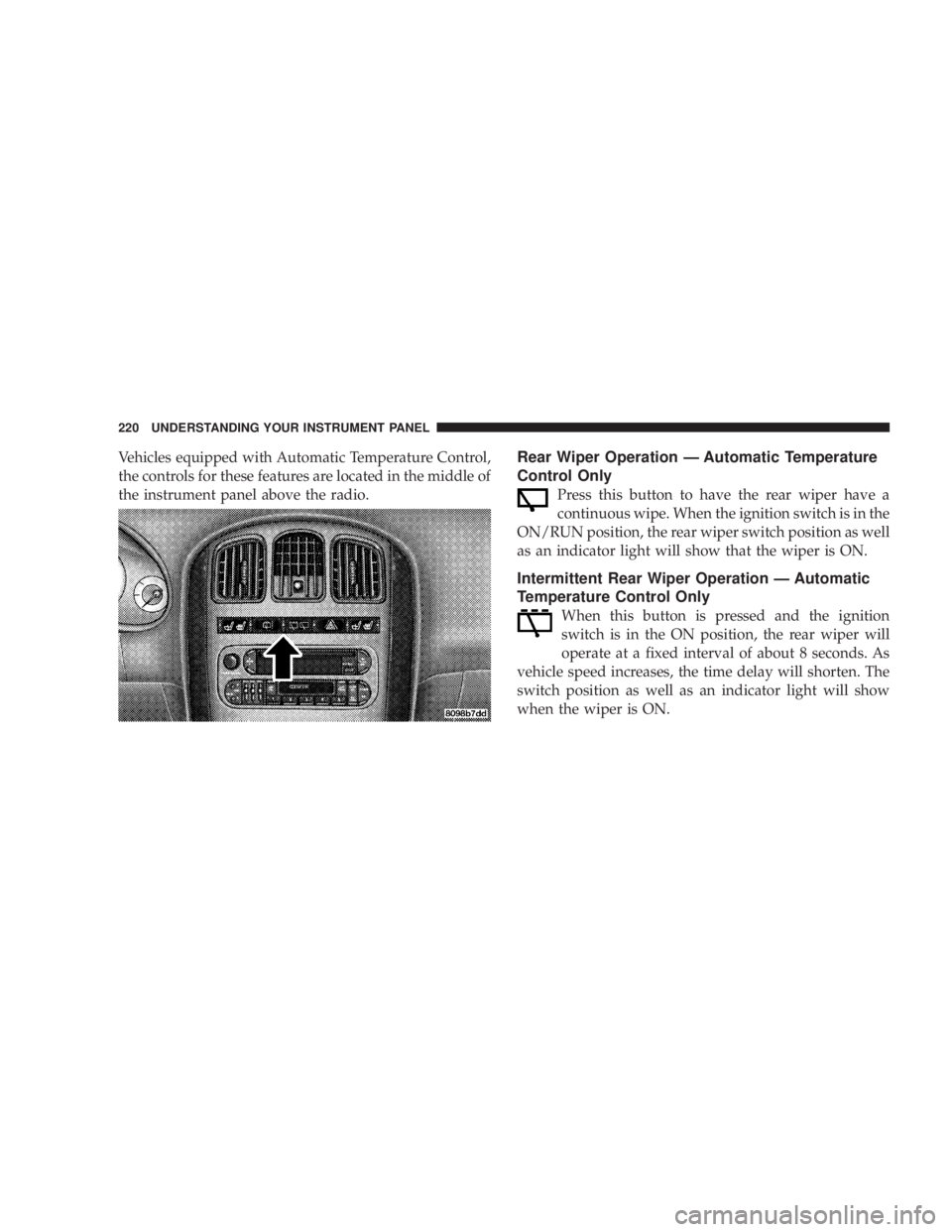

Vehicles equipped with Automatic Temperature Control,
the controls for these features are located in the middle of
the instrument panel above the radio. Rear Wiper Operation Ð Automatic Temperature
Control Only
Press this button to have the rear wiper have a
continuous wipe. When the ignition switch is in the
ON/RUN position, the rear wiper switch position as well
as an indicator light will show that the wiper is ON.
Intermittent Rear Wiper Operation Ð Automatic
Temperature Control Only
When this button is pressed and the ignition
switch is in the ON position, the rear wiper will
operate at a fixed interval of about 8 seconds. As
vehicle speed increases, the time delay will shorten. The
switch position as well as an indicator light will show
when the wiper is ON.220 UNDERSTANDING YOUR INSTRUMENT PANEL
