DODGE GRAND CARAVAN 2005 Owners Manual

To use the washer, press the end of the multifunction
lever in when spray is desired, the washers will spray for
a maximum of 20 seconds or until the lever is released. If
another washer cycle is desired the end of the lever must
be pressed again to get another 20 second washer cycle. If
the lever is depressed while in the delay range, the
wipers will operate for several seconds after the lever is
released, and then resume the intermittent interval pre-
viously selected.
If the end of the lever is depressed while in the OFF
position, the wipers will operate for approximately two
wipe cycles, then turn OFF. WARNING! Sudden loss of visibility through the windshield could
lead to an accident. You might not see other vehicles or
other obstacles. To avoid sudden icing of the windshield
during freezing weather, warm the windshield with de-
froster before and during windshield washer use.
Intermittent Wiper System
Use the intermittent wipers when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable.
Rotate the end of the lever to the first detent position,
then turn the end of the lever to select the desired delay
interval. The delay can be regulated from a maximum of
about 20 seconds between cycles, to a cycle every 2
seconds. The time delay will be doubled if the vehicle
speed is less than 10 mph (16 km/h). UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

TILT STEERING COLUMN — IF EQUIPPED
To tilt the column, pull the small lever, located behind the
turn signal control, toward you and move the wheel up
or down, as desired. Release the lever to lock the wheel
firmly in place.
WARNING!Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.
Tilt Steering Column Control142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

TRACTION CONTROL SWITCH — IF EQUIPPED
The TRAC indicator, located below the instrument cluster
odometer, will light up when the Traction Control is in use.
To turn the system OFF, press the TRAC OFF switch located
on the steering column, until the TRAC OFF indicator below
the instrument cluster odometer lights up. To turn the system back ON, press the switch a second
time until the TRAC OFF indicator turns OFF.
NOTE:
• The Traction Control System indicator comes on each
time the ignition switch is turned ON. This will occur
even if you used the switch to turn the system OFF.
• The Traction Control will make buzzing or clicking
sounds when in operation.
Traction Control Switch UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

REAR PARK ASSIST SYSTEM — IF EQUIPPED
This system is used to help drivers determine if an
obstacle is in the way of the vehicle while it is backing up
in addition to the use of inside rearview and outside
mirrors.
When the driver selects Reverse the system scans for
objects behind the vehicle using four sensors located in
the rear bumper. Objects can be detected from up to 71
inches (180 cm). A warning display above the rear
window provides both visible and audible warnings
indicating the range of the object. Rear Park Assist Indicator144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

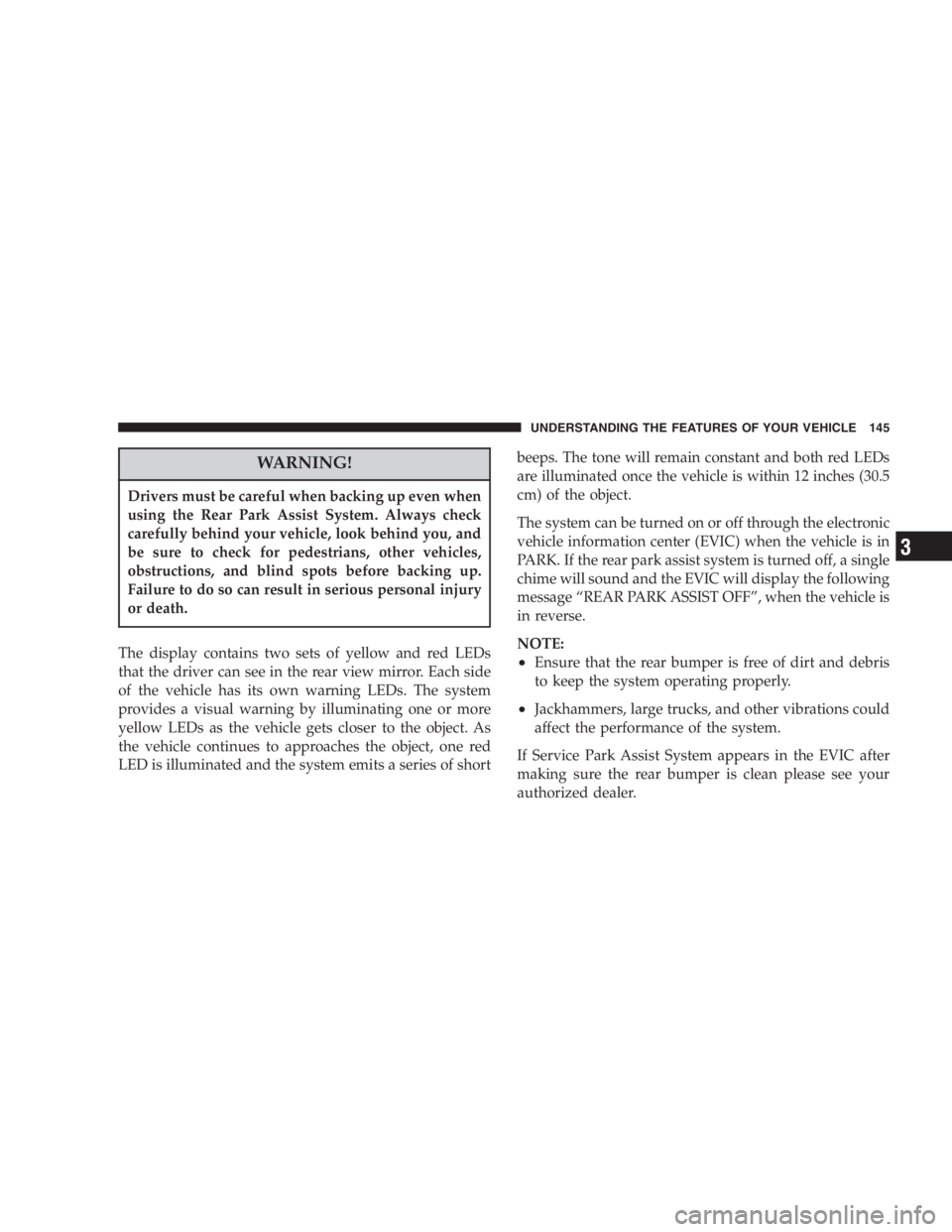

WARNING!Drivers must be careful when backing up even when
using the Rear Park Assist System. Always check
carefully behind your vehicle, look behind you, and
be sure to check for pedestrians, other vehicles,
obstructions, and blind spots before backing up.
Failure to do so can result in serious personal injury
or death.
The display contains two sets of yellow and red LEDs
that the driver can see in the rear view mirror. Each side
of the vehicle has its own warning LEDs. The system
provides a visual warning by illuminating one or more
yellow LEDs as the vehicle gets closer to the object. As
the vehicle continues to approaches the object, one red
LED is illuminated and the system emits a series of short beeps. The tone will remain constant and both red LEDs
are illuminated once the vehicle is within 12 inches (30.5
cm) of the object.
The system can be turned on or off through the electronic
vehicle information center (EVIC) when the vehicle is in
PARK. If the rear park assist system is turned off, a single
chime will sound and the EVIC will display the following
message “ REAR PARK ASSIST OFF ” , when the vehicle is
in reverse.
NOTE:
• Ensure that the rear bumper is free of dirt and debris
to keep the system operating properly.
• Jackhammers, large trucks, and other vibrations could
affect the performance of the system.
If Service Park Assist System appears in the EVIC after
making sure the rear bumper is clean please see your
authorized dealer. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

ADJUSTABLE PEDALS — IF EQUIPPED
This feature allows both the brake and accelerator pedals
to move toward or away from the driver to provide
improved position with the steering wheel. The adjust-
able pedal system is designed to allow a greater range of
driver comfort for steering wheel tilt and seat position.
The switch is located on the right side of the steering
column.
Press the button forward to move the pedals forward
(toward the front of the vehicle).
Press the button rearward to move the pedals rearward
(toward the driver).
• The pedals can be adjusted with the ignition OFF. Adjustable Pedal Switch146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• The pedals can be adjusted while driving.
• The pedals cannot be adjusted when the vehicle is in R
(Reverse) or when the Speed Control System is ON.
The following messages will be displayed on vehicles
equipped with the Electronic Vehicle Information Sys-
tem (EVIC) if the pedals are attempted to be adjusted
when the system is locked out ( “ Adjustable Pedal
Disabled — Cruise Control Engaged ” or “ Adjustable
Pedal Disabled — Vehicle In Reverse ” ).
CAUTION!Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become
limited if movement is stopped by an obstruction in
the adjustable pedal ’ s path. ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, this device takes over the accelerator
operation at speeds greater than 30 mph (50 km/h).
Speed Control SwitchesUNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

To Activate:
Push the “ ON/OFF ” button once and the CRUISE indi-
cator located below the instrument cluster odometer will
illuminate showing the electronic speed control system is
on. To turn the system OFF, push the “ ON/OFF ” button
again and the system and indicator will turn off.
WARNING!Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidently
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you aren ’ t using it. To Set At A Desired Speed:
When the vehicle has reached the desired speed, press
and release the “ SET ” button. Release the accelerator and
the vehicle will operate at the selected speed.
To Deactivate:
A soft tap on the brake pedal, pushing the “ CANCEL ”
button or normal braking while slowing the vehicle will
deactivate the speed control without erasing the set
speed memory. Pushing the “ ON/OFF ” button to the
OFF position or turning off the ignition erases the set
speed memory.
To Resume Speed:
To resume a previously set speed, push and release the
“ RESUME/ACCEL ” button. Resume can be used at any
speed above 25 mph (40 km/h).148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Vary the Speed Setting:
When the speed control is set, speed can be increased by
pressing and holding the “ RESUME/ACCEL ” button.
When the button is released, a new set speed will be
established.
Tapping the “ RESUME/ACCEL ” button once will result
in a 2 mph (3 km/h) speed increase. Each time the button
is tapped, speed increases so that tapping the button
three times will increase speed by 6 mph (10 km/h), etc.
To decrease speed while speed control is set, press and
hold the “ COAST ” button. Release the button when the
desired speed is reached, and the new speed will be set.
Tapping the “ COAST ” button once will result i na1mph
(2 km/h) speed decrease. Each time the button is tapped,
speed decreases. To Accelerate For Passing:
Depress the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
NOTE: The speed control system maintains speed up
and down hills. A slight speed change on moderate hills
is normal.
Your vehicle will experience a downshift to 3rd gear
while climbing uphill or descending downhill. This
downshift to 3rd gear is necessary to maintain vehicle set
speed.
On steep hills a greater speed loss or gain may occur so
it may be preferable to drive without speed control. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3

WARNING!Speed Control can be dangerous where the system
can ’ t maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control. An accident could be the result. Don ’ t use
Speed Control in heavy traffic or on roads that are
winding, icy, snow-covered, or slippery.
OVERHEAD CONSOLE — IF EQUIPPED
The overhead console can contain courtesy/reading
lights, an optional universal garage door opener
(HomeLink  ), storage for sunglasses, compass/
temperature display, a mini-trip computer, optional elec-
tronic vehicle information center (EVIC), power sliding
door switches and an optional power liftgate switch. Courtesy/Reading Lights
At the forward end of the console are two courtesy/
reading lights.
Press the lens to turn these lights on. Press a second time
to turn the lights off. Overhead Console150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
