DODGE GRAND CARAVAN 2008 5.G Owners Manual

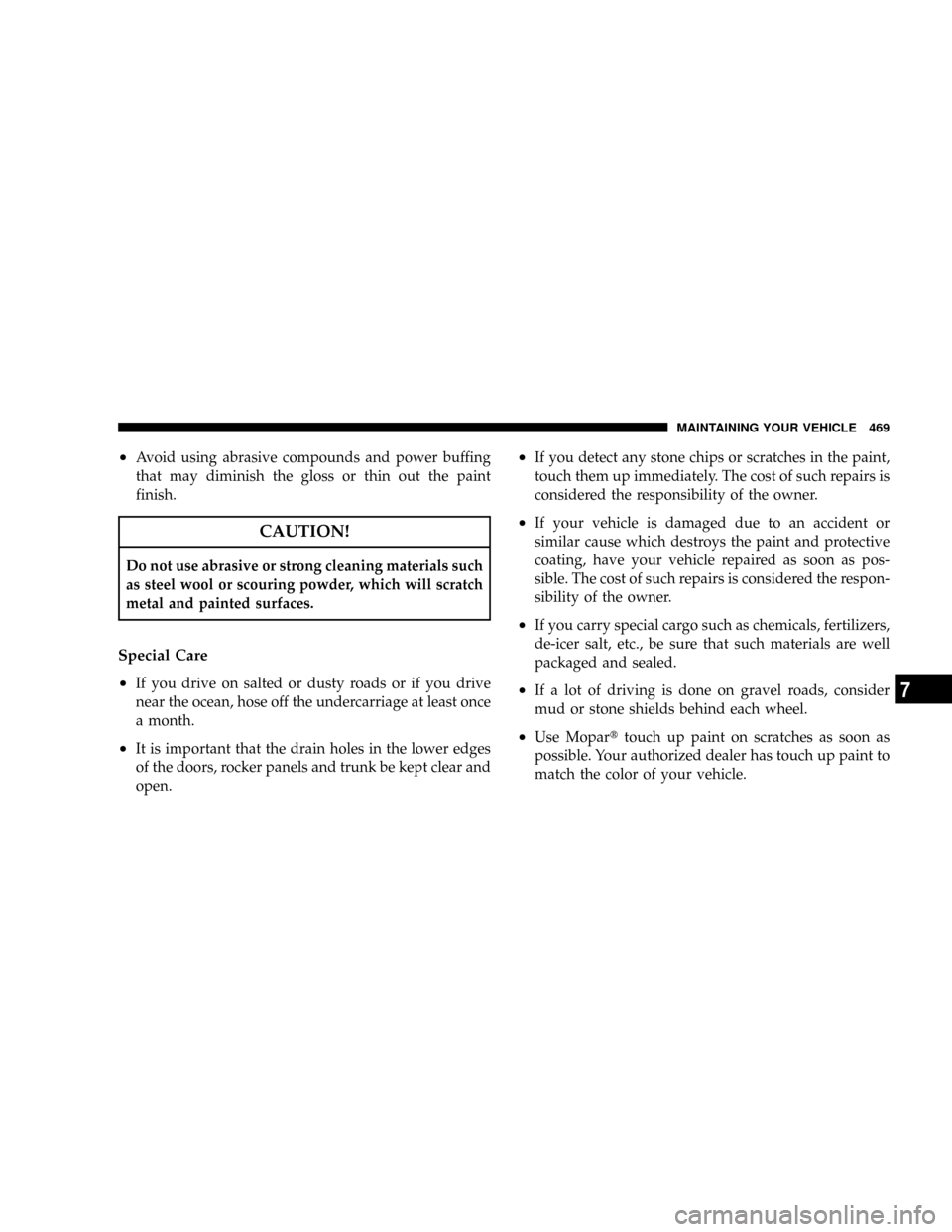

²Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint
finish.
CAUTION!
Do not use abrasive or strong cleaning materials such
as steel wool or scouring powder, which will scratch
metal and painted surfaces.
Special Care
²
If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
²It is important that the drain holes in the lower edges
of the doors, rocker panels and trunk be kept clear and
open.
²If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
²If your vehicle is damaged due to an accident or
similar cause which destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is considered the respon-
sibility of the owner.
²If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
²If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
²Use Moparttouch up paint on scratches as soon as
possible. Your authorized dealer has touch up paint to
match the color of your vehicle.
MAINTAINING YOUR VEHICLE 469
7

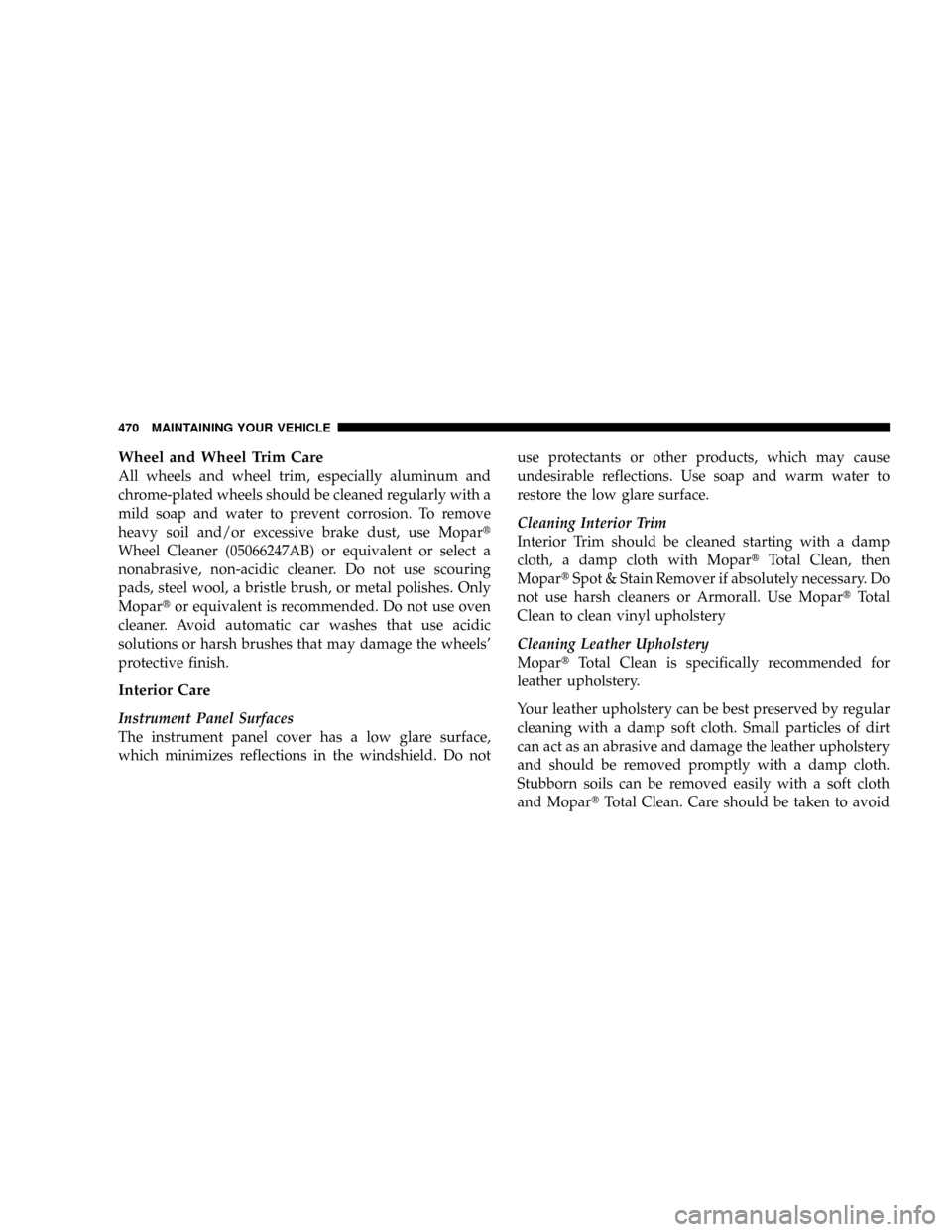

Wheel and Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels should be cleaned regularly with a
mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use Mopart
Wheel Cleaner (05066247AB) or equivalent or select a
nonabrasive, non-acidic cleaner. Do not use scouring
pads, steel wool, a bristle brush, or metal polishes. Only
Mopartor equivalent is recommended. Do not use oven
cleaner. Avoid automatic car washes that use acidic
solutions or harsh brushes that may damage the wheels'
protective finish.
Interior Care
Instrument Panel Surfaces
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do notuse protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Cleaning Interior Trim
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MopartTotal Clean, then
MopartSpot & Stain Remover if absolutely necessary. Do
not use harsh cleaners or Armorall. Use MopartTotal
Clean to clean vinyl upholstery
Cleaning Leather Upholstery
MopartTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MopartTotal Clean. Care should be taken to avoid
470 MAINTAINING YOUR VEHICLE

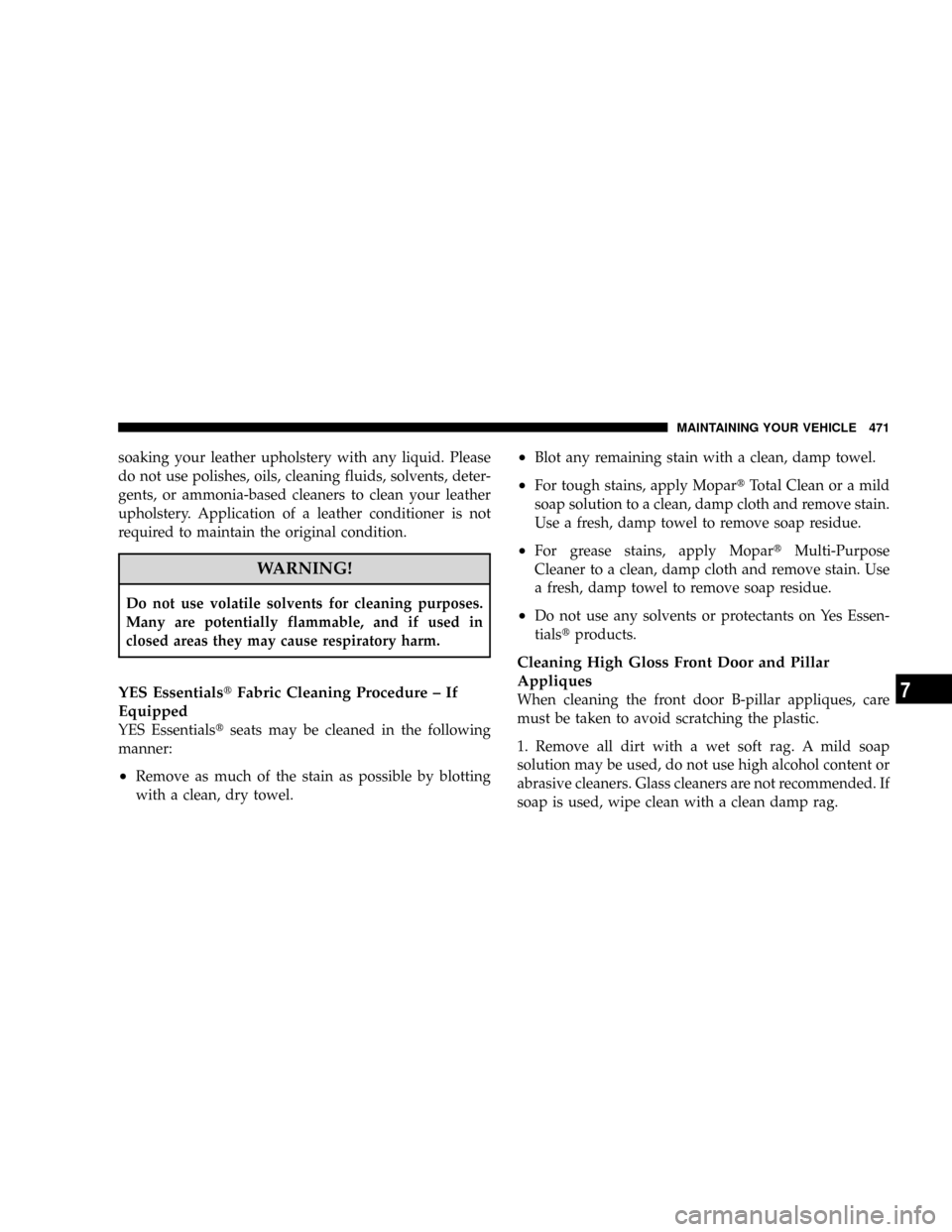

soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
YES EssentialstFabric Cleaning Procedure ± If
Equipped
YES Essentialstseats may be cleaned in the following
manner:
²Remove as much of the stain as possible by blotting
with a clean, dry towel.
²Blot any remaining stain with a clean, damp towel.
²For tough stains, apply MopartTotal Clean or a mild
soap solution to a clean, damp cloth and remove stain.
Use a fresh, damp towel to remove soap residue.
²For grease stains, apply MopartMulti-Purpose
Cleaner to a clean, damp cloth and remove stain. Use
a fresh, damp towel to remove soap residue.
²Do not use any solvents or protectants on Yes Essen-
tialstproducts.
Cleaning High Gloss Front Door and Pillar
Appliques
When cleaning the front door B-pillar appliques, care
must be taken to avoid scratching the plastic.
1. Remove all dirt with a wet soft rag. A mild soap
solution may be used, do not use high alcohol content or
abrasive cleaners. Glass cleaners are not recommended. If
soap is used, wipe clean with a clean damp rag.
MAINTAINING YOUR VEHICLE 471
7

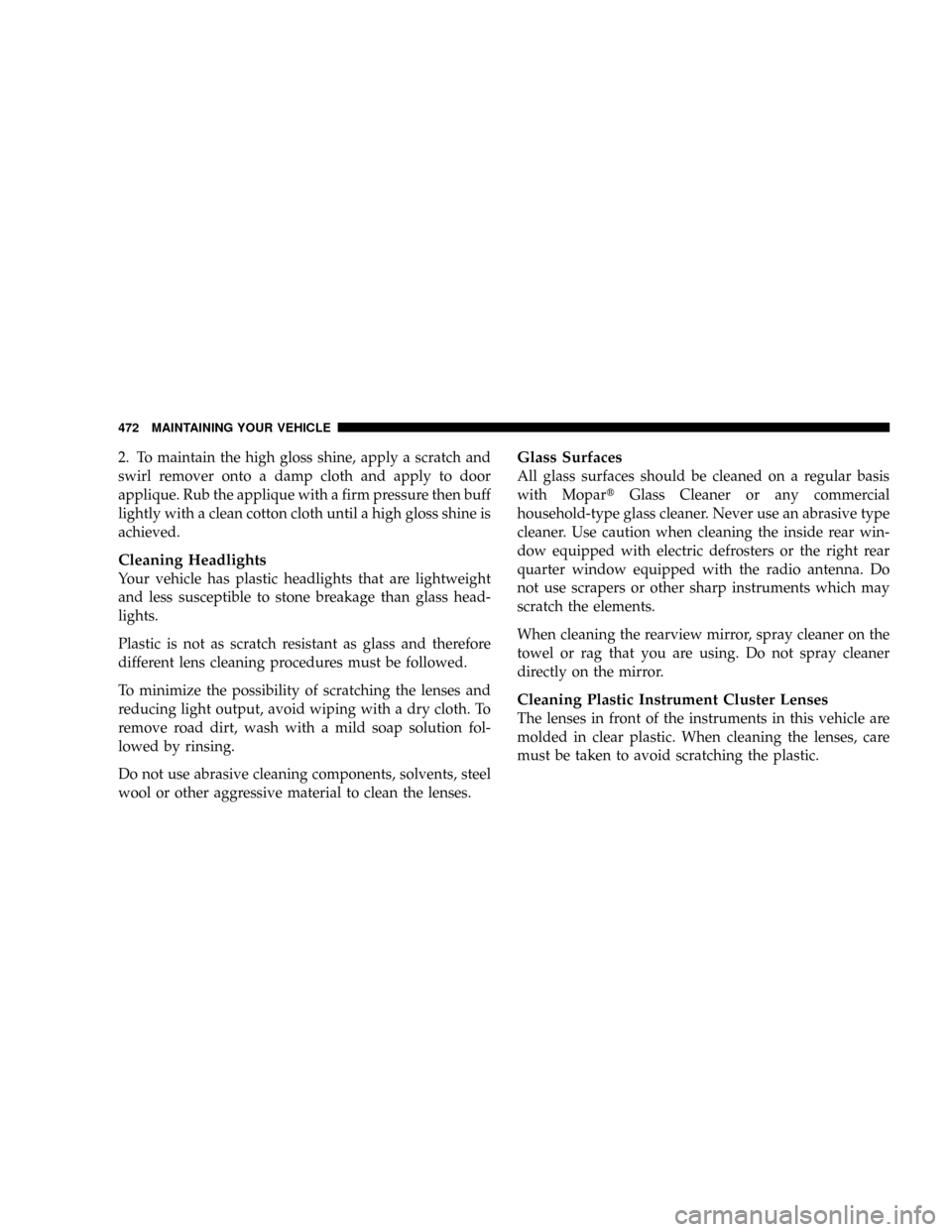

2. To maintain the high gloss shine, apply a scratch and
swirl remover onto a damp cloth and apply to door
applique. Rub the applique with a firm pressure then buff
lightly with a clean cotton cloth until a high gloss shine is
achieved.
Cleaning Headlights
Your vehicle has plastic headlights that are lightweight
and less susceptible to stone breakage than glass head-
lights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MopartGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may
scratch the elements.
When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
472 MAINTAINING YOUR VEHICLE

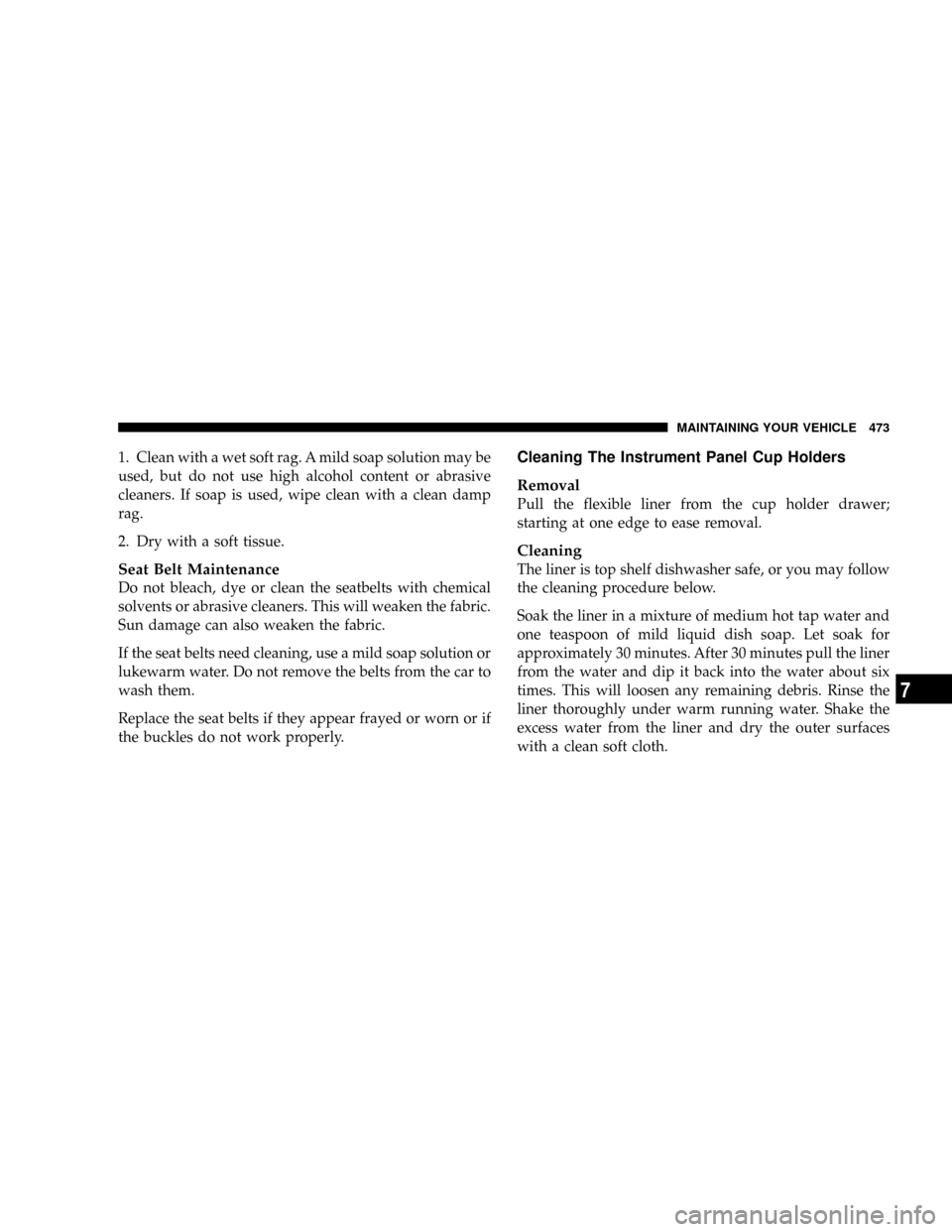

1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the seatbelts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.
Cleaning The Instrument Panel Cup Holders
Removal
Pull the flexible liner from the cup holder drawer;
starting at one edge to ease removal.
Cleaning
The liner is top shelf dishwasher safe, or you may follow
the cleaning procedure below.
Soak the liner in a mixture of medium hot tap water and
one teaspoon of mild liquid dish soap. Let soak for
approximately 30 minutes. After 30 minutes pull the liner
from the water and dip it back into the water about six
times. This will loosen any remaining debris. Rinse the
liner thoroughly under warm running water. Shake the
excess water from the liner and dry the outer surfaces
with a clean soft cloth.
MAINTAINING YOUR VEHICLE 473
7

Installation
Place the liner into the cupholder drawer and press the
liner into place so that the retention tabs seat into the
corresponding openings in the drawer.
FUSES/TOTALLY INTEGRATED POWER MODULE
(TIPM)
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses and mini fuses. A label that
identifies each component may be printed or embossed
on the inside of the cover.
The numbers inside the TIPM cover correspond to the
following table.
TIPM Location
474 MAINTAINING YOUR VEHICLE

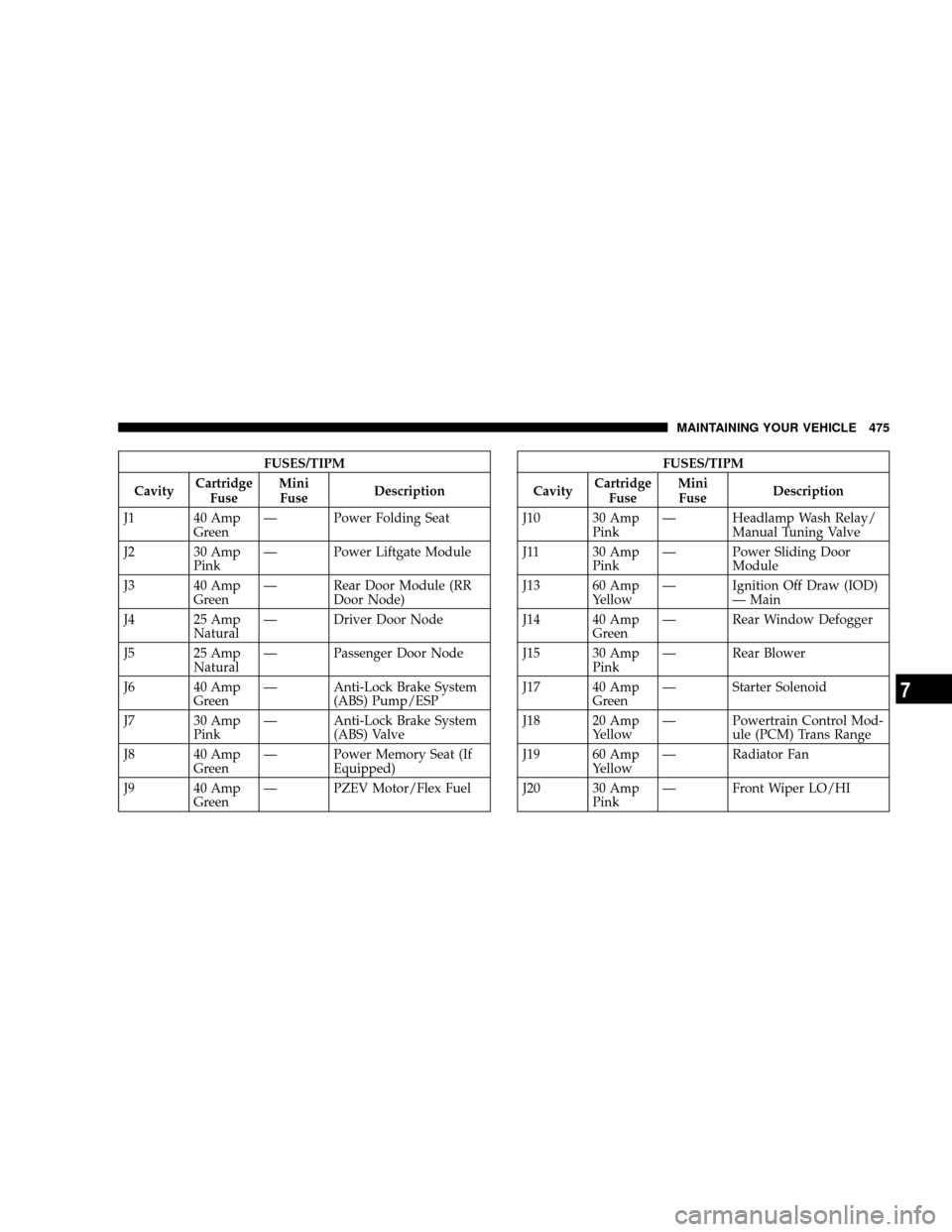

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
J1 40 Amp
GreenÐ Power Folding Seat
J2 30 Amp
PinkÐ Power Liftgate Module
J3 40 Amp
GreenÐ Rear Door Module (RR
Door Node)
J4 25 Amp
NaturalÐ Driver Door Node
J5 25 Amp
NaturalÐ Passenger Door Node
J6 40 Amp
GreenÐ Anti-Lock Brake System
(ABS) Pump/ESP
J7 30 Amp
PinkÐ Anti-Lock Brake System
(ABS) Valve
J8 40 Amp
GreenÐ Power Memory Seat (If
Equipped)
J9 40 Amp
GreenÐ PZEV Motor/Flex FuelFUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
J10 30 Amp
PinkÐ Headlamp Wash Relay/
Manual Tuning Valve
J11 30 Amp
PinkÐ Power Sliding Door
Module
J13 60 Amp
YellowÐ Ignition Off Draw (IOD)
Ð Main
J14 40 Amp
GreenÐ Rear Window Defogger
J15 30 Amp
PinkÐ Rear Blower
J17 40 Amp
GreenÐ Starter Solenoid
J18 20 Amp
YellowÐ Powertrain Control Mod-
ule (PCM) Trans Range
J19 60 Amp
YellowÐ Radiator Fan
J20 30 Amp
PinkÐ Front Wiper LO/HI
MAINTAINING YOUR VEHICLE 475
7

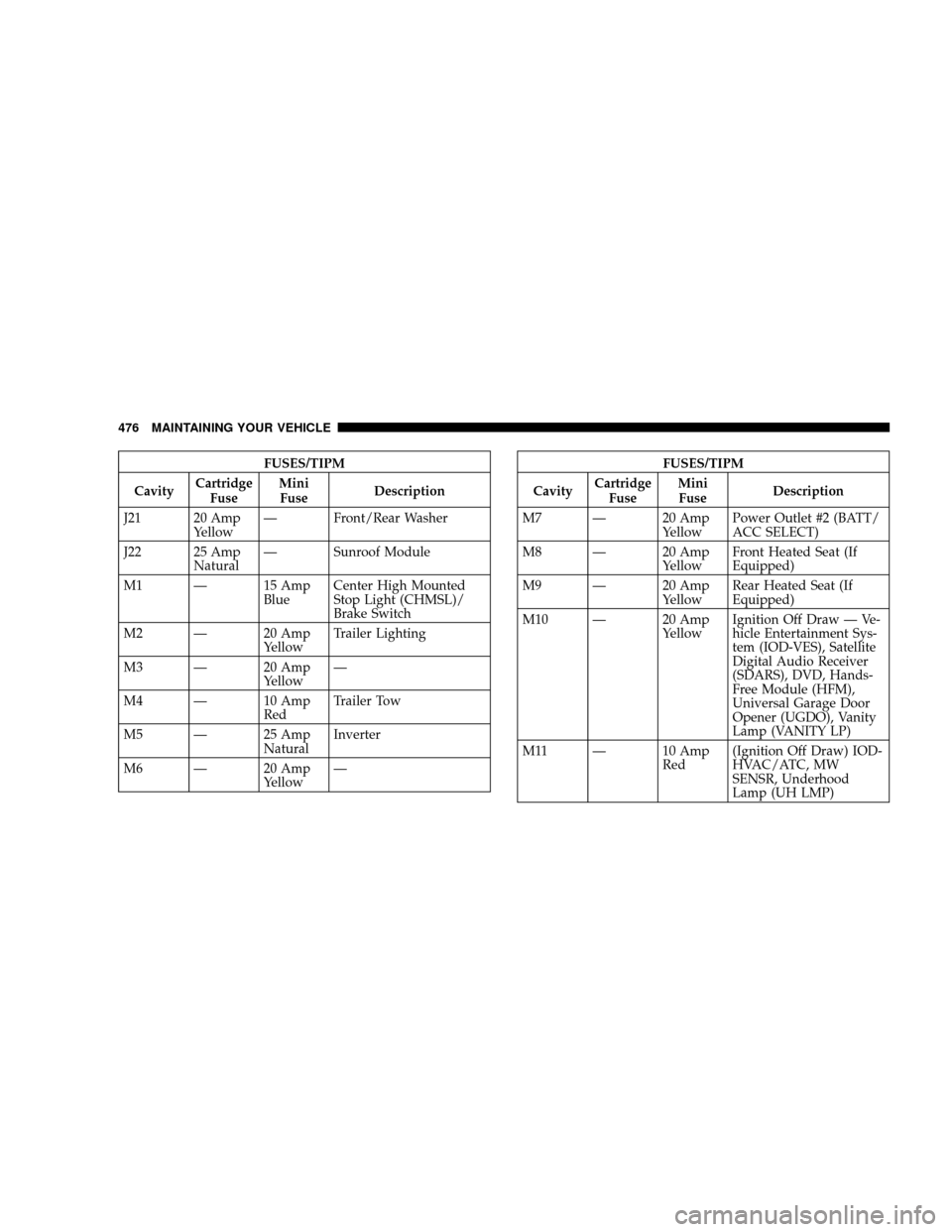

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
J21 20 Amp
YellowÐ Front/Rear Washer
J22 25 Amp
NaturalÐ Sunroof Module
M1 Ð 15 Amp
BlueCenter High Mounted
Stop Light (CHMSL)/
Brake Switch
M2 Ð 20 Amp
YellowTrailer Lighting
M3 Ð 20 Amp
YellowÐ
M4 Ð 10 Amp
RedTrailer Tow
M5 Ð 25 Amp
NaturalInverter
M6 Ð 20 Amp
YellowÐFUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M7 Ð 20 Amp
YellowPower Outlet #2 (BATT/
ACC SELECT)
M8 Ð 20 Amp
YellowFront Heated Seat (If
Equipped)
M9 Ð 20 Amp
YellowRear Heated Seat (If
Equipped)
M10 Ð 20 Amp
YellowIgnition Off Draw Ð Ve-
hicle Entertainment Sys-
tem (IOD-VES), Satellite
Digital Audio Receiver
(SDARS), DVD, Hands-
Free Module (HFM),
Universal Garage Door
Opener (UGDO), Vanity
Lamp (VANITY LP)
M11 Ð 10 Amp
Red(Ignition Off Draw) IOD-
HVAC/ATC, MW
SENSR, Underhood
Lamp (UH LMP)
476 MAINTAINING YOUR VEHICLE

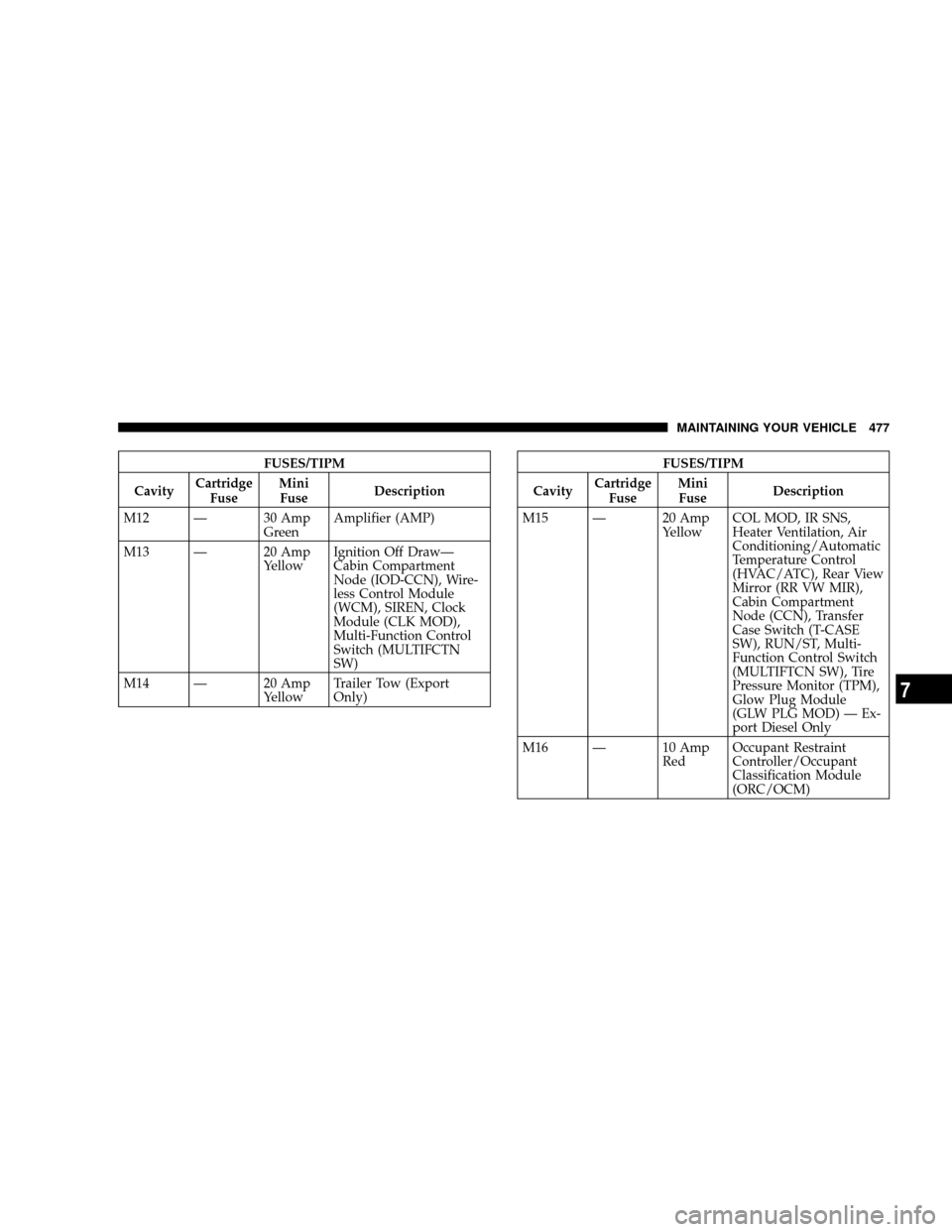

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M12 Ð 30 Amp
GreenAmplifier (AMP)
M13 Ð 20 Amp
YellowIgnition Off DrawÐ
Cabin Compartment
Node (IOD-CCN), Wire-
less Control Module
(WCM), SIREN, Clock
Module (CLK MOD),
Multi-Function Control
Switch (MULTIFCTN
SW)
M14 Ð 20 Amp
YellowTrailer Tow (Export
Only)FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M15 Ð 20 Amp
YellowCOL MOD, IR SNS,
Heater Ventilation, Air
Conditioning/Automatic
Temperature Control
(HVAC/ATC), Rear View
Mirror (RR VW MIR),
Cabin Compartment
Node (CCN), Transfer
Case Switch (T-CASE
SW), RUN/ST, Multi-
Function Control Switch
(MULTIFTCN SW), Tire
Pressure Monitor (TPM),
Glow Plug Module
(GLW PLG MOD) Ð Ex-
port Diesel Only
M16 Ð 10 Amp
RedOccupant Restraint
Controller/Occupant
Classification Module
(ORC/OCM)
MAINTAINING YOUR VEHICLE 477
7

FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M17 Ð 15 Amp
BlueLeft Tail/License/Park
Lamp (LT-TAIL/LIC/
PRK LMP)
M18 Ð 15 Amp
BlueRight Tail/Park/Run
Lamp (RT-TAIL/PRK/
RUN LMP)
M19 Ð 25 Amp
NaturalAuto Shut Down (ASD
#1 and #2)
M20 Ð 15 Amp
BlueCabin Compartment
Node Interior Light
(CCN INT LIGHT),
Switch Bank (SW
BANK), Steering Control
Module (SCM)
M21 Ð 20 Amp
YellowAuto Shut Down (ASD
#3)
M22 Ð 10 Amp
RedRight Horn (RT HORN
(HI/LOW)FUSES/TIPM
CavityCartridge
FuseMini
FuseDescription
M23 Ð 10 Amp
RedLeft Horn (LT HORN
(HI/LOW)
M24 Ð 25 Amp
NaturalRear Wiper (REAR
WIPER)
M25 Ð 20 Amp
YellowFuel Pump (FUEL
PUMP), Diesel Lift
Pump (DSL LIFT PUMP)
Ð Export Only
M26 Ð 10 Amp
RedPower Mirror Switch
(PWR MIRR SW), Driver
Window Switch (DRVR
WIND SW)
M27 Ð 10 Amp
RedIgnition Switch (IGN
SW), Window Module
(WIN MOD)
M28 Ð 10 Amp
RedNext Generation Control-
ler (NGC), Transmission
Feed (TRANS FEED),
J1962
478 MAINTAINING YOUR VEHICLE
