Page 331 of 535

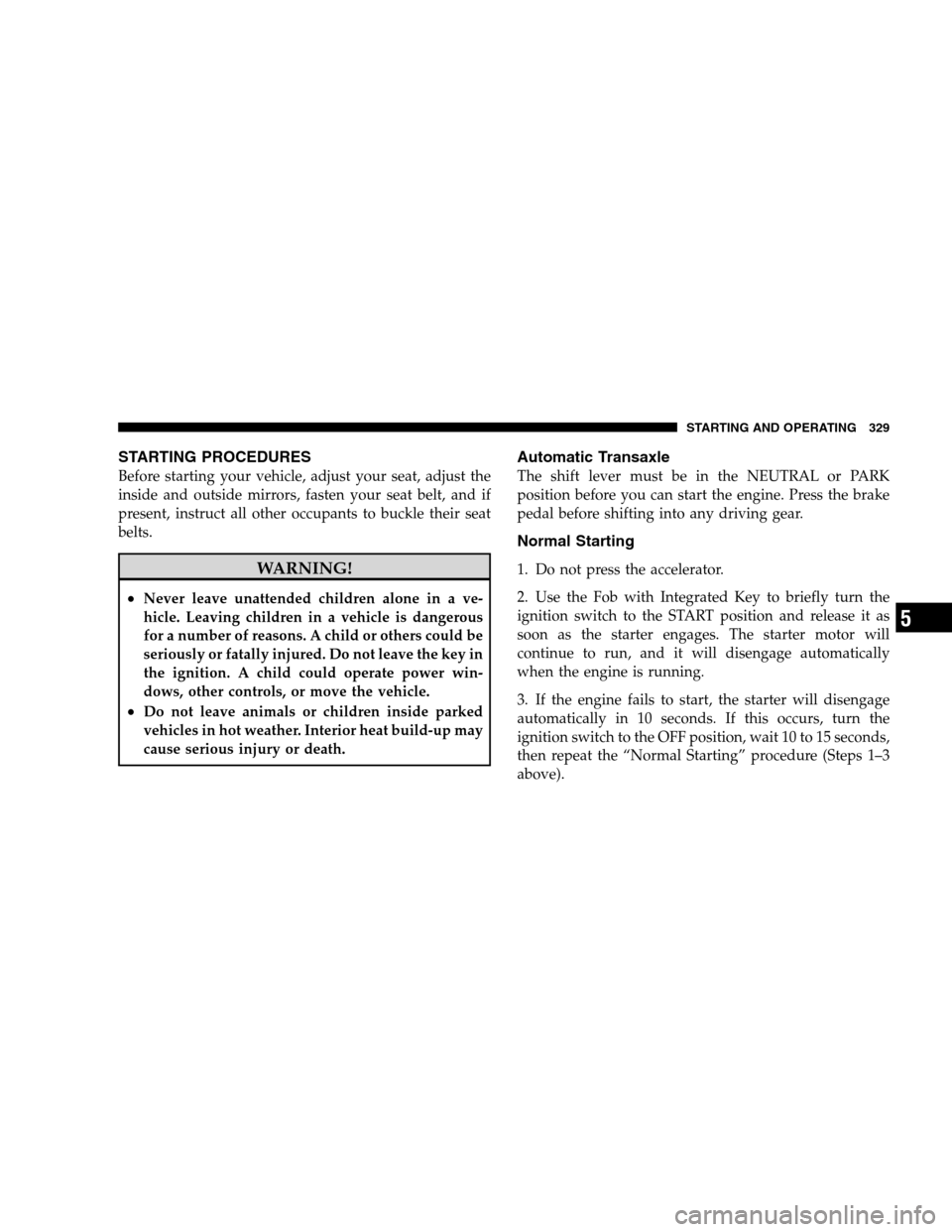

DODGE GRAND CARAVAN 2009 5.G Owners Manual STARTING PROCEDURESBefore starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts

Page 332 of 535

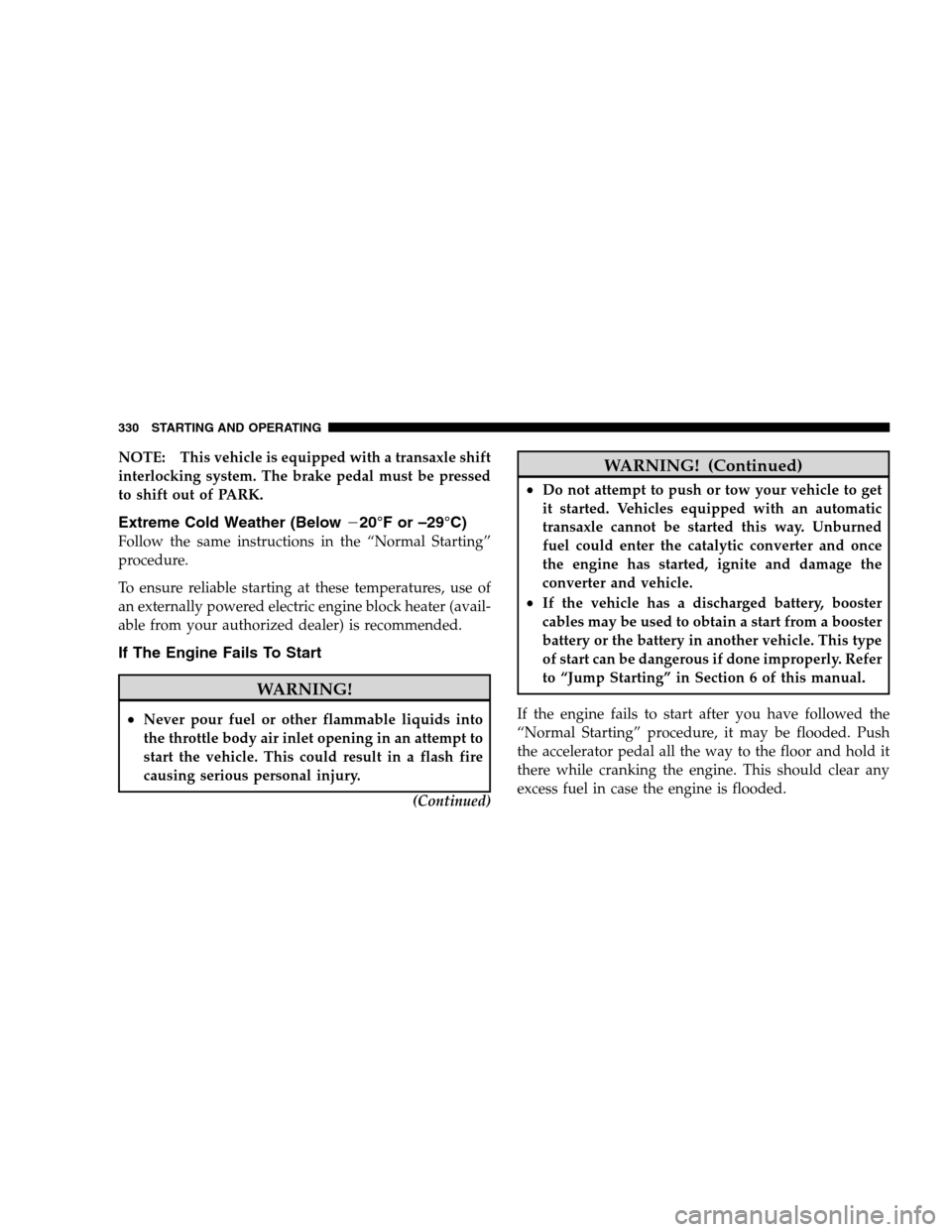

DODGE GRAND CARAVAN 2009 5.G Owners Manual NOTE: This vehicle is equipped with a transaxle shift
interlocking system. The brake pedal must be pressed
to shift out of PARK.
Extreme Cold Weather (Below�20°F or –29°C)
Follow the same instruct

Page 333 of 535

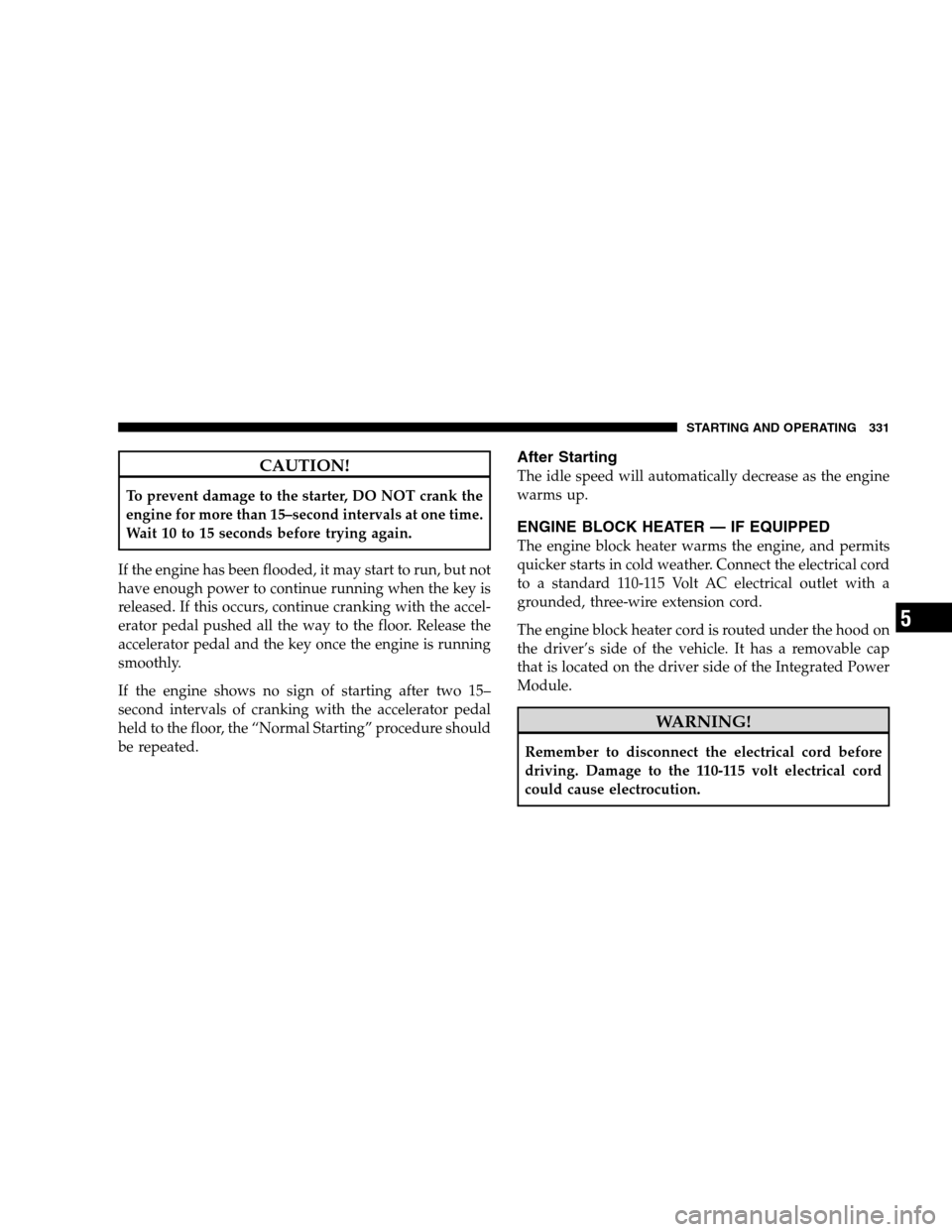

DODGE GRAND CARAVAN 2009 5.G Owners Manual CAUTION!To prevent damage to the starter, DO NOT crank the
engine for more than 15–second intervals at one time.
Wait 10 to 15 seconds before trying again.
If the engine has been flooded, it may sta

Page 334 of 535

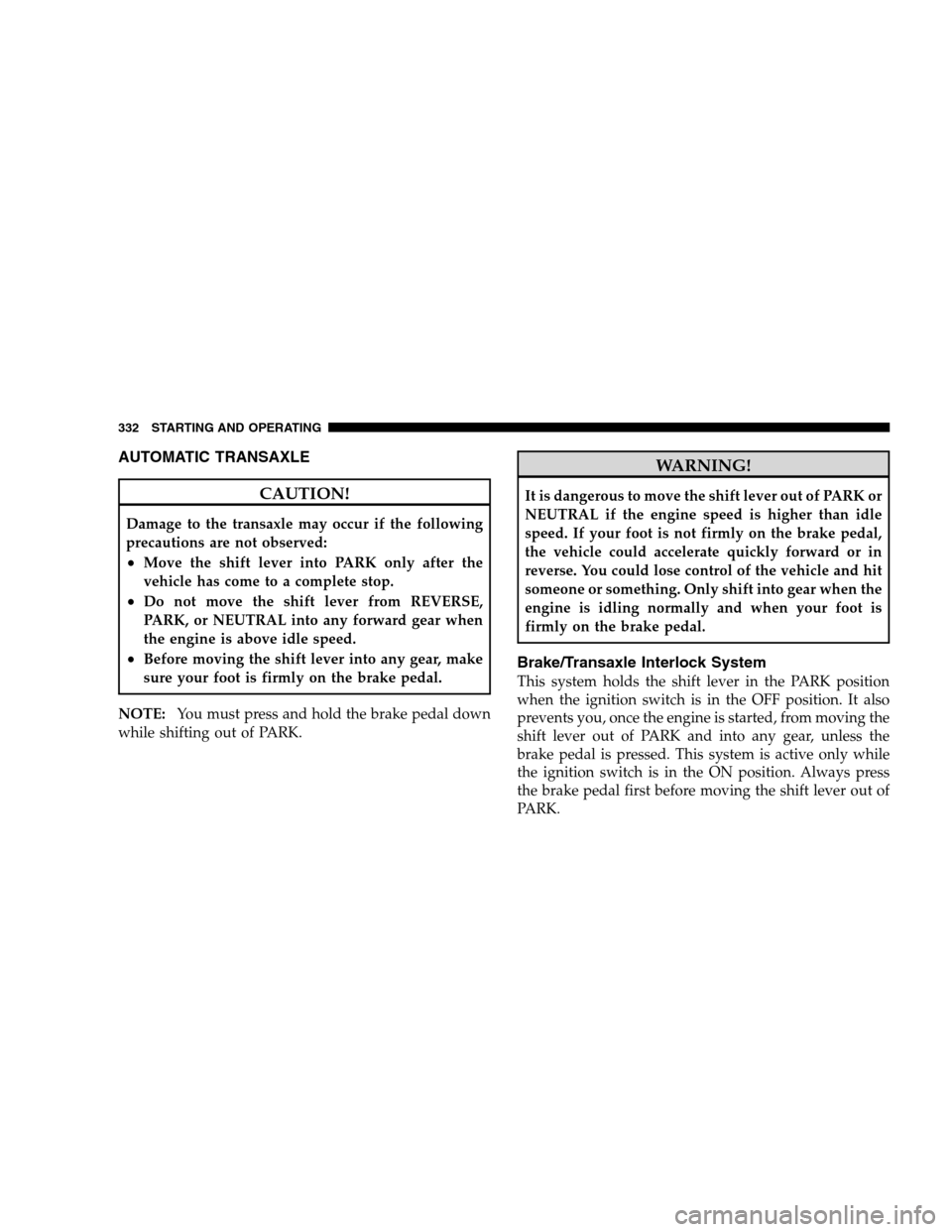

DODGE GRAND CARAVAN 2009 5.G Owners Manual AUTOMATIC TRANSAXLE
CAUTION!Damage to the transaxle may occur if the following
precautions are not observed:
Move the shift lever into PARK only after the
vehicle has come to a complete stop.
Do not

Page 335 of 535

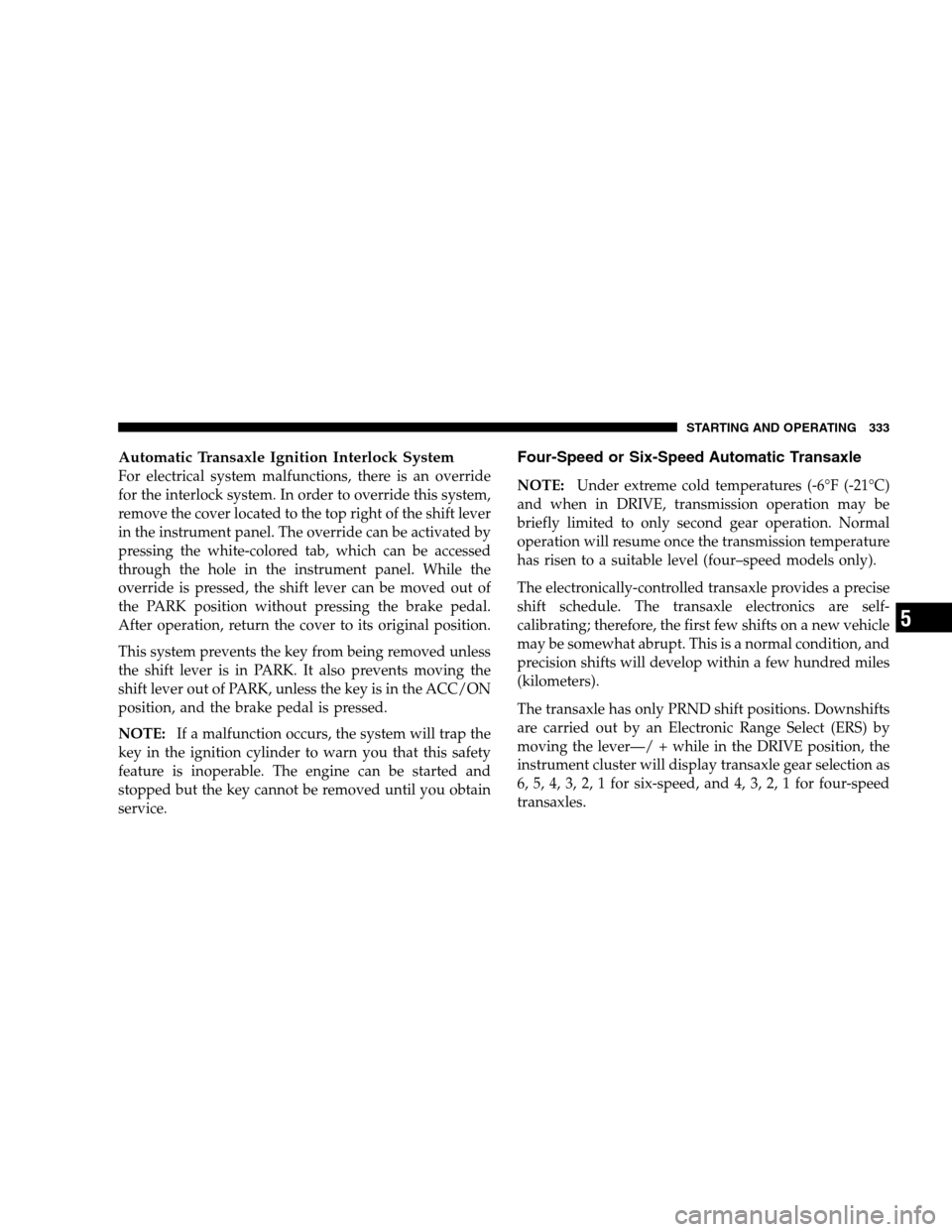

DODGE GRAND CARAVAN 2009 5.G Owners Manual Automatic Transaxle Ignition Interlock SystemFor electrical system malfunctions, there is an override
for the interlock system. In order to override this system,
remove the cover located to the top ri

Page 336 of 535

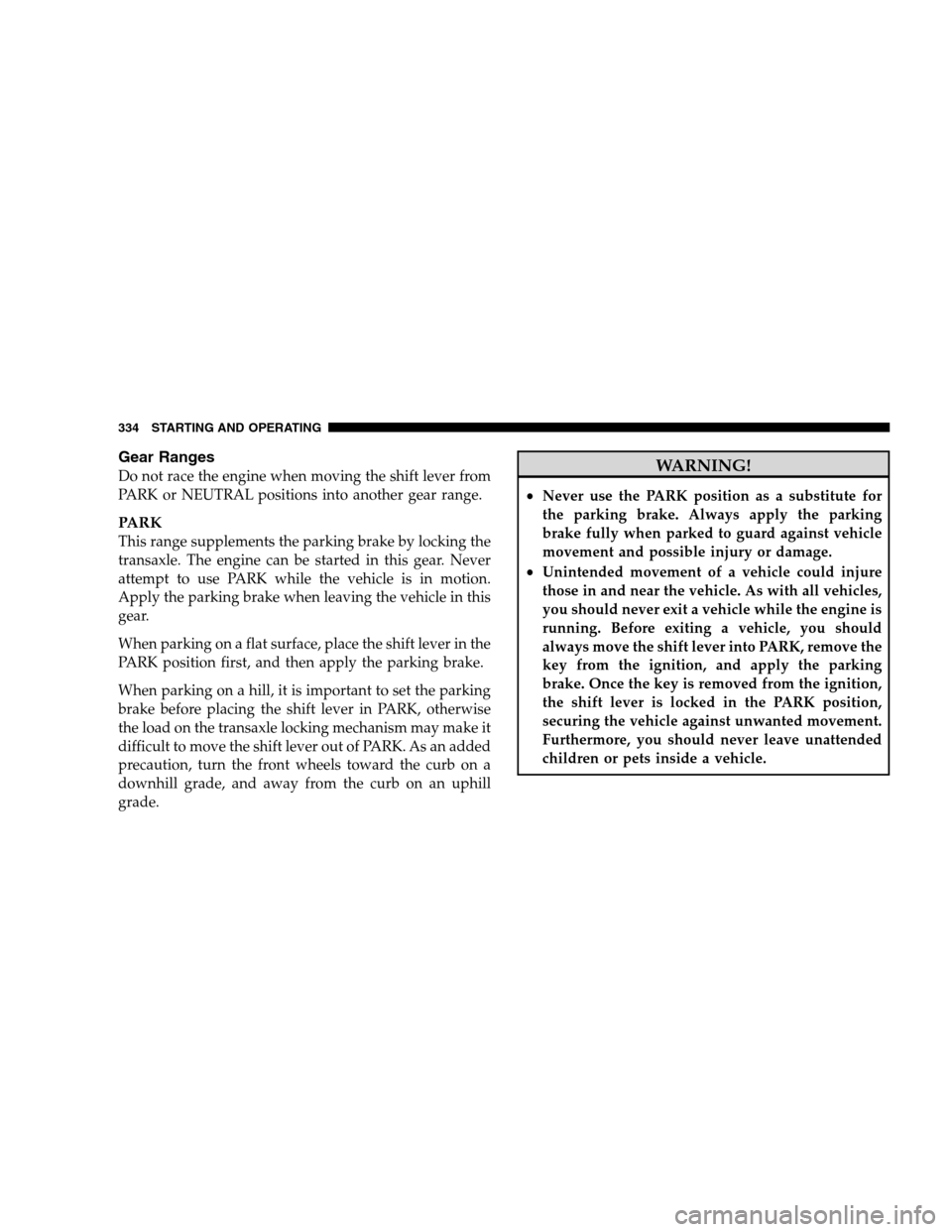

DODGE GRAND CARAVAN 2009 5.G Owners Manual Gear RangesDo not race the engine when moving the shift lever from
PARK or NEUTRAL positions into another gear range.
PARK
This range supplements the parking brake by locking the
transaxle. The engine

Page 337 of 535

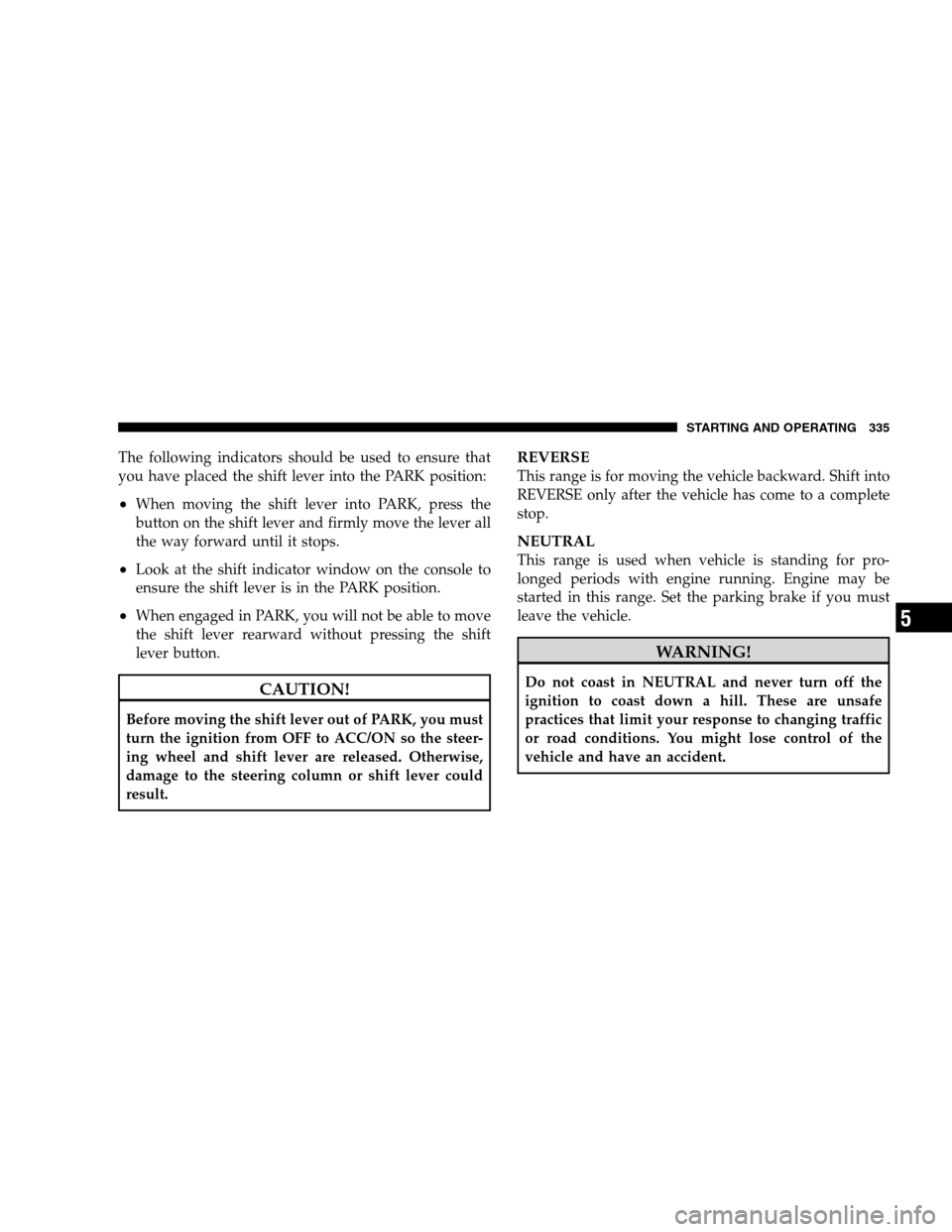

DODGE GRAND CARAVAN 2009 5.G Owners Manual The following indicators should be used to ensure that
you have placed the shift lever into the PARK position:
When moving the shift lever into PARK, press the
button on the shift lever and firmly mo

Page 338 of 535

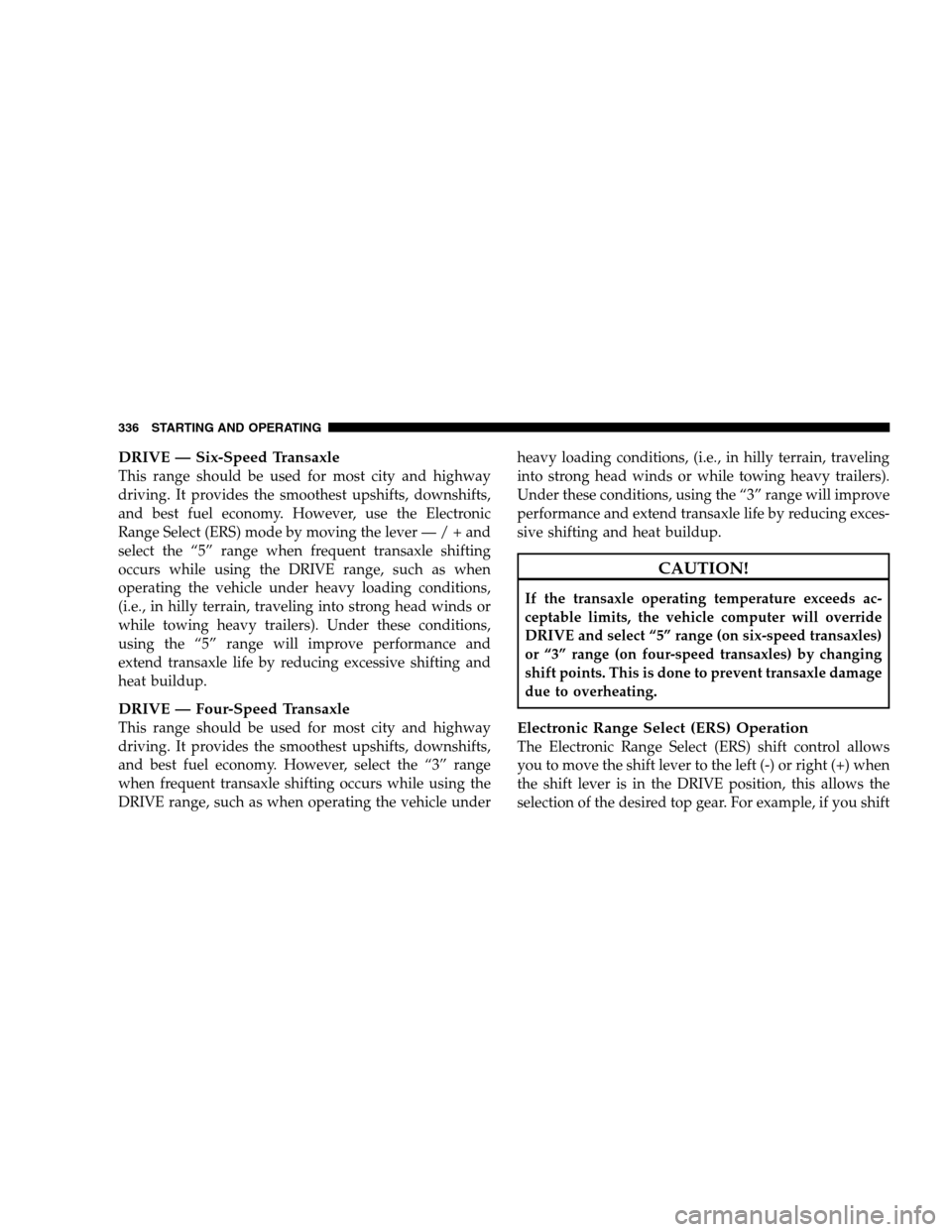

DODGE GRAND CARAVAN 2009 5.G Owners Manual DRIVE — Six-Speed TransaxleThis range should be used for most city and highway
driving. It provides the smoothest upshifts, downshifts,
and best fuel economy. However, use the Electronic
Range Selec

Page 339 of 535

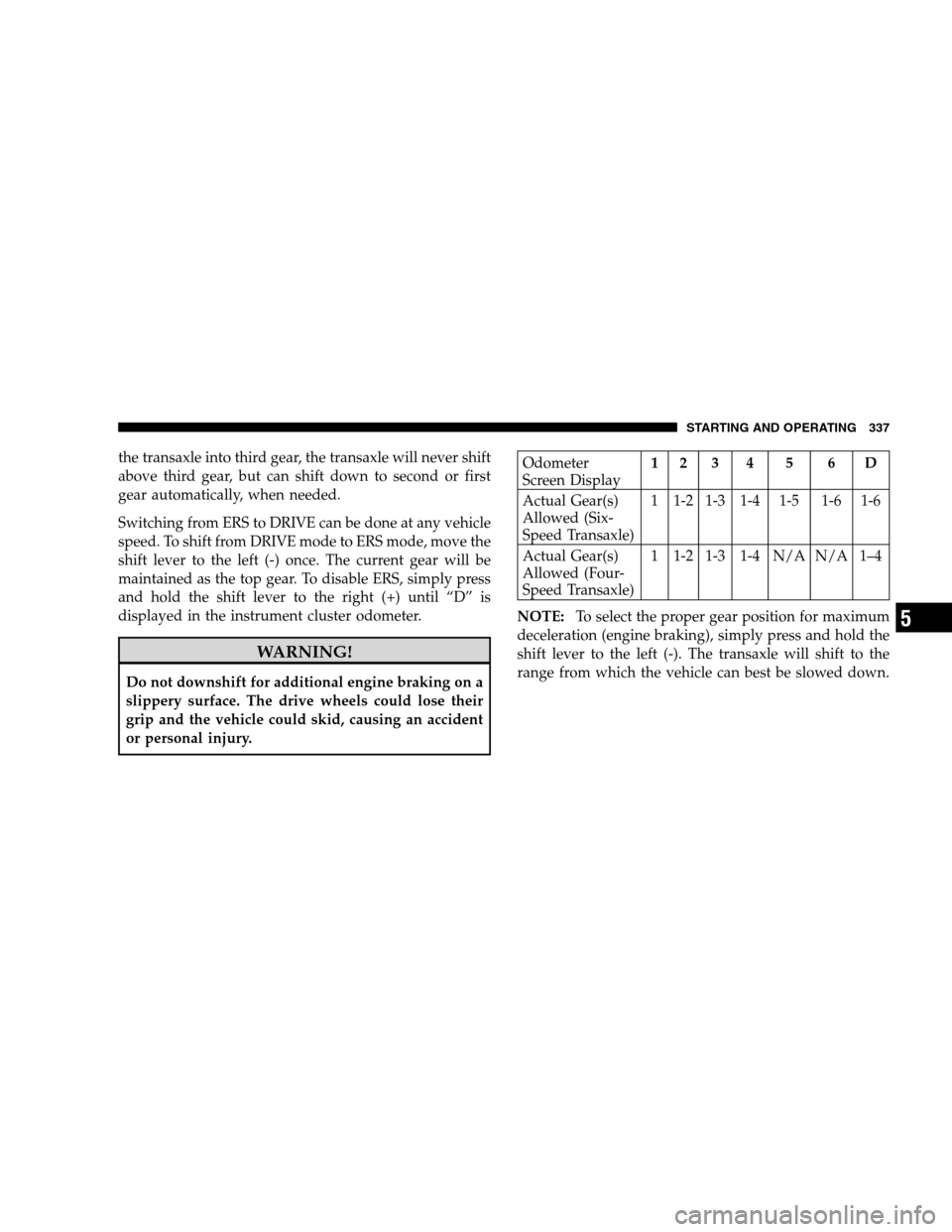

DODGE GRAND CARAVAN 2009 5.G Owners Manual the transaxle into third gear, the transaxle will never shift
above third gear, but can shift down to second or first
gear automatically, when needed.
Switching from ERS to DRIVE can be done at any ve

Page 340 of 535

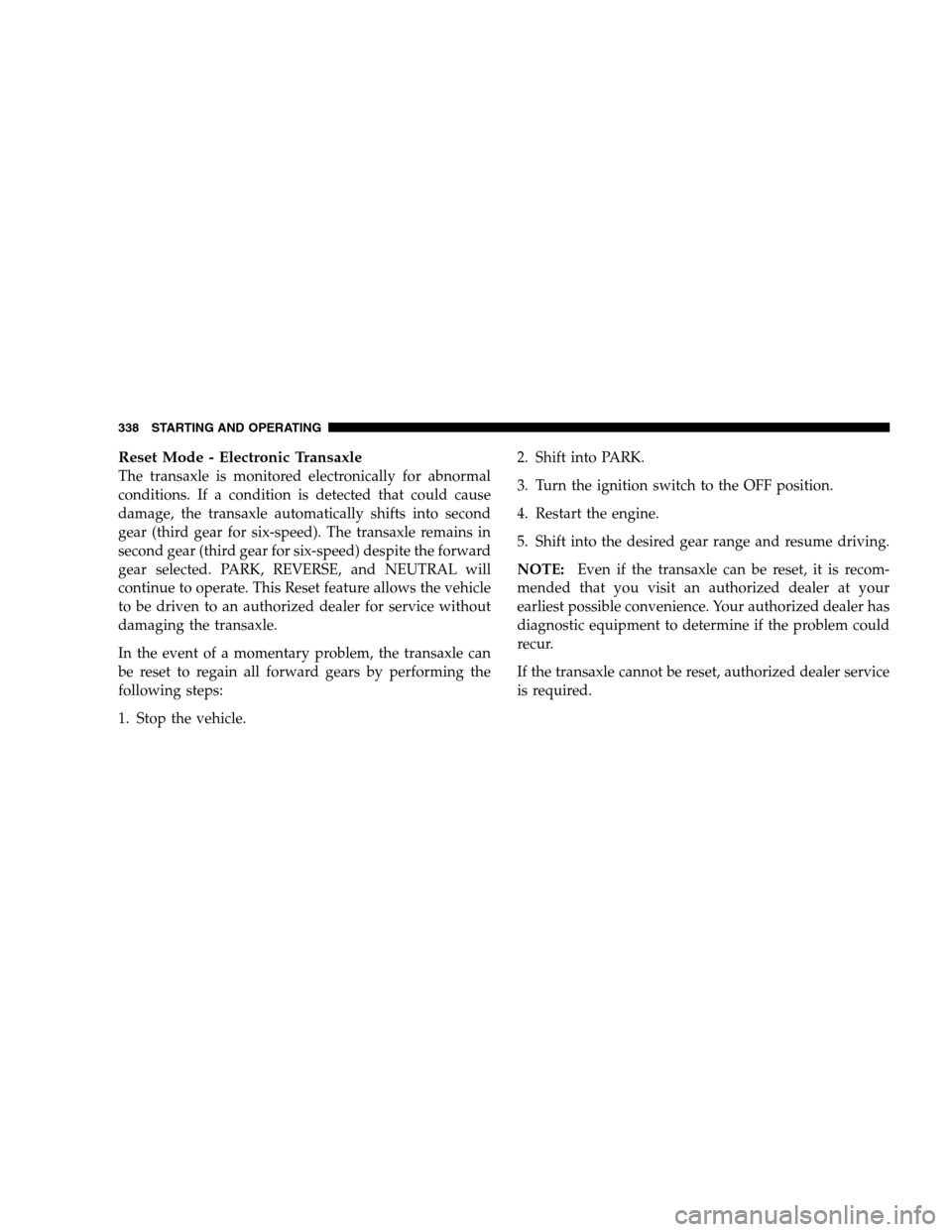

DODGE GRAND CARAVAN 2009 5.G Owners Manual Reset Mode - Electronic TransaxleThe transaxle is monitored electronically for abnormal
conditions. If a condition is detected that could cause
damage, the transaxle automatically shifts into second
g
