DODGE GRAND CARAVAN 2010 5.G Owner's Guide

When to Reset Remote Start
The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the Remote Starting sequence was
initiated but the engine stopped cranking without start-
ing. After either of these conditions, or if the Vehicle
Security Alarm system is alarming, or if the PANIC
button was pressed, the vehicle must be reset by inserting
a valid Key Fob into the ignition switch and rotating the
Key Fob to the ON position, and then rotating the Key
Fob back to the LOCK/OFF position.
DOOR LOCKS
Manual Door Locks
Lock the front doors by pushing down on the lock
plungers on each door trim panel.If the lock plunger is down when you shut either front
door, the door will lock. Make sure the keys are not inside
the vehicle before closing the door.Manual Door Lock
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

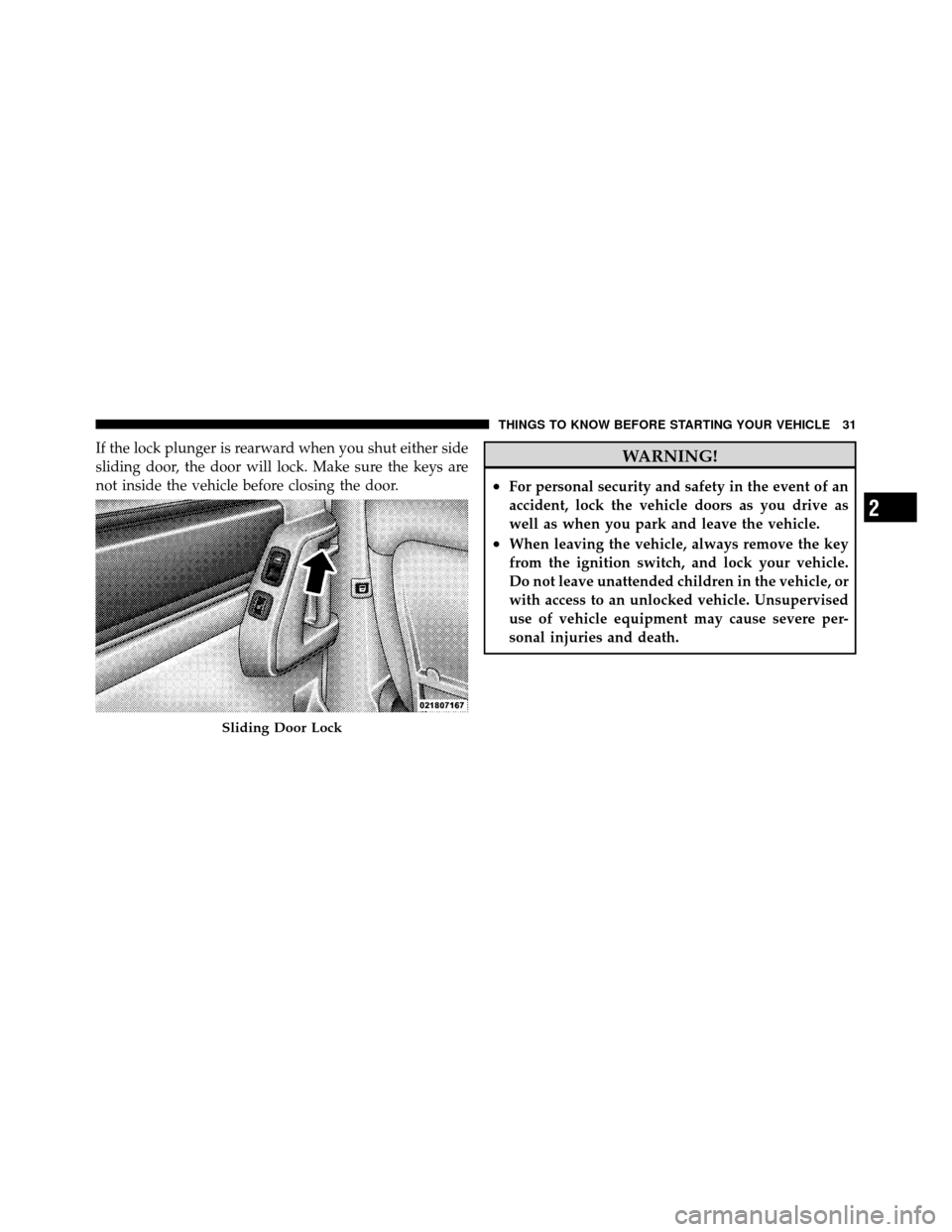

If the lock plunger is rearward when you shut either side
sliding door, the door will lock. Make sure the keys are
not inside the vehicle before closing the door.WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
•When leaving the vehicle, always remove the key
from the ignition switch, and lock your vehicle.
Do not leave unattended children in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per-
sonal injuries and death.
Sliding Door Lock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

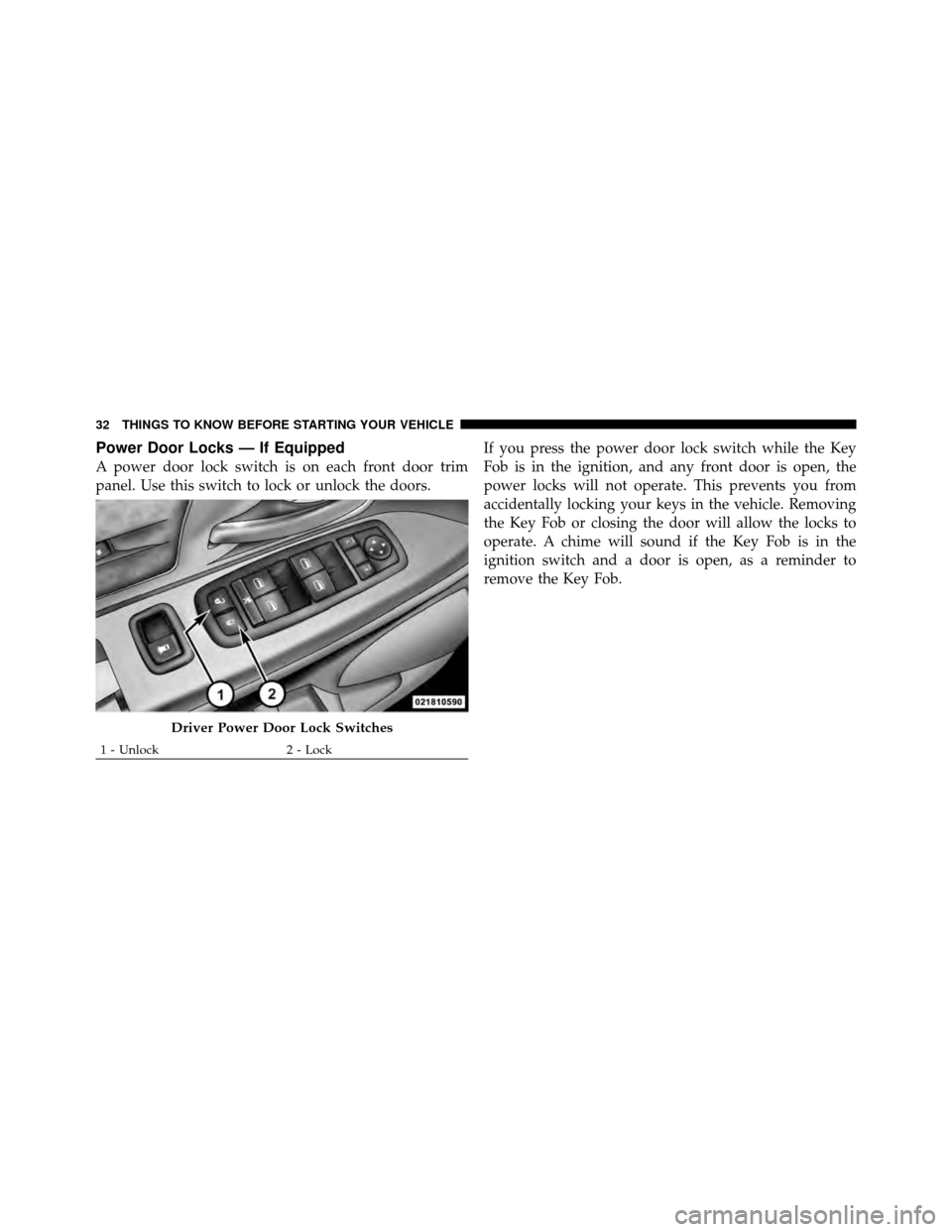

Power Door Locks — If Equipped
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.If you press the power door lock switch while the Key
Fob is in the ignition, and any front door is open, the
power locks will not operate. This prevents you from
accidentally locking your keys in the vehicle. Removing
the Key Fob or closing the door will allow the locks to
operate. A chime will sound if the Key Fob is in the
ignition switch and a door is open, as a reminder to
remove the Key Fob.
Driver Power Door Lock Switches
1 - Unlock
2 - Lock
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

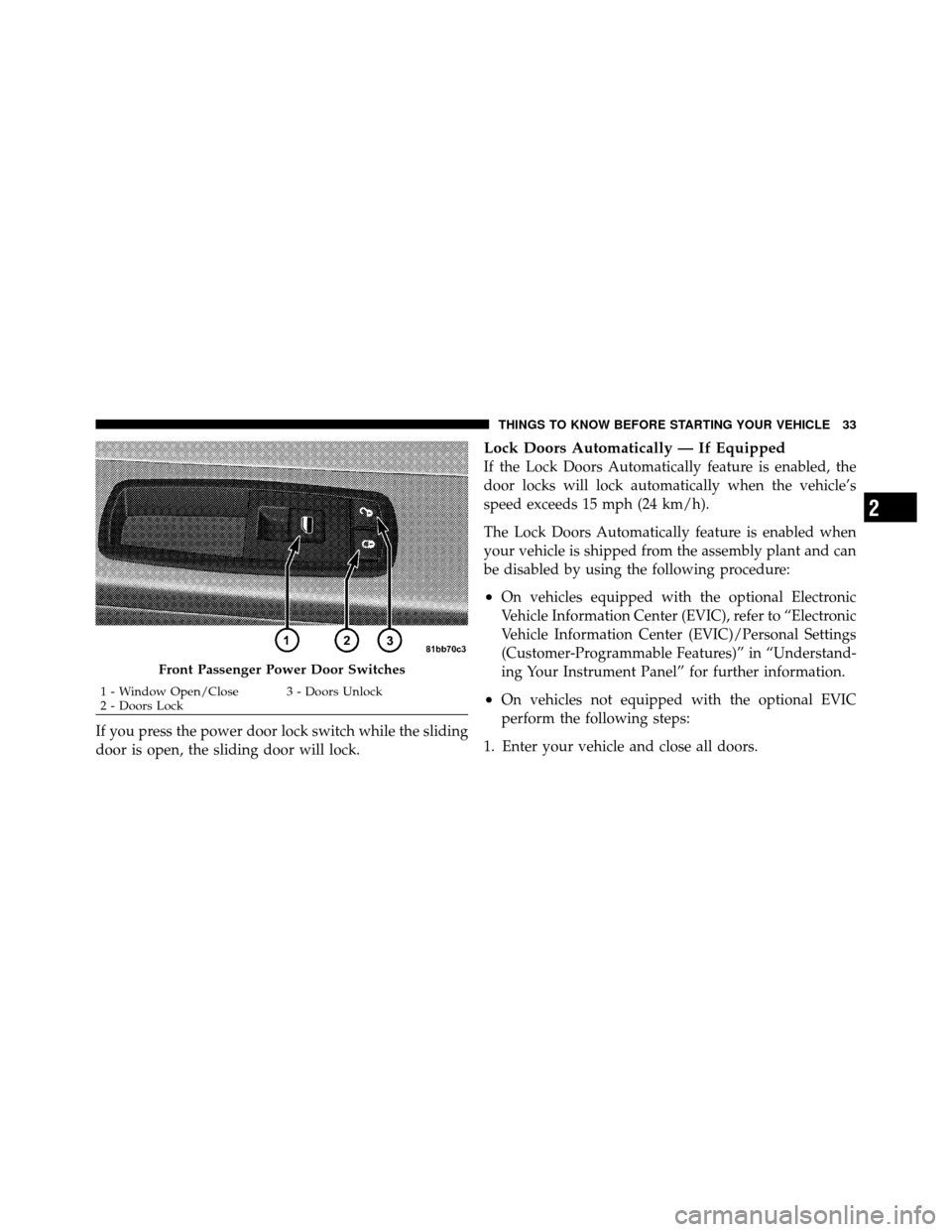

If you press the power door lock switch while the sliding
door is open, the sliding door will lock.
Lock Doors Automatically — If Equipped
If the Lock Doors Automatically feature is enabled, the
door locks will lock automatically when the vehicle’s
speed exceeds 15 mph (24 km/h).
The Lock Doors Automatically feature is enabled when
your vehicle is shipped from the assembly plant and can
be disabled by using the following procedure:
•On vehicles equipped with the optional Electronic
Vehicle Information Center (EVIC), refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
•On vehicles not equipped with the optional EVIC
perform the following steps:
1. Enter your vehicle and close all doors.
Front Passenger Power Door Switches
1 - Window Open/Close 3 - Doors Unlock
2 - Doors Lock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33

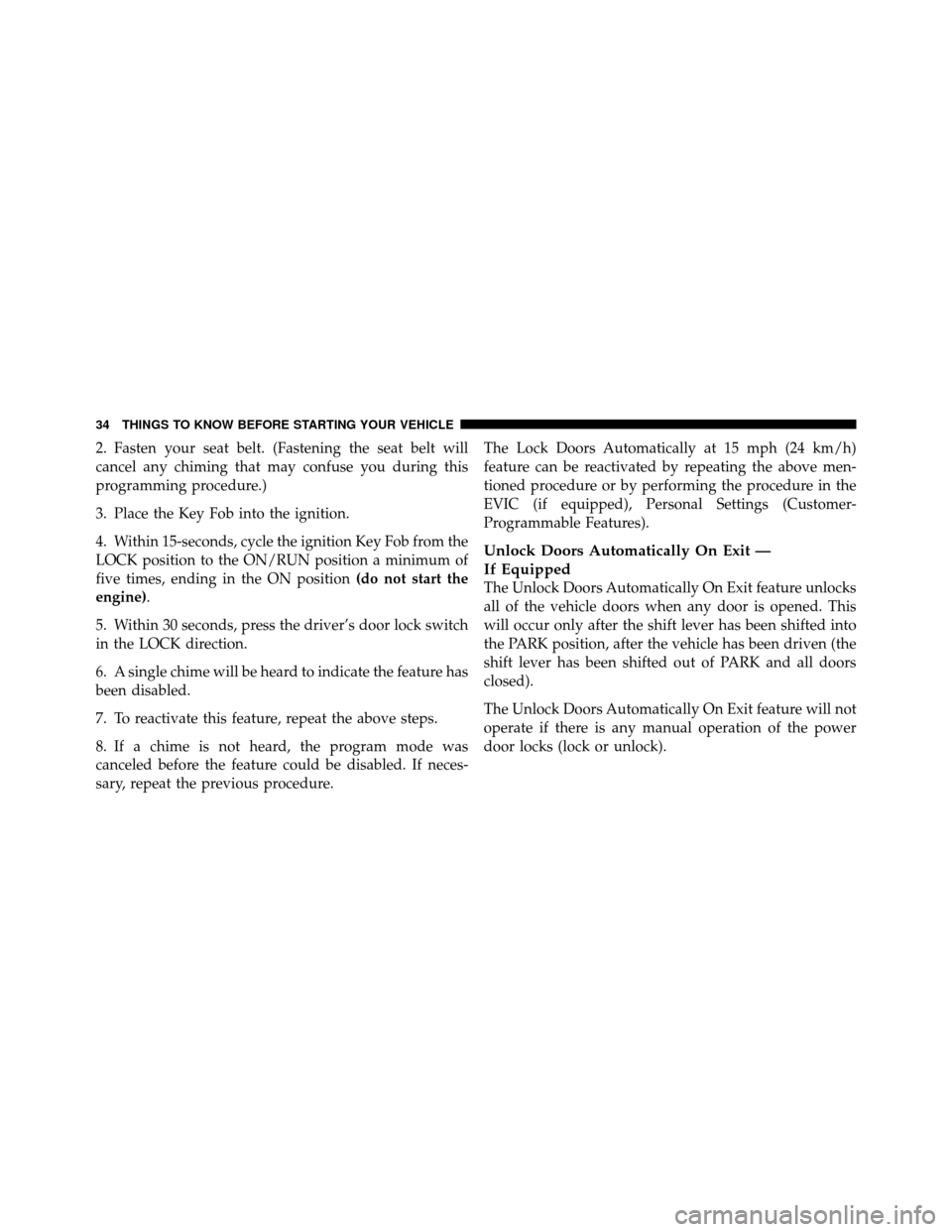

2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)
3. Place the Key Fob into the ignition.
4. Within 15-seconds, cycle the ignition Key Fob from the
LOCK position to the ON/RUN position a minimum of
five times, ending in the ON position(do not start the
engine).
5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, the program mode was
canceled before the feature could be disabled. If neces-
sary, repeat the previous procedure. The Lock Doors Automatically at 15 mph (24 km/h)
feature can be reactivated by repeating the above men-
tioned procedure or by performing the procedure in the
EVIC (if equipped), Personal Settings (Customer-
Programmable Features).
Unlock Doors Automatically On Exit —
If Equipped
The Unlock Doors Automatically On Exit feature unlocks
all of the vehicle doors when any door is opened. This
will occur only after the shift lever has been shifted into
the PARK position, after the vehicle has been driven (the
shift lever has been shifted out of PARK and all doors
closed).
The Unlock Doors Automatically On Exit feature will not
operate if there is any manual operation of the power
door locks (lock or unlock).
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

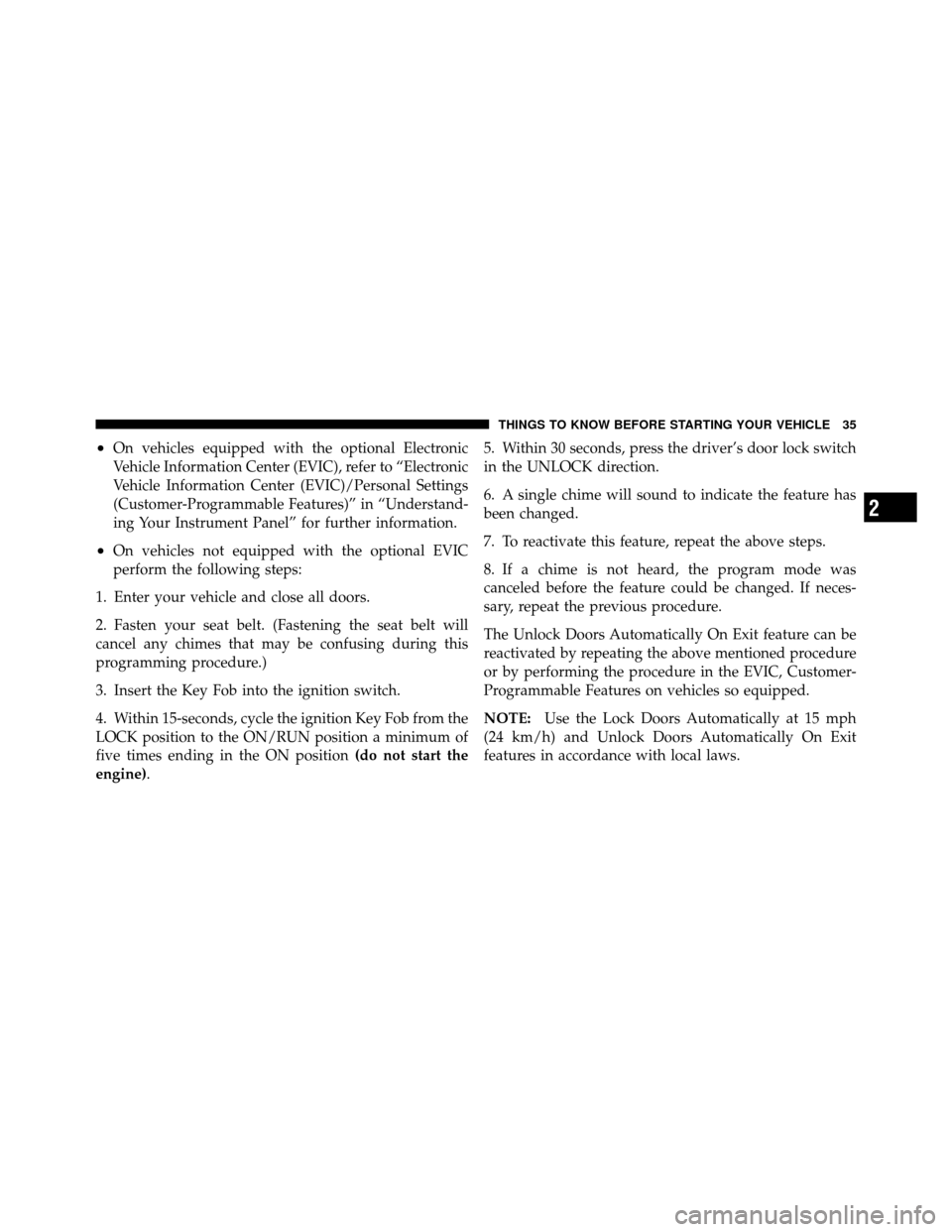

•On vehicles equipped with the optional Electronic
Vehicle Information Center (EVIC), refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
•On vehicles not equipped with the optional EVIC
perform the following steps:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chimes that may be confusing during this
programming procedure.)
3. Insert the Key Fob into the ignition switch.
4. Within 15-seconds, cycle the ignition Key Fob from the
LOCK position to the ON/RUN position a minimum of
five times ending in the ON position (do not start the
engine). 5. Within 30 seconds, press the driver’s door lock switch
in the UNLOCK direction.
6. A single chime will sound to indicate the feature has
been changed.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, the program mode was
canceled before the feature could be changed. If neces-
sary, repeat the previous procedure.
The Unlock Doors Automatically On Exit feature can be
reactivated by repeating the above mentioned procedure
or by performing the procedure in the EVIC, Customer-
Programmable Features on vehicles so equipped.
NOTE:
Use the Lock Doors Automatically at 15 mph
(24 km/h) and Unlock Doors Automatically On Exit
features in accordance with local laws.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

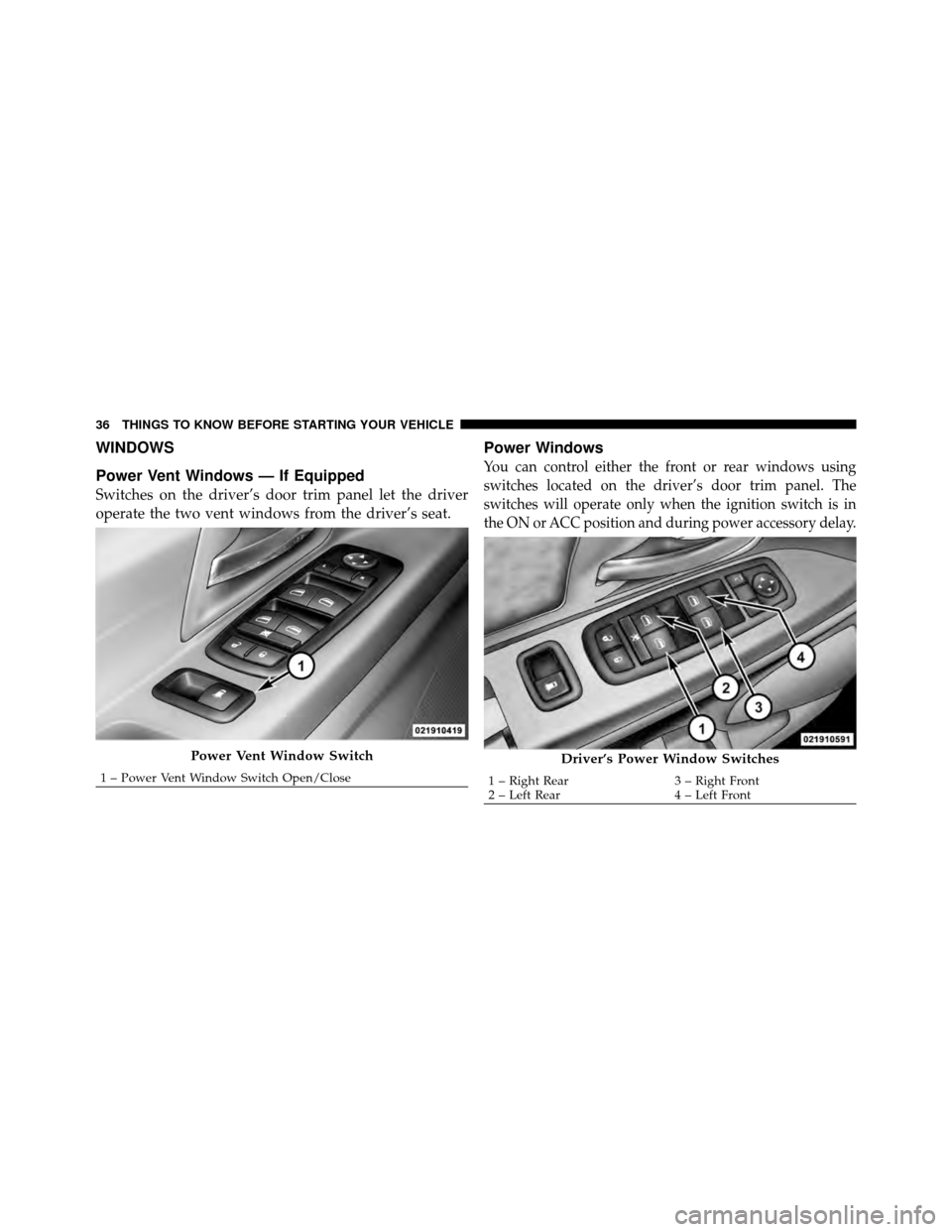

WINDOWS
Power Vent Windows — If Equipped
Switches on the driver’s door trim panel let the driver
operate the two vent windows from the driver’s seat.
Power Windows
You can control either the front or rear windows using
switches located on the driver’s door trim panel. The
switches will operate only when the ignition switch is in
the ON or ACC position and during power accessory delay.
Power Vent Window Switch
1 – Power Vent Window Switch Open/Close
Driver’s Power Window Switches
1 – Right Rear3 – Right Front
2 – Left Rear 4 – Left Front
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

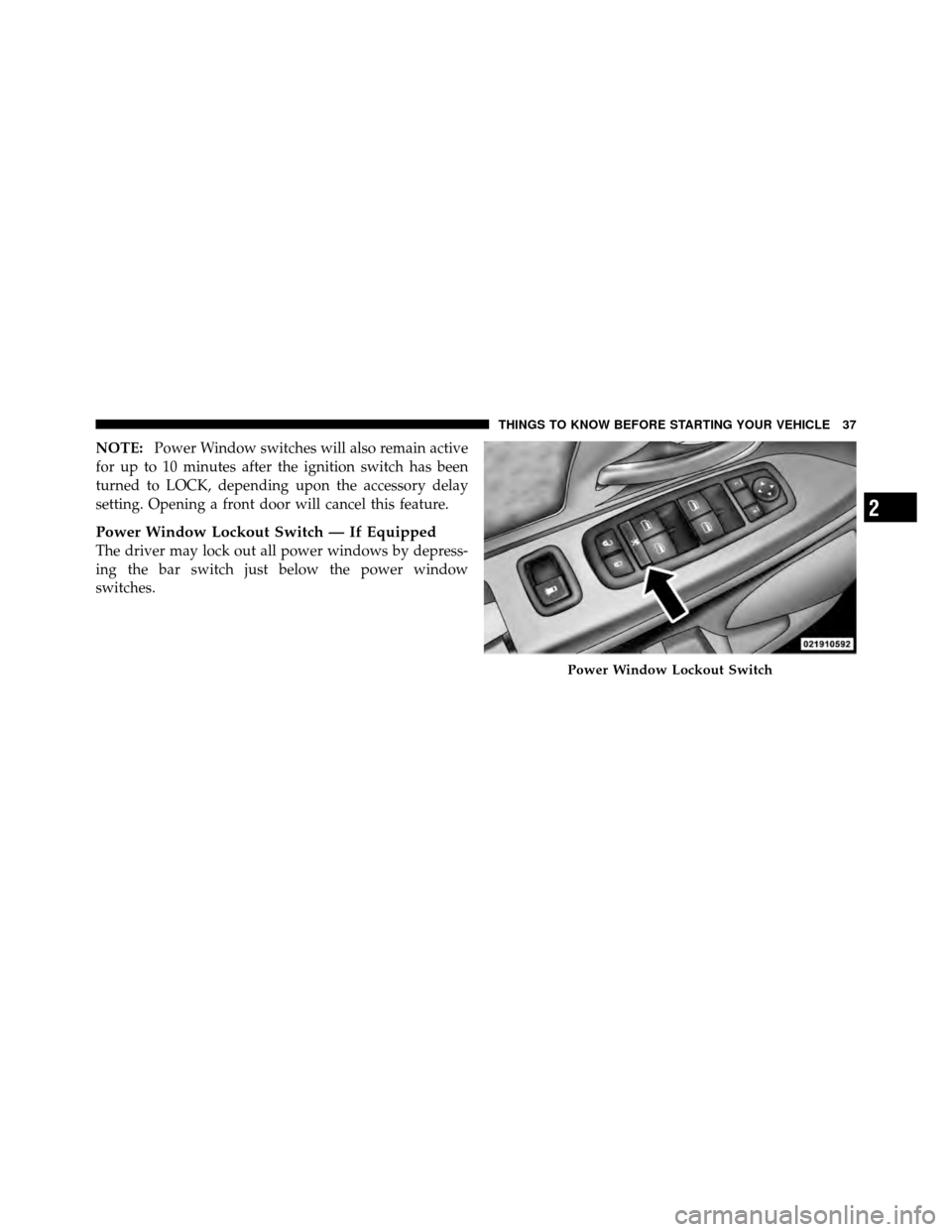

NOTE:Power Window switches will also remain active
for up to 10 minutes after the ignition switch has been
turned to LOCK, depending upon the accessory delay
setting. Opening a front door will cancel this feature.
Power Window Lockout Switch — If Equipped
The driver may lock out all power windows by depress-
ing the bar switch just below the power window
switches.
Power Window Lockout Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

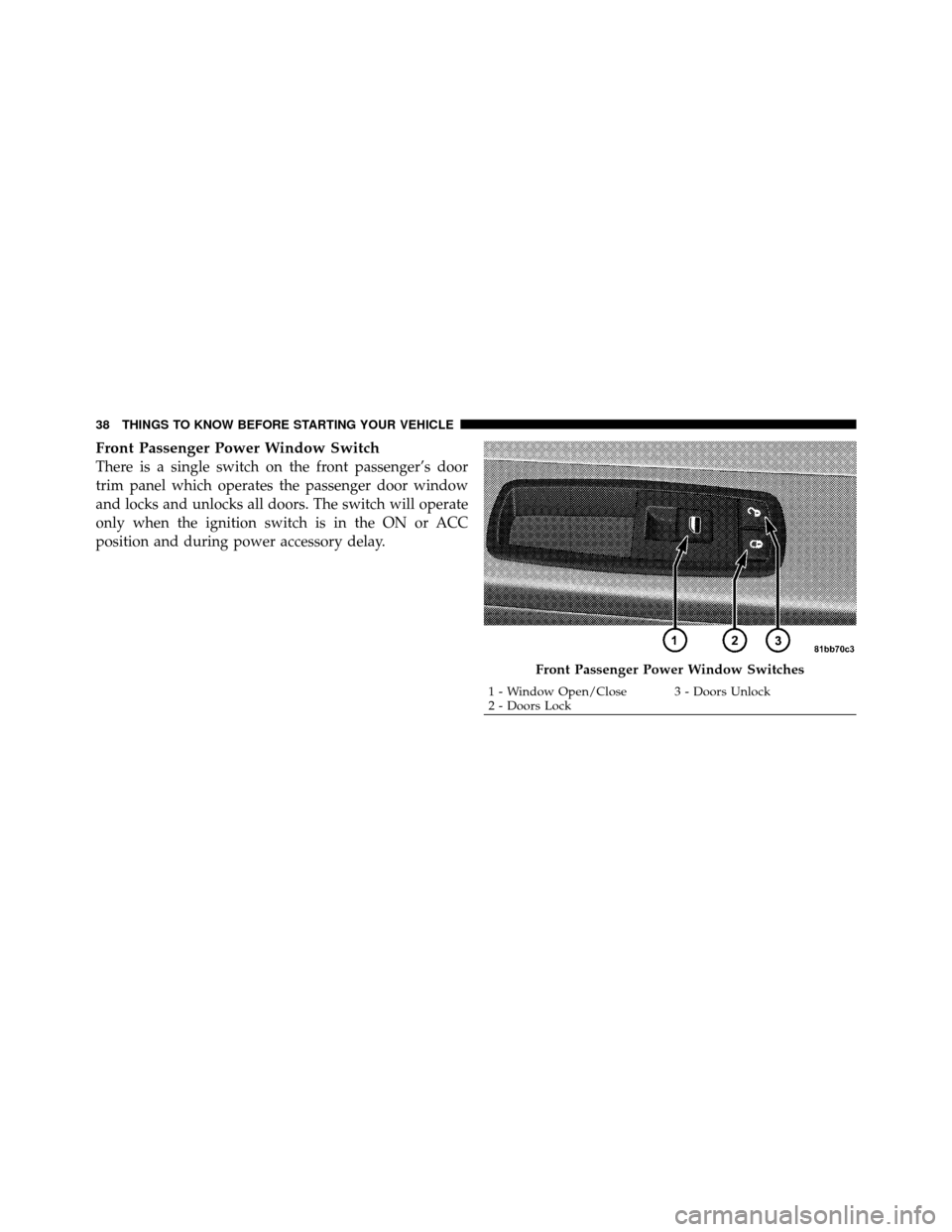

Front Passenger Power Window Switch
There is a single switch on the front passenger’s door
trim panel which operates the passenger door window
and locks and unlocks all doors. The switch will operate
only when the ignition switch is in the ON or ACC
position and during power accessory delay.
Front Passenger Power Window Switches
1 - Window Open/Close 3 - Doors Unlock
2 - Doors Lock
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Sliding Side Door Power Window Switch —
If Equipped
Second row passengers may open and close the sliding
door window by a single switch on the door handle
assembly.
The switches will operate only when the ignition switch
is in the ON or ACC position and during power acces-
sory delay.
NOTE:The switches will not operate if the driver has
activated the Power Window Lockout.
NOTE:The sliding door windows do not fully open,
stopping several inches above the window sill.
Sliding Door Power Window Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
