▫Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles ...... 489
▫ Starting ........................... 489
▫ Cruising Range ...................... 489
▫ Replacement Parts ................... 490
▫ Maintenance ........................ 490
 Adding Fuel ......................... 490
▫ Fuel Filler Cap (Gas Cap) .............. 490
▫ Loose Fuel Filler Cap Message ........... 492
Vehicle Loading ...................... 492
▫ Vehicle Certification Label .............. 492
 Trailer Towing ........................ 495
▫ Common Towing Definitions ............ 495
▫ Towing Tips ........................ 508
 Recreational Towing
(Behind Motorhome, Etc.) ................ 509
▫ Towing This Vehicle
Behind Another Vehicle ................ 509
418 STARTING AND OPERATING

CAUTION!
•Failure to properly maintain your vehicle or per-
form repairs and service when necessary could
result in more costly repairs, damage to other
components or negatively impact vehicle perfor-
mance. Immediately have potential malfunctions
examined by an authorized Chrysler Group LLC
dealership or qualified repair center.
•Your vehicle has been built with improved fluids
that protect the performance and durability of
your vehicle and also allow extended maintenance
intervals. Do not use chemical flushes in these
components as the chemicals can damage your
engine, transmission, power steering or air condi-
tioning. Such damage is not covered by the New
Vehicle Limited Warranty. If a flush is needed
because of component malfunction, use only the
specified fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after a
fully warmed engine is shut OFF or before starting the
engine after it has sat overnight.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Maintain
the oil level between the MIN and MAX markings on the
dipstick. Adding one quart of oil when the reading is at
the MIN mark will result in a MAX reading on these
engines.
550 MAINTAINING YOUR VEHICLE

WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Warranty Information Book, located on the DVD,
for further warranty information.
•The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced repairman.
Refrigerant Recovery And Recycling
R-134a air conditioning refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by an authorized dealer, or other
authorized service facility, using recovery and recycling
equipment.
NOTE:Use only manufacturer-approved A/C System
Sealers, Stop Leak Products, Seal Conditioners, Compres-
sor Oil, or Refrigerants.
A/C Air Filter
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
558 MAINTAINING YOUR VEHICLE

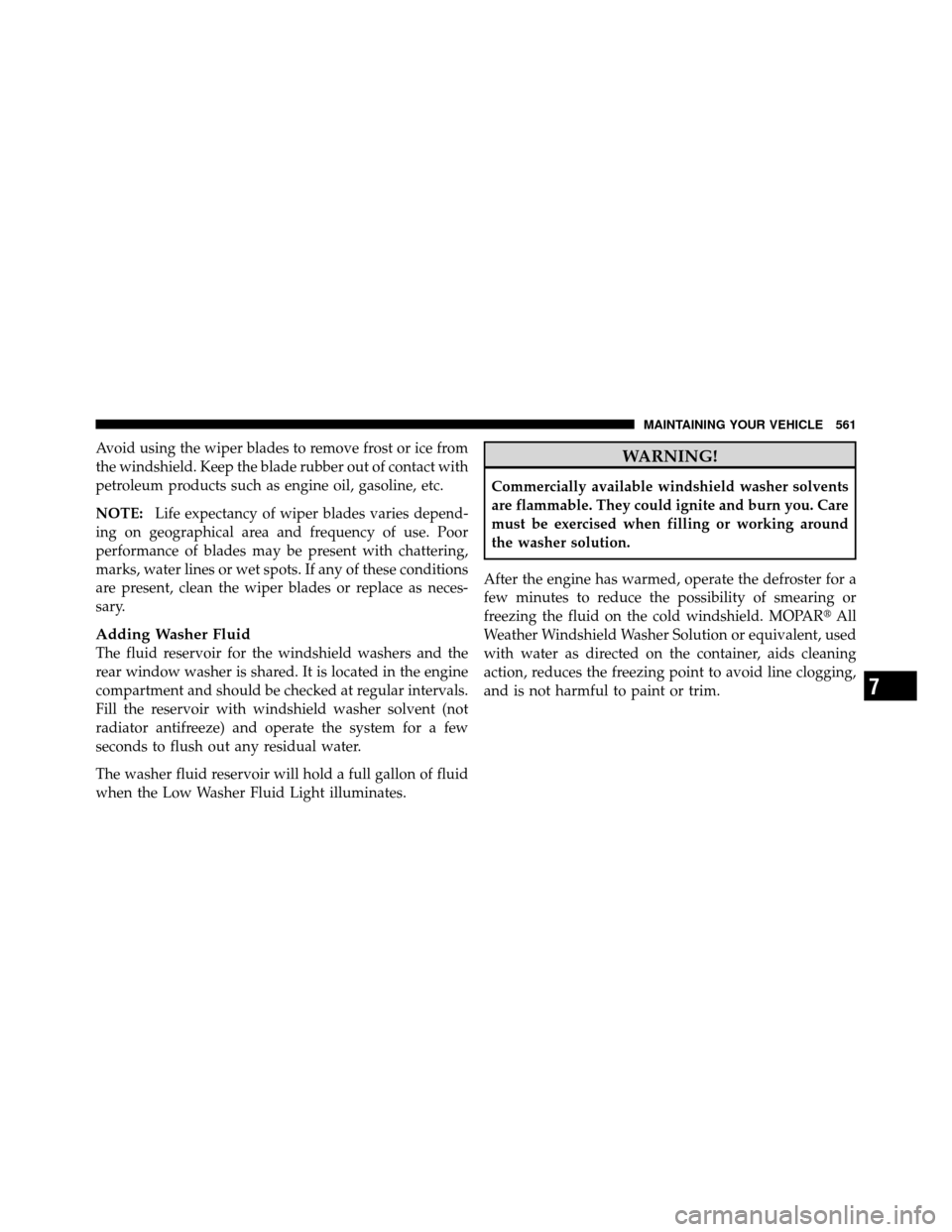

Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer is shared. It is located in the engine
compartment and should be checked at regular intervals.
Fill the reservoir with windshield washer solvent (not
radiator antifreeze) and operate the system for a few
seconds to flush out any residual water.
The washer fluid reservoir will hold a full gallon of fluid
when the Low Washer Fluid Light illuminates.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
After the engine has warmed, operate the defroster for a
few minutes to reduce the possibility of smearing or
freezing the fluid on the cold windshield. MOPAR All
Weather Windshield Washer Solution or equivalent, used
with water as directed on the container, aids cleaning
action, reduces the freezing point to avoid line clogging,
and is not harmful to paint or trim.
7
MAINTAINING YOUR VEHICLE 561

ConnectorUCI .............................. 346
Universal Consumer Interface (UCI) ....... 346
Conserving Fuel ........................ 310
Console .............................. 261
Console, Floor .......................... 261
Console, Overhead ....................... 227
Console, Removable ...................... 265
Contract, Service ........................ 613
Coolant Pressure Cap (Radiator Cap) .......... 565
Cooling System ......................... 562
Adding Coolant (Antifreeze) ............. 564
Coolant Capacity ..................... 589
Coolant Level .................... 562,565
Disposal of Used Coolant ............... 565
Drain, Flush, and Refill ................ 563
Inspection .......................... 565
Points to Remember .................. 566 Pressure Cap
........................ 565
Radiator Cap ....................... 565
Selection of Coolant (Antifreeze) ....563,589,590
Cupholders ......................... 250,577
Customer Assistance ..................... 611
Data Recorder, Event ...................... 84
Daytime Running Lights ................... 200
Dealer Service .......................... 549
Defroster, Rear Window ................... 269
Defroster, Windshield .................. 101,406
Diagnostic System, Onboard ................ 546
Dimmer Control ........................ 201
Dipsticks Automatic Transmission ................ 571
Oil (Engine) ........................ 550
Power Steering ...................... 438
Disabled Vehicle Towing ................... 539
10
INDEX 623
