Once the crossbars are set into position, tighten the
thumb screws completely.Stowing the Crossbars
Reverse the procedure to stow the crossbars, again,
taking care to keep hand clear of pivoting joint. Crossbars
are identical and can be stowed in either rail nest. Once
the crossbars are stowed, tighten the thumb screws
completely.
NOTE:Load should always be secured to crossbars first,
with rail tie down loops used as additional securing
points if needed. Tie loops are intended as supplemen-
tary tie down points only. Do not use ratcheting mecha-
nisms with the tie loops.
Tightening Crossbar
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 299

CAUTION!
•Check deployed crossbars frequently and retighten
thumb screws as necessary.
•
To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150 lb
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.
•To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars deployed.
•The load should be secured and placed on top of
the crossbars, not directly on the roof. If it is
necessary to place the load on the roof, place a
blanket or other protective layer between the load
and the roof surface.
(Continued)
Rail Tie Loops
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!(Continued)
•Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
•Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
SUN SCREENS — IF EQUIPPED
Sun screens are available for second and third row
seating windows. The screens store in the sill trim panels,
and the tops of the windows are equipped with hooks
that the sun screens attach to when pulled out.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 301

Gently pull up on the tab to raise the sun screen.
Continue pulling the sun screen until the tab is near the
top of the window.
Once the screen is completely to the top of the window,
extend the top bar of the sun screen over the two hooks
attached to the top of the window.To lower the sun screen, gently lift the tab upward to
disengage the hooks, and feed the screen back into the
base sill.
Sun Screen RetractedSun Screen Extended
302 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

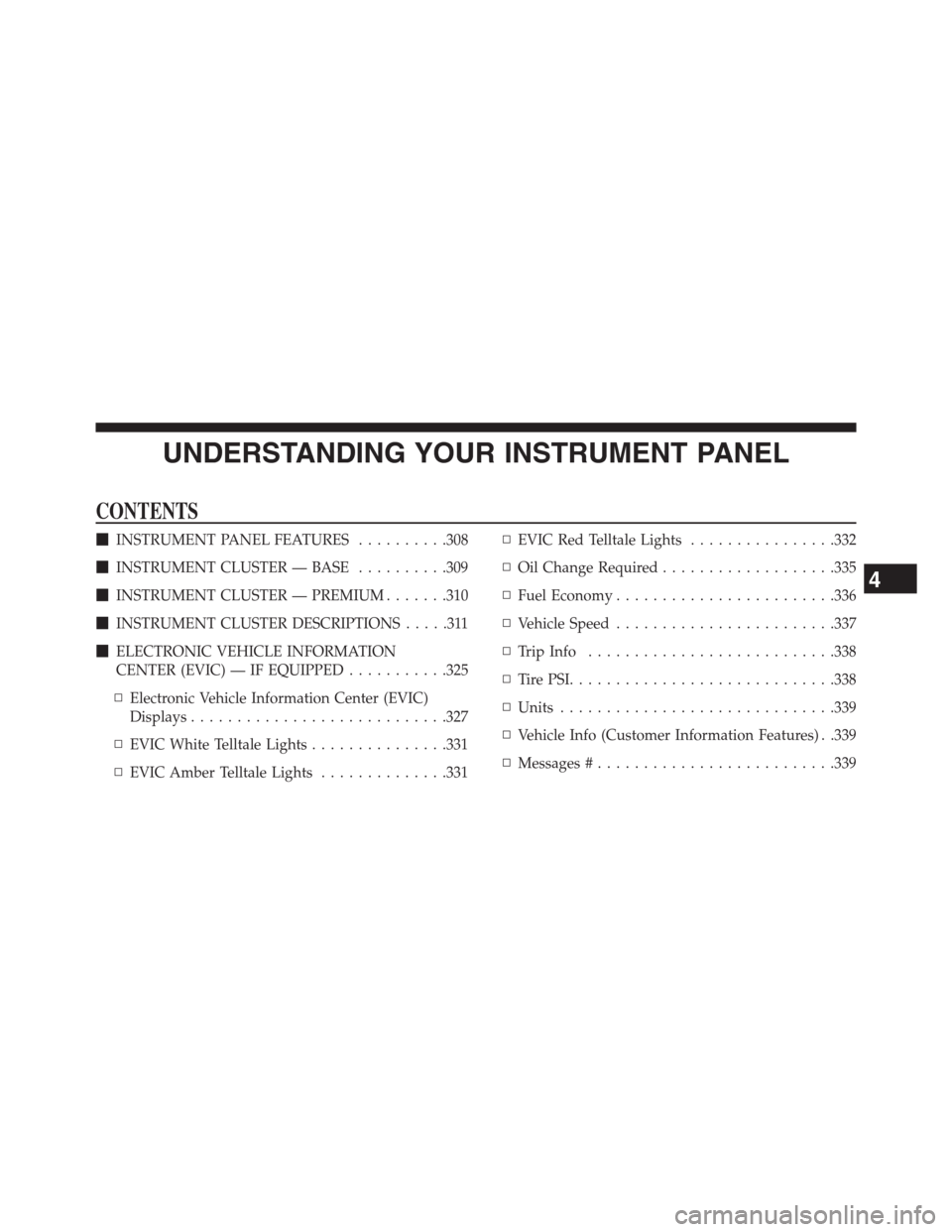

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES..........308
INSTRUMENT CLUSTER — BASE..........309
INSTRUMENT CLUSTER — PREMIUM.......310
INSTRUMENT CLUSTER DESCRIPTIONS.....311
ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) — IF EQUIPPED...........325
â–«Electronic Vehicle Information Center (EVIC)
Displays............................327
â–«EVIC White Telltale Lights...............331
â–«EVIC Amber Telltale Lights..............331â–«EVIC Red Telltale Lights................332
â–«Oil Change Required...................335
â–«Fuel Economy........................336
â–«Vehicle Speed........................337
â–«Trip Info...........................338
â–«TirePSI.............................338
â–«Units..............................339
â–«Vehicle Info (Customer Information Features) . .339
â–«Messages #..........................339
4

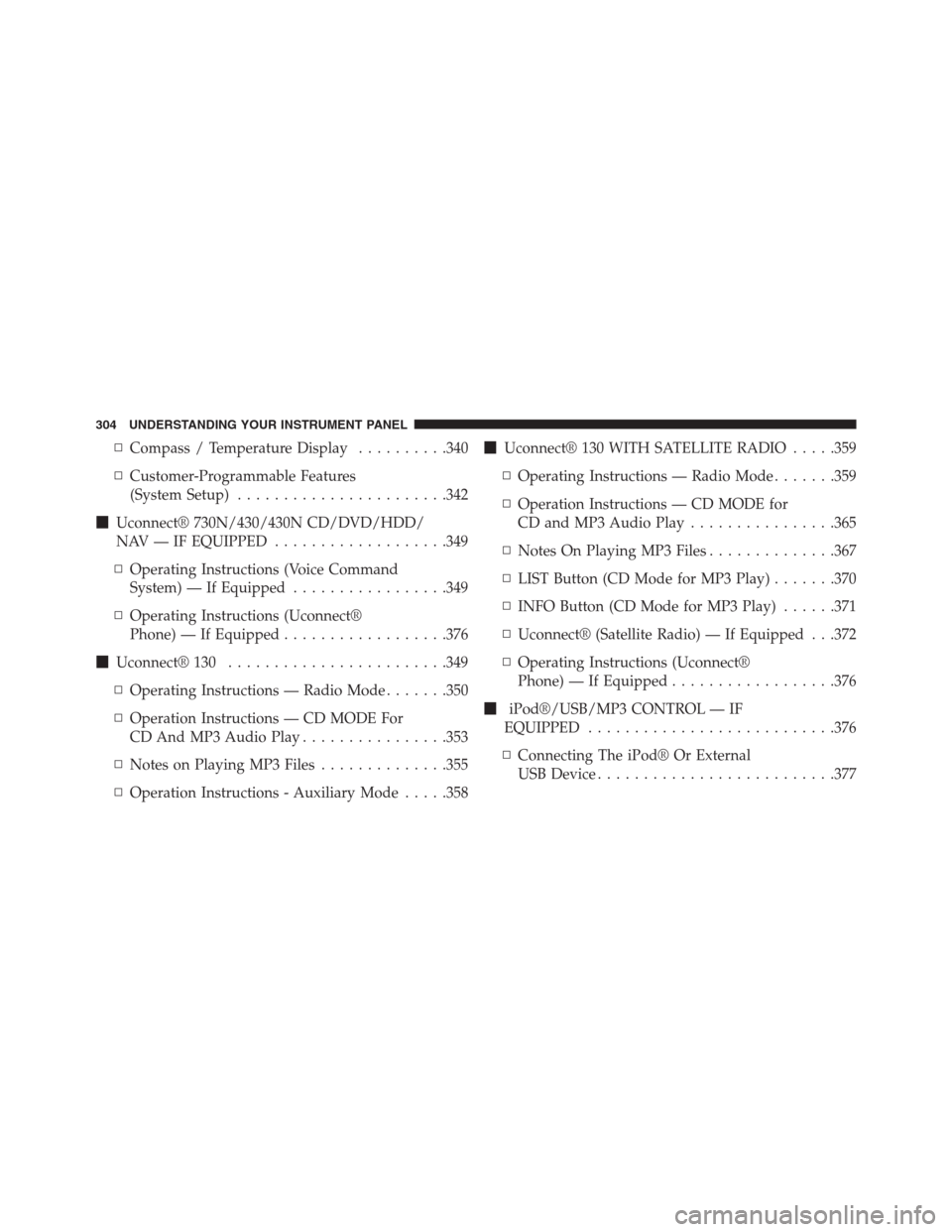

â–«Compass / Temperature Display..........340
â–«Customer-Programmable Features
(System Setup).......................342
Uconnect® 730N/430/430N CD/DVD/HDD/
NAV — IF EQUIPPED...................349
â–«Operating Instructions (Voice Command
System) — If Equipped.................349
▫Operating Instructions (Uconnect®
Phone) — If Equipped..................376
Uconnect® 130........................349
▫Operating Instructions — Radio Mode.......350
▫Operation Instructions — CD MODE For
CD And MP3 Audio Play................353
â–«Notes on Playing MP3 Files..............355
▫Operation Instructions - Auxiliary Mode.....358Uconnect® 130 WITH SATELLITE RADIO.....359
▫Operating Instructions — Radio Mode.......359
▫Operation Instructions — CD MODE for
CD and MP3 Audio Play................365
â–«Notes On Playing MP3 Files..............367
â–«LIST Button (CD Mode for MP3 Play).......370
â–«INFO Button (CD Mode for MP3 Play)......371
▫Uconnect® (Satellite Radio) — If Equipped . . .372
▫Operating Instructions (Uconnect®
Phone) — If Equipped..................376
iPod®/USB/MP3 CONTROL — IF
EQUIPPED...........................376
▫Connecting The iPod® Or External
USB Device..........................377
304 UNDERSTANDING YOUR INSTRUMENT PANEL

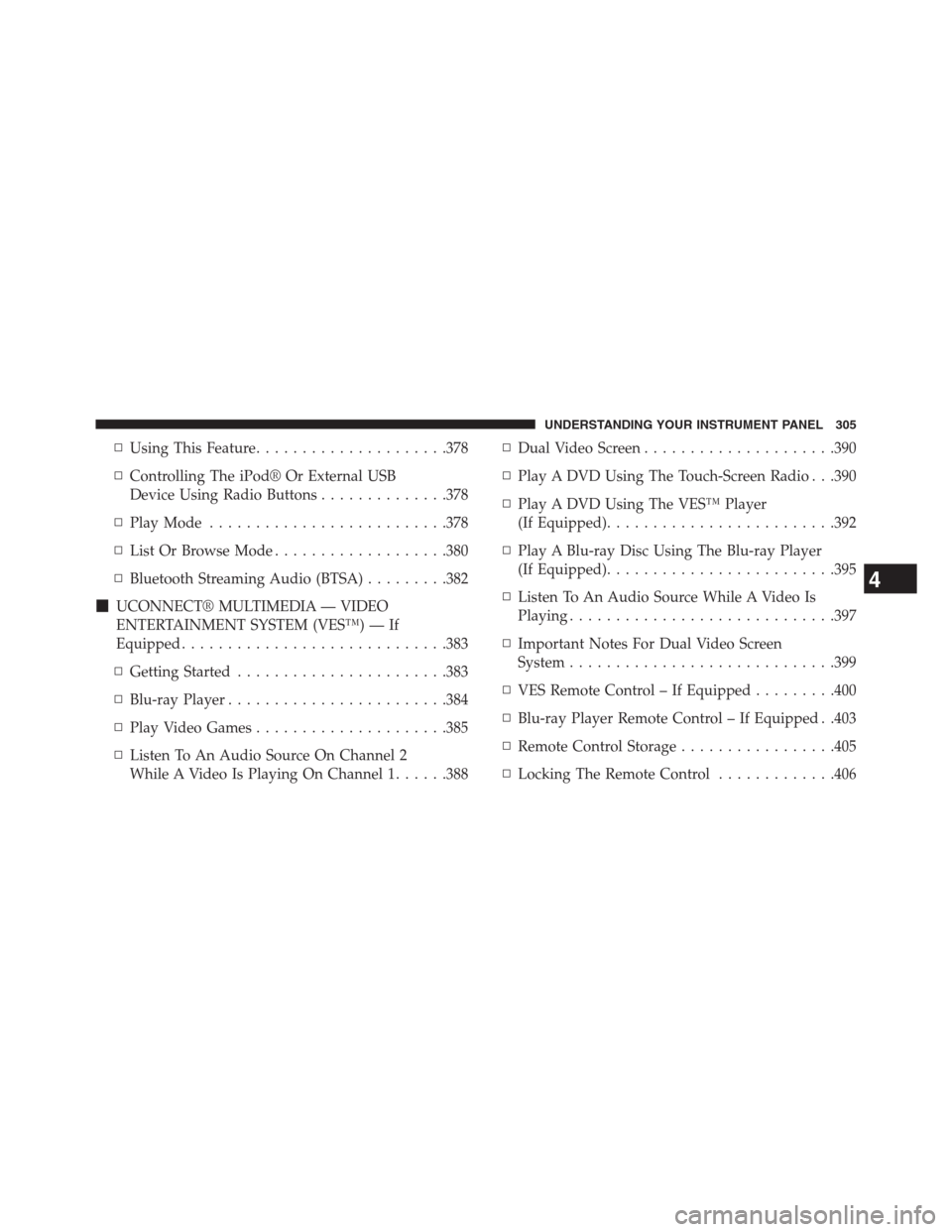

â–«Using This Feature.....................378
▫Controlling The iPod® Or External USB
Device Using Radio Buttons..............378
â–«Play Mode..........................378
â–«List Or Browse Mode...................380
â–«Bluetooth Streaming Audio (BTSA).........382
UCONNECT® MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES™) — If
Equipped.............................383
â–«Getting Started.......................383
â–«Blu-ray Player........................384
â–«Play Video Games.....................385
â–«Listen To An Audio Source On Channel 2
While A Video Is Playing On Channel 1......388â–«Dual Video Screen.....................390
â–«Play A DVD Using The Touch-Screen Radio . . .390
â–«Play A DVD Using The VESâ„¢ Player
(If Equipped).........................392
â–«Play A Blu-ray Disc Using The Blu-ray Player
(If Equipped).........................395
â–«Listen To An Audio Source While A Video Is
Playing.............................397
â–«Important Notes For Dual Video Screen
System.............................399
▫VES Remote Control – If Equipped.........400
▫Blu-ray Player Remote Control – If Equipped . .403
â–«Remote Control Storage.................405
â–«Locking The Remote Control.............406
4
UNDERSTANDING YOUR INSTRUMENT PANEL 305

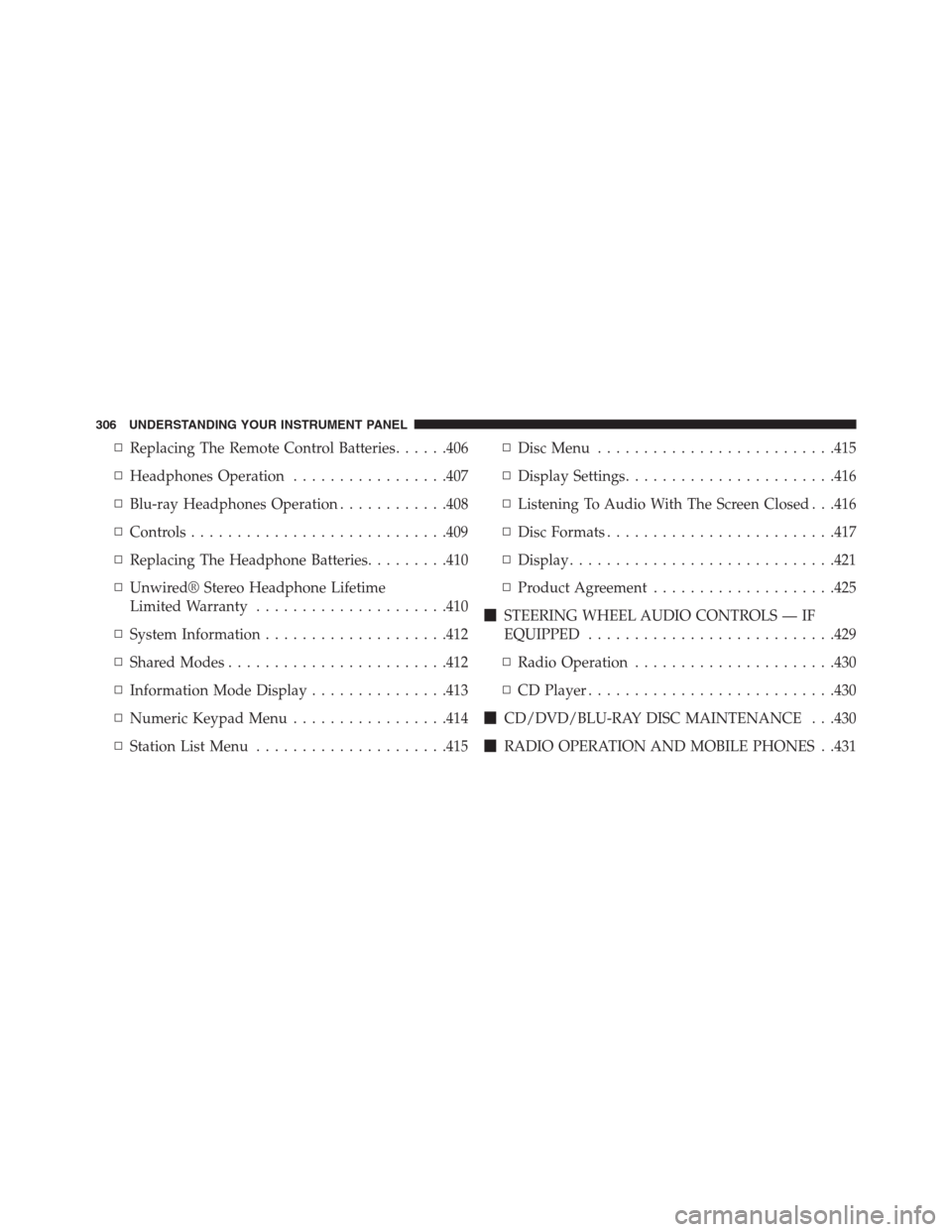

â–«Replacing The Remote Control Batteries......406
â–«Headphones Operation.................407
â–«Blu-ray Headphones Operation............408
â–«Controls............................409
â–«Replacing The Headphone Batteries.........410
▫Unwired® Stereo Headphone Lifetime
Limited Warranty.....................410
â–«System Information....................412
â–«Shared Modes........................412
â–«Information Mode Display...............413
â–«Numeric Keypad Menu.................414
â–«Station List Menu.....................415â–«Disc Menu..........................415
â–«Display Settings.......................416
â–«Listening To Audio With The Screen Closed . . .416
â–«Disc Formats.........................417
â–«Display.............................421
â–«Product Agreement....................425
STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED...........................429
â–«Radio Operation......................430
â–«CD Player...........................430
CD/DVD/BLU-RAY DISC MAINTENANCE . . .430
RADIO OPERATION AND MOBILE PHONES . .431
306 UNDERSTANDING YOUR INSTRUMENT PANEL

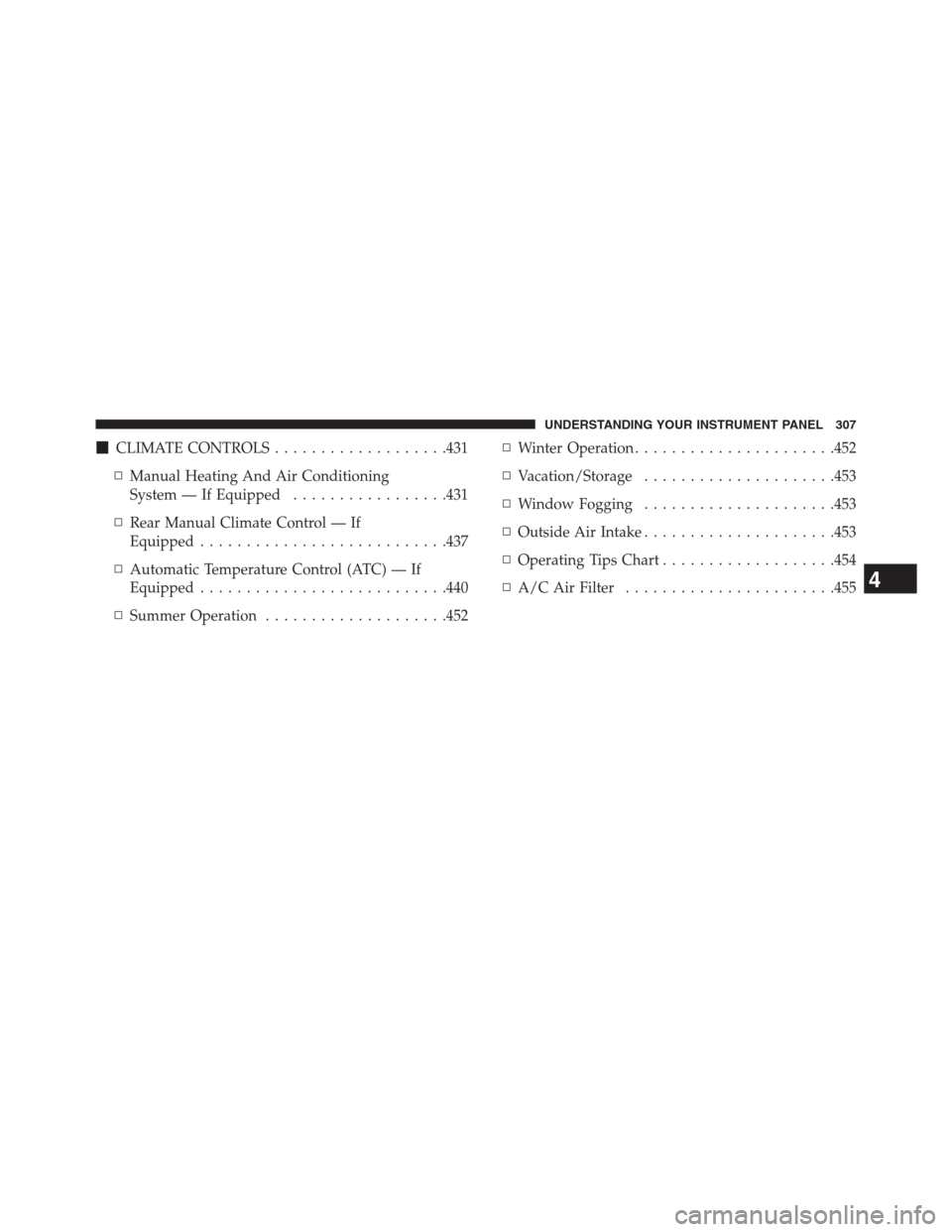

CLIMATE CONTROLS...................431
â–«Manual Heating And Air Conditioning
System — If Equipped.................431
▫Rear Manual Climate Control — If
Equipped...........................437
▫Automatic Temperature Control (ATC) — If
Equipped...........................440
â–«Summer Operation....................452â–«Winter Operation......................452
â–«Vacation/Storage.....................453
â–«Window Fogging.....................453
â–«Outside Air Intake.....................453
â–«Operating Tips Chart...................454
â–«A/C Air Filter.......................455
4
UNDERSTANDING YOUR INSTRUMENT PANEL 307

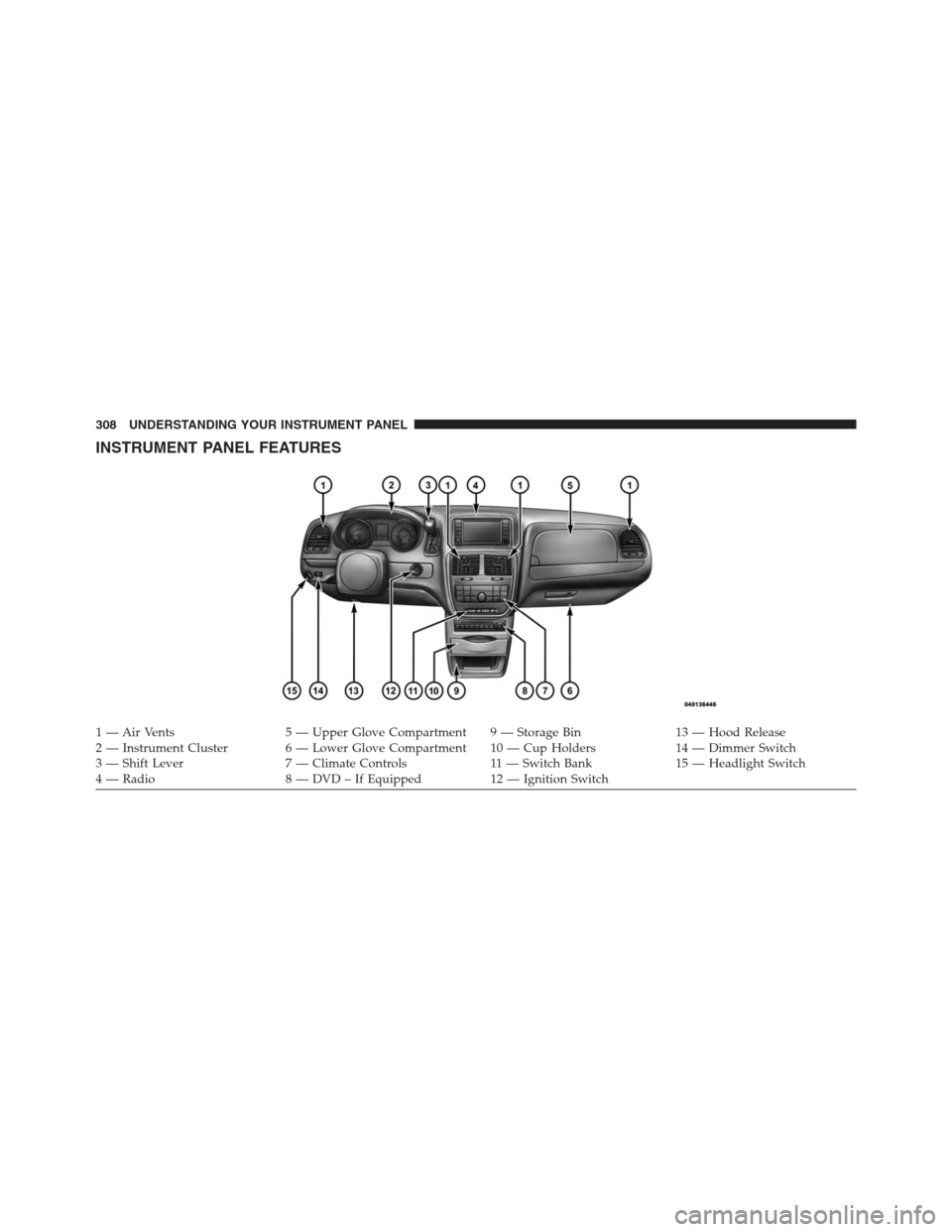

INSTRUMENT PANEL FEATURES
1 — Air Vents 5 — Upper Glove Compartment 9 — Storage Bin 13 — Hood Release
2 — Instrument Cluster 6 — Lower Glove Compartment 10 — Cup Holders 14 — Dimmer Switch
3 — Shift Lever 7 — Climate Controls 11 — Switch Bank 15 — Headlight Switch
4 — Radio 8 — DVD – If Equipped 12 — Ignition Switch 308 UNDERSTANDING YOUR INSTRUMENT PANEL
