DODGE GRAND CARAVAN 2013 5.G Owners Manual

Cav-
ityCar-
tridge
FuseMini-
FuseDescription

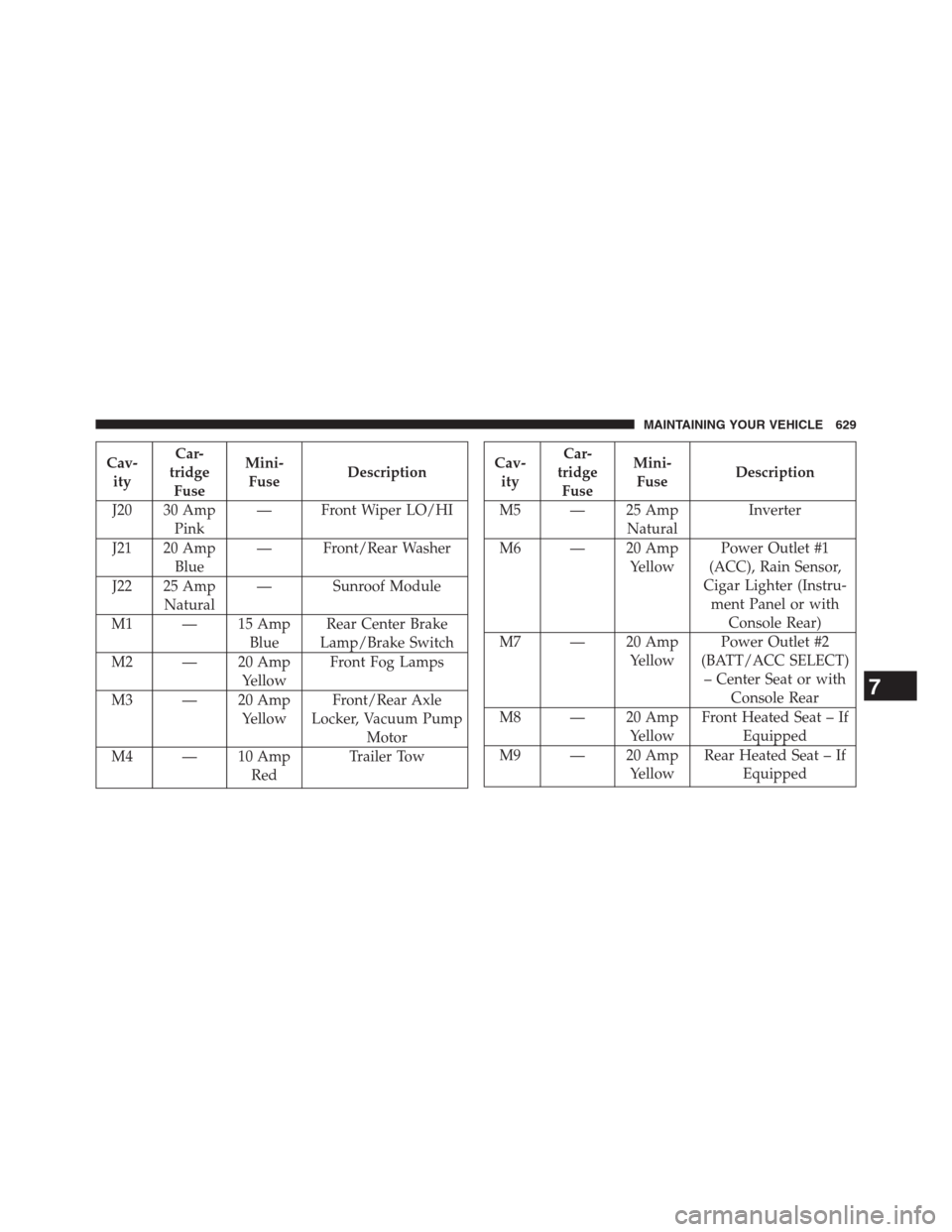

J20 30 Amp
Pink— Front Wiper LO/HI
J21 20 Amp
Blue— Front/Rear Washer
J22 25 Amp
Natural— Sunroof Module
M1 — 15 Amp
BlueRear Center Brake
Lamp/Brake Switch
M2 — 20 Amp
YellowFront Fog Lamps
M3 — 20 Amp
YellowFront/Rear Axle
Locker, Vacuum Pump
Motor
M4 — 10 Amp
RedTrailer TowCav-
ityCar-
tridge
FuseMini-
FuseDescription
M5 — 25 Amp
NaturalInverter
M6 — 20 Amp
YellowPower Outlet #1
(ACC), Rain Sensor,
Cigar Lighter (Instru-
ment Panel or with
Console Rear)
M7 — 20 Amp
YellowPower Outlet #2
(BATT/ACC SELECT)
– Center Seat or with
Console Rear
M8 — 20 Amp
YellowFront Heated Seat – If
Equipped
M9 — 20 Amp
YellowRear Heated Seat – If
Equipped
7
MAINTAINING YOUR VEHICLE 629

Cav-
ityCar-
tridge
FuseMini-
FuseDescription

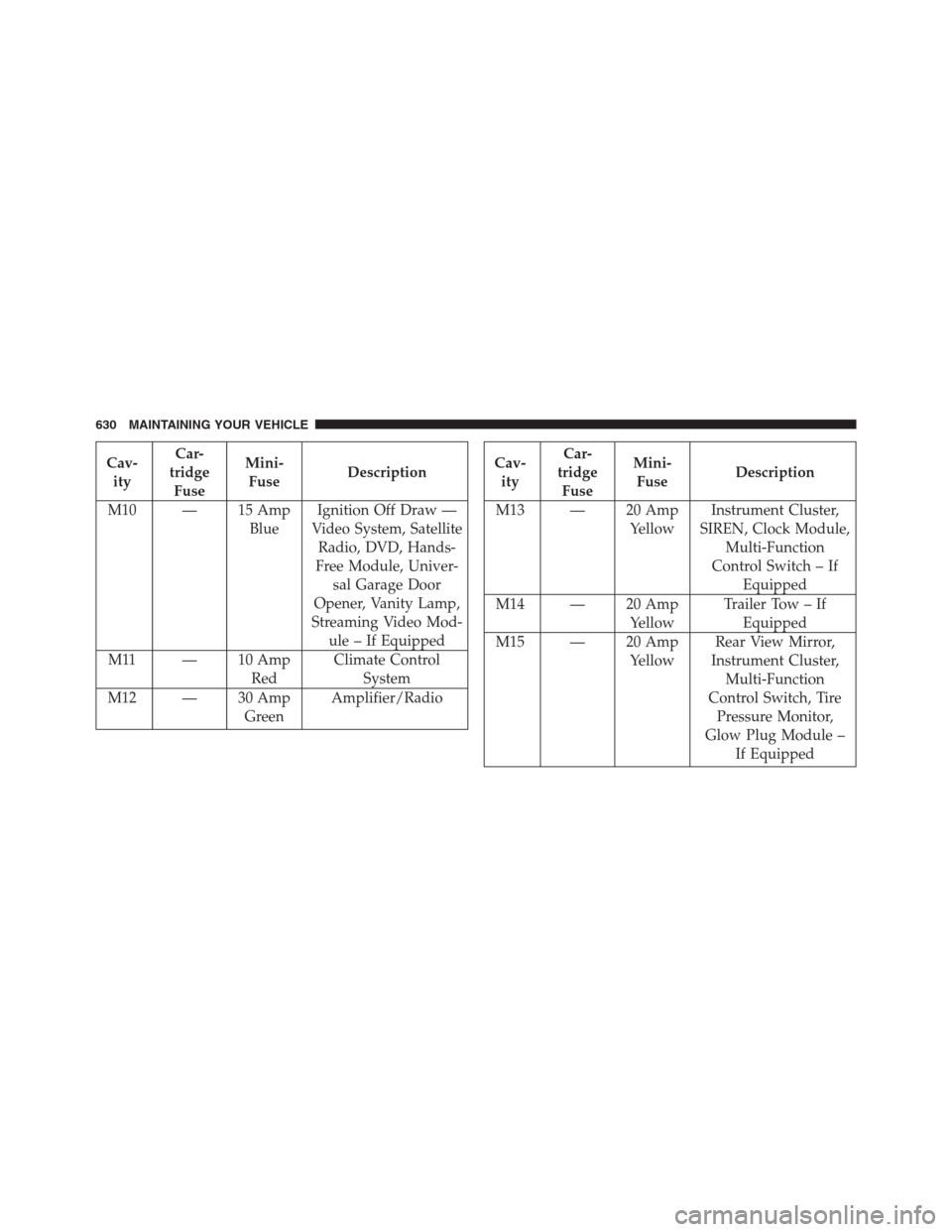

M10 — 15 Amp
BlueIgnition Off Draw —
Video System, Satellite
Radio, DVD, Hands-
Free Module, Univer-
sal Garage Door
Opener, Vanity Lamp,
Streaming Video Mod-
ule – If Equipped
M11 — 10 Amp
RedClimate Control
System
M12 — 30 Amp
GreenAmplifier/RadioCav-
ityCar-
tridge
FuseMini-
FuseDescription
M13 — 20 Amp
YellowInstrument Cluster,
SIREN, Clock Module,
Multi-Function
Control Switch – If
Equipped
M14 — 20 Amp
YellowTrailer Tow – If
Equipped
M15 — 20 Amp
YellowRear View Mirror,
Instrument Cluster,
Multi-Function
Control Switch, Tire
Pressure Monitor,
Glow Plug Module –
If Equipped
630 MAINTAINING YOUR VEHICLE

Cav-
ityCar-
tridge
FuseMini-
FuseDescription

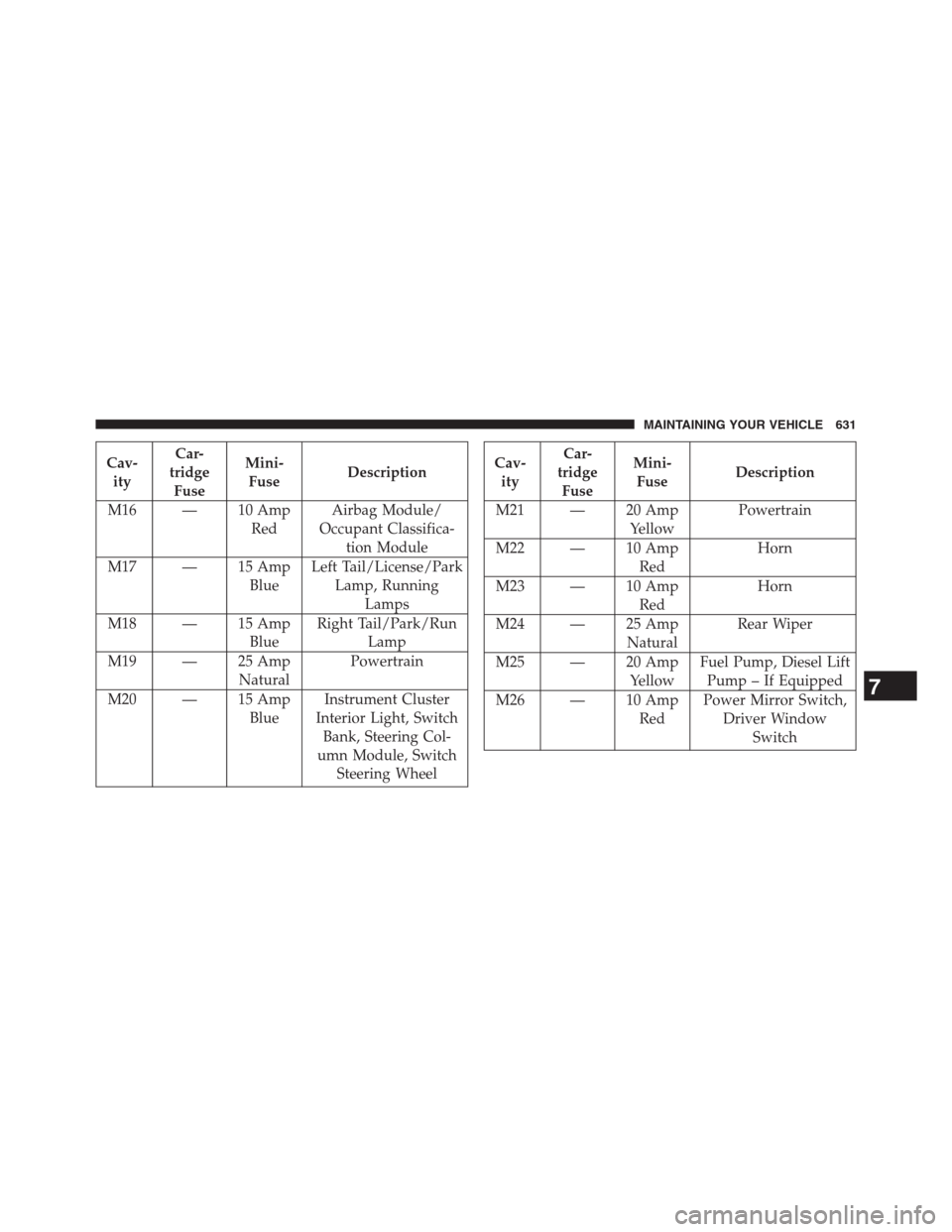

M16 — 10 Amp
RedAirbag Module/
Occupant Classifica-
tion Module
M17 — 15 Amp
BlueLeft Tail/License/Park
Lamp, Running
Lamps
M18 — 15 Amp
BlueRight Tail/Park/Run
Lamp
M19 — 25 Amp
NaturalPowertrain
M20 — 15 Amp
BlueInstrument Cluster
Interior Light, Switch
Bank, Steering Col-
umn Module, Switch
Steering WheelCav-
ityCar-
tridge
FuseMini-
FuseDescription
M21 — 20 Amp
YellowPowertrain
M22 — 10 Amp
RedHorn
M23 — 10 Amp
RedHorn
M24 — 25 Amp
NaturalRear Wiper
M25 — 20 Amp
YellowFuel Pump, Diesel Lift
Pump – If Equipped
M26 — 10 Amp
RedPower Mirror Switch,
Driver Window
Switch
7
MAINTAINING YOUR VEHICLE 631

Cav-
ityCar-
tridge
FuseMini-
FuseDescription

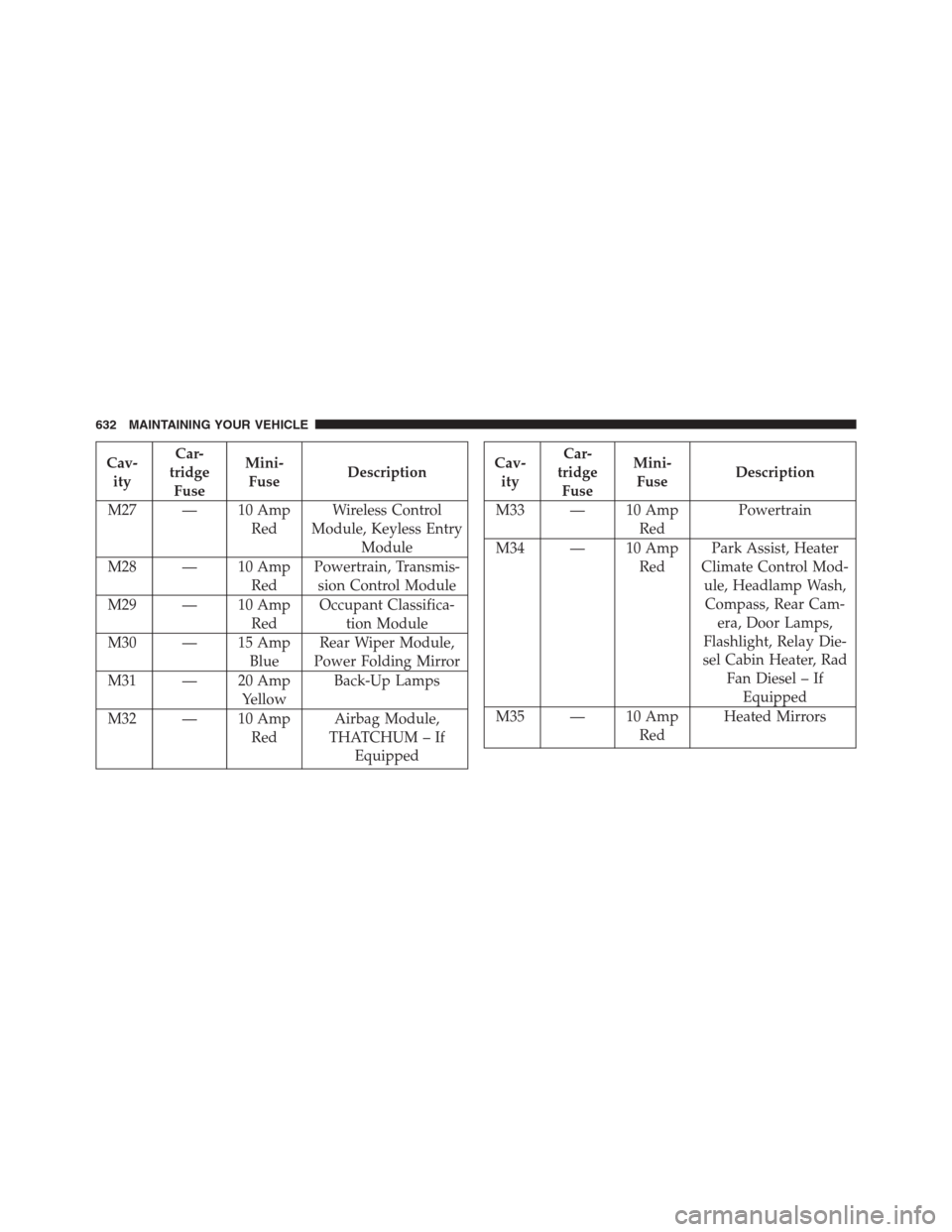

M27 — 10 Amp
RedWireless Control
Module, Keyless Entry
Module
M28 — 10 Amp
RedPowertrain, Transmis-
sion Control Module
M29 — 10 Amp
RedOccupant Classifica-
tion Module
M30 — 15 Amp
BlueRear Wiper Module,
Power Folding Mirror
M31 — 20 Amp
YellowBack-Up Lamps
M32 — 10 Amp
RedAirbag Module,
THATCHUM – If
EquippedCav-
ityCar-
tridge
FuseMini-
FuseDescription
M33 — 10 Amp
RedPowertrain
M34 — 10 Amp
RedPark Assist, Heater
Climate Control Mod-
ule, Headlamp Wash,
Compass, Rear Cam-
era, Door Lamps,
Flashlight, Relay Die-
sel Cabin Heater, Rad
Fan Diesel – If
Equipped
M35 — 10 Amp
RedHeated Mirrors
632 MAINTAINING YOUR VEHICLE

Cav-
ityCar-
tridge
FuseMini-
FuseDescription

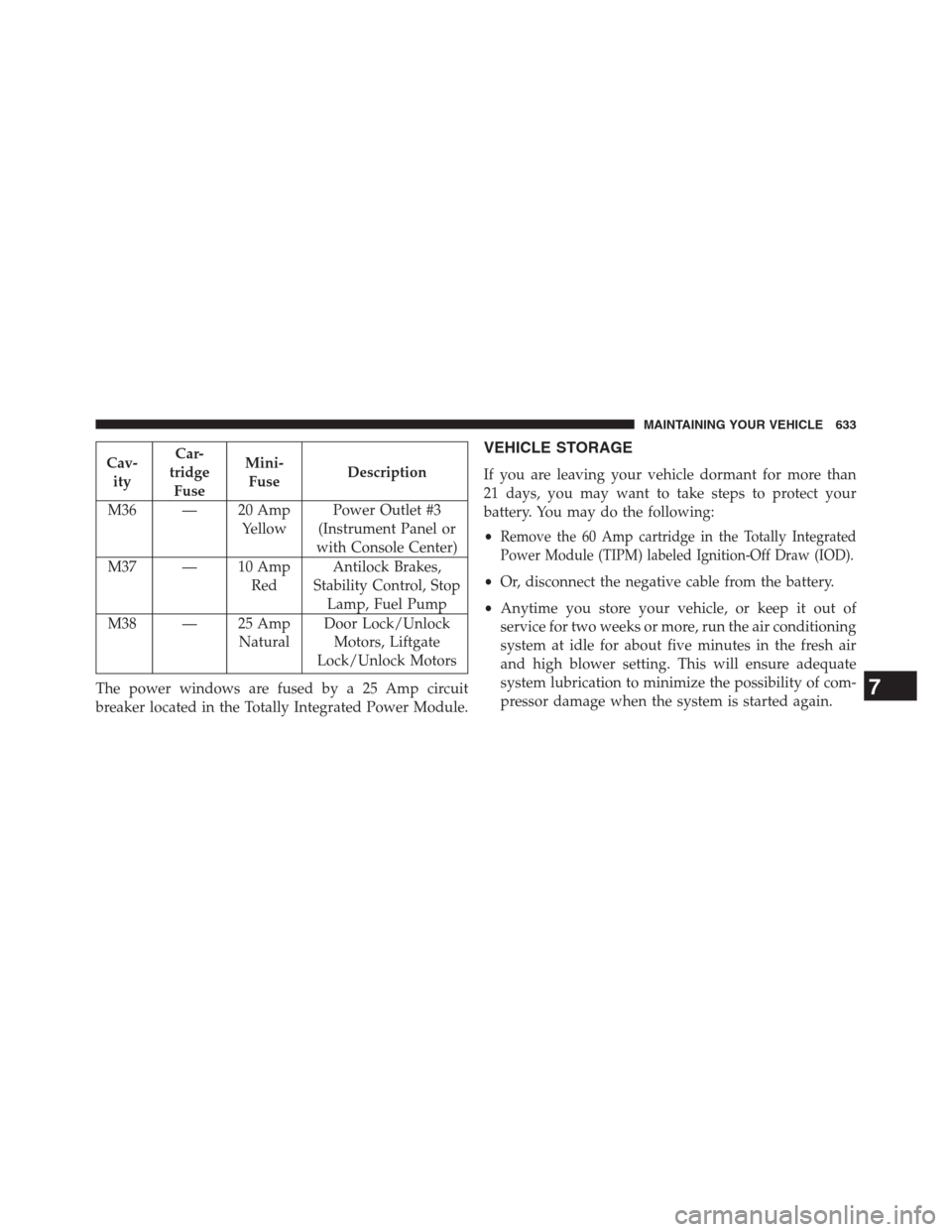

M36 — 20 Amp
YellowPower Outlet #3
(Instrument Panel or
with Console Center)
M37 — 10 Amp
RedAntilock Brakes,
Stability Control, Stop
Lamp, Fuel Pump
M38 — 25 Amp
NaturalDoor Lock/Unlock
Motors, Liftgate
Lock/Unlock Motors
The power windows are fused by a 25 Amp circuit
breaker located in the Totally Integrated Power Module.VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may do the following:
•
Remove the 60 Amp cartridge in the Totally Integrated
Power Module (TIPM) labeled Ignition-Off Draw (IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
7
MAINTAINING YOUR VEHICLE 633

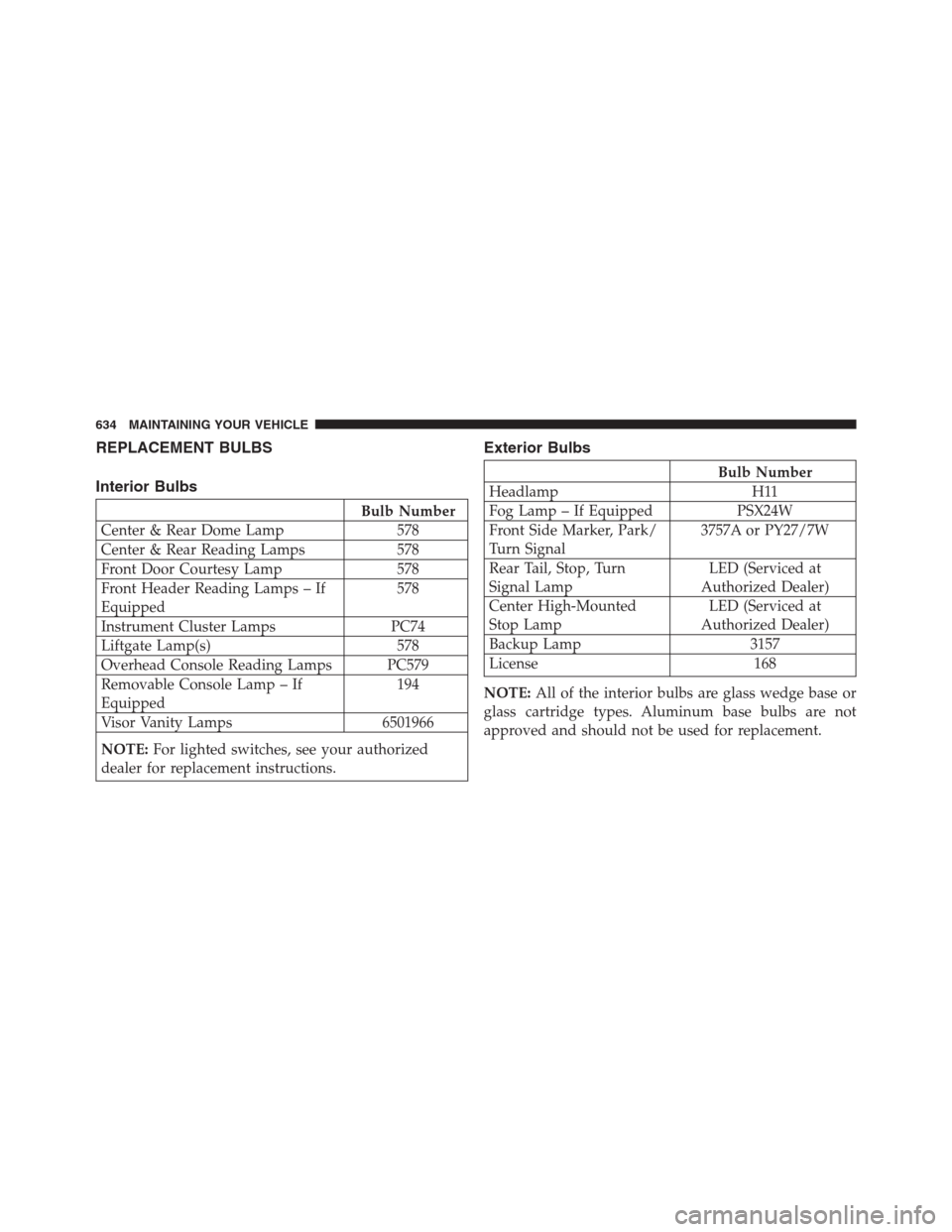

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Center & Rear Dome Lamp 578
Center & Rear Reading Lamps 578
Front Door Courtesy Lamp 578
Front Header Reading Lamps – If
Equipped578
Instrument Cluster Lamps PC74
Liftgate Lamp(s) 578
Overhead Console Reading Lamps PC579
Removable Console Lamp – If
Equipped194
Visor Vanity Lamps 6501966
NOTE:For lighted switches, see your authorized
dealer for replacement instructions.
Exterior Bulbs
Bulb Number
Headlamp H11
Fog Lamp – If Equipped PSX24W
Front Side Marker, Park/
Turn Signal3757A or PY27/7W
Rear Tail, Stop, Turn
Signal LampLED (Serviced at
Authorized Dealer)
Center High-Mounted
Stop LampLED (Serviced at
Authorized Dealer)
Backup Lamp 3157
License 168
NOTE:All of the interior bulbs are glass wedge base or
glass cartridge types. Aluminum base bulbs are not
approved and should not be used for replacement.
634 MAINTAINING YOUR VEHICLE

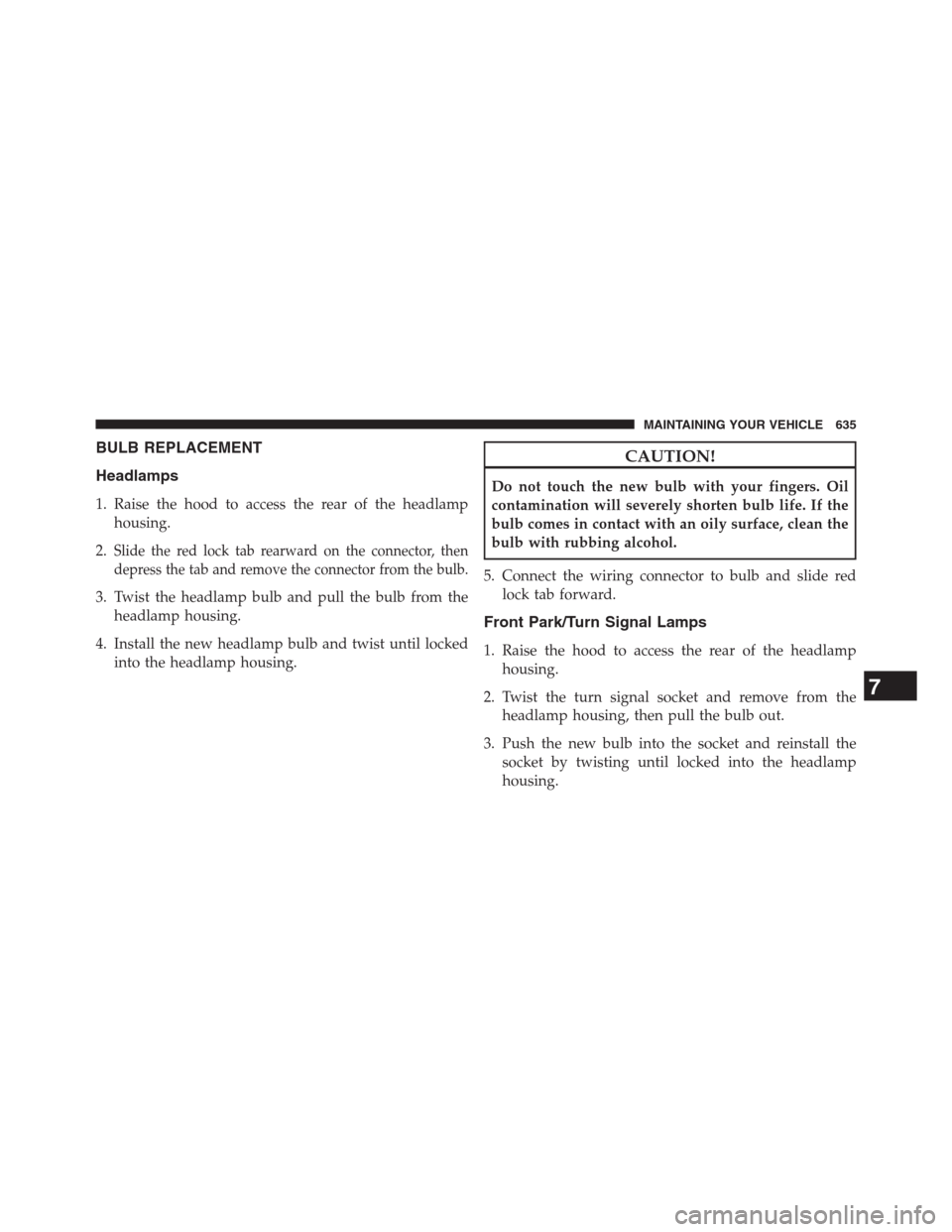

BULB REPLACEMENT
Headlamps
1. Raise the hood to access the rear of the headlamp
housing.
2.
Slide the red lock tab rearward on the connector, then
depress the tab and remove the connector from the bulb.
3. Twist the headlamp bulb and pull the bulb from the
headlamp housing.
4. Install the new headlamp bulb and twist until locked
into the headlamp housing.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
5. Connect the wiring connector to bulb and slide red
lock tab forward.
Front Park/Turn Signal Lamps
1. Raise the hood to access the rear of the headlamp
housing.
2. Twist the turn signal socket and remove from the
headlamp housing, then pull the bulb out.
3. Push the new bulb into the socket and reinstall the
socket by twisting until locked into the headlamp
housing.
7
MAINTAINING YOUR VEHICLE 635

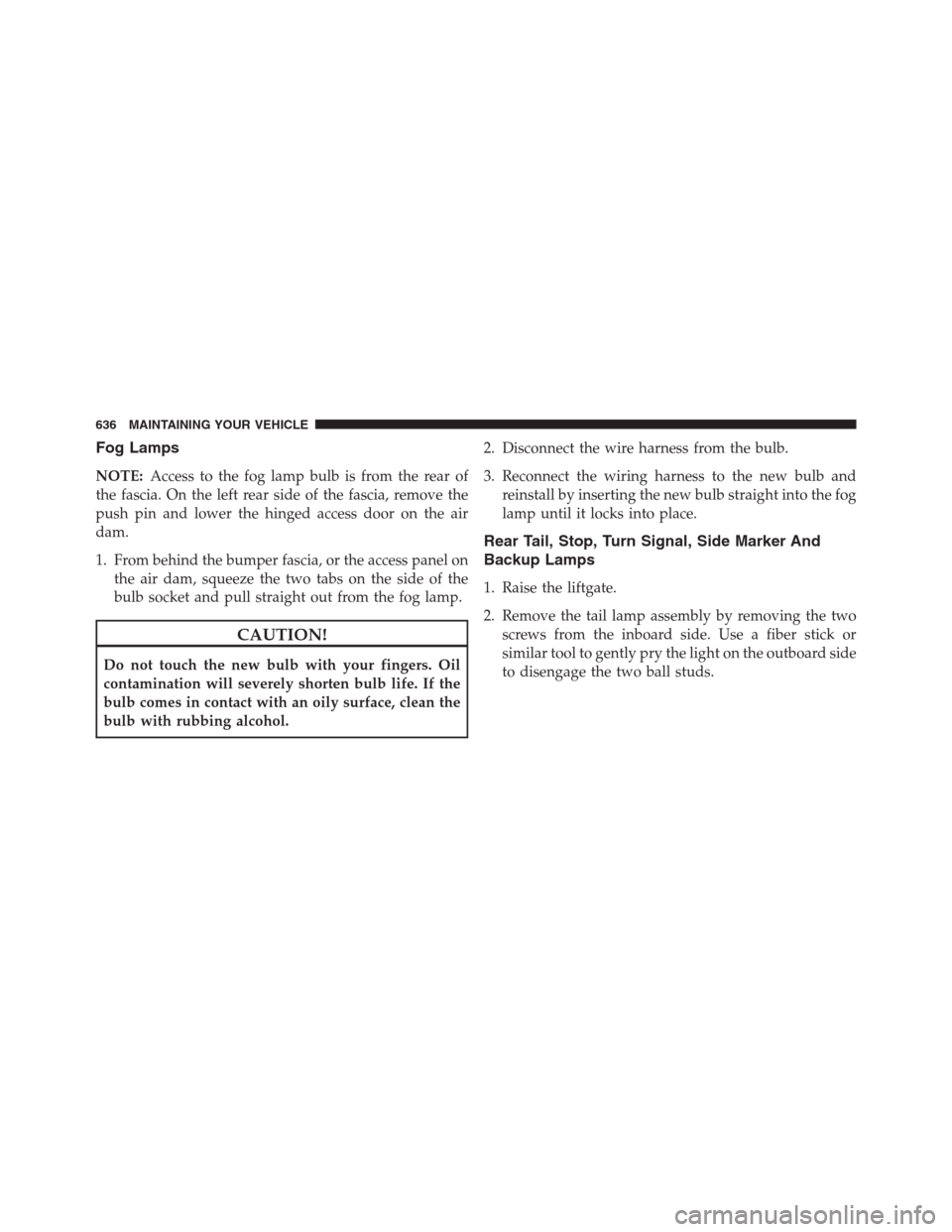

Fog Lamps
NOTE:Access to the fog lamp bulb is from the rear of
the fascia. On the left rear side of the fascia, remove the
push pin and lower the hinged access door on the air
dam.
1. From behind the bumper fascia, or the access panel on
the air dam, squeeze the two tabs on the side of the
bulb socket and pull straight out from the fog lamp.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.2. Disconnect the wire harness from the bulb.
3. Reconnect the wiring harness to the new bulb and
reinstall by inserting the new bulb straight into the fog
lamp until it locks into place.
Rear Tail, Stop, Turn Signal, Side Marker And
Backup Lamps
1. Raise the liftgate.
2. Remove the tail lamp assembly by removing the two
screws from the inboard side. Use a fiber stick or
similar tool to gently pry the light on the outboard side
to disengage the two ball studs.
636 MAINTAINING YOUR VEHICLE

NOTE:
•If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.
•The PRY location is best closest to the studs while
dislodging them separately.3. Twist the socket and remove from the lamp assembly.
4. Pull the bulb to remove it from the socket.
5. Replace the bulb, reinstall the socket, and reattach the
lamp assembly.
Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly.
See your authorized dealer.
License Lamp
The license plate lamp is located under the tailgate light
bar and above the license plate.
1. Using a small screwdriver, press inward the locking
tab on the outboard side of the lamp assembly and
pull down on the lamp assembly for removal.
2. Twist and remove the socket from the lamp assembly
and pull the bulb out to remove.
7
MAINTAINING YOUR VEHICLE 637

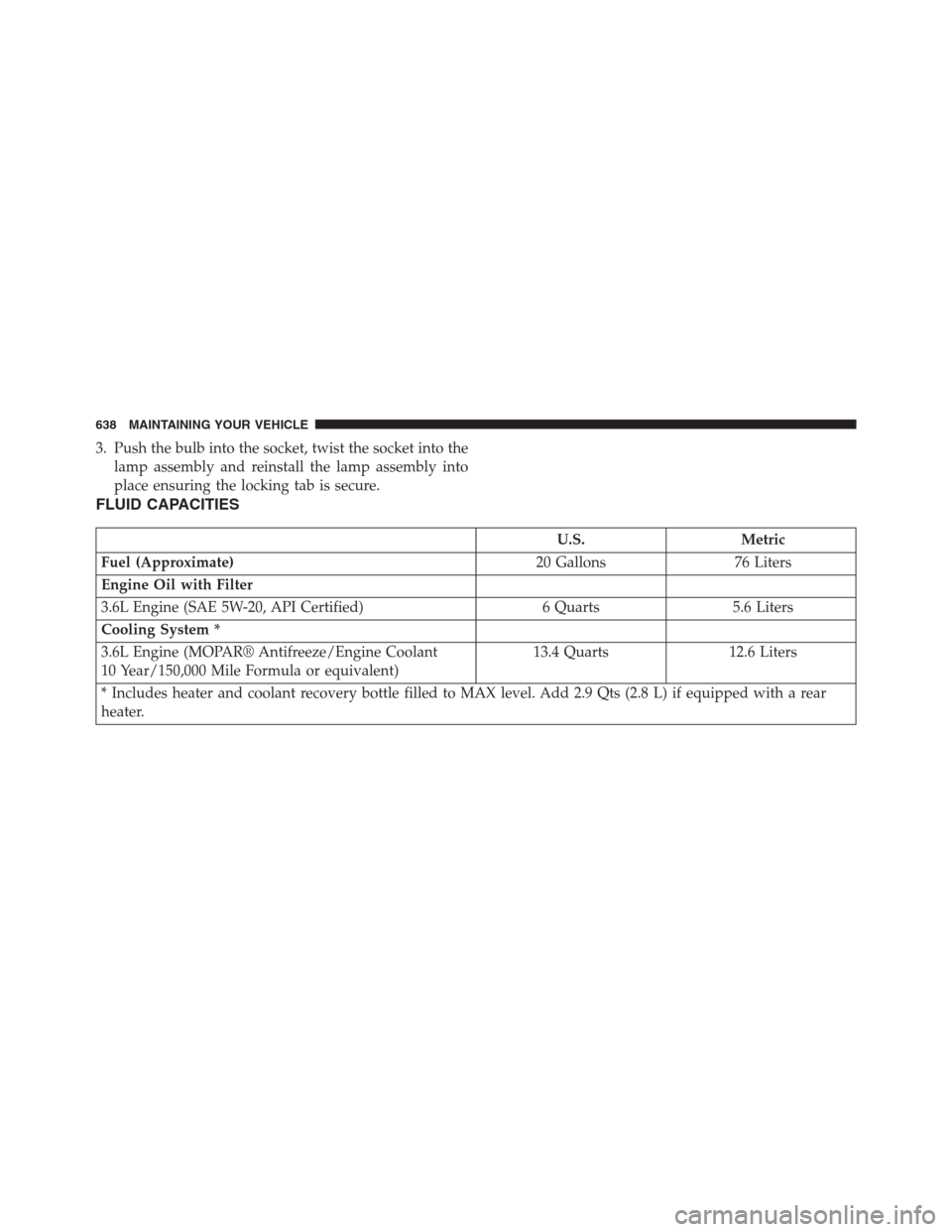

3. Push the bulb into the socket, twist the socket into the
lamp assembly and reinstall the lamp assembly into
place ensuring the locking tab is secure.
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)20 Gallons 76 Liters
Engine Oil with Filter
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts 5.6 Liters
Cooling System *
3.6L Engine (MOPAR® Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent)13.4 Quarts 12.6 Liters
* Includes heater and coolant recovery bottle filled to MAX level. Add 2.9 Qts (2.8 L) if equipped with a rear
heater.
