DODGE GRAND CARAVAN 2014 5.G Owners Manual

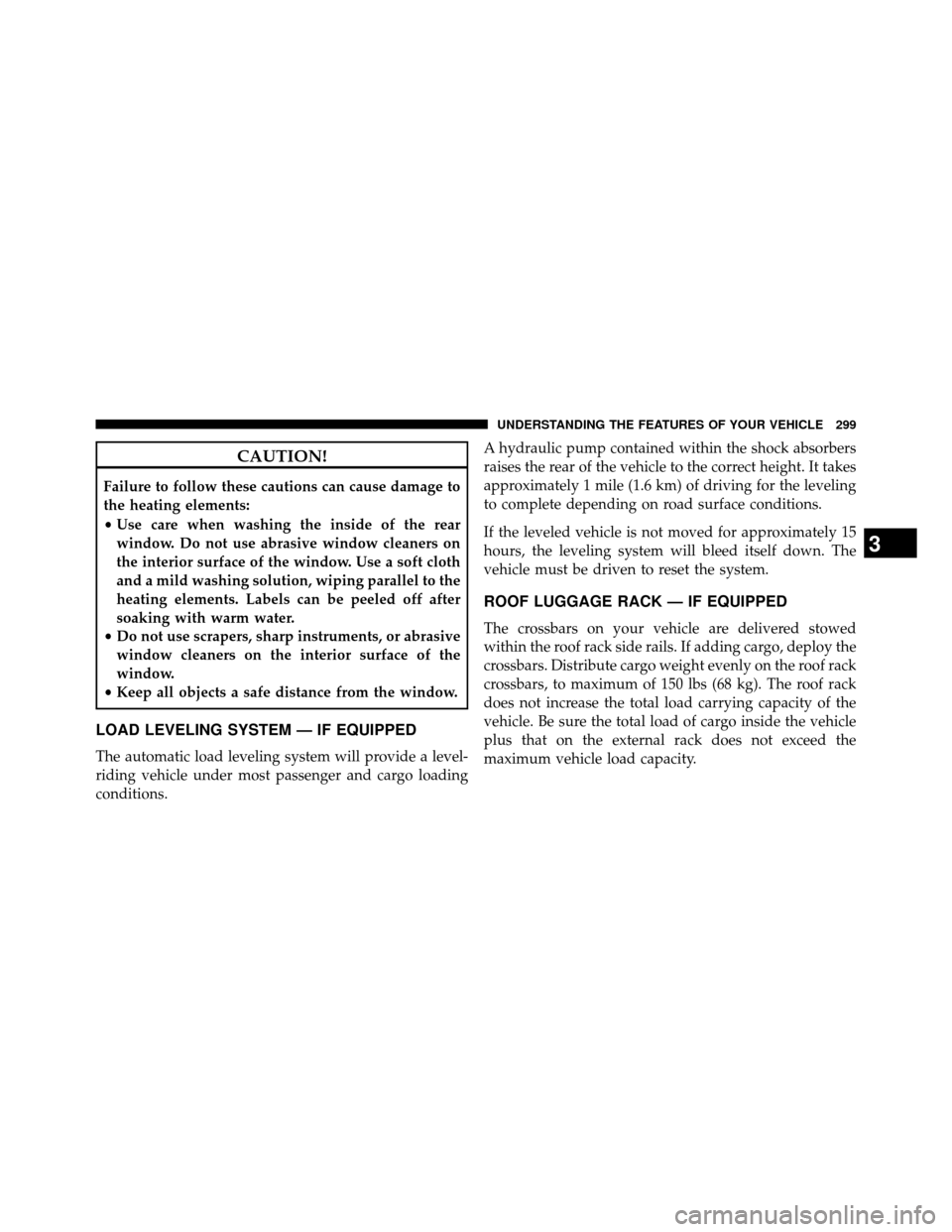

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
LOAD LEVELING SYSTEM — IF EQUIPPED
The automatic load leveling system will provide a level-
riding vehicle under most passenger and cargo loading
conditions. A hydraulic pump contained within the shock absorbers
raises the rear of the vehicle to the correct height. It takes
approximately 1 mile (1.6 km) of driving for the leveling
to complete depending on road surface conditions.
If the leveled vehicle is not moved for approximately 15
hours, the leveling system will bleed itself down. The
vehicle must be driven to reset the system.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars on your vehicle are delivered stowed
within the roof rack side rails. If adding cargo, deploy the
crossbars. Distribute cargo weight evenly on the roof rack
crossbars, to maximum of 150 lbs (68 kg). The roof rack
does not increase the total load carrying capacity of the
vehicle. Be sure the total load of cargo inside the vehicle
plus that on the external rack does not exceed the
maximum vehicle load capacity.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 299

The crossbars and side rails are designed to carry weight
on vehicles equipped with a luggage rack. The load must
not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.NOTE:
•
Crossbars are error-proofed and cannot be deployed or
stowed in the incorrect positions.
• To help control wind noise, stow the crossbars in the
side rails when they are not in use.
Deploying The Crossbars
To deploy the crossbars, completely loosen the thumb
screws at both ends of the crossbar and lift the crossbar
from its stowed position in the side rail. Repeat with
crossbar on the opposite side.
Crossbar Stowed In Side Rail
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
Use care when removing and handling the crossbars
to prevent damage to the vehicle.Bend the crossbar supports at each end, taking care to
keep hand clear of pivoting joint. Slide the thumb screw
down.
Loosening Crossbars
Stowed Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 301

Then, position the crossbars across the roof.
NOTE:The crossbars are identical and can be placed in
any two of the three deploy positions.
Deployed Position
Deploy Positions – Choose Two Of Three
302 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Make sure the directional arrows on the crossbars align
with the directional arrows on the side rails. Set the
crossbars into the deployed positions.
Once the crossbars are set into position, tighten the
thumb screws completely.
Stowing The Crossbars
Reverse the procedure to stow the crossbars, again,
taking care to keep hand clear of pivoting joint. Crossbars
are identical and can be stowed in either rail nest. Once
the crossbars are stowed, tighten the thumb screws
completely.Crossbar To Side Rail Installation
Tightening Crossbar
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 303

NOTE:Load should always be secured to crossbars first,
with rail tie down loops used as additional securing
points if needed. Tie loops are intended as supplemen-
tary tie down points only. Do not use ratcheting mecha-
nisms with the tie loops.CAUTION!
• Check deployed crossbars frequently and retighten
thumb screws as necessary.
• To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity of
150 lb (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropri-
ately.
• To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars deployed.
• The load should be secured and placed on top of
the crossbars, not directly on the roof. If it is
necessary to place the load on the roof, place a
blanket or other protective layer between the load
and the roof surface.
(Continued)
Rail Tie Loops
304 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

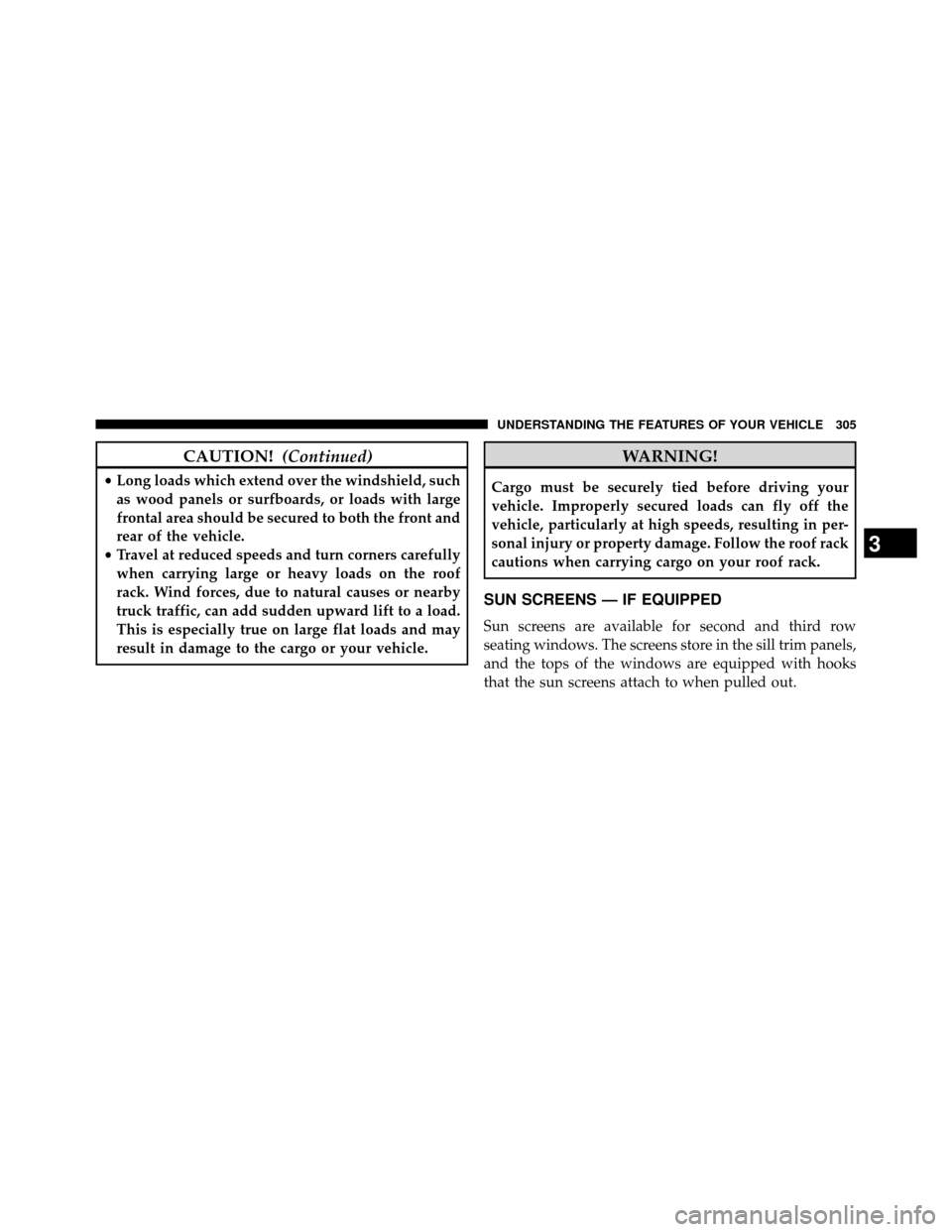

CAUTION!(Continued)
•Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
SUN SCREENS — IF EQUIPPED
Sun screens are available for second and third row
seating windows. The screens store in the sill trim panels,
and the tops of the windows are equipped with hooks
that the sun screens attach to when pulled out.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 305

Gently pull up on the tab to raise the sun screen.
Continue pulling the sun screen until the tab is near the
top of the window.
Once the screen is completely to the top of the window,
extend the top bar of the sun screen over the two hooks
attached to the top of the window.To lower the sun screen, gently lift the tab upward to
disengage the hooks, and feed the screen back into the
base sill.
Sun Screen RetractedSun Screen Extended
306 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........311
 INSTRUMENT CLUSTER — BASE ..........312
 INSTRUMENT CLUSTER — PREMIUM .......313
 INSTRUMENT CLUSTER DESCRIPTIONS .....314
 ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) — IF EQUIPPED ..................328
▫ Electronic Vehicle Information Center (EVIC)
Displays............................330
▫ EVIC White Telltale Lights ...............333
▫ EVIC Amber Telltale Lights ..............334▫
EVIC Red Telltale Lights ................334
▫ Oil Change Required ...................337
▫ Fuel Economy ........................338
▫ Vehicle Speed ........................339
▫ Trip Info ...........................339
▫ Units ..............................340
▫ Vehicle Info (Customer Information Features) . .340
▫ Messages # ..........................341
▫ Compass/Temperature Display ...........341
4

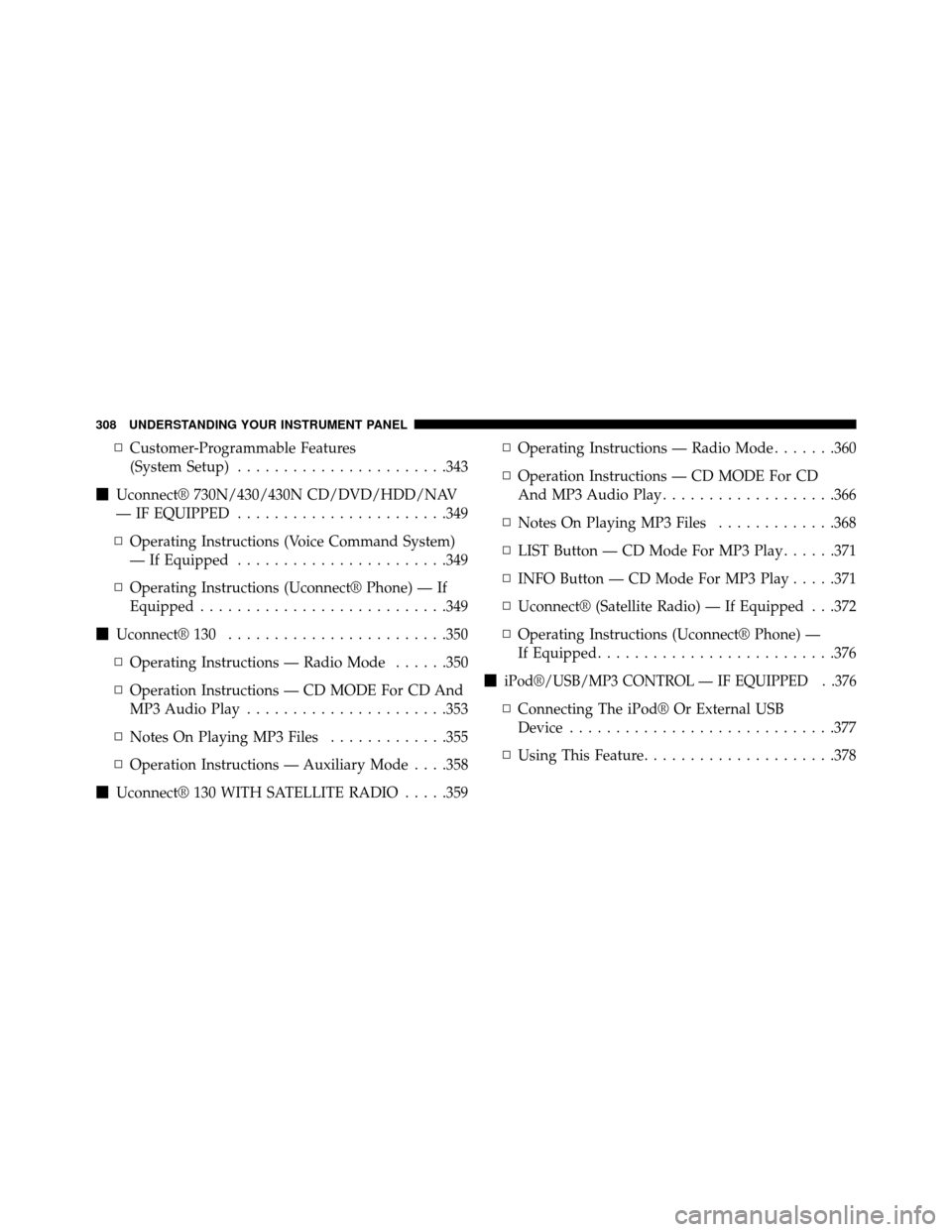

▫Customer-Programmable Features
(System Setup) .......................343
 Uconnect® 730N/430/430N CD/DVD/HDD/NAV
— IF EQUIPPED .......................349
▫ Operating Instructions (Voice Command System)
— If Equipped .......................349
▫ Operating Instructions (Uconnect® Phone) — If
Equipped ...........................349
 Uconnect® 130 ........................350
▫ Operating Instructions — Radio Mode ......350
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ......................353
▫ Notes On Playing MP3 Files .............355
▫ Operation Instructions — Auxiliary Mode ....358
 Uconnect® 130 WITH SATELLITE RADIO .....359▫
Operating Instructions — Radio Mode .......360
▫ Operation Instructions — CD MODE For CD
And MP3 Audio Play ...................366
▫ NotesOnPlayingMP3Files .............368
▫ LIST Button — CD Mode For MP3 Play ......371
▫ INFO Button — CD Mode For MP3 Play .....371
▫ Uconnect® (Satellite Radio) — If Equipped . . .372
▫ Operating Instructions (Uconnect® Phone) —
If Equipped ..........................376

iPod®/USB/MP3 CONTROL — IF EQUIPPED . .376
▫ Connecting The iPod® Or External USB
Device .............................377
▫ Using This Feature .....................378
308 UNDERSTANDING YOUR INSTRUMENT PANEL
