Listen To An Audio Source On Channel 2 While A
Video Is Playing On Channel 1
Ensure the Remote Control and Headphone switch is on
Channel 2.
Using The Remote Control
1. Press the SOURCE button on the Remote Control andthe Mode Select Screen will display, unless a video is
playing then only a small banner will appear on the
bottom of the screen.
2. While looking at the video screen, either press Up/ Down/Left/Right on the Remote Control to highlight
the desired audio source or repeatedly press the
SOURCE button on the remote until the desired audio
source appears on the screen.
Select Channel/Screen 1 And AUX 1 In The VESâ„¢
Column
4
UNDERSTANDING YOUR INSTRUMENT PANEL 389
Page 392 of 698

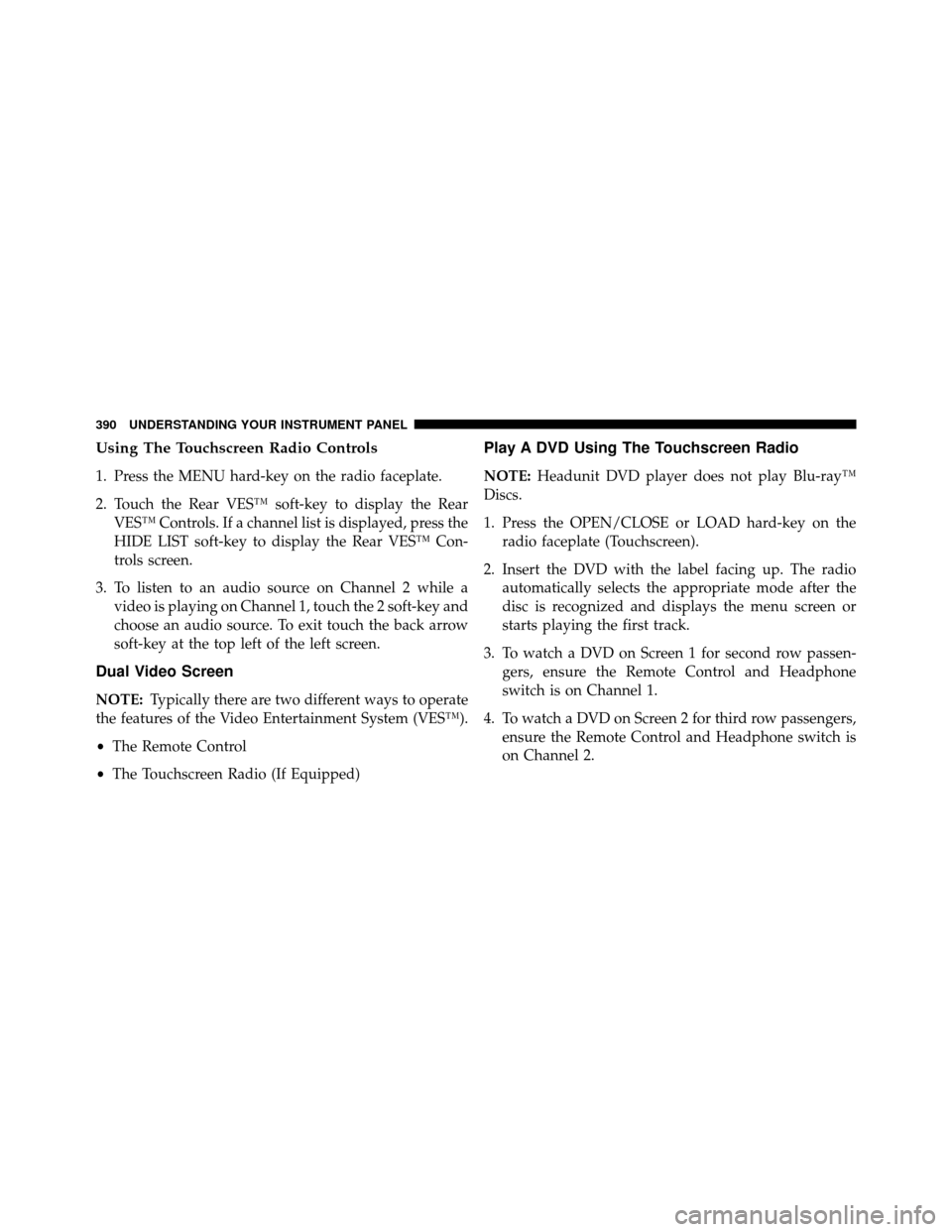

Using The Touchscreen Radio Controls
1. Press the MENU hard-key on the radio faceplate.
2. Touch the Rear VESâ„¢ soft-key to display the RearVESâ„¢ Controls. If a channel list is displayed, press the
HIDE LIST soft-key to display the Rear VESâ„¢ Con-
trols screen.
3. To listen to an audio source on Channel 2 while a video is playing on Channel 1, touch the 2 soft-key and
choose an audio source. To exit touch the back arrow
soft-key at the top left of the left screen.
Dual Video Screen
NOTE: Typically there are two different ways to operate
the features of the Video Entertainment System (VESâ„¢).
• The Remote Control
• The Touchscreen Radio (If Equipped)
Play A DVD Using The Touchscreen Radio
NOTE: Headunit DVD player does not play Blu-rayâ„¢
Discs.
1. Press the OPEN/CLOSE or LOAD hard-key on the radio faceplate (Touchscreen).
2. Insert the DVD with the label facing up. The radio automatically selects the appropriate mode after the
disc is recognized and displays the menu screen or
starts playing the first track.
3. To watch a DVD on Screen 1 for second row passen- gers, ensure the Remote Control and Headphone
switch is on Channel 1.
4. To watch a DVD on Screen 2 for third row passengers, ensure the Remote Control and Headphone switch is
on Channel 2.
390 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 393 of 698

Using The Remote Control
1. Press the SOURCE button on the Remote Control.
2. While looking at Screen 1 or 2, highlight DISC byeither pressing Up/Down/Left/Right buttons or by
repeatedly pressing the SOURCE button, then press
ENTER/OK.
Select DISC Mode On The VESâ„¢ Screen
4
UNDERSTANDING YOUR INSTRUMENT PANEL 391
Page 394 of 698

NOTE:
•Channel/Screen 1 select mode information is shown
on the left side of the screen.
• Channel/Screen 2 select mode information is shown
on the right side of the screen.
•
The VESâ„¢ will retain the last setting when turned off.
Using The Touchscreen Radio Controls
1. Press the MENU hard-key on the radio faceplate.
2. Touch the Rear VESâ„¢ soft-key to display the Rear VESâ„¢ Controls. If a channel list is displayed, press the
HIDE LIST soft-key to display the Rear VESâ„¢ Con-
trols screen. 3. Touch the 1 or 2 soft-key and then the DISC soft-key in
the MEDIA column. To exit touch the back arrow at
the top left of the screen.
Rear VESâ„¢ Soft-key
392 UNDERSTANDING YOUR INSTRUMENT PANEL

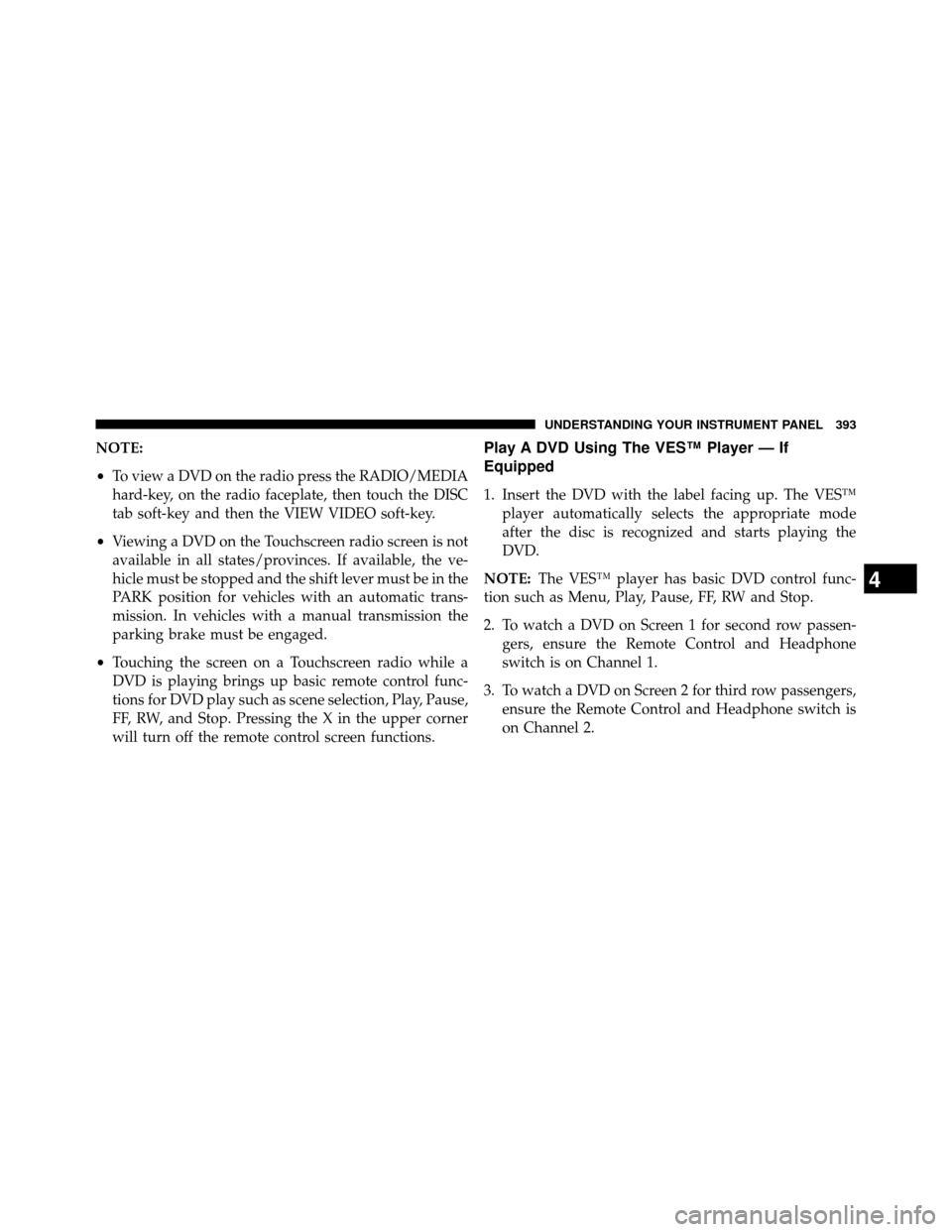

Page 395 of 698

NOTE:
•To view a DVD on the radio press the RADIO/MEDIA
hard-key, on the radio faceplate, then touch the DISC
tab soft-key and then the VIEW VIDEO soft-key.
• Viewing a DVD on the Touchscreen radio screen is not
available in all states/provinces. If available, the ve-
hicle must be stopped and the shift lever must be in the
PARK position for vehicles with an automatic trans-
mission. In vehicles with a manual transmission the
parking brake must be engaged.
• Touching the screen on a Touchscreen radio while a
DVD is playing brings up basic remote control func-
tions for DVD play such as scene selection, Play, Pause,
FF, RW, and Stop. Pressing the X in the upper corner
will turn off the remote control screen functions.Play A DVD Using The VES™ Player — If
Equipped
1. Insert the DVD with the label facing up. The VESâ„¢ player automatically selects the appropriate mode
after the disc is recognized and starts playing the
DVD.
NOTE: The VESâ„¢ player has basic DVD control func-
tion such as Menu, Play, Pause, FF, RW and Stop.
2. To watch a DVD on Screen 1 for second row passen- gers, ensure the Remote Control and Headphone
switch is on Channel 1.
3. To watch a DVD on Screen 2 for third row passengers, ensure the Remote Control and Headphone switch is
on Channel 2.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 393
Page 396 of 698

Using The Remote Control
1. Press the SOURCE button on the Remote Control.
2. While looking at Screen 1 or 2, highlight VESâ„¢ DISCby either pressing Up/Down/Left/Right buttons or
by repeatedly pressing the SOURCE button, then press
ENTER/OK on the Remote Control.
Select VESâ„¢ DISC Mode On The VESâ„¢ Screen
394 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 397 of 698

NOTE:
•Channel/Screen 1 select mode information is shown
on the left side of the screen.
• Channel/Screen 2 select mode information is shown
on the right side of the screen.
•
The VESâ„¢ will retain the last setting when turned off.
Using The Touchscreen Radio Controls
1. Press the MENU hard-key on the radio faceplate.
2. Touch the Rear VESâ„¢ soft-key to display the Rear VESâ„¢ Controls. If a channel list is displayed, touch
the HIDE LIST soft-key to display the Rear VESâ„¢
Controls screen. 3. Touch the 1 or 2 soft-key and then the DISC soft-key in
the VESâ„¢ column. To exit touch the back arrow
soft-key at the top left of the screen.
Rear VESâ„¢ Soft-key
4
UNDERSTANDING YOUR INSTRUMENT PANEL 395
Page 398 of 698

NOTE:
•To view a DVD on the radio press the RADIO/MEDIA
hard-key, on the radio faceplate, then touch the DISC
tab soft-key and then the VIEW VIDEO soft-key. •
Viewing a DVD on the Touchscreen radio screen is not
available in all states/provinces. If available, the ve-
hicle must be stopped and the shift lever must be in the
PARK position for vehicles with an automatic trans-
mission. In vehicles with a manual transmission the
parking brake must be engaged.
Play A Blu-rayâ„¢ Disc Using The Blu-rayâ„¢ Player
— If Equipped
1. Insert the Blu-rayâ„¢ Disc with the label facing up. The Blu-rayâ„¢ Player automatically selects the appropriate
mode after the disc is recognized and starts playing
the Blu-rayâ„¢ Disc.
NOTE: The Blu-rayâ„¢ Player has basic control functions
such as Menu, Play, Pause, FF, RW and Stop.
2. To watch a Blu-rayâ„¢ Disc on Screen 1 for second row passengers, ensure the Remote Control and Head-
phone switch is on Channel 1.
Select Channel/Screen 1 And DISC In The VESâ„¢
Column
396 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 399 of 698

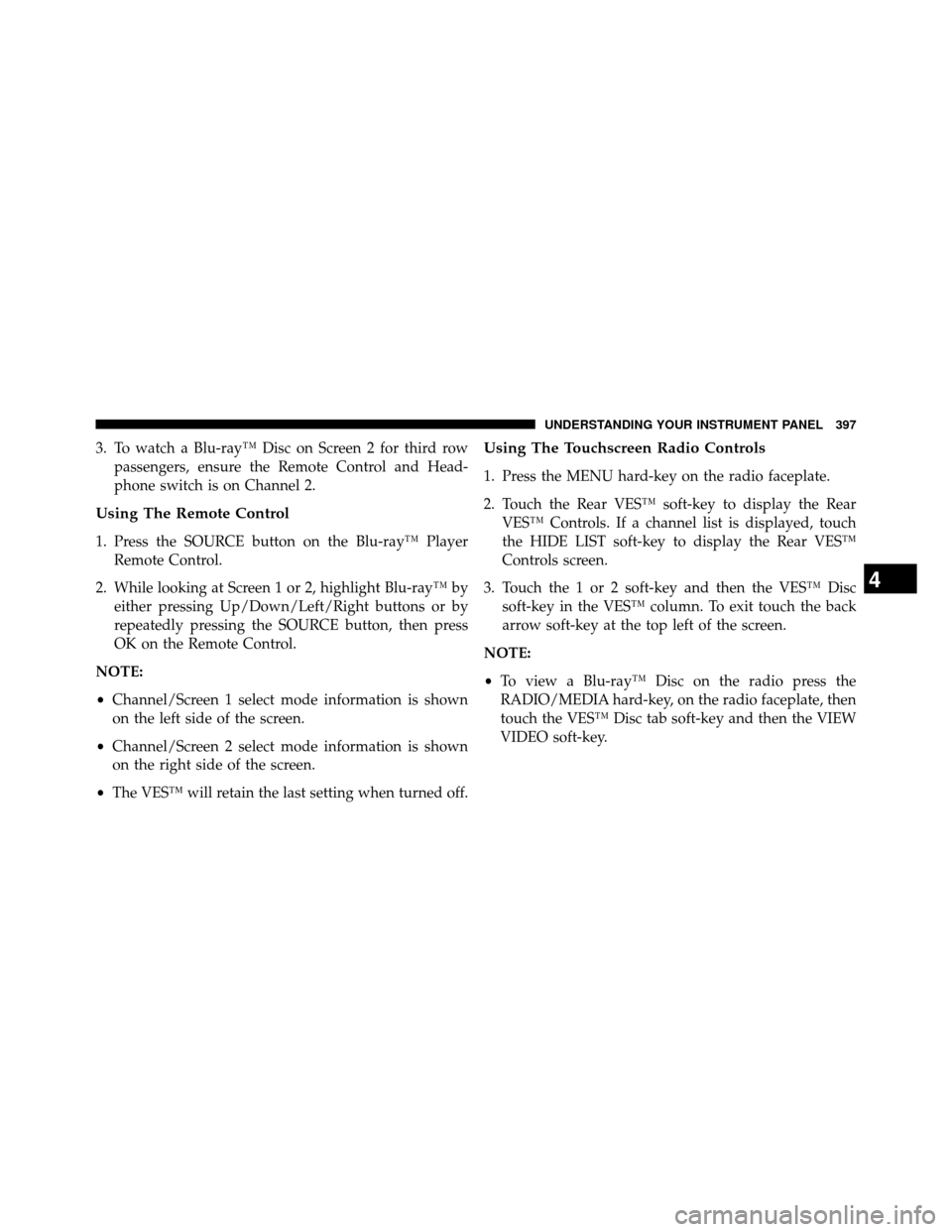

3. To watch a Blu-rayâ„¢ Disc on Screen 2 for third rowpassengers, ensure the Remote Control and Head-
phone switch is on Channel 2.
Using The Remote Control
1. Press the SOURCE button on the Blu-rayâ„¢ PlayerRemote Control.
2. While looking at Screen 1 or 2, highlight Blu-rayâ„¢ by either pressing Up/Down/Left/Right buttons or by
repeatedly pressing the SOURCE button, then press
OK on the Remote Control.
NOTE:
• Channel/Screen 1 select mode information is shown
on the left side of the screen.
• Channel/Screen 2 select mode information is shown
on the right side of the screen.
• The VES™ will retain the last setting when turned off.
Using The Touchscreen Radio Controls
1. Press the MENU hard-key on the radio faceplate.
2. Touch the Rear VESâ„¢ soft-key to display the Rear
VESâ„¢ Controls. If a channel list is displayed, touch
the HIDE LIST soft-key to display the Rear VESâ„¢
Controls screen.
3. Touch the 1 or 2 soft-key and then the VESâ„¢ Disc soft-key in the VESâ„¢ column. To exit touch the back
arrow soft-key at the top left of the screen.
NOTE:
• To view a Blu-ray™ Disc on the radio press the
RADIO/MEDIA hard-key, on the radio faceplate, then
touch the VESâ„¢ Disc tab soft-key and then the VIEW
VIDEO soft-key.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 397
Page 400 of 698

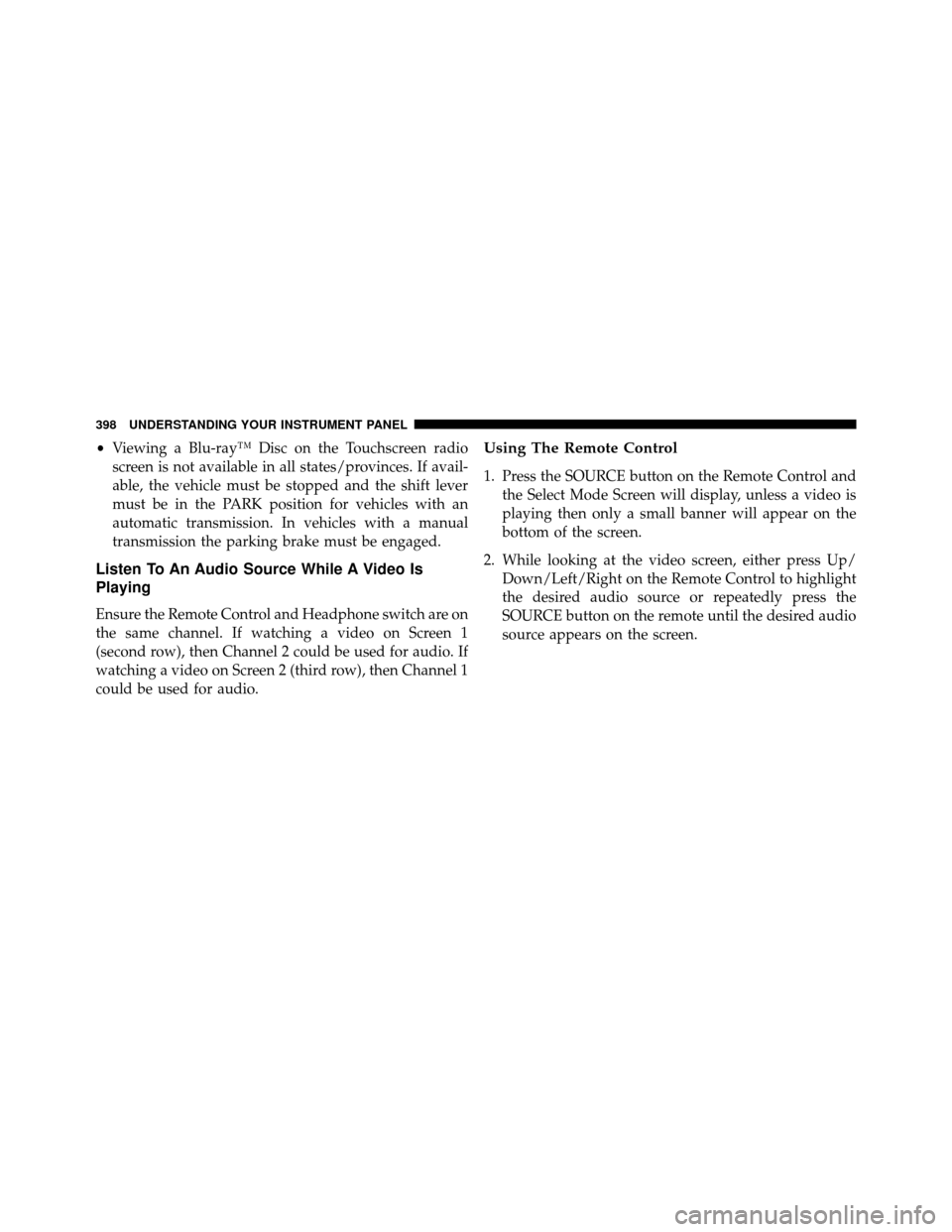

•Viewing a Blu-ray™ Disc on the Touchscreen radio
screen is not available in all states/provinces. If avail-
able, the vehicle must be stopped and the shift lever
must be in the PARK position for vehicles with an
automatic transmission. In vehicles with a manual
transmission the parking brake must be engaged.
Listen To An Audio Source While A Video Is
Playing
Ensure the Remote Control and Headphone switch are on
the same channel. If watching a video on Screen 1
(second row), then Channel 2 could be used for audio. If
watching a video on Screen 2 (third row), then Channel 1
could be used for audio.
Using The Remote Control
1. Press the SOURCE button on the Remote Control and the Select Mode Screen will display, unless a video is
playing then only a small banner will appear on the
bottom of the screen.
2. While looking at the video screen, either press Up/ Down/Left/Right on the Remote Control to highlight
the desired audio source or repeatedly press the
SOURCE button on the remote until the desired audio
source appears on the screen.
