FUSES
MAINTAINING YOUR VEHICLE
133

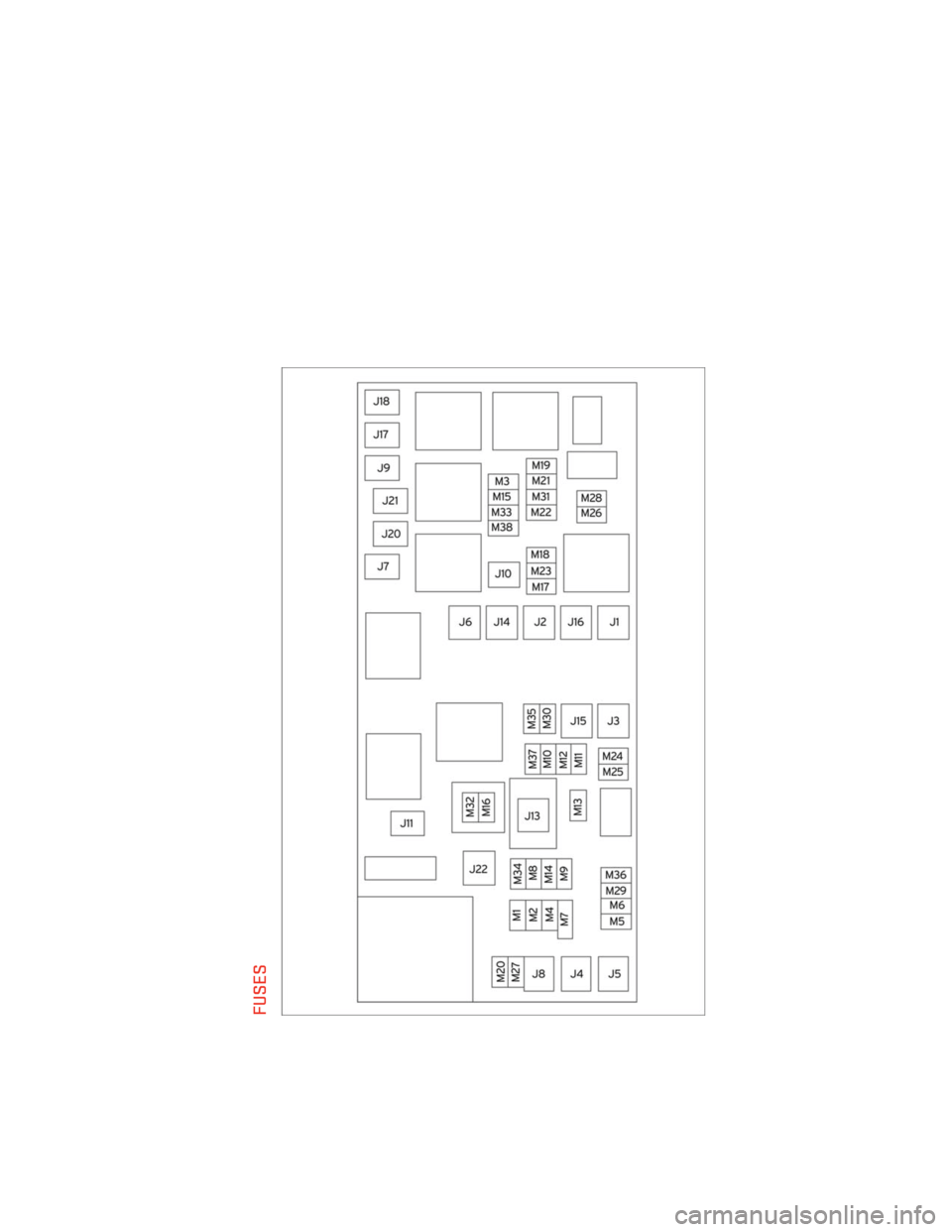

Integrated Power Module (fuses)
• The Totally Integrated Power Module is located in the engine compartment near thebattery. This center contains cartridge fuses and mini-fuses. A label that identifies each
component may be printed or embossed on the inside of the cover.
• The numbers inside the TIPM cover correspond to the following table.
Cavity Cartridge Fuse Mini-Fuse Description
J1 40 Amp Green — Power Folding Seat
J2 30 Amp Pink — Power Liftgate Module
J3 30 Amp Pink — Rear Door Module
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door Node
J6 40 Amp Green — Antilock Brakes Pump/Stability
Control System
J7 30 Amp Pink — Antilock Brakes Valve/Stability
Control System
J8 40 Amp Green — Power Memory Seat – If Equipped
J9 40 Amp Green — Partial Zero Emissions Vehicle
Motor/Flex Fuel – If Equipped
J10 30 Amp Pink — Headlamp Wash/Manifold Tuning
Valve – If Equipped
J11 30 Amp Pink — Power Sliding Door Module/
Anti–Theft Module – If Equipped
J12 30 Amp Pink HVAC Rear Blower, Radiator Fan
Motor
J13 60 Amp Yellow — Ignition Off Draw (IOD) – Main
J14 40 Amp Green — Rear Window Defogger
J15 40 Amp Green — Front Blower
J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain Control Module Trans
Range
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper LO/HI
J21 20 Amp Blue — Front/Rear Washer
J22 25 Amp Natural — Sunroof Module
M1 — 15 Amp Blue Rear Center Brake Lamp/Brake
Switch
M2 — 20 Amp Yellow Front Fog Lamps
M3 — 20 Amp Yellow Front/Rear Axle Locker, Vacuum
Pump Motor
M4 — 10 Amp Red Trailer Tow
M5 — 25 Amp Natural Inverter
