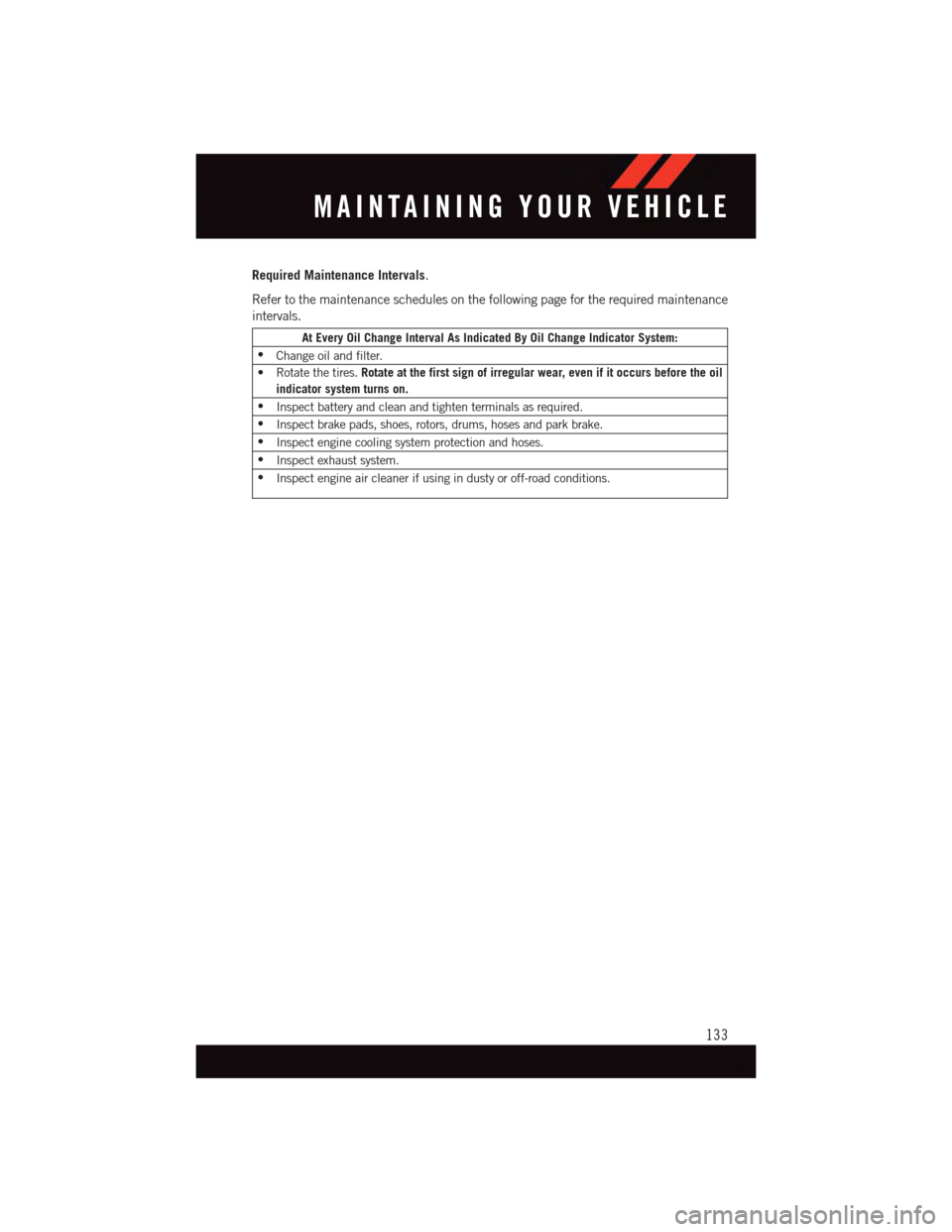

Required Maintenance Intervals.
Refer to the maintenance schedules on the following page for the required maintenance
intervals.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter.
•Rotatethetires.Rotate at the first sign of irregular wear, even if it occurs before the oil
indicator system turns on.
•Inspect battery and clean and tighten terminals as required.
•Inspect brake pads, shoes, rotors, drums, hoses and park brake.
•Inspect engine cooling system protection and hoses.
•Inspect exhaust system.
•Inspect engine air cleaner if using in dusty or off-road conditions.
MAINTAINING YOUR VEHICLE
133

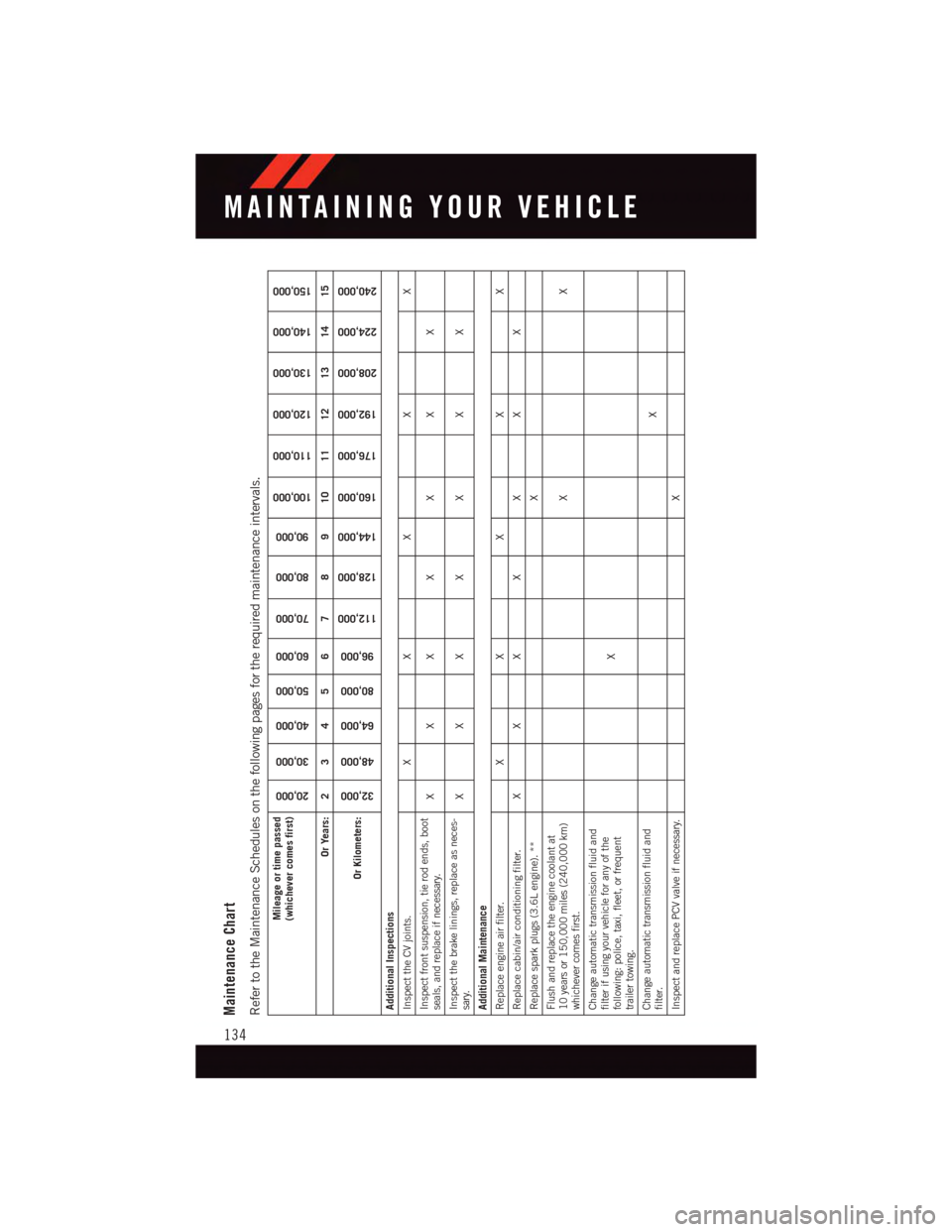

Maintenance ChartRefer to the Maintenance Schedules on the following pages for the required maintenance intervals.
Mileage or time passed(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional InspectionsInspect the CV joints. X X X X XInspect front suspension, tie rod ends, bootseals, and replace if necessary.
XXX X X X X
Inspect the brake linings, replace as neces-sary.
XXX X X X X
Additional MaintenanceReplace engine air filter. X X X X XReplace cabin/air conditioning filter. X X X X X X XReplace spark plugs (3.6L engine). ** XFlush and replace the engine coolant at10 years or 150,000 miles (240,000 km)whichever comes first.
XX
Change automatic transmission fluid andfilter if using your vehicle for any of thefollowing: police, taxi, fleet, or frequenttrailer towing.
X
Change automatic transmission fluid andfilter.
X
Inspect and replace PCV valve if necessary.
X
MAINTAINING YOUR VEHICLE
134

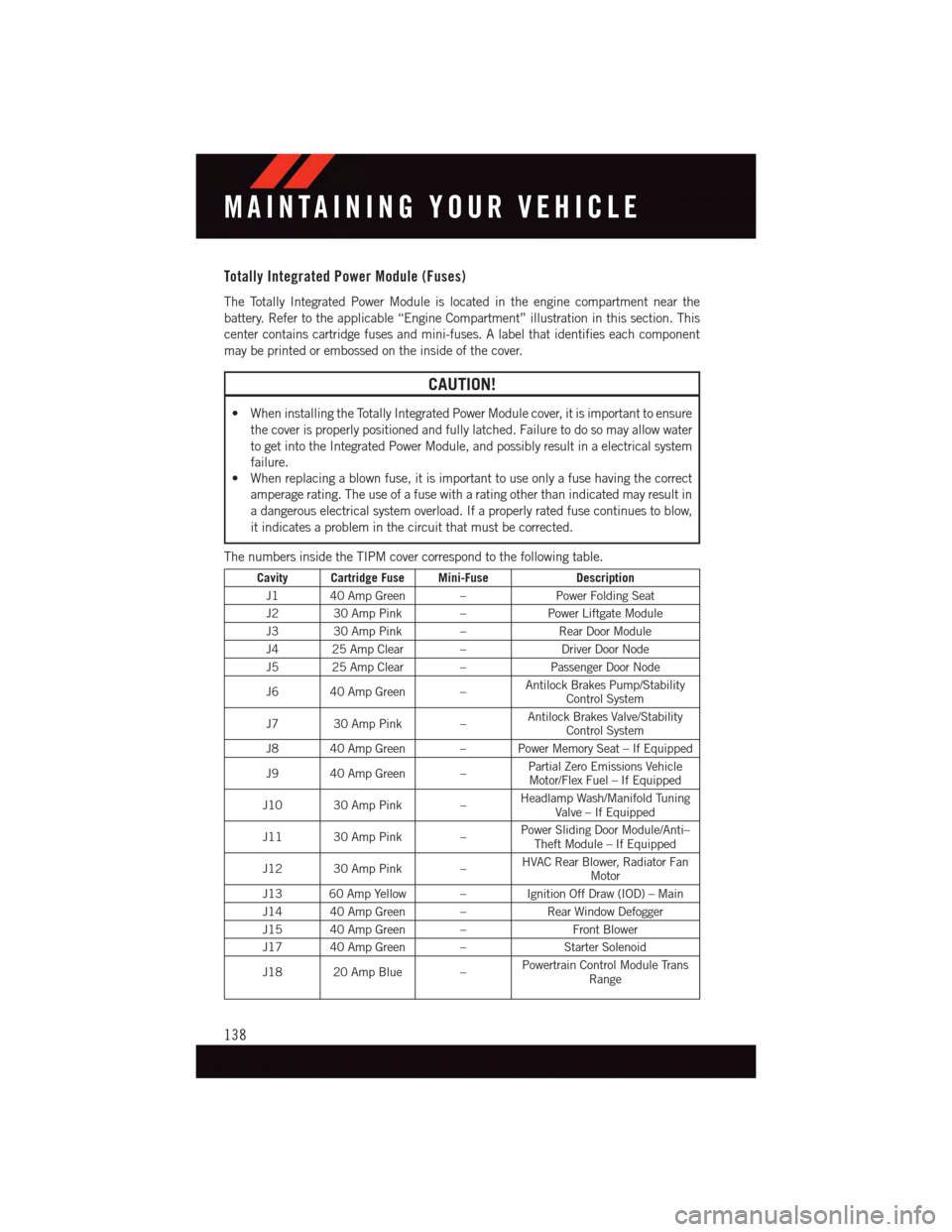

Totally Integrated Power Module (Fuses)
The Totally Integrated Power Module is located in the engine compartment near the
battery. Refer to the applicable “Engine Compartment” illustration in this section. This
center contains cartridge fuses and mini-fuses. A label that identifies each component
may be printed or embossed on the inside of the cover.
CAUTION!
•WheninstallingtheTotallyIntegratedPowerModulecover,itisimportanttoensure
the cover is properly positioned and fully latched. Failure to do so may allow water
to get into the Integrated Power Module, and possibly result in a electrical system
failure.
•Whenreplacingablownfuse,itisimportanttouseonlyafusehavingthecorrect
amperage rating. The use of a fuse with a rating other than indicated may result in
adangerouselectricalsystemoverload.Ifaproperlyratedfusecontinuestoblow,
it indicates a problem in the circuit that must be corrected.
The numbers inside the TIPM cover correspond to the following table.
Cavity Cartridge Fuse Mini-FuseDescription
J1 40 Amp Green –Power Folding Seat
J2 30 Amp Pink –Power Liftgate Module
J3 30 Amp Pink –Rear Door Module
J4 25 Amp Clear –Driver Door Node
J5 25 Amp Clear –Passenger Door Node
J6 40 Amp Green –Antilock Brakes Pump/StabilityControl System
J7 30 Amp Pink –Antilock Brakes Valve/StabilityControl System
J8 40 Amp Green – Power Memory Seat – If Equipped
J9 40 Amp Green –Partial Zero Emissions VehicleMotor/Flex Fuel – If Equipped
J10 30 Amp Pink –Headlamp Wash/Manifold TuningValve – If Equipped
J11 30 Amp Pink –Power Sliding Door Module/Anti–Theft Module – If Equipped
J12 30 Amp Pink –HVAC Rear Blower, Radiator FanMotor
J13 60 Amp Yellow – Ignition Off Draw (IOD) – Main
J14 40 Amp Green –Rear Window Defogger
J15 40 Amp Green –Front Blower
J17 40 Amp Green –Starter Solenoid
J18 20 Amp Blue –Powertrain Control Module TransRange
MAINTAINING YOUR VEHICLE
138

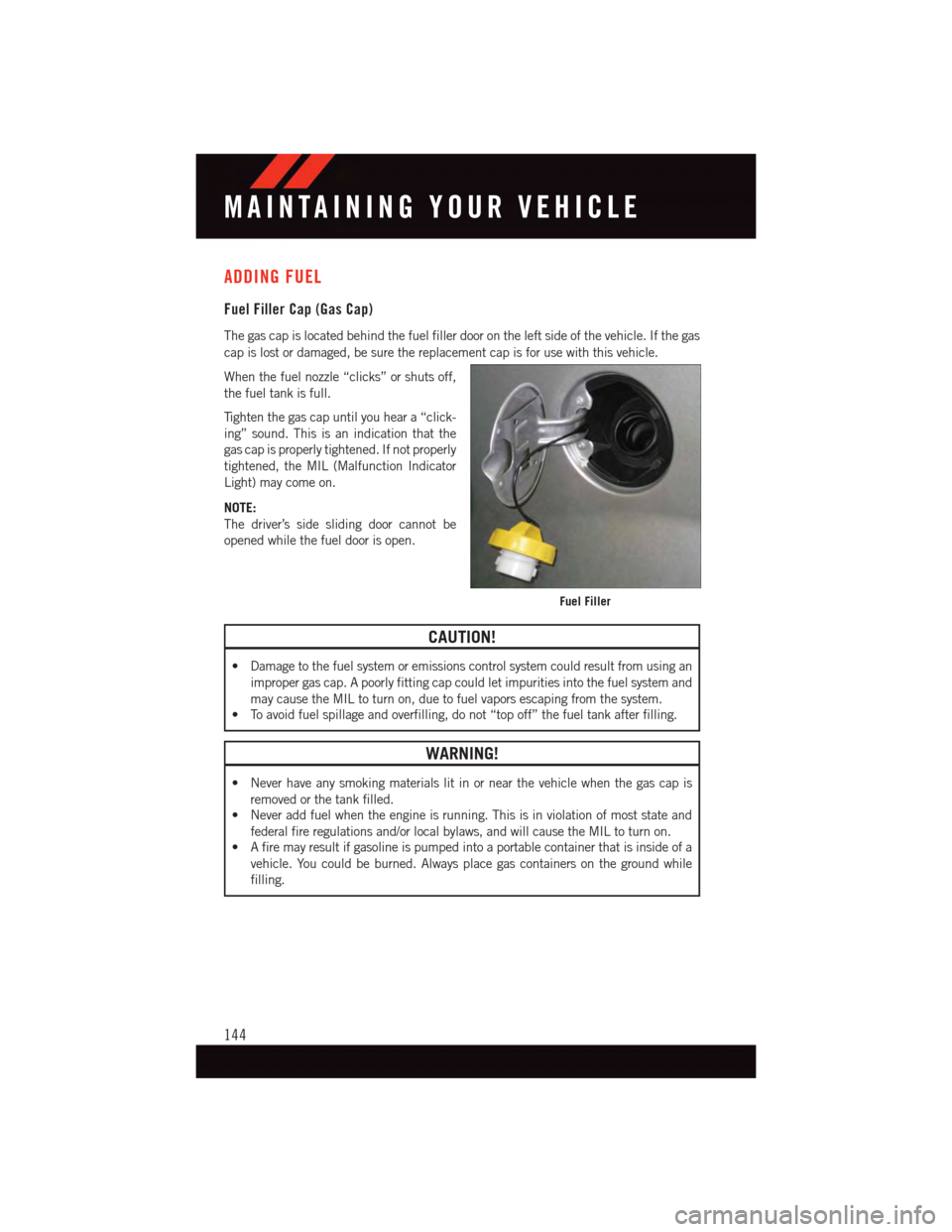

ADDING FUEL
Fuel Filler Cap (Gas Cap)
The gas cap is located behind the fuel filler door on the left side of the vehicle. If the gas
cap is lost or damaged, be sure the replacement cap is for use with this vehicle.
When the fuel nozzle “clicks” or shuts off,
the fuel tank is full.
Ti g h t e n t h e g a s c a p u n t i l y o u h e a r a “ c l i c k -
ing” sound. This is an indication that the
gas cap is properly tightened. If not properly
tightened, the MIL (Malfunction Indicator
Light) may come on.
NOTE:
The driver’s side sliding door cannot be
opened while the fuel door is open.
CAUTION!
•Damagetothefuelsystemoremissionscontrolsystemcouldresultfromusingan
improper gas cap. A poorly fitting cap could let impurities into the fuel system and
may cause the MIL to turn on, due to fuel vapors escaping from the system.
•Toavoidfuelspillageandoverfilling,donot“topoff”thefueltankafterfilling.
WARNING!
•Neverhaveanysmokingmaterialslitinornearthevehiclewhenthegascapis
removed or the tank filled.
•Neveraddfuelwhentheengineisrunning.Thisisinviolationofmoststateand
federal fire regulations and/or local bylaws, and will cause the MIL to turn on.
•Afiremayresultifgasolineispumpedintoaportablecontainerthatisinsideofa
vehicle. You could be burned. Always place gas containers on the ground while
filling.
Fuel Filler
MAINTAINING YOUR VEHICLE
144

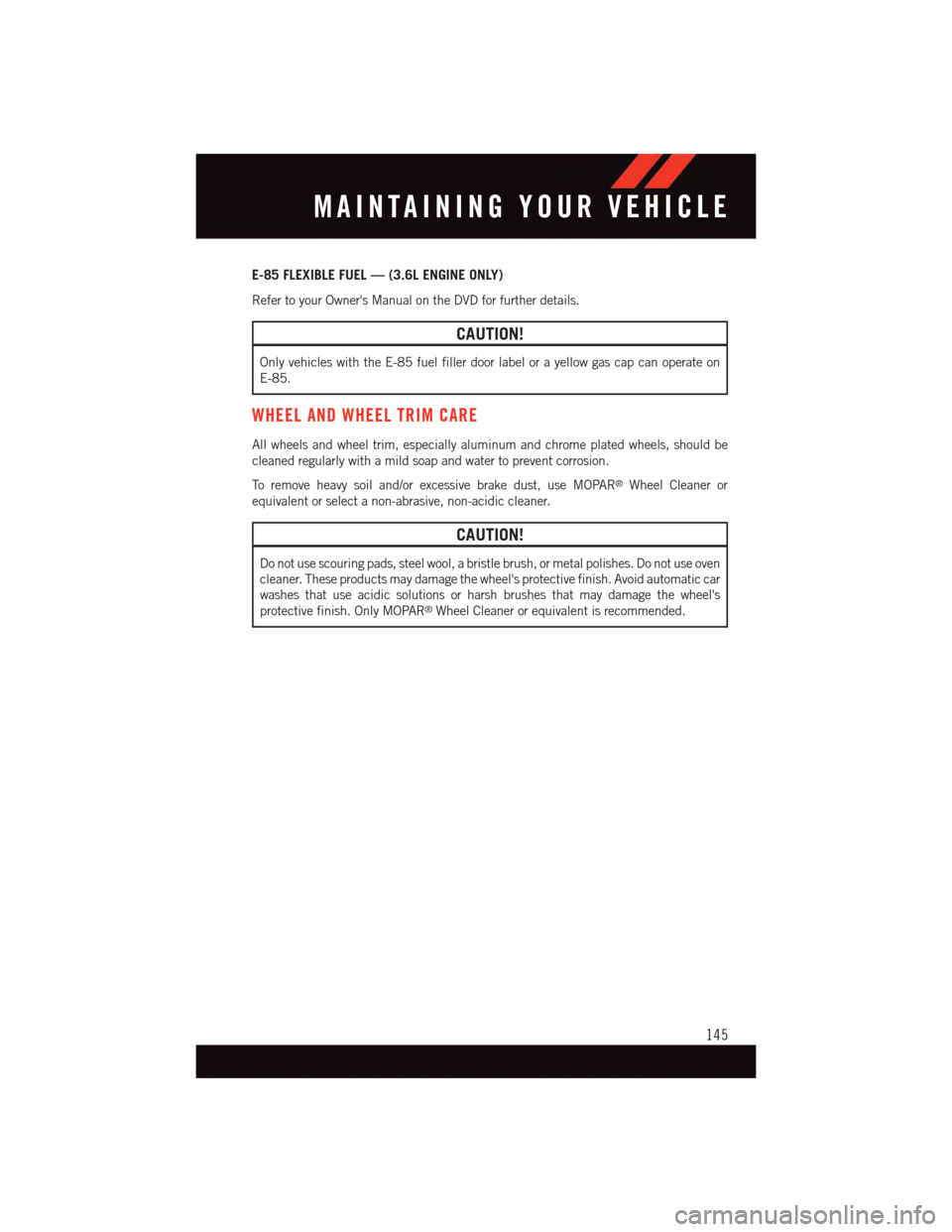

E-85 FLEXIBLE FUEL — (3.6L ENGINE ONLY)
Refer to your Owner's Manual on the DVD for further details.
CAUTION!
Only vehicles with the E-85 fuel filler door label or a yellow gas cap can operate on
E-85.
WHEEL AND WHEEL TRIM CARE
All wheels and wheel trim, especially aluminum and chrome plated wheels, should be
cleaned regularly with a mild soap and water to prevent corrosion.
To r e m o v e h e a v y s o i l a n d / o r e x c e s s i v e b r a k e d u s t , u s e M O PA R®Wheel Cleaner or
equivalent or select a non-abrasive, non-acidic cleaner.
CAUTION!
Do not use scouring pads, steel wool, a bristle brush, or metal polishes. Do not use oven
cleaner. These products may damage the wheel's protective finish. Avoid automatic car
washes that use acidic solutions or harsh brushes that may damage the wheel's
protective finish. Only MOPAR®Wheel Cleaner or equivalent is recommended.
MAINTAINING YOUR VEHICLE
145

WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain, or
emit, chemicals known to the State of California to cause cancer and birth defects, or
other reproductive harm. In addition, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemicals known to the State of
California to cause cancer and birth defects, or other reproductive harm.

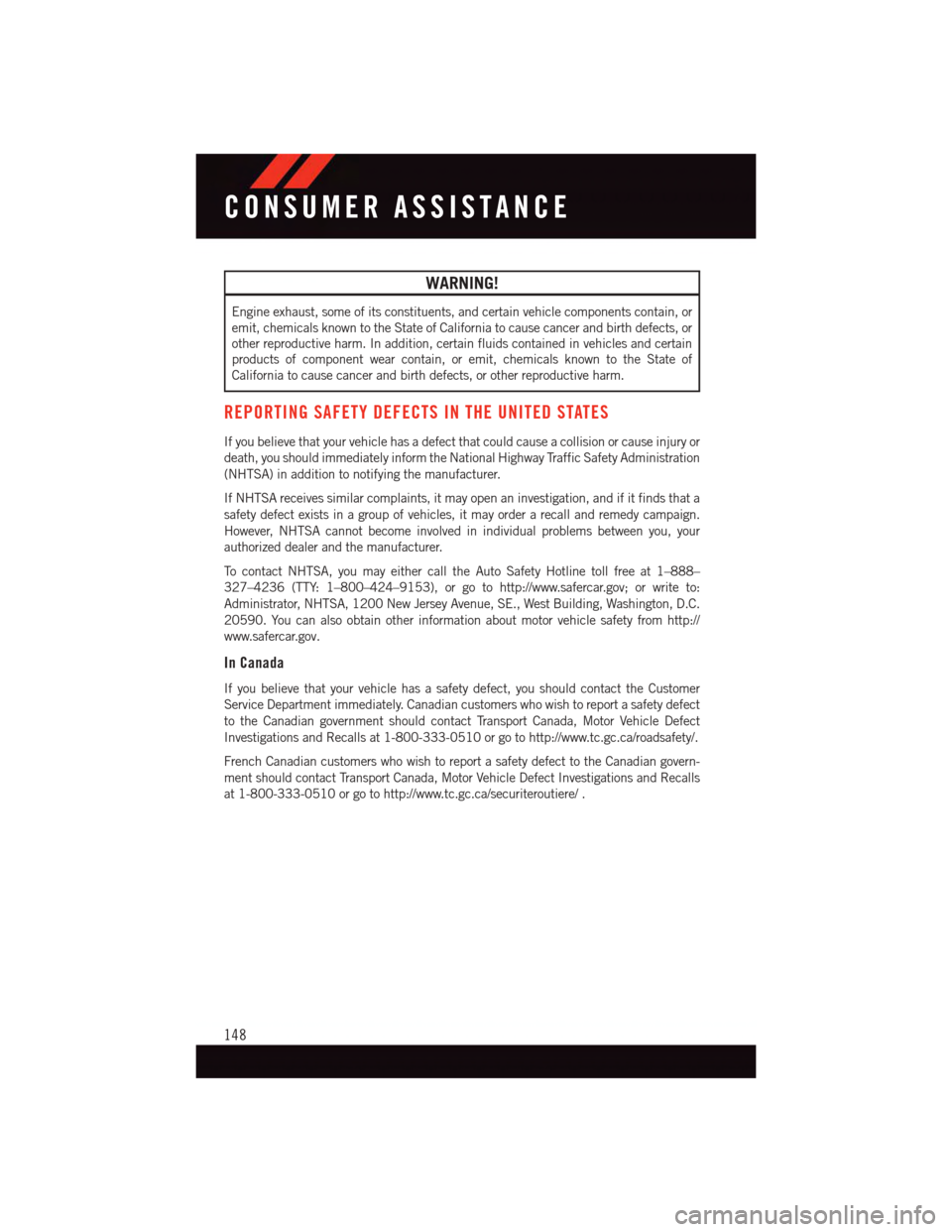

REPORTING SAFETY DEFECTS IN THE UNITED STATES
If you believe that your vehicle has a defect that could cause a collision or cause injury or
death, you should immediately inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying the manufacturer.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
authorized dealer and the manufacturer.
To c o n t a c t N H T S A , y o u m a y e i t h e r c a l l t h e A u t o S a f e t y H o t l i n e t o l l f r e e a t 1 – 8 8 8 –
327–4236 (TTY: 1–800–424–9153), or go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE., West Building, Washington, D.C.
20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
In Canada
If you believe that your vehicle has a safety defect, you should contact the Customer
Service Department immediately. Canadian customers who wish to report a safety defect
to the Canadian government should contact Transport Canada, Motor Vehicle Defect
Investigations and Recalls at 1-800-333-0510 or go to http://www.tc.gc.ca/roadsafety/.
French Canadian customers who wish to report a safety defect to the Canadian govern-
ment should contact Transport Canada, Motor Vehicle Defect Investigations and Recalls
at 1-800-333-0510 or go to http://www.tc.gc.ca/securiteroutiere/ .
CONSUMER ASSISTANCE
148

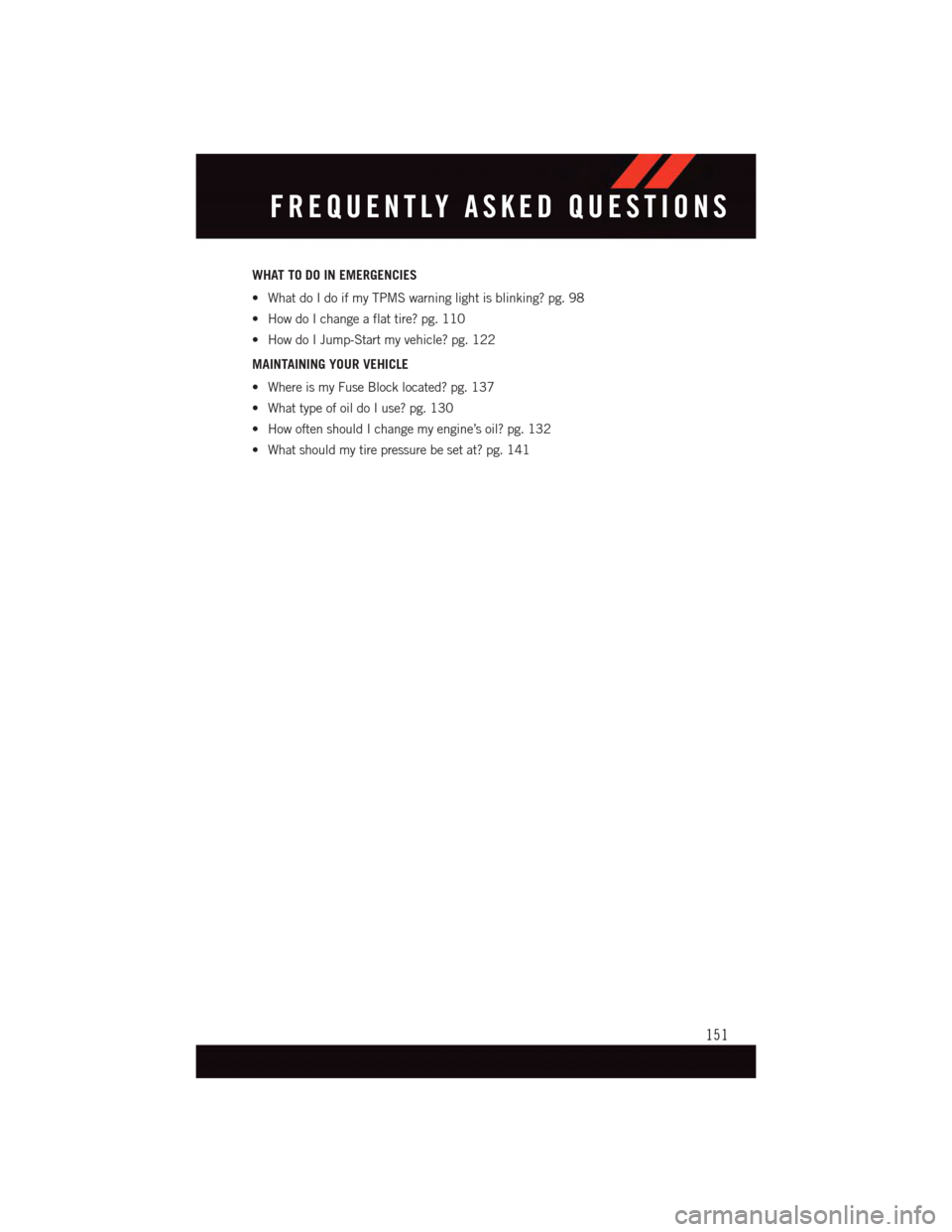

WHAT TO DO IN EMERGENCIES
•WhatdoIdoifmyTPMSwarninglightisblinking?pg.98
•HowdoIchangeaflattire?pg.110
•HowdoIJump-Startmyvehicle?pg.122
MAINTAINING YOUR VEHICLE
•WhereismyFuseBlocklocated?pg.137
•WhattypeofoildoIuse?pg.130
•HowoftenshouldIchangemyengine’soil?pg.132
•Whatshouldmytirepressurebesetat?pg.141
FREQUENTLY ASKED QUESTIONS
151

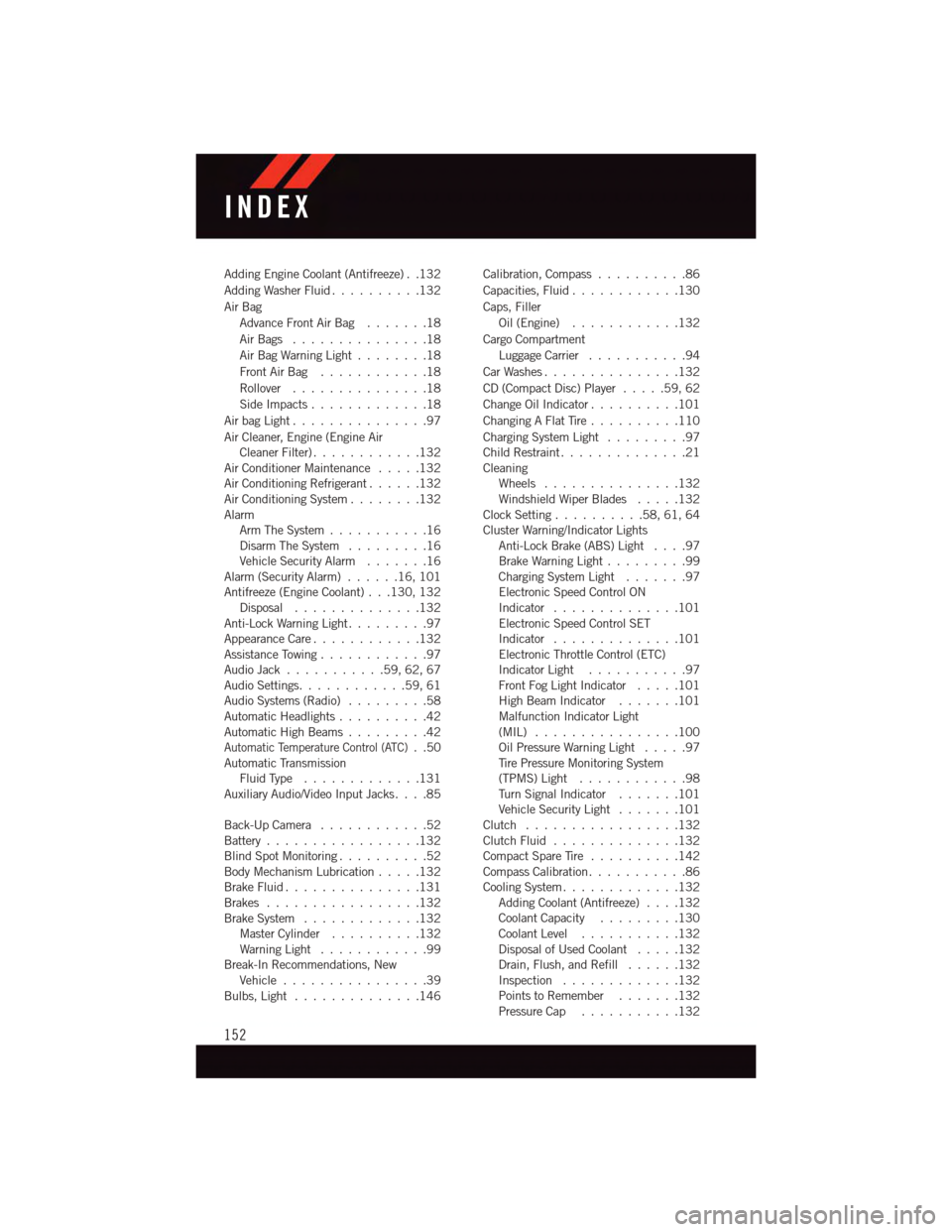

Adding Engine Coolant (Antifreeze) . .132
Adding Washer Fluid..........132
Air Bag
Advance Front Air Bag.......18
Air Bags . . . . . . . . . . . . . . .18
Air Bag Warning Light . . . . . . . .18
Front Air Bag . . . . . . . . . . . .18
Rollover . . . . . . . . . . . . . . .18
Side Impacts.............18
Air bag Light . . . . . . . . . . . . . . .97
Air Cleaner, Engine (Engine AirCleaner Filter)............132Air Conditioner Maintenance.....132Air Conditioning Refrigerant......132Air Conditioning System........132AlarmArm The System...........16Disarm The System.........16Vehicle Security Alarm.......16Alarm (Security Alarm)......16,101Antifreeze (Engine Coolant) . . .130, 132Disposal . . . . . . . . . . . . . .132Anti-Lock Warning Light.........97Appearance Care............132Assistance Towing............97Audio Jack...........59,62,67Audio Settings............59,61Audio Systems (Radio).........58Automatic Headlights..........42Automatic High Beams.........42
Automatic Temperature Control (ATC)..50Automatic TransmissionFluid Type . . . . . . . . . . . . .131Auxiliary Audio/Video Input Jacks....85
Back-Up Camera............52Battery.................132Blind Spot Monitoring..........52Body Mechanism Lubrication.....132Brake Fluid . . . . . . . . . . . . . . .131Brakes . . . . . . . . . . . . . . . . .132Brake System.............132Master Cylinder..........132Warning Light . . . . . . . . . . . .99Break-In Recommendations, NewVehicle . . . . . . . . . . . . . . . .39Bulbs, Light . . . . . . . . . . . . . .146
Calibration, Compass..........86
Capacities, Fluid............130
Caps, Filler
Oil (Engine)............132
Cargo Compartment
Luggage Carrier...........94
Car Washes . . . . . . . . . . . . . . .132
CD (Compact Disc) Player.....59,62
Change Oil Indicator..........101
Changing A Flat Tire..........110
Charging System Light.........97Child Restraint..............21CleaningWheels...............132Windshield Wiper Blades.....132Clock Setting..........58,61,64Cluster Warning/Indicator LightsAnti-Lock Brake (ABS) Light....97Brake Warning Light . . . . . . . . .99Charging System Light.......97Electronic Speed Control ONIndicator . . . . . . . . . . . . . .101Electronic Speed Control SETIndicator . . . . . . . . . . . . . .101Electronic Throttle Control (ETC)Indicator Light . . . . . . . . . . .97Front Fog Light Indicator . . . . .101High Beam Indicator.......101Malfunction Indicator Light(MIL) . . . . . . . . . . . . . . . .100Oil Pressure Warning Light . . . . .97Ti r e P r e s s u r e M o n i t o r i n g S y s t e m(TPMS) Light............98Tu r n S i g n a l I n d i c a t o r.......101Vehicle Security Light.......101Clutch . . . . . . . . . . . . . . . . .132Clutch Fluid . . . . . . . . . . . . . .132Compact Spare Tire..........142Compass Calibration...........86Cooling System . . . . . . . . . . . . .132Adding Coolant (Antifreeze)....132Coolant Capacity.........130Coolant Level...........132Disposal of Used Coolant.....132Drain, Flush, and Refill......132Inspection . . . . . . . . . . . . .132Points to Remember.......132Pressure Cap . . . . . . . . . . .132
INDEX
152

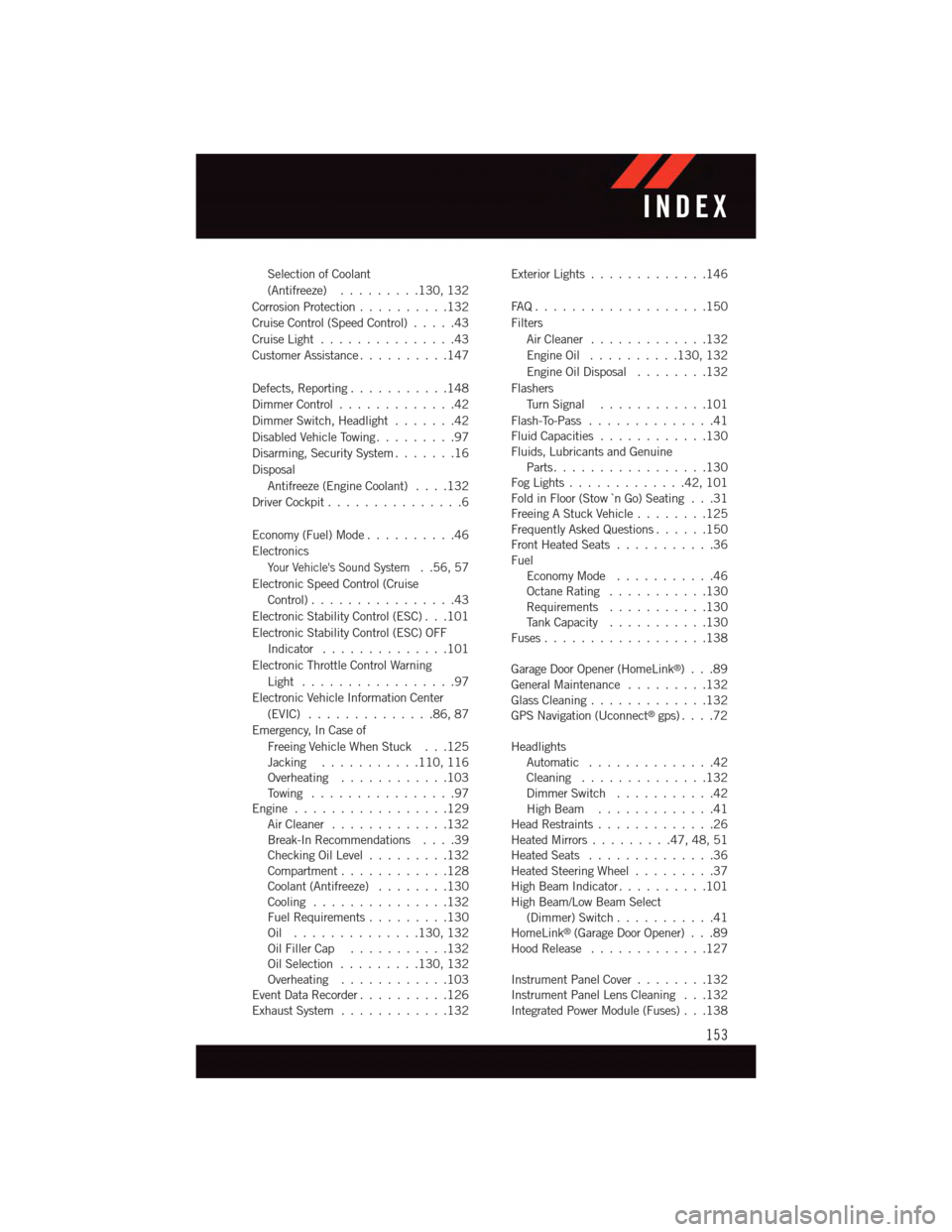

Selection of Coolant
(Antifreeze).........130, 132
Corrosion Protection..........132
Cruise Control (Speed Control).....43
Cruise Light . . . . . . . . . . . . . . .43
Customer Assistance..........147
Defects, Reporting...........148
Dimmer Control.............42
Dimmer Switch, Headlight.......42
Disabled Vehicle Towing . . . . . . . . .97
Disarming, Security System.......16
Disposal
Antifreeze (Engine Coolant)....132
Driver Cockpit...............6
Economy (Fuel) Mode..........46
Electronics
Yo u r Ve h i c l e ' s S o u n d S y s t e m..56,57
Electronic Speed Control (Cruise
Control) . . . . . . . . . . . . . . . .43
Electronic Stability Control (ESC) . . .101
Electronic Stability Control (ESC) OFF
Indicator . . . . . . . . . . . . . .101
Electronic Throttle Control Warning
Light . . . . . . . . . . . . . . . . .97
Electronic Vehicle Information Center
(EVIC) . . . . . . . . . . . . . .86, 87
Emergency, In Case of
Freeing Vehicle When Stuck . . .125Jacking . . . . . . . . . . .110, 116Overheating . . . . . . . . . . . .103To w i n g . . . . . . . . . . . . . . . . 9 7Engine . . . . . . . . . . . . . . . . .129Air Cleaner.............132Break-In Recommendations....39Checking Oil Level.........132Compartment............128Coolant (Antifreeze)........130Cooling . . . . . . . . . . . . . . .132Fuel Requirements.........130Oil . . . . . . . . . . . . . .130, 132Oil Filler Cap...........132Oil Selection . . . . . . . . .130, 132Overheating . . . . . . . . . . . .103Event Data Recorder..........126Exhaust System............132
Exterior Lights . . . . . . . . . . . . .146
FA Q . . . . . . . . . . . . . . . . . . . 1 5 0
Filters
Air Cleaner . . . . . . . . . . . . .132
Engine Oil..........130, 132
Engine Oil Disposal........132
Flashers
Tu r n S i g n a l............101
Flash-To-Pass..............41Fluid Capacities............130Fluids, Lubricants and GenuineParts . . . . . . . . . . . . . . . . .130Fog Lights . . . . . . . . . . . . .42, 101Fold in Floor (Stow `n Go) Seating . . .31Freeing A Stuck Vehicle . . . . . . . .125Frequently Asked Questions......150Front Heated Seats...........36FuelEconomy Mode...........46Octane Rating . . . . . . . . . . .130Requirements...........130Ta n k C a p a c i t y...........130Fuses . . . . . . . . . . . . . . . . . .138
Garage Door Opener (HomeLink®)...89General Maintenance.........132Glass Cleaning.............132GPS Navigation (Uconnect®gps)....72
HeadlightsAutomatic . . . . . . . . . . . . . .42Cleaning..............132Dimmer Switch...........42High Beam.............41Head Restraints.............26Heated Mirrors.........47,48,51Heated Seats..............36Heated Steering Wheel.........37High Beam Indicator..........101High Beam/Low Beam Select(Dimmer) Switch...........41HomeLink®(Garage Door Opener) . . .89Hood Release.............127
Instrument Panel Cover........132Instrument Panel Lens Cleaning . . .132Integrated Power Module (Fuses) . . .138
INDEX
153

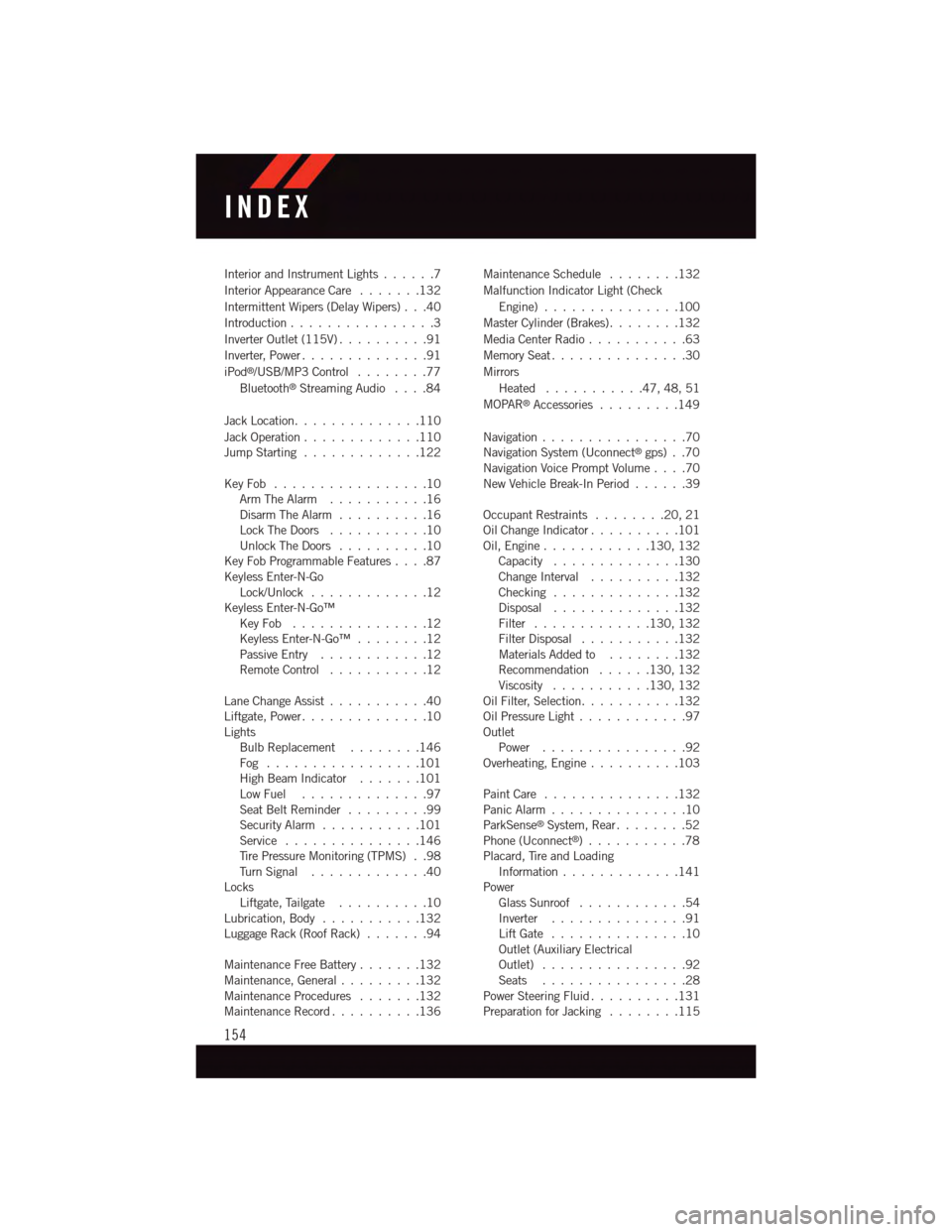

Interior and Instrument Lights......7
