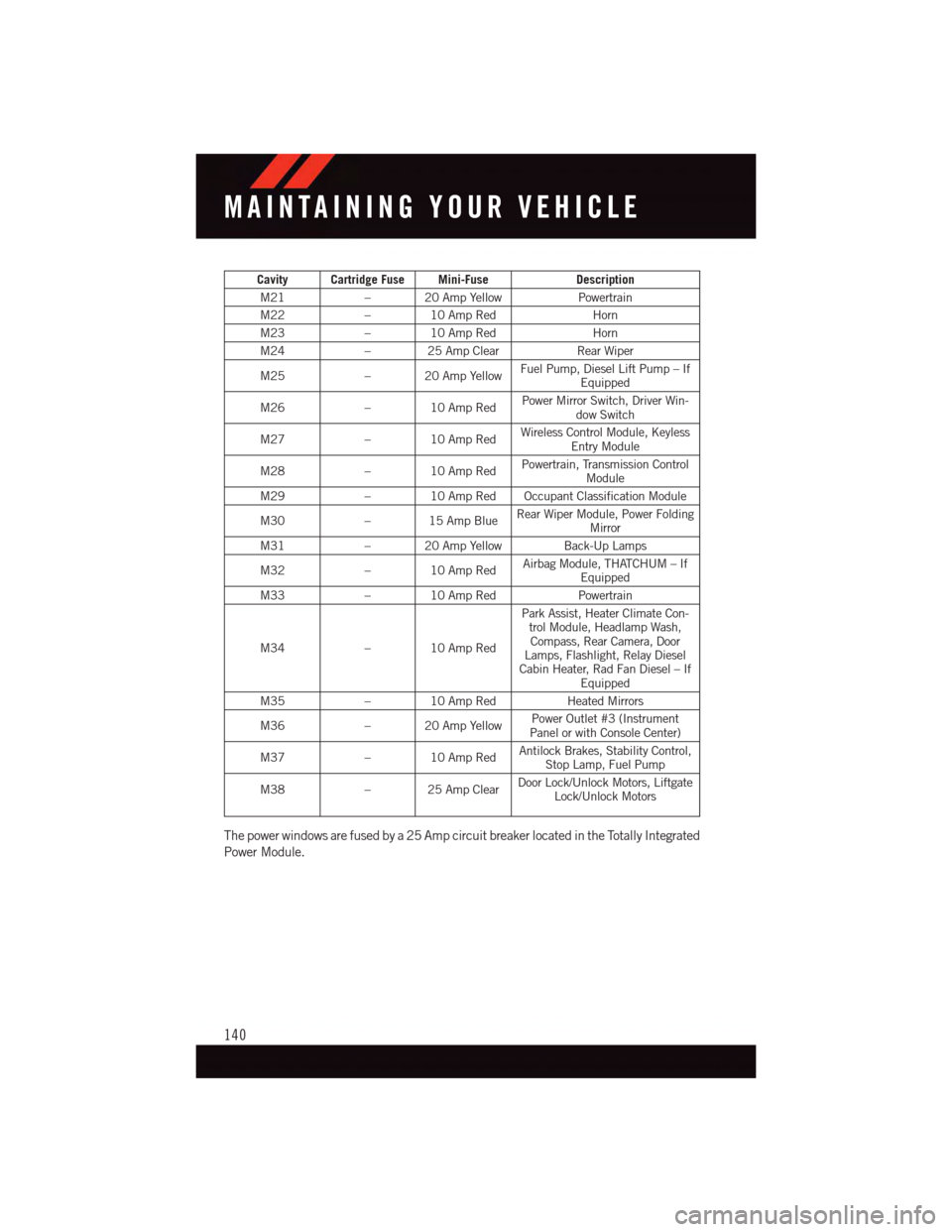

Cavity Cartridge Fuse Mini-FuseDescription
M21–20AmpYellowPowertrain
M22–10AmpRedHorn
M23–10AmpRedHorn
M24–25AmpClearRear Wiper
M25–20AmpYellowFuel Pump, Diesel Lift Pump – IfEquipped
M26–10AmpRedPower Mirror Switch, Driver Win-dow Switch
M27–10AmpRedWireless Control Module, KeylessEntry Module
M28–10AmpRedPowertrain, Transmission ControlModule
M29–10AmpRedOccupantClassificationModule
M30–15AmpBlueRear Wiper Module, Power FoldingMirror
M31–20AmpYellow Back-UpLamps
M32–10AmpRedAirbag Module, THATCHUM – IfEquipped
M33–10AmpRedPowertrain
M34–10AmpRed
Park Assist, Heater Climate Con-trol Module, Headlamp Wash,Compass, Rear Camera, DoorLamps, Flashlight, Relay DieselCabin Heater, Rad Fan Diesel – IfEquipped
M35–10AmpRedHeated Mirrors
M36–20AmpYellowPower Outlet #3 (InstrumentPanel or with Console Center)
M37–10AmpRedAntilock Brakes, Stability Control,Stop Lamp, Fuel Pump
M38–25AmpClearDoor Lock/Unlock Motors, LiftgateLock/Unlock Motors
The power windows are fused by a 25 Amp circuit breaker located in the Totally Integrated
Power Module.
MAINTAINING YOUR VEHICLE
140

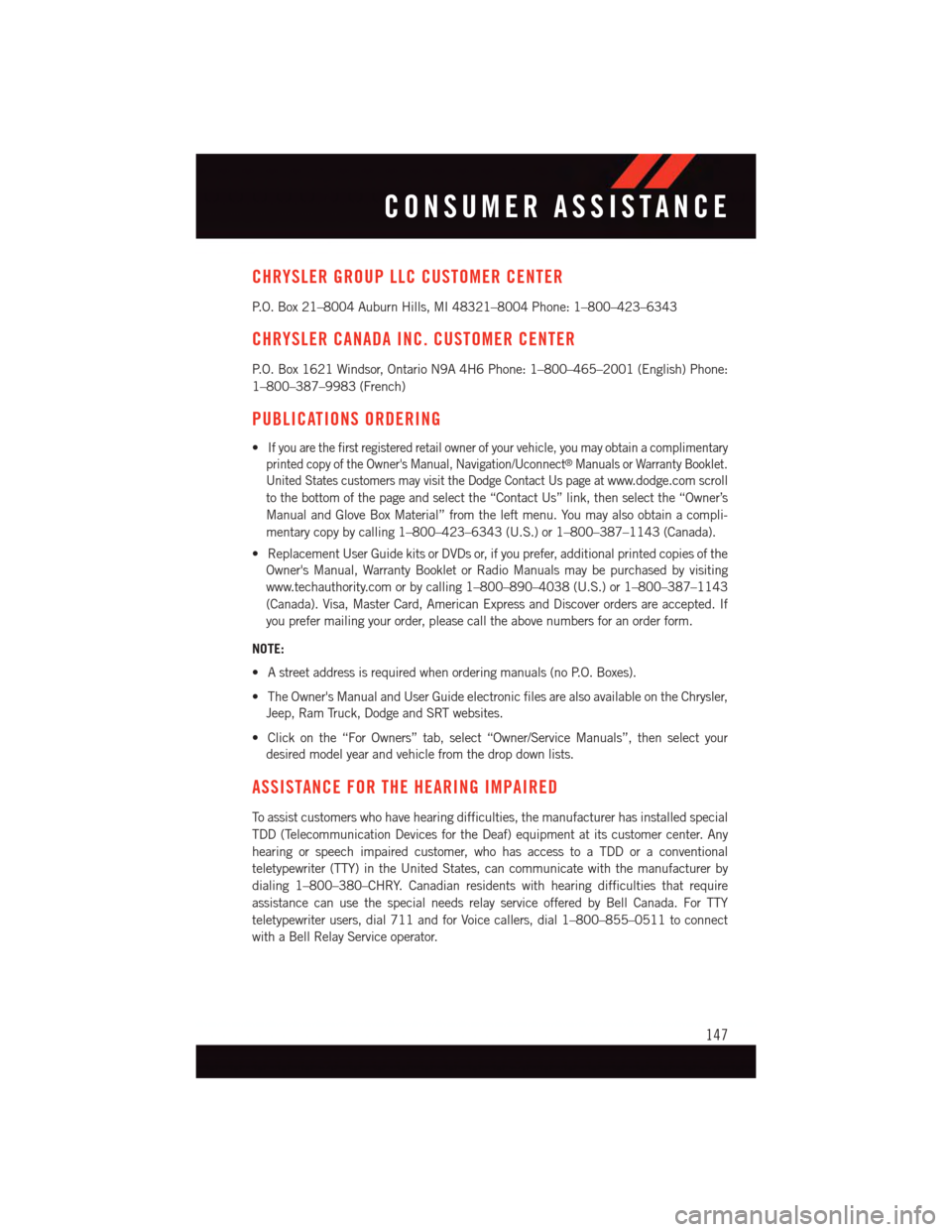

CHRYSLER GROUP LLC CUSTOMER CENTER
P. O . B o x 2 1 – 8 0 0 4 A u b u r n H i l l s , M I 4 8 3 2 1 – 8 0 0 4 P h o n e : 1 – 8 0 0 – 4 2 3 – 6 3 4 3
CHRYSLER CANADA INC. CUSTOMER CENTER
P. O . B o x 1 6 2 1 W i n d s o r , O n t a r i o N 9 A 4 H 6 P h o n e : 1 – 8 0 0 – 4 6 5 – 2 0 0 1 ( E n g l i s h ) P h o n e :
1–800–387–9983 (French)
PUBLICATIONS ORDERING
•If you are the first registered retail owner of your vehicle, you may obtain a complimentary
printed copy of the Owner's Manual, Navigation/Uconnect®Manuals or Warranty Booklet.
United States customers may visit the Dodge Contact Us page atwww.dodge.com scroll
to the bottom of the page and select the “Contact Us” link, then select the “Owner’s
Manual and Glove Box Material” from the left menu. You may also obtain a compli-
mentary copy by calling 1–800–423–6343 (U.S.) or 1–800–387–1143 (Canada).
•ReplacementUserGuidekitsorDVDsor,ifyouprefer,additionalprintedcopiesofthe
Owner's Manual, Warranty Booklet or Radio Manuals may be purchased by visiting
www.techauthority.com or by calling 1–800–890–4038 (U.S.) or 1–800–387–1143
(Canada). Visa, Master Card, American Express and Discover orders are accepted. If
you prefer mailing your order, please call the above numbers for an order form.
NOTE:
•Astreetaddressisrequiredwhenorderingmanuals(noP.O.Boxes).
•TheOwner'sManualandUserGuideelectronicfilesarealsoavailableontheChrysler,
Jeep, Ram Truck, Dodge and SRT websites.
•Clickonthe“ForOwners”tab,select“Owner/ServiceManuals”,thenselectyour
desired model year and vehicle from the drop down lists.
ASSISTANCE FOR THE HEARING IMPAIRED
To a s s i s t c u s t o m e r s w h o h a v e h e a r i n g d i f f i c u l t i e s , t h e m a n u f a c t u r e r h a s i n s t a l l e d s p e c i a l
TDD (Telecommunication Devices for the Deaf) equipment at its customer center. Any
hearing or speech impaired customer, who has access to a TDD or a conventional
teletypewriter (TTY) in the United States, can communicate with the manufacturer by
dialing 1–800–380–CHRY. Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered by Bell Canada. For TTY
teletypewriter users, dial 711 and for Voice callers, dial 1–800–855–0511 to connect
with a Bell Relay Service operator.
CONSUMER ASSISTANCE
147
