roof DODGE GRAND CARAVAN 2016 5.G Owners Manual

Remote Start Abort Message On Electronic
Vehicle Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Ajar
• Remote Start Disabled — Start Vehicle To Reset
The EVIC message stays active until the ignition is turned
to the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START button on
the RKE transmitter twice within five seconds.
The vehicle doors will lock, the parking lights
will flash, and horn will chirp twice (if pro-
grammed). Then, the engine will start and the vehicle will
remain in the Remote Start mode for a 15-minute cycle.
NOTE:
• If your power door locks were unlocked, Remote Start
will automatically lock the doors.
• The park lights will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
• The engine can be started two consecutive 15-minute
cycles with the RKE transmitter. However, the ignition
switch must be turned to the ON/RUN position.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The sliding door windows do not fully open,
stopping several inches above the window sill.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the rear windows are
open and buffeting occurs, open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, adjust the sun-
roof opening to minimize the buffeting.
SLIDING SIDE DOOR
The sliding door may be opened from the inside or the
outside. Pull outward on the exterior handle to open the
sliding door. The sliding door inside handle functions by
rocking forward and back. Rocking the handle back-
wards opens the door and rocking forward releases the
hold open latch in order to close the door.
Sliding Door Power Window Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43

SABICs may help reduce the risk of head or other injuries
to front and rear seat outboard occupants in certain side
impacts and/or vehicle rollover events, in addition to the
injury reduction potential provided by the seat belts and
body structure.
The SABICs deploy downward, covering the side win-
dows. An inflating SABIC pushes the outside edge of the
trim out of the way and covers the window. The SABICs
inflate with enough force to injure occupants if they are
not belted and seated properly, or if items are positioned
in the area where the SABICs inflate. Children are at an
even greater risk of injury from a deploying air bag.
The SABICs may help reduce the risk of partial or
complete ejection of vehicle occupants through side
windows in certain rollover or side impact events.WARNING!
•Your vehicle is equipped with left and right
Supplemental Side Air Bag Inflatable Curtains
(SABICs). Do not stack luggage or other cargo up
high enough to block the deployment of the
SABICs. The trim covering above the side win-
dows where the SABIC and its deployment path
are located should remain free from any obstruc-
tions.
• Your vehicle is equipped with SABICs. In order for
the SABICs to work as intended, do not install any
accessory items in your vehicle which could alter
the roof. Do not add an aftermarket sunroof to your
vehicle. Do not add roof racks that require perma-
nent attachments (bolts or screws) for installation
on the vehicle roof. Do not drill into the roof of the
vehicle for any reason.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85

TILT/TELESCOPING STEERING COLUMN . . .233
 HEATED STEERING WHEEL — IF EQUIPPED . .234
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .235
▫ To Activate ......................... .236
▫ To Set A Desired Speed .................237
▫ To Deactivate ....................... .237
▫ To Resume Speed .....................237
▫ To Vary The Speed Setting ...............237
▫ To Accelerate For Passing ................239
 PARKSENSE REAR PARK ASSIST — IF
EQUIPPED .......................... .240
▫ ParkSense Sensors .....................240
▫ ParkSense Warning Display ..............240▫
ParkSense Display .....................241
▫ Enabling/Disabling ParkSense ............245
▫ Service The ParkSense Rear Park Assist
System ............................ .245
▫ Cleaning The ParkSense System ...........246
▫ ParkSense System Usage Precautions ........246
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .248
 OVERHEAD CONSOLES .................250
▫ Front Overhead Console .................250
▫ Courtesy/Interior Lighting ..............250
▫ Sunglass Storage (Non-Sunroof Only) .......251
▫
Rear Courtesy/Reading Lights — If Equipped . .253
▫ Rear Overhead Consoles — If Equipped .....253
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

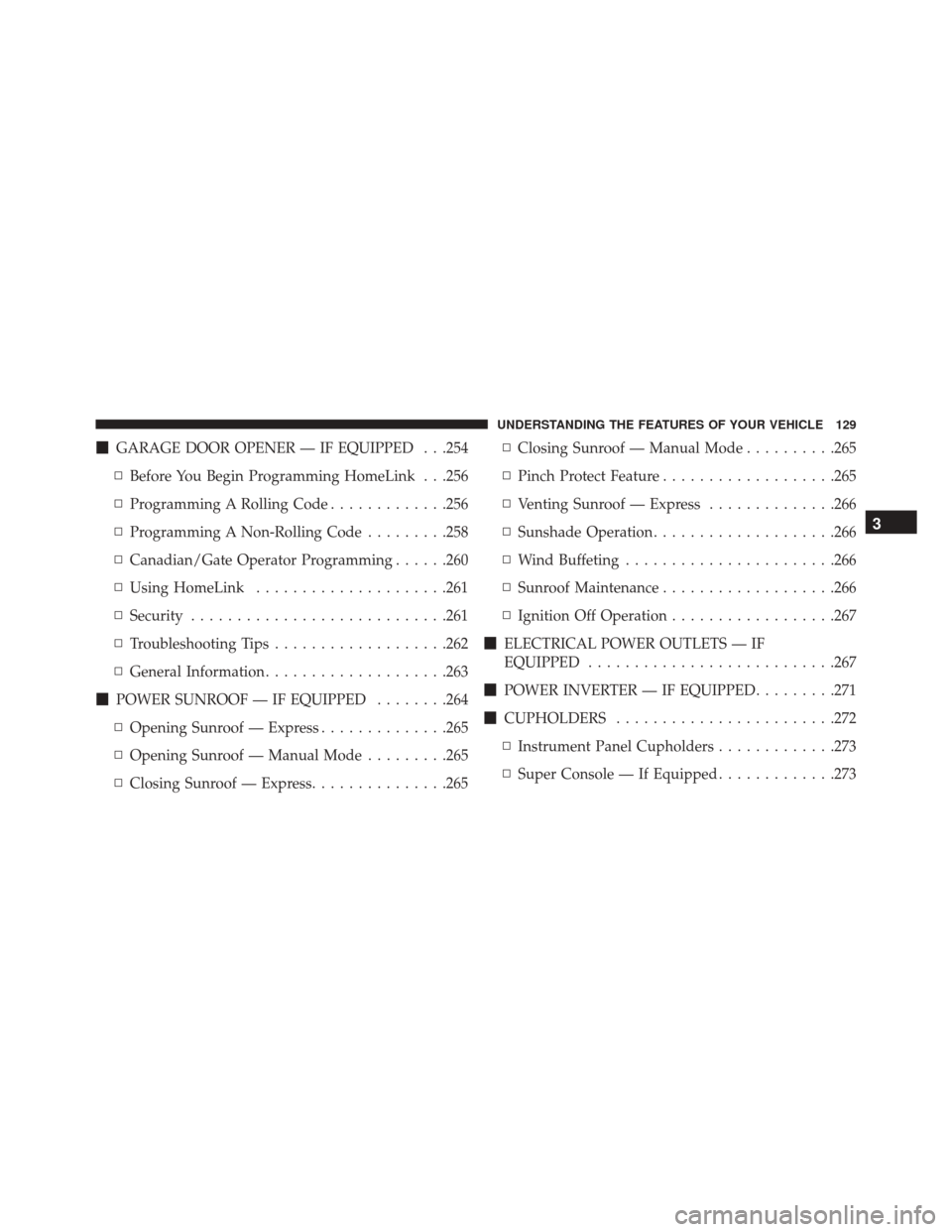

GARAGE DOOR OPENER — IF EQUIPPED . . .254
▫ Before You Begin Programming HomeLink . . .256
▫ Programming A Rolling Code .............256
▫ Programming A Non-Rolling Code .........258
▫ Canadian/Gate Operator Programming ......260
▫ Using HomeLink .....................261
▫ Security ........................... .261
▫ Troubleshooting Tips ...................262
▫ General Information ....................263
 POWER SUNROOF — IF EQUIPPED ........264
▫ Opening Sunroof — Express ..............265
▫ Opening Sunroof — Manual Mode .........265
▫ Closing Sunroof — Express ...............265 ▫
Closing Sunroof — Manual Mode ..........265
▫ Pinch Protect Feature ...................265
▫ Venting Sunroof — Express ..............266
▫ Sunshade Operation ....................266
▫ Wind Buffeting ...................... .266
▫ Sunroof Maintenance ...................266
▫ Ignition Off Operation ..................267
 ELECTRICAL POWER OUTLETS — IF
EQUIPPED .......................... .267
 POWER INVERTER — IF EQUIPPED .........271
 CUPHOLDERS ....................... .272
▫ Instrument Panel Cupholders .............273
▫ Super Console — If Equipped .............273
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

▫Premium Console Cupholders — If Equipped. . .274
▫Interior Bottle Holders ..................275
▫ Smoker’s Package Kit — If Equipped .......276
 STORAGE ........................... .276
▫ Glove Compartments ..................276
▫ Door Trim Panel Storage ................278
▫ Driver Seatback Storage — If Equipped ......278
▫ Umbrella Holder .....................279
▫
Second Row Seat Storage Bins — If Equipped . .279
▫ Storage Bin Safety Warning ...............281
▫ Coat Hooks ........................ .282
▫ Cargo Area Storage ....................282
CONSOLE FEATURES ...................283
▫ Basic Console ....................... .283
▫ Premium Console — If Equipped ..........285
▫ Super Console — If Equipped .............288
 REAR WINDOW FEATURES ..............290
▫ Rear Window Defroster .................290
 LOAD LEVELING SYSTEM — IF EQUIPPED . .291
 ROOF LUGGAGE RACK — IF EQUIPPED . . . .291
▫ Deploying The Crossbars ................292
 SUN SCREENS — IF EQUIPPED ............297
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:If snow, ice, mud, or any foreign substance
builds up on the camera lens, clean the lens, rinse with
water, and dry with a soft cloth. Do not cover the lens.
OVERHEAD CONSOLES
Front Overhead Console
Two versions of the overhead console are available. The
base front overhead console model featured fixed incan-
descent courtesy/reading lights, flip-down sunglass stor-
age and conversation mirror. The premium front over-
head console model features a LED focused light that
illuminates the instrument panel cupholders, two swiv-
eling LED lights, flip-down sunglass storage, conversa-
tion mirror, optional power sliding door switches and an
optional power liftgate switch.
NOTE: Premium sunroof console models include all of
above except sunglass storage.
Courtesy/Interior Lighting
At the forward end of the console are two courtesy lights
(standard dome light has two buttons). The lights turn on
when a front door, a sliding door or the liftgate is opened.
Overhead Console
250 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If your vehicle is equipped with Remote Keyless Entry
(RKE) the lights will also turn on when the UNLOCK
button on the RKE transmitter is pushed.
The courtesy lights also function as reading lights. Push
in on each lens to turn these lights on while inside the
vehicle. Push a second time to turn each light off. You
may adjust the direction of these lights by pushing the
outside ring, which is identified with four directional
arrows (LED lamps only).
The area around the instrument panel cupholders is also
illuminated from a light in the overhead console (pre-
mium console only). This light is turned on when the
headlight switch is on, and will adjust in brightness when
the dimmer control is rotated up or down.Sunglass Storage (Non-Sunroof Only)
At the front of the overhead console, a compartment is
provided for the storage of two pairs of sunglasses.
From the closed position, push the door latch to open the
compartment.
Over Door Latch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 251

Rear Courtesy/Reading Lights — If Equipped
The overhead console has two sets of courtesy lights. The
lights turn on when a front door, a sliding door or the
liftgate is opened. If your vehicle is equipped with
Remote Keyless Entry (RKE) the lights will also turn on
when the UNLOCK button on the RKE transmitter is
pushed.
The courtesy lights also function as reading lights. Push
in on each lens to turn these lights on while inside the
vehicle. Push the lens a second time to turn each light off.
You may adjust the direction of these lights by pushing
the outside ring, which is identified with four directional
arrows.
Rear Overhead Consoles — If Equipped
The rear overhead storage system is available in two
versions: with or without sunroof.
An additional LED at the front of the rear console shines
down on the front foot-well area while in courtesy mode,
for added convenience.
Reading Lights
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 253

POWER SUNROOF — IF EQUIPPED
The power sunroof switch is located between the sun
visors on the overhead console.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Never leave the Key
Fob in or near the vehicle or in a location accessible
to children. Occupants, particularly unattended chil-
dren, can become entrapped by the power sunroof
while operating the power sunroof switch. Such
entrapment may result in serious injury or death.
• In a collision, there is greater risk of being thrown
from a vehicle with an open sunroof. You could
also be seriously injured or killed. Always fasten
your seat belt properly and make sure all passen-
gers are properly secured too.
• Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object to project through the sunroof opening.
Injury may result.
Power Sunroof Switch
264 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
