DODGE GRAND CARAVAN 2016 5.G Owners Manual

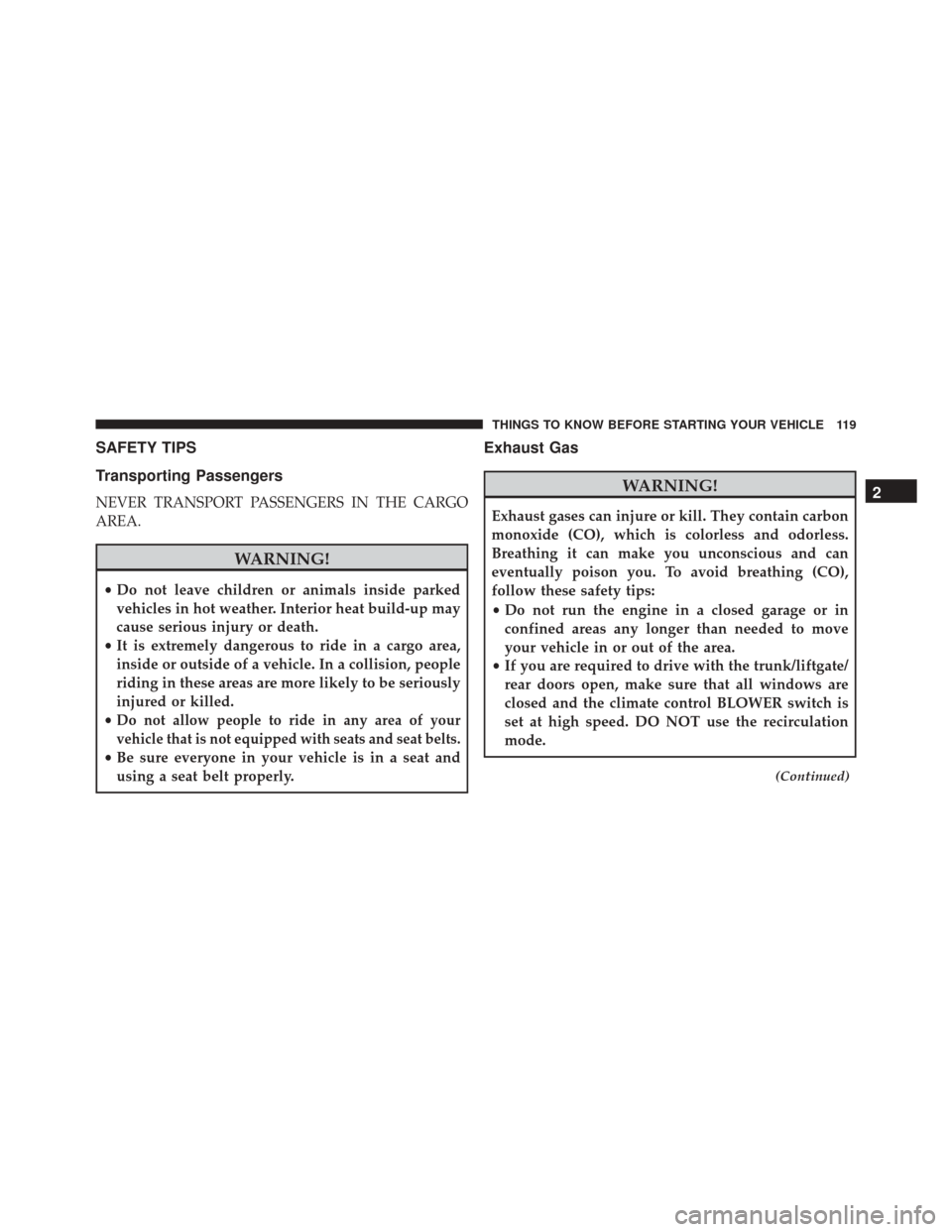

SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
•
Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
• Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is
set at high speed. DO NOT use the recirculation
mode.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 119

WARNING!(Continued)
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding seat
belt or retractor condition, replace the seat belt.
Air Bag Warning Light
The light should come on and remain on for
four to eight seconds as a bulb check when the
ignition switch is first turned ON. If the light is
120 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

not lit during starting, see your authorized dealer. If the
light stays on, flickers, or comes on while driving, have
the system checked by an authorized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
• Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfer-
ing with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 121

WARNING!(Continued)
•Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
• Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
122 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 123

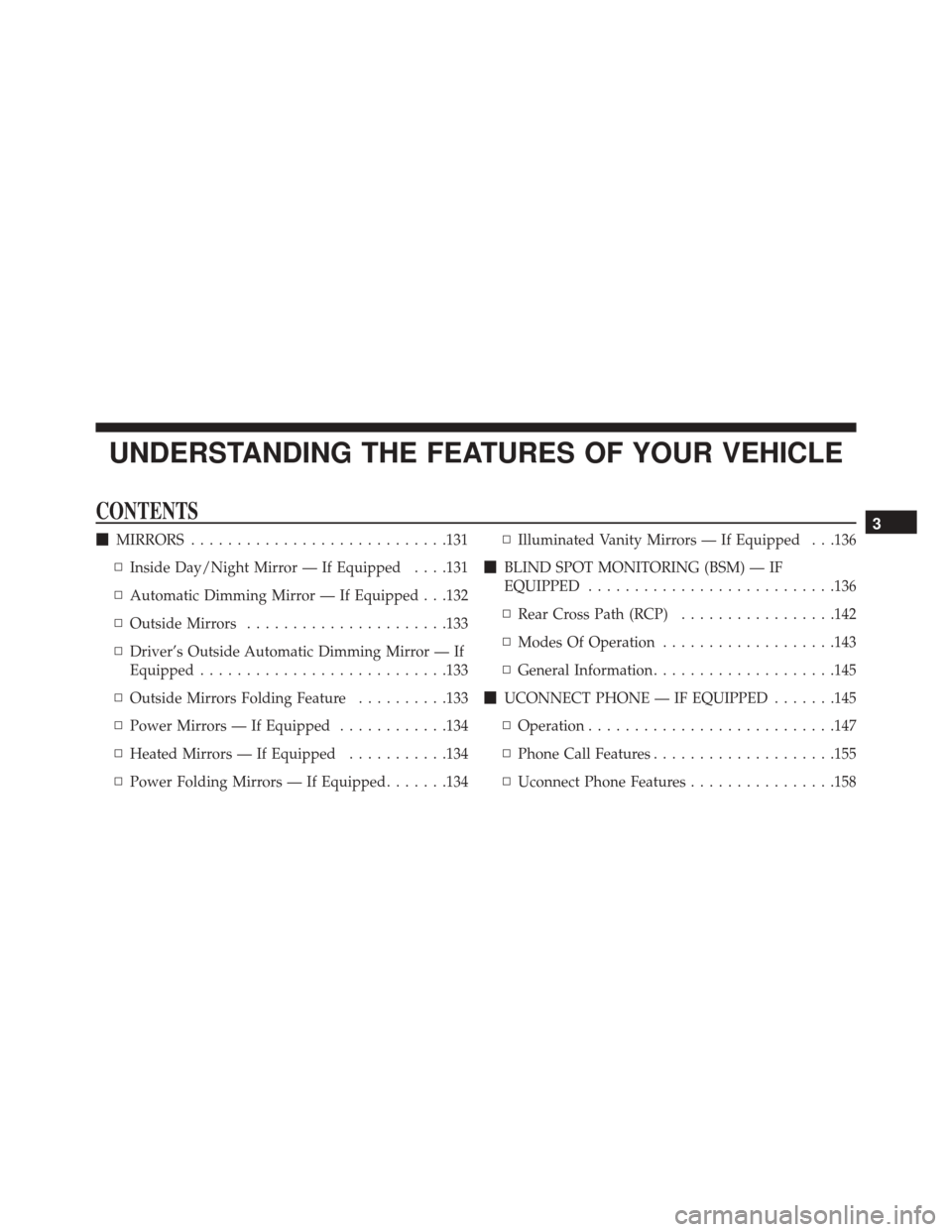

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .131
▫ Inside Day/Night Mirror — If Equipped . . . .131
▫ Automatic Dimming Mirror — If Equipped . . .132
â–« Outside Mirrors ..................... .133
▫ Driver’s Outside Automatic Dimming Mirror — If
Equipped .......................... .133
â–« Outside Mirrors Folding Feature ..........133
▫ Power Mirrors — If Equipped ............134
▫ Heated Mirrors — If Equipped ...........134
▫ Power Folding Mirrors — If Equipped .......134▫
Illuminated Vanity Mirrors — If Equipped . . .136
 BLIND SPOT MONITORING (BSM) — IF
EQUIPPED .......................... .136
â–« Rear Cross Path (RCP) .................142
â–« Modes Of Operation ...................143
â–« General Information ....................145
 UCONNECT PHONE — IF EQUIPPED .......145
â–« Operation .......................... .147
â–« Phone Call Features ....................155
â–« Uconnect Phone Features ................1583

â–«Advanced Phone Connectivity ............163
â–« Things You Should Know About Your Uconnect
Phone ............................. .165
â–« General Information ...................177
 VOICE COMMAND — IF EQUIPPED ........177
â–« Voice Command System Operation .........177
â–« Commands ........................ .179
â–« Voice Training ...................... .183
 SEATS ............................. .183
▫ Power Seats — If Equipped ..............184
▫ Power Lumbar — If Equipped ............187
▫ Heated Seats — If Equipped ..............187
â–« Manual Front/Second Row Seat Adjuster . . . .191 â–«
Manual Reclining Seats — If Equipped ......192
â–« Head Restraints ..................... .193
▫ Stow ’n Go Seating — If Equipped .........197
▫ Quad Seats — If Equipped ...............204
▫ Second Row Bench Seat — If Equipped ......208
▫ Third Row Power Recline — If Equipped .....209
â–«
Third Row Power Folding Seat — If Equipped . .210
▫ Manually Folding Third Row Seats — If
Equipped .......................... .212
â–« Plastic Grocery Bag Retainer Hooks .........215
 DRIVER MEMORY SEAT — IF EQUIPPED .....216
â–« Programming The Memory Feature .........217
â–« Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory .................217
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

â–«Memory Position Recall .................218
â–« Easy Entry/Exit Seat (Available With Memory
Seat Only) .......................... .219
 TO OPEN AND CLOSE THE HOOD .........220
 LIGHTS ............................ .222
â–« Headlight Switch ..................... .222
▫ Automatic Headlights — If Equipped .......223
▫ Headlights On With Wipers — If Equipped . . .223
▫ Headlight Delay — If Equipped ...........223
â–« Lights-On Reminder ...................224
▫ Daytime Running Lights — If Equipped .....224
▫ Front Fog Lights — If Equipped ...........225
â–« Dimmer Controls .....................225 â–«
Multifunction Lever ....................227
â–« Turn Signals ........................ .228
â–« Lane Change Assist ...................228
â–« High/Low Beam Switch ................228
â–« Flash-To-Pass ....................... .229
â–« Battery Protection .....................229
 WINDSHIELD WIPER AND WASHERS .......229
â–« Intermittent Wiper System ...............230
â–« Windshield Wiper Operation .............230
â–« Windshield Washers ....................231
â–« Mist Feature ........................ .231
â–« Rear Wiper And Washer .................231
▫ Rain Sensing Wipers — If Equipped ........231
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

TILT/TELESCOPING STEERING COLUMN . . .233
 HEATED STEERING WHEEL — IF EQUIPPED . .234
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .235
â–« To Activate ......................... .236
â–« To Set A Desired Speed .................237
â–« To Deactivate ....................... .237
â–« To Resume Speed .....................237
â–« To Vary The Speed Setting ...............237
â–« To Accelerate For Passing ................239
 PARKSENSE REAR PARK ASSIST — IF
EQUIPPED .......................... .240
â–« ParkSense Sensors .....................240
â–« ParkSense Warning Display ..............240â–«
ParkSense Display .....................241
â–« Enabling/Disabling ParkSense ............245
â–« Service The ParkSense Rear Park Assist
System ............................ .245
â–« Cleaning The ParkSense System ...........246
â–« ParkSense System Usage Precautions ........246
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .248
 OVERHEAD CONSOLES .................250
â–« Front Overhead Console .................250
â–« Courtesy/Interior Lighting ..............250
â–« Sunglass Storage (Non-Sunroof Only) .......251
â–«
Rear Courtesy/Reading Lights — If Equipped . .253
▫ Rear Overhead Consoles — If Equipped .....253
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
