check engine DODGE JOURNEY 2009 1.G Owners Manual

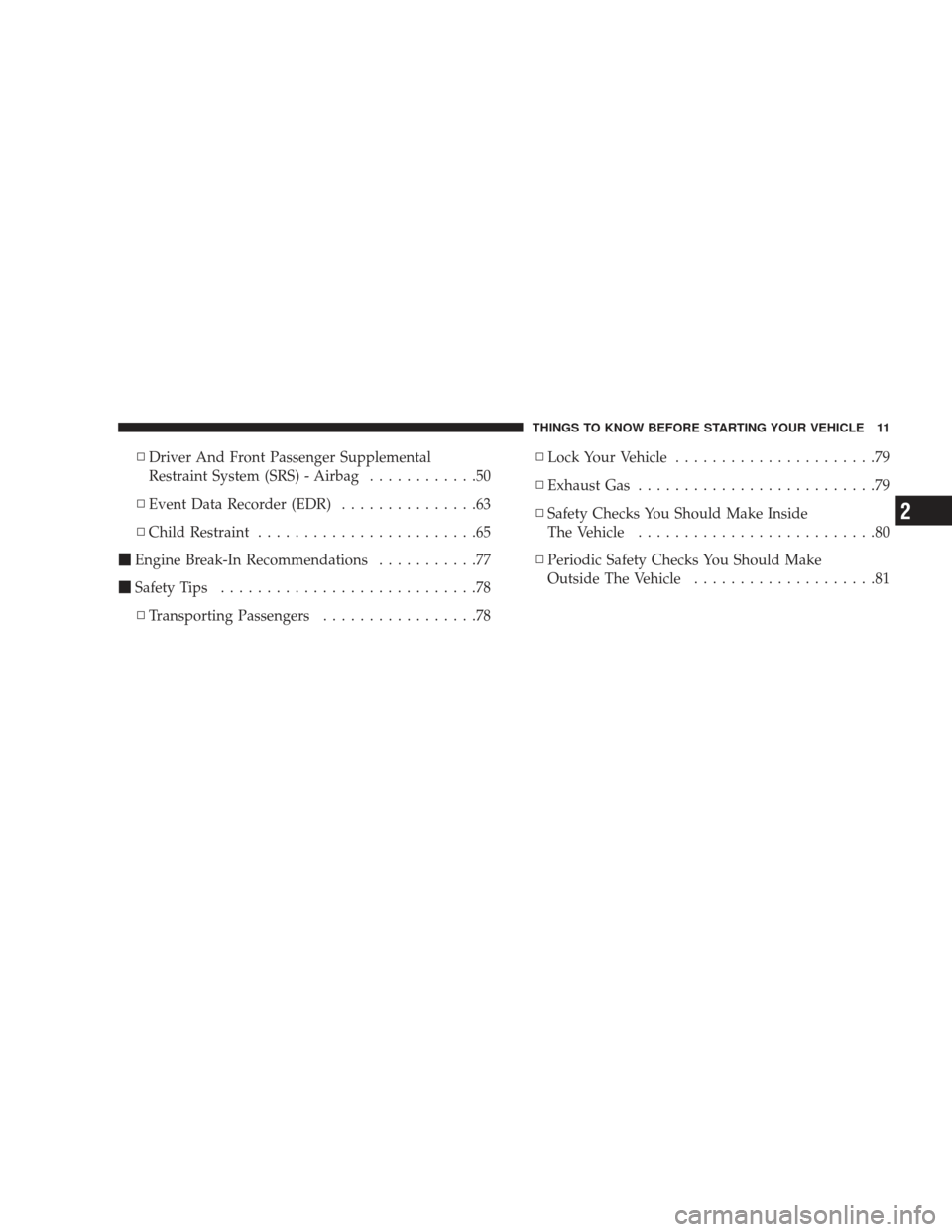

▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag ............50
▫ Event Data Recorder (EDR) ...............63
▫ Child Restraint ........................65
 Engine Break-In Recommendations ...........77
 Safety Tips ............................78
▫ Transporting Passengers .................78 ▫
Lock Your Vehicle ......................79
▫ Exhaust Gas ..........................79
▫ Safety Checks You Should Make Inside
The Vehicle ..........................80
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ....................81
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY IMMOBILIZER SYSTEM
The Sentry Key Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check Turn Signal and High
Beam Indicator Lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81
2

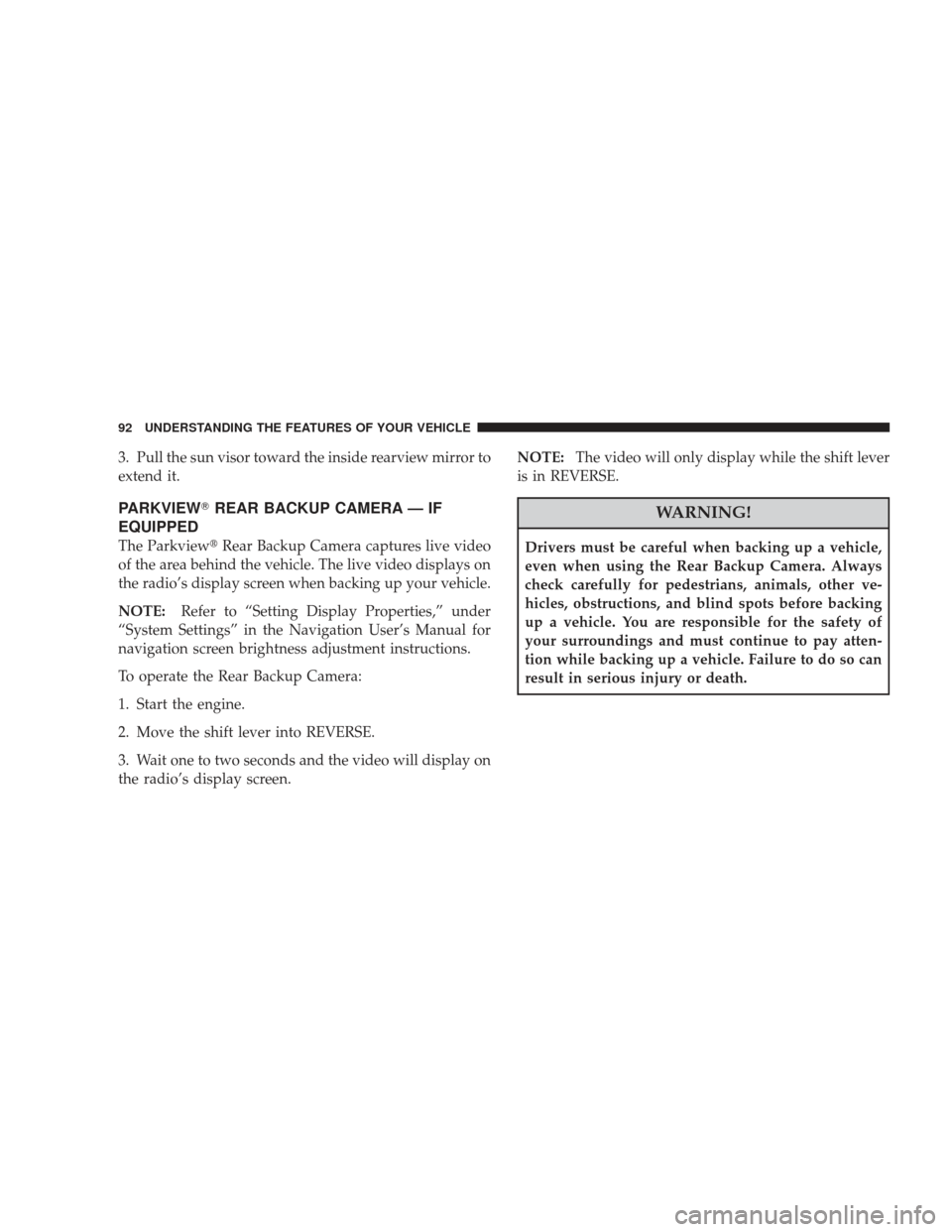

3. Pull the sun visor toward the inside rearview mirror to
extend it.
PARKVIEWREAR BACKUP CAMERA — IF
EQUIPPED
The Parkview Rear Backup Camera captures live video
of the area behind the vehicle. The live video displays on
the radio’s display screen when backing up your vehicle.
NOTE: Refer to “Setting Display Properties,” under
“System Settings” in the Navigation User’s Manual for
navigation screen brightness adjustment instructions.
To operate the Rear Backup Camera:
1. Start the engine.
2. Move the shift lever into REVERSE.
3. Wait one to two seconds and the video will display on
the radio’s display screen. NOTE:
The video will only display while the shift lever
is in REVERSE.
WARNING!
Drivers must be careful when backing up a vehicle,
even when using the Rear Backup Camera. Always
check carefully for pedestrians, animals, other ve-
hicles, obstructions, and blind spots before backing
up a vehicle. You are responsible for the safety of
your surroundings and must continue to pay atten-
tion while backing up a vehicle. Failure to do so can
result in serious injury or death.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

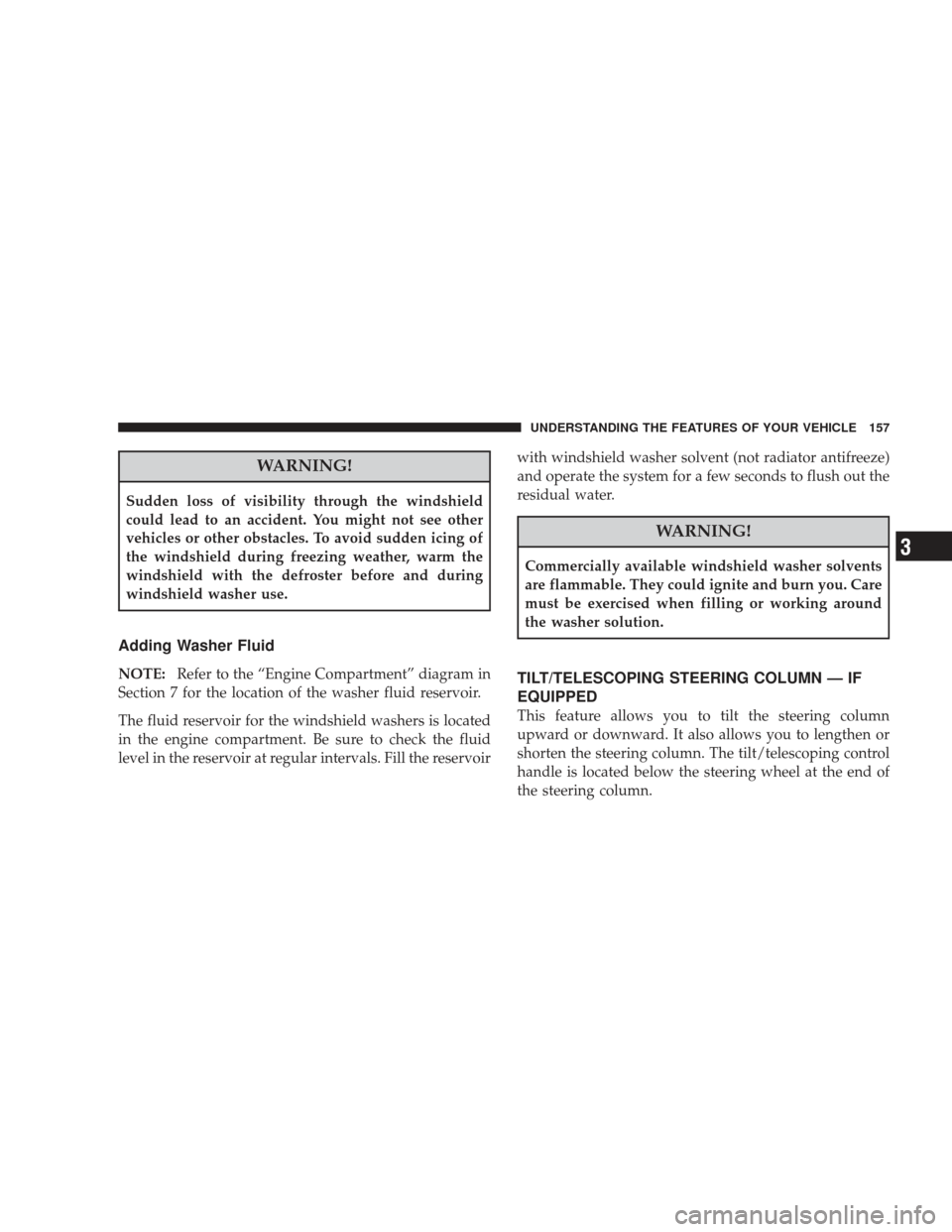

WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Adding Washer Fluid
NOTE:Refer to the “Engine Compartment” diagram in
Section 7 for the location of the washer fluid reservoir.
The fluid reservoir for the windshield washers is located
in the engine compartment. Be sure to check the fluid
level in the reservoir at regular intervals. Fill the reservoir with windshield washer solvent (not radiator antifreeze)
and operate the system for a few seconds to flush out the
residual water.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
TILT/TELESCOPING STEERING COLUMN — IF
EQUIPPED
This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The tilt/telescoping control
handle is located below the steering wheel at the end of
the steering column.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157
3

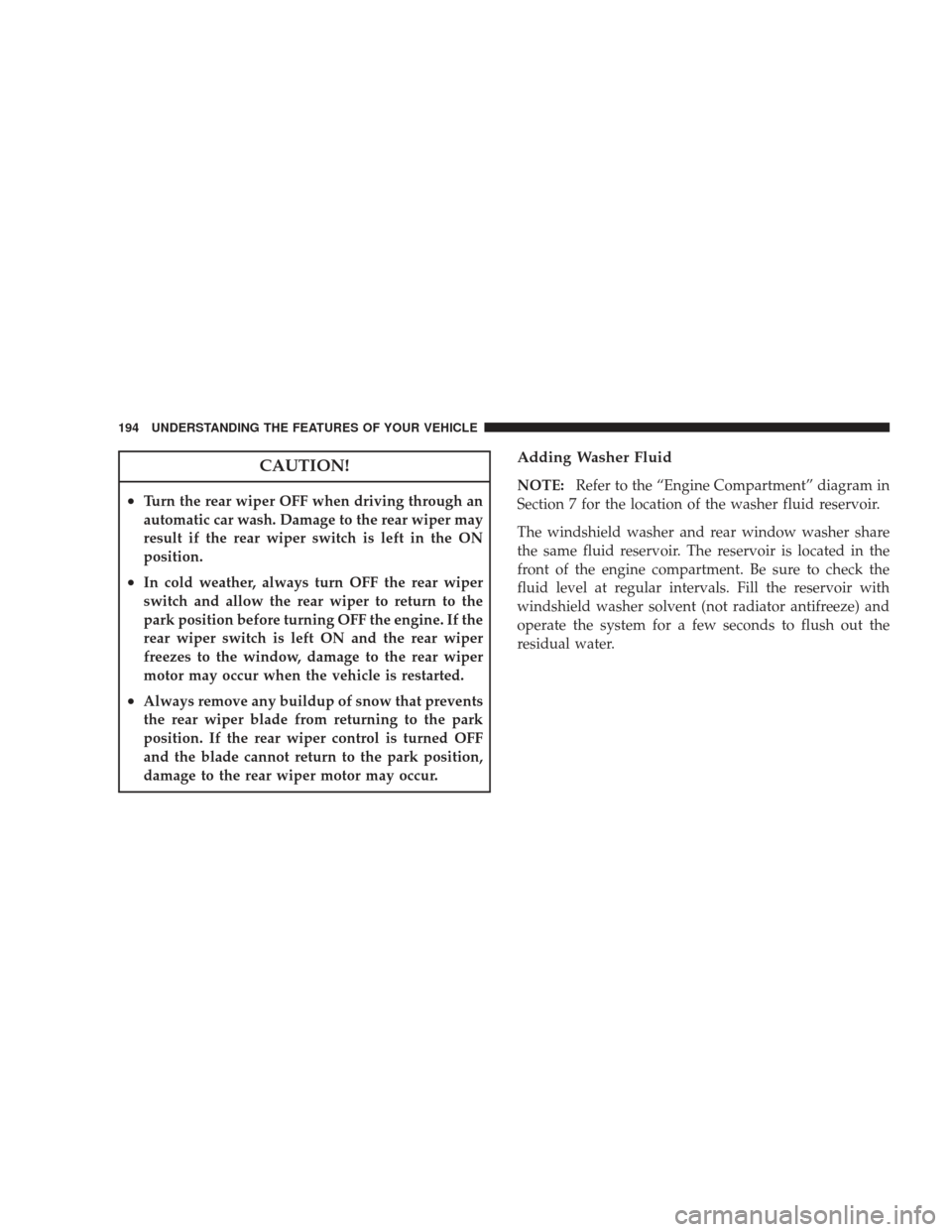

CAUTION!
•Turn the rear wiper OFF when driving through an
automatic car wash. Damage to the rear wiper may
result if the rear wiper switch is left in the ON
position.
•In cold weather, always turn OFF the rear wiper
switch and allow the rear wiper to return to the
park position before turning OFF the engine. If the
rear wiper switch is left ON and the rear wiper
freezes to the window, damage to the rear wiper
motor may occur when the vehicle is restarted.
•Always remove any buildup of snow that prevents
the rear wiper blade from returning to the park
position. If the rear wiper control is turned OFF
and the blade cannot return to the park position,
damage to the rear wiper motor may occur.
Adding Washer Fluid
NOTE:Refer to the “Engine Compartment” diagram in
Section 7 for the location of the washer fluid reservoir.
The windshield washer and rear window washer share
the same fluid reservoir. The reservoir is located in the
front of the engine compartment. Be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent (not radiator antifreeze) and
operate the system for a few seconds to flush out the
residual water.
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, refer to Section 7 and follow the
warnings under the Cooling System Pressure Cap
paragraph.
5. Front Fog Light Indicator Light — If Equipped This light shows when the fog lights are ON. (See
page 148 for more information.)
6. Low Fuel Warning Light This indicator lights when the fuel level drops to
approximately one-eighth tank. (See page 372 for
more information.) 7. Turn Signal Indicator Light
The left or right arrow will flash in unison with the
corresponding front and rear turn signal lights when
the turn signal switch is operated. (See page 149 for more
information.)
NOTE: A chime will sound if the vehicle is driven more
than 1 mi (1.6 km) with either turn signal on.
NOTE: Check for an inoperative outside light bulb if
either indicator flashes at a rapid rate.
8. High Beam Indicator Light This light shows that the headlights are on high
beam. Pull the multifunction lever on the left side
of the steering column toward you to switch to low beam.
(See page 150 for more information.)
9. Speedometer
Shows the vehicle speed.
UNDERSTANDING YOUR INSTRUMENT PANEL 207
4

10. Vehicle Security Alarm (VSA) Indicator Light — If
EquippedThis light will flash rapidly for approximately
16 seconds when the vehicle Security system is
arming and then flash slowly when the system
is armed. The light will also turn on for about
three seconds when the ignition switch is first turned
ON. (See page 18 for more information.)
11. All-Wheel Drive (AWD) Failure Indicator Light —
If Equipped This light monitors the All-Wheel-Drive
(AWD) system. The light will turn on for a bulb
check when the ignition switch is turned to the
ON position and may stay on for as long as
three seconds.
When lit solid: There is an AWD system fault. AWD
performance will be at a reduced level. Service the AWD
system soon. When blinking:
The AWD system is temporarily dis-
abled due to overload condition.
12. Tachometer
This gauge measures engine revolutions per minute
(RPM x 1000). Before the pointer reaches the red area,
ease up on the accelerator to prevent engine damage.
13. Transaxle Range Indicator
This display indicator shows automatic transaxle gear
selection. (See page 311 for more information.)
14. Seat Belt Reminder Light This light will turn on for several seconds after the
ignition switch is turned ON as a reminder to
“buckle up.” This light will remain on as long as
the driver’s seat belt remains unbuckled. (See page 48 for
more information.)
208 UNDERSTANDING YOUR INSTRUMENT PANEL

16. Electronic Throttle Control (ETC) Warning Light —
If EquippedThis light will turn on briefly as a bulb check
when the ignition switch is turned ON. This
light will also turn on while the engine is
running if there is a problem with the Elec-
tronic Throttle Control (ETC) system.
If the light turns on while the engine is running, safely
bring the vehicle to a complete stop as soon as possible,
place the shift lever in PARK, and cycle the ignition key.
The light should turn off. If the light remains lit with the
engine running, your vehicle will usually be drivable.
However, see your authorized dealer for service as soon
as possible.
If the light is flashing when the engine is running,
immediate service is required. In this case, you may
experience reduced performance, an elevated/rough idle
or engine stall, and your vehicle may require towing. Also, have the system checked by an authorized dealer if
the light does not turn on during starting.
17. Oil Pressure Warning Light
This light shows low engine oil pressure. The light
will turn on and remain on when the ignition
switch is turned from the LOCK or ACC position to the
ON position. The light will turn off after the engine is
started.
If the light does not turn on during starting, have the
system checked by an authorized dealer.
If the light turns on and remains on while driving, safely
bring the vehicle to a stop and shut off the engine. DO
NOT OPERATE THE VEHICLE UNTIL THE CAUSE IS
CORRECTED. This light does not show the quantity of
oil in the engine. The engine oil level must be checked
using the proper procedure. (See page 424 for more
information.)
UNDERSTANDING YOUR INSTRUMENT PANEL 211
4

22. Anti-Lock Brake System (ABS) Warning LightThis light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON position and may
stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the Brake System Warning Light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefit of Anti-Lock
brakes. Furthermore, the ABS light should be checked
frequently to assure that it is operating properly. If the
light does not turn on, have the system checked by an
authorized dealer. (See page 328 for more information.) 23. Electronic Stability Program (ESP)/Traction
Control System (TCS) Indicator Light
If this indicator light flashes during accelera-
tion, ease up on the accelerator and apply as
little throttle as possible. Adapt your speed and
driving to the prevailing road conditions. (See
page 328 for more information.)
24. Malfunction Indicator Light (MIL) This light is part of an Onboard Diagnostic
system called OBD II. The OBD system monitors
emissions, engine, and automatic transaxle con-
trol systems. The MIL will turn on when the key is in the
ON position before engine start. If the MIL does not turn
on when turning the key from LOCK or ACC to ON, have
the condition checked promptly.
Certain conditions such as a loose or missing gas cap,
poor fuel quality, etc., may illuminate the MIL after
engine start. The vehicle should be serviced if the MIL
UNDERSTANDING YOUR INSTRUMENT PANEL 215
4
