Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
Cleaning The Cupholders
Clean with a damp cloth or towel using a mild detergent.

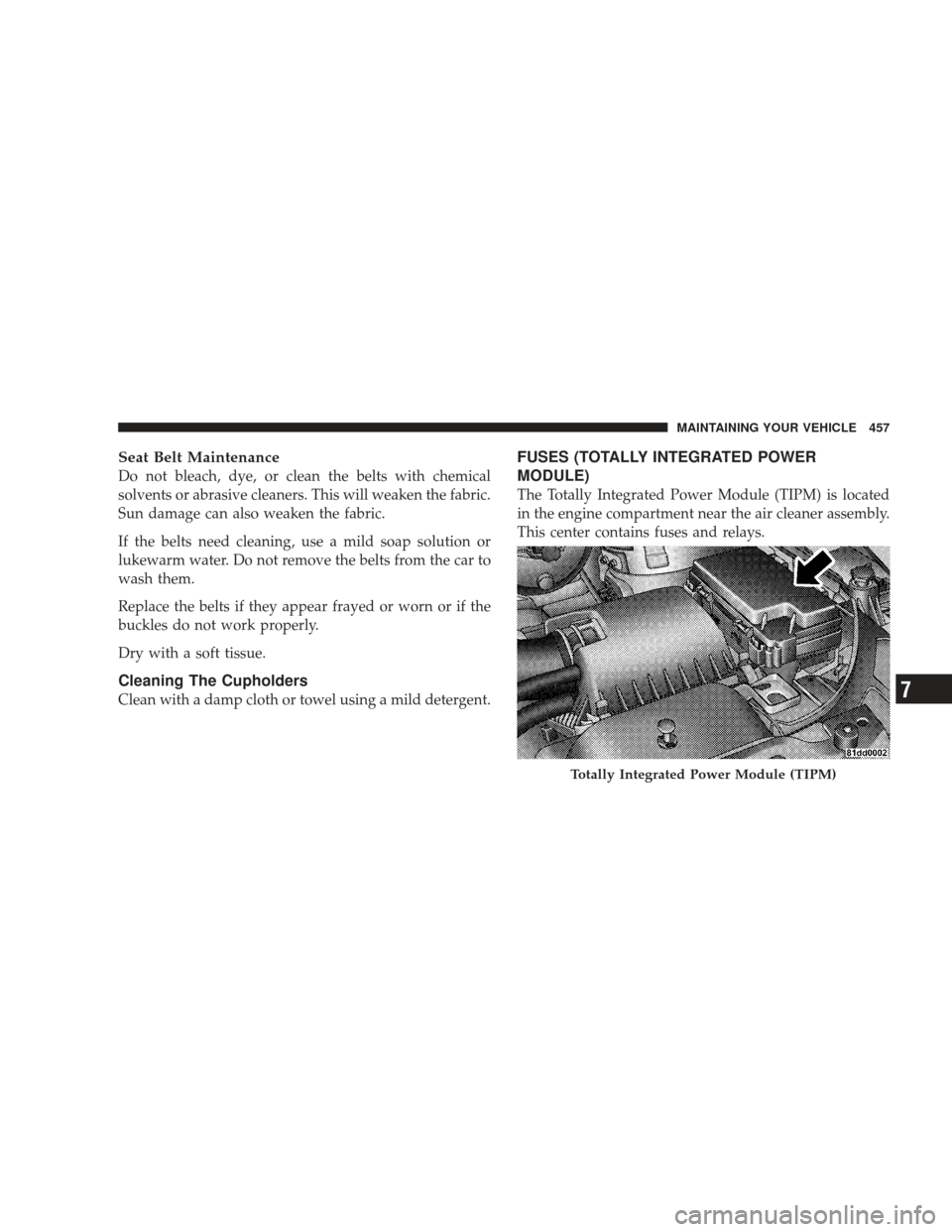

FUSES (TOTALLY INTEGRATED POWER
MODULE)
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the air cleaner assembly.
This center contains fuses and relays.
Totally Integrated Power Module (TIPM)
MAINTAINING YOUR VEHICLE 457
7

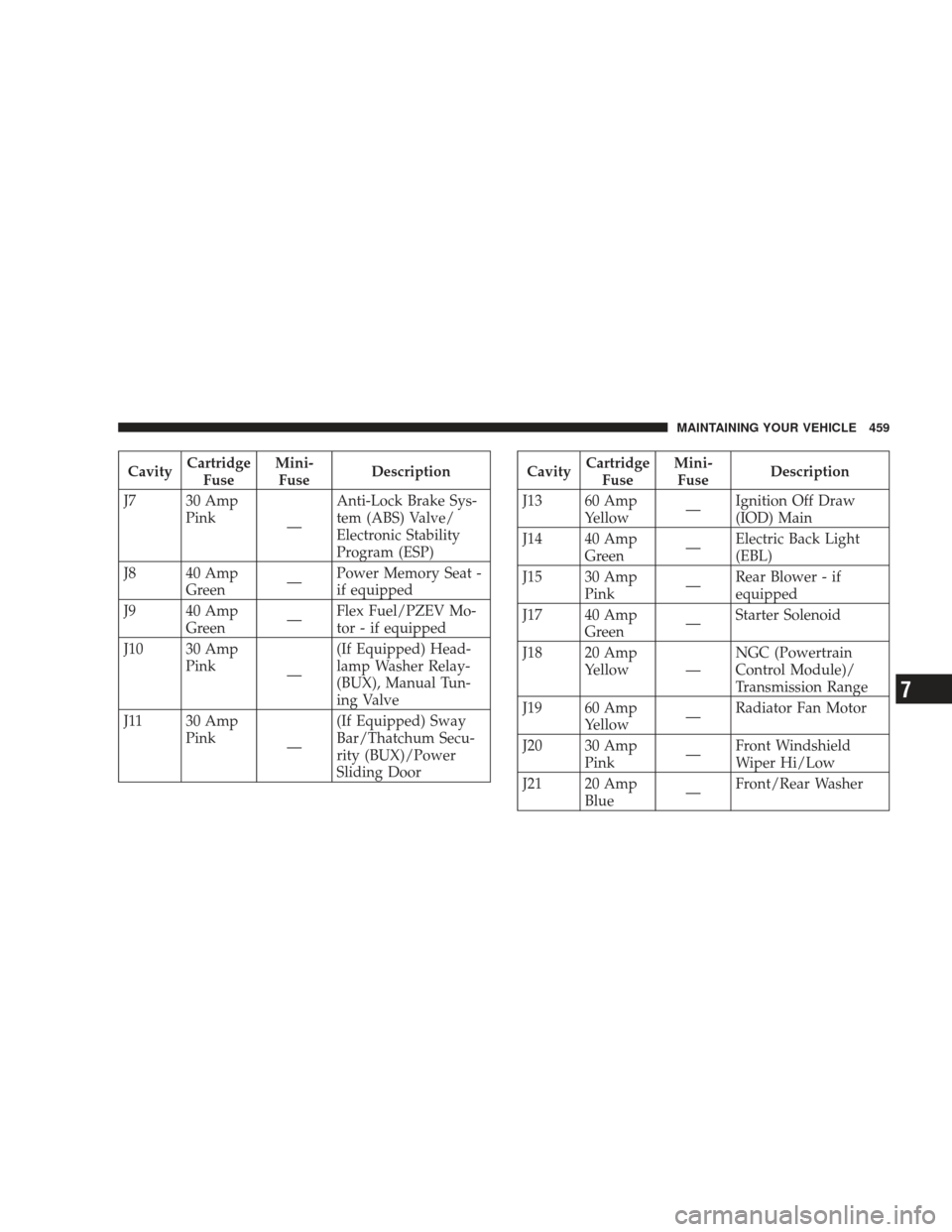

CavityCartridge
Fuse Mini-
Fuse Description
J7 30 Amp Pink —Anti-Lock Brake Sys-
tem (ABS) Valve/
Electronic Stability
Program (ESP)
J8 40 Amp Green —Power Memory Seat -
if equipped
J9 40 Amp Green —Flex Fuel/PZEV Mo-
tor - if equipped
J10 30 Amp Pink —(If Equipped) Head-
lamp Washer Relay-
(BUX), Manual Tun-
ing Valve
J11 30 Amp Pink —(If Equipped) Sway
Bar/Thatchum Secu-
rity (BUX)/Power
Sliding DoorCavity
Cartridge
Fuse Mini-
Fuse Description
J13 60 Amp Yellow —Ignition Off Draw
(IOD) Main
J14 40 Amp Green —Electric Back Light
(EBL)
J15 30 Amp Pink —Rear Blower - if
equipped
J17 40 Amp Green —Starter Solenoid
J18 20 Amp Yellow — NGC (Powertrain
Control Module)/
Transmission Range
J19 60 Amp Yellow —Radiator Fan Motor
J20 30 Amp Pink —Front Windshield
Wiper Hi/Low
J21 20 Amp Blue —Front/Rear Washer
MAINTAINING YOUR VEHICLE 459
7

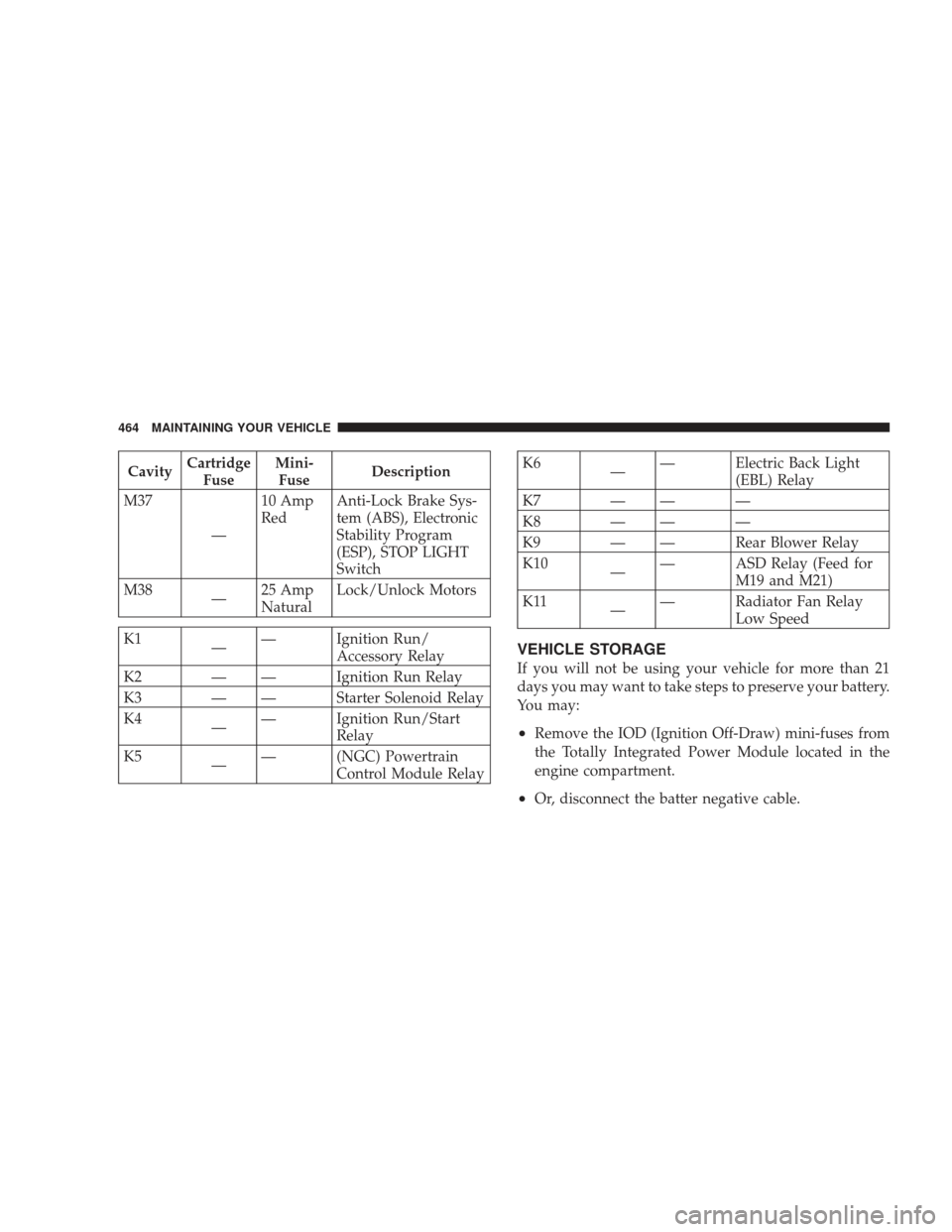

CavityCartridge
Fuse Mini-
Fuse Description
M37
—10 Amp
Red
Anti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), STOP LIGHT
Switch
M38 —25 Amp
Natural Lock/Unlock Motors
K1
—— Ignition Run/
Accessory Relay
K2 — — Ignition Run Relay
K3 — — Starter Solenoid Relay
K4 —— Ignition Run/Start
Relay
K5 —— (NGC) Powertrain
Control Module Relay
K6 —— Electric Back Light
(EBL) Relay
K7 — — —
K8 — — —
K9 — — Rear Blower Relay
K10 —— ASD Relay (Feed for
M19 and M21)
K11 —— Radiator Fan Relay
Low Speed
VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days you may want to take steps to preserve your battery.
You may:
•Remove the IOD (Ignition Off-Draw) mini-fuses from
the Totally Integrated Power Module located in the
engine compartment.
•Or, disconnect the batter negative cable.
