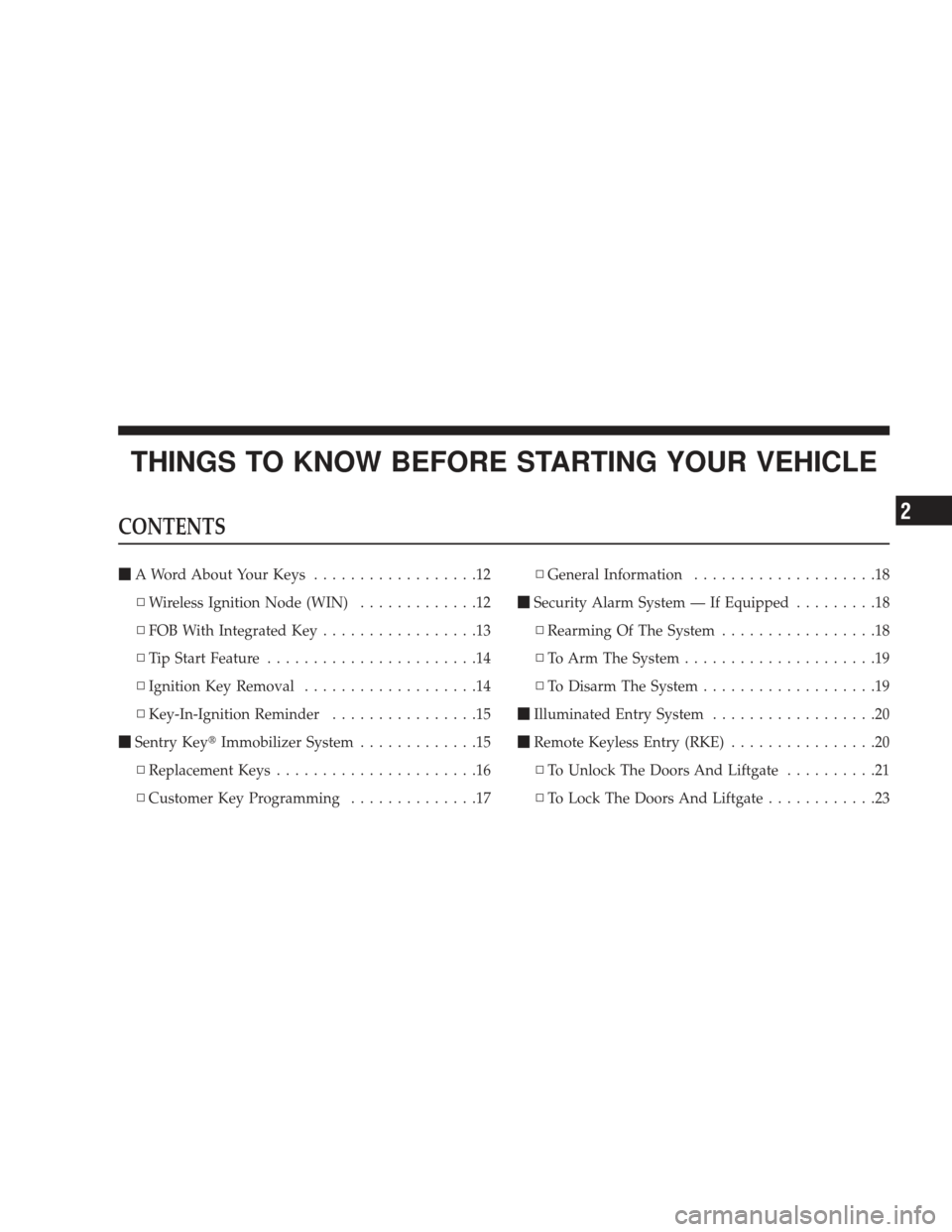

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ..................12
▫ Wireless Ignition Node (WIN) .............12
▫ FOB With Integrated Key .................13
▫ Tip Start Feature .......................14
▫ Ignition Key Removal ...................14
▫ Key-In-Ignition Reminder ................15
 Sentry Key Immobilizer System .............15
▫ Replacement Keys ......................16
▫ Customer Key Programming ..............17▫
General Information ....................18
 Security Alarm System — If Equipped .........18
▫ Rearming Of The System .................18
▫ To Arm The System .....................19
▫ To Disarm The System ...................19
 Illuminated Entry System ..................20
 Remote Keyless Entry (RKE) ................20
▫ To Unlock The Doors And Liftgate ..........21
▫ To Lock The Doors And Liftgate ............23
2

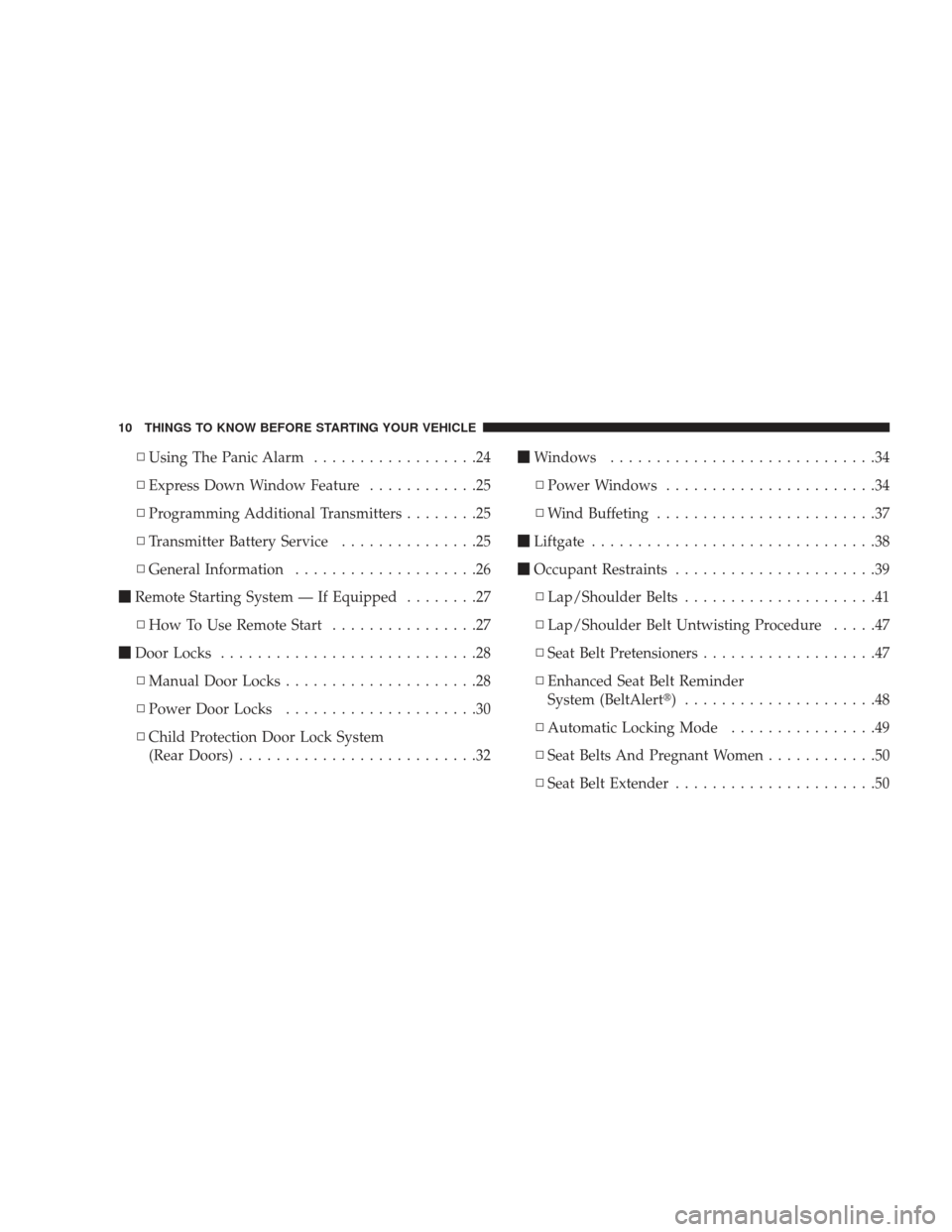

▫Using The Panic Alarm ..................24
▫ Express Down Window Feature ............25
▫ Programming Additional Transmitters ........25
▫ Transmitter Battery Service ...............25
▫ General Information ....................26
 Remote Starting System — If Equipped ........27
▫ How To Use Remote Start ................27
 Door Locks ............................28
▫ Manual Door Locks .....................28
▫ Power Door Locks .....................30
▫ Child Protection Door Lock System
(Rear Doors) ..........................32
Windows .............................34
▫ Power Windows .......................34
▫ Wind Buffeting ........................37
 Liftgate ...............................38
 Occupant Restraints ......................39
▫ Lap/Shoulder Belts .....................41
▫ Lap/Shoulder Belt Untwisting Procedure .....47
▫ Seat Belt Pretensioners ...................47
▫ Enhanced Seat Belt Reminder
System (BeltAlert) .....................48
▫ Automatic Locking Mode ................49
▫ Seat Belts And Pregnant Women ............50
▫ Seat Belt Extender ......................50
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

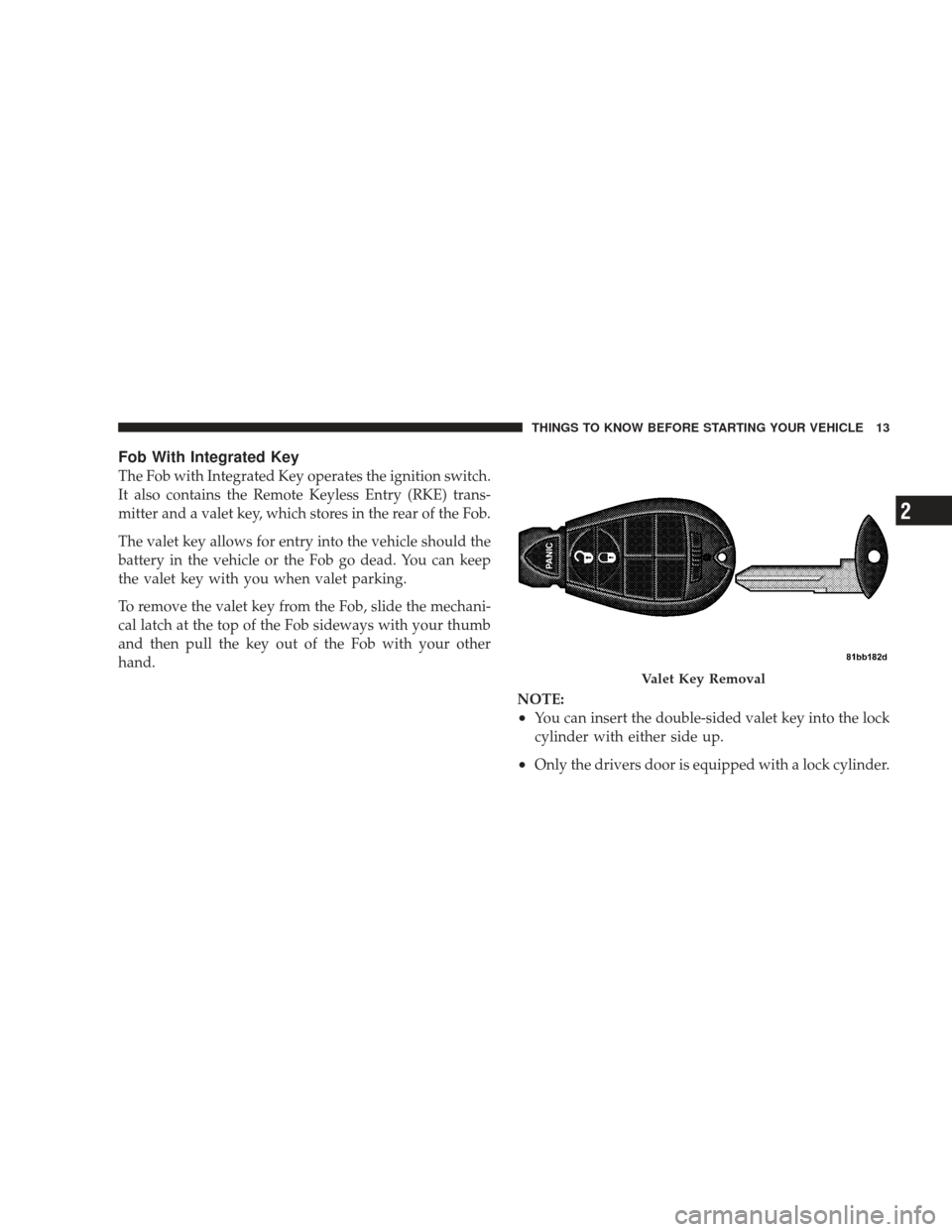

Fob With Integrated Key
The Fob with Integrated Key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the Fob.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the Fob go dead. You can keep
the valet key with you when valet parking.
To remove the valet key from the Fob, slide the mechani-
cal latch at the top of the Fob sideways with your thumb
and then pull the key out of the Fob with your other
hand.NOTE:
•You can insert the double-sided valet key into the lock
cylinder with either side up.
•Only the drivers door is equipped with a lock cylinder.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY IMMOBILIZER SYSTEM
The Sentry Key Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

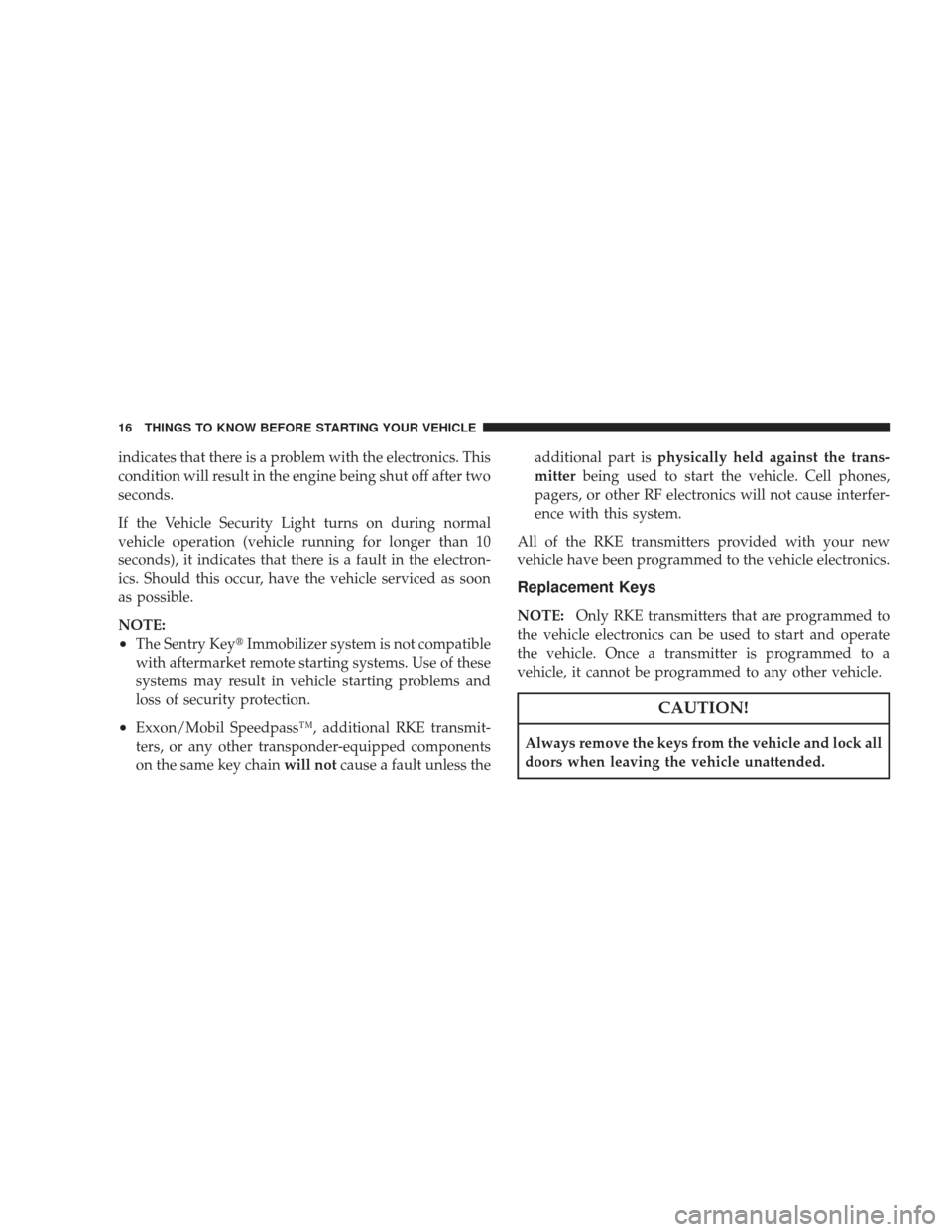

indicates that there is a problem with the electronics. This
condition will result in the engine being shut off after two
seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible.
NOTE:
•The Sentry KeyImmobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chain will notcause a fault unless the additional part is
physically held against the trans-
mitter being used to start the vehicle. Cell phones,
pagers, or other RF electronics will not cause interfer-
ence with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once a transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

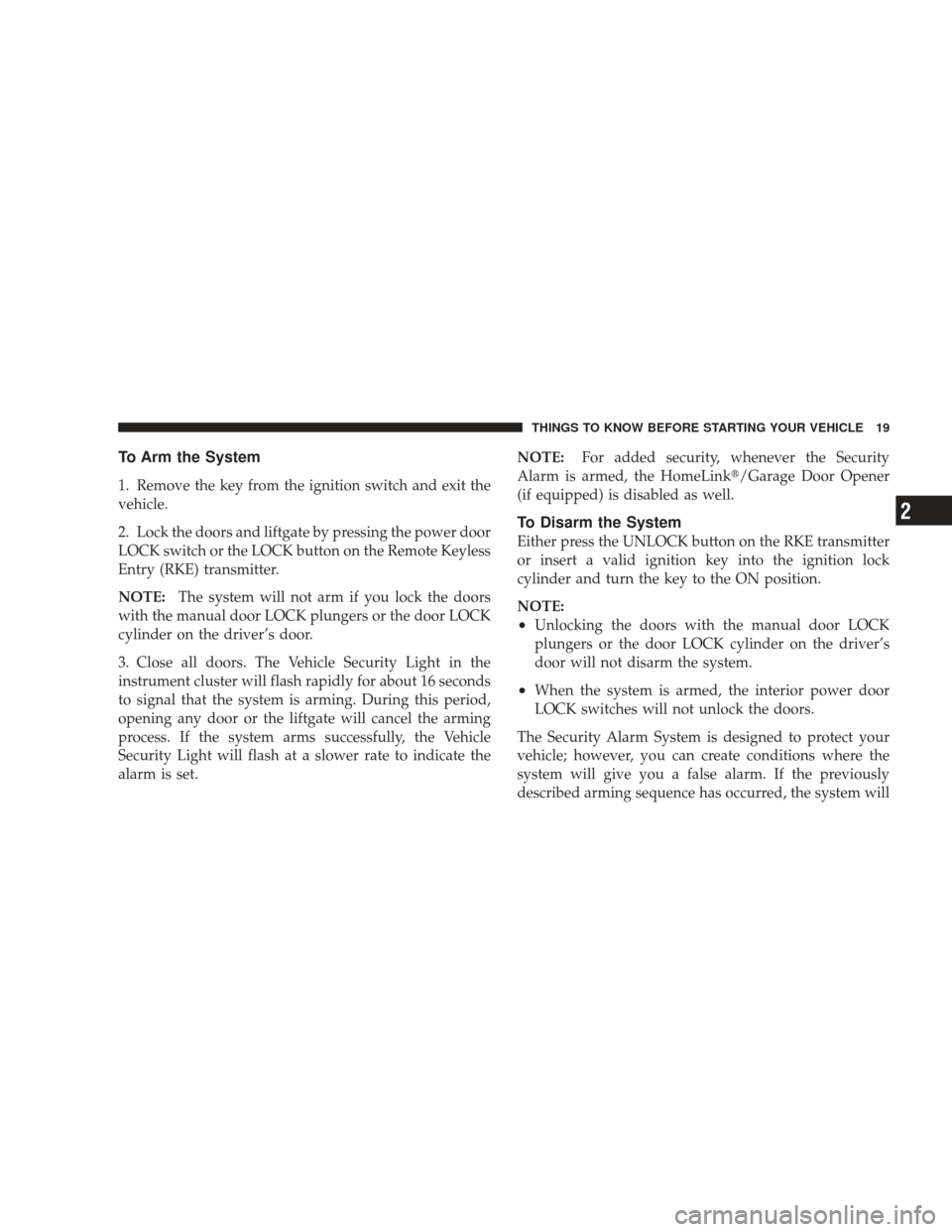

To Arm the System
1. Remove the key from the ignition switch and exit the
vehicle.
2. Lock the doors and liftgate by pressing the power door
LOCK switch or the LOCK button on the Remote Keyless
Entry (RKE) transmitter.
NOTE:The system will not arm if you lock the doors
with the manual door LOCK plungers or the door LOCK
cylinder on the driver’s door.
3. Close all doors. The Vehicle Security Light in the
instrument cluster will flash rapidly for about 16 seconds
to signal that the system is arming. During this period,
opening any door or the liftgate will cancel the arming
process. If the system arms successfully, the Vehicle
Security Light will flash at a slower rate to indicate the
alarm is set. NOTE:
For added security, whenever the Security
Alarm is armed, the HomeLink/Garage Door Opener
(if equipped) is disabled as well.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition lock
cylinder and turn the key to the ON position.
NOTE:
•Unlocking the doors with the manual door LOCK
plungers or the door LOCK cylinder on the driver’s
door will not disarm the system.
•When the system is armed, the interior power door
LOCK switches will not unlock the doors.
The Security Alarm System is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If the previously
described arming sequence has occurred, the system will
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

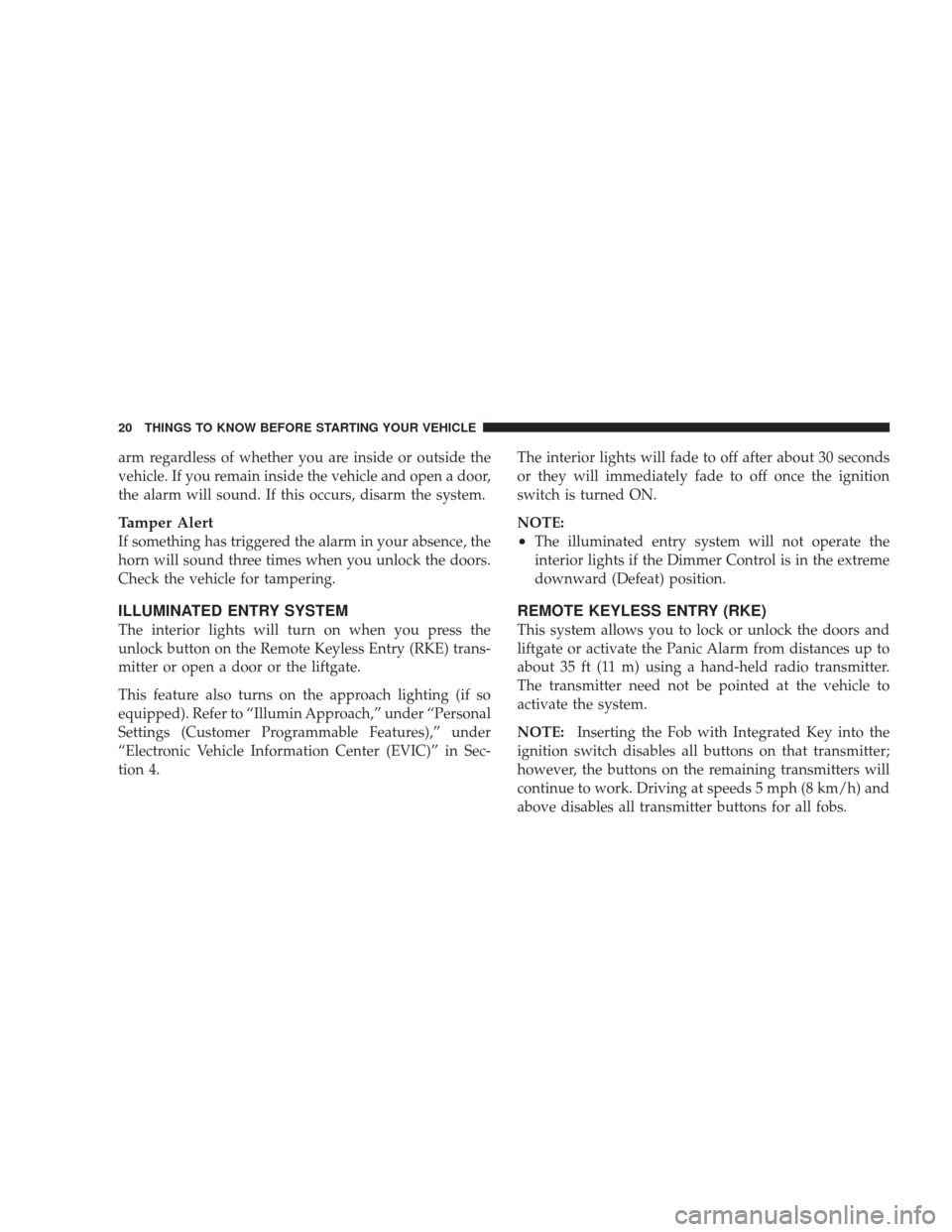

arm regardless of whether you are inside or outside the
vehicle. If you remain inside the vehicle and open a door,
the alarm will sound. If this occurs, disarm the system.
Tamper Alert
If something has triggered the alarm in your absence, the
horn will sound three times when you unlock the doors.
Check the vehicle for tampering.
ILLUMINATED ENTRY SYSTEM
The interior lights will turn on when you press the
unlock button on the Remote Keyless Entry (RKE) trans-
mitter or open a door or the liftgate.
This feature also turns on the approach lighting (if so
equipped). Refer to “Illumin Approach,” under “Personal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.The interior lights will fade to off after about 30 seconds
or they will immediately fade to off once the ignition
switch is turned ON.
NOTE:
•The illuminated entry system will not operate the
interior lights if the Dimmer Control is in the extreme
downward (Defeat) position.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate or activate the Panic Alarm from distances up to
about 35 ft (11 m) using a hand-held radio transmitter.
The transmitter need not be pointed at the vehicle to
activate the system.
NOTE:
Inserting the Fob with Integrated Key into the
ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will
continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all fobs.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

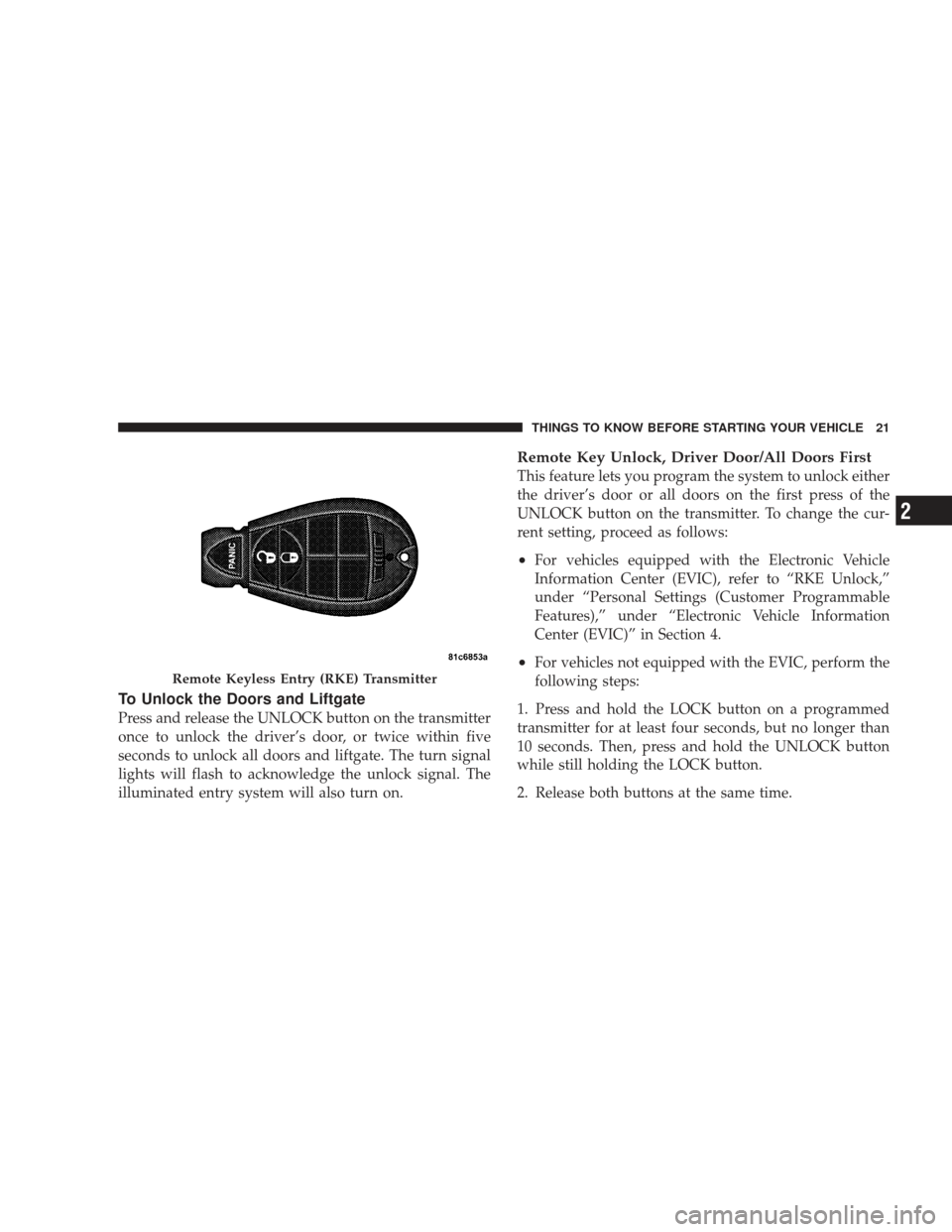

To Unlock the Doors and Liftgate
Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door, or twice within five
seconds to unlock all doors and liftgate. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the transmitter. To change the cur-
rent setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “RKE Unlock,”
under “Personal Settings (Customer Programmable
Features),” under “Electronic Vehicle Information
Center (EVIC)” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press and hold the LOCK button on a programmed
transmitter for at least four seconds, but no longer than
10 seconds. Then, press and hold the UNLOCK button
while still holding the LOCK button.
2. Release both buttons at the same time.
Remote Keyless Entry (RKE) Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

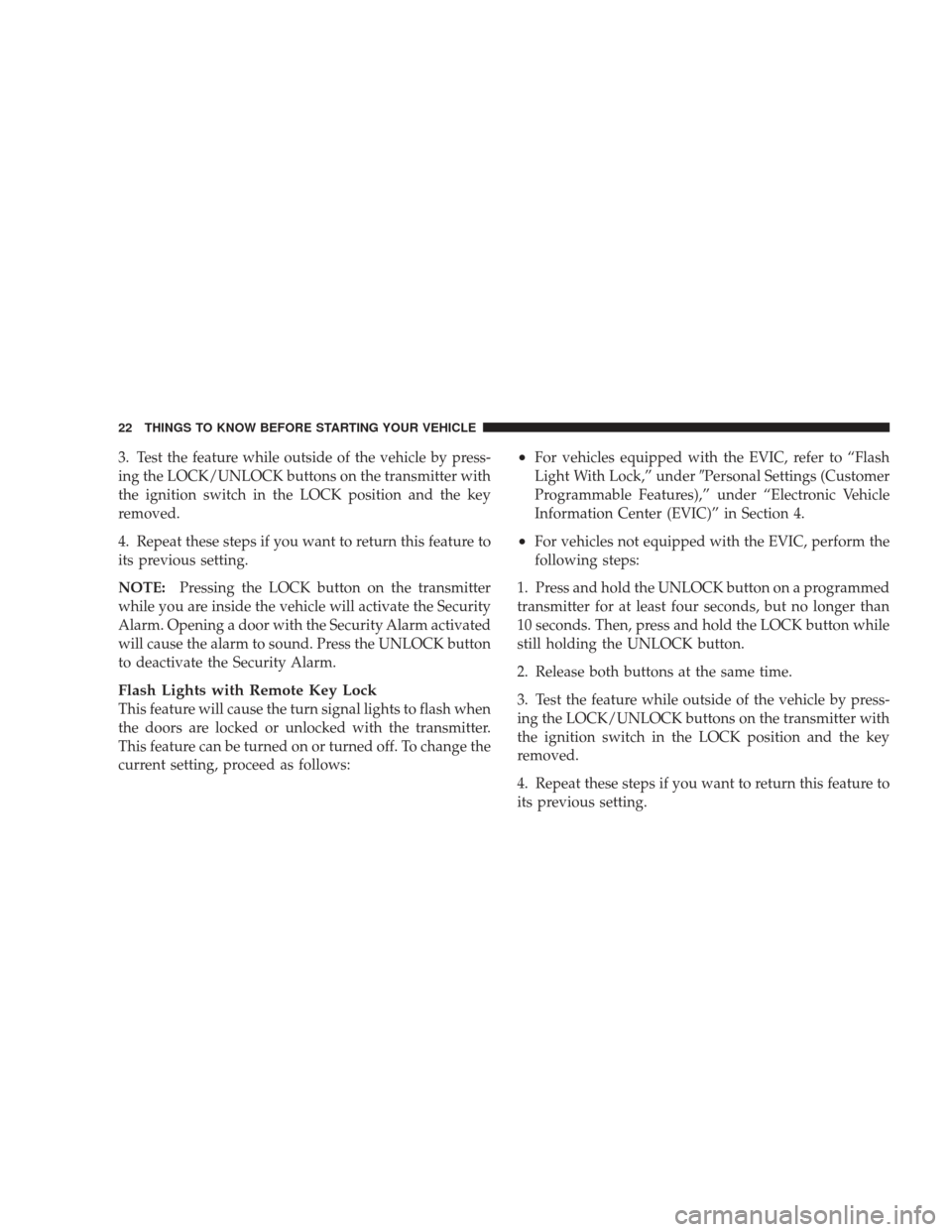

3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the transmitter with
the ignition switch in the LOCK position and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the transmitter.
This feature can be turned on or turned off. To change the
current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Flash
Light With Lock,” under Personal Settings (Customer
Programmable Features),” under “Electronic Vehicle
Information Center (EVIC)” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press and hold the UNLOCK button on a programmed
transmitter for at least four seconds, but no longer than
10 seconds. Then, press and hold the LOCK button while
still holding the UNLOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the transmitter with
the ignition switch in the LOCK position and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

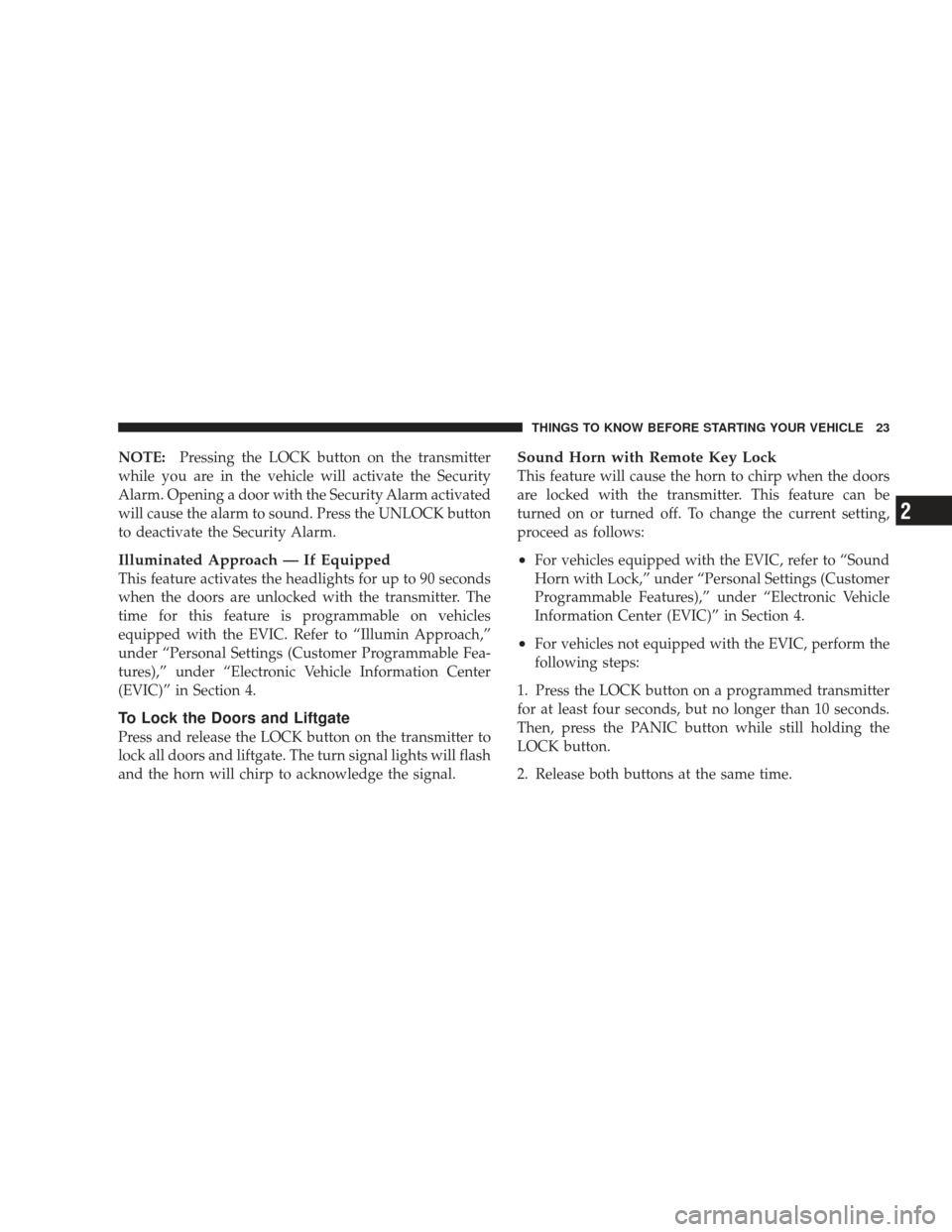

NOTE:Pressing the LOCK button on the transmitter
while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
Illuminated Approach — If Equipped
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the transmitter. The
time for this feature is programmable on vehicles
equipped with the EVIC. Refer to “Illumin Approach,”
under “Personal Settings (Customer Programmable Fea-
tures),” under “Electronic Vehicle Information Center
(EVIC)” in Section 4.
To Lock the Doors and Liftgate
Press and release the LOCK button on the transmitter to
lock all doors and liftgate. The turn signal lights will flash
and the horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
•For vehicles equipped with the EVIC, refer to “Sound
Horn with Lock,” under “Personal Settings (Customer
Programmable Features),” under “Electronic Vehicle
Information Center (EVIC)” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed transmitter
for at least four seconds, but no longer than 10 seconds.
Then, press the PANIC button while still holding the
LOCK button.
2. Release both buttons at the same time.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
