DODGE JOURNEY 2010 1.G User Guide

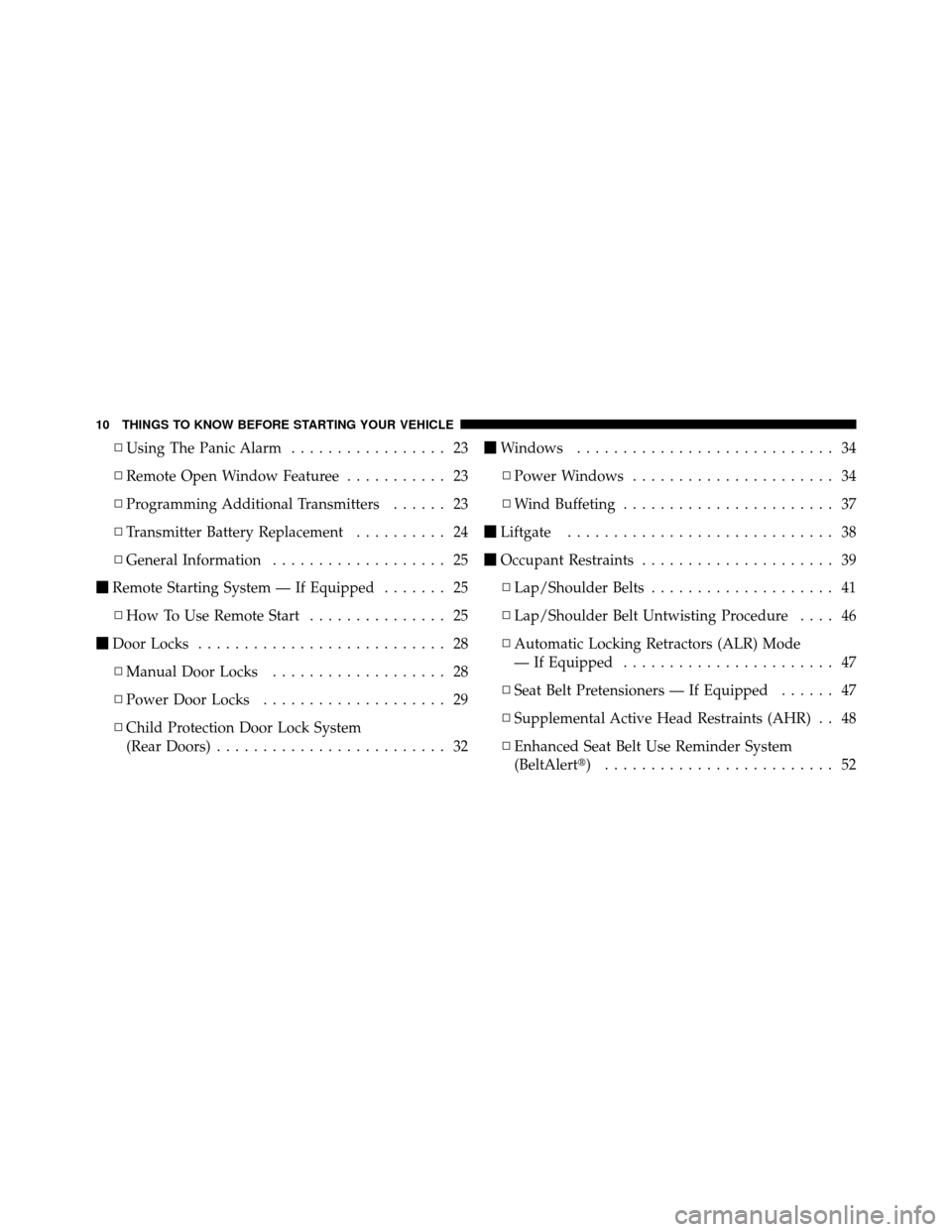

▫Using The Panic Alarm ................. 23
▫ Remote Open Window Featuree ........... 23
▫ Programming Additional Transmitters ...... 23
▫ Transmitter Battery Replacement .......... 24
▫ General Information ................... 25
 Remote Starting System — If Equipped ....... 25
▫ How To Use Remote Start ............... 25
 Door Locks ........................... 28
▫ Manual Door Locks ................... 28
▫ Power Door Locks .................... 29
▫ Child Protection Door Lock System
(Rear Doors) ......................... 32
Windows ............................ 34
▫ Power Windows ...................... 34
▫ Wind Buffeting ....................... 37
 Liftgate ............................. 38
 Occupant Restraints ..................... 39
▫ Lap/Shoulder Belts .................... 41
▫ Lap/Shoulder Belt Untwisting Procedure .... 46
▫ Automatic Locking Retractors (ALR) Mode
— If Equipped ....................... 47
▫ Seat Belt Pretensioners — If Equipped ...... 47
▫ Supplemental Active Head Restraints (AHR) . . 48
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 52
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Seat Belts And Pregnant Women .......... 53
▫ Seat Belt Extender ..................... 53
▫ Supplemental Restraint System (SRS) —
Airbags ............................ 54
▫ Advanced Front Airbag Features .......... 56
▫ Airbag Deployment Sensors And Controls . . . 61
▫ Event Data Recorder (EDR) .............. 69
▫ Child Restraints ...................... 71
Engine Break-In Recommendations .......... 83
 Safety Tips ........................... 84
▫ Transporting Passengers ................ 84
▫ Exhaust Gas ......................... 85
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 86
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 88
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

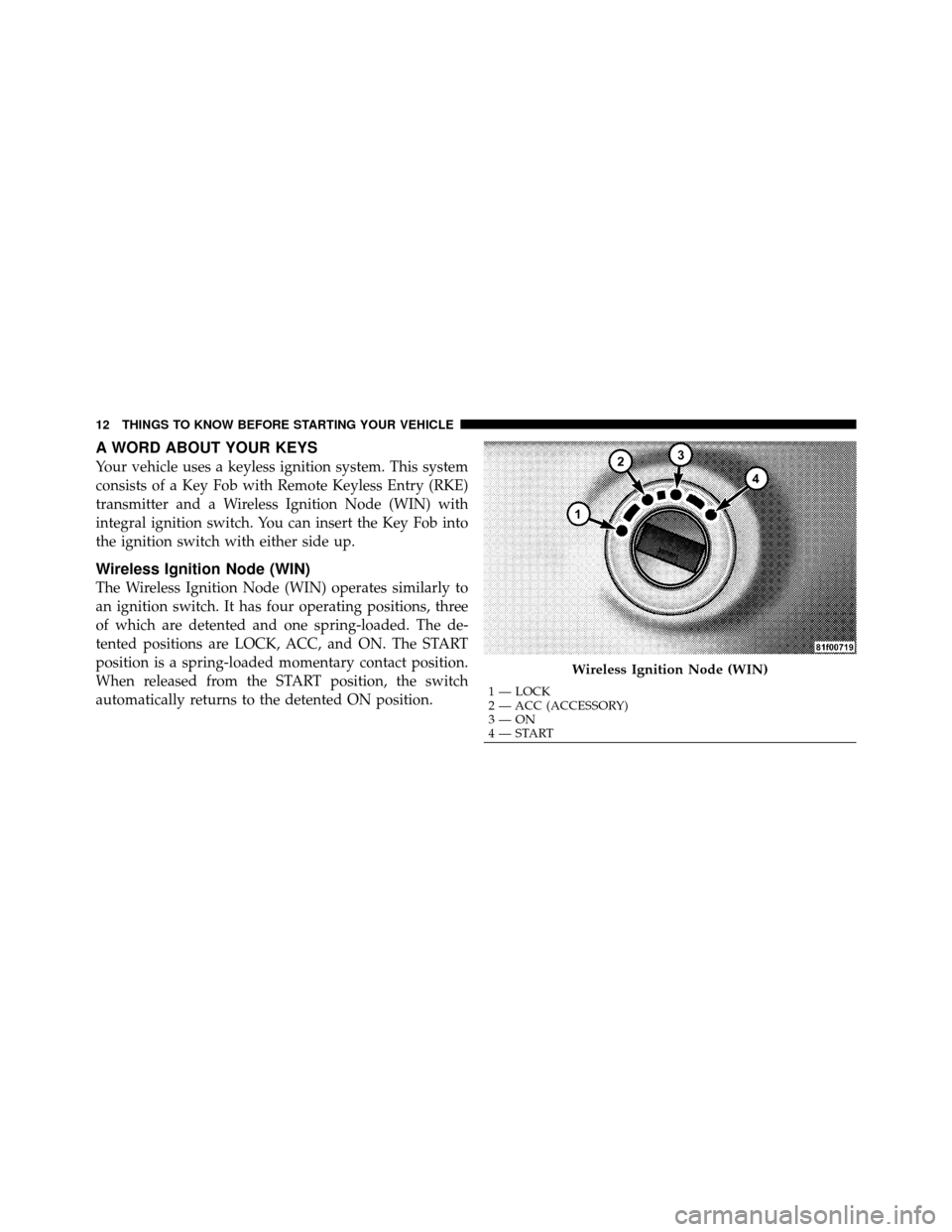

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
of which are detented and one spring-loaded. The de-
tented positions are LOCK, ACC, and ON. The START
position is a spring-loaded momentary contact position.
When released from the START position, the switch
automatically returns to the detented ON position.
Wireless Ignition Node (WIN)
1 — LOCK
2 — ACC (ACCESSORY)
3—ON
4 — START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

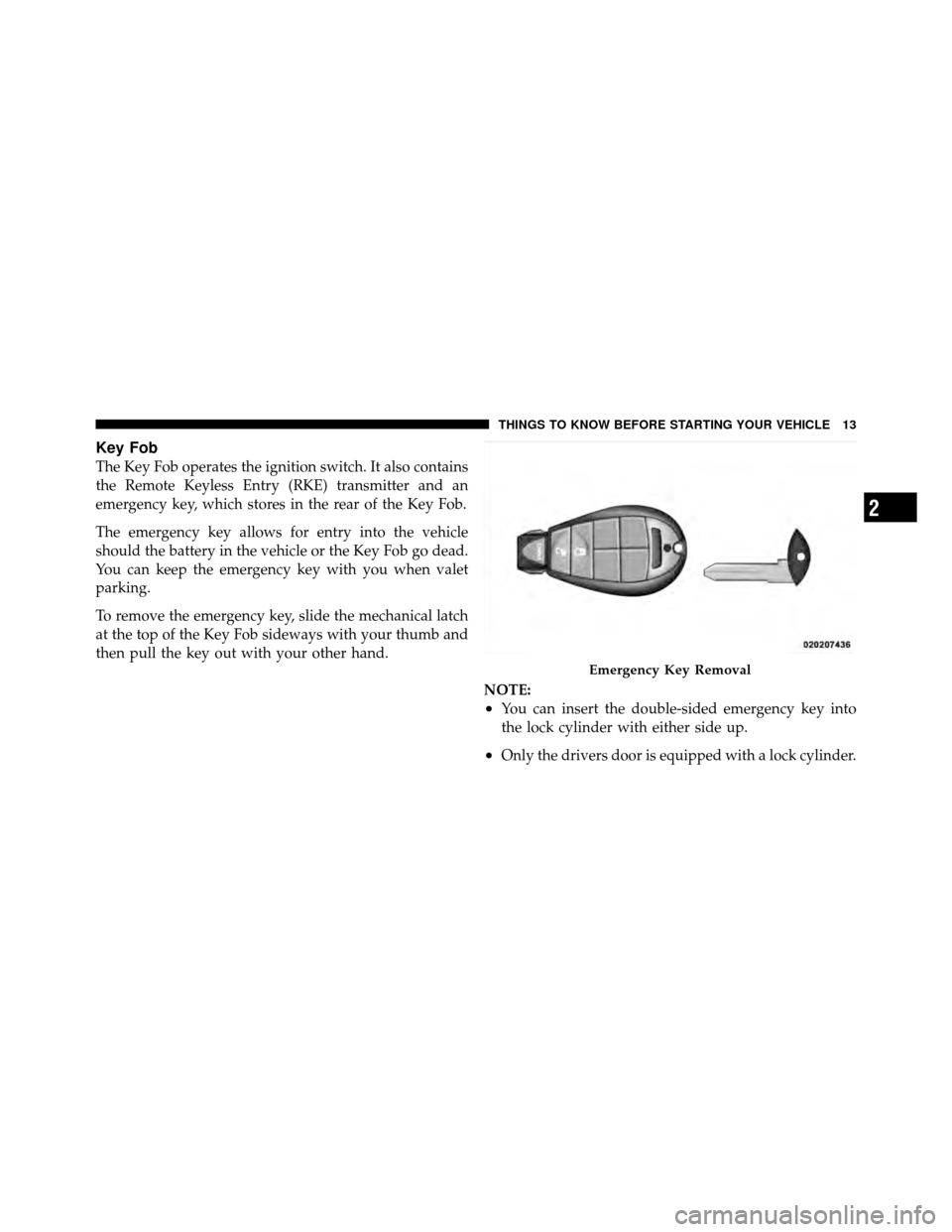

Key Fob
The Key Fob operates the ignition switch. It also contains
the Remote Keyless Entry (RKE) transmitter and an
emergency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.NOTE:
•You can insert the double-sided emergency key into
the lock cylinder with either side up.
•Only the drivers door is equipped with a lock cylinder.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

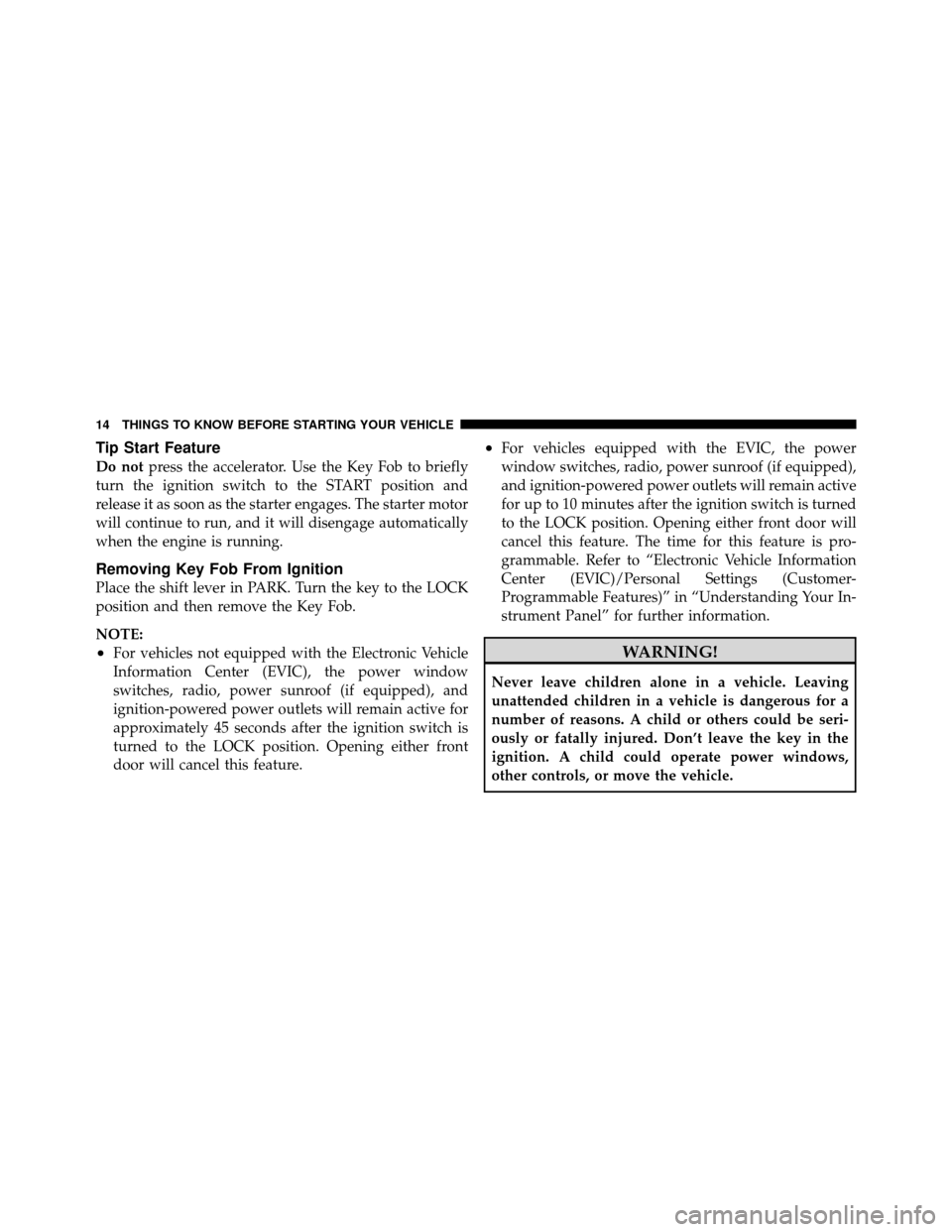

Tip Start Feature
Do notpress the accelerator. Use the Key Fob to briefly
turn the ignition switch to the START position and
release it as soon as the starter engages. The starter motor
will continue to run, and it will disengage automatically
when the engine is running.
Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the Key Fob.
NOTE:
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
ignition-powered power outlets will remain active for
approximately 45 seconds after the ignition switch is
turned to the LOCK position. Opening either front
door will cancel this feature.
•For vehicles equipped with the EVIC, the power
window switches, radio, power sunroof (if equipped),
and ignition-powered power outlets will remain active
for up to 10 minutes after the ignition switch is turned
to the LOCK position. Opening either front door will
cancel this feature. The time for this feature is pro-
grammable. Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

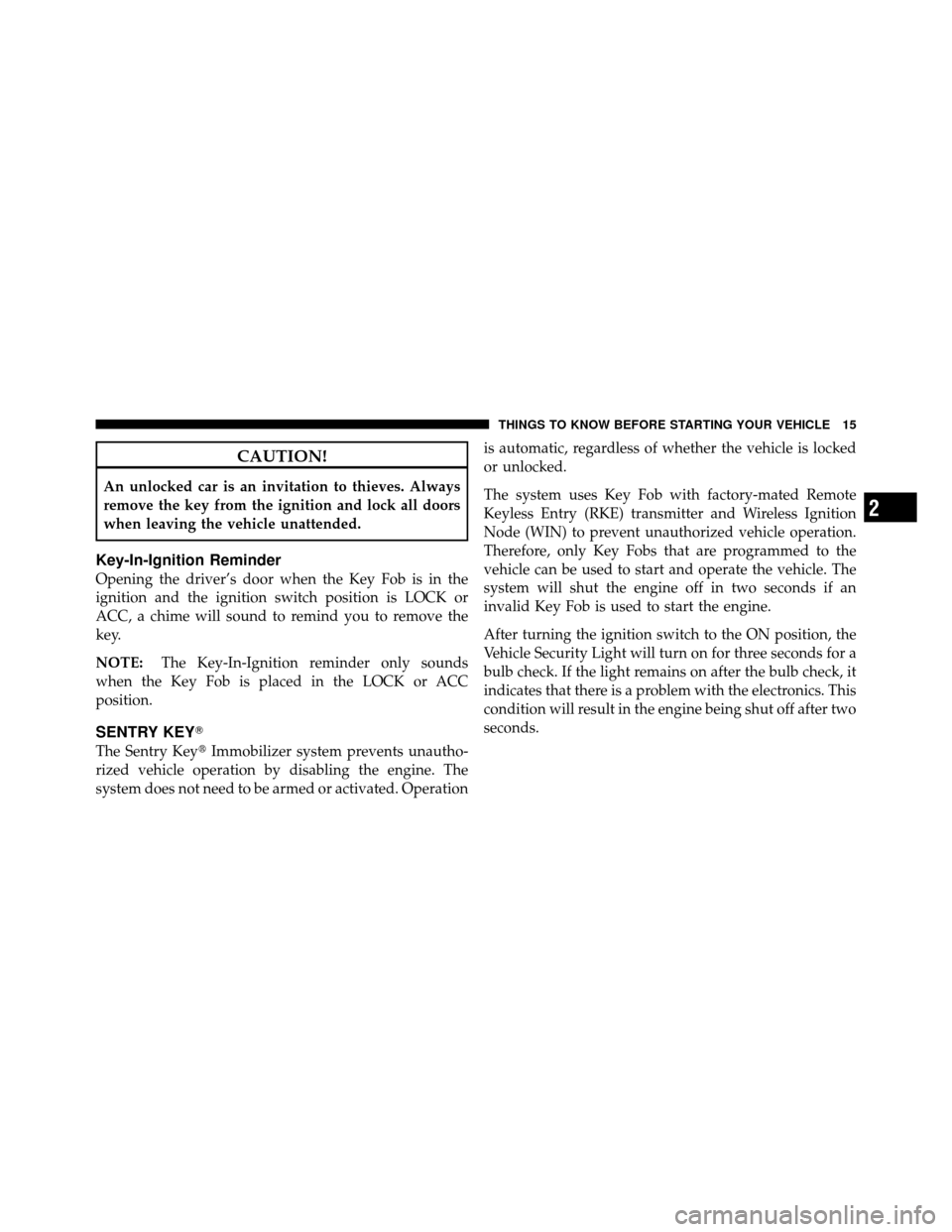

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is LOCK or
ACC, a chime will sound to remind you to remove the
key.
NOTE:The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry Key Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. This
condition will result in the engine being shut off after two
seconds.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

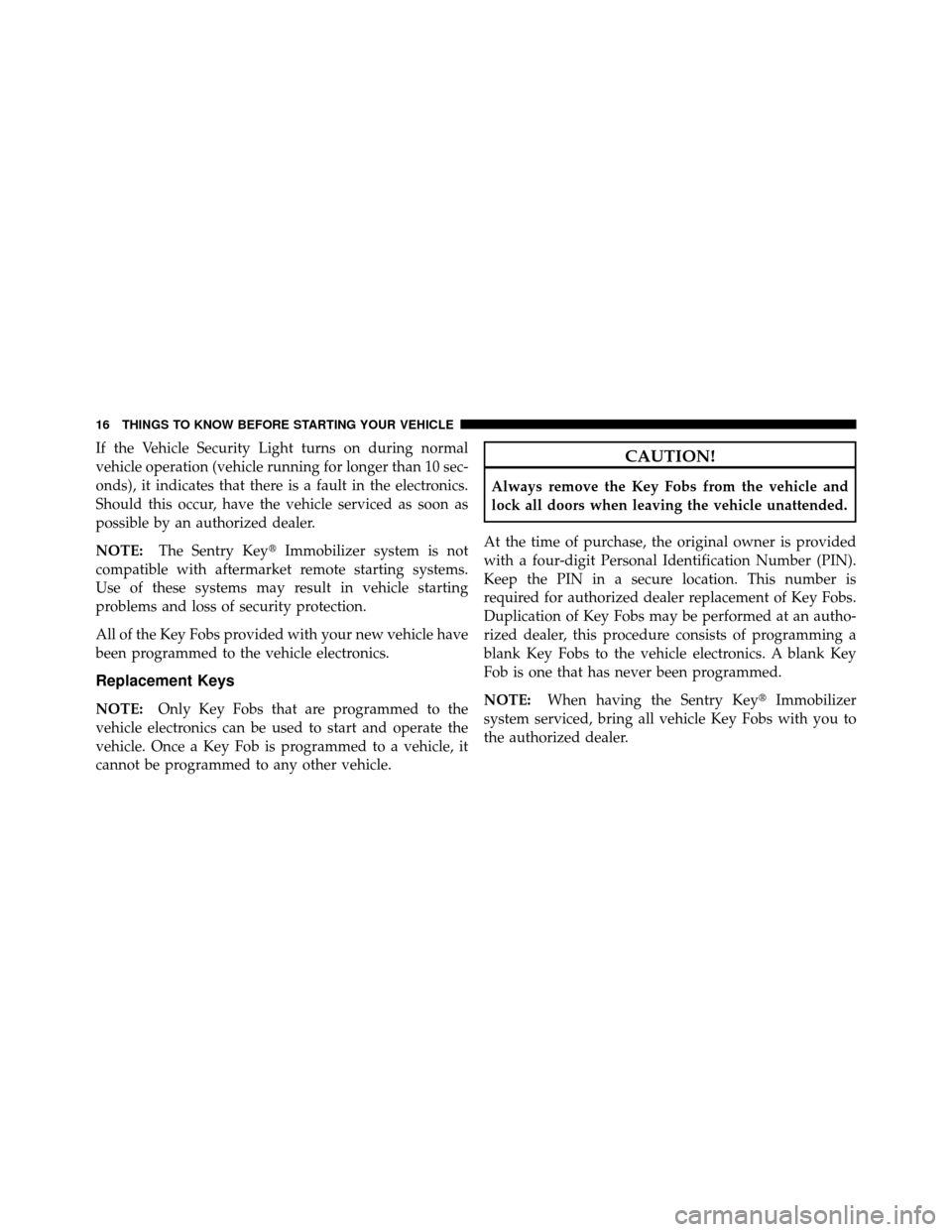

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
NOTE:The Sentry Key Immobilizer system is not
compatible with aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fobs to the vehicle electronics. A blank Key
Fob is one that has never been programmed.
NOTE: When having the Sentry Key Immobilizer
system serviced, bring all vehicle Key Fobs with you to
the authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm (VSA) system monitors the
vehicle doors and liftgate for unauthorized entry. If
something triggers the alarm, the system will sound the
horn intermittently, flash the headlights, park lamps and/or turn signals and flash the Vehicle Security Light
in the instrument cluster.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after three
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
To Arm the System
1. Remove the key from the ignition switch and exit the
vehicle.
2. Lock the doors and liftgate by pressing the power door
LOCK switch or the LOCK button on the Remote Keyless
Entry (RKE) transmitter.
NOTE:
The system will not arm if you lock the doors
with the manual door LOCK plungers or the door LOCK
cylinder on the driver’s door.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

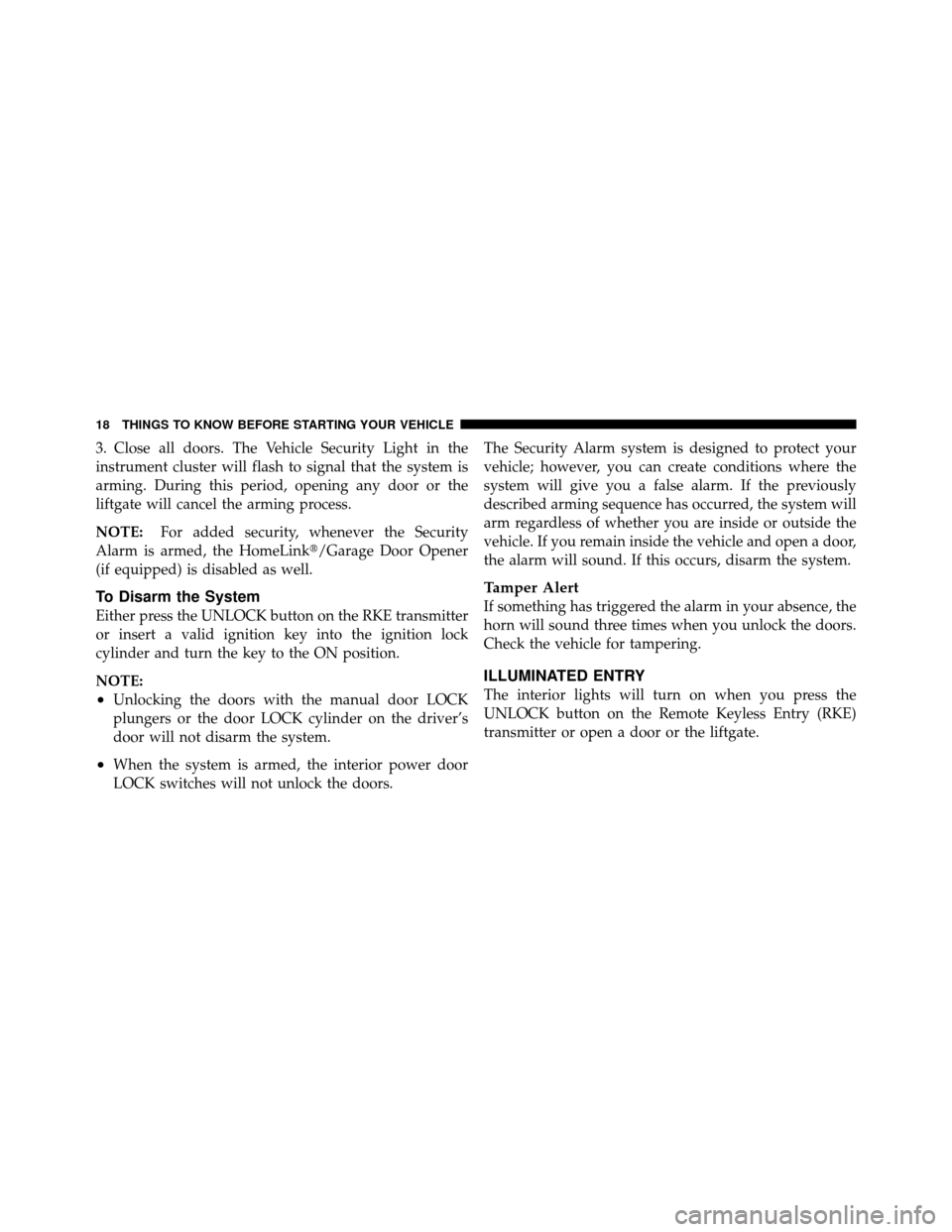

3. Close all doors. The Vehicle Security Light in the
instrument cluster will flash to signal that the system is
arming. During this period, opening any door or the
liftgate will cancel the arming process.
NOTE:For added security, whenever the Security
Alarm is armed, the HomeLink/Garage Door Opener
(if equipped) is disabled as well.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition lock
cylinder and turn the key to the ON position.
NOTE:
•Unlocking the doors with the manual door LOCK
plungers or the door LOCK cylinder on the driver’s
door will not disarm the system.
•When the system is armed, the interior power door
LOCK switches will not unlock the doors. The Security Alarm system is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If the previously
described arming sequence has occurred, the system will
arm regardless of whether you are inside or outside the
vehicle. If you remain inside the vehicle and open a door,
the alarm will sound. If this occurs, disarm the system.
Tamper Alert
If something has triggered the alarm in your absence, the
horn will sound three times when you unlock the doors.
Check the vehicle for tampering.
ILLUMINATED ENTRY
The interior lights will turn on when you press the
UNLOCK button on the Remote Keyless Entry (RKE)
transmitter or open a door or the liftgate.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

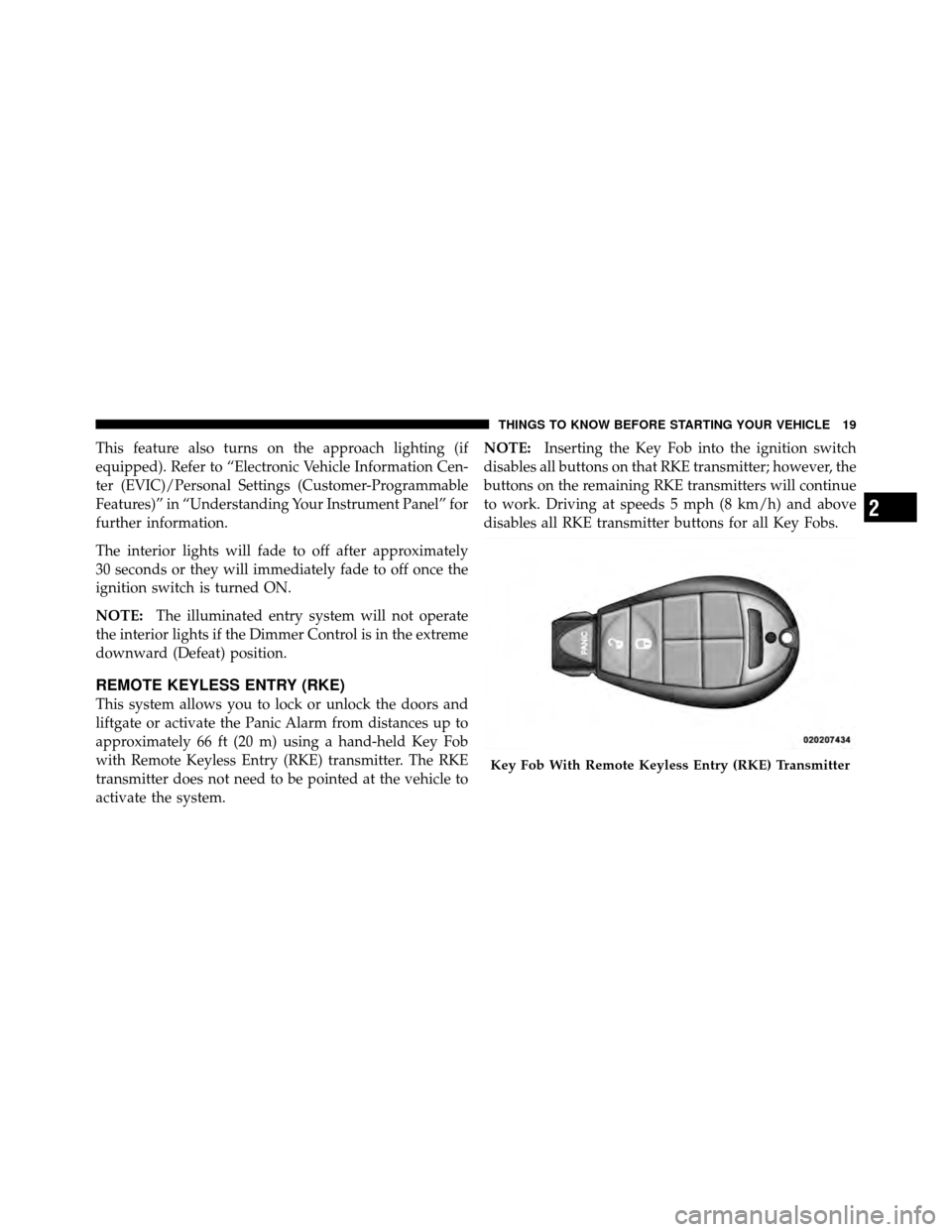

This feature also turns on the approach lighting (if
equipped). Refer to “Electronic Vehicle Information Cen-
ter (EVIC)/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel” for
further information.
The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned ON.
NOTE:The illuminated entry system will not operate
the interior lights if the Dimmer Control is in the extreme
downward (Defeat) position.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate or activate the Panic Alarm from distances up to
approximately 66 ft (20 m) using a hand-held Key Fob
with Remote Keyless Entry (RKE) transmitter. The RKE
transmitter does not need to be pointed at the vehicle to
activate the system. NOTE:
Inserting the Key Fob into the ignition switch
disables all buttons on that RKE transmitter; however, the
buttons on the remaining RKE transmitters will continue
to work. Driving at speeds 5 mph (8 km/h) and above
disables all RKE transmitter buttons for all Key Fobs.
Key Fob With Remote Keyless Entry (RKE) Transmitter
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
