ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated Onboard
Diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emissions control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, the
word “gASCAP” will display in the odometer. If this
occurs, tighten the fuel filler cap until a “clicking” sound
is heard and press the TRIP ODOMETER button to turn
off the message. If the problem persists, the message will
appear the next time the vehicle is started.
7
MAINTAINING YOUR VEHICLE 405

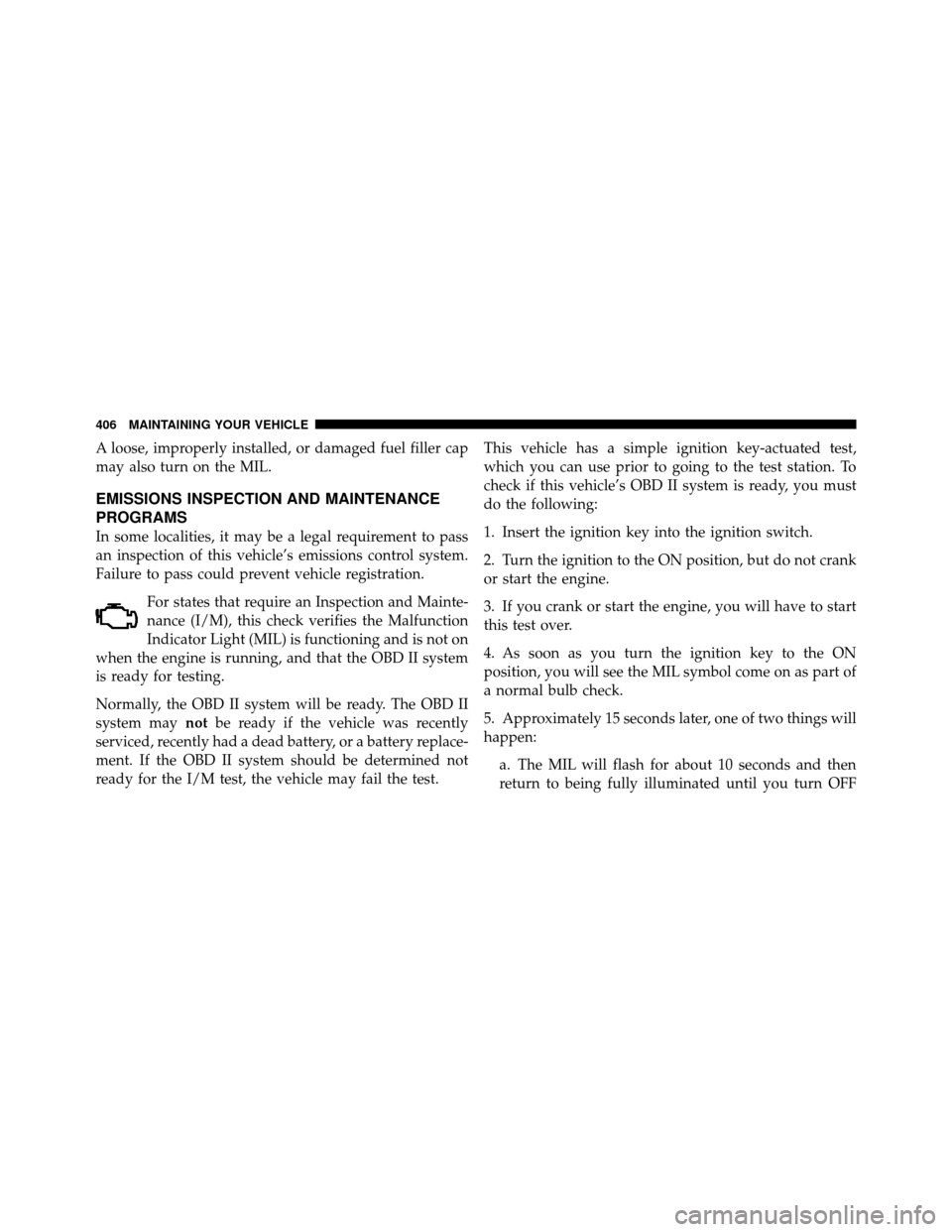

A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of this vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if the vehicle was recently
serviced, recently had a dead battery, or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, the vehicle may fail the test. This vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if this vehicle’s OBD II system is ready, you must
do the following:
1. Insert the ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn the ignition key to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
406 MAINTAINING YOUR VEHICLE

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emissions Con-
trol System. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S460 MAINTENANCE SCHEDULES

Headlight Switch................... 121,122
Headlights ........................ 122,450
Headlights On Reminder ................. 125
Headlights On With Wipers ............123,132
High Beam ..................... 127,185,450
High Beam Indicator .................... 185
High Beam/Low Beam Select ............. 127
Illuminated Entry ....................... 18
Instrument Cluster .................. 121,183
Interior ............................. 127
License ............................. 454
Lights On Reminder .................... 125
Low Fuel ......................... 183,184
LowTire ............................ 191
Malfunction Indicator (Check Engine) ........ 193
Map Reading ......................... 127
Oil Pressure .......................... 189
Park .......................... 121,122,450
Passing ............................. 127 Rear Servicing
..................... 450,452
Rear Tail ............................ 452
Seat Belt Reminder ..................... 186
Service ........................... 449,450
Service Engine Soon (Malfunction Indicator) . . . 193
Side Marker .......................... 450
Tire Pressure Monitoring (TPMS) ........191,344
Traction Control ................. 193,322,324
Turn Signal ............. 88,121,126,185,450,452
Vanity Mirror .......................... 97
Warning (Instrument Cluster Description) ..... 183
Load Floor, Cargo ....................... 166
Loading Vehicle ...................... 359,361
Capacities ........................... 361
Tires ............................... 331
Locks ................................. 28
Auto Unlock .......................... 30
Child Protection ........................ 32
Door ................................ 28
10
INDEX 499

Power Door........................... 29
Low Tire Pressure System .................. 344
Lower Anchors and Tether for CHildren
(LATCH) ............................ 77,79
Lubrication, Body ....................... 417
Luggage Rack (Roof Rack) ................. 173
Lumbar Support ........................ 101
Maintenance Free Battery .................. 413
Maintenance, General ..................... 408
Maintenance Procedures ................... 408
Maintenance Schedule .................... 460
Maintenance, Sunroof ..................... 149
Malfunction Indicator Light (Check Engine) . . 193,406
Manual, Service ......................... 483
Map/Reading Lights ..................... 127
Marker Lights, Side ...................... 450
Master Cylinder (Brakes) .................. 430
Methanol ............................. 354 Mini-Trip Computer
................... 198,206
Mirrors ............................. 94,140
Automatic Dimming ..................... 95
Electric Powered ....................... 96
Electric Remote ........................ 96
Exterior Folding ........................ 96
Heated .............................. 97
Outside .............................. 95
Rearview ............................. 94
Vanity ............................... 97
Mode Fuel Saver ........................... 206
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 344
Mopar Parts ......................... 407,482
MP3 Player ............................ 251
MTBE/ETBE ........................... 354
Multi-Function Control Lever ............... 121
500 INDEX

Sentry Key (Immobilizer)................... 15
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 16
Service Assistance ....................... 479
Service Contract ......................... 481
Service Engine Soon Light
(Malfunction Indicator) .................... 193
Service Manuals ........................ 483
Setting the Clock ................ 215,231,240,252
Settings, Personal ........................ 210
Shifting Automatic Transaxle .................... 298
Shoulder Belt Upper Anchorage .............. 45
Shoulder Belts ........................... 41
Side Airbag ............................. 64
Side View Mirror Adjustment ................ 95
Side Window Demisters (Defrosters) .......... 287
Signals, Turn ................... 88,126,185,452
Sirius Backseat TV™ (Uconnect studios)....... 261 Slippery Surfaces, Driving On
............... 307
Snow Chains (Tire Chains) ................. 343
Snow Tires ............................ 343
Sound Systems (Radio) .................... 251
Spare Tire .......................... 338,383
Spark Plugs ............................ 456
Specifications Fuel (Gasoline) ........................ 456
Oil .............................. 410,456
Speed Control (Cruise Control) .............. 134
Speedometer ........................... 185
Starting ............................. 25,295
Automatic Transmission ................. 295
Cold Weather ......................... 296
Engine Fails to Start .................... 296
Remote .............................. 25
Starting and Operating .................... 295
Starting Procedures ...................... 295
10
INDEX 505

Trailer and Tongue Weight............... 369
Wiring .............................. 374
Trailer Towing Guide ..................... 367
Trailer Weight .......................... 367
Transaxle Additives ............................ 434
Automatic ........................ 298,432
Autostick ............................ 305
Filter ............................... 434
Maintenance ......................... 432
Operation ........................... 298
Overdrive ........................... 303
Selection of Lubricant ................... 457
Transmission ..................... See Transaxle
Transmitter Battery Service
(Remote Keyless Entry) .................... 24
Transmitter, Garage Door Opener (HomeLink) . . 140
Transmitter Programming
(Remote Keyless Entry) .................... 19 Transmitter, Remote Keyless Entry (RKE)
........ 19
Transporting Pets ........................ 83
Tread Wear Indicators .................... 340
Trip Computer .......................... 198
Trip Odometer .......................... 186
Trip Odometer Reset Button .............190,197
Turn Signals ................... 121,126,185,452
UCI Connector ......................... 263
Uconnect™ (Hands-Free Phone) ...........98,251
Uniform Tire Quality Grades ................ 485
Universal Consumer Interface (UCI) Connector . . . 263
Universal Serial Bus (USB) Port .............. 251
Universal Transmitter ..................... 140
Unleaded Gasoline ....................... 353
Untwisting Procedure, Seat Belt .............. 46
Upholstery Care ........................ 438
USB Port .............................. 251
508 INDEX
