LIST Button (CD Mode for MP3 Play)
Pressing the LIST button will bring up a list of all folders
on the disc. Scrolling up or down the list is done by
turning the TUNE/SCROLL control knob. Selecting a
folder by pressing the TUNE/SCROLL control knob will
begin playing the files contained in that folder (or the
next folder in sequence if the selection does not contain
playable files).
The folder list will time out after five seconds.
INFO Button (CD Mode for MP3 Play)
Pressing the INFO button repeatedly will scroll through
the following TAG information: Song Title, Artist, File
Name, and Folder Name (if available).
Press the INFO button once more to return toelapsed
time priority mode.
Press and hold the INFO button for three seconds or
more and the radio will display song titles for each file. Press and hold the INFO button again for three seconds
to return to
elapsed time display.
Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack which
allows the user to plug in a portable device such as an
MP3 player or cassette player and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers.
Pressing the AUX button will change the mode to auxil-
iary device if the AUX jack is connected.
NOTE:The AUX device must be turned on and the
device’s volume set to the proper level. If the AUX audio
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume
down.
250 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 252 of 512

TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when the
ignition is OFF).
Operating Instructions - Uconnect™ Phone (If
Equipped)
Refer to “Uconnect™ Phone” in “Understanding The
Features If Your Vehicle”.
Operating Instructions - Uconnect™ Multimedia
(Satellite Radio) (If Equipped)
Refer to “Uconnect™ Multimedia (Satellite Radio)”.
MEDIA CENTER 830N (REU) — AM/FM STEREO
RADIO AND 6–DISC CD/DVD/HDD/NAV CHANGER
— IF EQUIPPED
NOTE:The sales code is located on the lower right side
of the unit’s faceplate. The REU Multimedia system contains a radio, Sirius
Satellite Radio player, navigation system, six disc CD/
DVD player, USB port, 30-gigabyte hard drive (HDD),
and the uconnect™ phone cellular system.
A 7 in (17.8 cm) remote screen allows easy menu selec-
tion, while the Advanced Voice Dialog System recognizes
more than 1,000 words for audio, navigation, entertain-
ment, and hands-free mobile phone use.
The satellite navigation capability combines a Global-
Positioning System (GPS)-based navigation system with
a remote color screen to provide maps, turn identifica-
tion, selection menus, and instructions for selecting a
variety of destinations and routes.
A shared HDD for the navigation system, the database,
and other radio features allows uploads of music and
photos from CDs or through the USB port. The Gracenote
database finds the artist, track, and title for the music.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 251
Page 253 of 512

An auxiliary input jack permits passengers to listen to a
portable MP3 player through the vehicle’s speakers. For
vehicles equipped with the Video Entertainment System
(VES)™, separate audio outputs allow passengers to
listen to the vehicle speakers while different audio tracks
play through the system’s wireless headphones. This
means rear-seat passengers can watch a DVD on the
optional rear-seat entertainment system while the driver
and front-seat passenger listen to the radio.
Other special features include music type selections,
traffic messaging (optional), easy store presets, parental
lockout for VES™ (if equipped), and a backup camera
display for vehicles equipped with a backup camera.
Refer to your “Navigation User’s Manual” for detailed
operating instructions.Operating Instructions — Uconnect™ Multimedia
(Satellite Radio)
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Operating Instructions — Uconnect™ Phone
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Clock Setting Procedure
The GPS receiver in this system is synchronized to the
time data being transmitted by the GPS satellites. The
satellites’ clock is Greenwich Mean Time (GMT). This is
the worldwide standard for time. This makes the sys-
tem’s clock very accurate once the appropriate time zone
and daylight savings information is set.
252 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 254 of 512

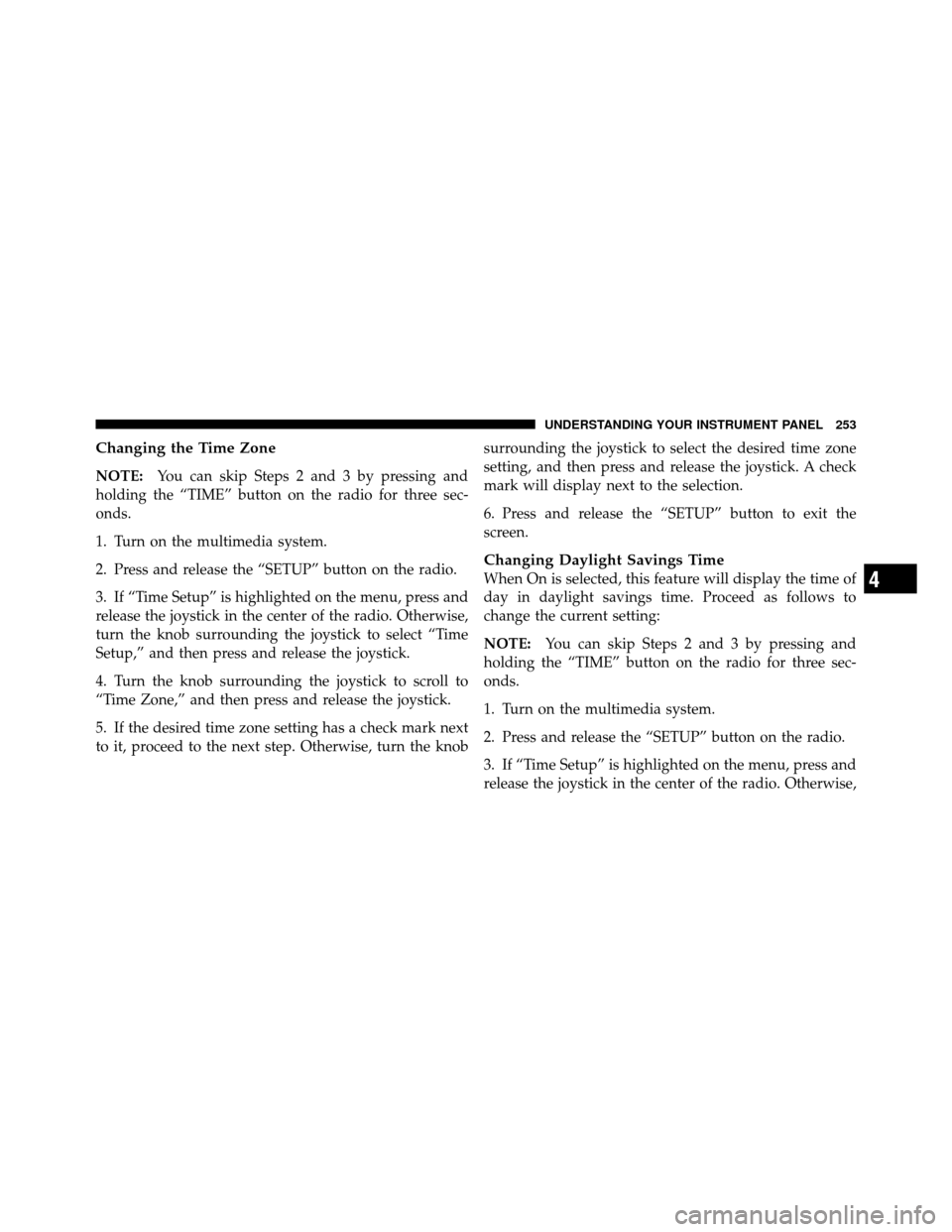

Changing the Time Zone
NOTE:You can skip Steps 2 and 3 by pressing and
holding the “TIME” button on the radio for three sec-
onds.
1. Turn on the multimedia system.
2. Press and release the “SETUP” button on the radio.
3. If “Time Setup” is highlighted on the menu, press and
release the joystick in the center of the radio. Otherwise,
turn the knob surrounding the joystick to select “Time
Setup,” and then press and release the joystick.
4. Turn the knob surrounding the joystick to scroll to
“Time Zone,” and then press and release the joystick.
5. If the desired time zone setting has a check mark next
to it, proceed to the next step. Otherwise, turn the knob surrounding the joystick to select the desired time zone
setting, and then press and release the joystick. A check
mark will display next to the selection.
6. Press and release the “SETUP” button to exit the
screen.
Changing Daylight Savings Time
When On is selected, this feature will display the time of
day in daylight savings time. Proceed as follows to
change the current setting:
NOTE:
You can skip Steps 2 and 3 by pressing and
holding the “TIME” button on the radio for three sec-
onds.
1. Turn on the multimedia system.
2. Press and release the “SETUP” button on the radio.
3. If “Time Setup” is highlighted on the menu, press and
release the joystick in the center of the radio. Otherwise,4
UNDERSTANDING YOUR INSTRUMENT PANEL 253
Page 255 of 512

turn the knob surrounding the joystick to select “Time
Setup,” and then press and release the joystick.
4. Turn the knob surrounding the joystick to scroll to
“Daylight Savings,” and then press and release the
joystick.
5. If the desired setting has a check mark next to it,
proceed to the next step. Otherwise, turn the knob
surrounding the joystick to select “Off” or “On,” and
then press and release the joystick. A check mark will
display next to the selection.
6. Press and release the “SETUP” button to exit the
screen.
Setting the User Clock
If you wish to set the clock to a time different from the
system clock, you can manually adjust the time by
performing the following:NOTE:
You can skip Steps 2 and 3 by pressing and
holding the “TIME” button on the radio for three sec-
onds.
1. Turn on the multimedia system.
2. Press and release the “SETUP” button on the radio.
3. If “Time Setup” is highlighted on the menu, press and
release the joystick in the center of the radio. Otherwise,
turn the knob surrounding the joystick to select “Time
Setup,” and then press and release the joystick.
4. If “User Time” has a check mark next to it, proceed to
the next step. Otherwise, turn the knob surrounding the
joystick to scroll to “User Time,” and then press and
release the joystick.
5. Turn the knob surrounding the joystick to select “Set
Hours,” and then press and release the joystick.
254 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 256 of 512

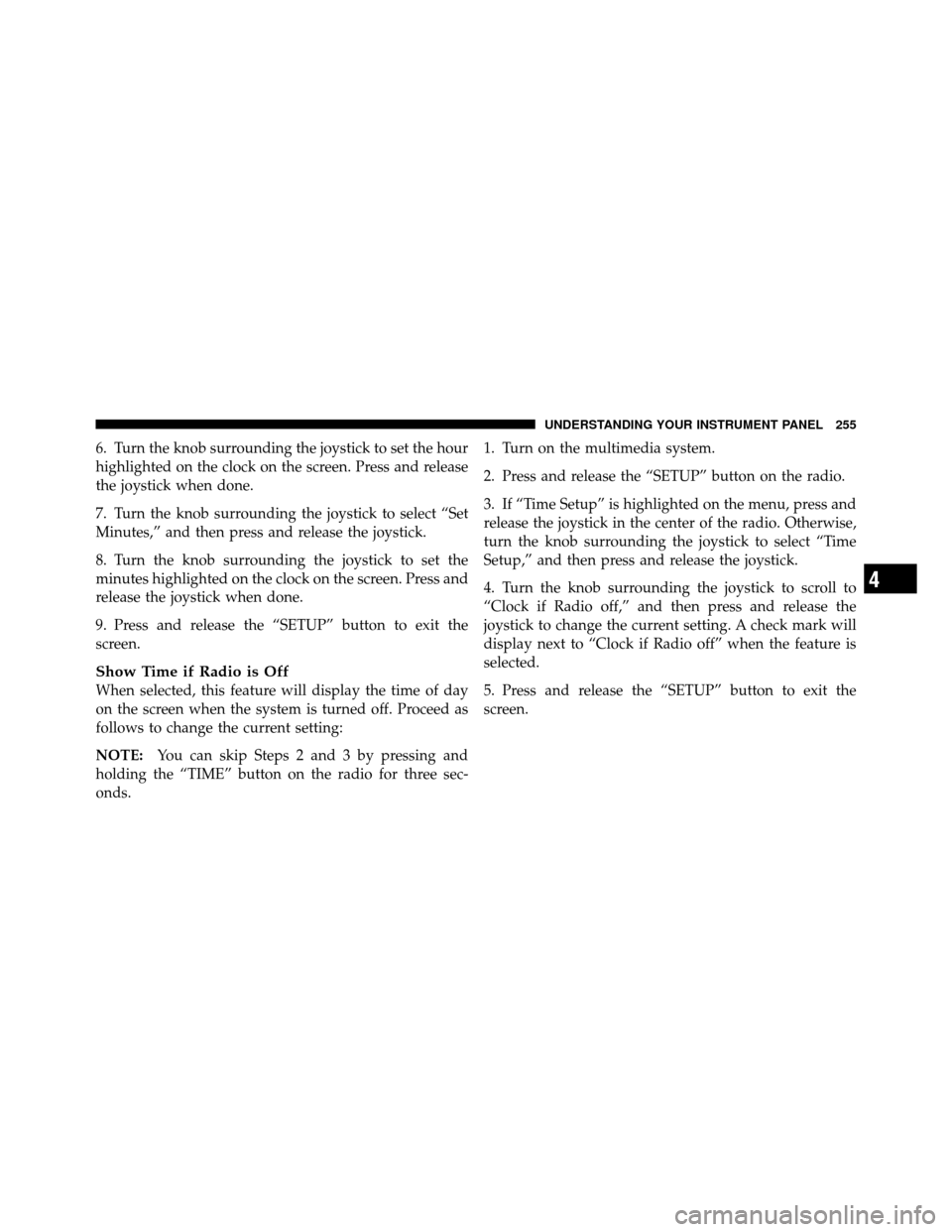

6. Turn the knob surrounding the joystick to set the hour
highlighted on the clock on the screen. Press and release
the joystick when done.
7. Turn the knob surrounding the joystick to select “Set
Minutes,” and then press and release the joystick.
8. Turn the knob surrounding the joystick to set the
minutes highlighted on the clock on the screen. Press and
release the joystick when done.
9. Press and release the “SETUP” button to exit the
screen.
Show Time if Radio is Off
When selected, this feature will display the time of day
on the screen when the system is turned off. Proceed as
follows to change the current setting:
NOTE:You can skip Steps 2 and 3 by pressing and
holding the “TIME” button on the radio for three sec-
onds. 1. Turn on the multimedia system.
2. Press and release the “SETUP” button on the radio.
3. If “Time Setup” is highlighted on the menu, press and
release the joystick in the center of the radio. Otherwise,
turn the knob surrounding the joystick to select “Time
Setup,” and then press and release the joystick.
4. Turn the knob surrounding the joystick to scroll to
“Clock if Radio off,” and then press and release the
joystick to change the current setting. A check mark will
display next to “Clock if Radio off” when the feature is
selected.
5. Press and release the “SETUP” button to exit the
screen.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 255
Page 257 of 512

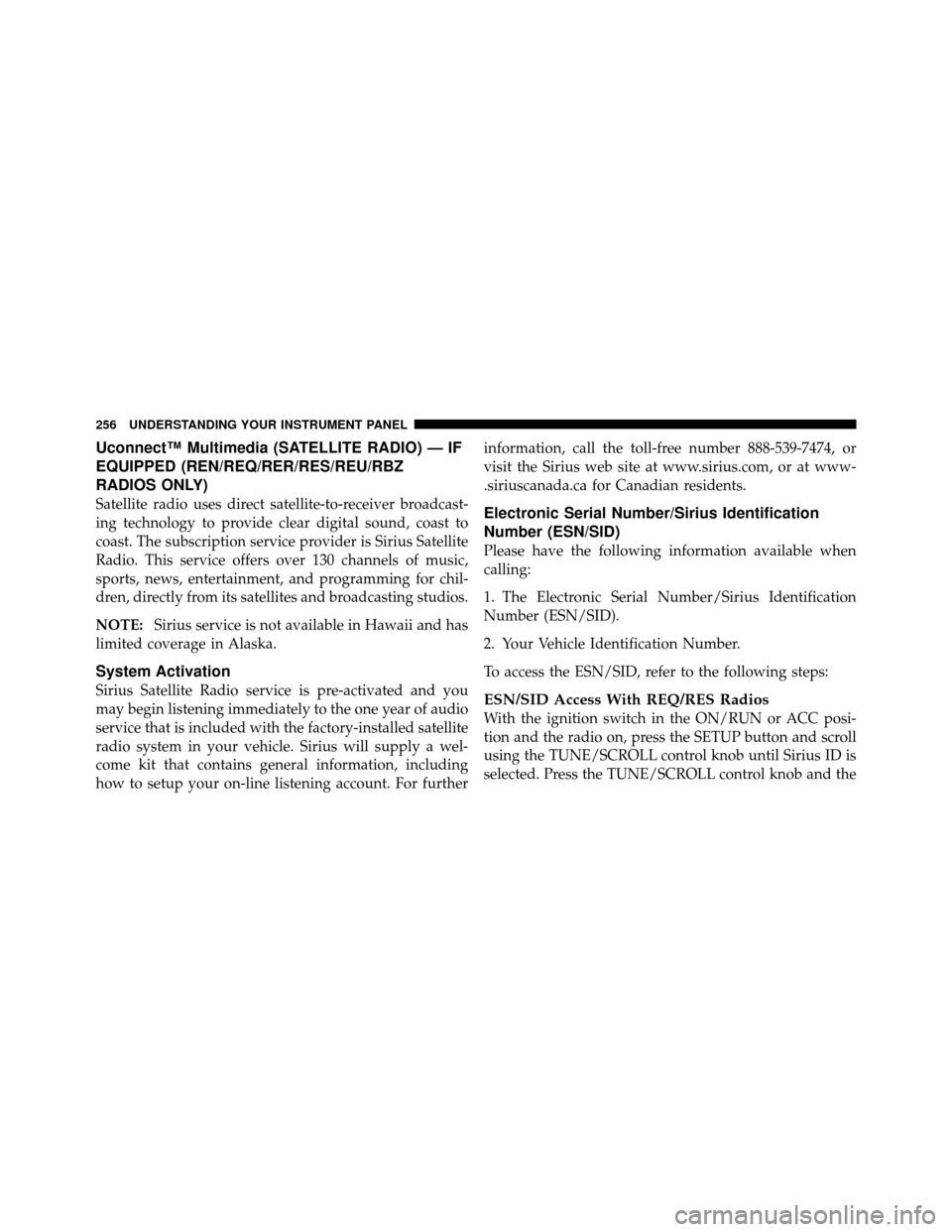

Uconnect™ Multimedia (SATELLITE RADIO) — IF
EQUIPPED (REN/REQ/RER/RES/REU/RBZ
RADIOS ONLY)
Satellite radio uses direct satellite-to-receiver broadcast-
ing technology to provide clear digital sound, coast to
coast. The subscription service provider is Sirius Satellite
Radio. This service offers over 130 channels of music,
sports, news, entertainment, and programming for chil-
dren, directly from its satellites and broadcasting studios.
NOTE:Sirius service is not available in Hawaii and has
limited coverage in Alaska.
System Activation
Sirius Satellite Radio service is pre-activated and you
may begin listening immediately to the one year of audio
service that is included with the factory-installed satellite
radio system in your vehicle. Sirius will supply a wel-
come kit that contains general information, including
how to setup your on-line listening account. For further information, call the toll-free number 888-539-7474, or
visit the Sirius web site at www.sirius.com, or at www-
.siriuscanada.ca for Canadian residents.
Electronic Serial Number/Sirius Identification
Number (ESN/SID)
Please have the following information available when
calling:
1. The Electronic Serial Number/Sirius Identification
Number (ESN/SID).
2. Your Vehicle Identification Number.
To access the ESN/SID, refer to the following steps:
ESN/SID Access With REQ/RES Radios
With the ignition switch in the ON/RUN or ACC posi-
tion and the radio on, press the SETUP button and scroll
using the TUNE/SCROLL control knob until Sirius ID is
selected. Press the TUNE/SCROLL control knob and the
256 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 258 of 512

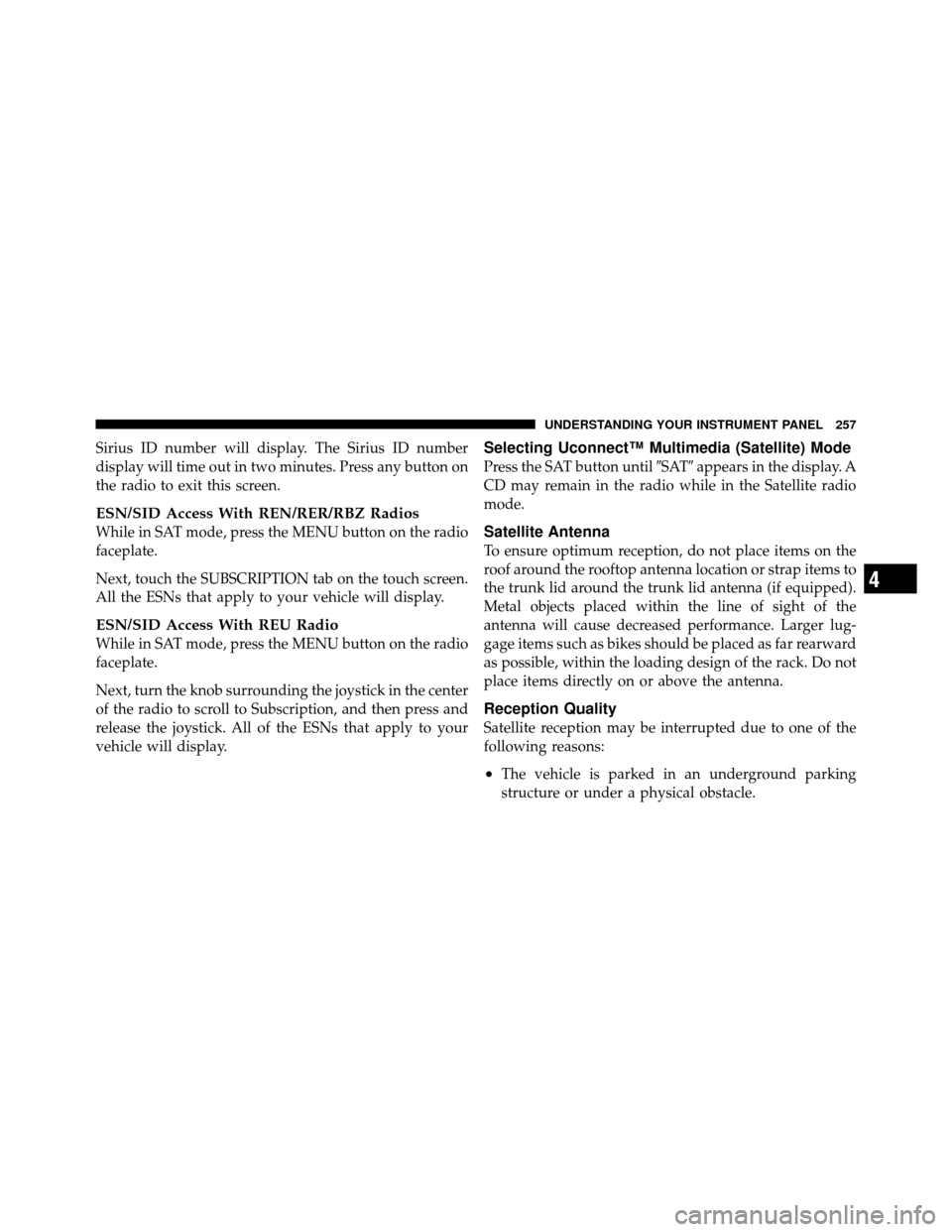

Sirius ID number will display. The Sirius ID number
display will time out in two minutes. Press any button on
the radio to exit this screen.
ESN/SID Access With REN/RER/RBZ Radios
While in SAT mode, press the MENU button on the radio
faceplate.
Next, touch the SUBSCRIPTION tab on the touch screen.
All the ESNs that apply to your vehicle will display.
ESN/SID Access With REU Radio
While in SAT mode, press the MENU button on the radio
faceplate.
Next, turn the knob surrounding the joystick in the center
of the radio to scroll to Subscription, and then press and
release the joystick. All of the ESNs that apply to your
vehicle will display.
Selecting Uconnect™ Multimedia (Satellite) Mode
Press the SAT button untilSATappears in the display. A
CD may remain in the radio while in the Satellite radio
mode.
Satellite Antenna
To ensure optimum reception, do not place items on the
roof around the rooftop antenna location or strap items to
the trunk lid around the trunk lid antenna (if equipped).
Metal objects placed within the line of sight of the
antenna will cause decreased performance. Larger lug-
gage items such as bikes should be placed as far rearward
as possible, within the loading design of the rack. Do not
place items directly on or above the antenna.
Reception Quality
Satellite reception may be interrupted due to one of the
following reasons:
•The vehicle is parked in an underground parking
structure or under a physical obstacle.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 257
Page 259 of 512

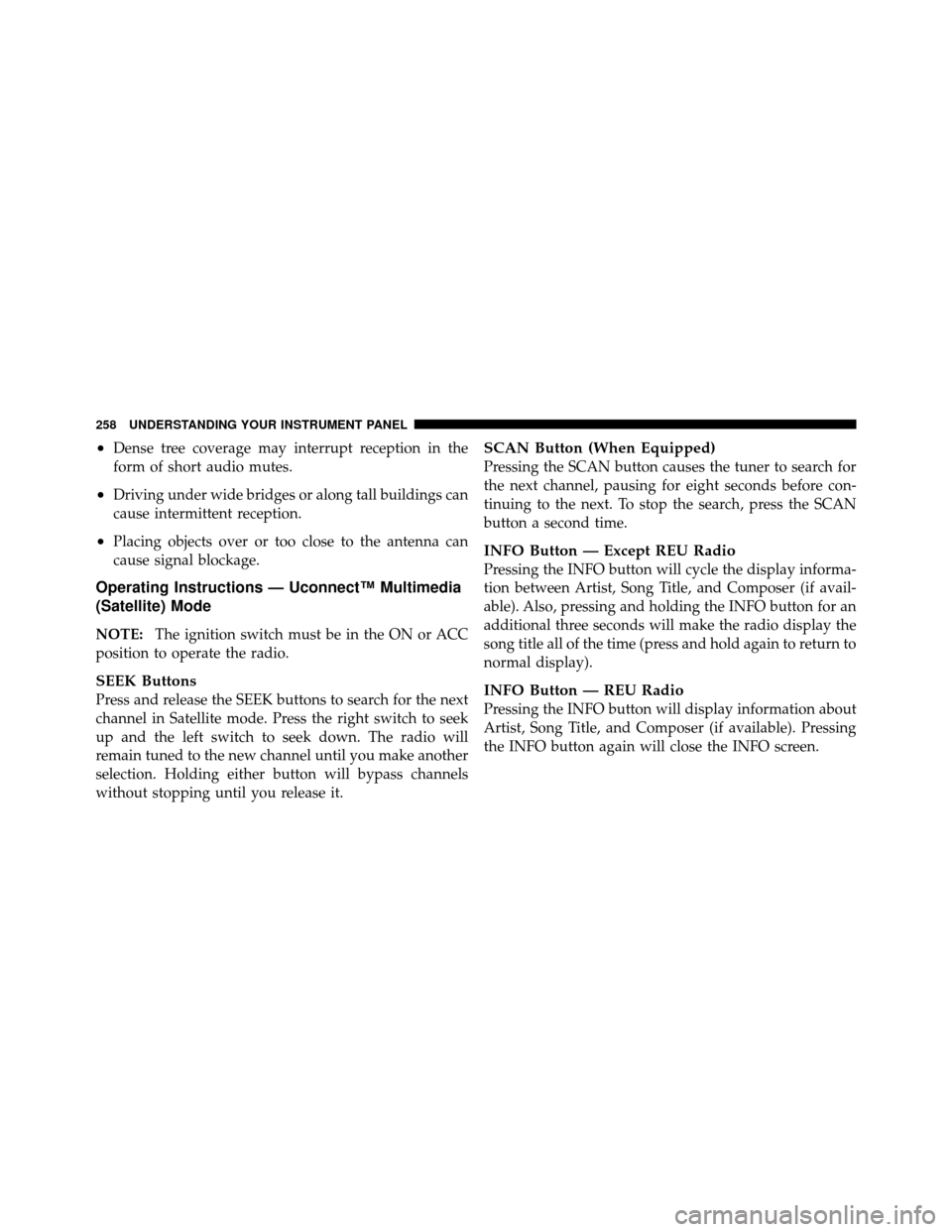

•Dense tree coverage may interrupt reception in the
form of short audio mutes.
•Driving under wide bridges or along tall buildings can
cause intermittent reception.
•Placing objects over or too close to the antenna can
cause signal blockage.
Operating Instructions — Uconnect™ Multimedia
(Satellite) Mode
NOTE:The ignition switch must be in the ON or ACC
position to operate the radio.
SEEK Buttons
Press and release the SEEK buttons to search for the next
channel in Satellite mode. Press the right switch to seek
up and the left switch to seek down. The radio will
remain tuned to the new channel until you make another
selection. Holding either button will bypass channels
without stopping until you release it.
SCAN Button (When Equipped)
Pressing the SCAN button causes the tuner to search for
the next channel, pausing for eight seconds before con-
tinuing to the next. To stop the search, press the SCAN
button a second time.
INFO Button — Except REU Radio
Pressing the INFO button will cycle the display informa-
tion between Artist, Song Title, and Composer (if avail-
able). Also, pressing and holding the INFO button for an
additional three seconds will make the radio display the
song title all of the time (press and hold again to return to
normal display).
INFO Button — REU Radio
Pressing the INFO button will display information about
Artist, Song Title, and Composer (if available). Pressing
the INFO button again will close the INFO screen.
258 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 260 of 512

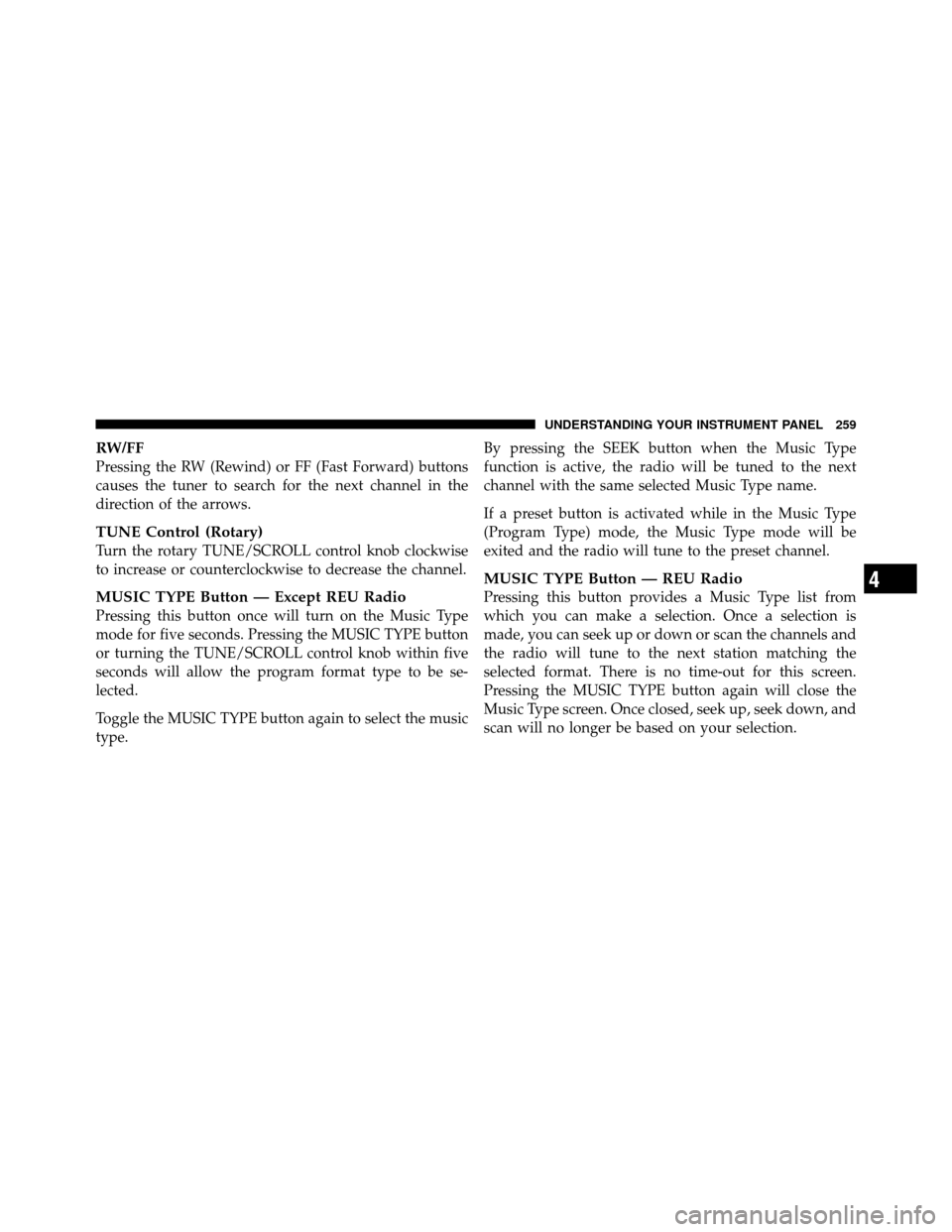

RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next channel in the
direction of the arrows.
TUNE Control (Rotary)
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the channel.
MUSIC TYPE Button — Except REU Radio
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the TUNE/SCROLL control knob within five
seconds will allow the program format type to be se-
lected.
Toggle the MUSIC TYPE button again to select the music
type.By pressing the SEEK button when the Music Type
function is active, the radio will be tuned to the next
channel with the same selected Music Type name.
If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset channel.
MUSIC TYPE Button — REU Radio
Pressing this button provides a Music Type list from
which you can make a selection. Once a selection is
made, you can seek up or down or scan the channels and
the radio will tune to the next station matching the
selected format. There is no time-out for this screen.
Pressing the MUSIC TYPE button again will close the
Music Type screen. Once closed, seek up, seek down, and
scan will no longer be based on your selection.4
UNDERSTANDING YOUR INSTRUMENT PANEL 259
