Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the shift lever to be placed in PARK
prior to rotating the key fob to the LOCK position. The
key fob can only be removed from the ignition when the
ignition is in the LOCK position and once removed the
shift lever is locked in PARK.
Brake/Transmission Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock System (BTSI) that holds the shift lever in the
PARK position when the ignition switch is in the LOCK
position. To move the shift lever out of the PARK
position, the ignition switch must be turned to the ON or
START position (engine running or not) and the brake
pedal must be pressed.BTSI Override
There is an override for the BTSI that allows you to move
the shift lever out of the PARK position if an electrical
system malfunction occurs (i.e., dead battery). To activate
the override system, perform the following steps:
1. Firmly apply the parking brake.
2. Insert the key fob into the ignition switch and rotate it
to the ON position.
3. Remove the cubby bin liner located in the center
console behind the shift lever.
4. Insert a screwdriver or similar small tool into the hole
at the front of the cubby bin and push the manual
override release lever forward.
5. While holding the release lever forward, move the
shift lever from PARK to NEUTRAL.
6. Release the manual override.
300 STARTING AND OPERATING

Automatic Transmission Ignition Interlock System
This system prevents the key fob from being removed
unless the shift lever is in PARK. It also prevents shifting
out of PARK unless the ignition switch is in the ON
position and the brake pedal is applied.
Four-Speed or Six-Speed Automatic
Transmission
The electronically controlled transmission provides a
precise shift schedule. The transmission electronics are
self-calibrating; therefore, the first few shifts on a new
vehicle may be somewhat abrupt. This is a normal
condition, and precision shifts will develop within a few
hundred miles (kilometers).
Gear Ranges
PARK
This range supplements the parking brake by locking the
transmission. The engine can be started in this range.
Never attempt to use PARK while vehicle is in motion.
Apply parking brake when leaving vehicle in this range.
Shift Lever
5
STARTING AND OPERATING 301

difficult to move the shift lever out of PARK. The parking
brake should always be applied whenever the driver is
not in the vehicle.
WARNING!
•Never use the PARK position as a substitute for
the parking brake. Always apply the parking
brake fully when parked to guard against vehicle
movement and possible injury or damage.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured.
•Do not leave the key fob in the ignition switch. A
child could operate power windows, other con-
trols, or move the vehicle.(Continued)
WARNING! (Continued)
•Be sure the parking brake is fully disengaged
before driving; failure to do so can lead to brake
failure and an accident.
•Always fully apply the parking brake when leav-
ing your vehicle or it may roll and cause damage or
injury. Also, be certain to leave the transmission in
PARK. Failure to do so may cause the vehicle to
roll and cause damage or injury.
CAUTION!
If the “Brake Warning Light” remains on with the
parking brake released, a brake system malfunction
is indicated. Have the brake system serviced by an
authorized dealer immediately.
314 STARTING AND OPERATING

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flasher ................ 380
 If Your Engine Overheats ................ 380
 Jacking And Tire Changing ............... 381
▫ Jack Location ....................... 382
▫ Spare Tire Location ................... 383
▫ Preparations For Jacking ............... 383
▫ Spare Tire Removal ................... 383
▫ Spare Tire Stowage ................... 385
▫ Jacking Instructions ................... 387
 Jump-Starting ........................ 392 ▫
Preparations For Jump-Start ............. 393
▫ Jump-Starting Procedure ............... 395
 Freeing A Stuck Vehicle ................. 396
 Towing A Disabled Vehicle ............... 398
▫ Without The Ignition Key .............. 398
▫ Towing This Vehicle Behind Another Vehicle
(Flat Towing With The Key In The Ignition
And All Four Wheels On The Ground) ..... 398
▫ Towing This Vehicle Behind Another Vehicle
With A Tow Dolly .................... 400
6

TOWING A DISABLED VEHICLE
Without The Ignition Key
Front Wheel Drive (FWD)
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. Flatbed towing is
the preferred towing method. However, if a flatbed
towing vehicle is not available, a wheel lift towing
vehicle may be used. Furthermore, rear towing is not
recommended with the front wheels on the ground, as
transaxle damage can result. If rear towing is the only
alternative, a front end dolly must be used. Proper
towing equipment is necessary to prevent damage to the
vehicle.
All Wheel Drive (AWD)
The manufacturer requires towing your vehicle with all
four wheelsOFFthe ground using a flatbed.
CAUTION!
Towing this vehicle using any other method could
result in extensive damage to the transfer case and/or
transmission. Such damage is not covered by the
New Vehicle Limited Warranty.
Towing This Vehicle Behind Another Vehicle (Flat
Towing With The Key In The Ignition And All Four
Wheels On The Ground)
CAUTION!
•If the vehicle being towed requires steering, the
ignition switch must be in the ON position, not in
the LOCK or ACC position.
(Continued)
398 WHAT TO DO IN EMERGENCIES

CAUTION! (Continued)
•Do not attempt to tow this vehicle from the front
with sling-type towing equipment. Damage to the
front fascia will result.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
axle may result.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the key must be in the ON position,
not the ACC position. Make certain the transaxle remains
in NEUTRAL.
Front Wheel Drive (FWD)
Your vehicle may be towed under the following condi-
tions:
•The shift lever must be in NEUTRAL.
•The distance to be traveled must not exceed 15 miles
(25 km).
•The towing speed must not exceed 25 mph (40 km/h).
CAUTION!
Exceeding these towing limits may cause a transaxle
failure. Such damage is not covered by the New
Vehicle Limited Warranty. If the transaxle is not
operative, or if the vehicle is to be towed more than
15 miles (25 km), the vehicle must be transported
either with a flatbed truck or with the front wheels
off the ground.
All Wheel Drive (AWD)
Your vehicle may be towed under the following condi-
tions:
•The shift lever must be in NEUTRAL.
6
WHAT TO DO IN EMERGENCIES 399

A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of this vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if the vehicle was recently
serviced, recently had a dead battery, or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, the vehicle may fail the test. This vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if this vehicle’s OBD II system is ready, you must
do the following:
1. Insert the ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn the ignition key to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
406 MAINTAINING YOUR VEHICLE

the ignition key or start the engine. This means that the
vehicle’s OBD II system isnot readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition key or start
the engine. This means that the vehicle’s OBD II
system is ready,and you can proceed to the I/M
station.
If the OBD II system is not ready,you should see an
authorized dealer or repair facility. If this vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive the vehicle
as you normally would in order for the OBD II system to
update. A recheck with the above test routine may then
indicate that the system is now ready.
Regardless of whether the vehicle’s OBD II system is
ready or not ready, if the MIL is illuminated during
normal vehicle operation, you should have the vehicle serviced before going to the I/M station. The I/M station
can fail the vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR
parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
DEALER SERVICE
Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.7
MAINTAINING YOUR VEHICLE 407

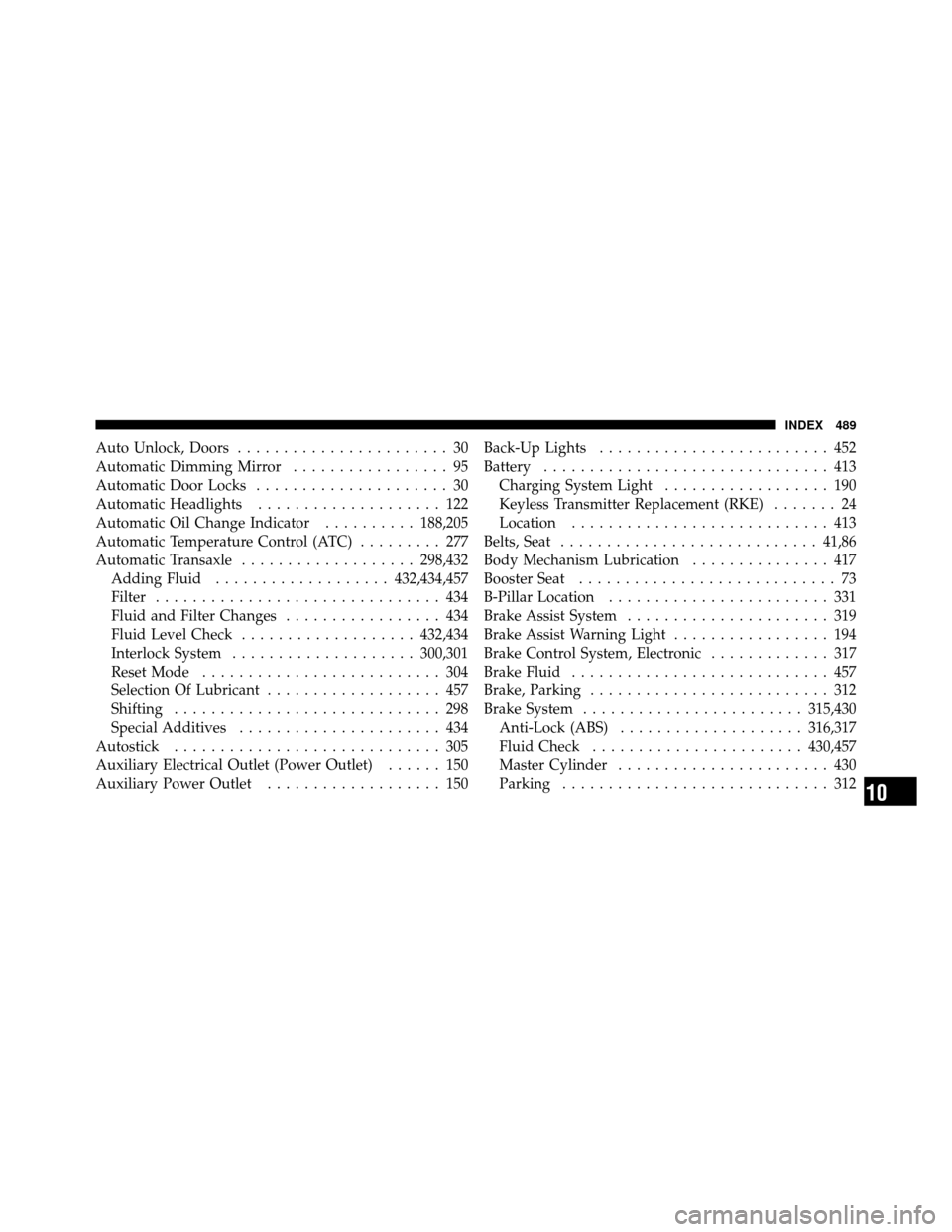

Auto Unlock, Doors....................... 30
Automatic Dimming Mirror ................. 95
Automatic Door Locks ..................... 30
Automatic Headlights .................... 122
Automatic Oil Change Indicator ..........188,205
Automatic Temperature Control (ATC) ......... 277
Automatic Transaxle ................... 298,432
Adding Fluid ................... 432,434,457
Filter ............................... 434
Fluid and Filter Changes ................. 434
Fluid Level Check ................... 432,434
Interlock System .................... 300,301
Reset Mode .......................... 304
Selection Of Lubricant ................... 457
Shifting ............................. 298
Special Additives ...................... 434
Autostick ............................. 305
Auxiliary Electrical Outlet (Power Outlet) ...... 150
Auxiliary Power Outlet ................... 150 Back-Up Lights
......................... 452
Battery ............................... 413
Charging System Light .................. 190
Keyless Transmitter Replacement (RKE) ....... 24
Location ............................ 413
Belts, Seat ............................ 41,86
Body Mechanism Lubrication ............... 417
Booster Seat ............................ 73
B-Pillar Location ........................ 331
Brake Assist System ...................... 319
Brake Assist Warning Light ................. 194
Brake Control System, Electronic ............. 317
Brake Fluid ............................ 457
Brake, Parking .......................... 312
Brake System ........................ 315,430
Anti-Lock (ABS) .................... 316,317
Fluid Check ....................... 430,457
Master Cylinder ....................... 430
Parking ............................. 312
10
INDEX 489

HitchesTrailer Towing ........................ 366
Holder, Coin ........................... 158
Holder, Cup ........................... 156
HomeLink (Garage Door Opener) Transmitter . . . 140
Hood Release .......................... 119
Ignition ............................... 14
Key ............................... 12,14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 18
Immobilizer (Sentry Key) ................... 15
Indicator, Traction Control ................. 193
Infant Restraint ........................ 71,72
Inflation Pressure Tires .................... 191
Information Center, Vehicle ................. 202
Inside Rearview Mirror .................... 94
Instrument Cluster .................... 182,183
Instrument Panel and Controls .............. 181Instrument Panel Cover
................... 438
Instrument Panel Lens Cleaning ............. 439
Integrated Power Module (Fuses) ............ 440
Interior Appearance Care .................. 438
Interior Lighting ...................... 121,127
Intermittent Wipers (Delay Wipers) ........... 130
Introduction ............................. 4
Inverter, Power ......................... 153
Jack Location ........................... 382
Jack Operation ....................... 381,387
Jacking Instructions ...................... 387
Jump Starting .......................... 392
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Key-In Reminder ......................... 15
Keyless Entry System ...................... 19
10
INDEX 497
