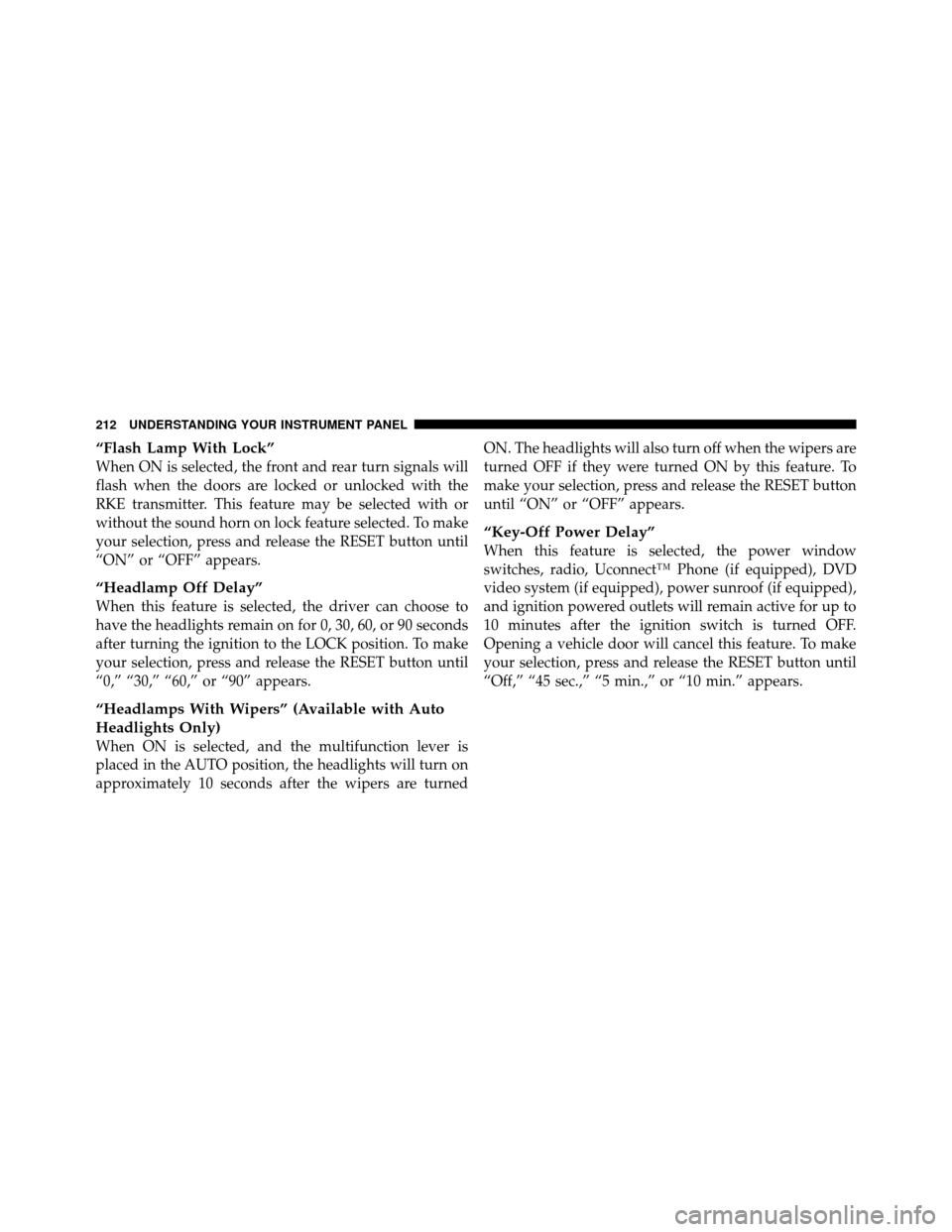

“Flash Lamp With Lock”
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the sound horn on lock feature selected. To make
your selection, press and release the RESET button until
“ON” or “OFF” appears.
“Headlamp Off Delay”
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
after turning the ignition to the LOCK position. To make
your selection, press and release the RESET button until
“0,” “30,” “60,” or “90” appears.
“Headlamps With Wipers” (Available with Auto
Headlights Only)
When ON is selected, and the multifunction lever is
placed in the AUTO position, the headlights will turn on
approximately 10 seconds after the wipers are turnedON. The headlights will also turn off when the wipers are
turned OFF if they were turned ON by this feature. To
make your selection, press and release the RESET button
until “ON” or “OFF” appears.
“Key-Off Power Delay”
When this feature is selected, the power window
switches, radio, Uconnect™ Phone (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and ignition powered outlets will remain active for up to
10 minutes after the ignition switch is turned OFF.
Opening a vehicle door will cancel this feature. To make
your selection, press and release the RESET button until
“Off,” “45 sec.,” “5 min.,” or “10 min.” appears.
212 UNDERSTANDING YOUR INSTRUMENT PANEL

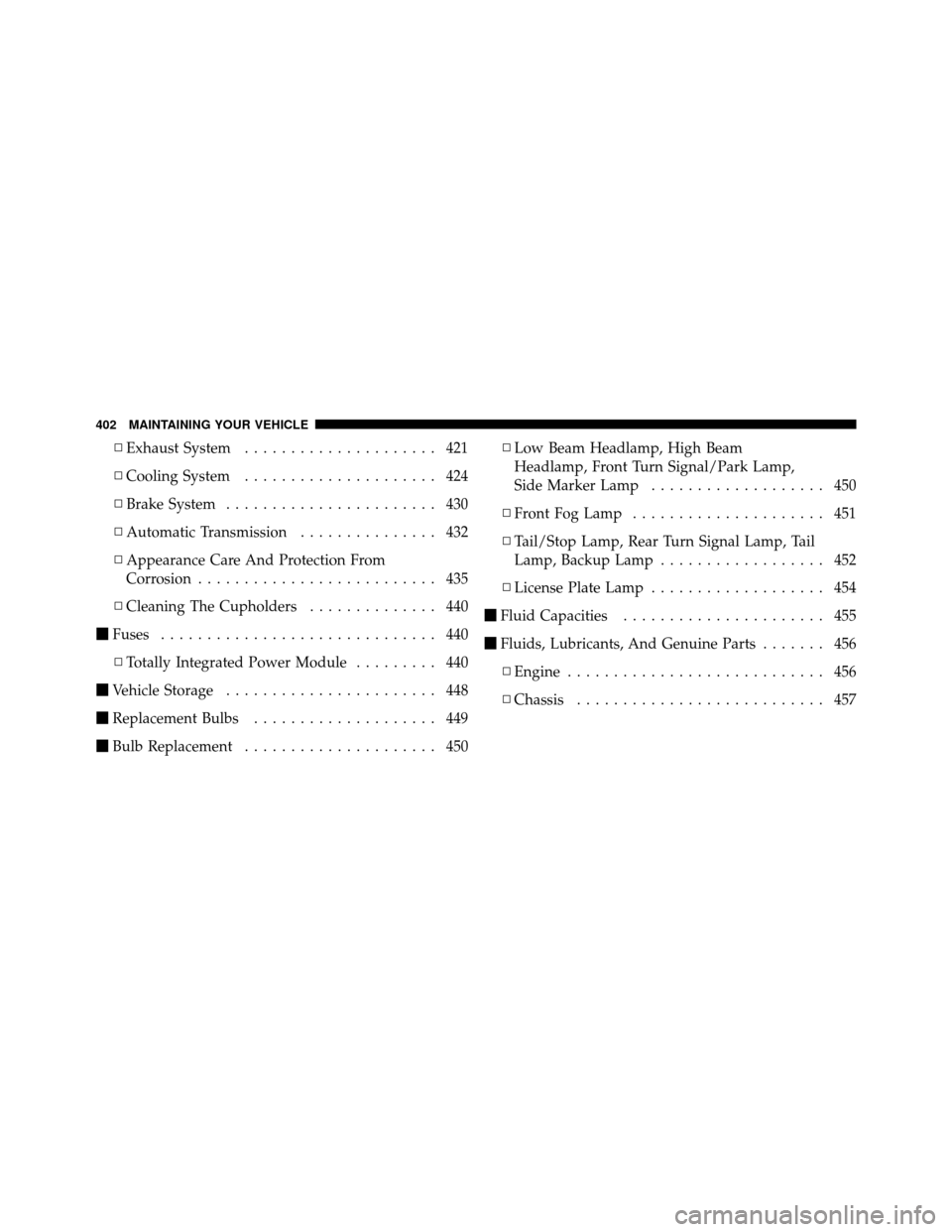

▫Exhaust System ..................... 421
▫ Cooling System ..................... 424
▫ Brake System ....................... 430
▫ Automatic Transmission ............... 432
▫ Appearance Care And Protection From
Corrosion .......................... 435
▫ Cleaning The Cupholders .............. 440
 Fuses .............................. 440
▫ Totally Integrated Power Module ......... 440
 Vehicle Storage ....................... 448
 Replacement Bulbs .................... 449
 Bulb Replacement ..................... 450 ▫
Low Beam Headlamp, High Beam
Headlamp, Front Turn Signal/Park Lamp,
Side Marker Lamp ................... 450
▫ Front Fog Lamp ..................... 451
▫ Tail/Stop Lamp, Rear Turn Signal Lamp, Tail
Lamp, Backup Lamp .................. 452
▫ License Plate Lamp ................... 454
 Fluid Capacities ...................... 455
 Fluids, Lubricants, And Genuine Parts ....... 456
▫ Engine ............................ 456
▫ Chassis ........................... 457
402 MAINTAINING YOUR VEHICLE

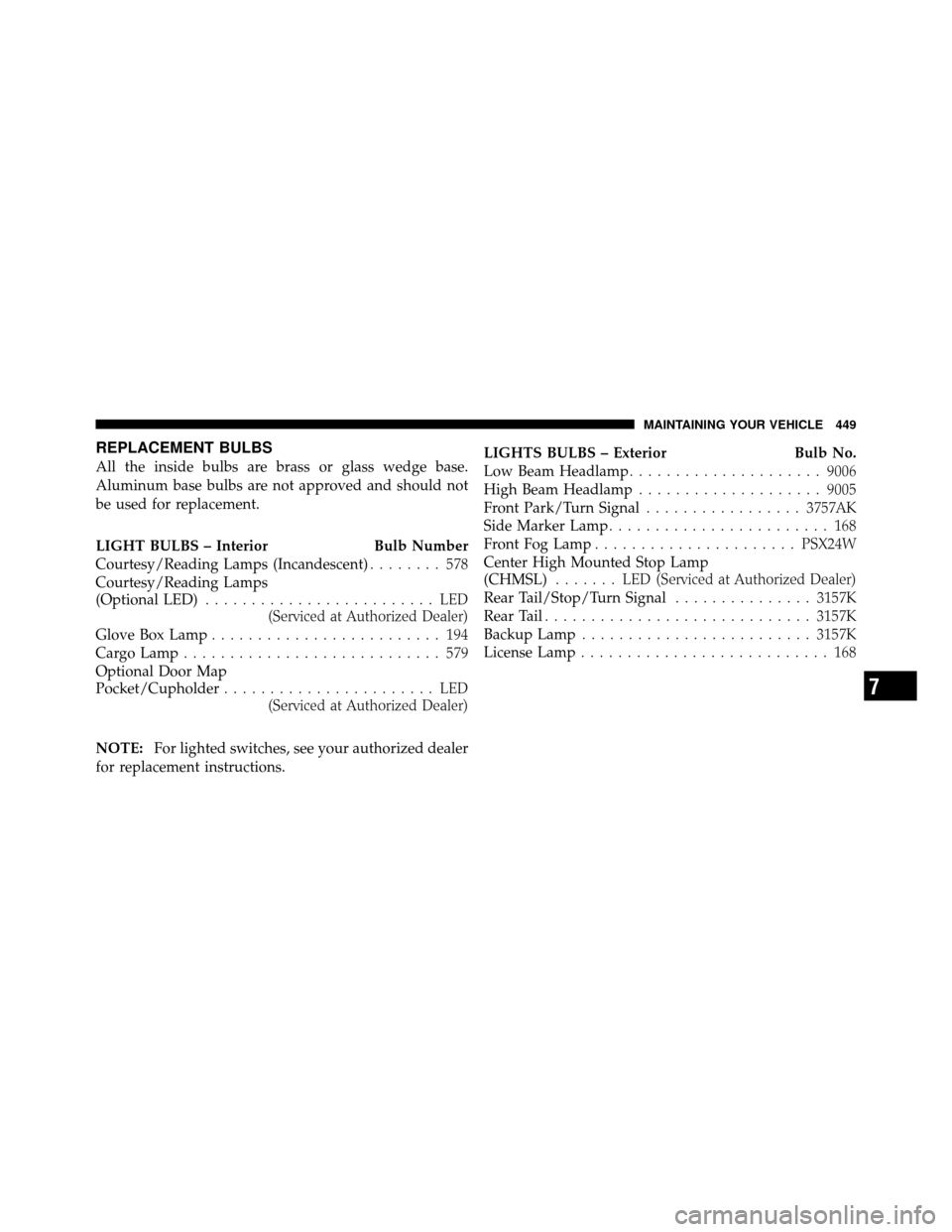

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Courtesy/Reading Lamps (Incandescent)........ 578
Courtesy/Reading Lamps
(Optional LED) ......................... LED
(Serviced at Authorized Dealer)
Glove Box Lamp ......................... 194
Cargo Lamp ............................ 579
Optional Door Map
Pocket/Cupholder ....................... LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS – Exterior
Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Lamp ........................ 168
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp
(CHMSL) ....... LED (Serviced at Authorized Dealer)
Rear Tail/Stop/Turn Signal ...............3157K
Rear Tail ............................. 3157K
Backup Lamp ......................... 3157K
License Lamp ........................... 168
7
MAINTAINING YOUR VEHICLE 449

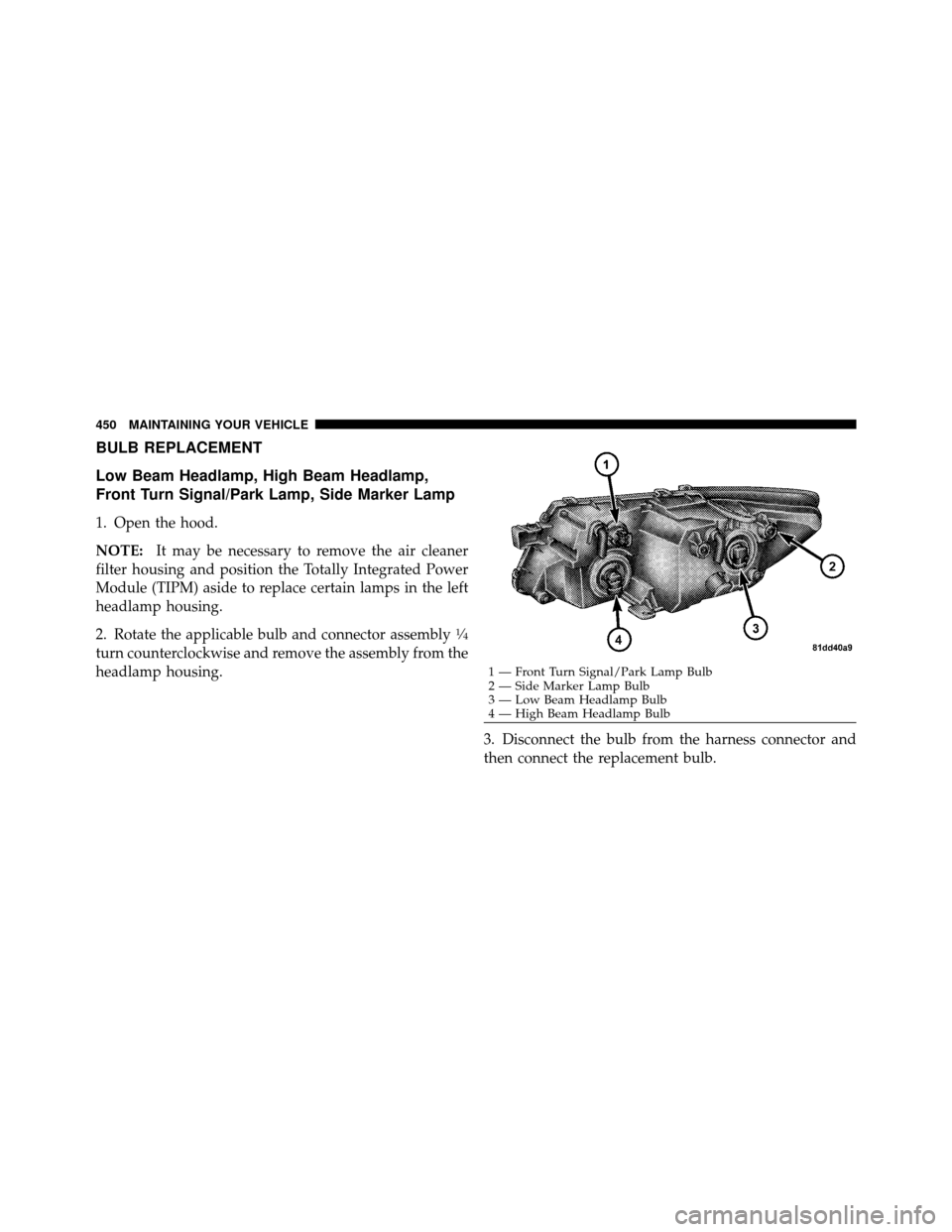

BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp,
Front Turn Signal/Park Lamp, Side Marker Lamp
1. Open the hood.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain lamps in the left
headlamp housing.
2. Rotate the applicable bulb and connector assembly
14
turn counterclockwise and remove the assembly from the
headlamp housing.
3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb
450 MAINTAINING YOUR VEHICLE

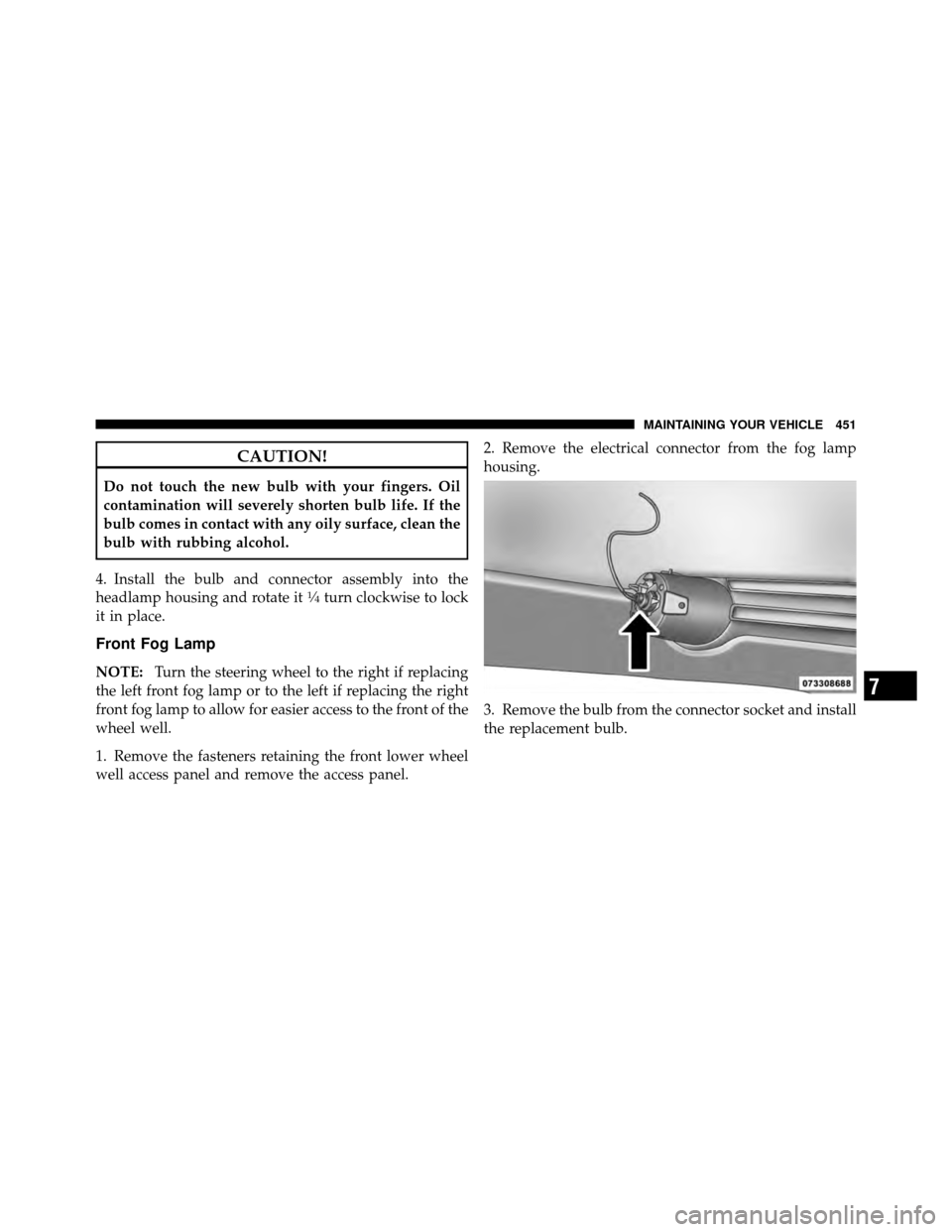

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlamp housing and rotate it
14turn clockwise to lock
it in place.
Front Fog Lamp
NOTE: Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel. 2. Remove the electrical connector from the fog lamp
housing.
3. Remove the bulb from the connector socket and install
the replacement bulb.
7
