run flat DODGE JOURNEY 2010 1.G Owners Manual

WARNING! (Continued)
•On seven passenger models, do not allow a pas-
senger to sit in a third row seat with the second
row seatback(s) folded flat. In a collision, the
passenger could slide underneath the seat belt and
be seriously or even fatally injured.
Exhaust Gas
WARNING!
•Exhaust gases can injure or kill. They contain
carbon monoxide (CO), which is colorless and
odorless. Breathing it can make you unconscious
and can eventually poison you. To avoid breathing
CO follow these safety tips:Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.
If you are required to drive with the liftgate open, make
sure that all windows are closed, and the blower switch
on the climate control is set at high speed. DO NOT use
the recirculation mode.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85

▫Power Seat — If Equipped .............. 104
â–« Adjusting Active Head Restraints ......... 105
â–« Second Row Passenger Seats ............ 108
▫ Third Row Passenger Seats — Seven
Passenger Models .................... 108
▫ Heated Seats — If Equipped ............ 108
â–« 60/40 Split Second-Row Passenger Seats .... 109
â–« 50/50 Split Third-Row Passenger Seats With
Fold-Flat Feature —
Seven Passenger Models ............... 117
 To Open And Close The Hood ............ 119
 Lights ............................. 121
â–« Multifunction Lever .................. 121
â–« Headlights And Parking Lights .......... 122â–«
Automatic Headlights — If Equipped ...... 122
â–« Headlights With Wipers (Available With
Automatic Headlights Only) ............ 123
▫ Headlight Time Delay — If Equipped ...... 123
â–« Instrument Panel Dimmer .............. 124
▫ Daytime Running Lights — If Equipped .... 125
â–« Lights-On Reminder .................. 125
▫ Fog Lights — If Equipped .............. 125
â–« Turn Signals ........................ 126
â–« Lane Change Assist ................... 127
â–« High/Low Beam Switch ............... 127
â–« Flash-To-Pass ....................... 127
â–« Interior Lights ...................... 127
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

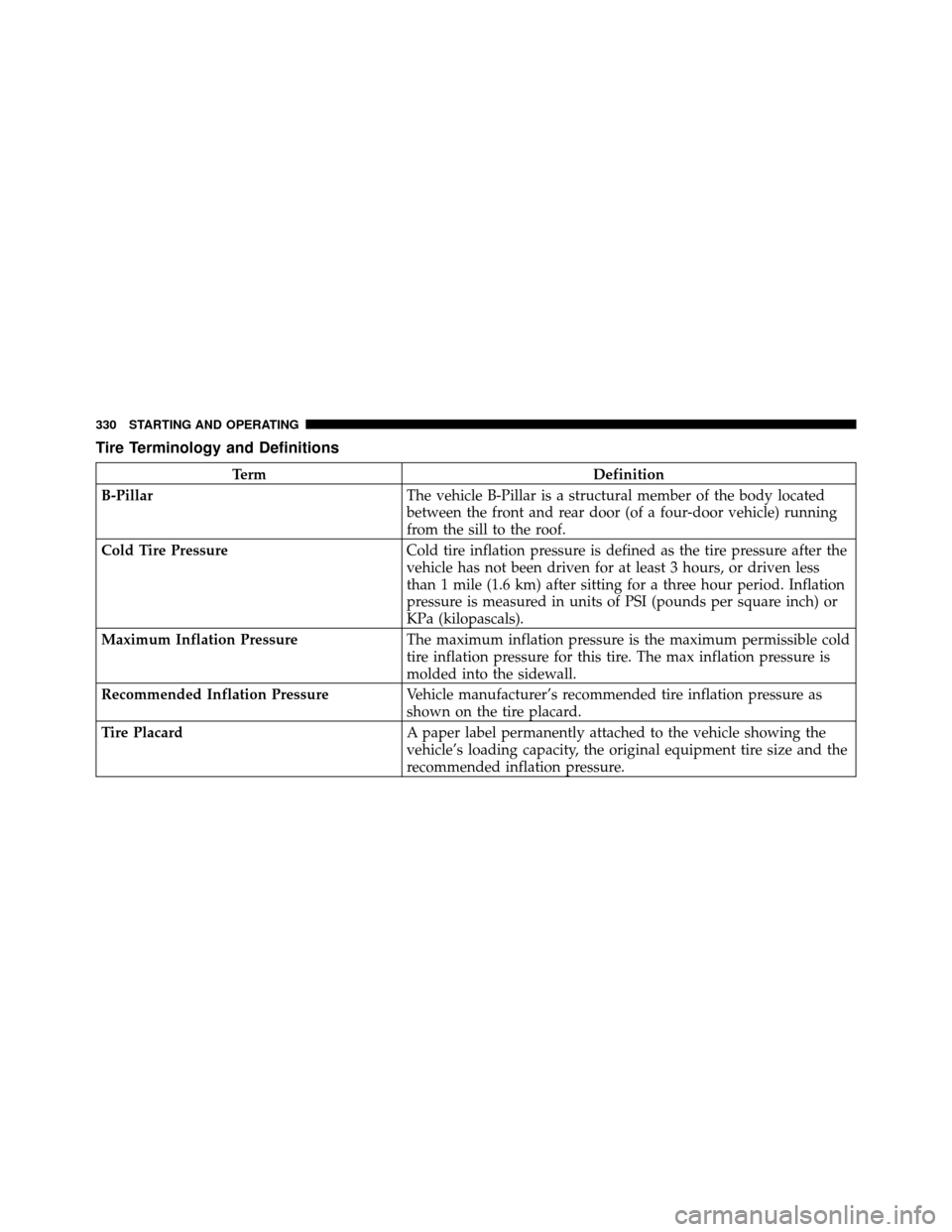

Tire Terminology and Definitions
TermDefinition
B-Pillar The vehicle B-Pillar is a structural member of the body located
between the front and rear door (of a four-door vehicle) running
from the sill to the roof.
Cold Tire Pressure Cold tire inflation pressure is defined as the tire pressure after the
vehicle has not been driven for at least 3 hours, or driven less
than 1 mile (1.6 km) after sitting for a three hour period. Inflation
pressure is measured in units of PSI (pounds per square inch) or
KPa (kilopascals).
Maximum Inflation Pressure The maximum inflation pressure is the maximum permissible cold
tire inflation pressure for this tire. The max inflation pressure is
molded into the sidewall.
Recommended Inflation Pressure Vehicle manufacturer’s recommended tire inflation pressure as
shown on the tire placard.
Tire Placard A paper label permanently attached to the vehicle showing the
vehicle’s loading capacity, the original equipment tire size and the
recommended inflation pressure.
330 STARTING AND OPERATING

WARNING! (Continued)
•Never start or run the engine with the vehicle on a
jack.
•Do not let anyone sit in the vehicle when it is on a
jack.
•Do not get under the vehicle when it is on a jack.
•Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
•If working on or near a roadway, be extremely
careful of motor traffic.
•To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
•Turn on the Hazard Warning flasher.1. Remove the spare tire, jack, and jack-handle from
stowage.
2. Loosen, but do not remove, the wheel nuts on the
wheel with the flat tire. Turn the wheel nuts counter-
clockwise one turn while the wheel is still on the ground.
3. Place the jack underneath the lift area that is closest to
the flat tire. Turn the jack screw clockwise to firmly
engage the jack saddle with the lift area of the sill flange.
Jack Warning Label
388 WHAT TO DO IN EMERGENCIES
