manual transmission DODGE JOURNEY 2011 1.G Owners Manual

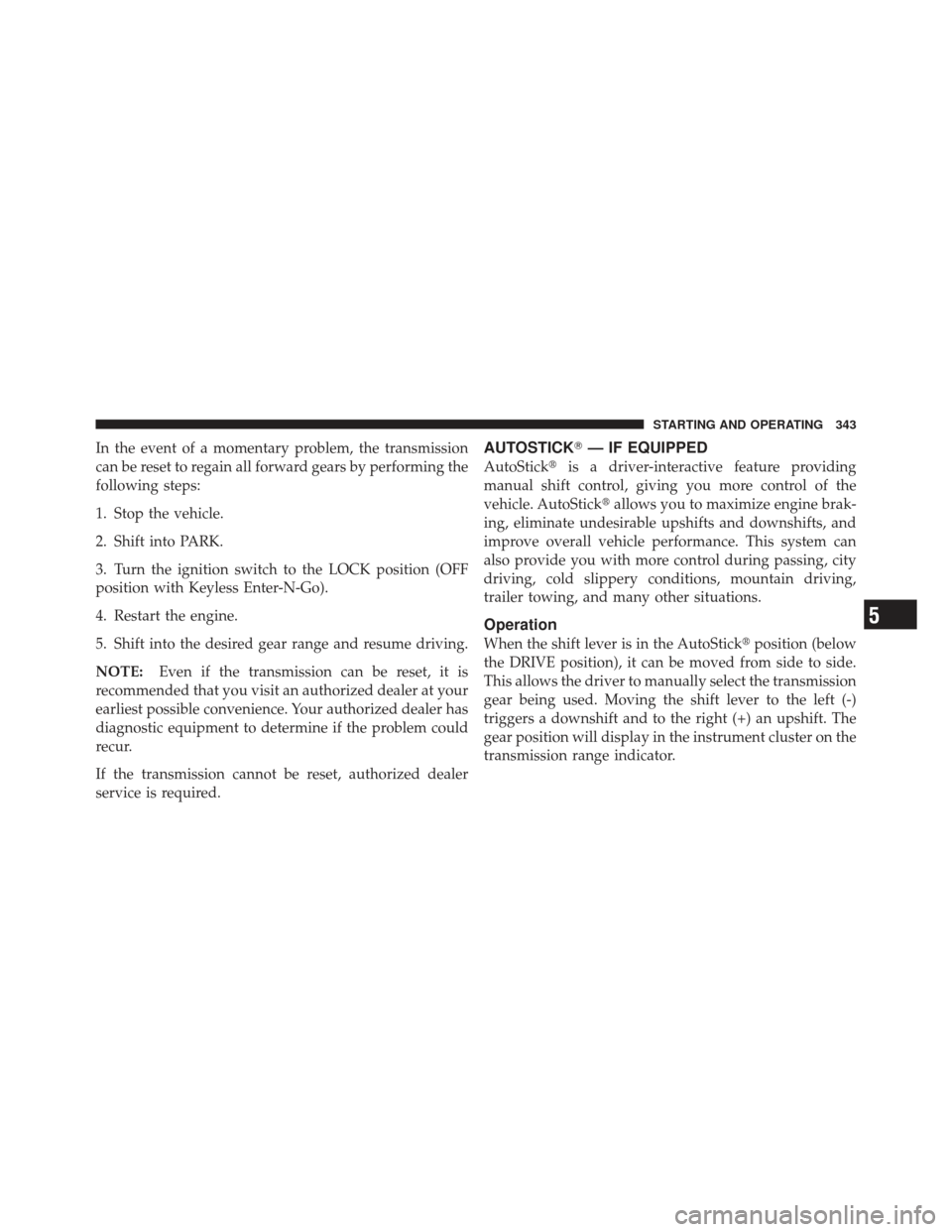

In the event of a momentary problem, the transmission
can be reset to regain all forward gears by performing the
following steps:
1. Stop the vehicle.
2. Shift into PARK.
3. Turn the ignition switch to the LOCK position (OFF
position with Keyless Enter-N-Go).
4. Restart the engine.
5. Shift into the desired gear range and resume driving.
NOTE:Even if the transmission can be reset, it is
recommended that you visit an authorized dealer at your
earliest possible convenience. Your authorized dealer has
diagnostic equipment to determine if the problem could
recur.
If the transmission cannot be reset, authorized dealer
service is required.AUTOSTICK — IF EQUIPPED
AutoStickis a driver-interactive feature providing
manual shift control, giving you more control of the
vehicle. AutoStick allows you to maximize engine brak-
ing, eliminate undesirable upshifts and downshifts, and
improve overall vehicle performance. This system can
also provide you with more control during passing, city
driving, cold slippery conditions, mountain driving,
trailer towing, and many other situations.
Operation
When the shift lever is in the AutoStick position (below
the DRIVE position), it can be moved from side to side.
This allows the driver to manually select the transmission
gear being used. Moving the shift lever to the left (-)
triggers a downshift and to the right (+) an upshift. The
gear position will display in the instrument cluster on the
transmission range indicator.
5
STARTING AND OPERATING 343

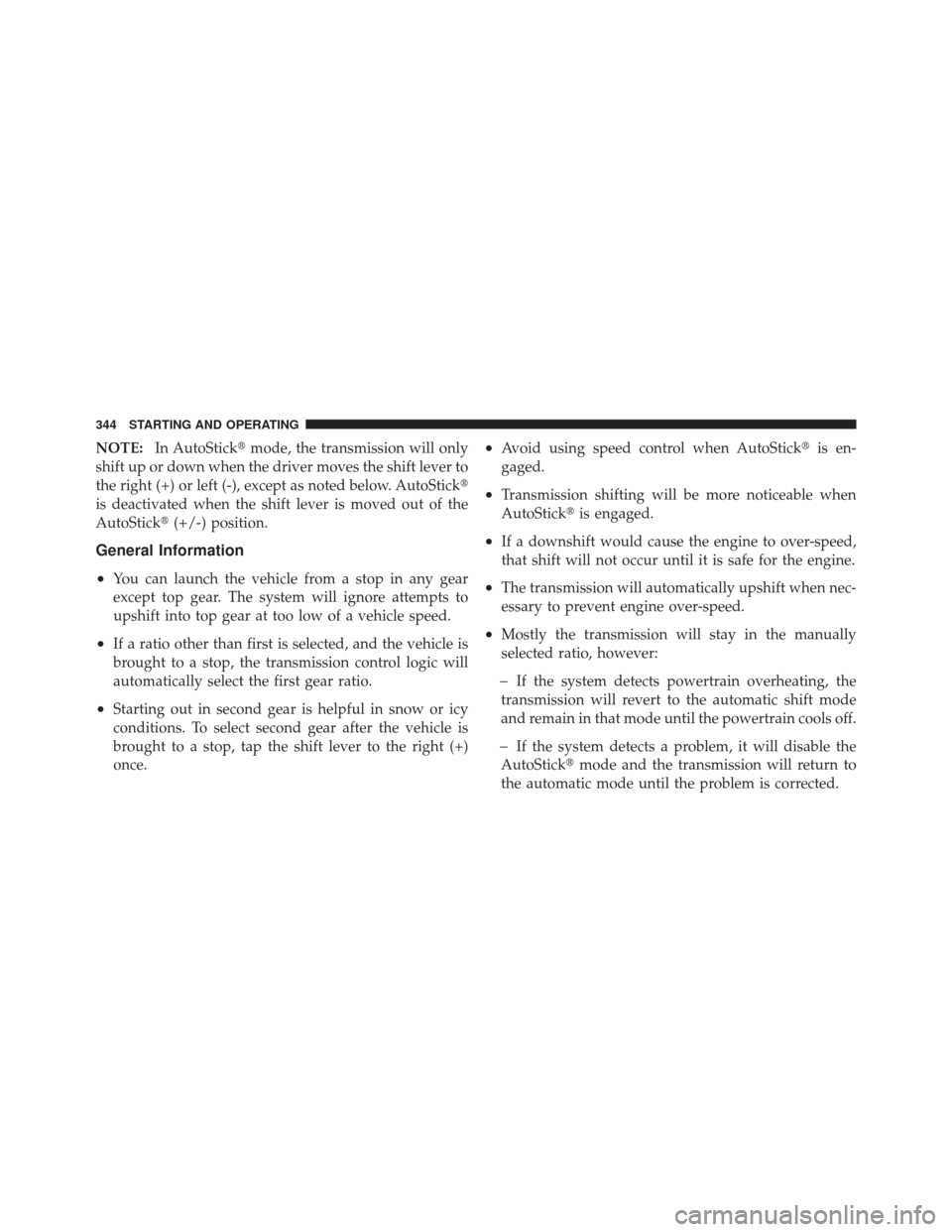

NOTE:In AutoStick mode, the transmission will only
shift up or down when the driver moves the shift lever to
the right (+) or left (-), except as noted below. AutoStick
is deactivated when the shift lever is moved out of the
AutoStick (+/-) position.
General Information
•
You can launch the vehicle from a stop in any gear
except top gear. The system will ignore attempts to
upshift into top gear at too low of a vehicle speed.
•If a ratio other than first is selected, and the vehicle is
brought to a stop, the transmission control logic will
automatically select the first gear ratio.
•Starting out in second gear is helpful in snow or icy
conditions. To select second gear after the vehicle is
brought to a stop, tap the shift lever to the right (+)
once.
•Avoid using speed control when AutoStick is en-
gaged.
•Transmission shifting will be more noticeable when
AutoStick is engaged.
•If a downshift would cause the engine to over-speed,
that shift will not occur until it is safe for the engine.
•The transmission will automatically upshift when nec-
essary to prevent engine over-speed.
•Mostly the transmission will stay in the manually
selected ratio, however:
If the system detects powertrain overheating, the
transmission will revert to the automatic shift mode
and remain in that mode until the powertrain cools off.
If the system detects a problem, it will disable the
AutoStick mode and the transmission will return to
the automatic mode until the problem is corrected.
344 STARTING AND OPERATING

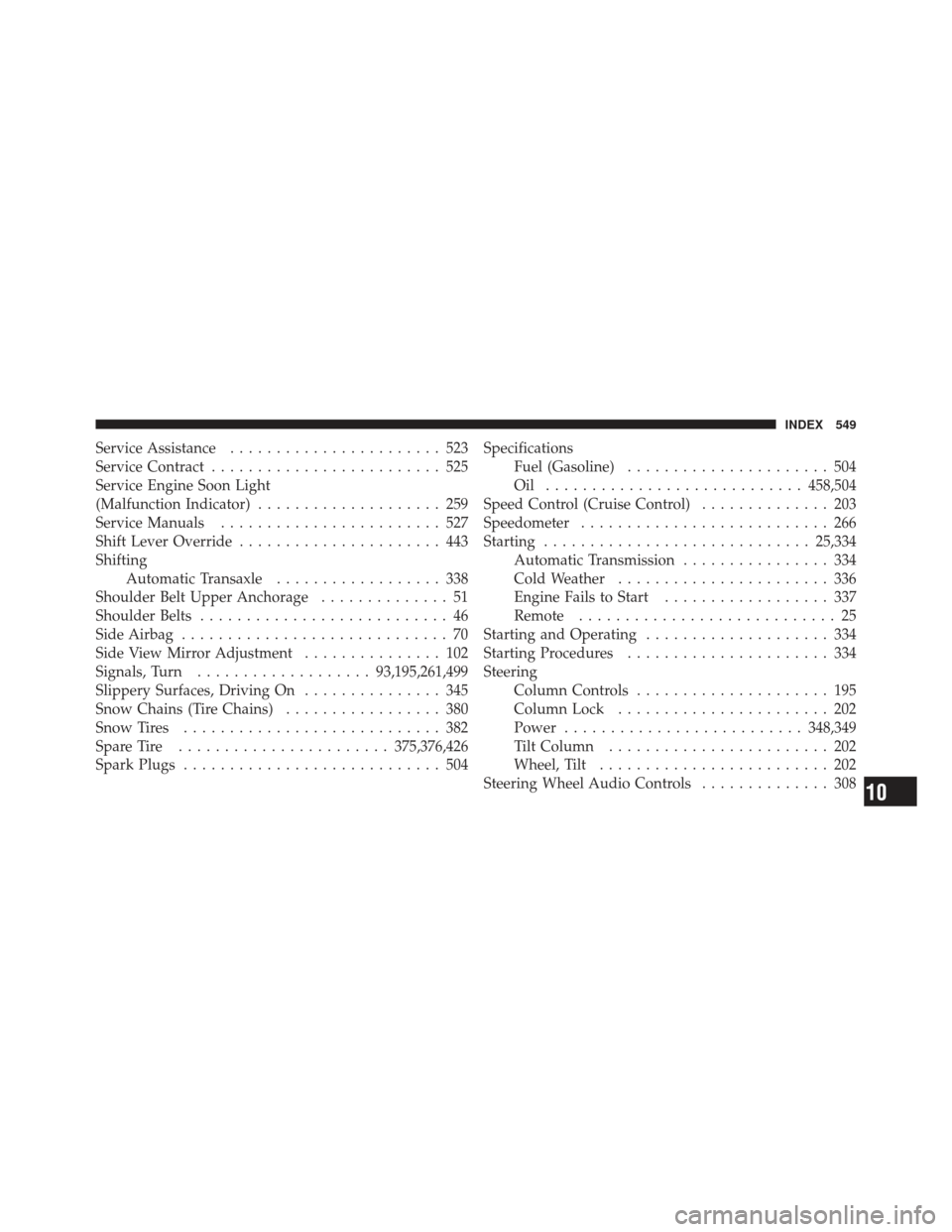

Service Assistance....................... 523
Service Contract ......................... 525
Service Engine Soon Light
(Malfunction Indicator) .................... 259
Service Manuals ........................ 527
Shift Lever Override ...................... 443
Shifting Automatic Transaxle .................. 338
Shoulder Belt Upper Anchorage .............. 51
Shoulder Belts ........................... 46
Side Airbag ............................. 70
Side View Mirror Adjustment ............... 102
Signals, Turn ................... 93,195,261,499
Slippery Surfaces, Driving On ............... 345
Snow Chains (Tire Chains) ................. 380
Snow Tires ............................ 382
Spare Tire ....................... 375,376,426
Spark Plugs ............................ 504 Specifications
Fuel (Gasoline) ...................... 504
Oil ............................ 458,504
Speed Control (Cruise Control) .............. 203
Speedometer ........................... 266
Starting ............................. 25,334
Automatic Transmission ................ 334
Cold Weather ....................... 336
Engine Fails to Start .................. 337
Remote ............................ 25
Starting and Operating .................... 334
Starting Procedures ...................... 334
Steering Column Controls ..................... 195
Column Lock ....................... 202
Power .......................... 348,349
Tilt Column ........................ 202
Wheel, Tilt ......................... 202
Steering Wheel Audio Controls .............. 308
10
INDEX 549
