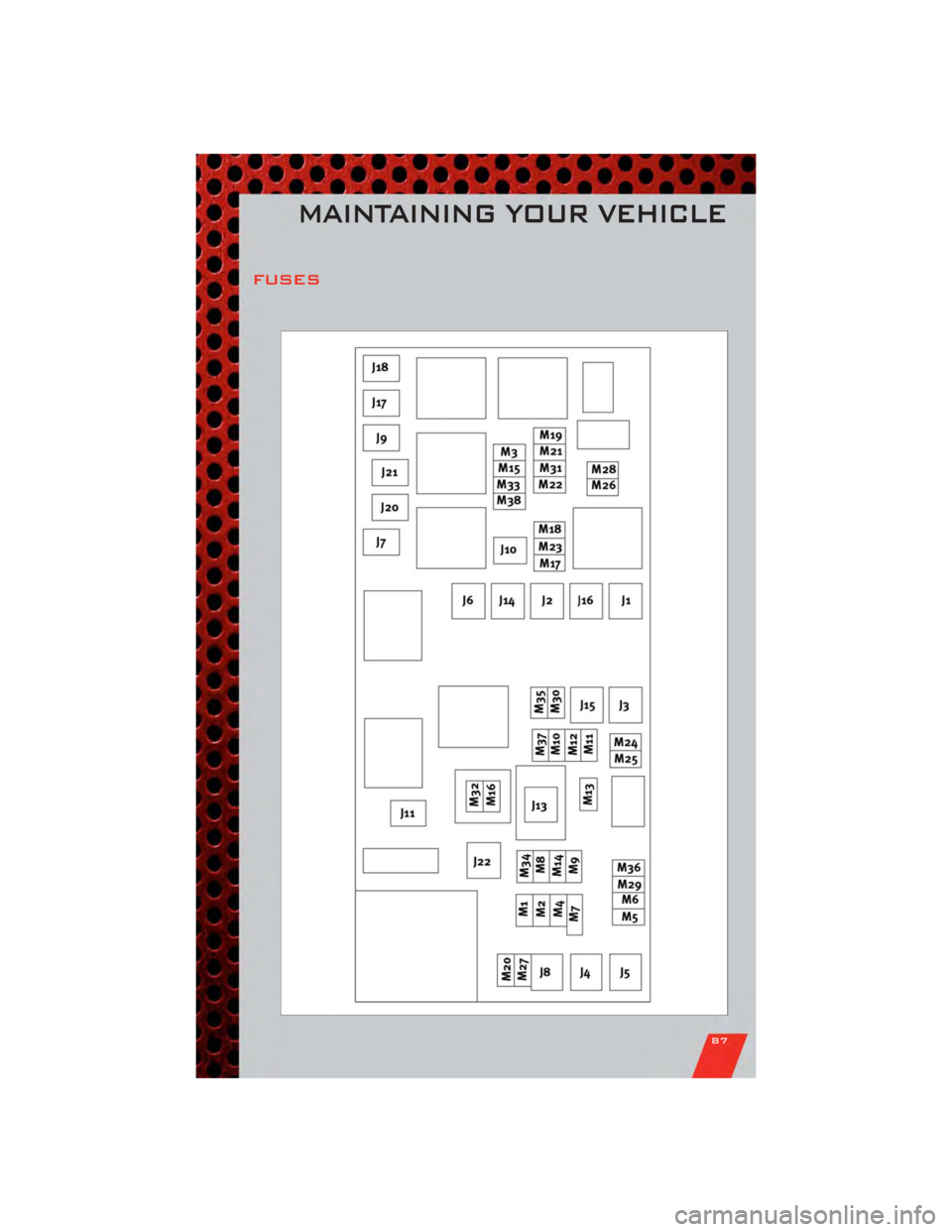

DODGE JOURNEY 2011 1.G User Guide FUSES
MAINTAINING YOUR VEHICLE
87

Page 90 of 108

DODGE JOURNEY 2011 1.G User Guide Integrated Power Module (fuses)
• The Integrated Power Module (fuses) is located in the engine compartment nearthe air cleaner assembly. This center contains fuses and relays.
Cavity Cartridge Fuse

Page 91 of 108

DODGE JOURNEY 2011 1.G User Guide Cavity Cartridge Fuse Mini-FuseDescription
M10 15 Amp Blue Vanity Lamps/Hands-Free Module
(HFM) - if equipped, Remote
Display - if equipped, Satellite
Digital Audio Receiver (SDARS) - if
equipped, Uni

Page 92 of 108

DODGE JOURNEY 2011 1.G User Guide Cavity Cartridge Fuse Mini-FuseDescription
M29 10 Amp Red Occupant Classification Module
(OCM)
M30 15 Amp Blue Rear Wiper Module Module/Power
Folding Mirror, J1962 Diag Feed
M31 20 Amp Yellow Back-Up

Page 97 of 108
