DODGE JOURNEY 2012 1.G Owners Manual

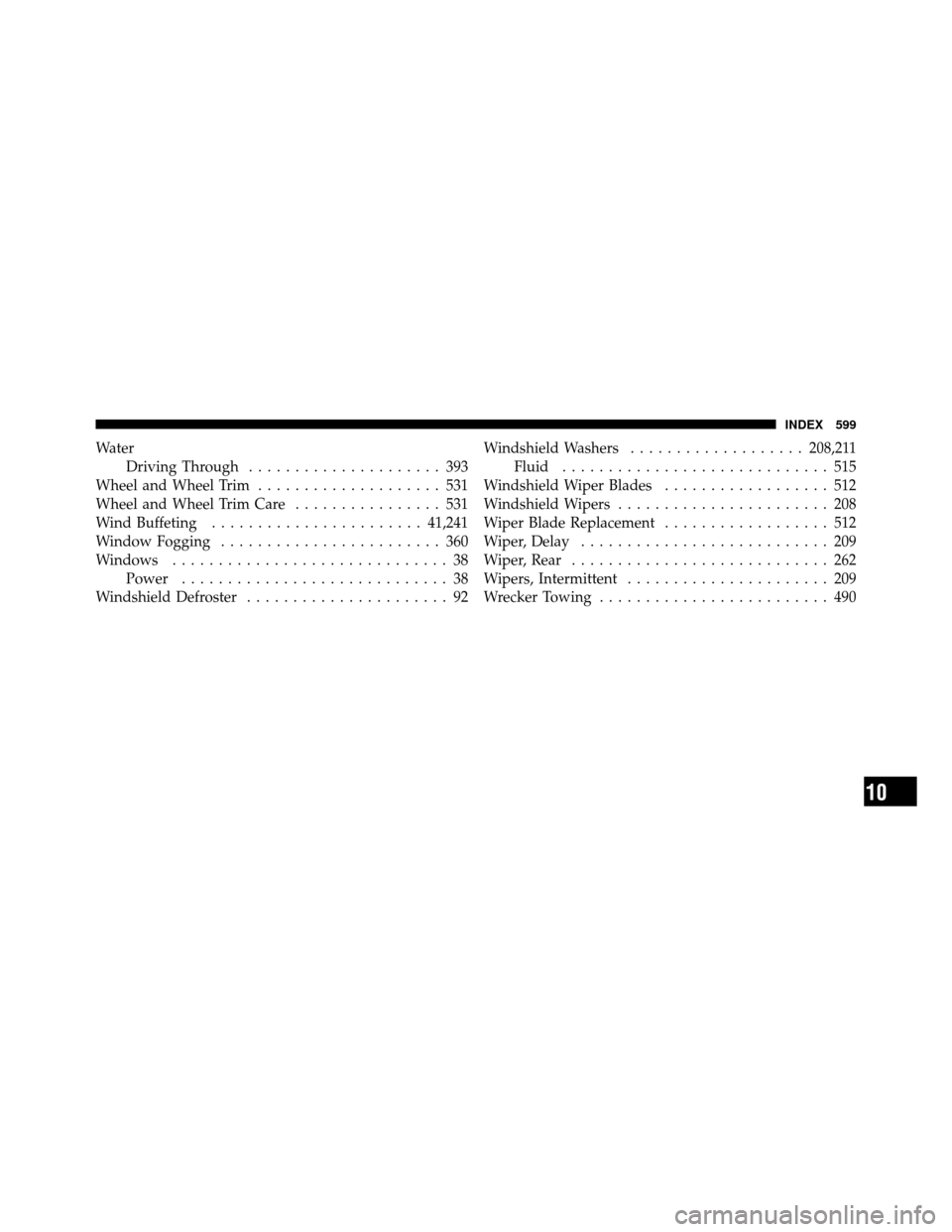

WaterDriving Through ..................... 393
Wheel and Wheel Trim .................... 531
Wheel and Wheel Trim Care ................ 531
Wind Buffeting ....................... 41,241
Window Fogging ........................ 360
Windows .............................. 38
Power ............................. 38
Windshield Defroster ...................... 92 Windshield Washers
................... 208,211
Fluid ............................. 515
Windshield Wiper Blades .................. 512
Windshield Wipers ....................... 208
Wiper Blade Replacement .................. 512
Wiper, Delay ........................... 209
Wiper, Rear ............................ 262
Wipers, Intermittent ...................... 209
Wrecker Towing ......................... 490
10
INDEX 599

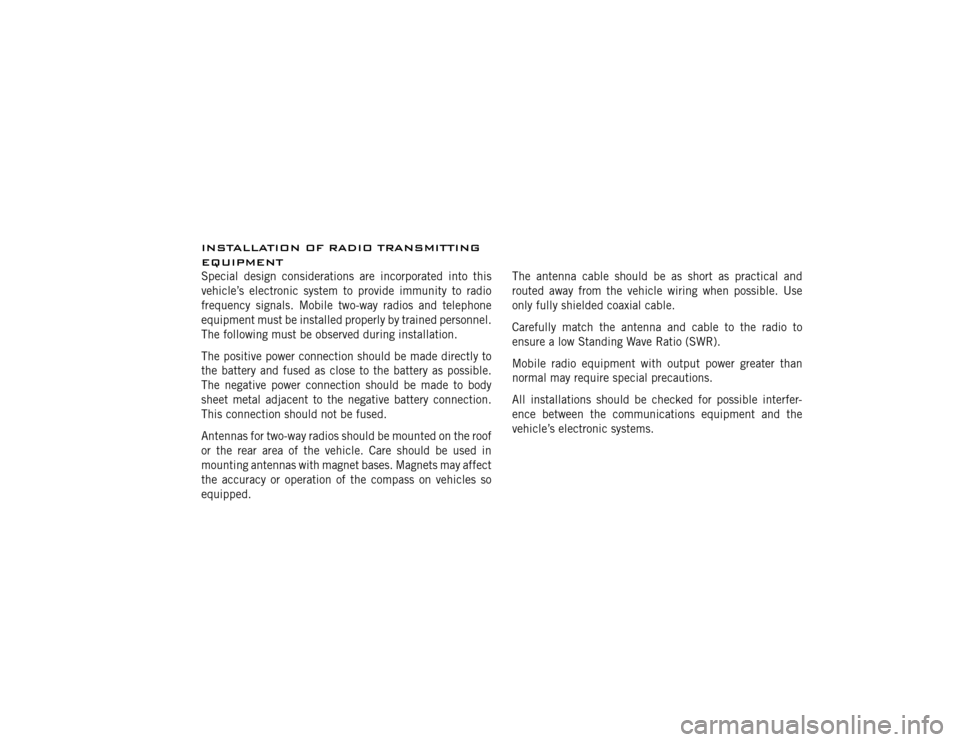

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENTSpecial design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained personnel.
The following must be observed during installation.
The positive power connection should be made directly to
the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the roof
or the rear area of the vehicle. Care should be used in
mounting antennas with magnet bases. Magnets may affect
the accuracy or operation of the compass on vehicles so
equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.

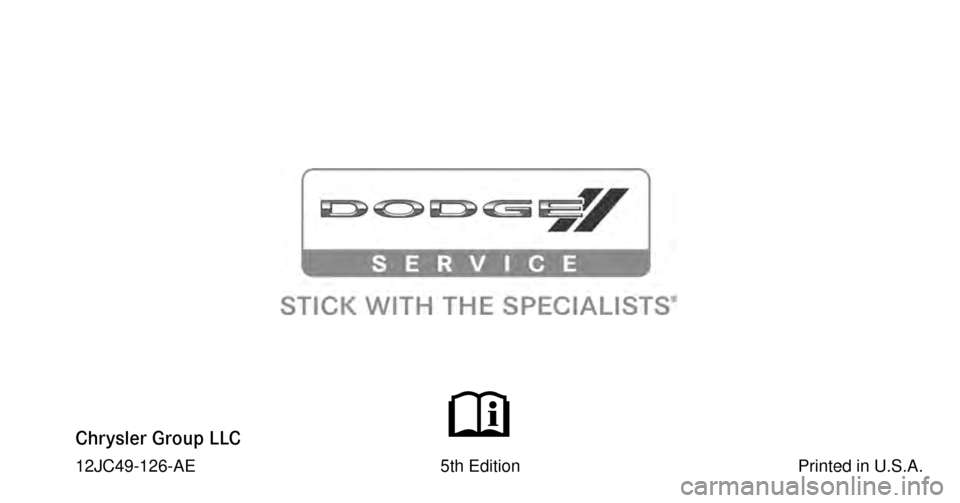

Chrysler Group LLC
12JC49-126-AE 5th Edition Printed in U.S.A.
