Page 29 of 603
•Remote Start Aborted — Hood Ajar
•Remote Start Aborted — Fuel Low
•Remote Start Aborted — L/Gate Ajar
•Remote Start Disabled — Start Vehicle To Reset
The EVIC message stays active until the ignition is cycled
to the ON/RUN position.
To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The vehicle doors will lock, the parking
lights will flash and the horn will chirp twice (if
programmed). Then, the engine will start and the vehicle
will remain in the Remote Start mode for a 15-minute
cycle. NOTE:
•If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition must be cycled to the RUN position before
you can repeat the start sequence for a third cycle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
Page 202 of 603

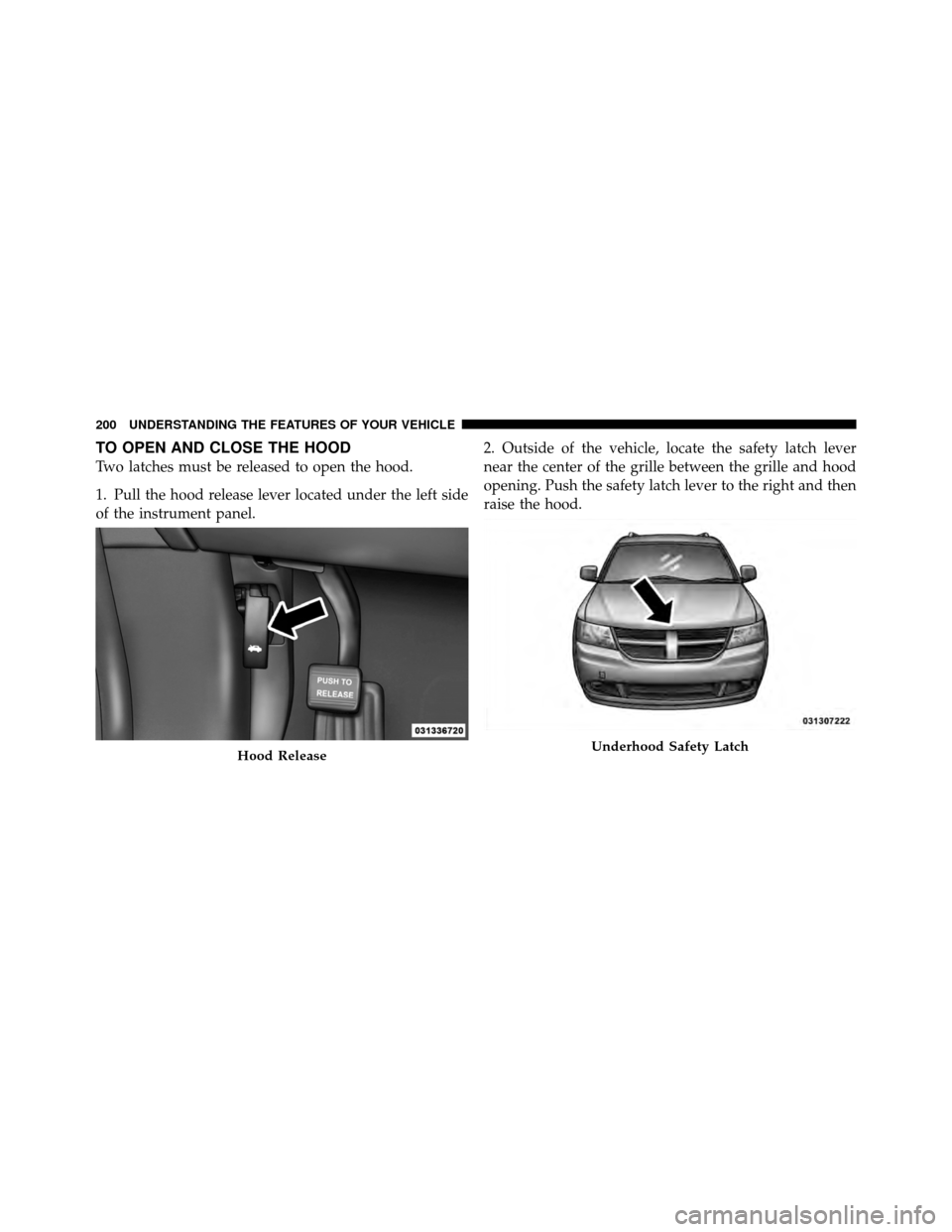

TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side
of the instrument panel.2. Outside of the vehicle, locate the safety latch lever
near the center of the grille between the grille and hood
opening. Push the safety latch lever to the right and then
raise the hood.
Hood ReleaseUnderhood Safety Latch
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 274 of 603
INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet6 — Switch Bank11 — Engine Start/Stop Button
2 — Air Outlet 7 — Uconnect Touch™ Hard Controls 12 — Hood Release Lever
3 — Instrument Cluster 8 — SD Memory Card Slot13 — Dimmer Controls
4 — Uconnect Touch™ System 9 — Power Outlet14 — Headlight Switch
5 — Glove Compartment 10 — CD/DVD Slot
272 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 514 of 603
CAUTION!
The A/C air filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to install the filter properly will result in the need to
replace it more often.
7. Reinstall the glove box door. Make sure that the hinges
are seated fully as you raise the door. Otherwise, the door
latch will not align properly.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPAR Spray White Lube or equivalent to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield and rear window periodically with a sponge
or soft cloth and a mild nonabrasive cleaner. This will
remove accumulations of salt, waxes, or road film, and
help reduce streaking and smearing.
512 MAINTAINING YOUR VEHICLE
Page 588 of 603
Gear Select Lever Override................. 488
General Information .........17,25,127,161,390,438
General Maintenance ..................... 502
Glass Cleaning .......................... 534
Gross Axle Weight Rating ...............450,452
Gross Vehicle Weight Rating .............450,451
GVWR ............................... 450
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ...................... 393
Hazard Warning Flasher ................... 469
Head Restraints ......................... 185
Headlights Automatic ......................... 202
Bulb Replacement .................... 542
Cleaning ........................... 533
Delay ............................. 203 High Beam
......................... 542
High Beam/Low Beam Select Switch ...... 206
Lights On Reminder .................. 204
On With Wipers ................... 203,212
Passing ............................ 206
Switch ............................ 202
Time Delay ......................... 203
Heated Mirrors ......................... 104
Heated Seats ........................... 179
Heater, Engine Block ..................... 372
High Beam/Low Beam Select (Dimmer) Switch . . 206
Hitches Trailer Towing ....................... 456
Holder, Coin ........................... 251
Holder, Cup ........................... 249
HomeLink® (Garage Door Opener) Transmitter . . 230
Hood Release .......................... 200
586 INDEX
Page 595 of 603
Rear Wiper/Washer...................... 262
Rearview Mirrors ........................ 101
Reclining Front Seats ..................... 183
Reclining Rear Seats ................... 194,197
Recorder, Event Data ...................... 75
Recreational Towing ...................... 465
Reformulated Gasoline .................... 439
Refrigerant ............................ 510
Release, Hood .......................... 200
Reminder, Lights On ..................... 204
Reminder, Seat Belt ....................... 59
Remote Control Starting System ....................... 25
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 342
Remote Starting System .................... 25
Replacement Bulbs ....................... 541
Replacement Keys ........................ 16
Replacement Parts ....................... 501 Replacement Tires
....................... 426
Reporting Safety Defects ................... 572
Resetting Oil Change Indicator ...........277,291
Restraint, Head ......................... 185
Restraints, Child ......................... 76
Restraints, Occupant ...................... 43
Retractable Cargo Area Cover ............... 260
Reverse Lights .......................... 544
Rocking Vehicle When Stuck ................ 487
Roof Rack (Luggage Rack) ................. 265
Rotation, Tires .......................... 430
Safety Checks Inside Vehicle ................. 92
Safety Checks Outside Vehicle ............... 94
Safety Defects, Reporting .................. 572
Safety Information, Tire ................... 408
Safety Tips ............................. 90
Safety, Exhaust Gas ..................... 43,91
Schedule, Maintenance .................... 552
10
INDEX 593
