DODGE JOURNEY 2013 1.G Owners Manual

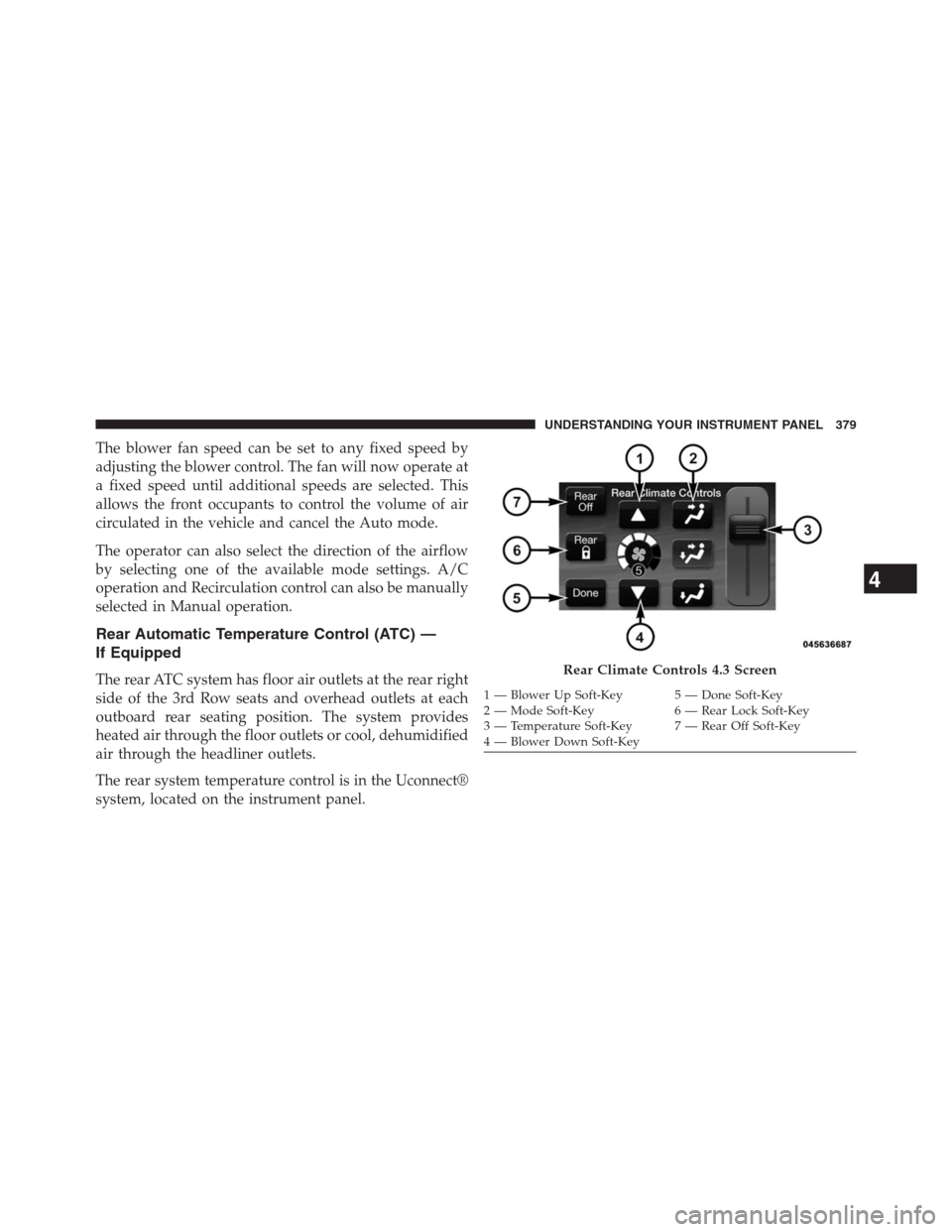

The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at
a fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode.
The operator can also select the direction of the airflow
by selecting one of the available mode settings. A/C
operation and Recirculation control can also be manually
selected in Manual operation.
Rear Automatic Temperature Control (ATC) —
If Equipped
The rear ATC system has floor air outlets at the rear right
side of the 3rd Row seats and overhead outlets at each
outboard rear seating position. The system provides
heated air through the floor outlets or cool, dehumidified
air through the headliner outlets.
The rear system temperature control is in the Uconnect®
system, located on the instrument panel.Rear Climate Controls 4.3 Screen
1 — Blower Up Soft-Key 5 — Done Soft-Key
2 — Mode Soft-Key 6 — Rear Lock Soft-Key
3 — Temperature Soft-Key 7 — Rear Off Soft-Key
4 — Blower Down Soft-Key
4
UNDERSTANDING YOUR INSTRUMENT PANEL 379

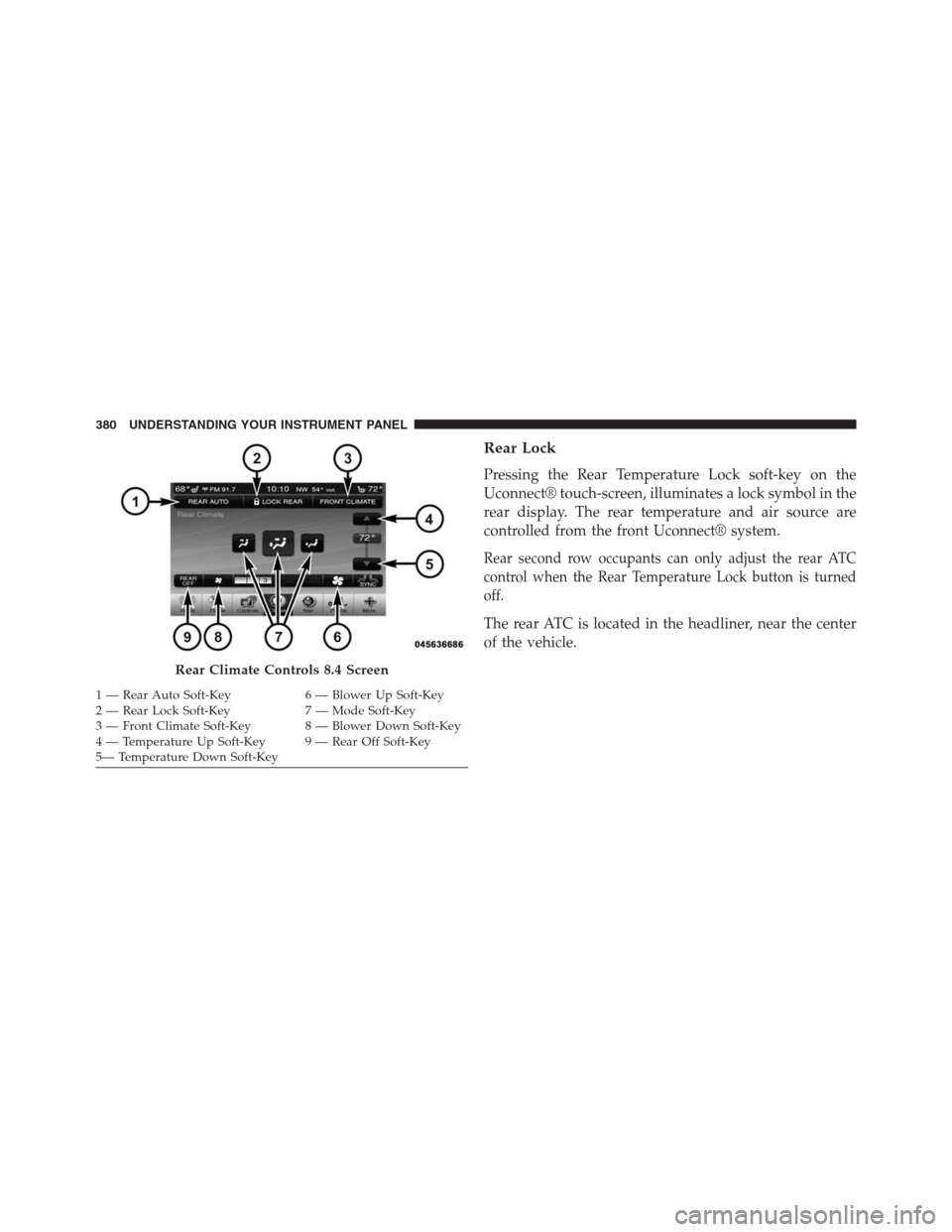

Rear Lock
Pressing the Rear Temperature Lock soft-key on the
Uconnect® touch-screen, illuminates a lock symbol in the
rear display. The rear temperature and air source are
controlled from the front Uconnect® system.
Rear second row occupants can only adjust the rear ATC
control when the Rear Temperature Lock button is turned
off.
The rear ATC is located in the headliner, near the center
of the vehicle.
Rear Climate Controls 8.4 Screen
1 — Rear Auto Soft-Key 6 — Blower Up Soft-Key
2 — Rear Lock Soft-Key 7 — Mode Soft-Key
3 — Front Climate Soft-Key 8 — Blower Down Soft-Key
4 — Temperature Up Soft-Key 9 — Rear Off Soft-Key
5— Temperature Down Soft-Key 380 UNDERSTANDING YOUR INSTRUMENT PANEL

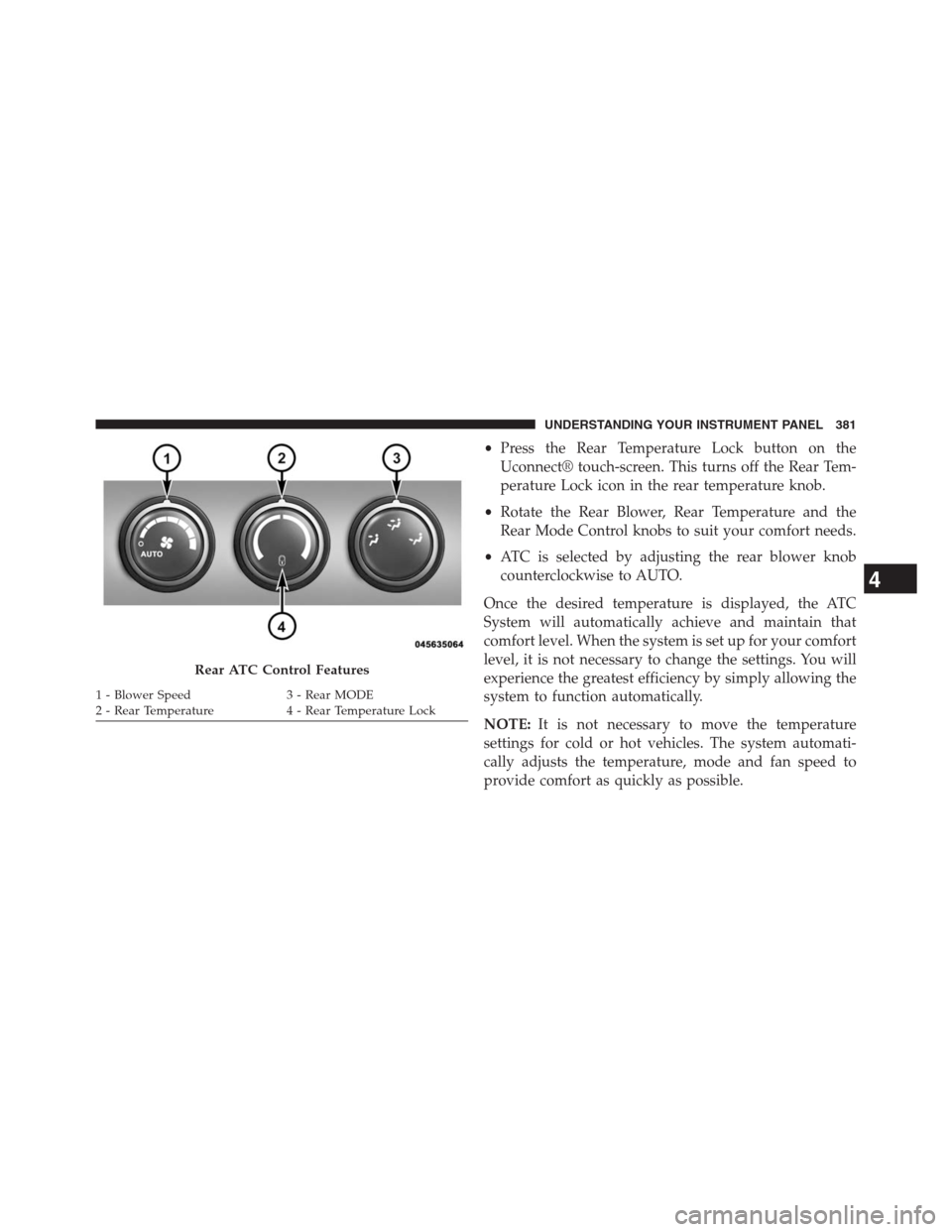

•Press the Rear Temperature Lock button on the
Uconnect® touch-screen. This turns off the Rear Tem-
perature Lock icon in the rear temperature knob.
•Rotate the Rear Blower, Rear Temperature and the
Rear Mode Control knobs to suit your comfort needs.
•ATC is selected by adjusting the rear blower knob
counterclockwise to AUTO.
Once the desired temperature is displayed, the ATC
System will automatically achieve and maintain that
comfort level. When the system is set up for your comfort
level, it is not necessary to change the settings. You will
experience the greatest efficiency by simply allowing the
system to function automatically.
NOTE:It is not necessary to move the temperature
settings for cold or hot vehicles. The system automati-
cally adjusts the temperature, mode and fan speed to
provide comfort as quickly as possible.
Rear ATC Control Features
1 - Blower Speed 3 - Rear MODE
2 - Rear Temperature 4 - Rear Temperature Lock
4
UNDERSTANDING YOUR INSTRUMENT PANEL 381

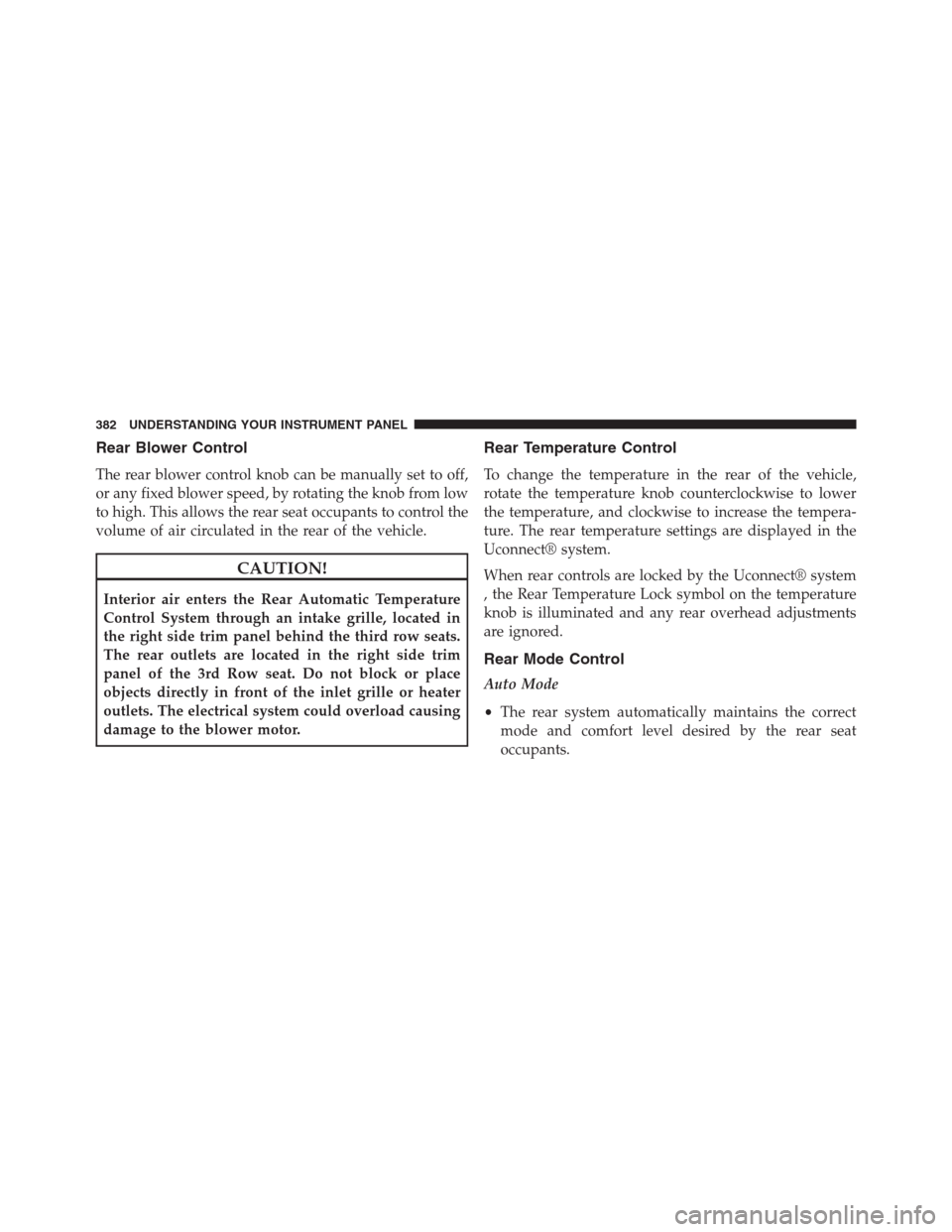

Rear Blower Control
The rear blower control knob can be manually set to off,
or any fixed blower speed, by rotating the knob from low
to high. This allows the rear seat occupants to control the
volume of air circulated in the rear of the vehicle.
CAUTION!
Interior air enters the Rear Automatic Temperature
Control System through an intake grille, located in
the right side trim panel behind the third row seats.
The rear outlets are located in the right side trim
panel of the 3rd Row seat. Do not block or place
objects directly in front of the inlet grille or heater
outlets. The electrical system could overload causing
damage to the blower motor.
Rear Temperature Control
To change the temperature in the rear of the vehicle,
rotate the temperature knob counterclockwise to lower
the temperature, and clockwise to increase the tempera-
ture. The rear temperature settings are displayed in the
Uconnect® system.
When rear controls are locked by the Uconnect® system
, the Rear Temperature Lock symbol on the temperature
knob is illuminated and any rear overhead adjustments
are ignored.
Rear Mode Control
Auto Mode
•The rear system automatically maintains the correct
mode and comfort level desired by the rear seat
occupants.
382 UNDERSTANDING YOUR INSTRUMENT PANEL

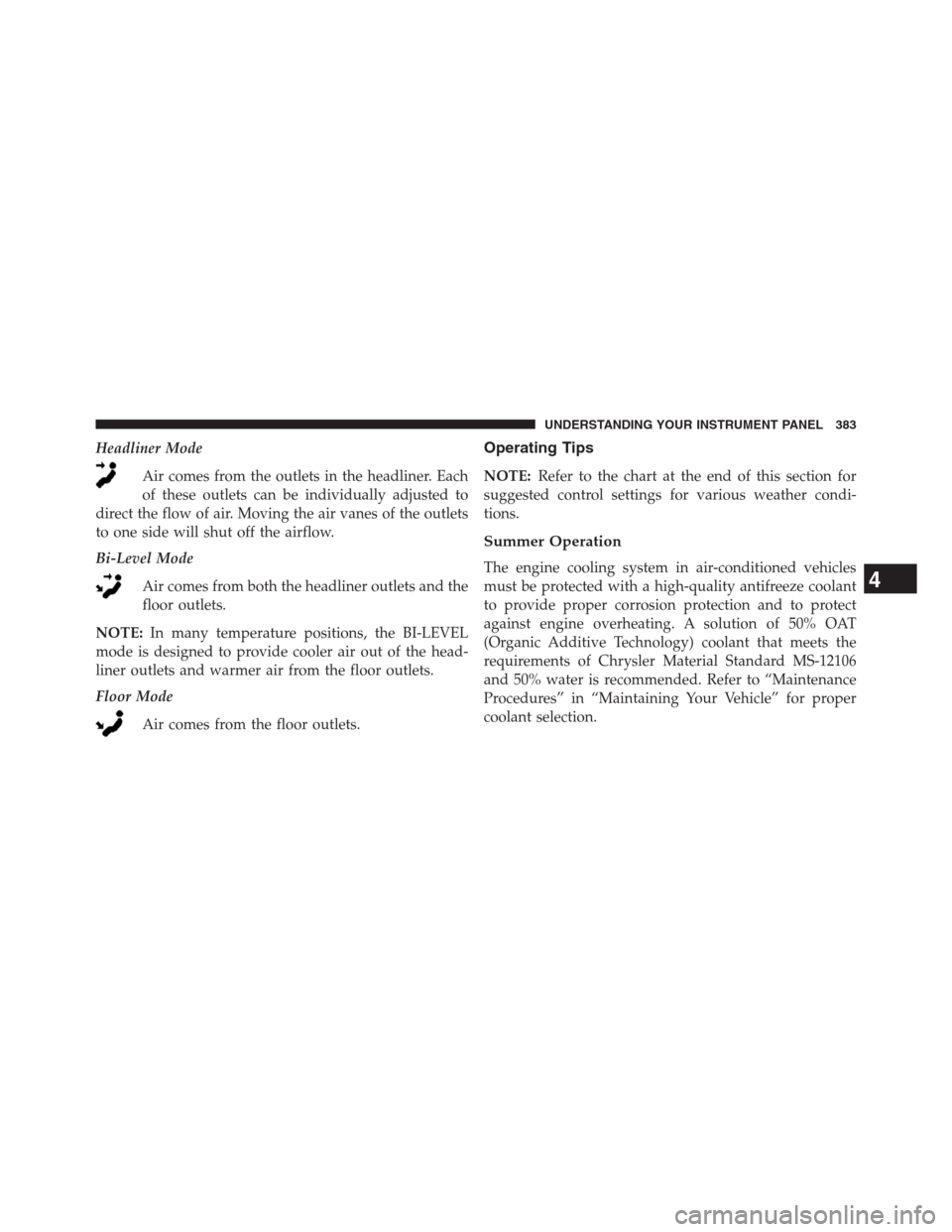

Headliner Mode
Air comes from the outlets in the headliner. Each
of these outlets can be individually adjusted to
direct the flow of air. Moving the air vanes of the outlets
to one side will shut off the airflow.
Bi-Level Mode
Air comes from both the headliner outlets and the
floor outlets.
NOTE:In many temperature positions, the BI-LEVEL
mode is designed to provide cooler air out of the head-
liner outlets and warmer air from the floor outlets.
Floor Mode
Air comes from the floor outlets.Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% OAT
(Organic Additive Technology) coolant that meets the
requirements of Chrysler Material Standard MS-12106
and 50% water is recommended. Refer to “Maintenance
Procedures” in “Maintaining Your Vehicle” for proper
coolant selection.4
UNDERSTANDING YOUR INSTRUMENT PANEL 383

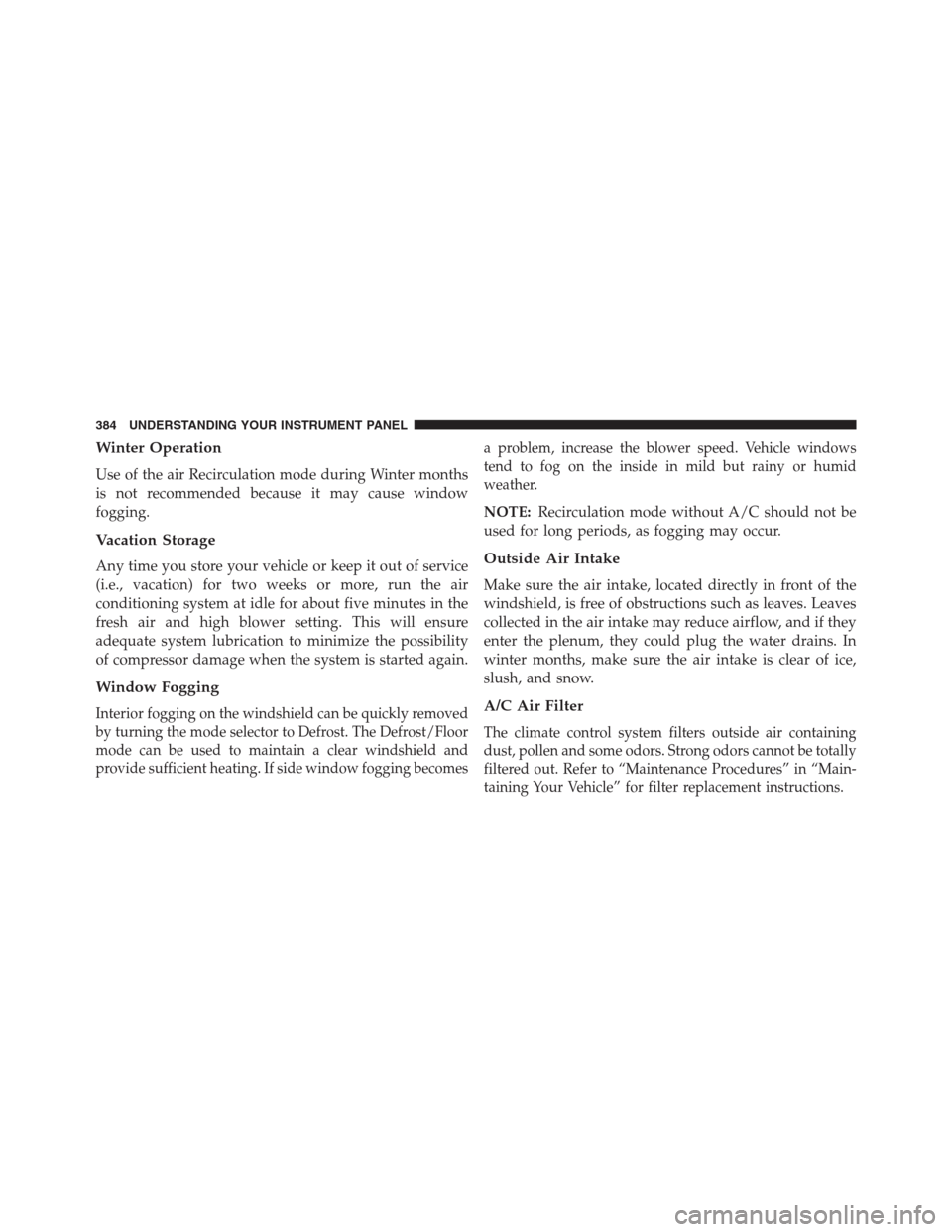

Winter Operation
Use of the air Recirculation mode during Winter months
is not recommended because it may cause window
fogging.
Vacation Storage
Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly removed
by turning the mode selector to Defrost. The Defrost/Floor
mode can be used to maintain a clear windshield and
provide sufficient heating. If side window fogging becomesa problem, increase the blower speed. Vehicle windows
tend to fog on the inside in mild but rainy or humid
weather.
NOTE:Recirculation mode without A/C should not be
used for long periods, as fogging may occur.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter
The climate control system filters outside air containing
dust, pollen and some odors. Strong odors cannot be totally
filtered out. Refer to “Maintenance Procedures” in “Main-
taining Your Vehicle” for filter replacement instructions.
384 UNDERSTANDING YOUR INSTRUMENT PANEL

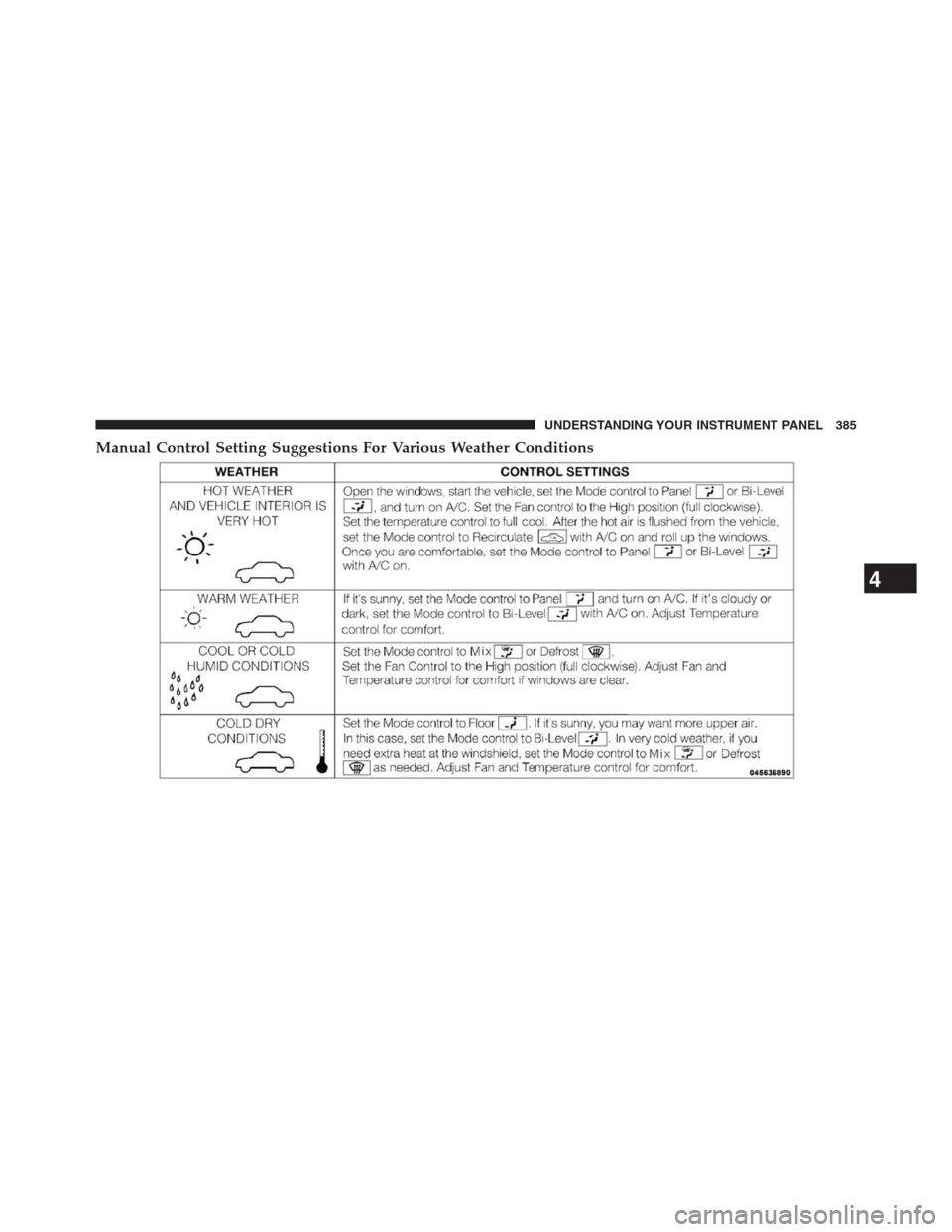

Manual Control Setting Suggestions For Various Weather Conditions
4
UNDERSTANDING YOUR INSTRUMENT PANEL 385

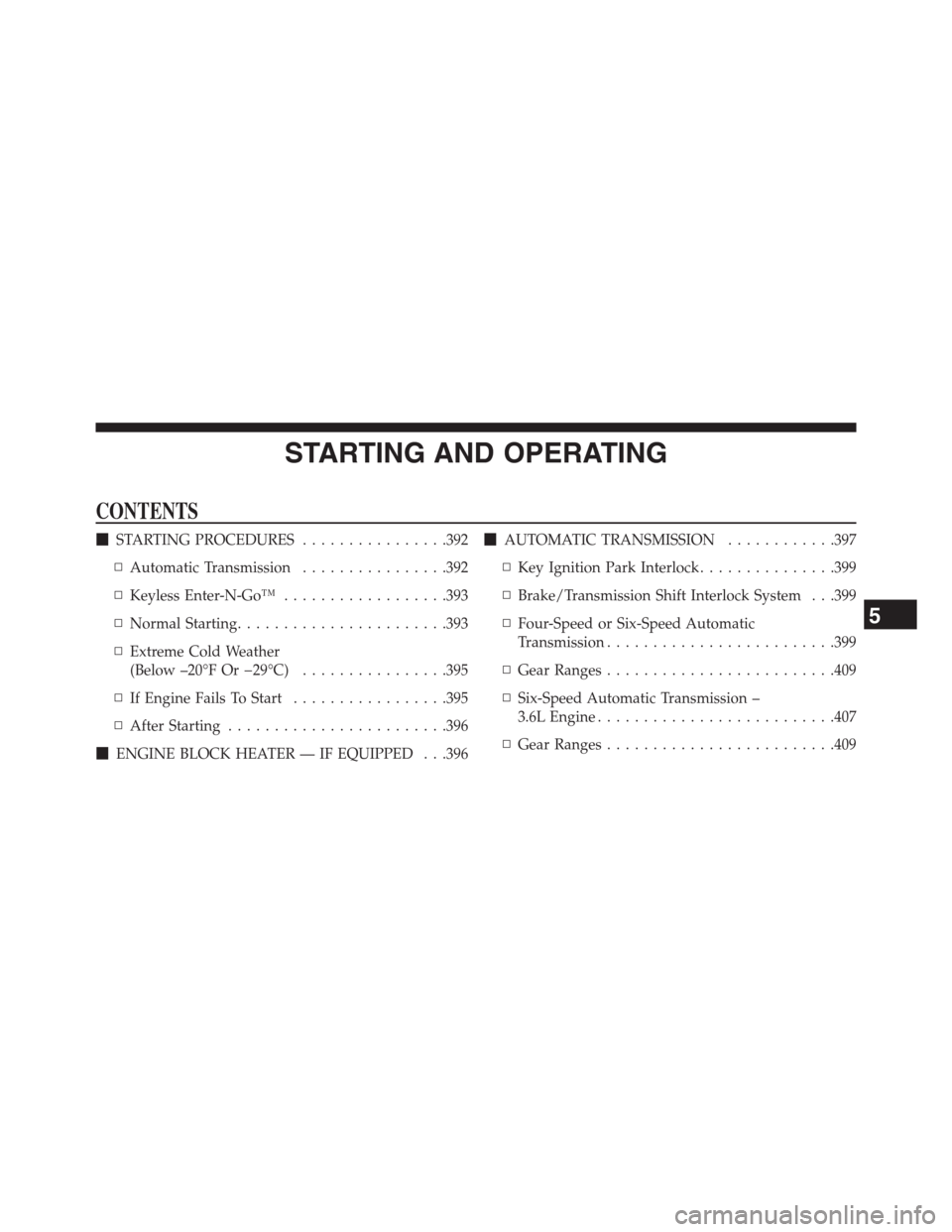

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES................392
▫Automatic Transmission................392
▫Keyless Enter-N-Go™..................393
▫Normal Starting.......................393
▫Extreme Cold Weather
(Below –20°F Or 29°C)................395
▫If Engine Fails To Start.................395
▫After Starting........................396
ENGINE BLOCK HEATER — IF EQUIPPED . . .396AUTOMATIC TRANSMISSION............397
▫Key Ignition Park Interlock...............399
▫Brake/Transmission Shift Interlock System . . .399
▫Four-Speed or Six-Speed Automatic
Transmission.........................399
▫Gear Ranges.........................409
▫Six-Speed Automatic Transmission –
3.6L Engine..........................407
▫Gear Ranges.........................409
5

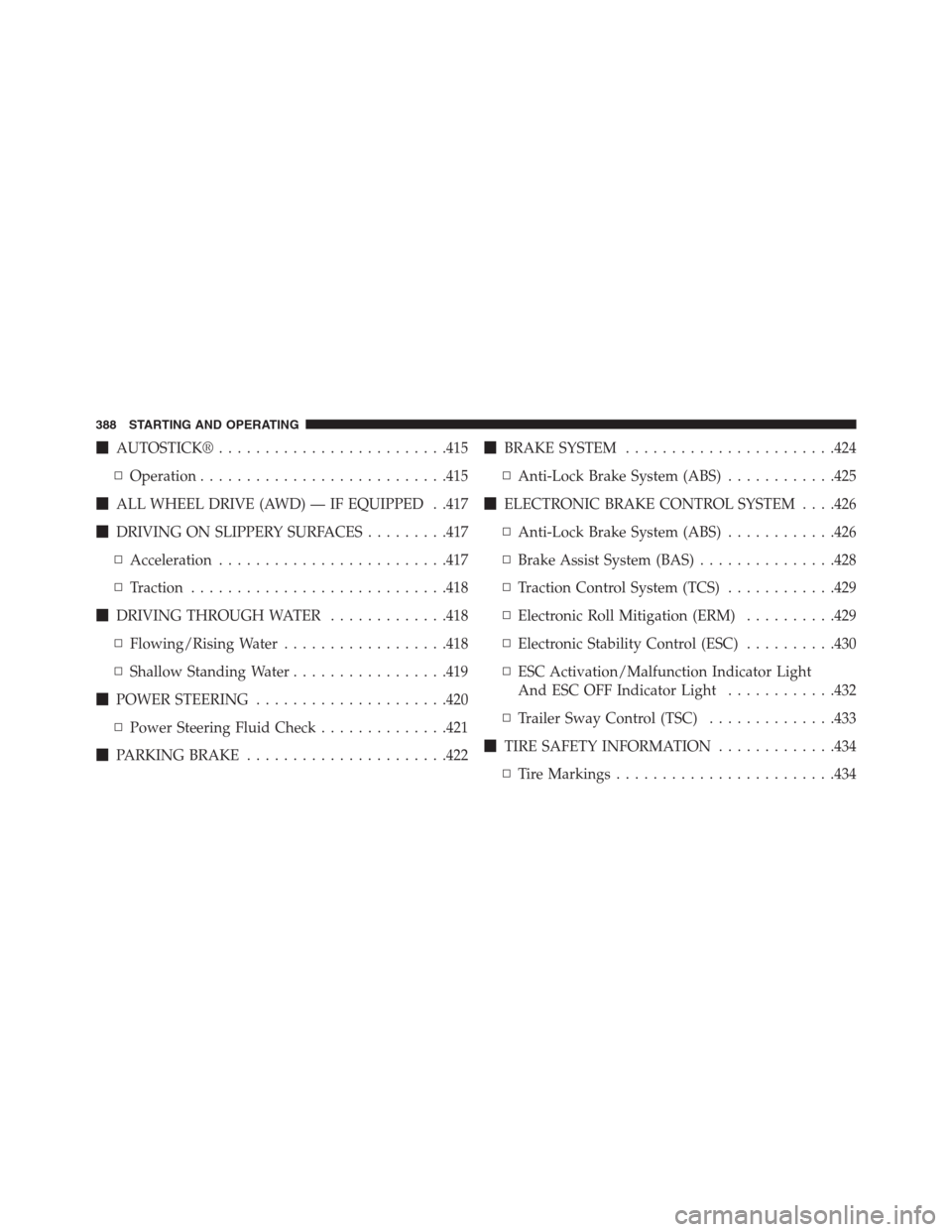

AUTOSTICK®.........................415
▫Operation...........................415
ALL WHEEL DRIVE (AWD) — IF EQUIPPED . .417
DRIVING ON SLIPPERY SURFACES.........417
▫Acceleration.........................417
▫Traction............................418
DRIVING THROUGH WATER.............418
▫Flowing/Rising Water..................418
▫Shallow Standing Water.................419
POWER STEERING.....................420
▫Power Steering Fluid Check..............421
PARKING BRAKE......................422BRAKE SYSTEM.......................424
▫Anti-Lock Brake System (ABS)............425
ELECTRONIC BRAKE CONTROL SYSTEM. . . .426
▫Anti-Lock Brake System (ABS)............426
▫Brake Assist System (BAS)...............428
▫Traction Control System (TCS)............429
▫Electronic Roll Mitigation (ERM)..........429
▫Electronic Stability Control (ESC)..........430
▫ESC Activation/Malfunction Indicator Light
And ESC OFF Indicator Light............432
▫Trailer Sway Control (TSC)..............433
TIRE SAFETY INFORMATION.............434
▫Tire Markings........................434
388 STARTING AND OPERATING
