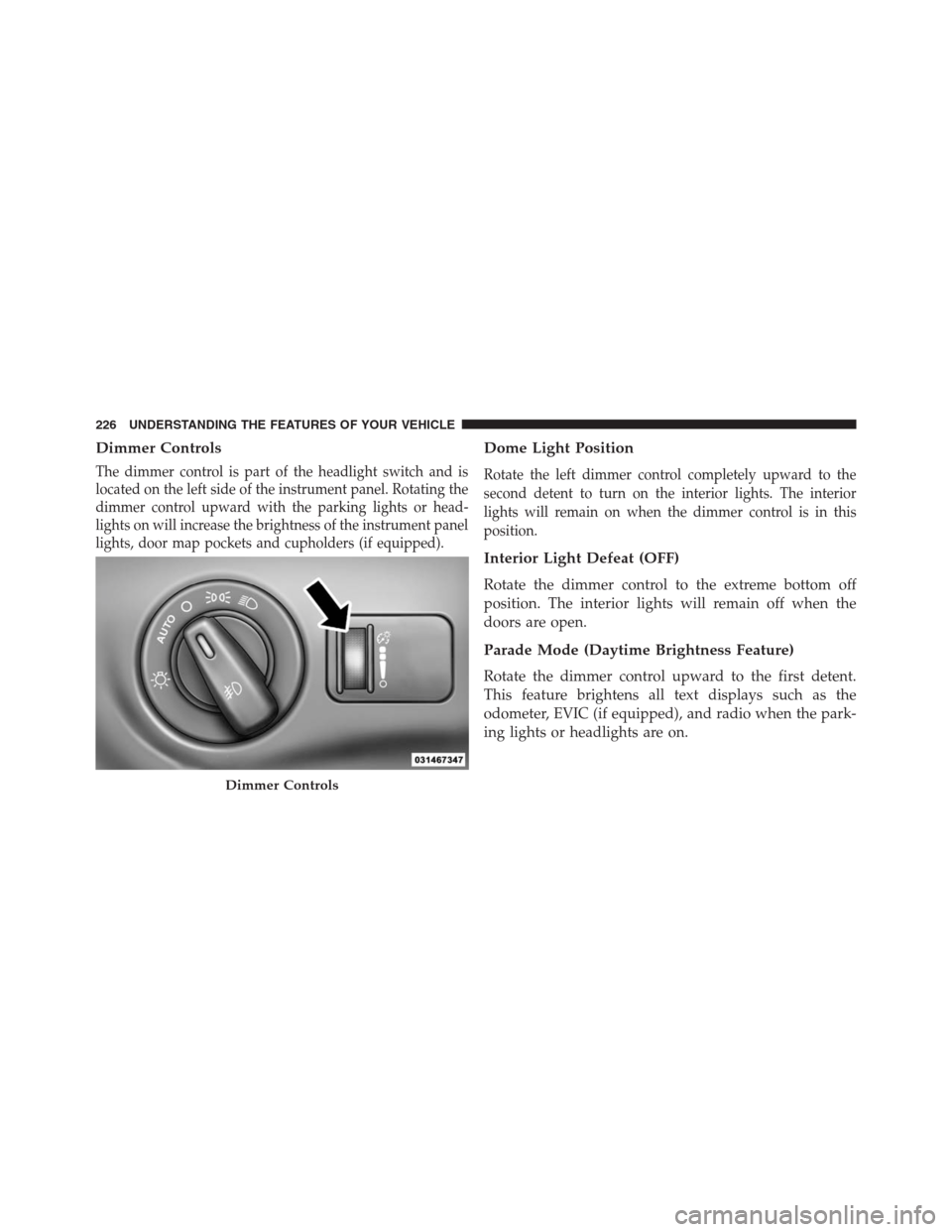

Dimmer Controls
The dimmer control is part of the headlight switch and is
located on the left side of the instrument panel. Rotating the
dimmer control upward with the parking lights or head-
lights on will increase the brightness of the instrument panel
lights, door map pockets and cupholders (if equipped).
Dome Light Position
Rotate the left dimmer control completely upward to the
second detent to turn on the interior lights. The interior
lights will remain on when the dimmer control is in this
position.
Interior Light Defeat (OFF)
Rotate the dimmer control to the extreme bottom off
position. The interior lights will remain off when the
doors are open.
Parade Mode (Daytime Brightness Feature)
Rotate the dimmer control upward to the first detent.
This feature brightens all text displays such as the
odometer, EVIC (if equipped), and radio when the park-
ing lights or headlights are on.
Dimmer Controls
226 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

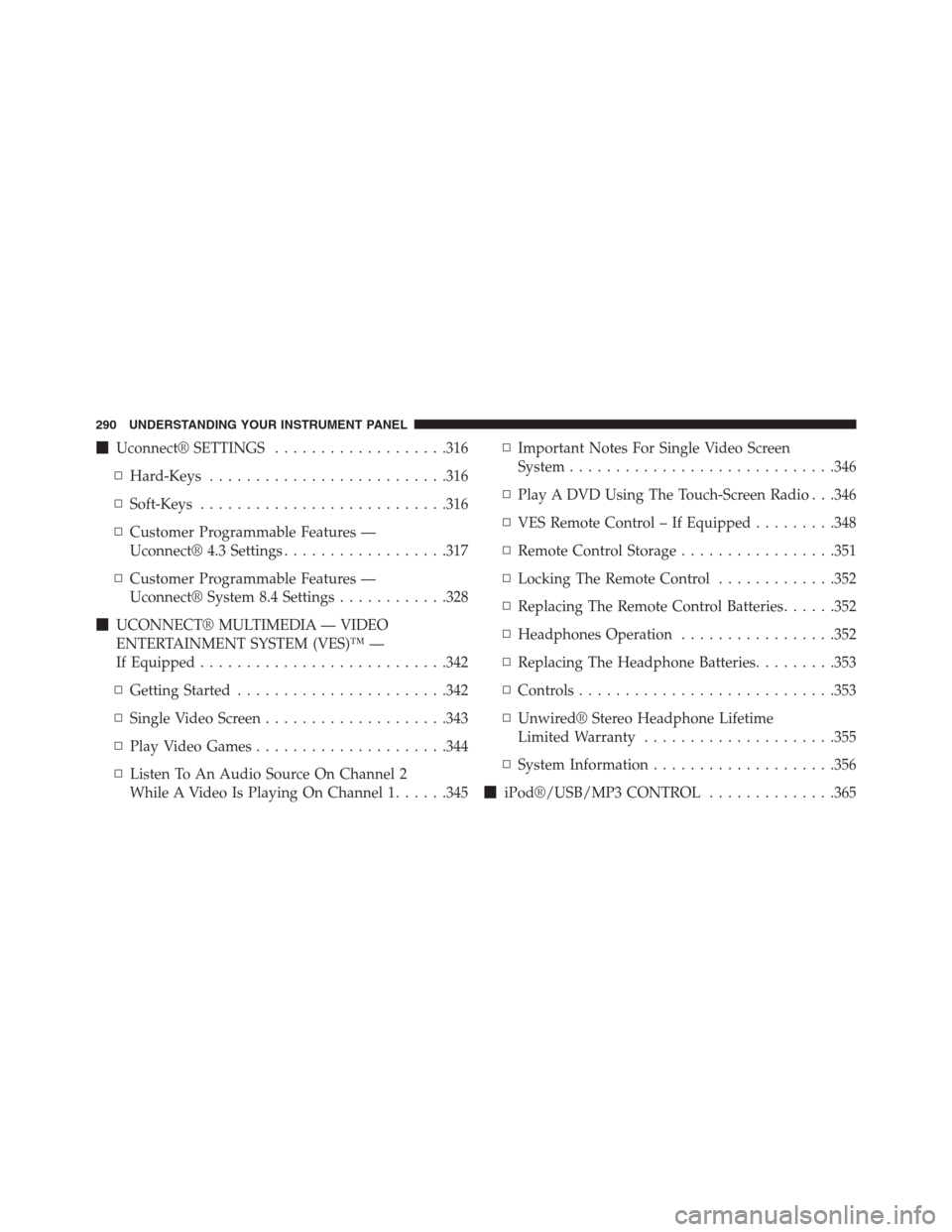

Uconnect® SETTINGS...................316
▫Hard-Keys..........................316
▫Soft-Keys...........................316
▫Customer Programmable Features —
Uconnect® 4.3 Settings..................317
▫Customer Programmable Features —
Uconnect® System 8.4 Settings............328
UCONNECT® MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES)™ —
If Equipped...........................342
▫Getting Started.......................342
▫Single Video Screen....................343
▫Play Video Games.....................344
▫Listen To An Audio Source On Channel 2
While A Video Is Playing On Channel 1......345▫Important Notes For Single Video Screen
System.............................346
▫Play A DVD Using The Touch-Screen Radio . . .346
▫VES Remote Control – If Equipped.........348
▫Remote Control Storage.................351
▫Locking The Remote Control.............352
▫Replacing The Remote Control Batteries......352
▫Headphones Operation.................352
▫Replacing The Headphone Batteries.........353
▫Controls............................353
▫Unwired® Stereo Headphone Lifetime
Limited Warranty.....................355
▫System Information....................356
iPod®/USB/MP3 CONTROL..............365
290 UNDERSTANDING YOUR INSTRUMENT PANEL

STEERING WHEEL AUDIO CONTROLS......366
▫Right-Hand Switch Functions.............366
▫Left-Hand Switch Functions For Radio
Operation...........................366
▫Left-Hand Switch Functions For
Media (i.e., CD) Operation...............367
CD/DVD DISC MAINTENANCE...........367
RADIO OPERATION AND MOBILE PHONES . .368
CLIMATE CONTROLS...................368
▫General Overview.....................368▫Climate Control Functions...............376
▫Automatic Temperature Control (ATC)......378
▫Rear Automatic Temperature
Control (ATC) — If Equipped............379
▫Rear Blower Control...................382
▫Rear Temperature Control...............382
▫Rear Mode Control....................382
▫Operating Tips.......................383
4
UNDERSTANDING YOUR INSTRUMENT PANEL 291

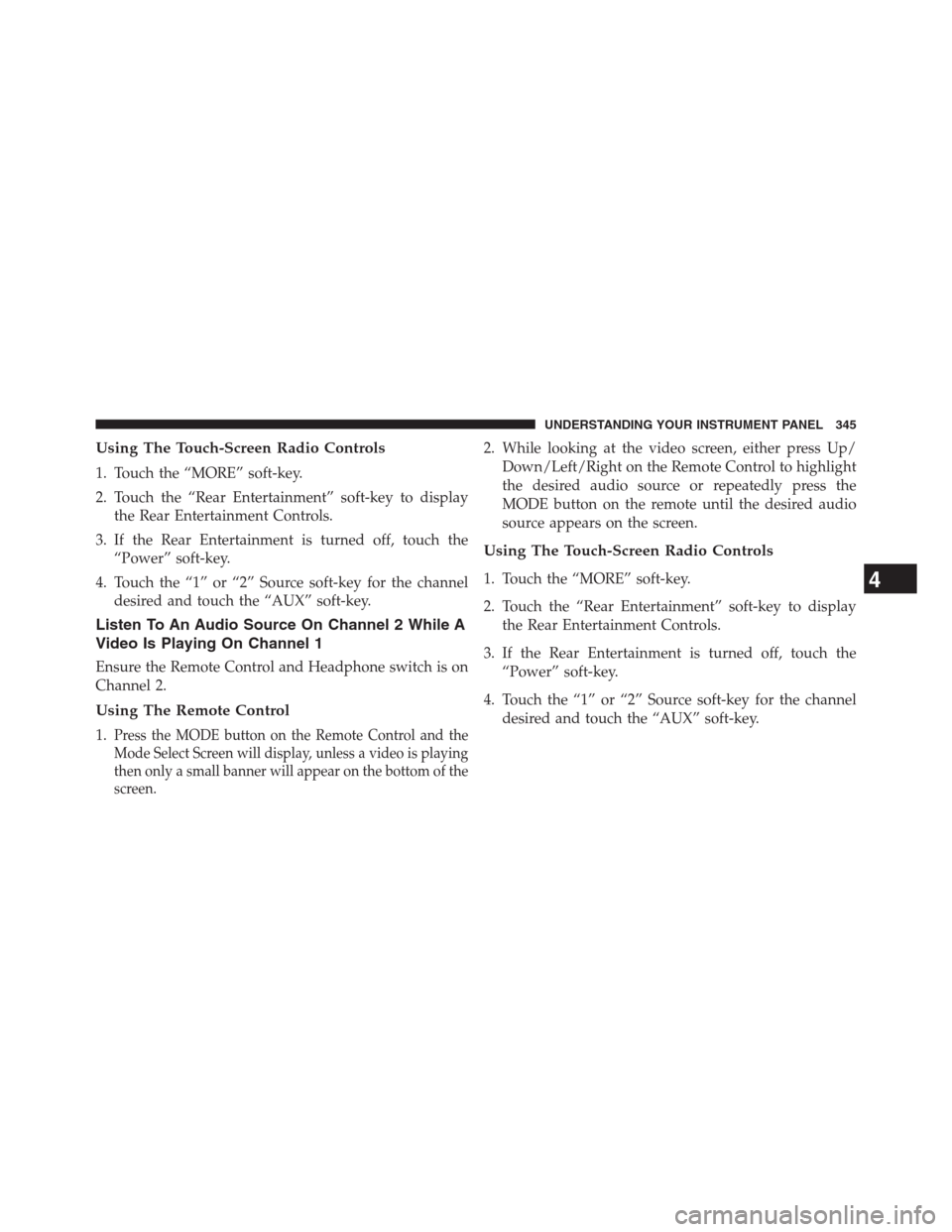

Using The Touch-Screen Radio Controls
1. Touch the “MORE” soft-key.
2. Touch the “Rear Entertainment” soft-key to display
the Rear Entertainment Controls.
3. If the Rear Entertainment is turned off, touch the
“Power” soft-key.
4. Touch the “1” or “2” Source soft-key for the channel
desired and touch the “AUX” soft-key.
Listen To An Audio Source On Channel 2 While A
Video Is Playing On Channel 1
Ensure the Remote Control and Headphone switch is on
Channel 2.
Using The Remote Control
1.Press the MODE button on the Remote Control and the
Mode Select Screen will display, unless a video is playing
then only a small banner will appear on the bottom of the
screen.
2. While looking at the video screen, either press Up/
Down/Left/Right on the Remote Control to highlight
the desired audio source or repeatedly press the
MODE button on the remote until the desired audio
source appears on the screen.
Using The Touch-Screen Radio Controls
1. Touch the “MORE” soft-key.
2. Touch the “Rear Entertainment” soft-key to display
the Rear Entertainment Controls.
3. If the Rear Entertainment is turned off, touch the
“Power” soft-key.
4. Touch the “1” or “2” Source soft-key for the channel
desired and touch the “AUX” soft-key.4
UNDERSTANDING YOUR INSTRUMENT PANEL 345

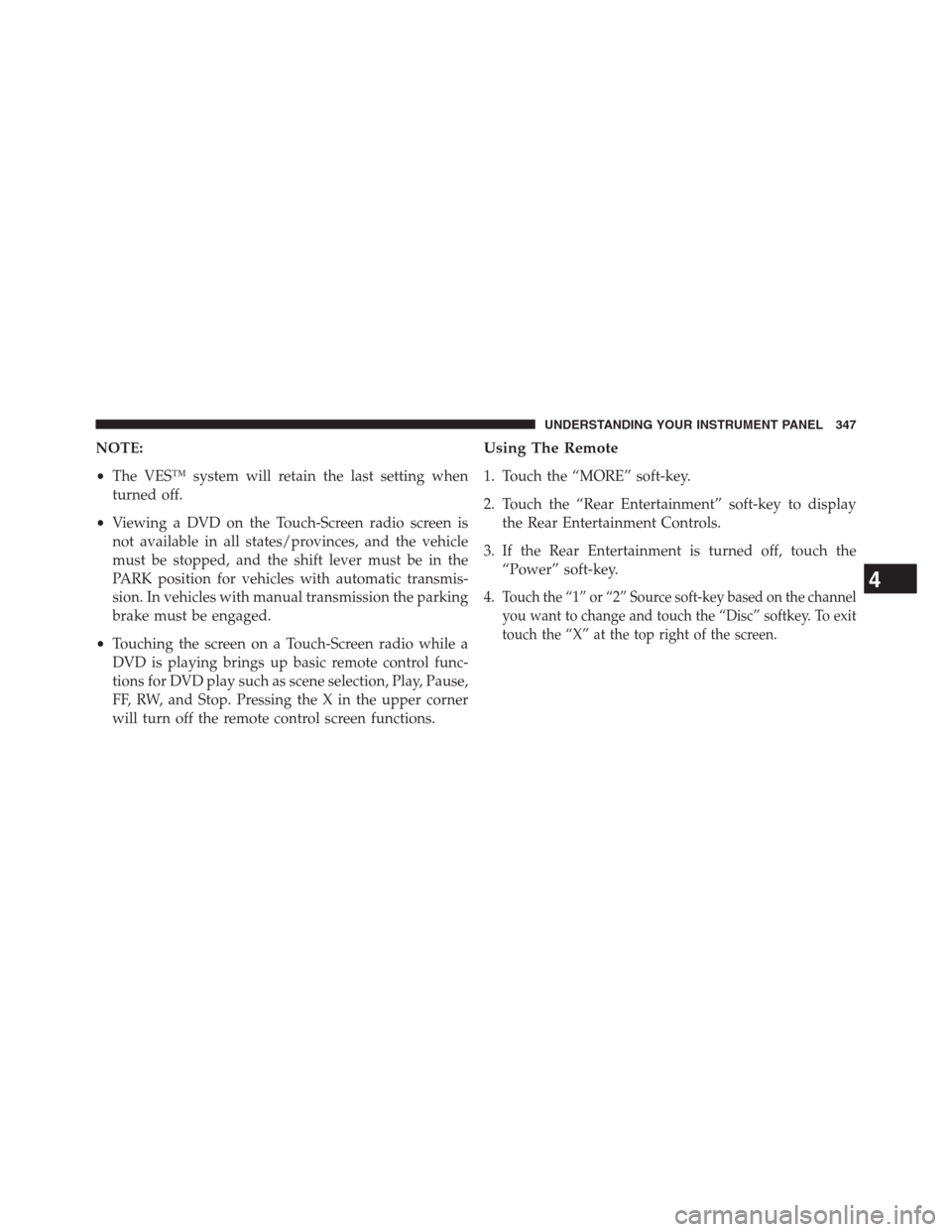

NOTE:
•The VES™ system will retain the last setting when
turned off.
•Viewing a DVD on the Touch-Screen radio screen is
not available in all states/provinces, and the vehicle
must be stopped, and the shift lever must be in the
PARK position for vehicles with automatic transmis-
sion. In vehicles with manual transmission the parking
brake must be engaged.
•Touching the screen on a Touch-Screen radio while a
DVD is playing brings up basic remote control func-
tions for DVD play such as scene selection, Play, Pause,
FF, RW, and Stop. Pressing the X in the upper corner
will turn off the remote control screen functions.Using The Remote
1. Touch the “MORE” soft-key.
2. Touch the “Rear Entertainment” soft-key to display
the Rear Entertainment Controls.
3. If the Rear Entertainment is turned off, touch the
“Power” soft-key.
4.
Touch the “1” or “2” Source soft-key based on the channel
you want to change and touch the “Disc” softkey. To exit
touch the “X” at the top right of the screen.4
UNDERSTANDING YOUR INSTRUMENT PANEL 347

NOTE:
•Viewing a DVD on the Touch-Screen radio screen is
not available in all states/provinces, and the vehicle
must be stopped, and the shift lever must be in the
PARK position for vehicles with automatic transmis-
sion. In vehicles with manual transmission the parking
brake must be engaged.
•Touching the screen on a Touch-Screen radio while a
DVD is playing full screen brings up basic control
functions for DVD play such as DVD Menu, Seek
Up/Down, Navigating through the menus, Exit. The
basic control functions screen will time out and disap-
pear from the screen.VES Remote Control – If Equipped
Controls And Indicators
1. Power – Turns the screen and wireless headphone
transmitter for the selected Channel on or off. To hear
audio while the screen is closed, press the Power
button to turn the headphone transmitter on.
Remote Control
348 UNDERSTANDING YOUR INSTRUMENT PANEL

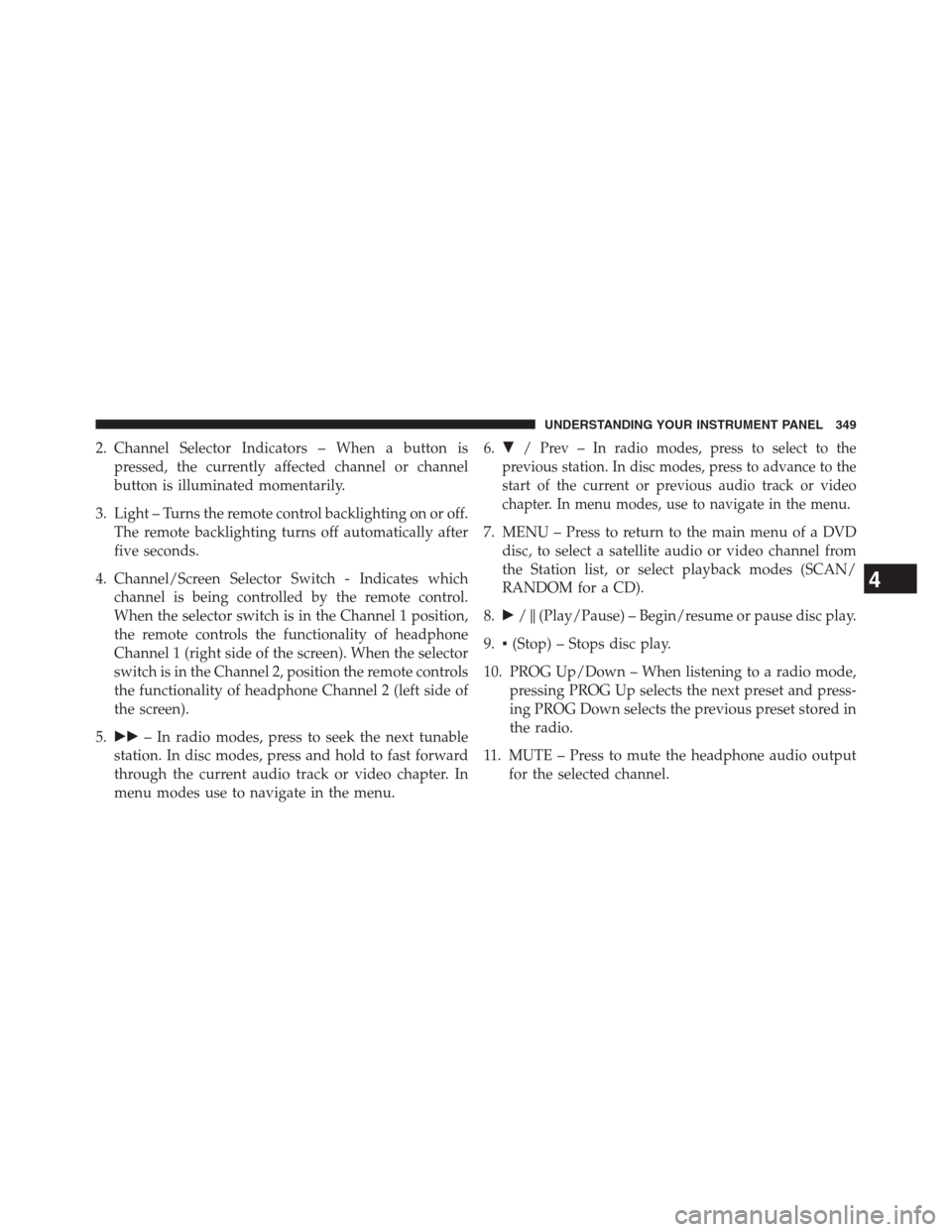

2. Channel Selector Indicators – When a button is
pressed, the currently affected channel or channel
button is illuminated momentarily.
3. Light – Turns the remote control backlighting on or off.
The remote backlighting turns off automatically after
five seconds.
4. Channel/Screen Selector Switch - Indicates which
channel is being controlled by the remote control.
When the selector switch is in the Channel 1 position,
the remote controls the functionality of headphone
Channel 1 (right side of the screen). When the selector
switch is in the Channel 2, position the remote controls
the functionality of headphone Channel 2 (left side of
the screen).
5.– In radio modes, press to seek the next tunable
station. In disc modes, press and hold to fast forward
through the current audio track or video chapter. In
menu modes use to navigate in the menu.6./Prev – In radio modes, press to select to the
previous station. In disc modes, press to advance to the
start of the current or previous audio track or video
chapter. In menu modes, use to navigate in the menu.
7. MENU – Press to return to the main menu of a DVD
disc, to select a satellite audio or video channel from
the Station list, or select playback modes (SCAN/
RANDOM for a CD).
8./(Play/Pause) – Begin/resume or pause disc play.
9.▪(Stop) – Stops disc play.
10. PROG Up/Down – When listening to a radio mode,
pressing PROG Up selects the next preset and press-
ing PROG Down selects the previous preset stored in
the radio.
11. MUTE – Press to mute the headphone audio output
for the selected channel.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 349

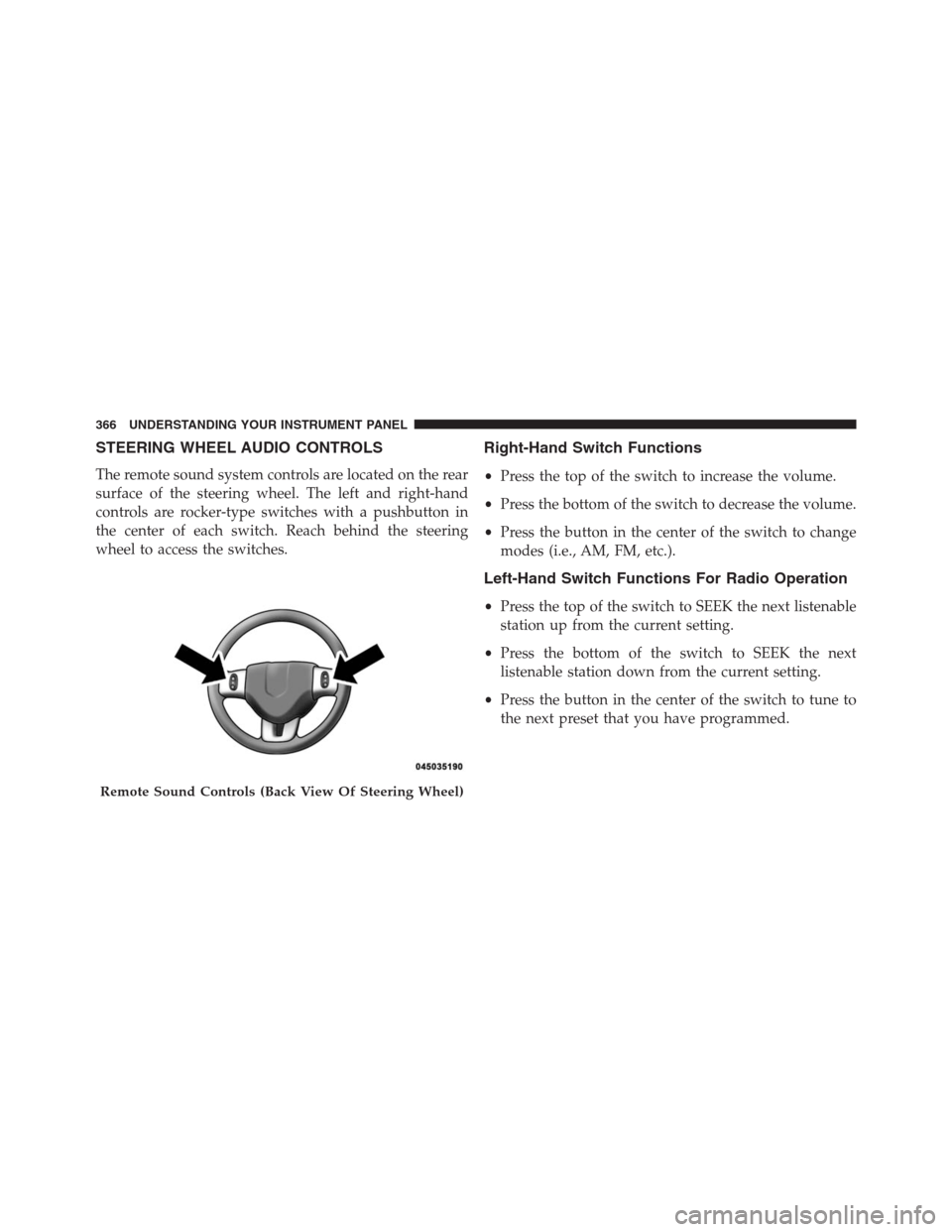

STEERING WHEEL AUDIO CONTROLS
The remote sound system controls are located on the rear
surface of the steering wheel. The left and right-hand
controls are rocker-type switches with a pushbutton in
the center of each switch. Reach behind the steering
wheel to access the switches.
Right-Hand Switch Functions
•Press the top of the switch to increase the volume.
•Press the bottom of the switch to decrease the volume.
•Press the button in the center of the switch to change
modes (i.e., AM, FM, etc.).
Left-Hand Switch Functions For Radio Operation
•Press the top of the switch to SEEK the next listenable
station up from the current setting.
•Press the bottom of the switch to SEEK the next
listenable station down from the current setting.
•Press the button in the center of the switch to tune to
the next preset that you have programmed.
Remote Sound Controls (Back View Of Steering Wheel)
366 UNDERSTANDING YOUR INSTRUMENT PANEL

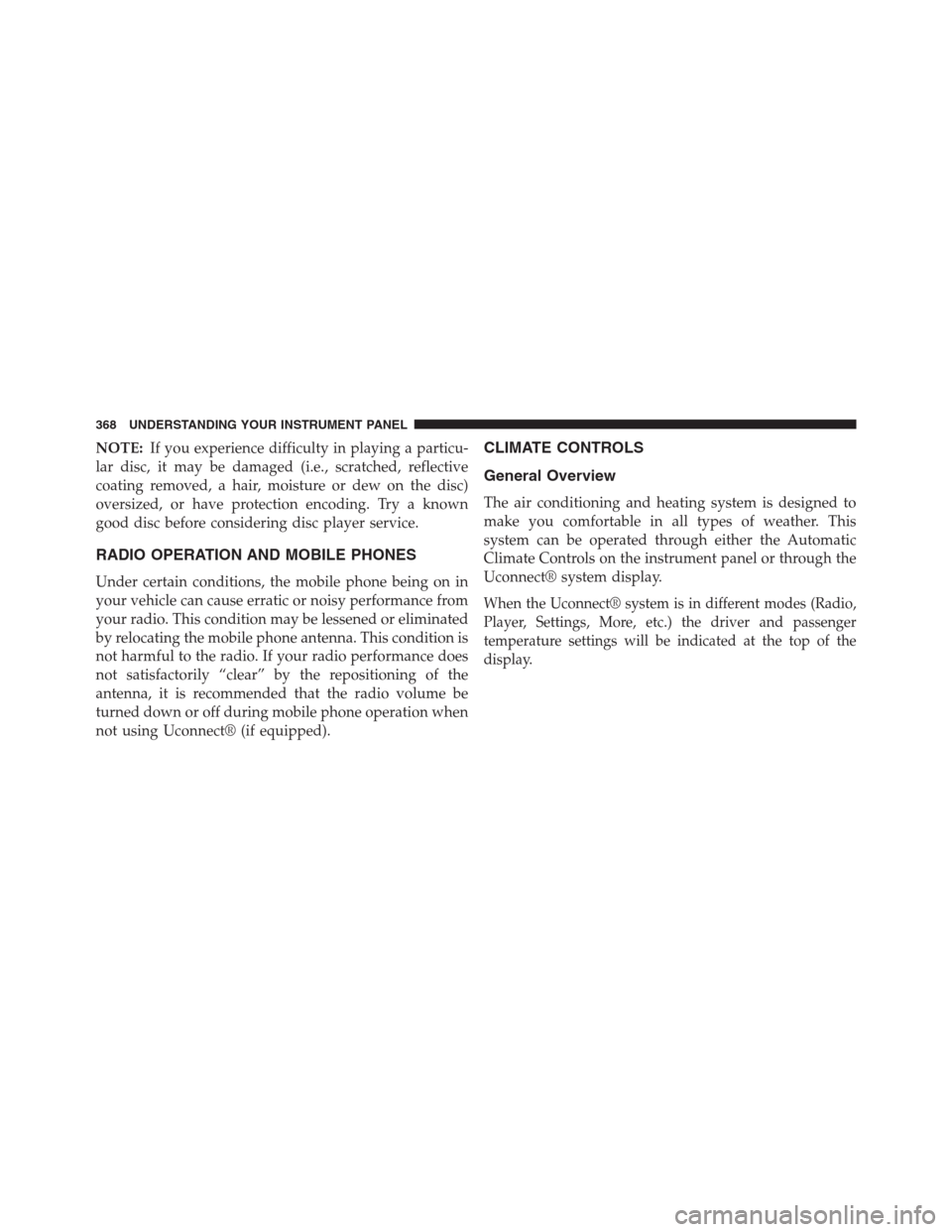

NOTE:If you experience difficulty in playing a particu-
lar disc, it may be damaged (i.e., scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have protection encoding. Try a known
good disc before considering disc player service.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile phone operation when
not using Uconnect® (if equipped).
CLIMATE CONTROLS
General Overview
The air conditioning and heating system is designed to
make you comfortable in all types of weather. This
system can be operated through either the Automatic
Climate Controls on the instrument panel or through the
Uconnect® system display.
When the Uconnect® system is in different modes (Radio,
Player, Settings, More, etc.) the driver and passenger
temperature settings will be indicated at the top of the
display.
368 UNDERSTANDING YOUR INSTRUMENT PANEL

Radio Remote Controls.....................366
Rear Air Conditioning......................379
Rear Axle (Differential).....................558
Rear Camera............................245
Rear Cupholder..........................269
Rear Drive Assembly.......................558
Rear Liftgate.............................44
Rear Park Sense System.....................237
Rear Seat, Folding.........................209
Rear Window Defroster.....................285
Rear Window Features.....................283
Rear Wiper/Washer........................283
Reclining Front Seats.......................202
Reclining Rear Seats.......................212
Recorder, Event Data.......................77
Recreational Towing.......................496
Reformulated Gasoline.....................469
Refrigerant..............................538
Release, Hood............................218Reminder, Lights On.......................222
Reminder, Seat Belt.........................61
Remote Control
Starting System.........................26
Remote Keyless Entry (RKE)..................22
Remote Sound System (Radio) Controls.........366
Remote Starting System......................26
Replacement Bulbs........................572
Replacement Keys.........................17
Replacement Parts.........................529
Replacement Tires.........................455
Reporting Safety Defects....................599
Resetting Oil Change Indicator................297
Restraint, Head...........................205
Restraints, Child...........................79
Restraints, Occupant........................45
Retractable Cargo Area Cover................280
Reverse Lights...........................576
Rocking Vehicle When Stuck
.................517
620 INDEX
