wiper fluid DODGE JOURNEY 2015 1.G Owners Manual

WARNING!(Continued)
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
Push the washer knob, located on the end of the multi-
function lever, inward to the first detent to activate a
single wipe cycle to clear the windshield of road mist or
spray from a passing vehicle. The wipers will continue to
operate until you release the lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Headlights On With Wipers (Available With
Automatic Headlights Only)
When this feature is active, the headlights will turn on
after the wipers are turned on if the headlight switch is
placed in the AUTO position and programmable feature
is set to ON. In addition, the headlights will turn off
when the wipers are turned off if they were turned on by
this feature.
NOTE:The Headlights On with Wipers feature can be
turned on or off using the Uconnect® System. Refer to
“Uconnect® Settings/Customer Programmable Fea-
tures” in “Understanding Your Instrument Panel” for
further information.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 233

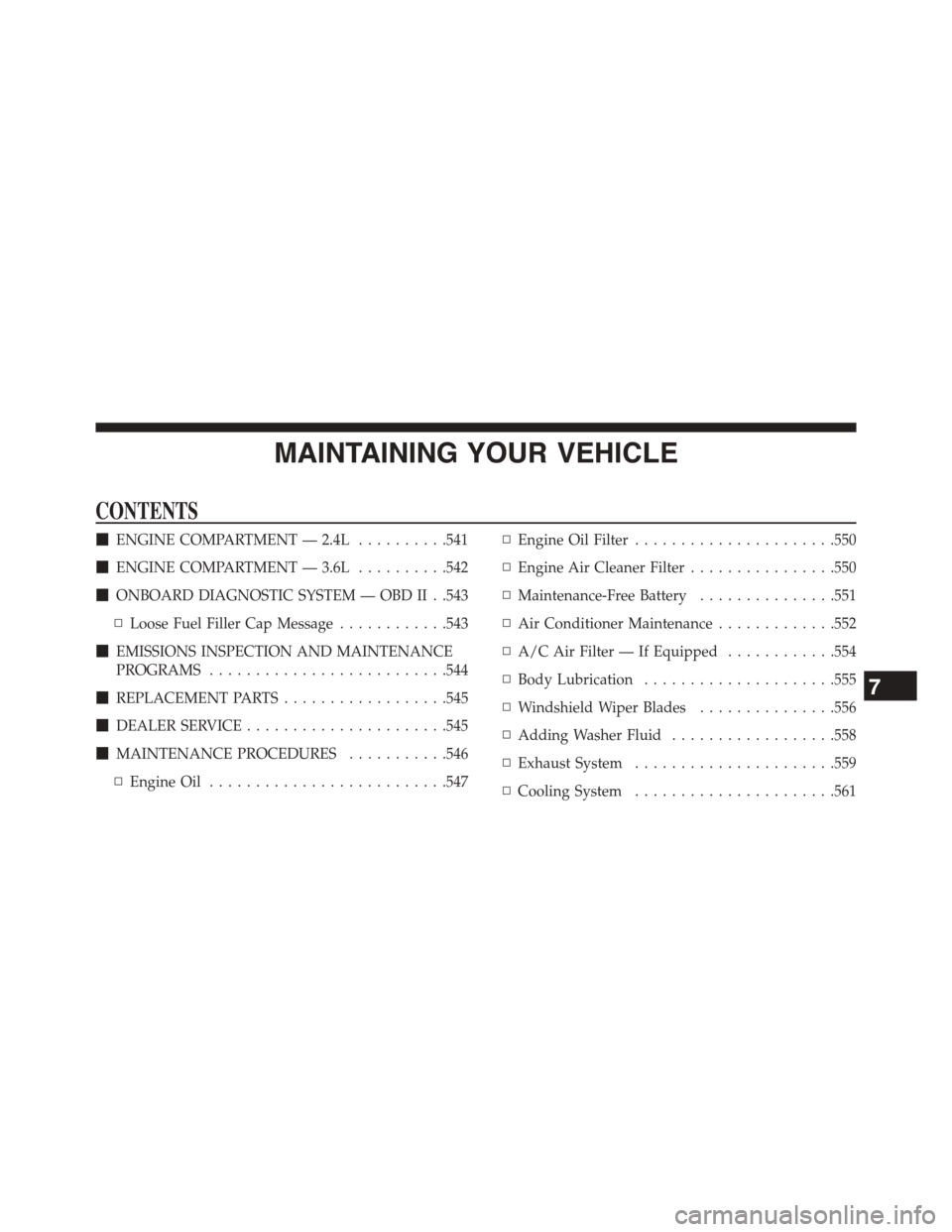

MAINTAINING YOUR VEHICLE
CONTENTS
!ENGINE COMPARTMENT — 2.4L..........541
!ENGINE COMPARTMENT — 3.6L..........542
!ONBOARD DIAGNOSTIC SYSTEM — OBD II . .543
▫Loose Fuel Filler Cap Message............543
!EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS..........................544
!REPLACEMENT PARTS..................545
!DEALER SERVICE......................545
!MAINTENANCE PROCEDURES...........546
▫Engine Oil..........................547
▫Engine Oil Filter......................550
▫Engine Air Cleaner Filter................550
▫Maintenance-Free Battery...............551
▫Air Conditioner Maintenance.............552
▫A/C Air Filter — If Equipped............554
▫Body Lubrication.....................555
▫Windshield Wiper Blades...............556
▫Adding Washer Fluid..................558
▫Exhaust System......................559
▫Cooling System......................561
7

operation and to protect against rust and wear. Prior to
the application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit; after
lubricating excess oil and grease should be removed.
Particular attention should also be given to hood latching
components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR®
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Rear Wiper Blade Removal/Installation
1. Lift the pivot cap on the rear wiper arm upward, this
will allow the rear wiper blade to be raised off of the
liftgate glass.
556 MAINTAINING YOUR VEHICLE

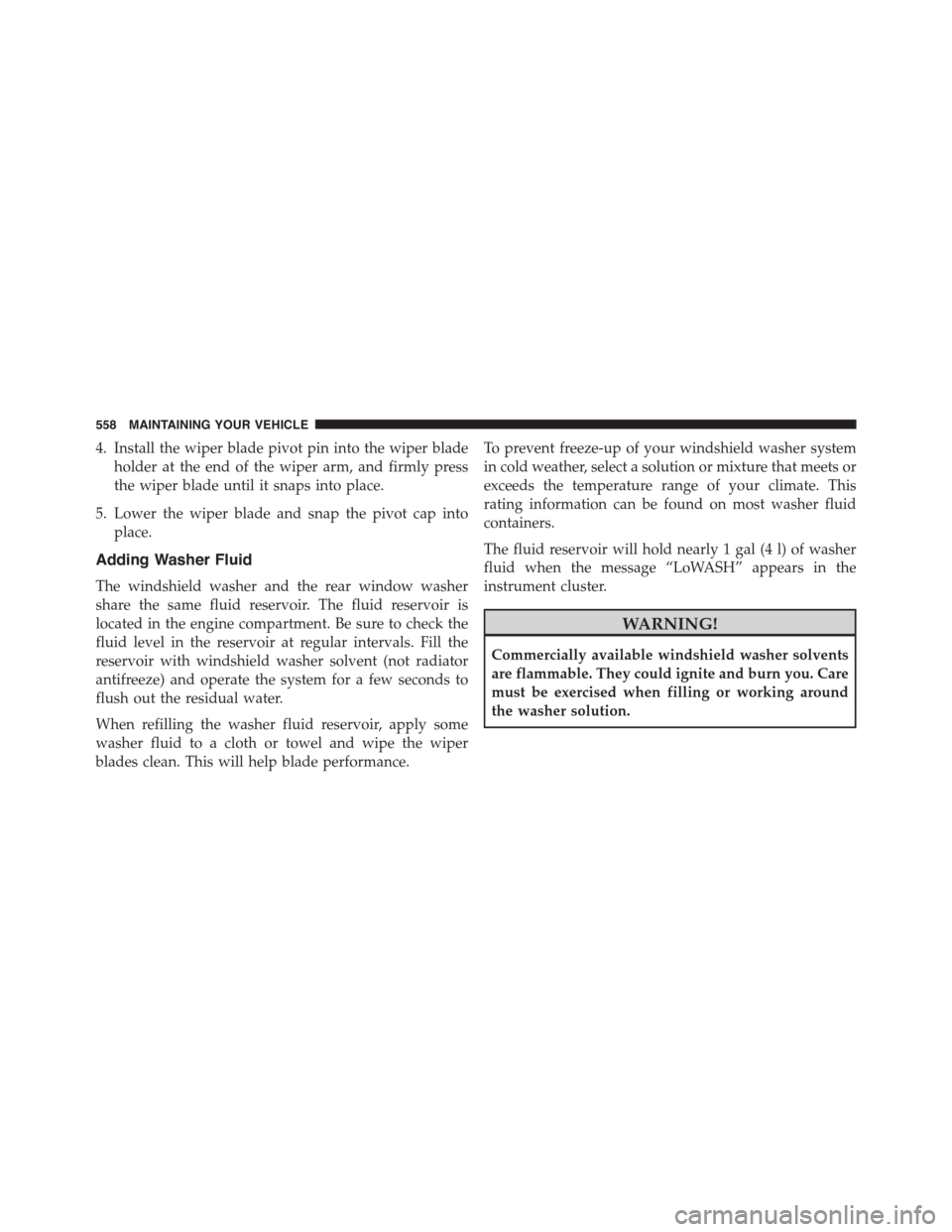

4. Install the wiper blade pivot pin into the wiper blade
holder at the end of the wiper arm, and firmly press
the wiper blade until it snaps into place.
5. Lower the wiper blade and snap the pivot cap into
place.
Adding Washer Fluid
The windshield washer and the rear window washer
share the same fluid reservoir. The fluid reservoir is
located in the engine compartment. Be sure to check the
fluid level in the reservoir at regular intervals. Fill the
reservoir with windshield washer solvent (not radiator
antifreeze) and operate the system for a few seconds to
flush out the residual water.
When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper
blades clean. This will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
The fluid reservoir will hold nearly 1 gal (4 l) of washer
fluid when the message “LoWASH” appears in the
instrument cluster.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
558 MAINTAINING YOUR VEHICLE

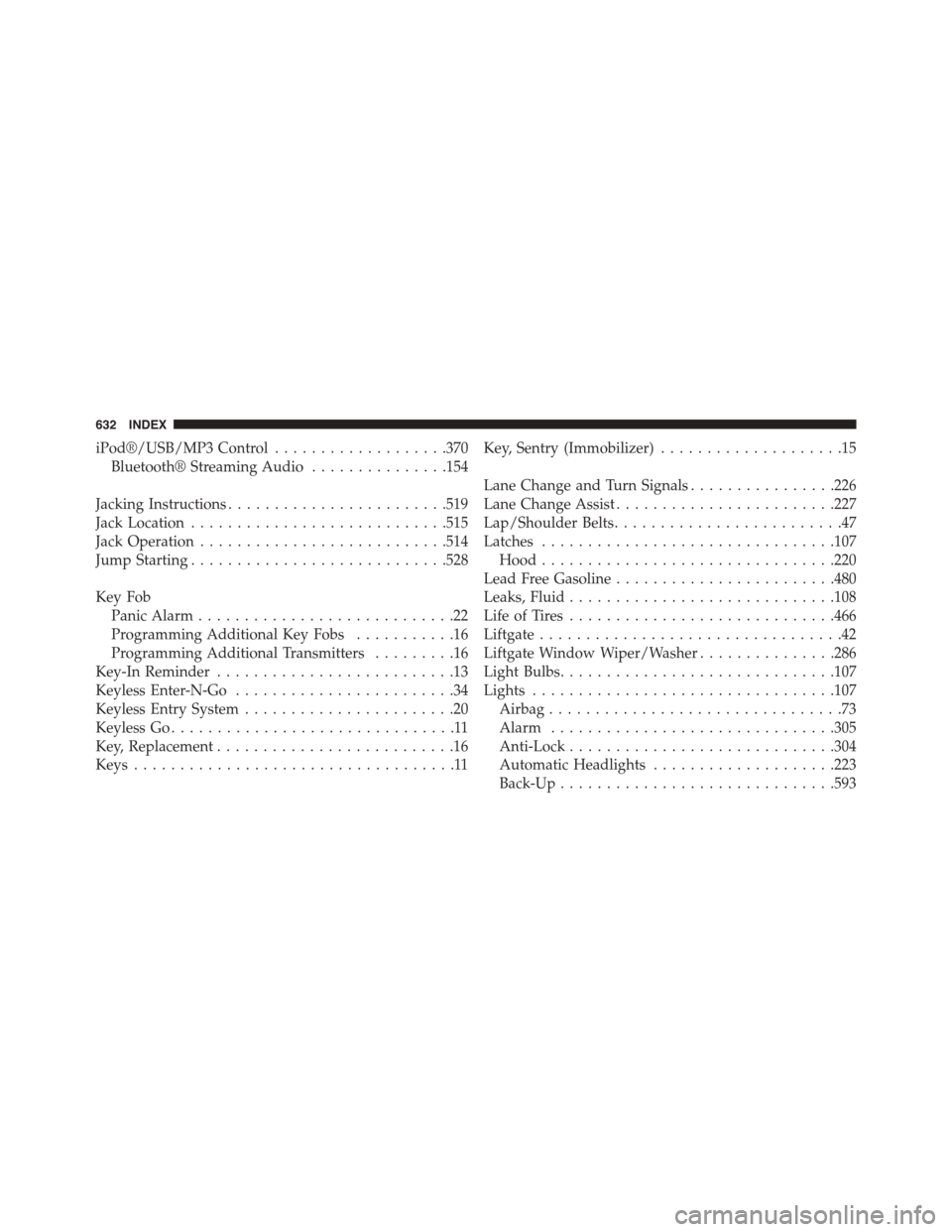

iPod®/USB/MP3 Control...................370
Bluetooth® Streaming Audio...............154
Jacking Instructions........................519
Jack Location............................515
Jack Operation...........................514
Jump Starting............................528
Key Fob
Panic Alarm............................22
Programming Additional Key Fobs...........16
Programming Additional Transmitters.........16
Key-In Reminder..........................13
Keyless Enter-N-Go........................34
Keyless Entry System.......................20
Keyless Go...............................11
Key, Replacement..........................16
Keys...................................11
Key, Sentry (Immobilizer)....................15
Lane Change and Turn Signals................226
Lane Change Assist........................227
Lap/Shoulder Belts.........................47
Latches................................107
Hood................................220
Lead Free Gasoline........................480
Leaks, Fluid.............................108
Life of Tires.............................466
Liftgate.................................42
Liftgate Window Wiper/Washer...............286
Light Bulbs..............................107
Lights.................................107
Airbag................................73
Alarm...............................305
Anti-Lock.............................304
Automatic Headlights....................223
Back-Up..............................593
632 INDEX

Untwisting Procedure, Seat Belt................52
Upholstery Care..........................578
Vanity Mirrors...........................120
Vehicle Certification Label...................491
Vehicle Identification Number (VIN).............6
Vehicle Loading..........................454
Vehicle Modifications/Alterations...............7
Vehicle Security Alarm (Security Alarm)..........17
Vehicle Storage...........................400
Viscosity, Engine Oil.......................549
Voice Command..........................183
Warning Flasher, Hazard....................511
Warning Lights (Instrument Cluster Description) . . .298
Warnings and Cautions.......................6
Warranty Information......................616
Washer
Adding Fluid..........................558
Washers, Windshield.......................229
Washing Vehicle..........................576
Water
Driving Through........................427
Wheel and Wheel Trim.....................577
Wheel and Wheel Trim Care.................577
Wind Buffeting............................42
Window Fogging.........................401
Windows................................39
Power................................39
Wind Buffeting..........................42
Windshield Defroster.......................106
Windshield Washers.......................229
Fluid................................558
Windshield Wiper Blades....................556
Windshield Wipers........................229
Wiper Blade Replacement...................556
Wiper, Delay.............................230
Wiper, Rear.............................28610
INDEX 643
