DODGE JOURNEY 2016 1.G User Guide
Manufacturer: DODGE, Model Year: 2016, Model line: JOURNEY, Model: DODGE JOURNEY 2016 1.GPages: 664

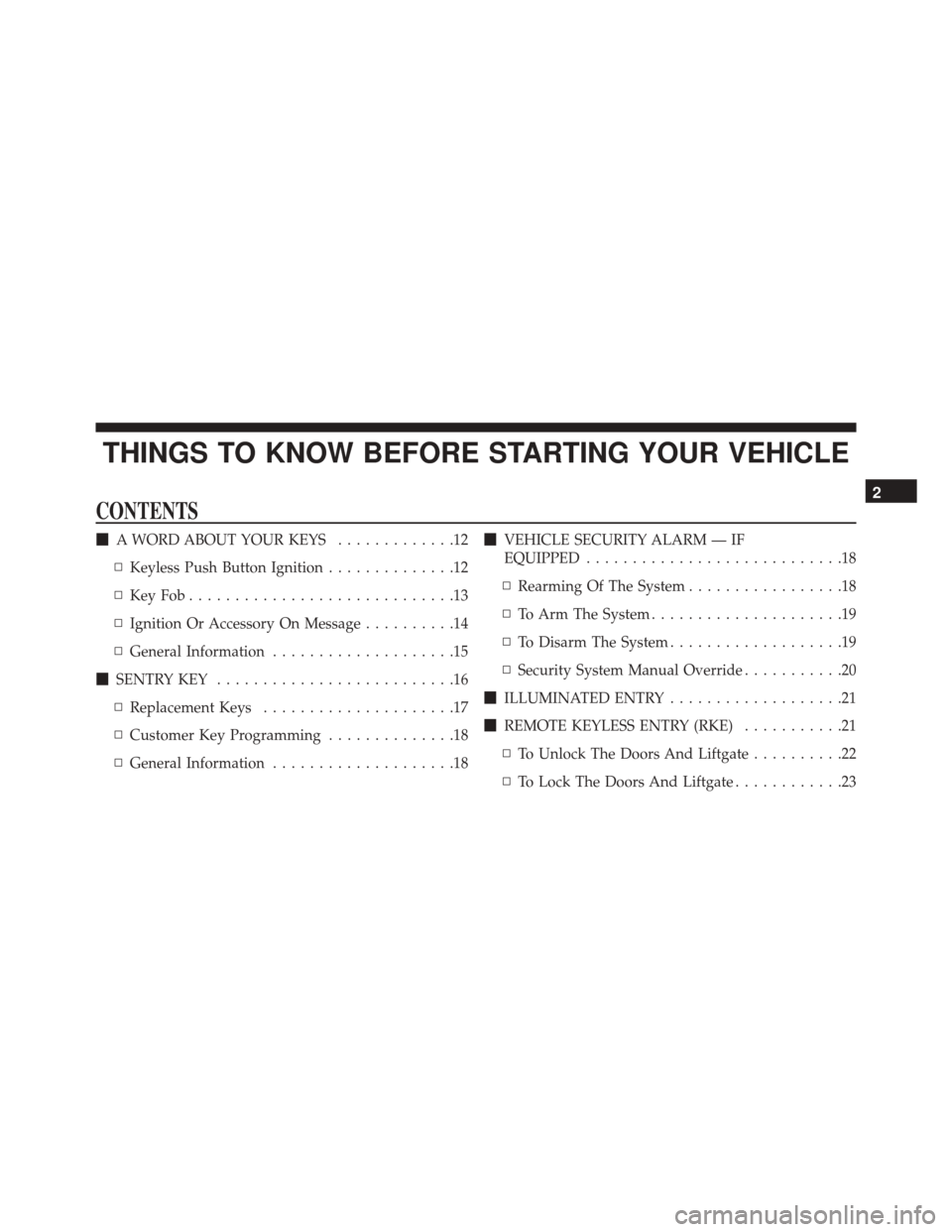

Page 11 of 664
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Keyless Push Button Ignition ..............12
▫ KeyFob.............................13
▫ Ignition Or Accessory On Message ..........14
▫ General Information ....................15
SENTRY KEY ..........................16
▫ Replacement Keys .....................17
▫ Customer Key Programming ..............18
▫ General Information ....................18
VEHICLE SECURITY ALARM — IF
EQUIPPED ............................18
▫ Rearming Of The System .................18
▫ To Arm The System .....................19
▫ To Disarm The System ...................19
▫ Security System Manual Override ...........20
ILLUMINATED ENTRY ...................21
REMOTE KEYLESS ENTRY (RKE) ...........21
▫ To Unlock The Doors And Liftgate ..........22
▫ To Lock The Doors And Liftgate ............23
2

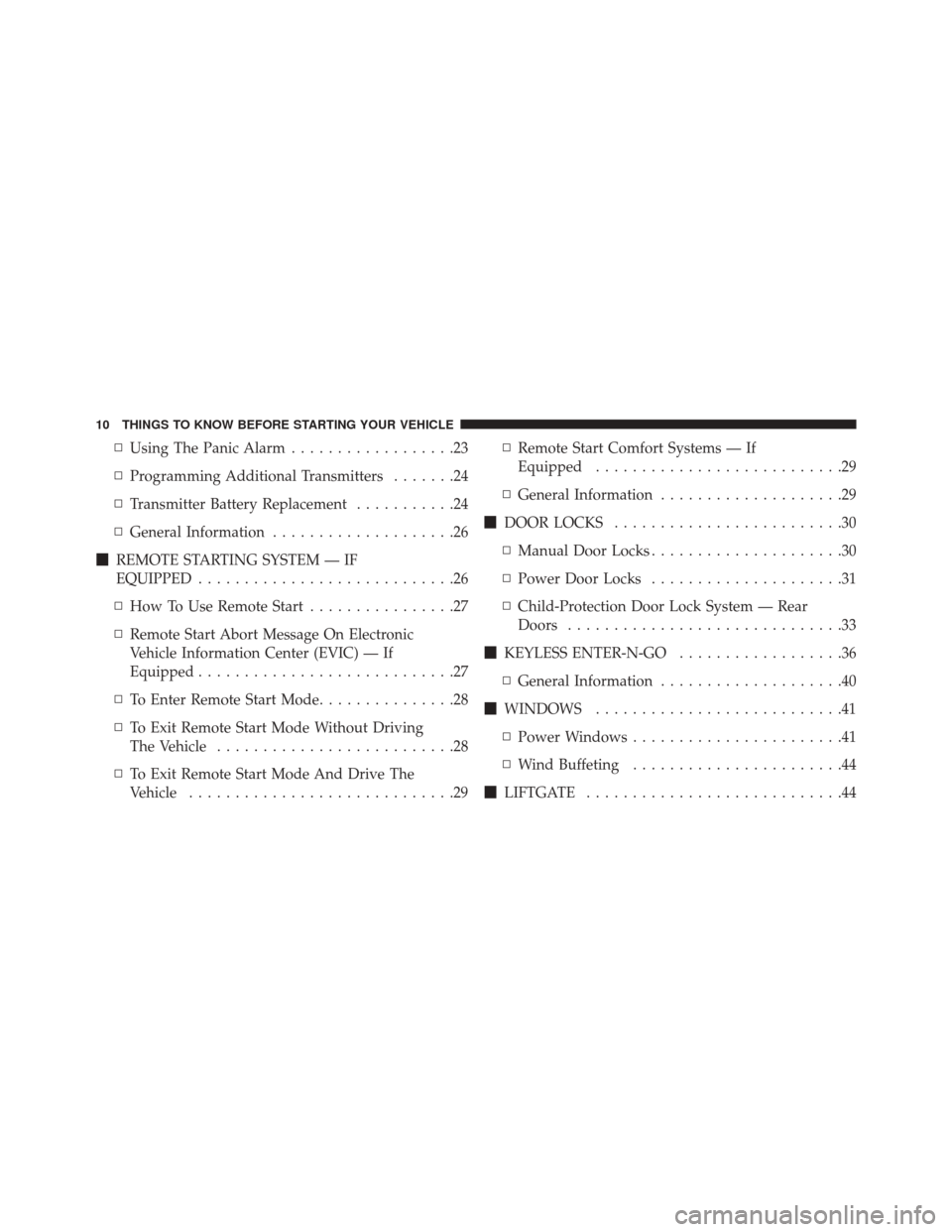

Page 12 of 664
▫Using The Panic Alarm ..................23
▫ Programming Additional Transmitters .......24
▫ Transmitter Battery Replacement ...........24
▫ General Information ....................26
REMOTE STARTING SYSTEM — IF
EQUIPPED ............................26
▫ How To Use Remote Start ................27
▫ Remote Start Abort Message On Electronic
Vehicle Information Center (EVIC) — If
Equipped ............................27
▫ To Enter Remote Start Mode ...............28
▫ To Exit Remote Start Mode Without Driving
The Vehicle ..........................28
▫ To Exit Remote Start Mode And Drive The
Vehicle .............................29 ▫
Remote Start Comfort Systems — If
Equipped ...........................29
▫ General Information ....................29
DOOR LOCKS .........................30
▫ Manual Door Locks .....................30
▫ Power Door Locks .....................31
▫ Child-Protection Door Lock System — Rear
Doors ..............................33
KEYLESS ENTER-N-GO ..................36
▫ General Information ....................40
WINDOWS ...........................41
▫ Power Windows .......................41
▫ Wind Buffeting .......................44
LIFTGATE ............................44
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 13 of 664
OCCUPANT RESTRAINT SYSTEMS ..........46
▫ Important Safety Precautions ..............46
▫ Seat Belt Systems ......................48
▫ Supplemental Restraint System (SRS) ........63
▫ Child Restraints .......................78
▫ Transporting Pets .....................106
ENGINE BREAK-IN RECOMMENDATIONS . . .106
SAFETY TIPS ........................ .107
▫ Transporting Passengers .................107
▫ Exhaust Gas ........................ .108
▫ Safety Checks You Should Make Inside The
Vehicle ............................ .109
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ...................111
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
Page 14 of 664

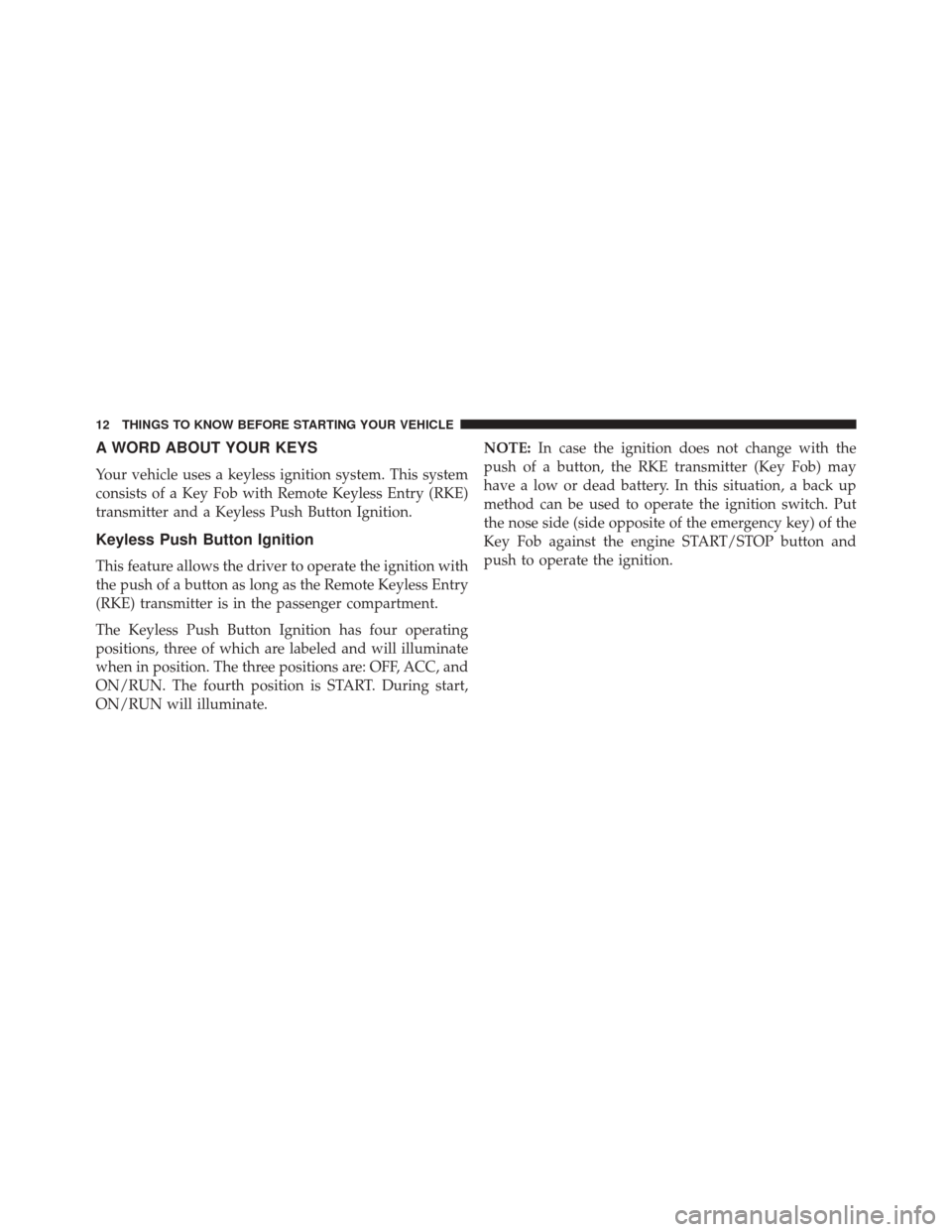

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Keyless Push Button Ignition.
Keyless Push Button Ignition
This feature allows the driver to operate the ignition with
the push of a button as long as the Remote Keyless Entry
(RKE) transmitter is in the passenger compartment.
The Keyless Push Button Ignition has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are: OFF, ACC, and
ON/RUN. The fourth position is START. During start,
ON/RUN will illuminate.NOTE:
In case the ignition does not change with the
push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation, a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the engine START/STOP button and
push to operate the ignition.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 664
Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove compart-
ment. You can keep the emergency key with you when
valet parking.
To remove the emergency key, slide the mechanical latch
on the back of the Key Fob sideways with your thumb
and then pull the key out with your other hand.
Keyless Push Button Ignition
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
Page 16 of 664
NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE:
With the Uconnect system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
WARNING!
• Before exiting a vehicle, shift the automatic trans-
mission into PARK or the manual transmission
into REVERSE, and apply the parking brake. Al-
ways make sure the keyless ignition node is in the
(Continued)
Emergency Key Removed
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 664
WARNING!(Continued)
“OFF” mode, remove the Key Fob from the vehicle
and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.
WARNING! (Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from vehicle, place the ignition
in the OFF position and lock all doors when leaving
the vehicle unattended.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
Page 18 of 664
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter, a Keyless Push Button
Ignition and a RF receiver to prevent unauthorized
vehicle operation. Therefore, only Key Fobs that are programmed to the vehicle can be used to start and
operate the vehicle. The system will not allow the engine
to crank with an invalid Key Fob.
After placing the ignition to the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the system. In
addition, if the light begins to flash after the bulb check,
it indicates that someone tried to use an invalid Key Fob
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the system.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 19 of 664
CAUTION!
•Do not make modifications or alterations to the
immobilizer system. Modifications or alterations to
the immobilization system may result in a loss of
security protection.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go,
always remember to place the ignition in the OFF
position.
NOTE: Duplication of Key Fobs may be performed at an
authorized dealer. This procedure consists of program-
ming a blank Key Fob to the vehicle electronics. A blank
Key Fob is one that has never been programmed.
When having the Sentry Key Immobilizer System ser-
viced, bring all vehicle keys with you to an authorized
dealer.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
Page 20 of 664
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
and liftgate for unauthorized entry and the Keyless
Enter-N-Go Start/Stop button for unauthorized opera-
tion. While the Vehicle Security Alarm is armed, interior
switches for door locks are disabled. If something trig-
gers the alarm, the Vehicle Security Alarm will provide
the following audible and visible signals: the horn will
pulse, the headlights will turn on, the park lamps and/or
turn signals will flash, and the Vehicle Security Light in
the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after 3 minutes, turn all of the visual signals off after
15 additional minutes, and then the Vehicle Security
Alarm will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
