3. Connect the negative end(-)of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the jumper cable to the negative (-)
post of the discharged battery. The resulting electri-
cal spark could cause the battery to explode and
could result in personal injury. Only use the specific
ground point, do not use any other exposed metal
parts.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery. 6. Once the engine is started, remove the jumper cables
in the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)jumper cable from the
remote negative (-)post of the vehicle with the dis-
charged battery.
2. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
3. Disconnect the opposite end of the positive (+)jumper
cable from the positive (+)post of the booster battery.
4. Disconnect the positive (+)end of the jumper cable
from the remote positive (+)post of the discharged
vehicle.
5. Reinstall the protective cover over the remote positive (+) battery post of the discharged vehicle.
6
WHAT TO DO IN EMERGENCIES 549

If frequent jump-starting is required to start your vehicle,
you should have the battery and charging system in-
spected at your authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if
plugged in long enough without engine operation,
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVEand REVERSE while gently pressing the accelerator
pedal. Use the least amount of accelerator pedal pressure
that will maintain the rocking motion, without spinning
the wheels or racing the engine.
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.
550 WHAT TO DO IN EMERGENCIES

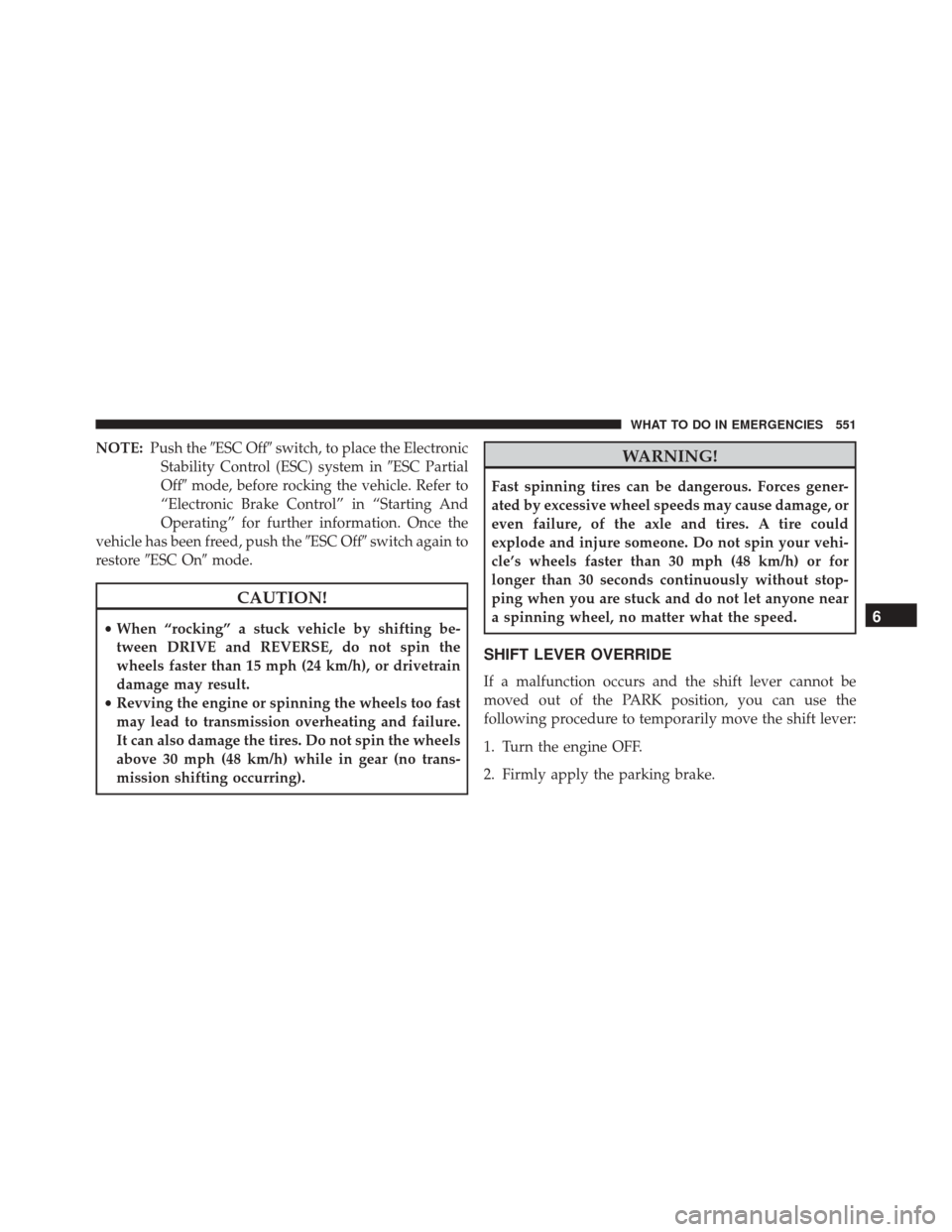

NOTE:Push the ESC Off switch, to place the Electronic
Stability Control (ESC) system in ESC Partial
Off mode, before rocking the vehicle. Refer to
“Electronic Brake Control” in “Starting And
Operating” for further information. Once the
vehicle has been freed, push the ESC Offswitch again to
restore ESC On mode.
CAUTION!
•When “rocking” a stuck vehicle by shifting be-
tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no trans-
mission shifting occurring).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
SHIFT LEVER OVERRIDE
If a malfunction occurs and the shift lever cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the shift lever:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
6
WHAT TO DO IN EMERGENCIES 551

3. Open the center console and remove the shift leveroverride access cover (located in the front lower right
corner of the console storage bin). 4. Push and maintain firm pressure on the brake pedal.
5. Insert a screwdriver or similar small tool into the
access port, and push and hold the override release
lever forward.
6. Move the shift lever to the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever override access cover.
TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Shift Lever Override Access Cover
552 WHAT TO DO IN EMERGENCIES

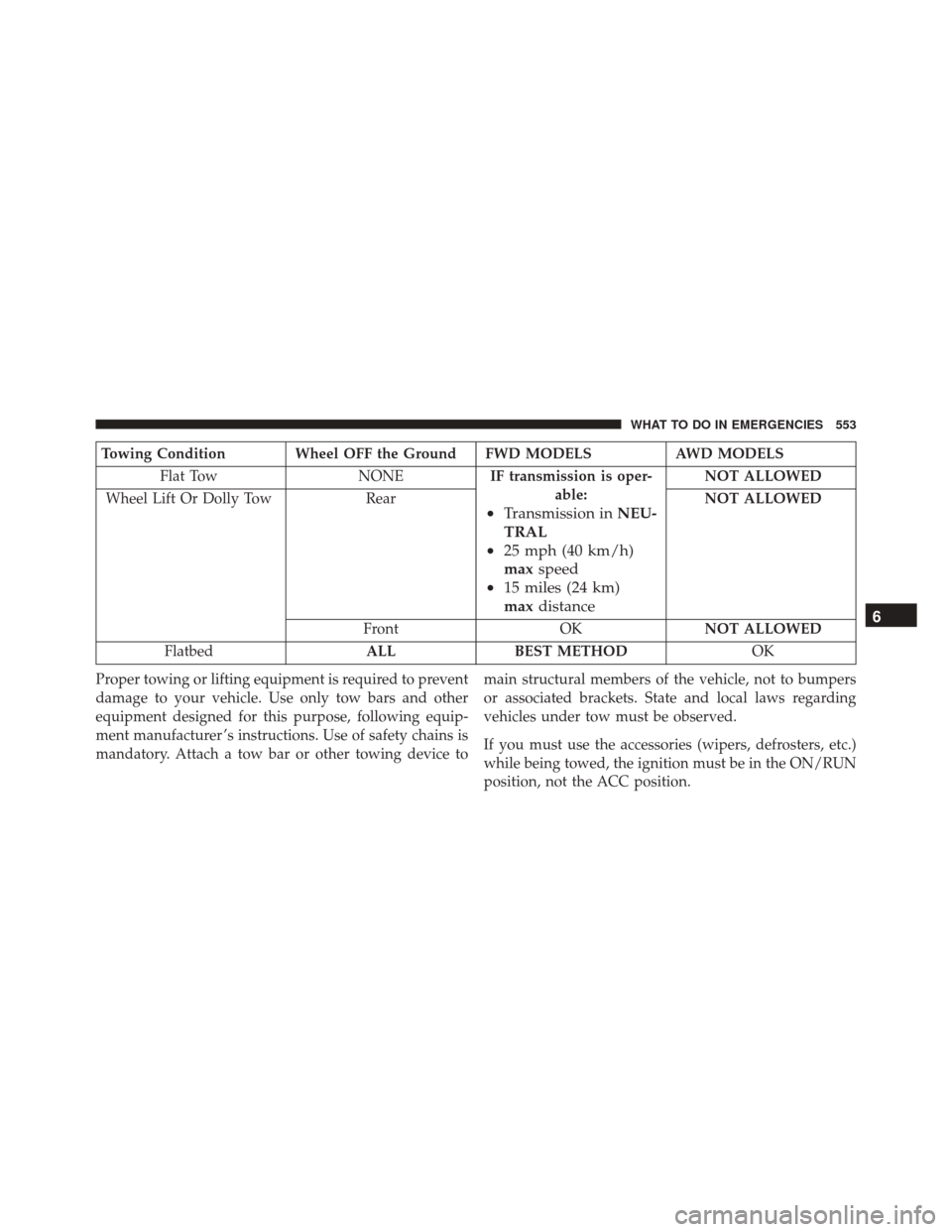

Towing Condition Wheel OFF the Ground FWD MODELSAWD MODELS
Flat Tow NONEIF transmission is oper-
able:
•Transmission in NEU-
TRAL
• 25 mph (40 km/h)
max speed
• 15 miles (24 km)
max distance
NOT ALLOWED
Wheel Lift Or Dolly Tow Rear NOT ALLOWED
Front OKNOT ALLOWED
Flatbed ALLBEST METHOD OK
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
6
WHAT TO DO IN EMERGENCIES 553

If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Shift Lever Override” in this section
for instructions on shifting the transmission out of PARK
for towing.
CAUTION!
•Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
• Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
All-Wheel Drive (AWD) Models
The manufacturer requires towing with all four wheels
OFF the ground. Acceptable methods are to tow the
vehicle on a flatbed, or with one end of the vehicle raised
and the opposite end on a towing dolly.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission and/or power
transfer unit damage. Damage from improper towing
is not covered under the New Vehicle Limited War-
ranty.
554 WHAT TO DO IN EMERGENCIES

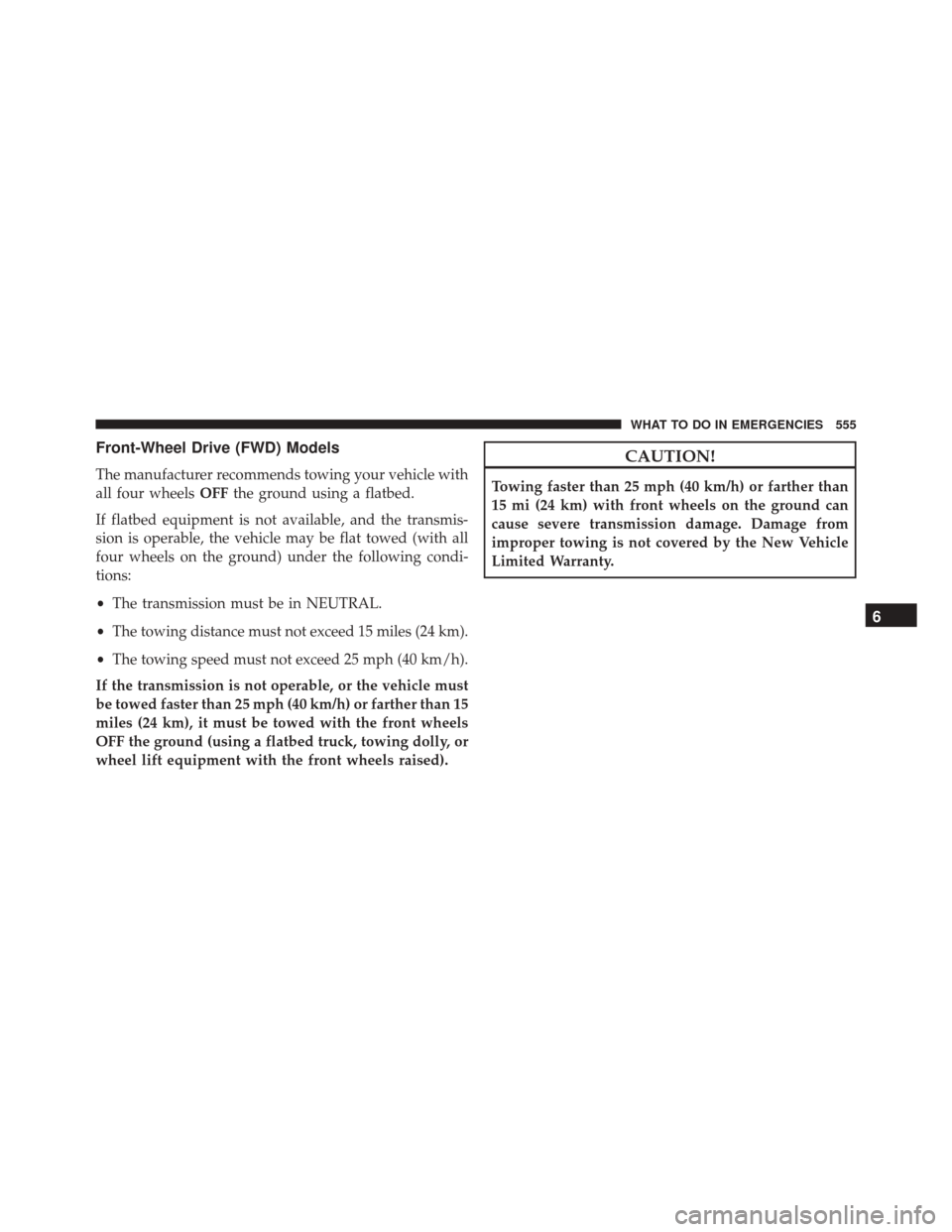

Front-Wheel Drive (FWD) Models
The manufacturer recommends towing your vehicle with
all four wheelsOFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions:
• The transmission must be in NEUTRAL.
• The towing distance must not exceed 15 miles (24 km).
• The towing speed must not exceed 25 mph (40 km/h).
If the transmission is not operable, or the vehicle must
be towed faster than 25 mph (40 km/h) or farther than 15
miles (24 km), it must be towed with the front wheels
OFF the ground (using a flatbed truck, towing dolly, or
wheel lift equipment with the front wheels raised).
CAUTION!
Towing faster than 25 mph (40 km/h) or farther than
15 mi (24 km) with front wheels on the ground can
cause severe transmission damage. Damage from
improper towing is not covered by the New Vehicle
Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 555

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ..........559
 ENGINE COMPARTMENT — 3.6L ..........560
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .561
▫ Loose Fuel Filler Cap Message ............561
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .562
 REPLACEMENT PARTS ..................563
 DEALER SERVICE ..................... .563
 MAINTENANCE PROCEDURES ...........564
▫ Engine Oil ......................... .565▫
Engine Oil Filter ..................... .568
▫ Engine Air Cleaner Filter ................569
▫ Maintenance-Free Battery ...............569
▫ Air Conditioner Maintenance .............571
▫ A/C Air Filter — If Equipped ............572
▫ Body Lubrication .....................573
▫ Windshield Wiper Blades ...............574
▫ Adding Washer Fluid ..................576
▫ Exhaust System ..................... .577
▫ Cooling System ..................... .579
7

▫Brake System ....................... .585
▫ Automatic Transmission ................587
▫ Rear Drive Assembly (RDA) – AWD Models
Only ............................. .591
▫ Power Transfer Unit (PTU) – AWD Models
Only ............................. .592
▫ Appearance Care And Protection From
Corrosion .......................... .592
▫ Cleaning The Cupholders ...............599
 FUSES ............................. .599
▫ Interior Fuses ....................... .599
▫ Underhood Fuses (Power Distribution
Center) ........................... .602
REPLACEMENT BULBS .................606
 BULB REPLACEMENT ..................608
▫ Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . .608
▫ Front Fog Lamp ..................... .609
▫ Rear Turn Signal And Backup Lamp ........610
▫ License Plate Lamp ....................613
 FLUID CAPACITIES ....................614
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .616
▫ Engine ............................ .616
▫ Chassis ........................... .618
558 MAINTAINING YOUR VEHICLE
