center console DODGE JOURNEY 2017 1.G User Guide

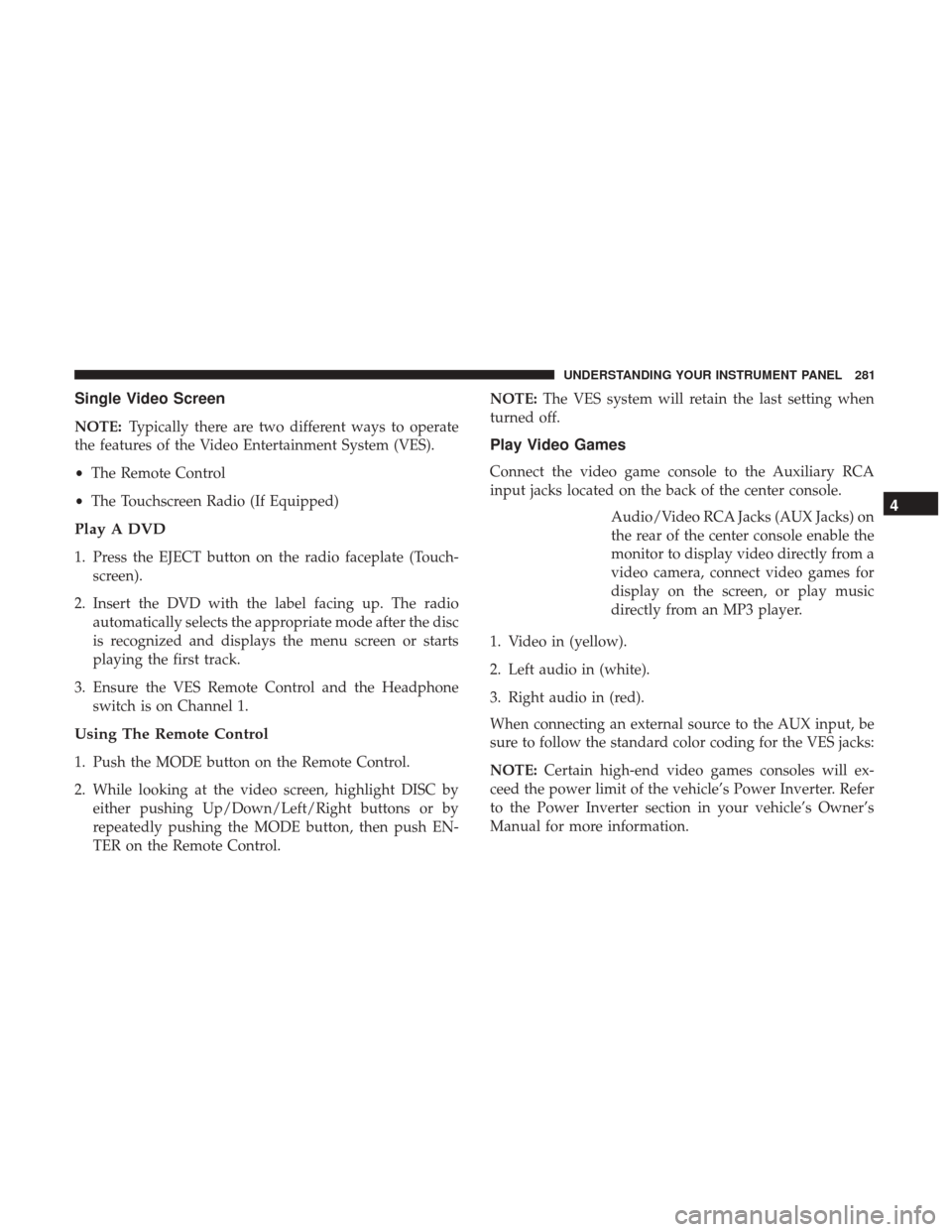

Single Video Screen
NOTE:Typically there are two different ways to operate
the features of the Video Entertainment System (VES).
• The Remote Control
• The Touchscreen Radio (If Equipped)
Play A DVD
1. Press the EJECT button on the radio faceplate (Touch-
screen).
2. Insert the DVD with the label facing up. The radio automatically selects the appropriate mode after the disc
is recognized and displays the menu screen or starts
playing the first track.
3. Ensure the VES Remote Control and the Headphone switch is on Channel 1.
Using The Remote Control
1. Push the MODE button on the Remote Control.
2. While looking at the video screen, highlight DISC byeither pushing Up/Down/Left/Right buttons or by
repeatedly pushing the MODE button, then push EN-
TER on the Remote Control. NOTE:
The VES system will retain the last setting when
turned off.
Play Video Games
Connect the video game console to the Auxiliary RCA
input jacks located on the back of the center console.
Audio/Video RCA Jacks (AUX Jacks) on
the rear of the center console enable the
monitor to display video directly from a
video camera, connect video games for
display on the screen, or play music
directly from an MP3 player.
1. Video in (yellow).
2. Left audio in (white).
3. Right audio in (red).
When connecting an external source to the AUX input, be
sure to follow the standard color coding for the VES jacks:
NOTE: Certain high-end video games consoles will ex-
ceed the power limit of the vehicle’s Power Inverter. Refer
to the Power Inverter section in your vehicle’s Owner’s
Manual for more information.
4

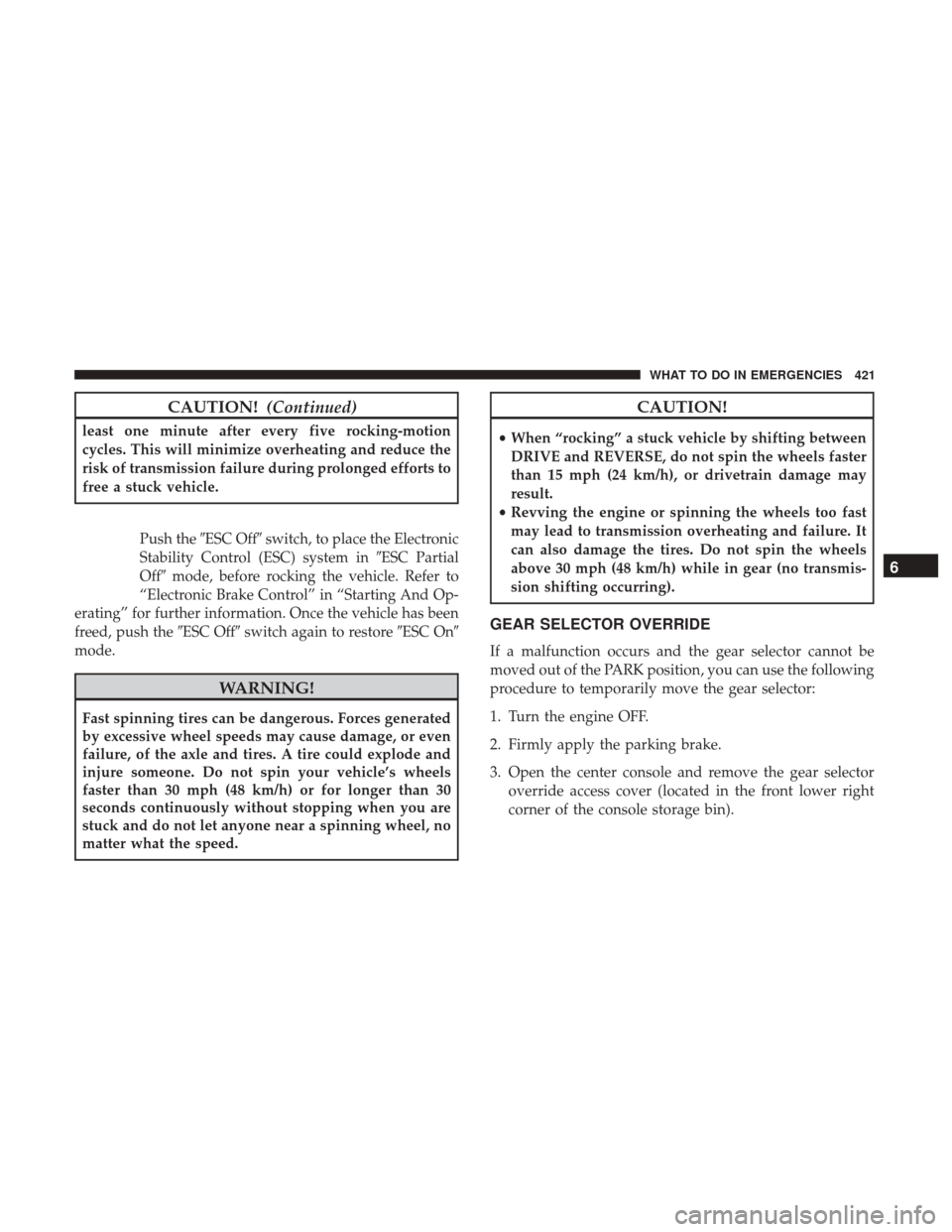

UNDERSTANDING YOUR INSTRUMENT PANEL 281

CAUTION!(Continued)
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce the
risk of transmission failure during prolonged efforts to
free a stuck vehicle.
Push the ESC Off switch, to place the Electronic
Stability Control (ESC) system in ESC Partial
Off mode, before rocking the vehicle. Refer to
“Electronic Brake Control” in “Starting And Op-
erating” for further information. Once the vehicle has been
freed, push the ESC Offswitch again to restore ESC On
mode.
WARNING!
Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.
CAUTION!
• When “rocking” a stuck vehicle by shifting between
DRIVE and REVERSE, do not spin the wheels faster
than 15 mph (24 km/h), or drivetrain damage may
result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).
GEAR SELECTOR OVERRIDE
If a malfunction occurs and the gear selector cannot be
moved out of the PARK position, you can use the following
procedure to temporarily move the gear selector:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
3. Open the center console and remove the gear selector override access cover (located in the front lower right
corner of the console storage bin).
6
WHAT TO DO IN EMERGENCIES 421

Viscosity....................... .435, 436, 472
Oil Filter, Change ......................... .437
Oil Filter, Selection ......................... .437
Oil Pressure Light ......................... .230
Onboard Diagnostic System ...................430
Opener, Garage Door (HomeLink) ...............190
Operating Precautions ...................... .430
Operator Manual (Owner’s Manual) ...............4
Outside Rearview Mirrors .....................90
Overhead Console ......................... .188
Overheating, Engine ....................... .404
Owner’s Manual (Operator Manual) ...........4,488
Paint Care ............................... .454
Panic Alarm ...............................17
Parking Brake ............................ .341
ParkSense System, Rear ..................... .180
Passenger Seat Back Tilt (Easy Entry System) .......163
Passing Light ............................ .172
Phone (Pairing) ............................116
Phone (Uconnect) ....................... .93, 111
Placard, Tire And Loading Information ...........359
Power Brakes ............................... .343
Distribution Center (Fuses) ..................462 Door Locks
..............................23
Inverter .............................. .203
Mirrors ................................90
Outlet (Auxiliary Electrical Outlet) ............199
Seats ................................ .149
Steering .............................. .340
Sunroof .............................. .197
Transfer Unit ........................... .454
Windows ...............................30
Power Seats Down ................................ .149
Forward .............................. .149
Rearward ............................. .149
Up.................................. .149
Power Steering Fluid ....................... .475
Power
Transfer Unit .....................454, 475
Pregnant Women And Seat Belts .................43
Preparation For Jacking ..................... .407
Pretensioners Seat Belts ...............................43
Programming Key Fobs (Remote Keyless Entry) ......16
Radial Ply Tires ........................... .364
Radiator Cap (Coolant Pressure Cap) .............447
500 INDEX
