A second 12 Volt (13 Amp) power outlet is located inside
the center console storage area. Power is available with the
ignition is in the ON/RUN, ACC or LOCK position.A third fused 12 Volt power outlet is located on the back of
the center console. This power outlet has power available
when the ignition is in the LOCK, ON or ACC position.
Center Console 12 Volt Power OutletRear Seat 12 Volt Power Outlet
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR Total Clean, a mild
soap solution, or lukewarm water. Do not remove the belts
from the vehicle to wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do not
disassemble or modify the system. Seat belt assemblies
must be replaced after a collision if they have been
damaged (i.e., bent retractor, torn webbing, etc.).
Cleaning The Cupholders
Clean with a damp cloth or towel using a mild detergent.
FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
injury, fire and/or property damage.
• Before replacing a fuse, make sure that the ignition is
off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
7
MAINTAINING YOUR VEHICLE 459

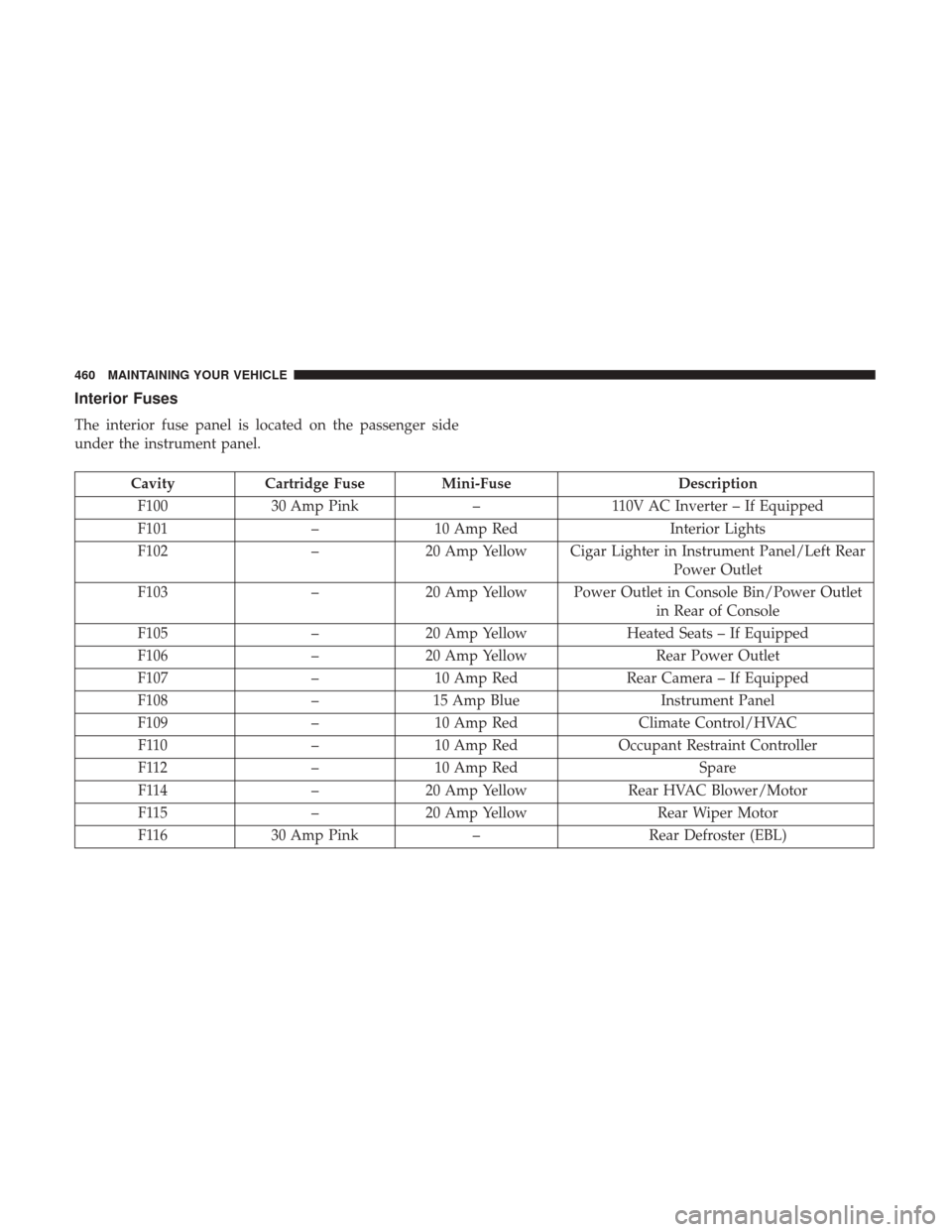

Interior Fuses
The interior fuse panel is located on the passenger side
under the instrument panel.
CavityCartridge Fuse Mini-Fuse Description
F100 30 Amp Pink –110V AC Inverter – If Equipped
F101 –10 Amp Red Interior Lights
F102 –20 Amp Yellow Cigar Lighter in Instrument Panel/Left Rear
Power Outlet
F103 –20 Amp Yellow Power Outlet in Console Bin/Power Outlet
in Rear of Console
F105 –20 Amp Yellow Heated Seats – If Equipped
F106 –20 Amp Yellow Rear Power Outlet
F107 –10 Amp Red Rear Camera – If Equipped
F108 –15 Amp Blue Instrument Panel
F109 –10 Amp Red Climate Control/HVAC
F110 –10 Amp Red Occupant Restraint Controller
F112 –10 Amp Red Spare
F114 –20 Amp Yellow Rear HVAC Blower/Motor
F115 –20 Amp Yellow Rear Wiper Motor
F116 30 Amp Pink –Rear Defroster (EBL)
460 MAINTAINING YOUR VEHICLE

Cruising Range......................... .385
Engine Oil ............................ .385
Fuel Requirements ....................... .384
Maintenance ........................... .386
Replacement Parts ....................... .385
Starting .............................. .385
Flooded Engine Starting ..................... .327
Floor Console ............................ .206
Fluid, Brake ............................. .475
Fluid Capacities ........................... .472
Fluid Leaks ...............................84
Fluid Level Checks Automatic Transmission ................452, 453
Brake ............................. .450, 475
Cooling System ......................... .445
Engine Oil ............................ .434
Power Steering ...................... .340, 475
Fluids, Lubricants And Genuine Parts ............473
Fog Lights ........................... .170, 468
Fog Light Service .......................... .468
Folding Rear Seat ...................... .159, 164
Freeing A Stuck Vehicle ..................... .420
Fuel ................................... .380
Adding .............................. .386
Additives ............................. .382Clean Air
............................. .380
Conserving ............................ .245
Ethanol ........................... .381, 384
Filler Cap (Gas Cap) ..................... .386
Gasoline .............................. .380
Light ................................ .238
Materials Added ........................ .382
Methanol ............................. .381
Octane Rating ....................... .380, 473
Requirements .......................... .380
Saver

Mode ........................... .245
Specifications .......................... .473
Tank Capacity .......................... .472
Fuel, Flexible ............................. .384
Fueling ................................. .386
Fuel Optimizer ........................... .245
Fuel Saver............................... .245
Fuses .................................. .459
Garage Door Opener (HomeLink) ............190, 195
Gas Cap (Fuel Filler Cap) .................386, 431
Gasoline, Clean Air ........................ .380
Gasoline (Fuel) Conserving ............................ .245
Gasoline, Reformulated ..................... .380
10
INDEX 495

Viscosity....................... .435, 436, 472
Oil Filter, Change ......................... .437
Oil Filter, Selection ......................... .437
Oil Pressure Light ......................... .230
Onboard Diagnostic System ...................430
Opener, Garage Door (HomeLink) ...............190
Operating Precautions ...................... .430
Operator Manual (Owner’s Manual) ...............4
Outside Rearview Mirrors .....................90
Overhead Console ......................... .188
Overheating, Engine ....................... .404
Owner’s Manual (Operator Manual) ...........4,488
Paint Care ............................... .454
Panic Alarm ...............................17
Parking Brake ............................ .341
ParkSense System, Rear ..................... .180
Passenger Seat Back Tilt (Easy Entry System) .......163
Passing Light ............................ .172
Phone (Pairing) ............................116
Phone (Uconnect) ....................... .93, 111
Placard, Tire And Loading Information ...........359
Power Brakes ............................... .343
Distribution Center (Fuses) ..................462 Door Locks
..............................23
Inverter .............................. .203
Mirrors ................................90
Outlet (Auxiliary Electrical Outlet) ............199
Seats ................................ .149
Steering .............................. .340
Sunroof .............................. .197
Transfer Unit ........................... .454
Windows ...............................30
Power Seats Down ................................ .149
Forward .............................. .149
Rearward ............................. .149
Up.................................. .149
Power Steering Fluid ....................... .475
Power
Transfer Unit .....................454, 475
Pregnant Women And Seat Belts .................43
Preparation For Jacking ..................... .407
Pretensioners Seat Belts ...............................43
Programming Key Fobs (Remote Keyless Entry) ......16
Radial Ply Tires ........................... .364
Radiator Cap (Coolant Pressure Cap) .............447
500 INDEX

Fluid............................. .451, 453
Transmitter, Garage Door Opener (HomeLink) ......190
Tread Wear Indicators ...................... .369
Turn Signals ....................... .171, 241, 469
UCI Connector ........................... .295
Uconnect Advanced Phone Connectivity ............107, 129
Operation .......................... .95, 114
Phone Call Features ...................100, 122
Phone Features ...................... .103, 126
Screen Activated Features ................16, 252
Things You Should Know About Your Uconnect
Phone ............................ .107, 129
Uconnect Settings ...................... .17, 22
Uconnect Phone ................93, 96, 111, 114, 115
Answer Or Ignore An Incoming Call — No Call
Currently In Progress ..................... .124
Bluetooth Communication Link ..............135
Call By Saying A Phonebook Name ........101, 123
Call Continuation ....................... .125
Call Controls ....................... .101, 123
Cancel Command ..................... .96, 115
Connecting To A Particular Mobile Phone Or Audio
Device After Pairing ......................118 Connect Or Disconnect Link Between The Uconnect
Phone And Mobile Phone
...................129
Far End Audio Performance .................131
Help Command ...................... .96, 115
Join Calls .......................... .103, 125
Making A Second Call While Current Call Is In
Progress .............................. .125
Natural Speech ....................... .96, 114
Place/Retrieve A Call From Hold .............125
Power-Up ............................. .135
Redial ............................... .125
Toggling Between Calls ....................125
Transfer Call To And From Mobile Phone . . . .107, 129
Voice Command ........................ .129
Ways To Initiate A Phone Call ................122
Uconnect Settings ........................ .16, 17
Uconnect Voice Command ....................141
Under
hood Fuses ......................... .462
Uniform Tire Quality Grades ..................373
Universal Consumer Interface (UCI) Connector .....295
Universal Transmitter ....................... .190
Unleaded Gasoline ........................ .380
Untwisting Procedure, Seat Belt .................41
Vanity Mirrors .............................9310
INDEX 505
