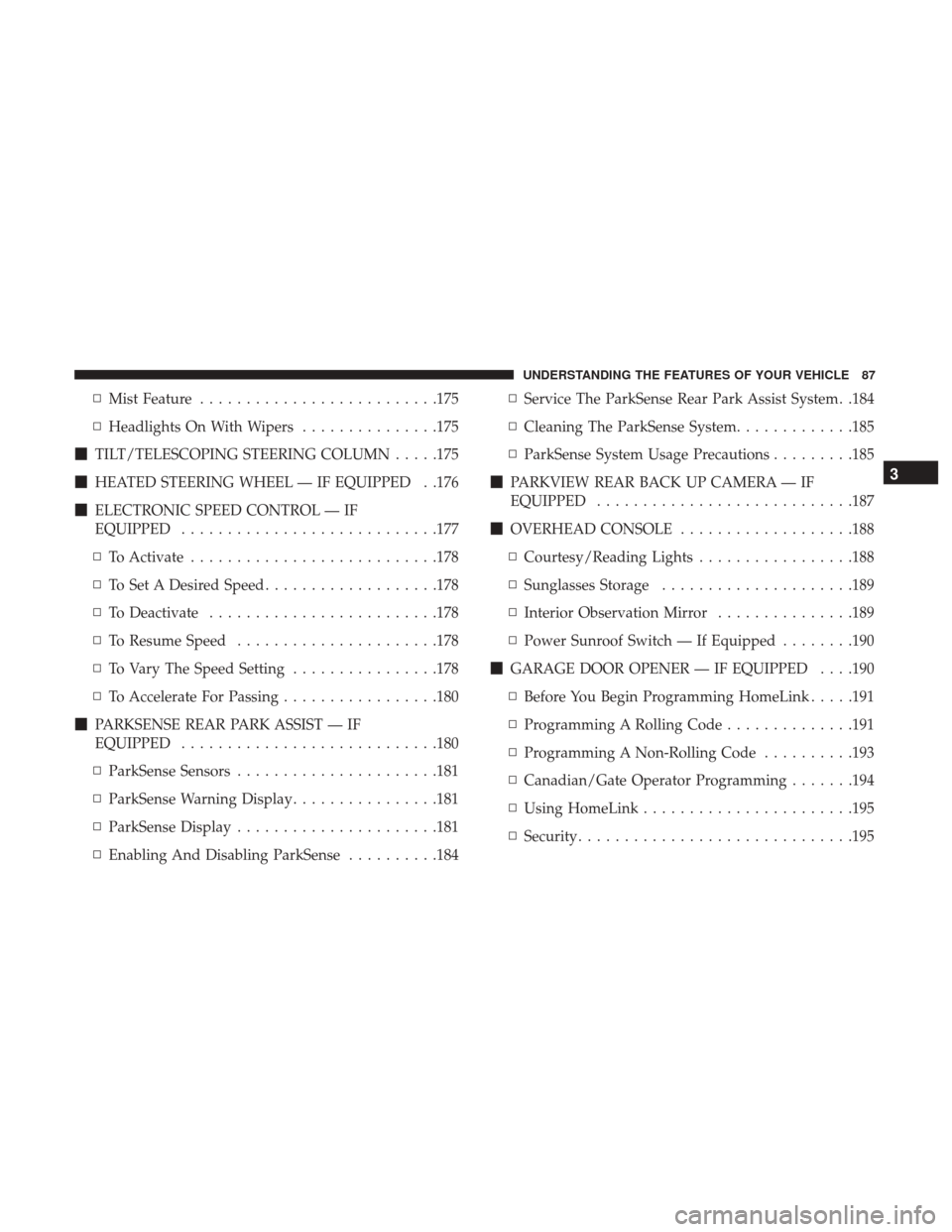

▫Mist Feature ......................... .175
▫ Headlights On With Wipers ...............175
 TILT/TELESCOPING STEERING COLUMN .....175
 HEATED STEERING WHEEL — IF EQUIPPED . .176
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED ........................... .177
▫ To Activate .......................... .178
▫ To Set A Desired Speed ...................178
▫ To Deactivate ........................ .178
▫ To Resume Speed ..................... .178
▫ To Vary The Speed Setting ................178
▫ To Accelerate For Passing .................180
 PARKSENSE REAR PARK ASSIST — IF
EQUIPPED ........................... .180
▫ ParkSense Sensors ..................... .181
▫ ParkSense Warning Display ................181
▫ ParkSense Display ..................... .181
▫ Enabling And Disabling ParkSense ..........184▫
Service The ParkSense Rear Park Assist System. .184
▫ Cleaning The ParkSense System .............185
▫ ParkSense System Usage Precautions .........185
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED ........................... .187
 OVERHEAD CONSOLE ...................188
▫ Courtesy/Reading Lights .................188
▫ Sunglasses Storage .....................189
▫ Interior Observation Mirror ...............189
▫ Power Sunroof Switch — If Equipped ........190
 GARAGE DOOR OPENER — IF EQUIPPED . . . .190
▫ Befor

e You Begin Programming HomeLink .....191
▫ Programming A Rolling Code ..............191
▫ Programming A Non-Rolling Code ..........193
▫ Canadian/Gate Operator Programming .......194
▫ Using HomeLink ...................... .195
▫ Security ............................. .195
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

To return to the full open position, the door must first be
closed and then opened by pushing the latch again to
release.
Power Sunroof Switch — If Equipped
Refer to “Power Sunroof” in “Understanding the Features
Of Your Vehicle” for further information.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLink replaces up to three remote controls (hand-held
transmitters) that operate devices such as garage door
openers, motorized gates, lighting or home security sys-
tems. The HomeLink unit operates off your vehicle’s
battery.
The HomeLink buttons, located on either the overhead
console, headliner or sunvisor, designate the three different
HomeLink channels. The HomeLink indicator is located
above the center button.
Observation Mirror
HomeLink Buttons/Overhead Consoles
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:HomeLink is disabled when the Vehicle Security
Alarm is active.
Before You Begin Programming HomeLink
Be sure that your vehicle is parked outside of the garage
before you begin programming.
For more efficient programming and accurate transmission
of the radio-frequency signal, it is recommended that a new
battery be placed in the hand-held transmitter of the device
that is being programmed to the HomeLink system. To erase the channels, place the ignition in the ON/RUN
position and push and hold the two outside HomeLink
buttons (I and III) for up 20 seconds or until the red
indicator flashes.
NOTE:
•
Erasing all channels should only be performed when
programming HomeLink for the first time. Do not erase
channels when programming additional buttons.
• If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.
Programming A Rolling Code
For programming garage door openers that were manufac-
tured after 1995:
These garage door openers can be identified by the
“LEARN” or “TRAIN” button located where the hanging
antenna is attached to the garage door opener. It is NOT the
button that is normally used to open and close the door.
The name and color of the button may vary by manufac-
turer.
HomeLink Buttons/Sunvisor/Headliner
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

1. Place the ignition in the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view.
3. Push and hold the HomeLink button you want to program while you push and hold the hand-held trans-
mitter button. 4. Continue to hold both buttons and observe the indicator
light. The HomeLink indicator will flash slowly and
then rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.
5. At the garage door opener motor (in the garage), locate the “LEARN” or “TRAINING” button. This can usually
be found where the hanging antenna wire is attached to
the garage door opener/device motor. Firmly push and
release the “LEARN” or “TRAINING” button. On some
garage door openers/devices there may be a light that
blinks when the garage door opener/device is in the
LEARN/TRAIN mode.
NOTE: You have 30 seconds in which to initiate the next
step after the LEARN button has been pushed.
6. Return to the vehicle and push the programmed HomeLink button twice (holding the button for two
seconds each time). If the garage door opener/device
activates, programming is complete.
NOTE: If the garage door opener/device does not activate,
push the button a third time (for two seconds) to complete
the training.
Training The Garage Door Opener
1 — Door Opener
2 — Training Button 192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

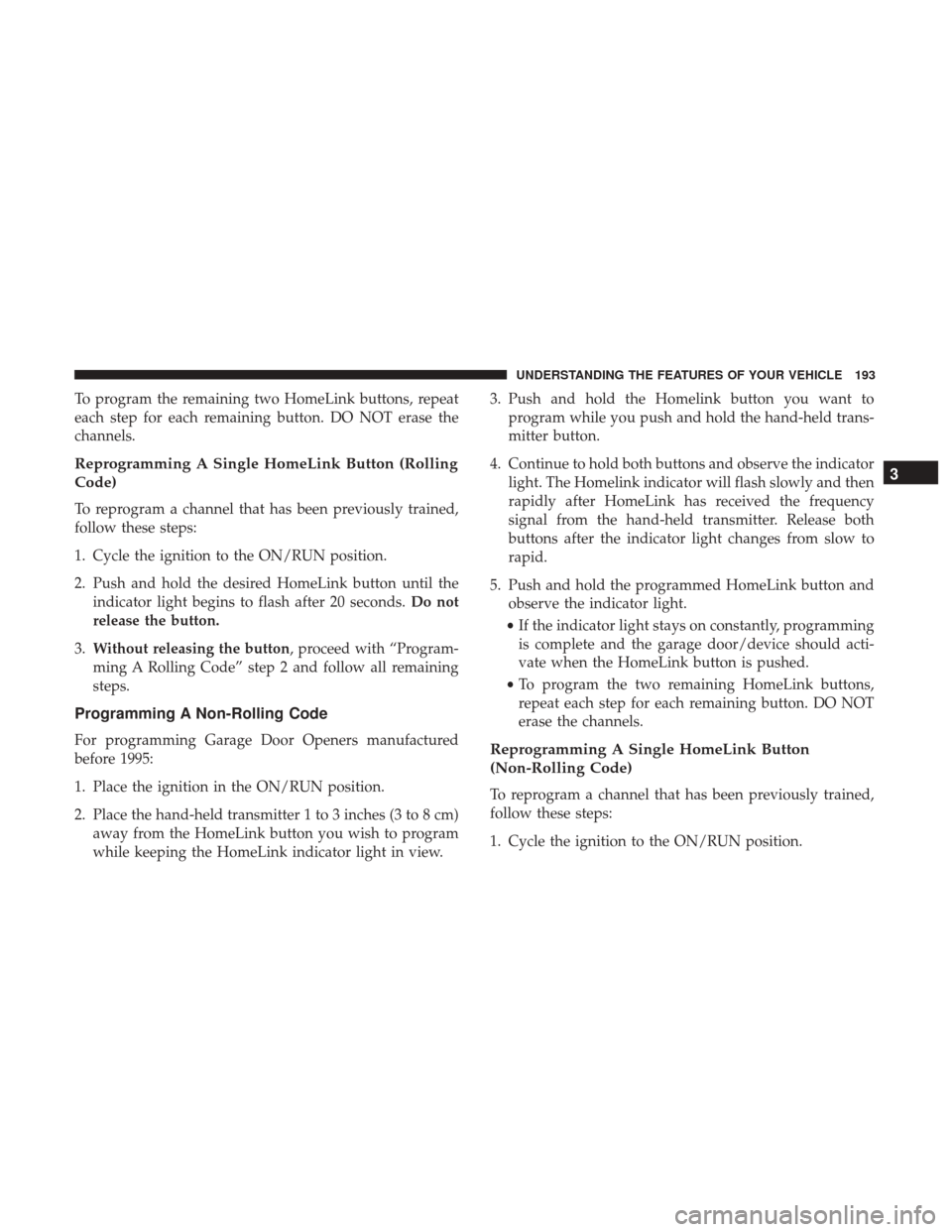

To program the remaining two HomeLink buttons, repeat
each step for each remaining button. DO NOT erase the
channels.
Reprogramming A Single HomeLink Button (Rolling
Code)
To reprogram a channel that has been previously trained,
follow these steps:
1. Cycle the ignition to the ON/RUN position.
2. Push and hold the desired HomeLink button until theindicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button, proceed with “Program-
ming A Rolling Code” step 2 and follow all remaining
steps.
Programming A Non-Rolling Code
For programming Garage Door Openers manufactured
before 1995:
1. Place the ignition in the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)
away from the HomeLink button you wish to program
while keeping the HomeLink indicator light in view. 3. Push and hold the Homelink button you want to
program while you push and hold the hand-held trans-
mitter button.
4. Continue to hold both buttons and observe the indicator light. The Homelink indicator will flash slowly and then
rapidly after HomeLink has received the frequency
signal from the hand-held transmitter. Release both
buttons after the indicator light changes from slow to
rapid.
5. Push and hold the programmed HomeLink button and observe the indicator light.
• If the indicator light stays on constantly, programming
is complete and the garage door/device should acti-
vate when the HomeLink button is pushed.
• To program the two remaining HomeLink buttons,
repeat each step for each remaining button. DO NOT
erase the channels.Reprogramming A Single HomeLink Button
(Non-Rolling Code)
To reprogram a channel that has been previously trained,
follow these steps:
1. Cycle the ignition to the ON/RUN position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193

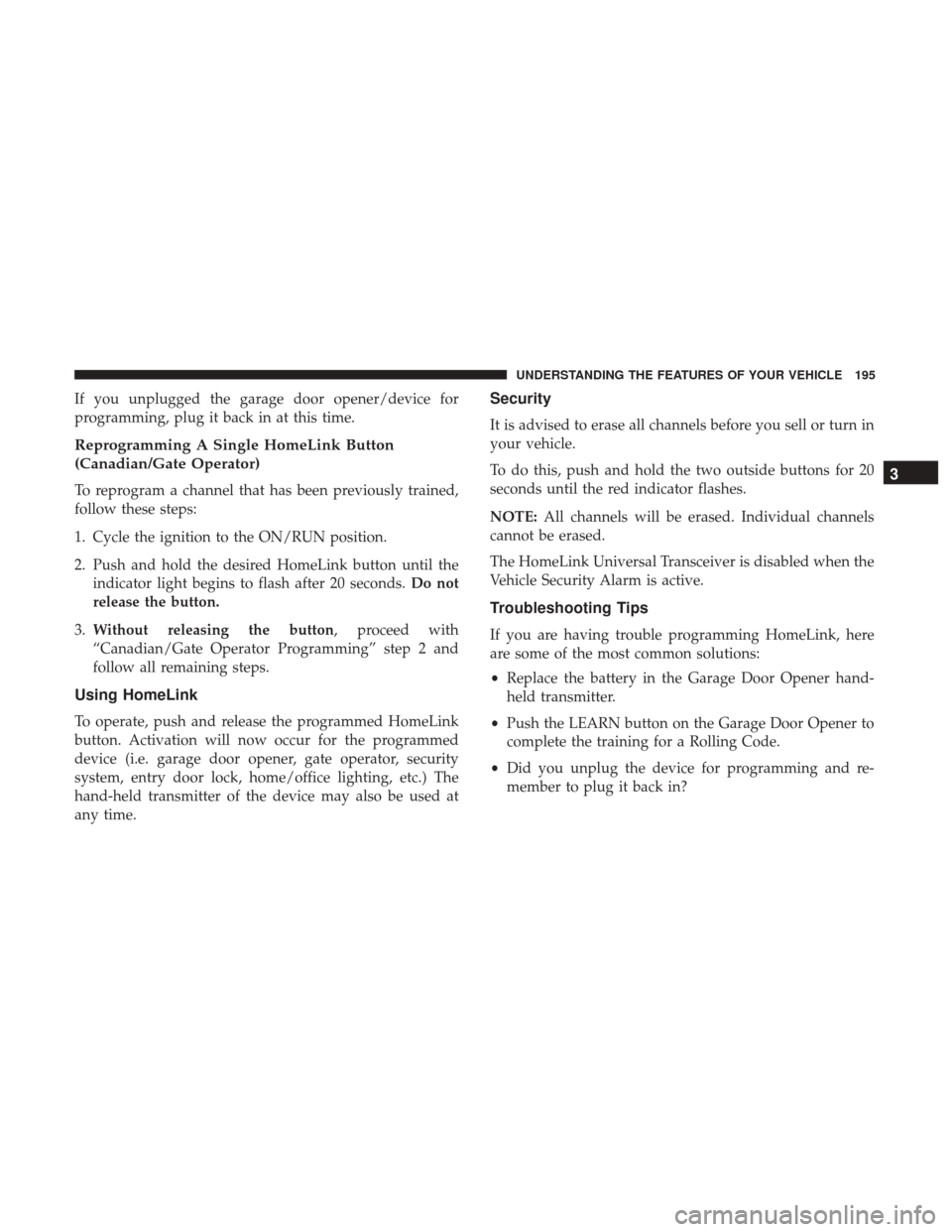

If you unplugged the garage door opener/device for
programming, plug it back in at this time.
Reprogramming A Single HomeLink Button
(Canadian/Gate Operator)
To reprogram a channel that has been previously trained,
follow these steps:
1. Cycle the ignition to the ON/RUN position.
2. Push and hold the desired HomeLink button until theindicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button, proceed with
“Canadian/Gate Operator Programming” step 2 and
follow all remaining steps.
Using HomeLink
To operate, push and release the programmed HomeLink
button. Activation will now occur for the programmed
device (i.e. garage door opener, gate operator, security
system, entry door lock, home/office lighting, etc.) The
hand-held transmitter of the device may also be used at
any time.
Security
It is advised to erase all channels before you sell or turn in
your vehicle.
To do this, push and hold the two outside buttons for 20
seconds until the red indicator flashes.
NOTE: All channels will be erased. Individual channels
cannot be erased.
The HomeLink Universal Transceiver is disabled when the
Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink, here
are some of the most common solutions:
• Replace the battery in the Garage Door Opener hand-
held transmitter.
• Push the LEARN button on the Garage Door Opener to
complete the training for a Rolling Code.
• Did you unplug the device for programming and re-
member to plug it back in?
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195

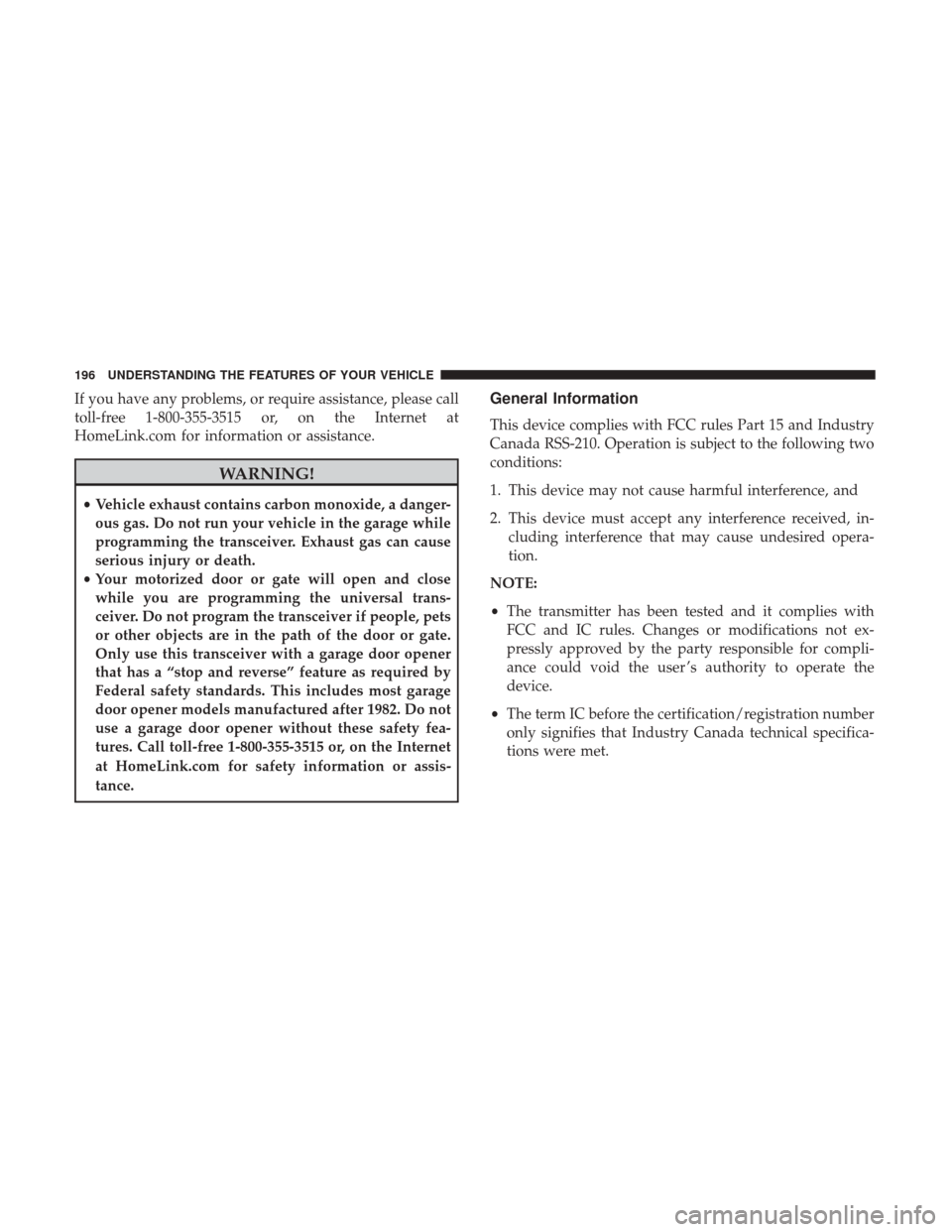

If you have any problems, or require assistance, please call
toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.
WARNING!
•Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run your vehicle in the garage while
programming the transceiver. Exhaust gas can cause
serious injury or death.
• Your motorized door or gate will open and close
while you are programming the universal trans-
ceiver. Do not program the transceiver if people, pets
or other objects are in the path of the door or gate.
Only use this transceiver with a garage door opener
that has a “stop and reverse” feature as required by
Federal safety standards. This includes most garage
door opener models manufactured after 1982. Do not
use a garage door opener without these safety fea-
tures. Call toll-free 1-800-355-3515 or, on the Internet
at HomeLink.com for safety information or assis-
tance.
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
NOTE:
• The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
• The term IC before the certification/registration number
only signifies that Industry Canada technical specifica-
tions were met.
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

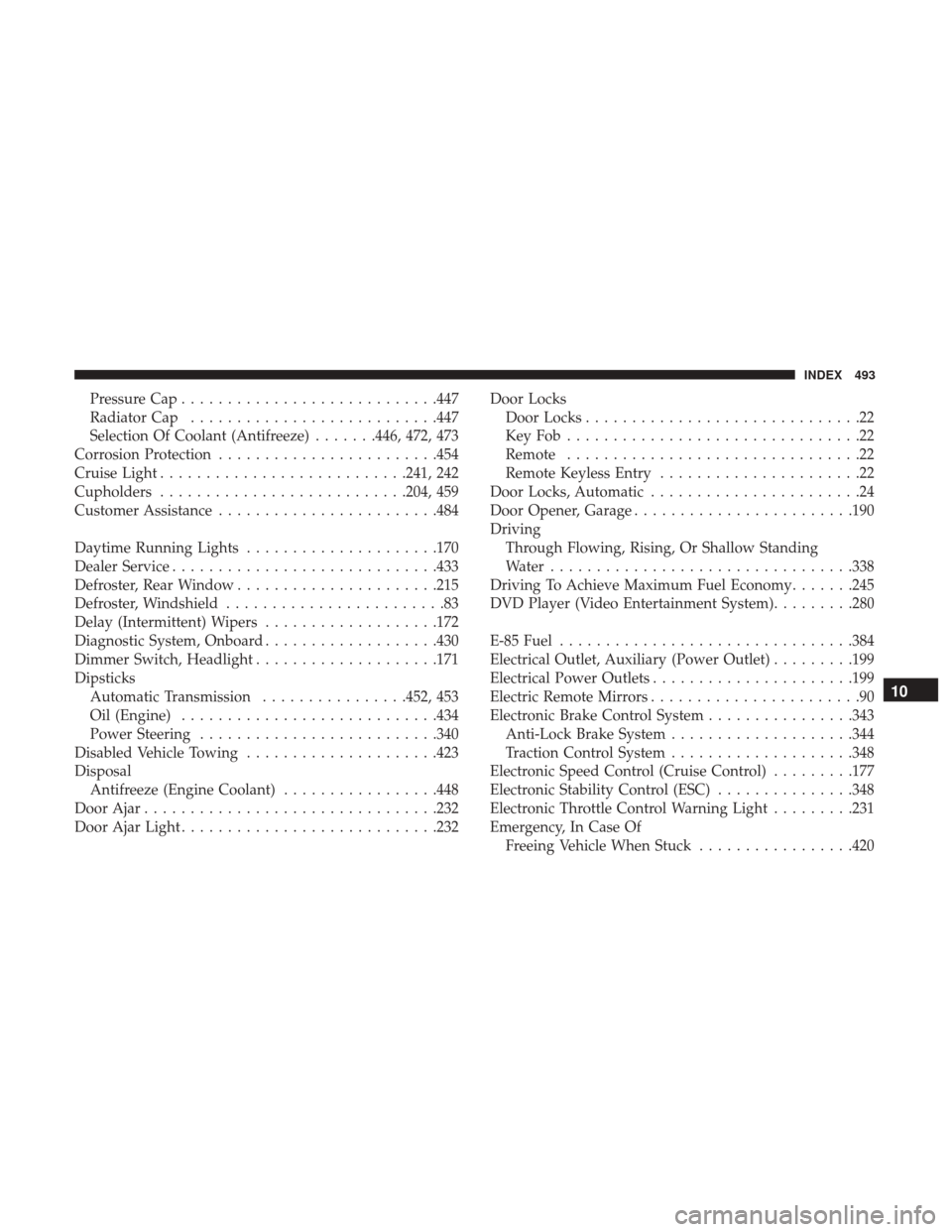

Pressure Cap........................... .447
Radiator Cap .......................... .447
Selection Of Coolant (Antifreeze) .......446, 472, 473
Corrosion Protection ....................... .454
Cruise Light .......................... .241, 242
Cupholders .......................... .204, 459
Customer Assistance ....................... .484
Daytime Running Lights .....................170
Dealer Service ............................ .433
Defroster, Rear Window ..................... .215
Defroster, Windshield ........................83
Delay (Intermittent) Wipers ...................172
Diagnostic System, Onboard ...................430
Dimmer Switch, Headlight ....................171
Dipsticks Automatic Transmission ................452, 453
Oil (Engine) ........................... .434
Power Steering ......................... .340
Disabled Vehicle Towing .....................423
Disposal Antifreeze (Engine Coolant) .................448
Door Ajar ............................... .232
Door Ajar Light ........................... .232Door Locks
Door Locks ..............................22
KeyFob................................22
Remote ................................22
Remote Keyless Entry ......................22
Door Locks, Automatic .......................24
Door Opener, Garage ....................... .190
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .338
Driving To Achieve Maximum Fuel Economy .......245
DVD Player (Video Entertainment System) .........280
E-85 Fuel ............................... .384
Electrical Outlet, Auxiliary (Power Outlet) .........199
Electrical Power Outlets ..................... .199
Electric Remote Mirrors .......................90
Electronic Brake Control System ................343
Anti-Lock Brake System ....................344
T

raction Control System ....................348
Electronic Speed Control (Cruise Control) .........177
Electronic Stability Control (ESC) ...............348
Electronic Throttle Control Warning Light .........231
Emergency, In Case Of Freeing Vehicle When Stuck .................420
10
INDEX 493

Cruising Range......................... .385
Engine Oil ............................ .385
Fuel Requirements ....................... .384
Maintenance ........................... .386
Replacement Parts ....................... .385
Starting .............................. .385
Flooded Engine Starting ..................... .327
Floor Console ............................ .206
Fluid, Brake ............................. .475
Fluid Capacities ........................... .472
Fluid Leaks ...............................84
Fluid Level Checks Automatic Transmission ................452, 453
Brake ............................. .450, 475
Cooling System ......................... .445
Engine Oil ............................ .434
Power Steering ...................... .340, 475
Fluids, Lubricants And Genuine Parts ............473
Fog Lights ........................... .170, 468
Fog Light Service .......................... .468
Folding Rear Seat ...................... .159, 164
Freeing A Stuck Vehicle ..................... .420
Fuel ................................... .380
Adding .............................. .386
Additives ............................. .382Clean Air
............................. .380
Conserving ............................ .245
Ethanol ........................... .381, 384
Filler Cap (Gas Cap) ..................... .386
Gasoline .............................. .380
Light ................................ .238
Materials Added ........................ .382
Methanol ............................. .381
Octane Rating ....................... .380, 473
Requirements .......................... .380
Saver

Mode ........................... .245
Specifications .......................... .473
Tank Capacity .......................... .472
Fuel, Flexible ............................. .384
Fueling ................................. .386
Fuel Optimizer ........................... .245
Fuel Saver............................... .245
Fuses .................................. .459
Garage Door Opener (HomeLink) ............190, 195
Gas Cap (Fuel Filler Cap) .................386, 431
Gasoline, Clean Air ........................ .380
Gasoline (Fuel) Conserving ............................ .245
Gasoline, Reformulated ..................... .380
10
INDEX 495

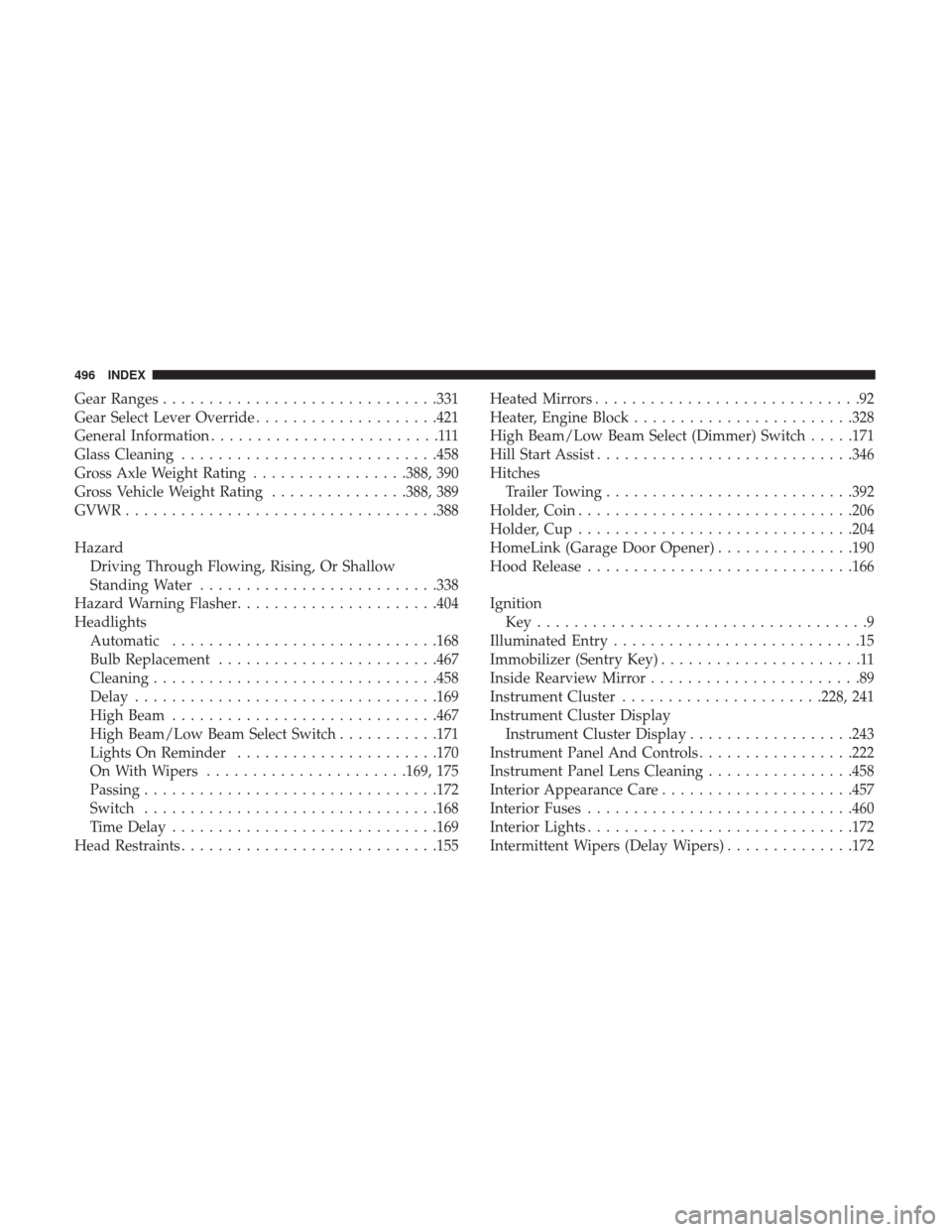

Gear Ranges............................. .331
Gear Select Lever Override ....................421
General Information .........................111
Glass Cleaning ........................... .458
Gross Axle Weight Rating .................388, 390
Gross Vehicle Weight Rating ...............388, 389
GVWR ................................. .388
Hazard Driving Through Flowing, Rising, Or Shallow
Standing Water ......................... .338
Hazard Warning Flasher ..................... .404
Headlights Automatic ............................ .168
Bulb Replacement ....................... .467
Cleaning .............................. .458
Delay ................................ .169
High Beam ............................ .467
High Beam/Low Beam Select Switch ...........171
Lights On Reminder ..................... .170
On With Wipers ..................... .169, 175
Passing ............................... .172
Switch ............................... .168
Time Delay ............................ .169
Head Restraints ........................... .155Heated Mirrors
.............................92
Heater, Engine Block ....................... .328
High Beam/Low Beam Select (Dimmer) Switch .....171
Hill Start Assist ........................... .346
Hitches Trailer Towing .......................... .392
Holder, Coin ............................. .206
Holder, Cup ............................. .204
HomeLink (Garage Door Opener) ...............190
Hood Release ............................ .166
Ignition Key....................................9
Illuminated Entry ...........................15
Immobilizer (Sentry Key) ......................11
Inside Rearview Mirror .......................89
Instrument Cluster ..................... .228, 241
Instr

ument Cluster Display
Instrument Cluster Display ..................243
Instrument Panel And Controls .................222
Instrument Panel Lens Cleaning ................458
Interior Appearance Care .....................457
Interior Fuses ............................ .460
Interior Lights ............................ .172
Intermittent Wipers (Delay Wipers) ..............172
496 INDEX
