wiper fluid DODGE JOURNEY 2017 1.G Owners Manual

Mist Feature
Push the washer knob, located on the end of the multifunc-
tion lever, inward to the first detent to activate a single
wipe cycle to clear the windshield of road mist or spray
from a passing vehicle. The wipers will continue to operate
until you release the lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Headlights On With Wipers
When this feature is active, the headlights will turn on after
the wipers are turned on if the headlight switch is placed in
the AUTO position and programmable feature is set to ON.
In addition, the headlights will turn off when the wipers
are turned off if they were turned on by this feature.
NOTE: The Headlights On with Wipers feature can be
turned on or off using the Uconnect System. Refer to
“Uconnect Settings/Customer Programmable Features” in
“Understanding Your Instrument Panel” for further infor-
mation.
TILT/TELESCOPING STEERING COLUMN
This feature allows you to tilt the steering column upward
or downward. It also allows you to lengthen or shorten the
steering column. The tilt/telescoping control handle is
located below the steering wheel at the end of the steering
column.
To unlock the steering column, push the control handle
downward. To tilt the steering column, move the steering
wheel upward or downward as desired. To lengthen or
shorten the steering column, pull the steering wheel out-
ward or push it inward as desired. To lock the steering
Tilt/Telescoping Steering Control Handle
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

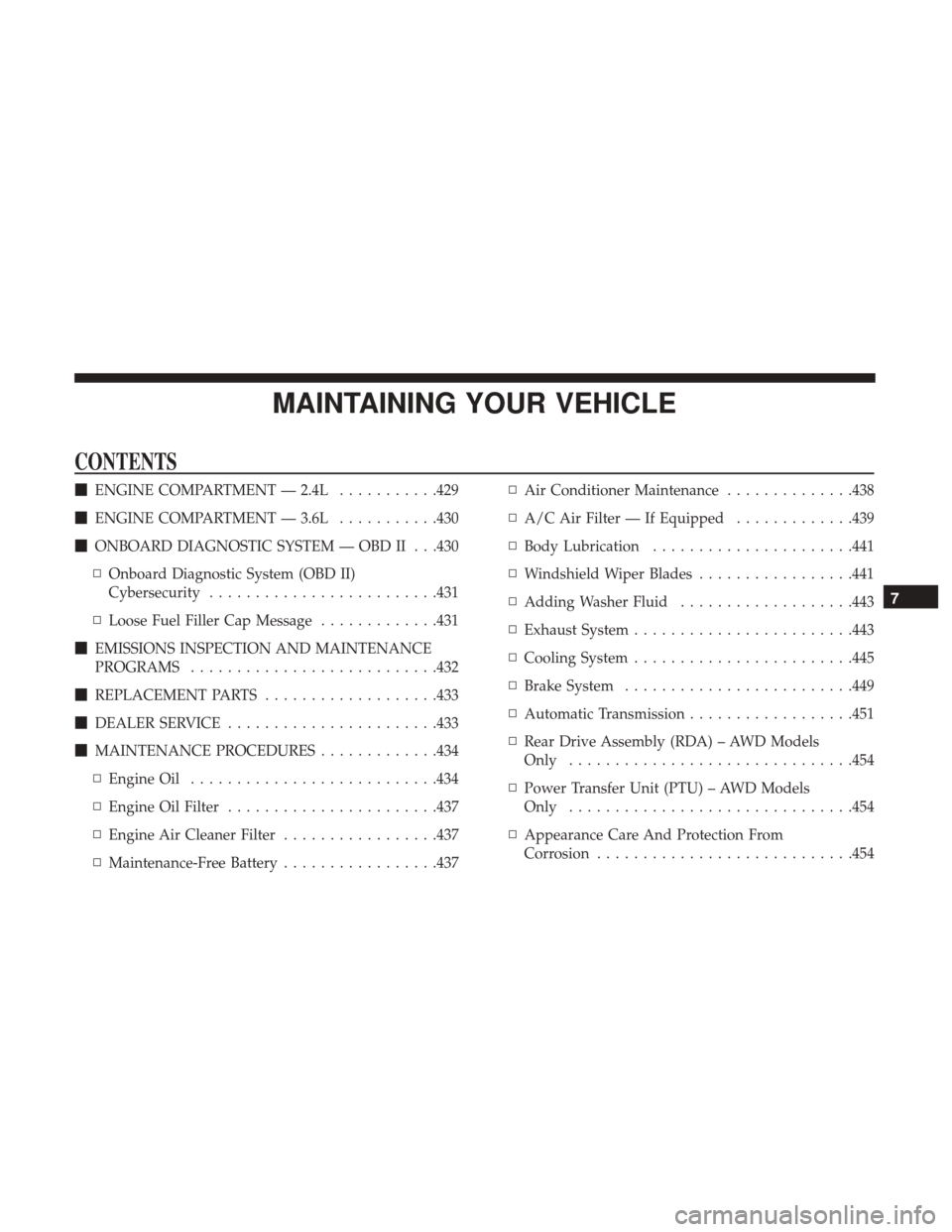

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ...........429
 ENGINE COMPARTMENT — 3.6L ...........430
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .430
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .431
▫ Loose Fuel Filler Cap Message .............431
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS .......................... .432
 REPLACEMENT PARTS ...................433
 DEALER SERVICE ...................... .433
 MAINTENANCE PROCEDURES .............434
▫ Engine Oil .......................... .434
▫ Engine Oil Filter ...................... .437
▫ Engine Air Cleaner Filter .................437
▫ Maintenance-Free Battery .................437 ▫
Air Conditioner Maintenance ..............438
▫ A/C Air Filter — If Equipped .............439
▫ Body Lubrication ..................... .441
▫ Windshield Wiper Blades .................441
▫ Adding Washer Fluid ...................443
▫ Exhaust System ....................... .443
▫ Cooling System ....................... .445
▫ Brake System ........................ .449
▫ Automatic Transmission ..................451
▫ Rear Drive Assembly (RDA) – AWD Models
Only .............................. .454
▫ Power Transfer Unit (PTU) – AWD Models
Only .............................. .454
▫ Appearance Care And Protection From
Corrosion ........................... .454
7

CAUTION!
The cabin air filter is identified with an arrow to
indicate airflow direction through the filter. Failure to
install the filter properly will result in the need to
replace it more often.
7. Reinstall the glove compartment door. Make sure that the hinges are seated fully as you raise the door.
Otherwise, the door latch will not align properly.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should be
lubricated periodically with a lithium based grease, such as
MOPAR Spray White Lube to assure quiet, easy operation
and to protect against rust and wear. Prior to the applica-
tion of any lubricant, the parts concerned should be wiped
clean to remove dust and grit; after lubricating excess oil
and grease should be removed. Particular attention should
also be given to hood latching components to ensure
proper function. When performing other underhood ser-
vices, the hood latch, release mechanism and safety catch
should be cleaned and lubricated. The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumulations
of salt or road film.
Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
7
MAINTAINING YOUR VEHICLE 441

5. Lower the wiper blade and snap the pivot cap intoplace.
Adding Washer Fluid
The windshield washer and the rear window washer share
the same fluid reservoir. The fluid reservoir is located in the
engine compartment. Be sure to check the fluid level in the
reservoir at regular intervals. Fill the reservoir with wind-
shield washer solvent (not radiator antifreeze) and operate
the system for a few seconds to flush out the residual
water.
When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper blades
clean. This will help blade performance.
To prevent freeze-up of your windshield washer system in
cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This rating
information can be found on most washer fluid containers.
The fluid reservoir will hold nearly 1 gal (4 l) of washer
fluid when the message “LoWASH” appears in the instru-
ment cluster.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around the
washer solution.
Exhaust System
The best protection against carbon monoxide entry into the
vehicle body is a properly maintained engine exhaust
system.
If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
have an authorized technician inspect the complete ex-
haust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams or
loose connections could permit exhaust fumes to seep into
the passenger compartment. In addition, have the exhaust
system inspected each time the vehicle is raised for lubri-
cation or oil change. Replace as required.
7
MAINTAINING YOUR VEHICLE 443

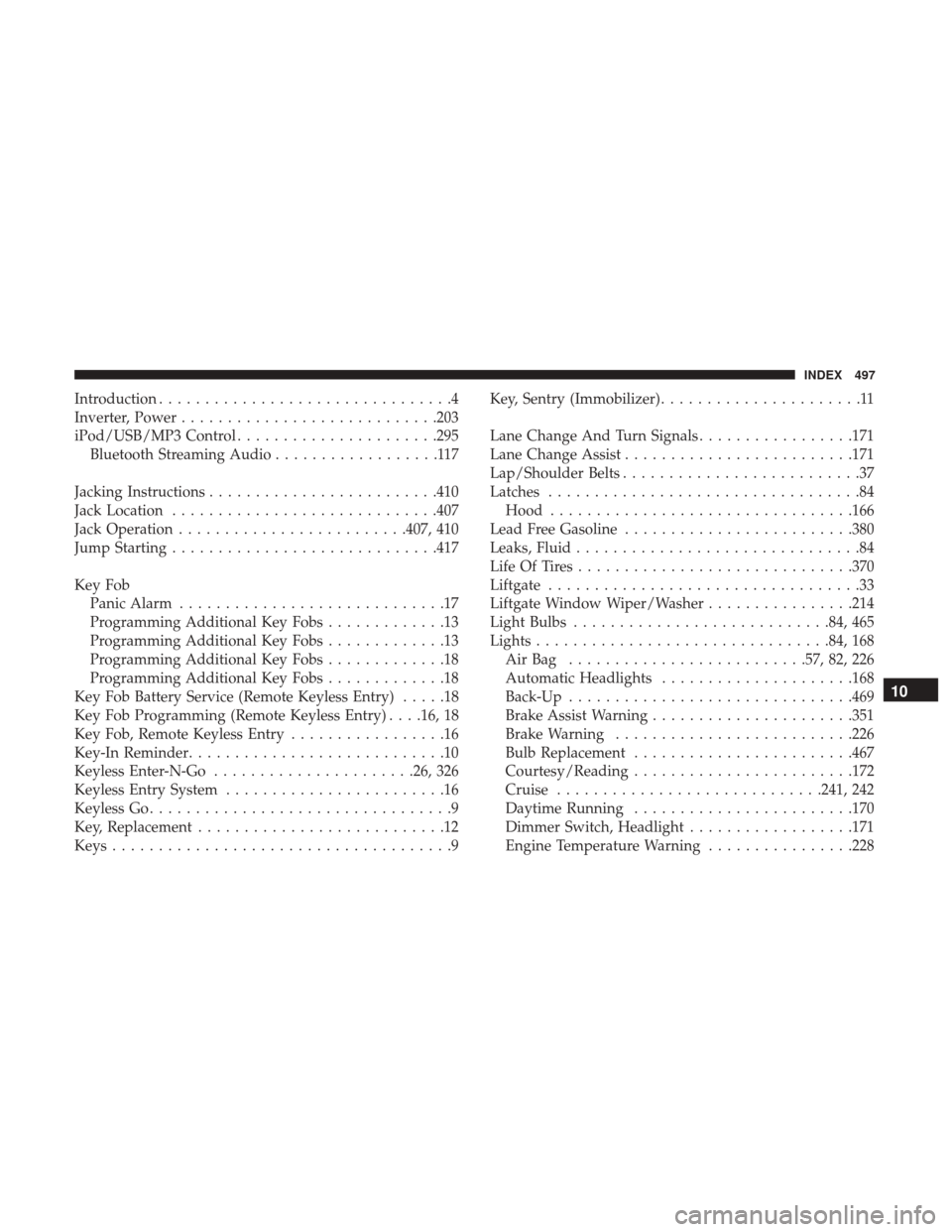

Introduction................................4
Inverter, Power ........................... .203
iPod/USB/MP3 Control ..................... .295
Bluetooth Streaming Audio ..................117
Jacking Instructions ........................ .410
Jack Location ............................ .407
Jack Operation ........................ .407, 410
Jump Starting ............................ .417
Key Fob Panic Alarm .............................17
Programming Additional Key Fobs .............13
Programming Additional Key Fobs .............13
Programming Additional Key Fobs .............18
Programming Additional Key Fobs .............18
Key Fob Battery Service (Remote Keyless Entry) .....18
Key Fob Programming (Remote Keyless Entry) . . . .16, 18
Key Fob, Remote Keyless Entry .................16
Key-In Reminder ............................10
Keyless Enter-N-Go ..................... .26, 326
Keyless Entry System ........................16
Keyless Go .................................9
Key, Replacement ...........................12
Keys .....................................9 Key, Sentry (Immobilizer)
......................11
Lane Change And Turn Signals .................171
Lane Change Assist ........................ .171
Lap/Shoulder Belts ..........................37
Latches ..................................84
Hood ................................ .166
Lead Free Gasoline ........................ .380
Leaks, Fluid ...............................84
Life Of Tires ............................. .370
Liftgate ..................................33
Liftgate Window Wiper/Washer ................214
Light Bulbs ........................... .84, 465
Lights ............................... .84, 168
AirBag ......................... .57, 82, 226
Automatic Headlights .....................168
Back-Up .............................. .469
Brake Assist Warning ..................... .351
Brake Warning ......................... .226
Bulb Replacement ....................... .467
Courtesy/Reading ....................... .172
Cr

uise ............................ .241, 242
Daytime Running ....................... .170
Dimmer Switch, Headlight ..................171
Engine Temperature Warning ................228
10
INDEX 497

Vehicle Certification Label....................388
Vehicle Identification Number (VIN) ...............6
Vehicle Loading .....................359, 387, 389
Vehicle Modifications/Alterations .................6
Vehicle Security Alarm (Security Alarm) ...........13
Vehicle Storage ........................... .318
Viscosity, Engine Oil .....................435, 436
Voice Command .......................... .141
Warning Flasher, Hazard .....................404
Warnings And Cautions .......................5
Warranty Information ...................... .487
Washer Adding Fluid .......................... .443
Washers, Windshield .................172, 174, 443
Washing Vehicle .......................... .455
Water Driving Through ........................ .338
Wheel And Wheel Trim ..................... .456
Wheel And Wheel Trim Care ..................456
Wind Buffeting ......................... .32, 199
Window Fogging .......................... .319
Windows .................................30
Power .................................30
Wind Buffeting ...........................32 Windshield Defroster
.........................83
Windshield Washers .....................172, 174
Fluid ................................ .443
Windshield Wiper Blades .....................441
Windshield Wipers ........................ .172
Wiper Blade Replacement .....................441
Wiper, Delay ............................. .172
Wiper, Rear .............................. .214
Wipers, Intermittent ........................ .172
Wrecker Towing .......................... .423
506 INDEX
