WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
• Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the battery
even more quickly. Only use these intermittently and
with greater caution.
(Continued)
CAUTION! (Continued)
•After the use of high power draw accessories, or long
periods of the vehicle not being started (with acces-
sories still plugged in), the vehicle must be driven a
sufficient length of time to allow the alternator to
recharge the vehicle’s battery.
• Power outlets are designed for accessory plugs only.
Do not hang any type of accessory or accessory
bracket from the plug.
3
GETTING TO KNOW YOUR VEHICLE 129

Power Inverter — If Equipped

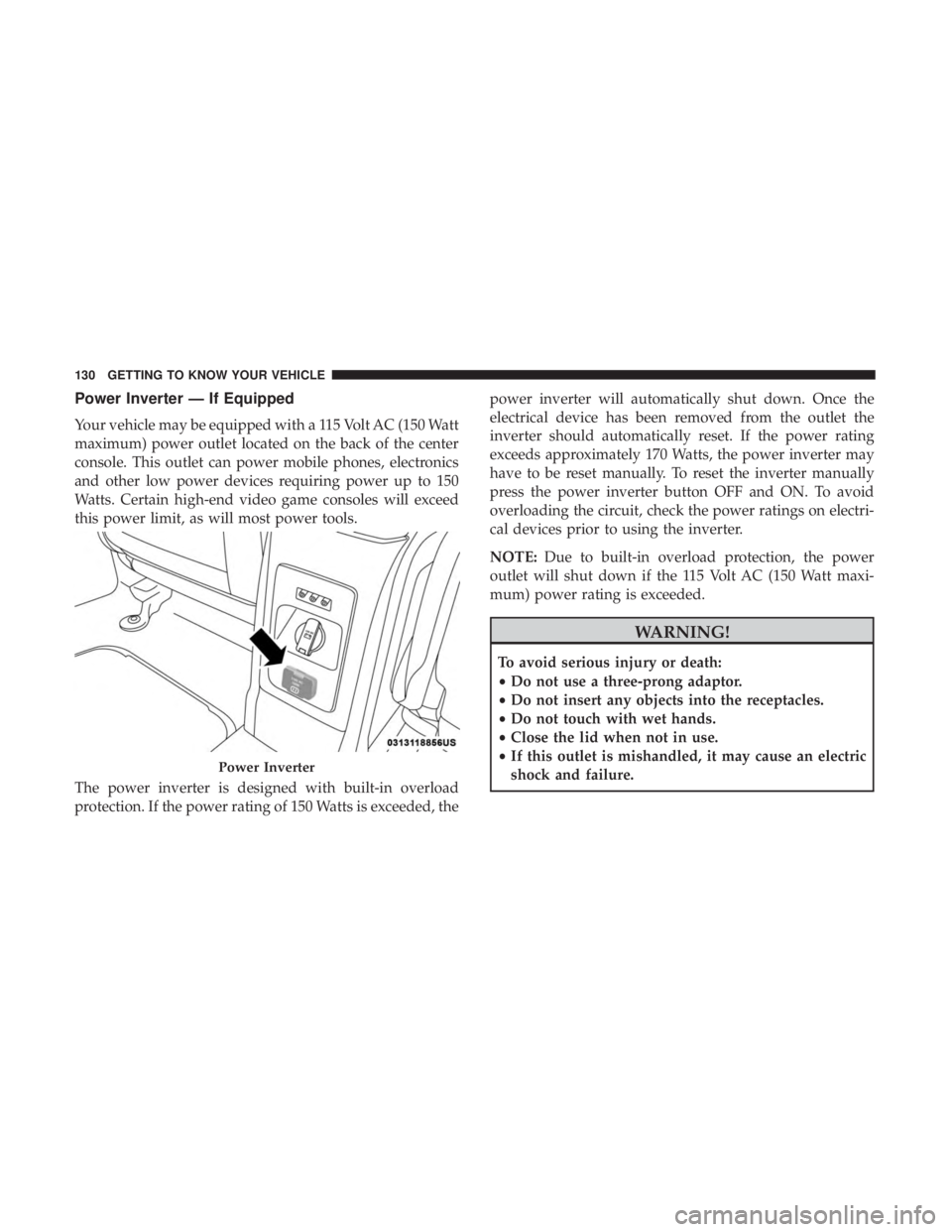

Your vehicle may be equipped with a 115 Volt AC (150 Watt
maximum) power outlet located on the back of the center
console. This outlet can power mobile phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end video game consoles will exceed
this power limit, as will most power tools.
The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded, thepower inverter will automatically shut down. Once the
electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter may
have to be reset manually. To reset the inverter manually
press the power inverter button OFF and ON. To avoid
overloading the circuit, check the power ratings on electri-
cal devices prior to using the inverter.
NOTE:
Due to built-in overload protection, the power
outlet will shut down if the 115 Volt AC (150 Watt maxi-
mum) power rating is exceeded.
WARNING!
To avoid serious injury or death:
• Do not use a three-prong adaptor.
• Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled, it may cause an electric
shock and failure.
Power Inverter
130 GETTING TO KNOW YOUR VEHICLE

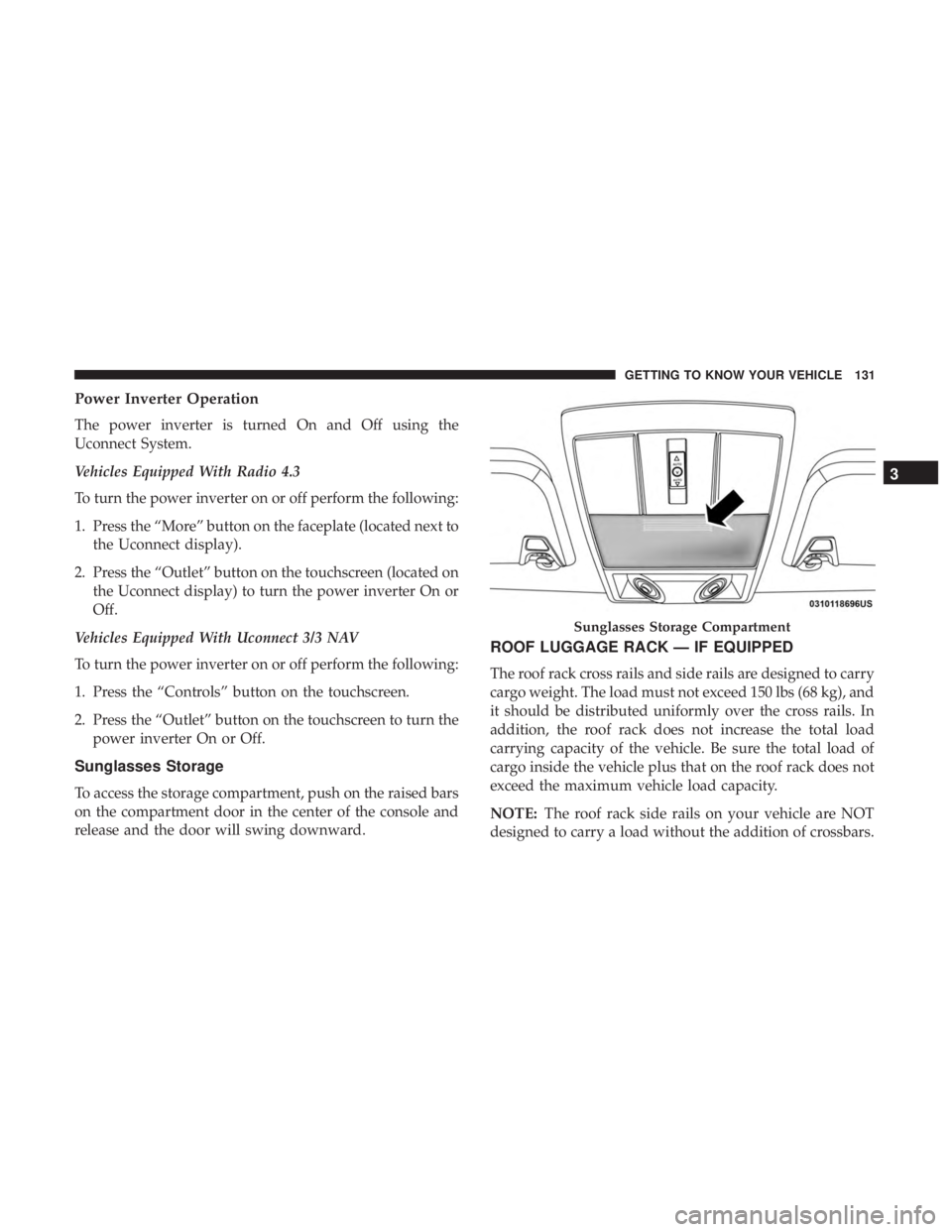

Power Inverter Operation
The power inverter is turned On and Off using the
Uconnect System.
Vehicles Equipped With Radio 4.3
To turn the power inverter on or off perform the following:
1. Press the “More” button on the faceplate (located next tothe Uconnect display).
2. Press the “Outlet” button on the touchscreen (located on the Uconnect display) to turn the power inverter On or
Off.
Vehicles Equipped With Uconnect 3/3 NAV
To turn the power inverter on or off perform the following:
1. Press the “Controls” button on the touchscreen.
2. Press the “Outlet” button on the touchscreen to turn the power inverter On or Off.
Sunglasses Storage
To access the storage compartment, push on the raised bars
on the compartment door in the center of the console and
release and the door will swing downward.
ROOF LUGGAGE RACK — IF EQUIPPED
The roof rack cross rails and side rails are designed to carry
cargo weight. The load must not exceed 150 lbs (68 kg), and
it should be distributed uniformly over the cross rails. In
addition, the roof rack does not increase the total load
carrying capacity of the vehicle. Be sure the total load of
cargo inside the vehicle plus that on the roof rack does not
exceed the maximum vehicle load capacity.
NOTE: The roof rack side rails on your vehicle are NOT
designed to carry a load without the addition of crossbars.
Sunglasses Storage Compartment
3
GETTING TO KNOW YOUR VEHICLE 131

Metal crossbars are offered by Mopar accessories to pro-
vide a functional roof rack system. See an authorized
dealer.

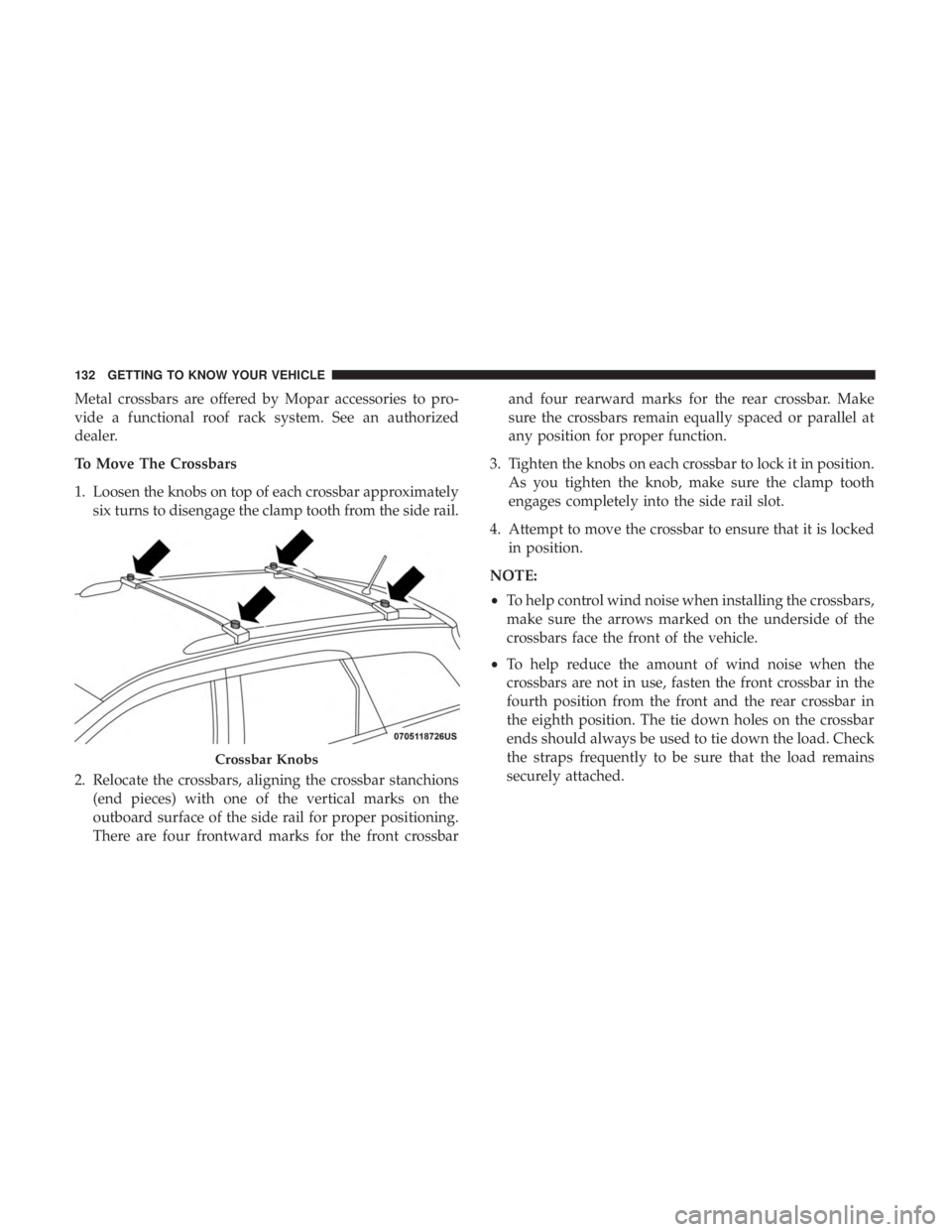

To Move The Crossbars
1. Loosen the knobs on top of each crossbar approximatelysix turns to disengage the clamp tooth from the side rail.
2. Relocate the crossbars, aligning the crossbar stanchions (end pieces) with one of the vertical marks on the
outboard surface of the side rail for proper positioning.
There are four frontward marks for the front crossbar and four rearward marks for the rear crossbar. Make
sure the crossbars remain equally spaced or parallel at
any position for proper function.
3. Tighten the knobs on each crossbar to lock it in position. As you tighten the knob, make sure the clamp tooth
engages completely into the side rail slot.
4. Attempt to move the crossbar to ensure that it is locked in position.
NOTE:
• To help control wind noise when installing the crossbars,
make sure the arrows marked on the underside of the
crossbars face the front of the vehicle.
• To help reduce the amount of wind noise when the
crossbars are not in use, fasten the front crossbar in the
fourth position from the front and the rear crossbar in
the eighth position. The tie down holes on the crossbar
ends should always be used to tie down the load. Check
the straps frequently to be sure that the load remains
securely attached.
Crossbar Knobs
132 GETTING TO KNOW YOUR VEHICLE

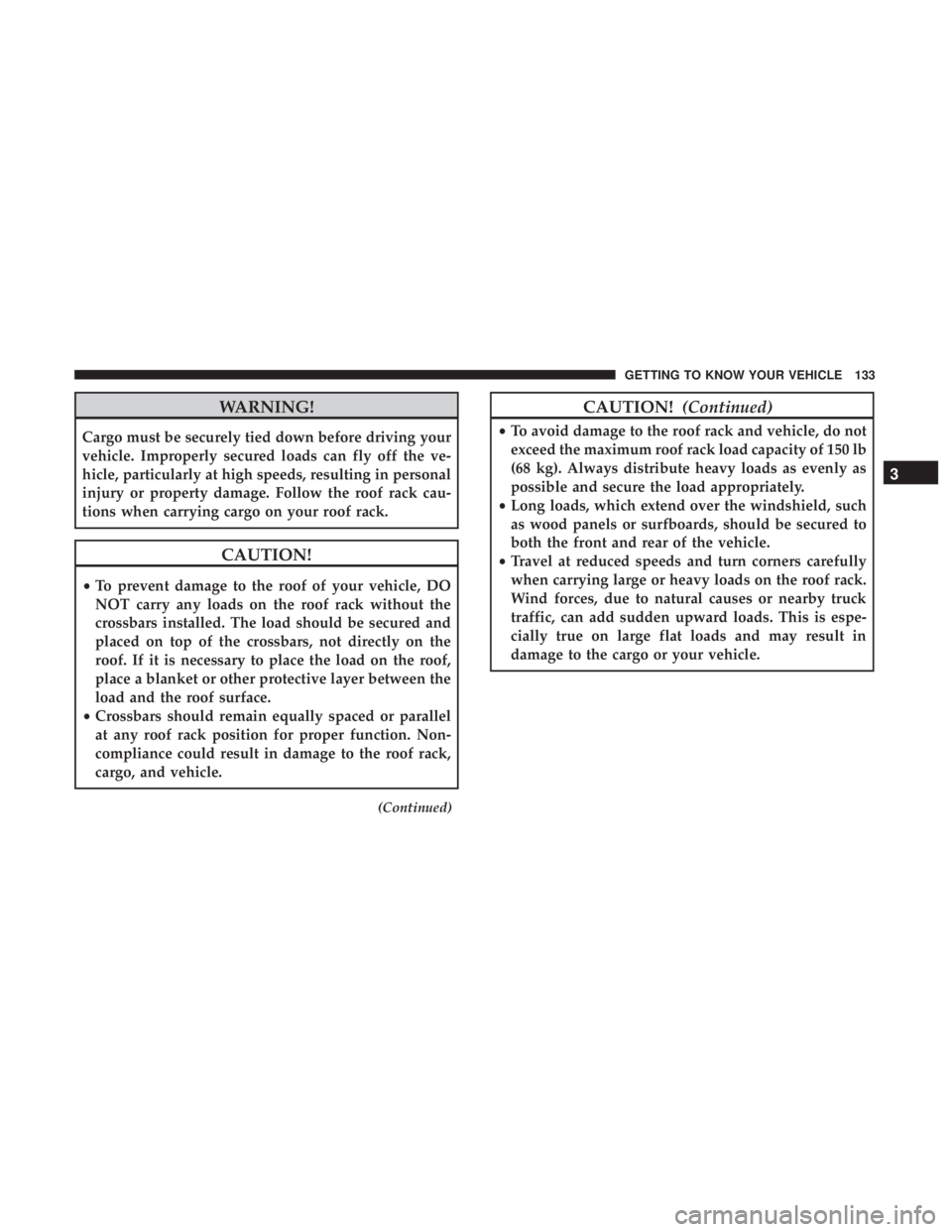

WARNING!
Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.
CAUTION!
•To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars installed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or other protective layer between the
load and the roof surface.
• Crossbars should remain equally spaced or parallel
at any roof rack position for proper function. Non-
compliance could result in damage to the roof rack,
cargo, and vehicle.
(Continued)
CAUTION! (Continued)
•To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150 lb
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.
• Long loads, which extend over the windshield, such
as wood panels or surfboards, should be secured to
both the front and rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward loads. This is espe-
cially true on large flat loads and may result in
damage to the cargo or your vehicle.
3
GETTING TO KNOW YOUR VEHICLE 133

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ..................136
▫ Instrument Cluster Descriptions ............137
 INSTRUMENT CLUSTER DISPLAY ...........138
▫ Instrument Cluster Display Location And
Controls ............................ .138
▫ Oil Change Due ...................... .139
▫ Instrument Cluster Display Selectable Menu
Items .............................. .140
▫ Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions
— If Equipped ....................... .143
WARNING LIGHTS AND MESSAGES .........146
▫ Red Warning Lights .....................146
▫ Yellow Warning Lights ...................150
▫ Green Indicator Lights ...................153
▫ White Indicator Lights ...................154
▫ Blue Indicator Lights ....................154
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .155
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .155
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS .......................... .1564

INSTRUMENT CLUSTER
Instrument Cluster
136 GETTING TO KNOW YOUR INSTRUMENT PANEL

Instrument Cluster Descriptions

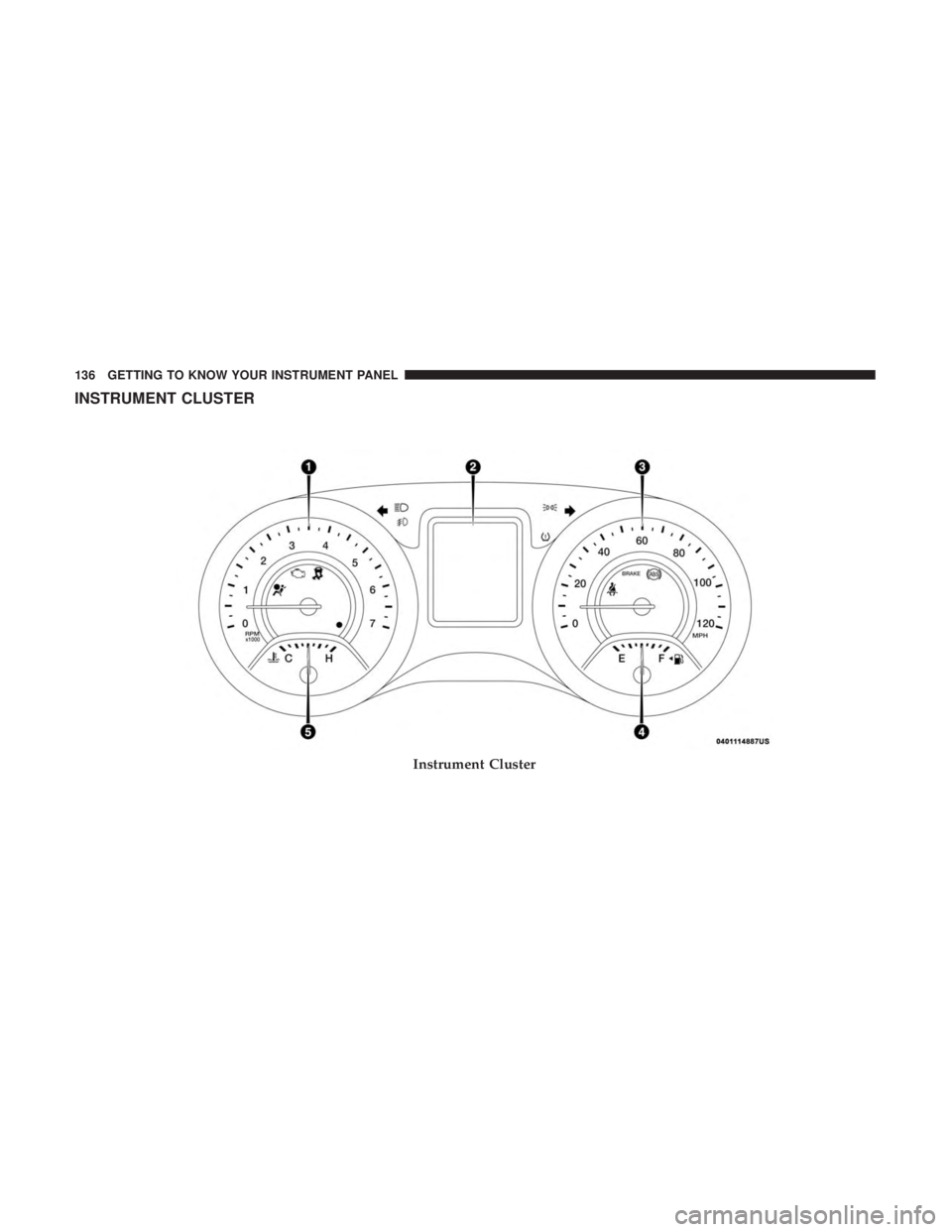

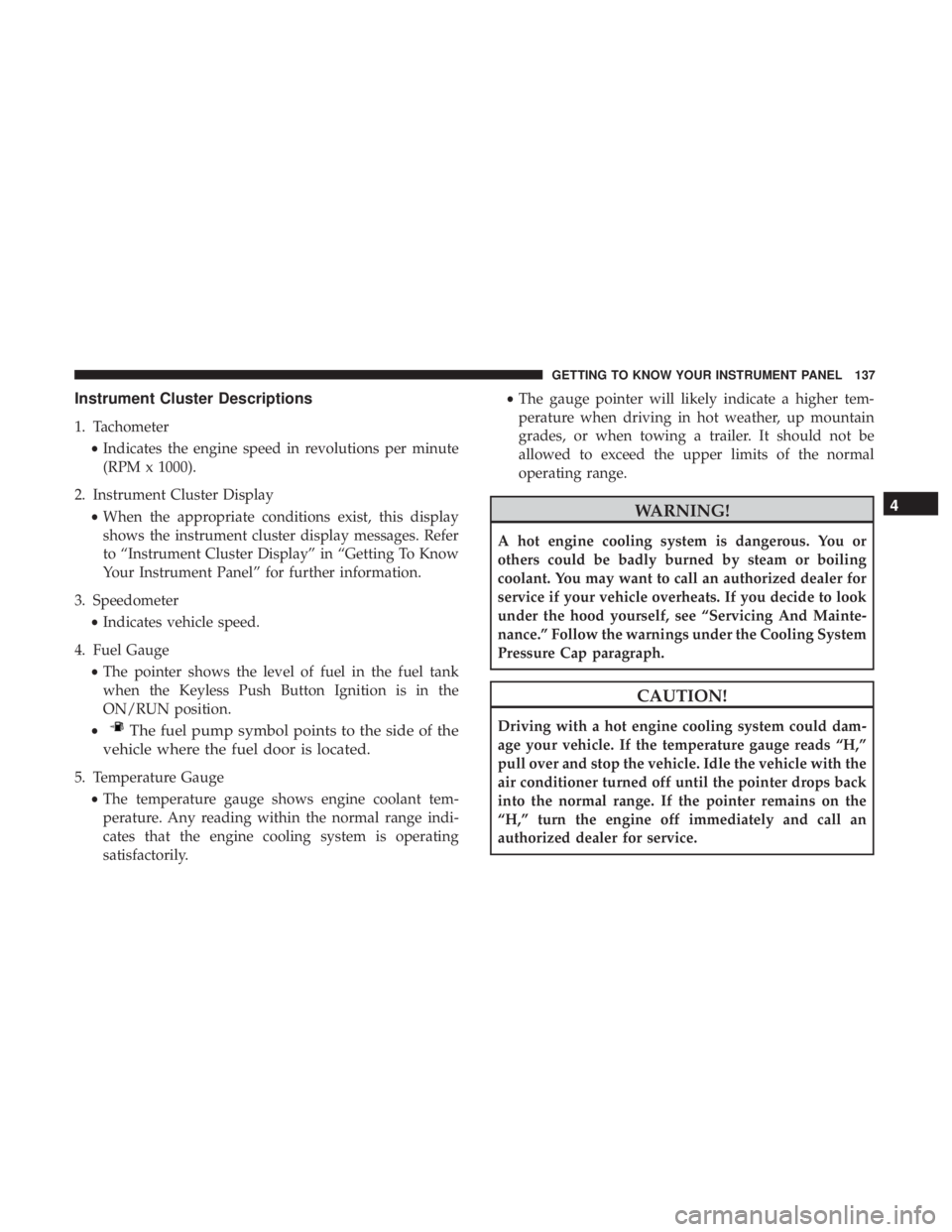

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Instrument Cluster Display •When the appropriate conditions exist, this display
shows the instrument cluster display messages. Refer
to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the Keyless Push Button Ignition is in the
ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel door is located.
5. Temperature Gauge
•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily. •
The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats. If you decide to look
under the hood yourself, see “Servicing And Mainte-
nance.” Follow the warnings under the Cooling System
Pressure Cap paragraph.
CAUTION!
Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H,” turn the engine off immediately and call an
authorized dealer for service.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 137

NOTE:The hard telltales will illuminate for a bulb check
when the ignition is first cycled.
INSTRUMENT CLUSTER DISPLAY

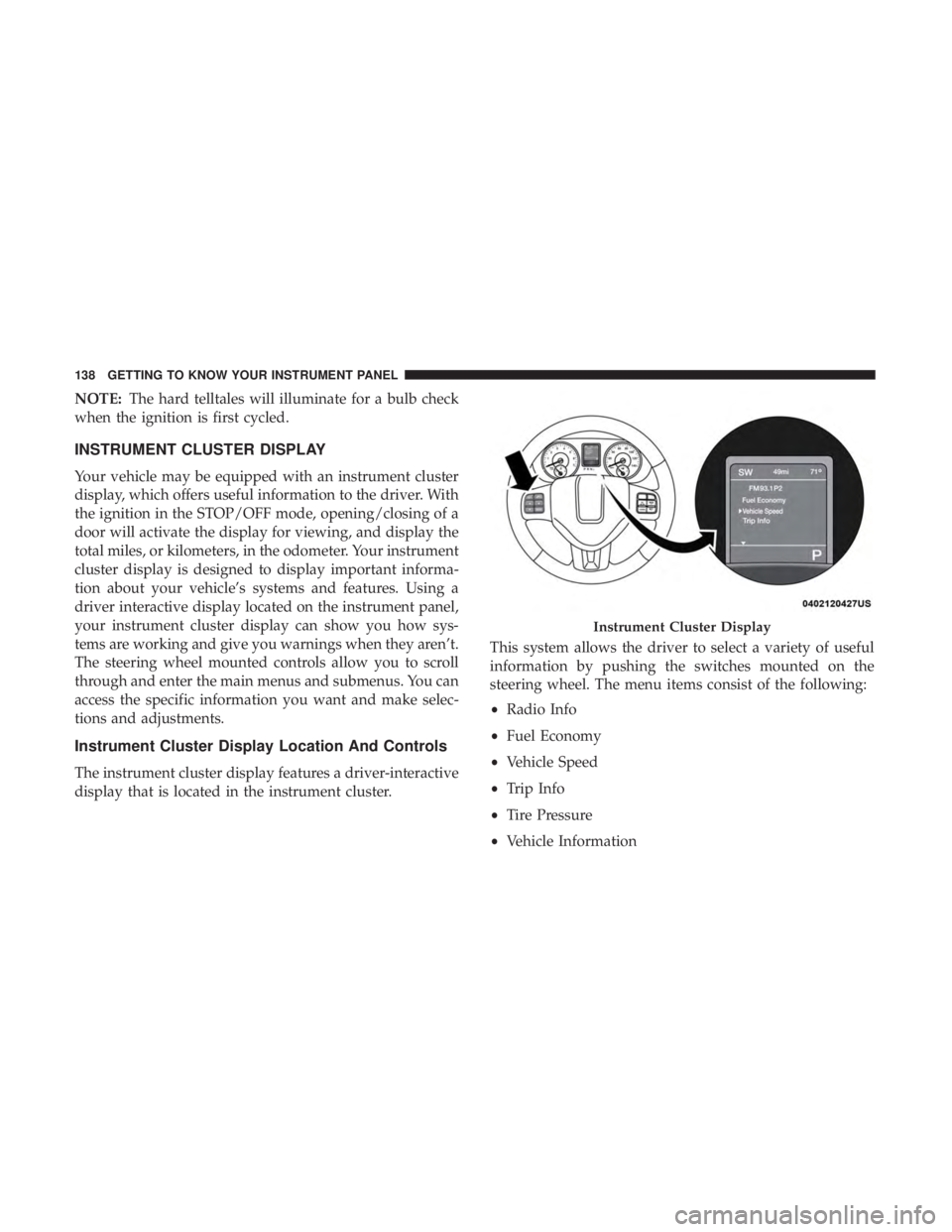

Your vehicle may be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the STOP/OFF mode, opening/closing of a
door will activate the display for viewing, and display the
total miles, or kilometers, in the odometer. Your instrument
cluster display is designed to display important informa-
tion about your vehicle’s systems and features. Using a
driver interactive display located on the instrument panel,
your instrument cluster display can show you how sys-
tems are working and give you warnings when they aren’t.
The steering wheel mounted controls allow you to scroll
through and enter the main menus and submenus. You can
access the specific information you want and make selec-
tions and adjustments.
Instrument Cluster Display Location And Controls
The instrument cluster display features a driver-interactive
display that is located in the instrument cluster. This system allows the driver to select a variety of useful
information by pushing the switches mounted on the
steering wheel. The menu items consist of the following:
•
Radio Info
• Fuel Economy
• Vehicle Speed
• Trip Info
• Tire Pressure
• Vehicle Information
Instrument Cluster Display
138 GETTING TO KNOW YOUR INSTRUMENT PANEL
