windshield wipers DODGE JOURNEY 2019 Owners Manual

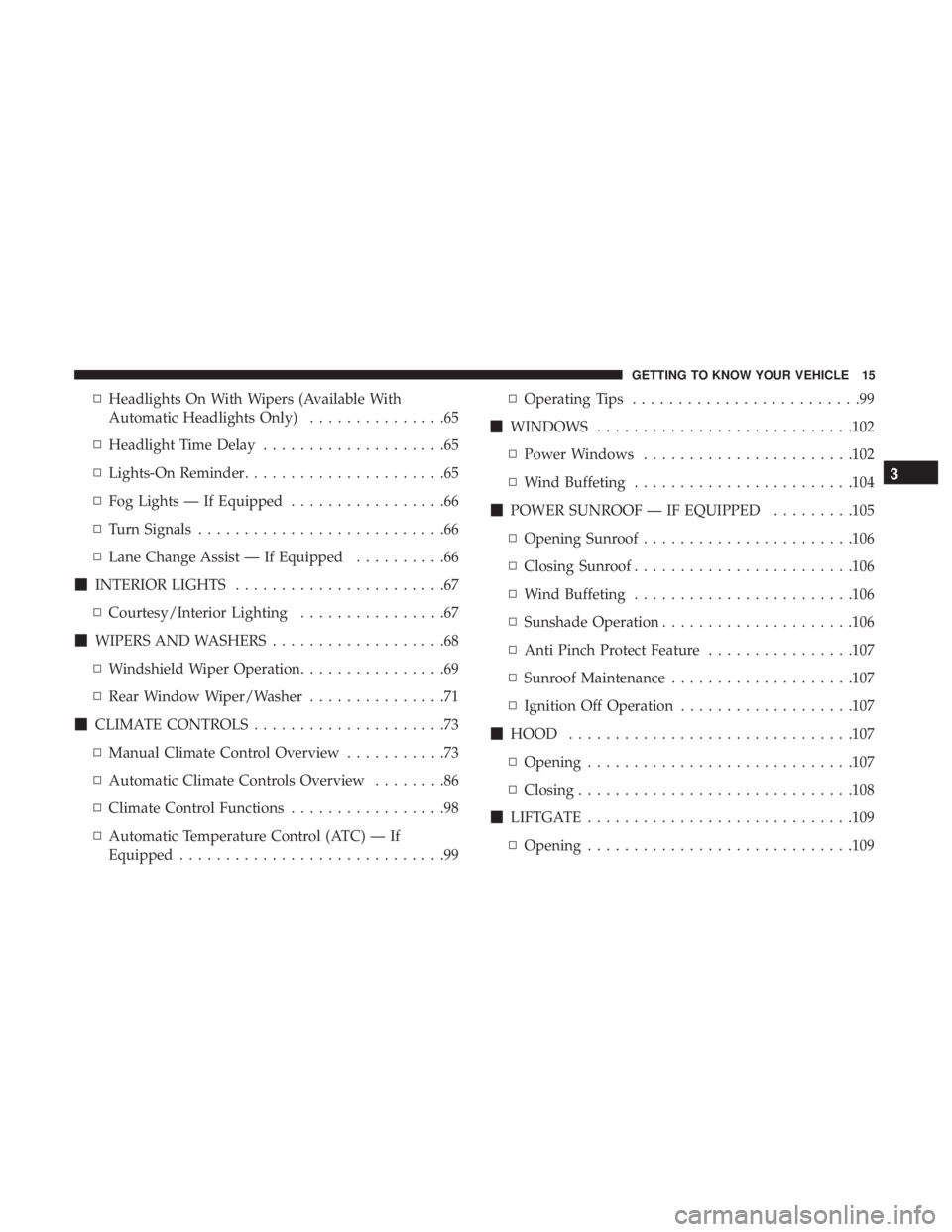

▫Headlights On With Wipers (Available With
Automatic Headlights Only) ...............65
▫ Headlight Time Delay ....................65
▫ Lights-On Reminder ......................65
▫ Fog Lights — If Equipped .................66
▫ Turn Signals ...........................66
▫ Lane Change Assist — If Equipped ..........66
 INTERIOR LIGHTS .......................67
▫ Courtesy/Interior Lighting ................67
 WIPERS AND WASHERS ...................68
▫ Windshield Wiper Operation ................69
▫ Rear Window Wiper/Washer ...............71
 CLIMATE CONTROLS .....................73
▫ Manual Climate Control Overview ...........73
▫ Automatic Climate Controls Overview ........86
▫ Climate Control Functions .................98
▫ Automatic Temperature Control (ATC) — If
Equipped .............................99 ▫
Operating Tips .........................99
 WINDOWS ........................... .102
▫ Power Windows ...................... .102
▫ Wind Buffeting ....................... .104
 POWER SUNROOF — IF EQUIPPED .........105
▫ Opening Sunroof ...................... .106
▫ Closing Sunroof ....................... .106
▫ Wind Buffeting ....................... .106
▫ Sunshade Operation .....................106
▫ Anti Pinch Protect Feature ................107
▫ Sunroof Maintenance ....................107
▫ Ignition Off Operation ...................107
 HOOD .............................. .107
▫ Opening ............................ .107
▫ Closing ............................. .108
 LIFTGA

TE............................ .109
▫ Opening ............................ .109
3
GETTING TO KNOW YOUR VEHICLE 15

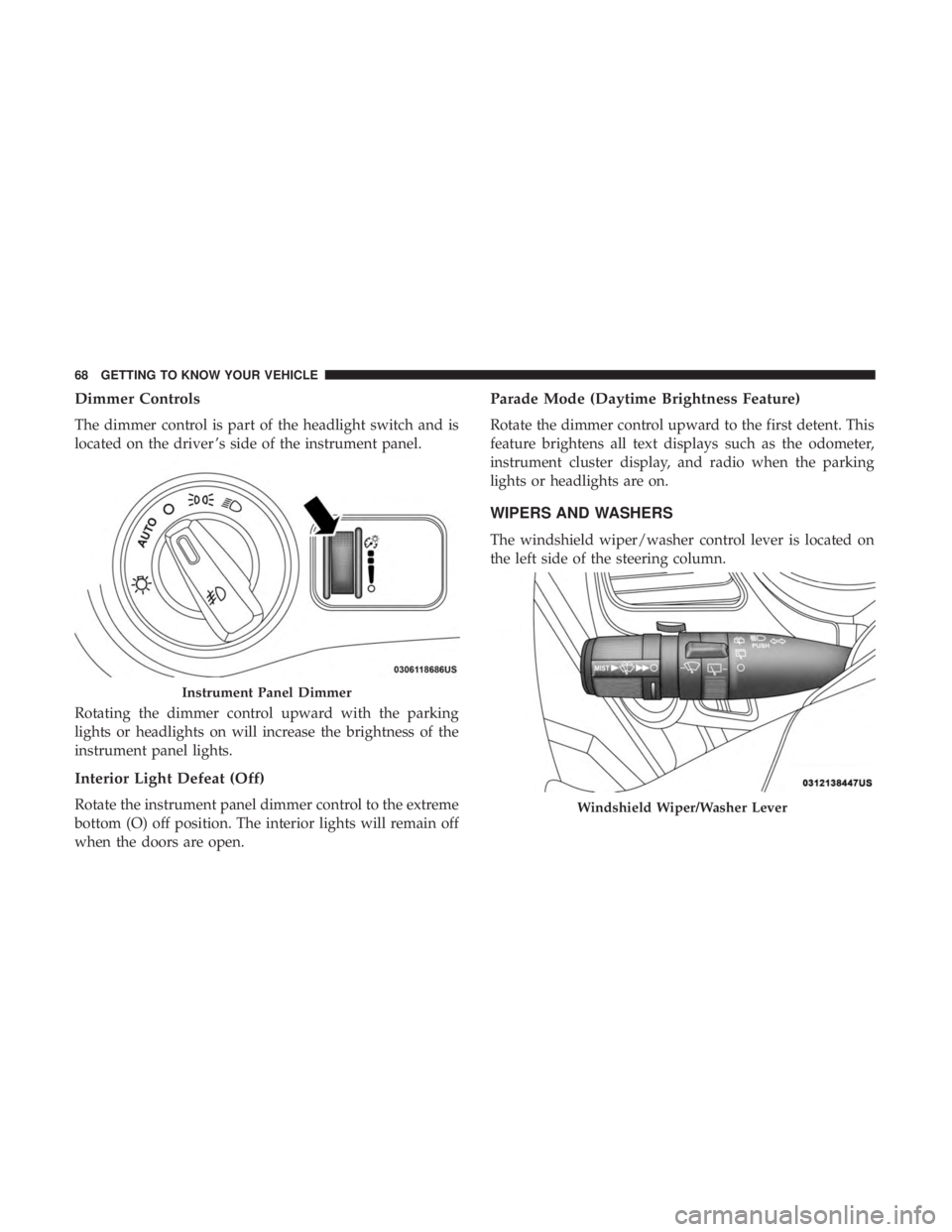

Dimmer Controls
The dimmer control is part of the headlight switch and is
located on the driver ’s side of the instrument panel.
Rotating the dimmer control upward with the parking
lights or headlights on will increase the brightness of the
instrument panel lights.
Interior Light Defeat (Off)
Rotate the instrument panel dimmer control to the extreme
bottom (O) off position. The interior lights will remain off
when the doors are open.
Parade Mode (Daytime Brightness Feature)
Rotate the dimmer control upward to the first detent. This
feature brightens all text displays such as the odometer,
instrument cluster display, and radio when the parking
lights or headlights are on.
WIPERS AND WASHERS
The windshield wiper/washer control lever is located on
the left side of the steering column.
Instrument Panel Dimmer
Windshield Wiper/Washer Lever
68 GETTING TO KNOW YOUR VEHICLE

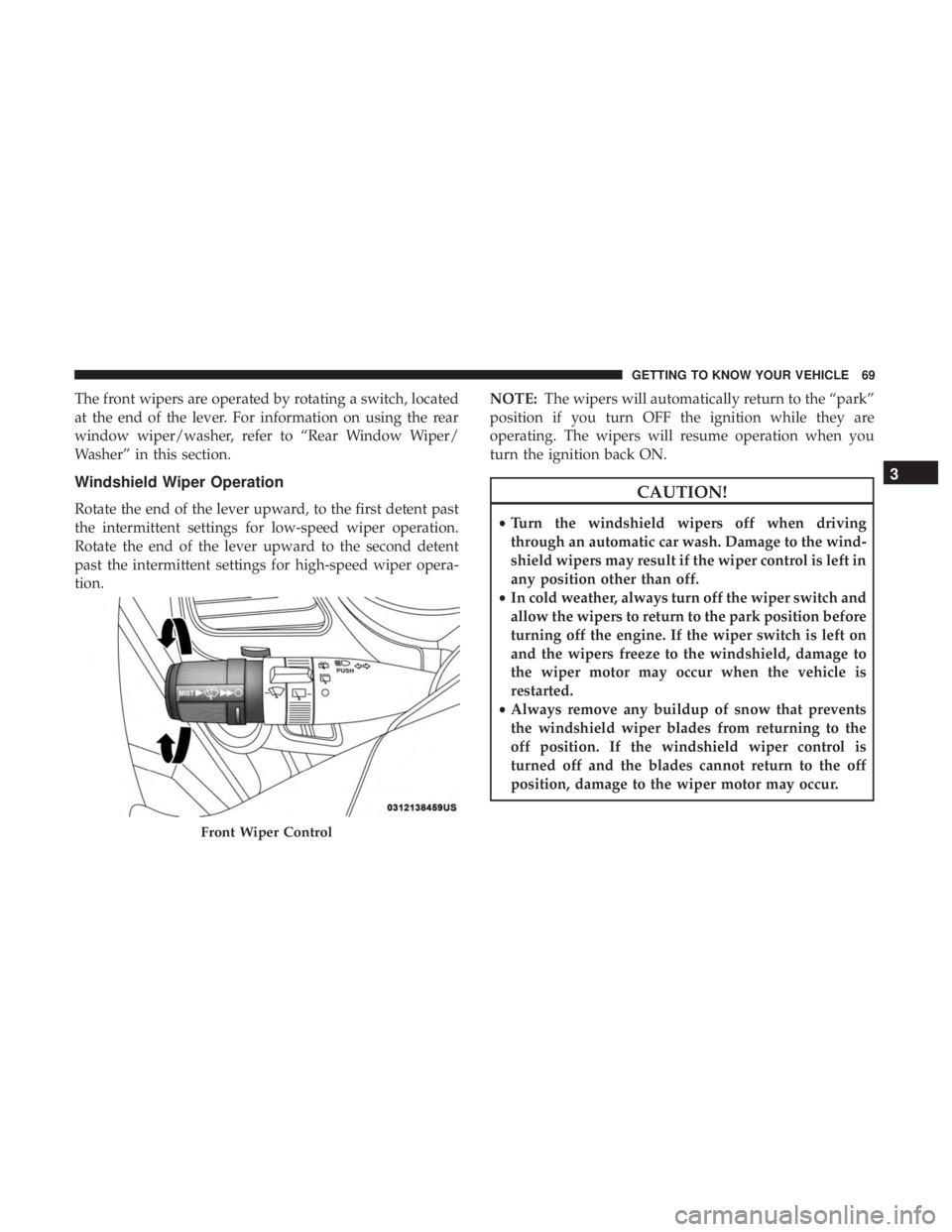

The front wipers are operated by rotating a switch, located
at the end of the lever. For information on using the rear
window wiper/washer, refer to “Rear Window Wiper/
Washer” in this section.
Windshield Wiper Operation
Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.NOTE:
The wipers will automatically return to the “park”
position if you turn OFF the ignition while they are
operating. The wipers will resume operation when you
turn the ignition back ON.
CAUTION!
• Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.
• In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Front Wiper Control
3
GETTING TO KNOW YOUR VEHICLE 69

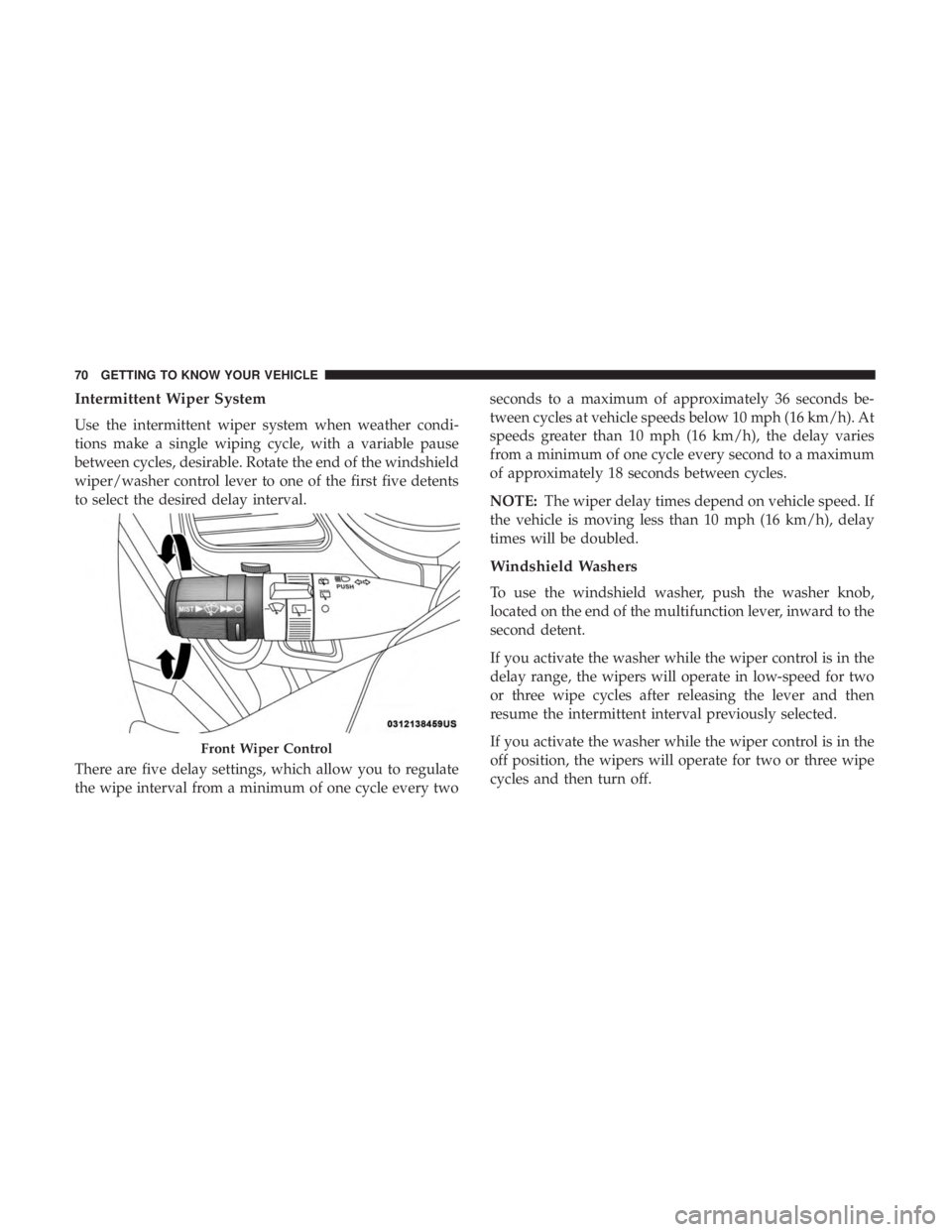

Intermittent Wiper System
Use the intermittent wiper system when weather condi-
tions make a single wiping cycle, with a variable pause
between cycles, desirable. Rotate the end of the windshield
wiper/washer control lever to one of the first five detents
to select the desired delay interval.
There are five delay settings, which allow you to regulate
the wipe interval from a minimum of one cycle every twoseconds to a maximum of approximately 36 seconds be-
tween cycles at vehicle speeds below 10 mph (16 km/h). At
speeds greater than 10 mph (16 km/h), the delay varies
from a minimum of one cycle every second to a maximum
of approximately 18 seconds between cycles.
NOTE:
The wiper delay times depend on vehicle speed. If
the vehicle is moving less than 10 mph (16 km/h), delay
times will be doubled.
Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to the
second detent.
If you activate the washer while the wiper control is in the
delay range, the wipers will operate in low-speed for two
or three wipe cycles after releasing the lever and then
resume the intermittent interval previously selected.
If you activate the washer while the wiper control is in the
off position, the wipers will operate for two or three wipe
cycles and then turn off.
Front Wiper Control
70 GETTING TO KNOW YOUR VEHICLE

WARNING!
Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.
Mist Feature
Push the washer knob, located on the end of the multifunc-
tion lever, inward to the first detent to activate a single
wipe cycle to clear the windshield of road mist or spray
from a passing vehicle. The wipers will continue to operate
until you release the lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Rear Window Wiper/Washer
The rear window wiper/washer control is located on the
left side of the steering column.
Rotate the switch upward to the first detent position
for rear wiper operation.
Rotate the switch upward past the first detent
position to activate the rear washer. The washer
pump will continue to operate as long as the switch is held.
Upon release, the wiper will cycle three times before
returning to the set position.
Rear Wiper/Washer
3
GETTING TO KNOW YOUR VEHICLE 71

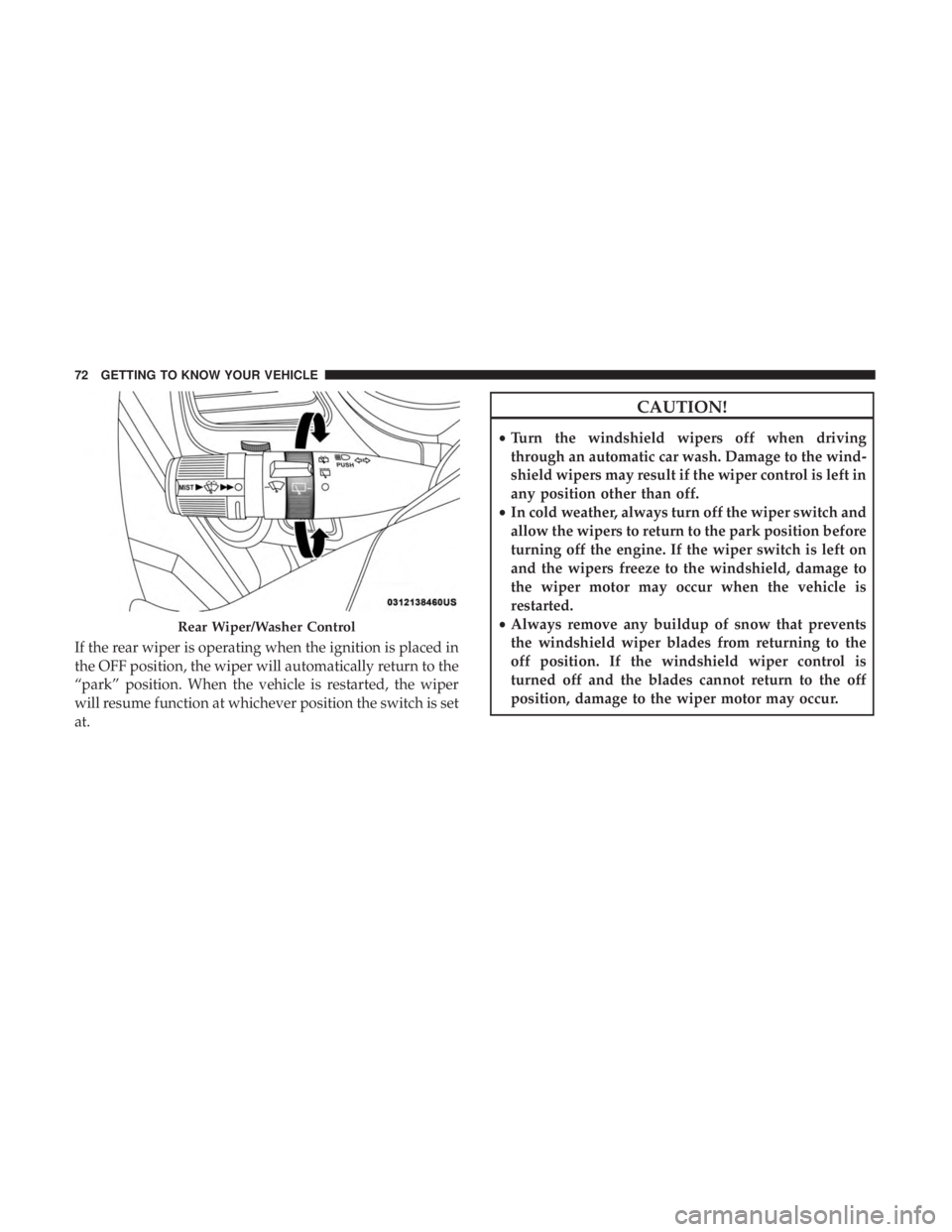

If the rear wiper is operating when the ignition is placed in
the OFF position, the wiper will automatically return to the
“park” position. When the vehicle is restarted, the wiper
will resume function at whichever position the switch is set
at.
CAUTION!
•Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.
• In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Rear Wiper/Washer Control
72 GETTING TO KNOW YOUR VEHICLE

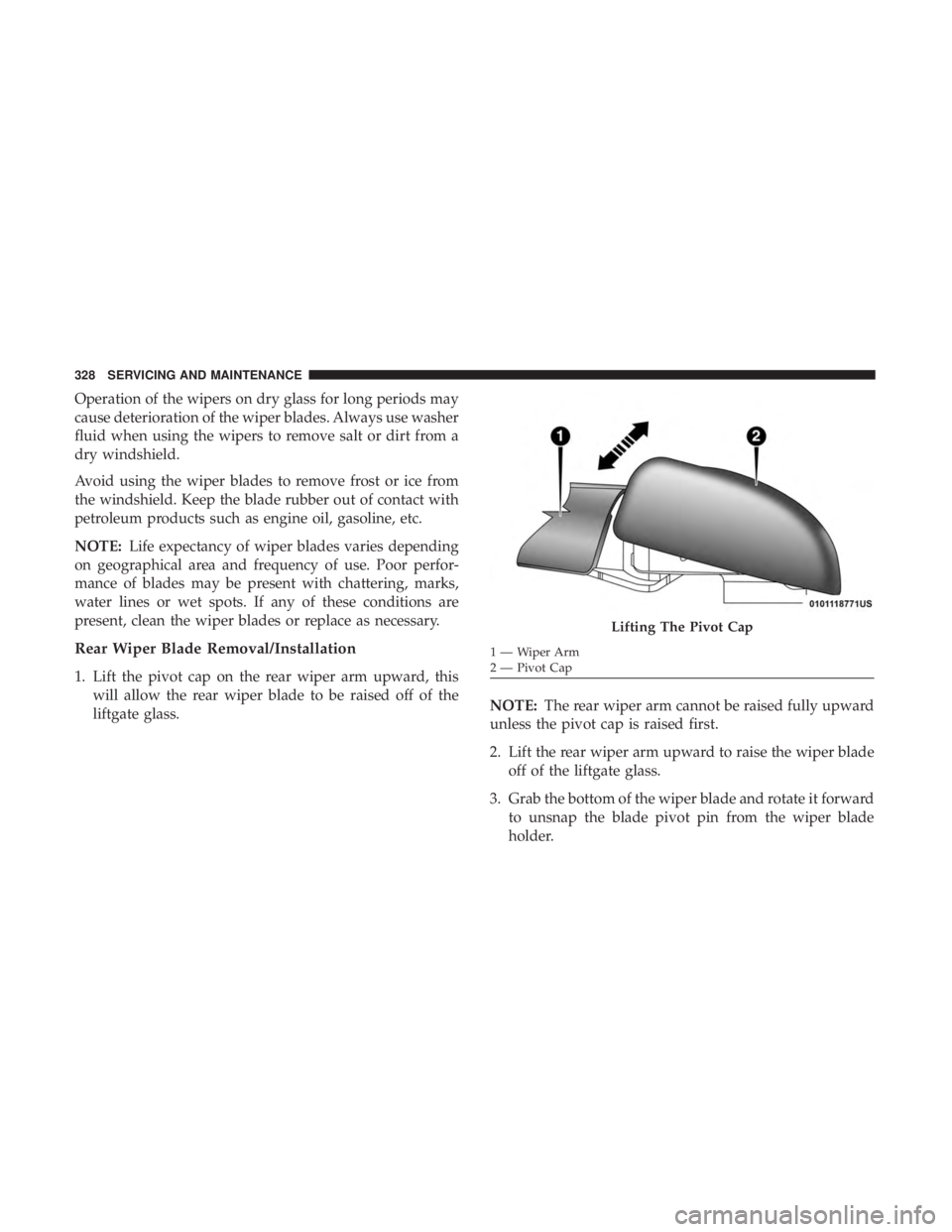

Operation of the wipers on dry glass for long periods may
cause deterioration of the wiper blades. Always use washer
fluid when using the wipers to remove salt or dirt from a
dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
Rear Wiper Blade Removal/Installation
1. Lift the pivot cap on the rear wiper arm upward, this will allow the rear wiper blade to be raised off of the
liftgate glass. NOTE:
The rear wiper arm cannot be raised fully upward
unless the pivot cap is raised first.
2. Lift the rear wiper arm upward to raise the wiper blade off of the liftgate glass.
3. Grab the bottom of the wiper blade and rotate it forward to unsnap the blade pivot pin from the wiper blade
holder.
Lifting The Pivot Cap
1—WiperArm
2 — Pivot Cap
328 SERVICING AND MAINTENANCE

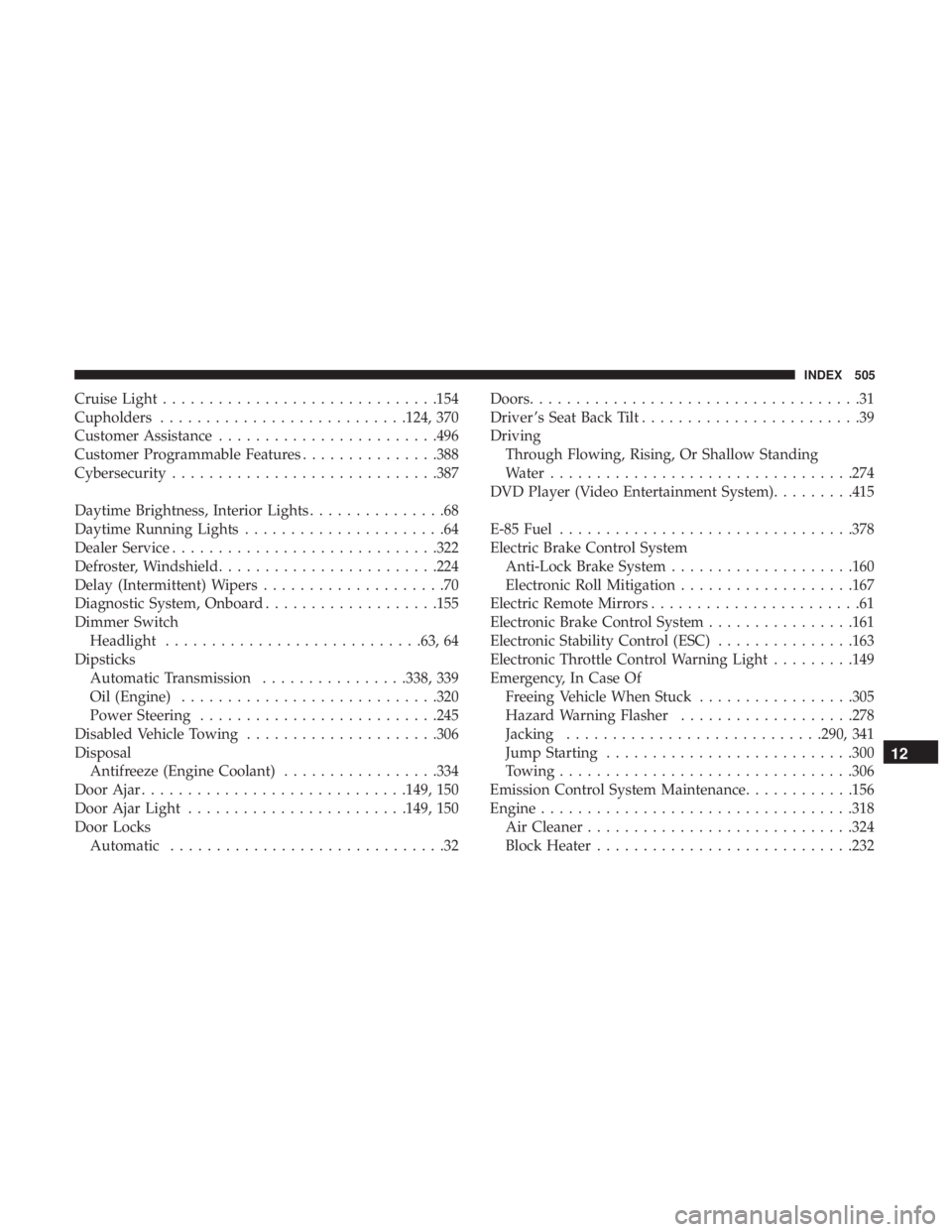

Cruise Light............................. .154
Cupholders .......................... .124, 370
Customer Assistance ....................... .496
Customer Programmable Features ...............388
Cybersecurity ............................ .387
Daytime Brightness, Interior Lights ...............68
Daytime Running Lights ......................64
Dealer Service ............................ .322
Defroster, Windshield ....................... .224
Delay (Intermittent) Wipers ....................70
Diagnostic System, Onboard ...................155
Dimmer Switch Headlight ........................... .63, 64
Dipsticks Automatic Transmission ................338, 339
Oil (Engine) ........................... .320
Power Steering ......................... .245
Disabled Vehicle Towing .....................306
Disposal Antifreeze (Engine Coolant) .................334
Door Ajar ............................ .149, 150
Door Ajar Light ....................... .149, 150
Door Locks Automatic ..............................32 Doors
....................................31
Driver ’s Seat Back Tilt ........................39
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .274
DVD Player (Video Entertainment System) .........415
E-85 Fuel ............................... .378
Electric Brake Control System Anti-Lock Brake System ....................160
Electronic Roll Mitigation ...................167
Electric Remote Mirrors .......................61
Electronic Brake Control System ................161
Electronic Stability Control (ESC) ...............163
Electronic Throttle Control Warning Light .........149
Emergency, In Case Of Freeing Vehicle When Stuck .................305
Hazard Warning Flasher ...................278
Jacking ........................... .290, 341
Jump

Starting .......................... .300
Towing ............................... .306
Emission Control System Maintenance ............156
Engine ................................. .318
Air Cleaner ............................ .324
Block Heater ........................... .232
12
INDEX 505

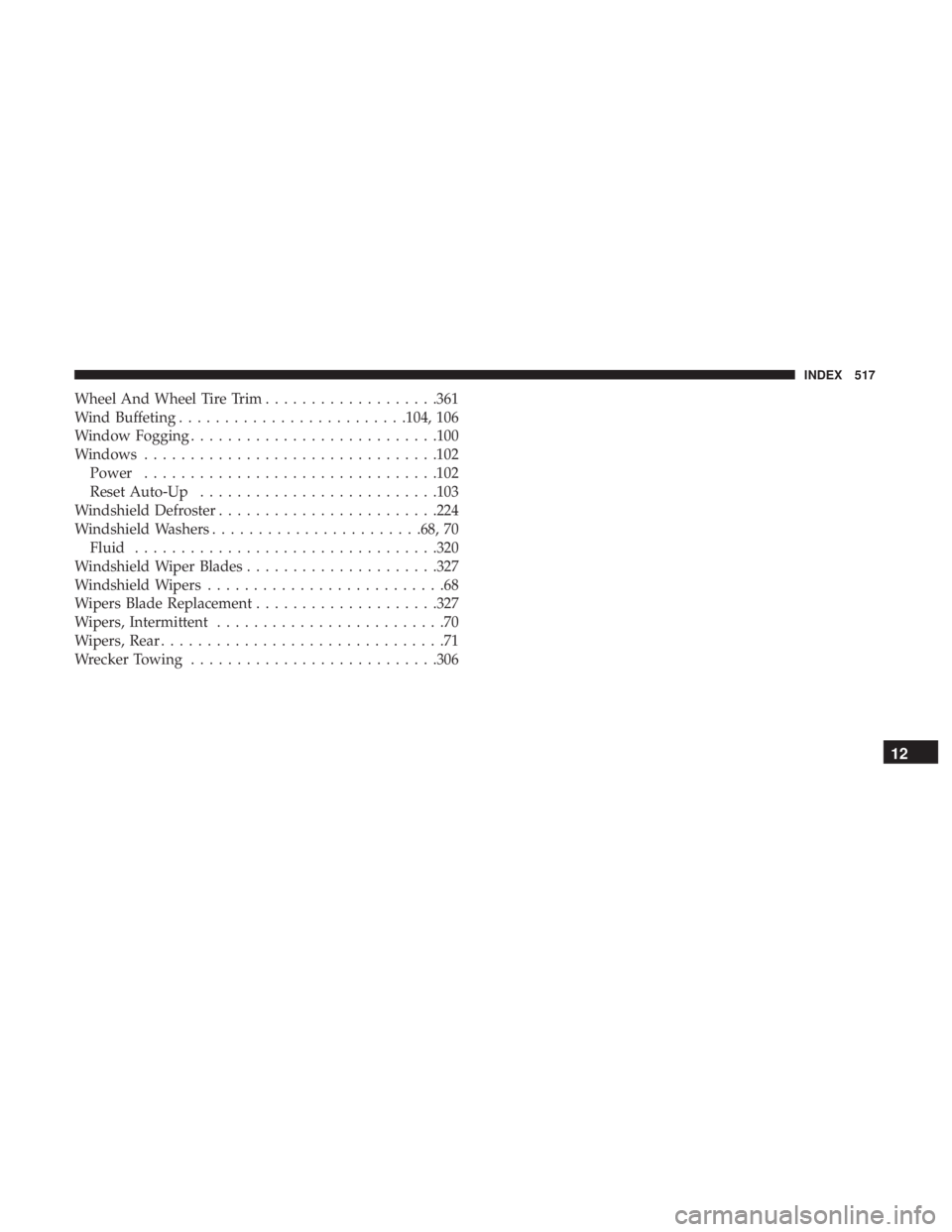

Wheel And Wheel Tire Trim...................361
Wind Buffeting ........................ .104, 106
Window Fogging .......................... .100
Windows ............................... .102
Power ............................... .102
Reset Auto-Up ......................... .103
Windshield Defroster ....................... .224
Windshield Washers ...................... .68, 70
Fluid ................................ .320
Windshield Wiper Blades .....................327
Windshield Wipers ..........................68
Wipers Blade Replacement ....................327
Wipers, Intermittent .........................70
Wipers, Rear ...............................71
Wrecker Towing .......................... .306
12
INDEX 517
