SERVICING AND MAINTENANCE 245

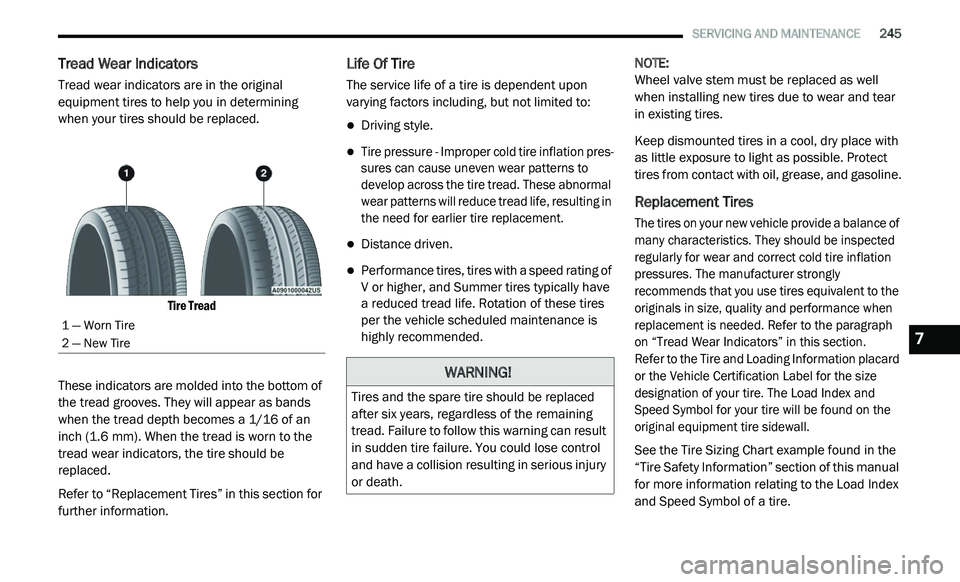

Tread Wear Indicators
Tread wear indicators are in the original
equipment tires to help you in determining
when your tires should be replaced.

Tire Tread

These indicators are molded into the bottom of
th
e tread grooves. They will appear as bands
when the tread depth becomes a 1/16 of an
inch (1.6 mm). When the tread is worn to the
t r

ead wear indicators, the tire should be
replaced.
Refer to “Replacement Tires” in this section for
f u

rther information.
Life Of Tire
The service life of a tire is dependent upon
varying factors including, but not limited to:
Driving style.

Tire pressure - Improper cold tire inflation pres -
sures can cause uneven wear patterns to
d e

velop across the tire tread. These abnormal
wear patterns will reduce tread life, resulting in
the need for earlier tire replacement.

Distance driven.
Performance tires, tires with a speed rating of
V or higher, and Summer tires typically have
a reduced tread life. Rotation of these tires
per the vehicle scheduled maintenance is
highly recommended. NOTE:

Wheel valve stem must be replaced as well
w h

en installing new tires due to wear and tear
in existing tires.
Keep dismounted tires in a cool, dry place with
a s

little exposure to light as possible. Protect
tires from contact with oil, grease, and gasoline.
Replacement Tires

The tires on your new vehicle provide a balance of
many characteristics. They should be inspected
regularly for wear and correct cold tire inflation
pressures. The manufacturer strongly
recommends that you use tires equivalent to the
originals in size, quality and performance when
replacement is needed. Refer to the paragraph
on “Tread Wear Indicators” in this section.
Refer to the Tire and Loading Information placard
o r

the Vehicle Certification Label for the size
designation of your tire. The Load Index and
Speed Symbol for your tire will be found on the
original equipment tire sidewall.

See the Tire Sizing Chart example found in the
“T
ire Safety Information” section of this manual
for more information relating to the Load Index
and Speed Symbol of a tire.
1 — Worn Tire
2 — New Tire
WARNING!
Tires and the spare tire should be replaced
after six years, regardless of the remaining
tread. Failure to follow this warning can result
in sudden tire failure. You could lose control
and have a collision resulting in serious injury
or death.
7

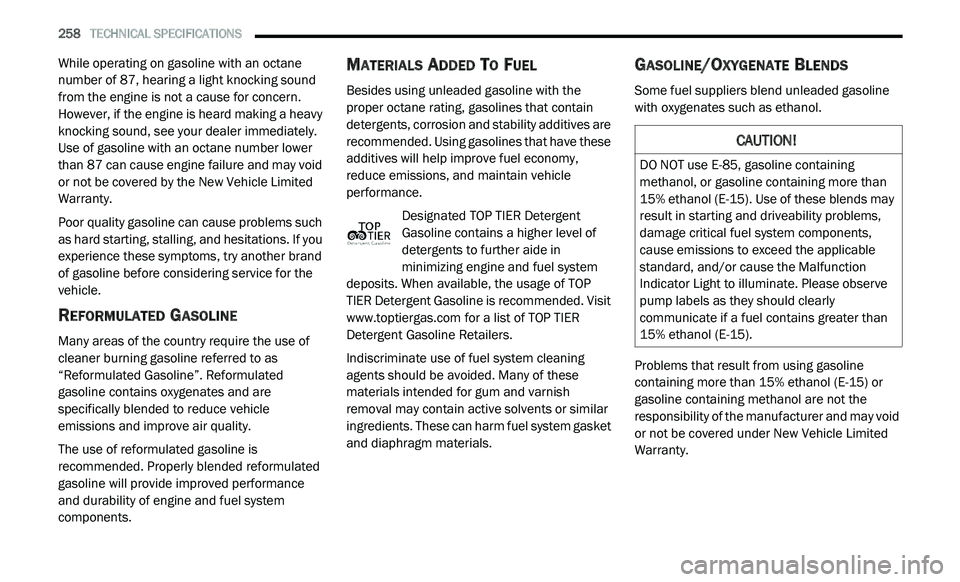

258 TECHNICAL SPECIFICATIONS
While operating on gasoline with an octane
number of 87, hearing a light knocking sound
from the engine is not a cause for concern.
However, if the engine is heard making a heavy
knocking sound, see your dealer immediately.
Use of gasoline with an octane number lower
than 87 can cause engine failure and may void
or not be covered by the New Vehicle Limited
Warranty.
Poor quality gasoline can cause problems such
as

hard starting, stalling, and hesitations. If you
experience these symptoms, try another brand
of gasoline before considering service for the
vehicle.
REFORMULATED GASOLINE
Many areas of the country require the use of
cleaner burning gasoline referred to as
“Reformulated Gasoline”. Reformulated
gasoline contains oxygenates and are
specifically blended to reduce vehicle
emissions and improve air quality.
The use of reformulated gasoline is
r e

commended. Properly blended reformulated
gasoline will provide improved performance
and durability of engine and fuel system
components.
MATERIALS ADDED TO FUEL
Besides using unleaded gasoline with the
proper octane rating, gasolines that contain
detergents, corrosion and stability additives are
recommended. Using gasolines that have these
additives will help improve fuel economy,
reduce emissions, and maintain vehicle
performance.
Designated TOP TIER Detergent
Gasoline contains a higher level of
de

tergents to further aide in
minimizing engine and fuel system
deposits. When available, the usage of TOP
TIER Detergent Gasoline is recommended. Visit
www.toptiergas.com for a list of TOP TIER
Detergent Gasoline Retailers.
Indiscriminate use of fuel system cleaning
a g

ents should be avoided. Many of these
materials intended for gum and varnish
removal may contain active solvents or similar
ingredients. These can harm fuel system gasket
and diaphragm materials.
GASOLINE/OXYGENATE BLENDS
Some fuel suppliers blend unleaded gasoline
with oxygenates such as ethanol.
Problems that result from using gasoline
c o

ntaining more than 15% ethanol (E-15) or
gasoline containing methanol are not the
responsibility of the manufacturer and may void
or not be covered under New Vehicle Limited
Warranty.
CAUTION!
DO NOT use E-85, gasoline containing
methanol, or gasoline containing more than
15% ethanol (E-15). Use of these blends may
result in starting and driveability problems,
damage critical fuel system components,
cause emissions to exceed the applicable
standard, and/or cause the Malfunction
Indicator Light to illuminate. Please observe
pump labels as they should clearly
communicate if a fuel contains greater than
15% ethanol (E-15).

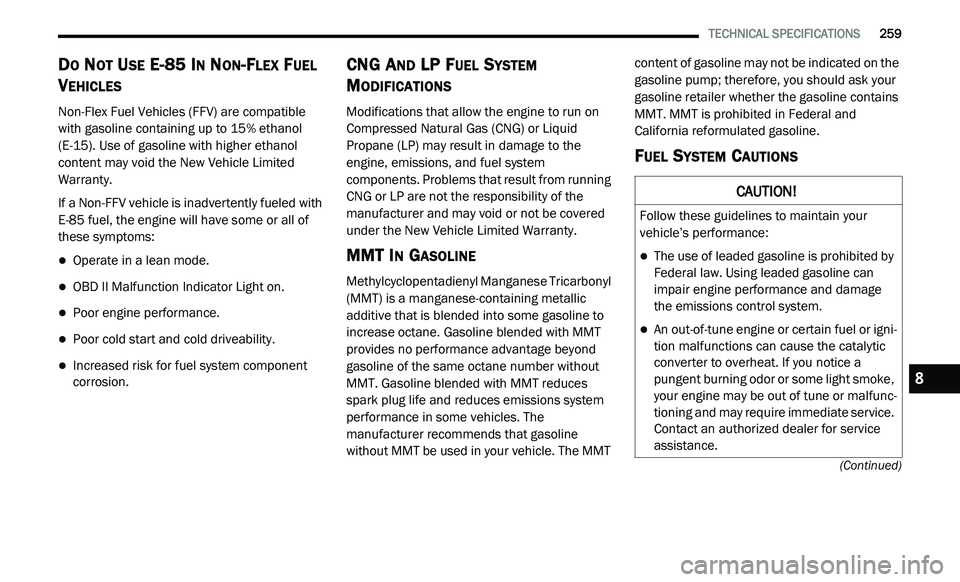

TECHNICAL SPECIFICATIONS 259
(Continued)
DO NOT USE E-85 IN NON-FLEX FUEL
V
EHICLES
Non-Flex Fuel Vehicles (FFV) are compatible
with gasoline containing up to 15% ethanol
(E-15). Use of gasoline with higher ethanol
content may void the New Vehicle Limited
Warranty.
If a Non-FFV vehicle is inadvertently fueled with
E-

85 fuel, the engine will have some or all of
these symptoms:
Operate in a lean mode.
OBD II Malfunction Indicator Light on.
Poor engine performance.
Poor cold start and cold driveability.
Increased risk for fuel system component
corrosion.
CNG AND LP FUEL SYSTEM
M
ODIFICATIONS
Modifications that allow the engine to run on
Compressed Natural Gas (CNG) or Liquid
Propane (LP) may result in damage to the
engine, emissions, and fuel system
components. Problems that result from running
CNG or LP are not the responsibility of the
manufacturer and may void or not be covered
under the New Vehicle Limited Warranty.
MMT IN GASOLINE
Methylcyclopentadienyl Manganese Tricarbonyl
(MMT) is a manganese-containing metallic
additive that is blended into some gasoline to
increase octane. Gasoline blended with MMT
provides no performance advantage beyond
gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces
spark plug life and reduces emissions system
performance in some vehicles. The
manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content of gasoline may not be indicated on the
gasoline pump; therefore, you should ask your
gasoline retailer whether the gasoline contains
MMT. MMT is prohibited in Federal and
California reformulated gasoline.
FUEL SYSTEM CAUTIONS
CAUTION!

Follow these guidelines to maintain your
vehicle’s performance:
The use of leaded gasoline is prohibited by
Federal law. Using leaded gasoline can
impair engine performance and damage
the emissions control system.
An out-of-tune engine or certain fuel or igni -
tion malfunctions can cause the catalytic
c o

nverter to overheat. If you notice a
pungent burning odor or some light smoke,
your engine may be out of tune or malfunc -
tioning and may require immediate service.
C o

ntact an authorized dealer for service
assistance.
8

MULTIMEDIA 303
the Voice Command button and say, “Send
3 7 4 6 #.” Saying “Send” followed by a number,
o r

sequence of numbers, is also to be used for
navigating through an automated customer
service center menu structure, and to leave a
number on a pager.
You can also send stored mobile phonebook
en
tries as tones for fast and easy access to
voice mail and pager entries. For example, if you
previously created a Phonebook entry and/or
Last Name as “Voice Password,” then if you
push the Voice Command button and say
“Send Voicemail Password,” the Uconnect
P h

one will then send the corresponding phone
number associated with the phonebook entry,
as tones over the phone.
NOTE:
The first number encountered for that
contact will be sent. All other numbers
entered for that contact will be ignored.
You may not hear all of the tones due to
mobile phone network configurations.
This is normal.
Some paging and voice mail systems have
system time out settings that are too short
and may not allow the use of this feature.
Pauses, wait or other characters that are
supported by some phones are not
supported over Bluetooth®. These additional
symbols will be ignored when dialing a
numbered sequence.
Barge In — Overriding Prompts
The Voice Command button can be used
when you wish to skip part of a prompt and
i s

sue your voice command immediately.
For example, if a prompt is asking “There are
t w

o numbers with the name John. Say the full
name” you could push the Voice Command
button and say, “John Smith” to select that
o p

tion without having to listen to the rest of the
voice prompt.
Voice Response Length
It is possible for you to choose between Brief
a n

d Detailed Voice Response Length.

1. P ush the MORE button on the faceplate,
t
hen press the Settings button on the
touchscreen.

2. P ress the Display button on the
t
ouchscreen, then scroll down to Voice
Response Length. 3. S
elect either “Brief” or “Detailed” by
p
ressing the box next to the selection.
A check-mark will appear to indicate your
s e

lection.
Phone And Network Status Indicators
Uconnect Phone will provide notification to
in
form you of your phone and network status
when you are attempting to make a phone call
using Uconnect Phone. The status is given for
network signal strength and phone battery
strength.
Dialing Using The Mobile Phone Keypad

You can dial a phone number with your mobile
p h

one keypad and still use the Uconnect Phone
(while dialing via the mobile phone keypad, the
user must exercise caution and take
precautionary safety measures). By dialing a
number with your connected Bluetooth® mobile
phone, the audio will be played through your
vehicle's audio system. The Uconnect Phone will
work the same as if you dial the number using a
voice command.

NOTE:
Certain brands of mobile phones do not send
t h

e dial ring to the Uconnect Phone to play it on
the vehicle audio system, so you will not hear it.
9

385
Brake System......................................232, 256Fluid Check.....................................232, 264Master Cylinder.........................................232Parking......................................................160Warning Light............................................100Brake, Parking...............................................160Brake/Transmission Interlock.......................162Brakes...........................................................256Brightness, Interior Lights................................43Bulb Replacement.........................................189Bulbs, Light..........................................156, 189
C
Camera, Rear................................................175Capacities, Fluid............................................261Caps, FillerOil (Engine)......................................220, 223Power Steering..........................................168Radiator (Coolant Pressure)......................230Car Washes...................................................253Carbon Monoxide Warning..................154, 260CargoVehicle Loading..................................78, 177Cargo Area Cover.............................................78Cargo Compartment........................................78Luggage Carrier...........................................91Cargo Load Floor.............................................78Cargo Management System............................78Rollaway Tonneau Cover.............................78
Tri-Fold Load Floor.......................................78
Cargo Tie-Downs..............................................79Cellular Phone..............................................376Certification Label.........................................177Chains, Tire...................................................250Changing A Flat Tire......................................234Chart, Tire Sizing...........................................236Check Engine Light (Malfunction Indicator
Light).............................................................108Checking Your Vehicle For Safety.................154Checks, Safety..............................................154Child Restraint..............................................139Child Restraints Booster Seats...........................................142Child Seat Installation..............................151How To Stow An unused ALR Seat Belt....148Infant And Child Restraints.......................141Locating The LATCH Anchorages..............146Lower Anchors And Tethers For Children..144Older Children And Child Restraints.........141Seating Positions......................................143Using The Top Tether Anchorage..............153Clean Air Gasoline.........................................258CleaningWheels.....................................................249Climate Control................................................47Automatic....................................................58Manual........................................................47Rear......................................................53, 64Coin Holder......................................................85
Cold Weather Operation...............................159
Compact Spare Tire......................................247ConsoleFloor............................................................85Contract, Service...........................................381Cooling Pressure Cap (Radiator Cap)............230Cooling System.............................................228Adding Coolant (Antifreeze)......................229Coolant Level...................................228, 231Cooling Capacity.......................................261Disposal Of Used Coolant.........................230Drain, Flush, And Refill.............................229Inspection.................................................231Points To Remember................................231Pressure Cap............................................230Selection Of Coolant
(Antifreeze).........................229, 261, 262Corrosion Protection.....................................252Cruise Light...................................................106Cupholders.............................................86, 255Customer Assistance....................................380Customer Programmable Features...............266Cybersecurity................................................265
D
Daytime Brightness, Interior Lights..................43Daytime Running Lights...................................41Dealer Service...............................................222Defroster, Windshield...................................155Delay (Intermittent) Wipers..............................45
Diagnostic System, Onboard.........................107
11

388
K
Key Fob
Panic Alarm
.................................................11Programming Additional Key Fobs.......12, 17Key Fob Battery Service (Remote Keyless
Entry)...............................................................11Key Fob Programming (Remote Keyless
Entry)...............................................................12Key-In Reminder..............................................14Keyless Enter-N-Go.................................21, 158Passive Entry...............................................21Passive Entry Programming.........................21Keys...................................................................9Replacement...............................................17Sentry (Immobilizer)....................................16
L
Lane Change And Turn Signals........................42Lane Change Assist.........................................42Lap/Shoulder Belts.......................................122Latches..........................................................156Hood...........................................................76Lead Free Gasoline........................................257Leaks, Fluid...................................................156Life Of Tires...................................................245Liftgate............................................................77Liftgate Window Wiper/Washer.......................46Light Bulbs...........................................156, 189
Lights......................................................43, 156Air Bag....................................100, 131, 155Automatic Headlights..................................41Back-Up....................................................192Brake Assist Warning...............................113Brake Warning..........................................100Bulb Replacement....................................189Cruise.......................................................106Daytime Running.........................................41Dimmer Switch, Headlight...........................41Exterior...............................................40, 156Fog.....................................................42, 192Hazard Warning Flasher...........................189Headlight Switch..........................................40Headlights..........................................40, 191Headlights On With Wipers..........................41High Beam..........................................41, 191High Beam/Low Beam Select......................41Instrument Cluster.......................................40Intensity Control..........................................43Interior.........................................................43License.....................................................192Lights On Reminder.....................................42Malfunction Indicator (Check Engine).......103Parade Mode (Daytime Brightness).............43Park.................................................106, 191Passing........................................................41Rear Servicing..........................................192
Rear Tail Lamps........................................192Seat Belt Reminder..................................100Security Alarm..........................................101Service......................................................189Side Marker..............................................191Tire Pressure Monitoring (TPMS)..............116Traction Control........................................113Turn Signals.....40, 42, 106, 156, 191, 192Vanity Mirror................................................40Warning Instrument Cluster
Descriptions................................101, 106Load Floor, Cargo.............................................78Load Shed Battery Saver Mode........................99Load Shed Battery Saver On............................99Load Shed Electrical Load Reduction..............99Load Shed Intelligent Battery Sensor...............99Loading Vehicle....................................177, 178Capacities.................................................178Tires..........................................................239Locks Auto Unlock.................................................20Automatic Door............................................20Child Protection...........................................23Power Door..................................................20Low Tire Pressure System.............................116Lubrication, Body..........................................226Lug Nuts/Bolts..............................................257Luggage Carrier................................................91

389
M
Maintenance...................................................75Maintenance Free Battery.............................221Making A Phone Call............................300, 332Malfunction Indicator Light (Check
Engine)................................................103, 108Manual Service......................................................383Marker Lights, Side.......................................191Master CylinderBrakes.......................................................232Methanol.......................................................258Mirrors......................................................36, 38Automatic Dimming.....................................37Electric Powered.........................................38Electric Remote...........................................38Exterior Folding...........................................38Heated........................................................39Outside........................................................38Rearview..............................................36, 37Vanity..........................................................40Modifications/AlterationsVehicle..........................................................8Monitor, Tire Pressure System.......................116Mopar Parts...................................................382MP3 Control..................................................364Multi-Function Control Lever............................40
N
New Vehicle Break-In Period
..........................160
O
Occupant Restraints.....................................120Octane Rating, Gasoline (Fuel)............257, 262Oil Filter, Change..........................................224Oil Filter, Selection........................................224Oil Pressure Light..........................................102Oil Reset..........................................................96Oil, Engine............................................223, 262Capacity....................................................261Change Interval........................................223Checking...................................................221Dipstick....................................................221Disposal...................................................224Filter................................................224, 262Filter Disposal...........................................224Identification Logo....................................223Materials Added To..................................223Pressure Warning Light............................102Recommendation............................223, 261Synthetic..................................................223Viscosity..........................................223, 261Onboard Diagnostic System..........................107Operating Precautions..................................107Operator ManualOwner's Manual....................................8, 383OutletPower..........................................................87Outside Rearview Mirrors................................38Overheating, Engine......................................209
Owner’s Manual (Operator Manual)...................8
P
Paint Care.....................................................252Panic Alarm......................................................11Parking Brake...............................................160ParkSense System, Rear...............................171Passenger SeatEasy Entry....................................................28Passive Entry....................................................21Pets...............................................................154PhoneBluetooth.........................................296, 297Pairing.............................................296, 327Phone (Uconnect).........................................294Phonebook........................298, 300, 330, 332Placard, Tire And Loading Information..........239PowerBrakes......................................................256Distribution Center (Fuses).......................196Door Locks...................................................20Inverter........................................................89Mirrors.........................................................38Outlet (Auxiliary Electrical Outlet).................87Seats...........................................................30Steering....................................................168Sunroof........................................................74Transfer Unit.............................................264Windows......................................................7211

391

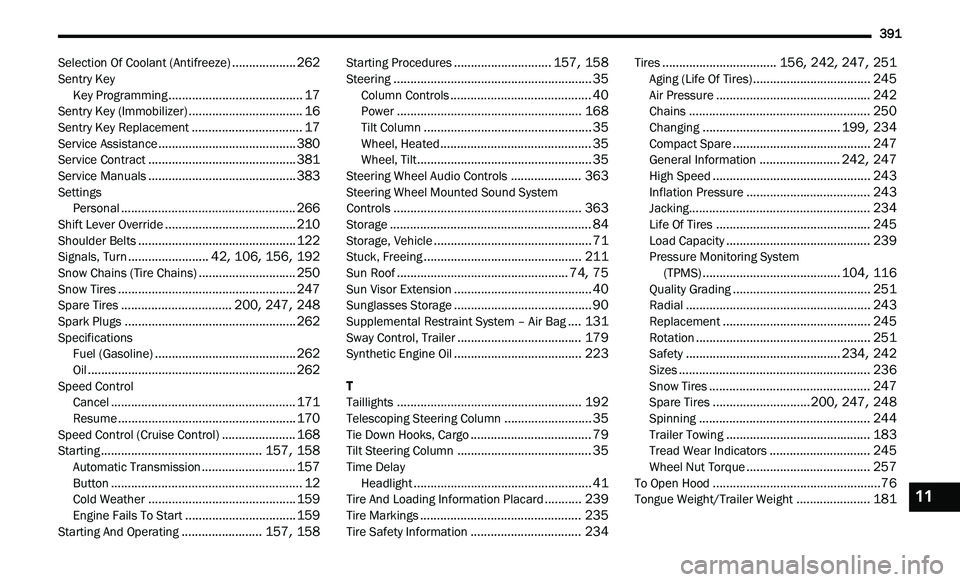

Selection Of Coolant (Antifreeze)...................262Sentry KeyKey Programming........................................17Sentry Key (Immobilizer)..................................16Sentry Key Replacement.................................17Service Assistance.........................................380Service Contract............................................381Service Manuals............................................383SettingsPersonal....................................................266Shift Lever Override.......................................210Shoulder Belts...............................................122Signals, Turn........................42, 106, 156, 192Snow Chains (Tire Chains).............................250Snow Tires.....................................................247Spare Tires.................................200, 247, 248Spark Plugs...................................................262SpecificationsFuel (Gasoline)..........................................262Oil..............................................................262Speed ControlCancel.......................................................171Resume.....................................................170Speed Control (Cruise Control)......................168Starting................................................157, 158Automatic Transmission............................157Button.........................................................12Cold Weather............................................159Engine Fails To Start.................................159
Starting And Operating........................157, 158
Starting Procedures.............................157, 158Steering...........................................................35Column Controls..........................................40Power.......................................................168Tilt Column..................................................35Wheel, Heated.............................................35Wheel, Tilt....................................................35Steering Wheel Audio Controls.....................363Steering Wheel Mounted Sound System
Controls........................................................363Storage............................................................84Storage, Vehicle...............................................71Stuck, Freeing...............................................211Sun Roof...................................................74, 75Sun Visor Extension.........................................40Sunglasses Storage.........................................90Supplemental Restraint System – Air Bag....131Sway Control, Trailer.....................................179Synthetic Engine Oil......................................223
T
Taillights.......................................................192Telescoping Steering Column..........................35Tie Down Hooks, Cargo....................................79Tilt Steering Column........................................35Time Delay Headlight.....................................................41Tire And Loading Information Placard...........239Tire Markings................................................235
Tire Safety Information.................................234
Tires..................................156, 242, 247, 251Aging (Life Of Tires)...................................245Air Pressure..............................................242Chains......................................................250Changing.........................................199, 234Compact Spare.........................................247General Information........................242, 247High Speed...............................................243Inflation Pressure.....................................243Jacking......................................................234Life Of Tires..............................................245Load Capacity...........................................239Pressure Monitoring System
(TPMS).........................................104, 116Quality Grading.........................................251Radial.......................................................243Replacement............................................245Rotation....................................................251Safety..............................................234, 242Sizes.........................................................236Snow Tires................................................247Spare Tires.............................200, 247, 248Spinning...................................................244Trailer Towing...........................................183Tread Wear Indicators..............................245Wheel Nut Torque.....................................257To Open Hood..................................................76Tongue Weight/Trailer Weight......................18111
