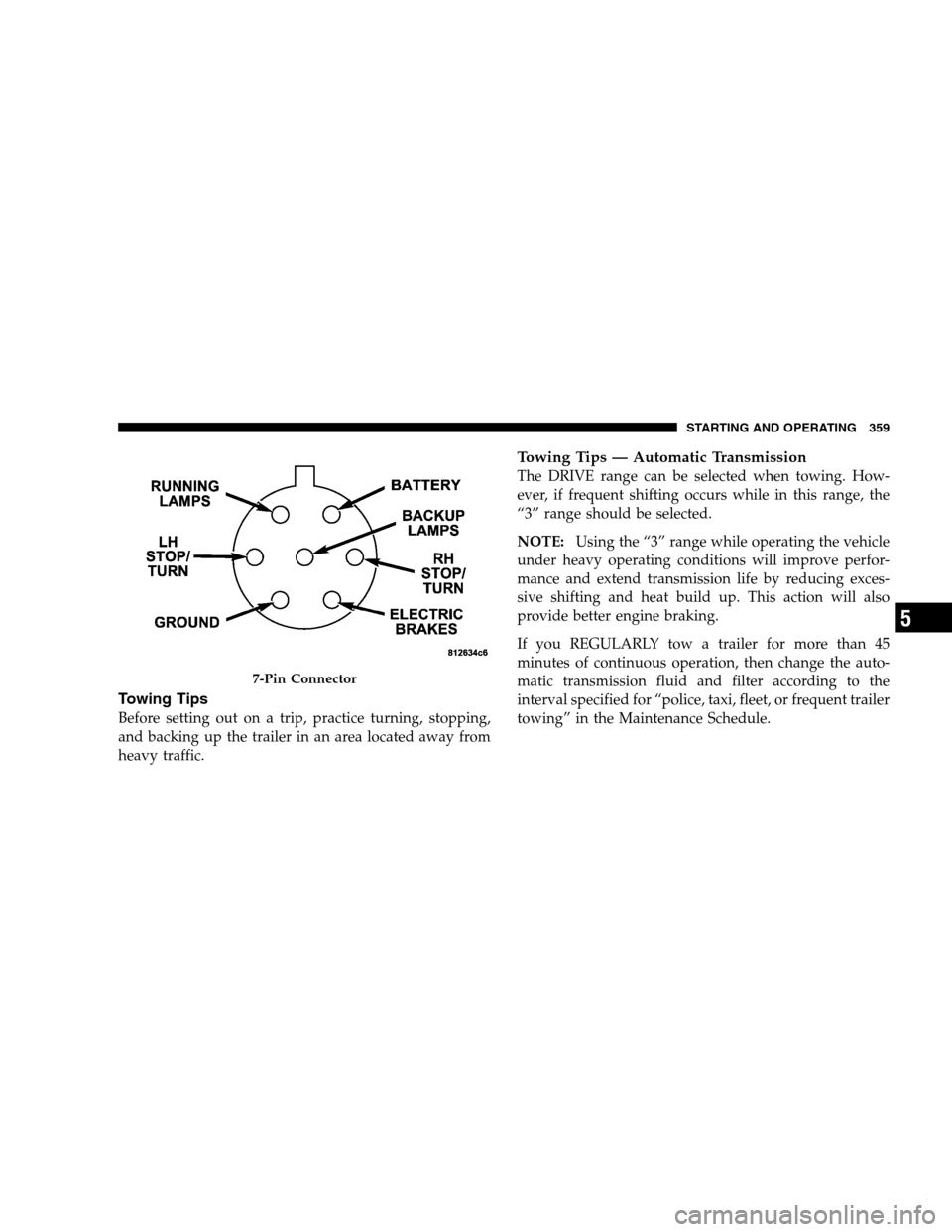

Towing Tips
Before setting out on a trip, practice turning, stopping,
and backing up the trailer in an area located away from
heavy traffic.
Towing Tips — Automatic Transmission
The DRIVE range can be selected when towing. How-
ever, if frequent shifting occurs while in this range, the
“3” range should be selected.
NOTE:Using the “3” range while operating the vehicle
under heavy operating conditions will improve perfor-
mance and extend transmission life by reducing exces-
sive shifting and heat build up. This action will also
provide better engine braking.
If you REGULARLY tow a trailer for more than 45
minutes of continuous operation, then change the auto-
matic transmission fluid and filter according to the
interval specified for “police, taxi, fleet, or frequent trailer
towing” in the Maintenance Schedule.
7-Pin Connector
STARTING AND OPERATING 359
5

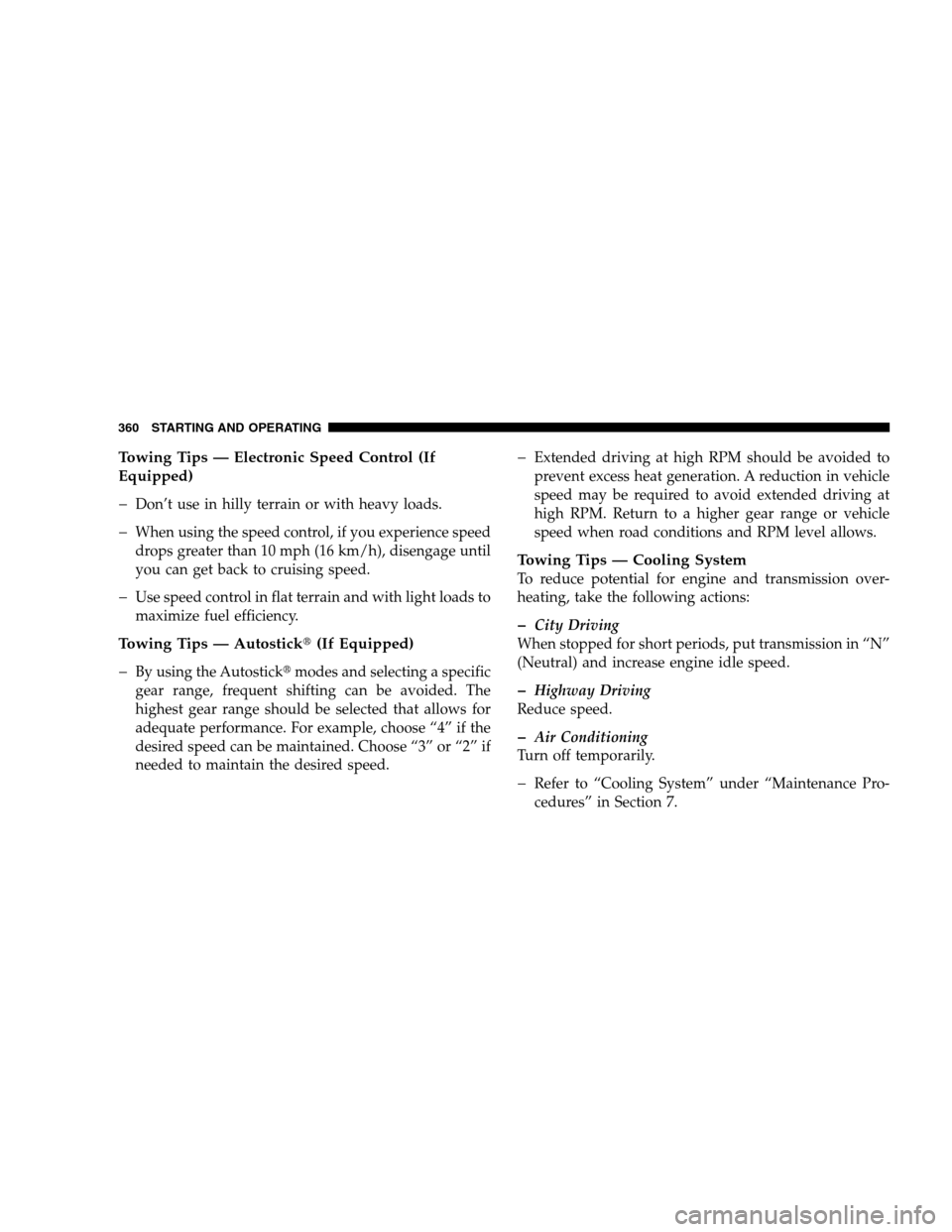

Towing Tips — Electronic Speed Control (If
Equipped)

Don’t use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
Towing Tips — Autostick(If Equipped)

By using the Autostickmodes and selecting a specific
gear range, frequent shifting can be avoided. The
highest gear range should be selected that allows for
adequate performance. For example, choose “4” if the
desired speed can be maintained. Choose “3” or “2” if
needed to maintain the desired speed.
Extended driving at high RPM should be avoided to
prevent excess heat generation. A reduction in vehicle
speed may be required to avoid extended driving at
high RPM. Return to a higher gear range or vehicle
speed when road conditions and RPM level allows.
Towing Tips — Cooling System
To reduce potential for engine and transmission over-
heating, take the following actions:
City Driving
When stopped for short periods, put transmission in “N”
(Neutral) and increase engine idle speed.
Highway Driving
Reduce speed.
Air Conditioning
Turn off temporarily.
Refer to “Cooling System” under “Maintenance Pro-
cedures” in Section 7.
360 STARTING AND OPERATING

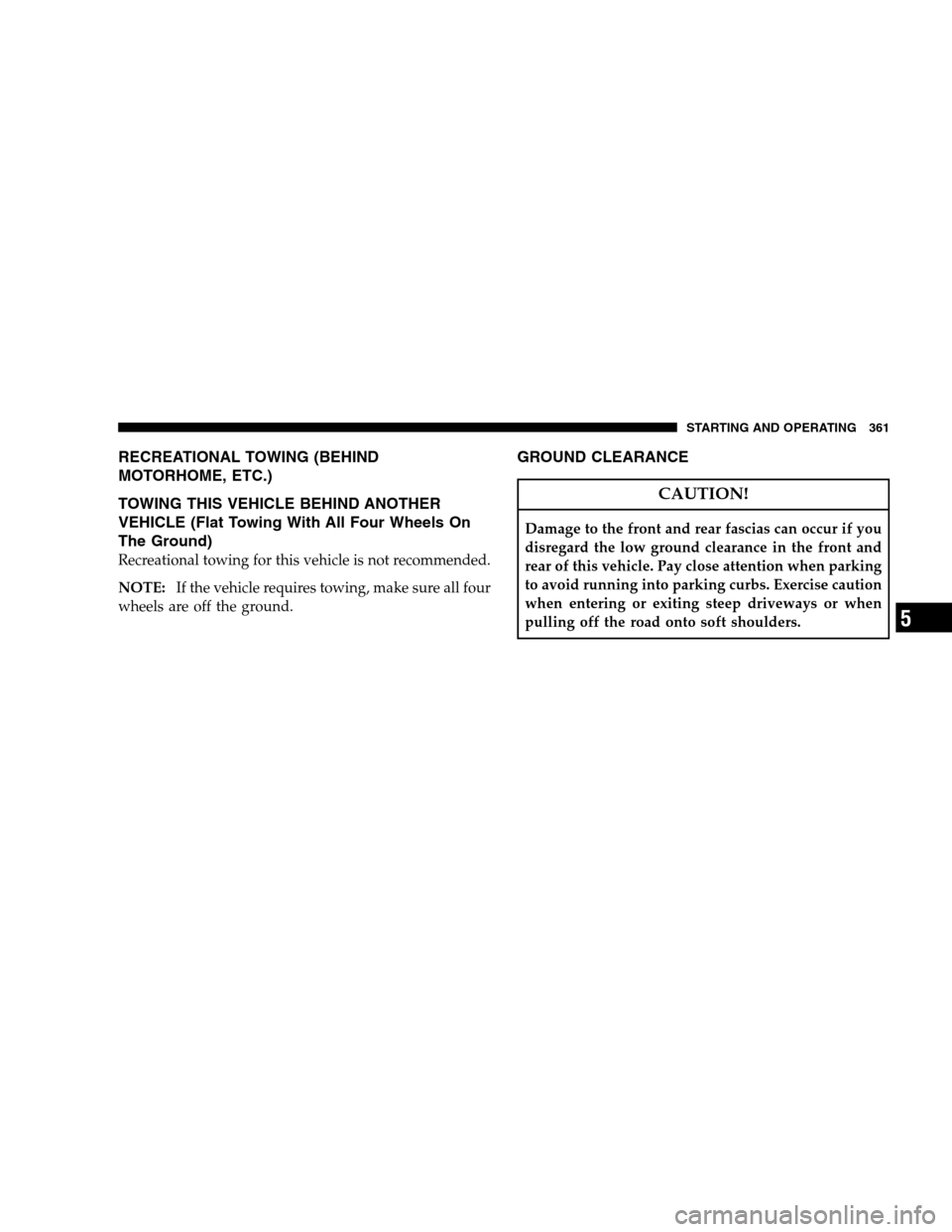

RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.)
TOWING THIS VEHICLE BEHIND ANOTHER
VEHICLE (Flat Towing With All Four Wheels On
The Ground)
Recreational towing for this vehicle is not recommended.
NOTE:If the vehicle requires towing, make sure all four
wheels are off the ground.
GROUND CLEARANCE
CAUTION!
Damage to the front and rear fascias can occur if you
disregard the low ground clearance in the front and
rear of this vehicle. Pay close attention when parking
to avoid running into parking curbs. Exercise caution
when entering or exiting steep driveways or when
pulling off the road onto soft shoulders.
STARTING AND OPERATING 361
5

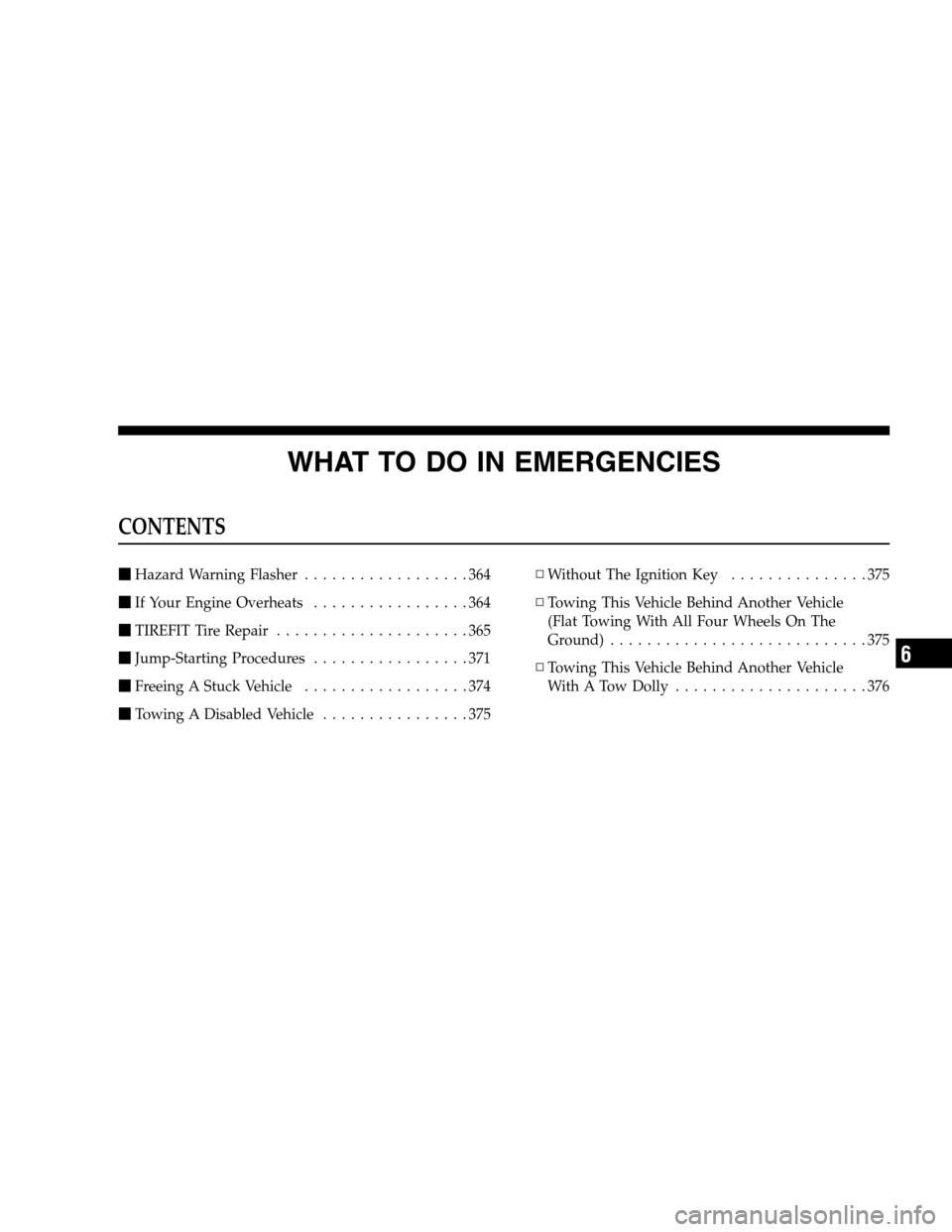

WHAT TO DO IN EMERGENCIES
CONTENTS

Hazard Warning Flasher..................364

If Your Engine Overheats.................364

TIREFIT Tire Repair.....................365

Jump-Starting Procedures.................371

Freeing A Stuck Vehicle..................374

Towing A Disabled Vehicle................375▫Without The Ignition Key...............375
▫Towing This Vehicle Behind Another Vehicle
(Flat Towing With All Four Wheels On The
Ground)............................375
▫Towing This Vehicle Behind Another Vehicle
WithATowDolly .....................376
6

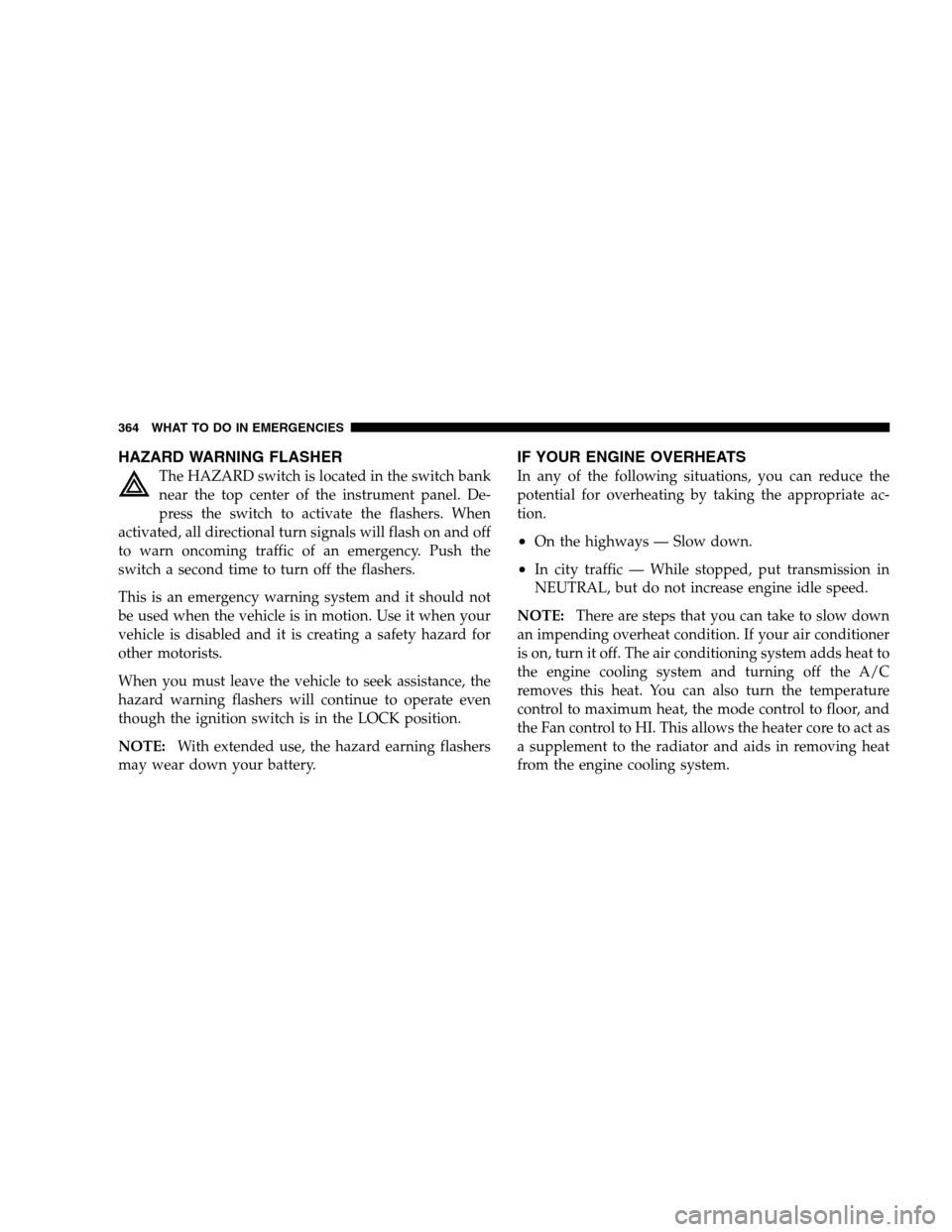

HAZARD WARNING FLASHER
The HAZARD switch is located in the switch bank
near the top center of the instrument panel. De-
press the switch to activate the flashers. When
activated, all directional turn signals will flash on and off
to warn oncoming traffic of an emergency. Push the
switch a second time to turn off the flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
hazard warning flashers will continue to operate even
though the ignition switch is in the LOCK position.
NOTE:With extended use, the hazard earning flashers
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
•On the highways — Slow down.
•In city traffic — While stopped, put transmission in
NEUTRAL, but do not increase engine idle speed.
NOTE:There are steps that you can take to slow down
an impending overheat condition. If your air conditioner
is on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C
removes this heat. You can also turn the temperature
control to maximum heat, the mode control to floor, and
the Fan control to HI. This allows the heater core to act as
a supplement to the radiator and aids in removing heat
from the engine cooling system.
364 WHAT TO DO IN EMERGENCIES

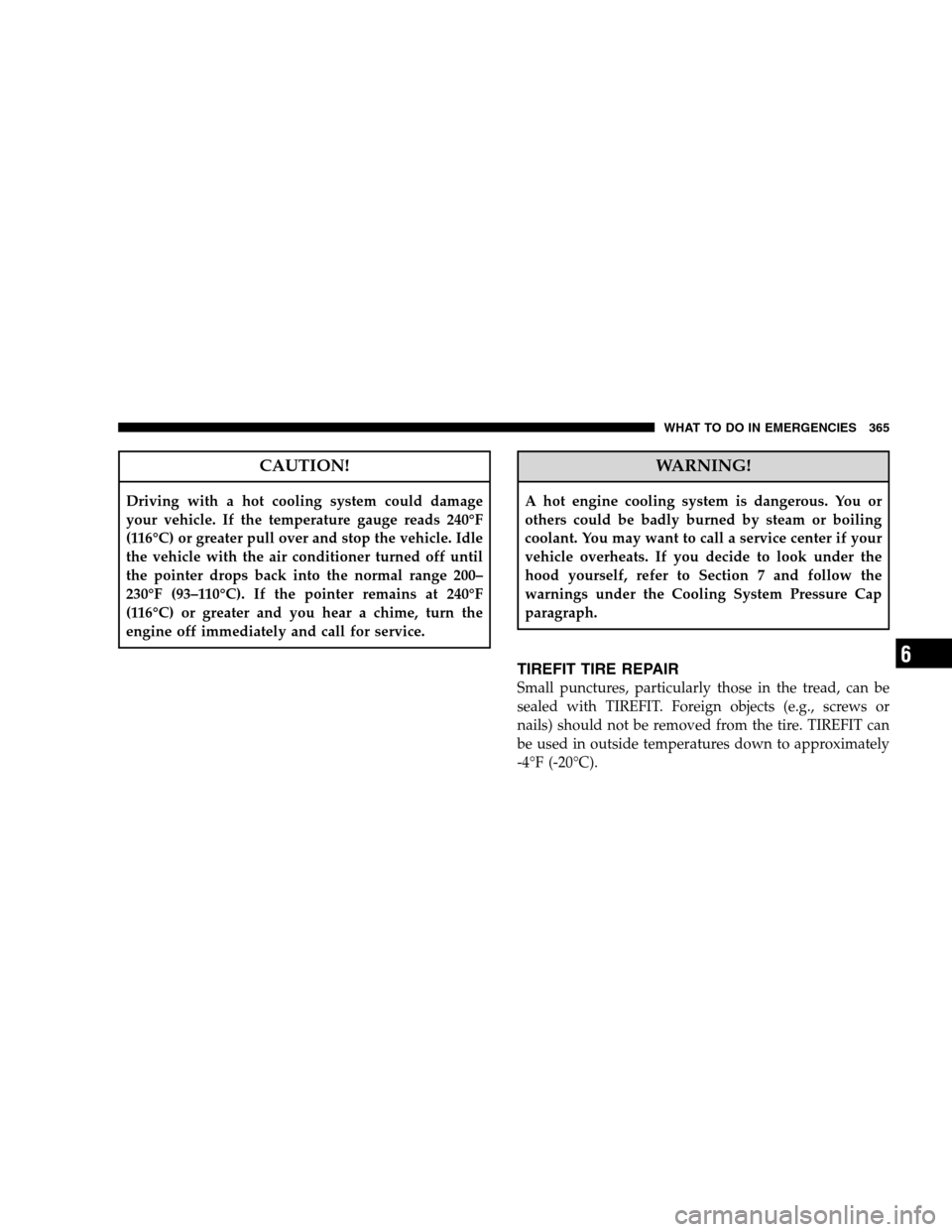

CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads 240°F
(116°C) or greater pull over and stop the vehicle. Idle
the vehicle with the air conditioner turned off until
the pointer drops back into the normal range 200–
230°F (93–110°C). If the pointer remains at 240°F
(116°C) or greater and you hear a chime, turn the
engine off immediately and call for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, refer to Section 7 and follow the
warnings under the Cooling System Pressure Cap
paragraph.
TIREFIT TIRE REPAIR
Small punctures, particularly those in the tread, can be
sealed with TIREFIT. Foreign objects (e.g., screws or
nails) should not be removed from the tire. TIREFIT can
be used in outside temperatures down to approximately
-4°F (-20°C).
WHAT TO DO IN EMERGENCIES 365
6

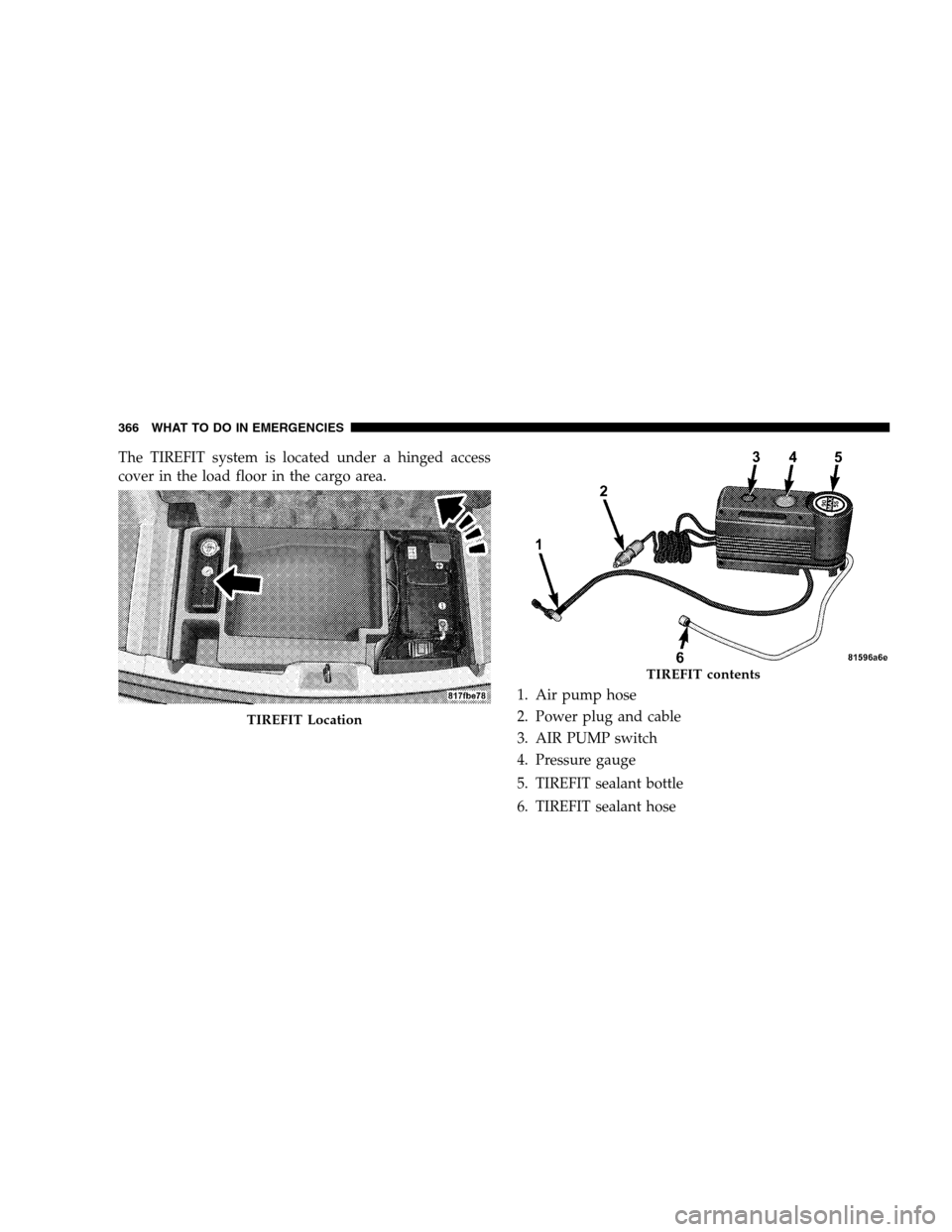

The TIREFIT system is located under a hinged access
cover in the load floor in the cargo area.
1. Air pump hose
2. Power plug and cable
3. AIR PUMP switch
4. Pressure gauge
5. TIREFIT sealant bottle
6. TIREFIT sealant hose
TIREFIT Location
TIREFIT contents
366 WHAT TO DO IN EMERGENCIES

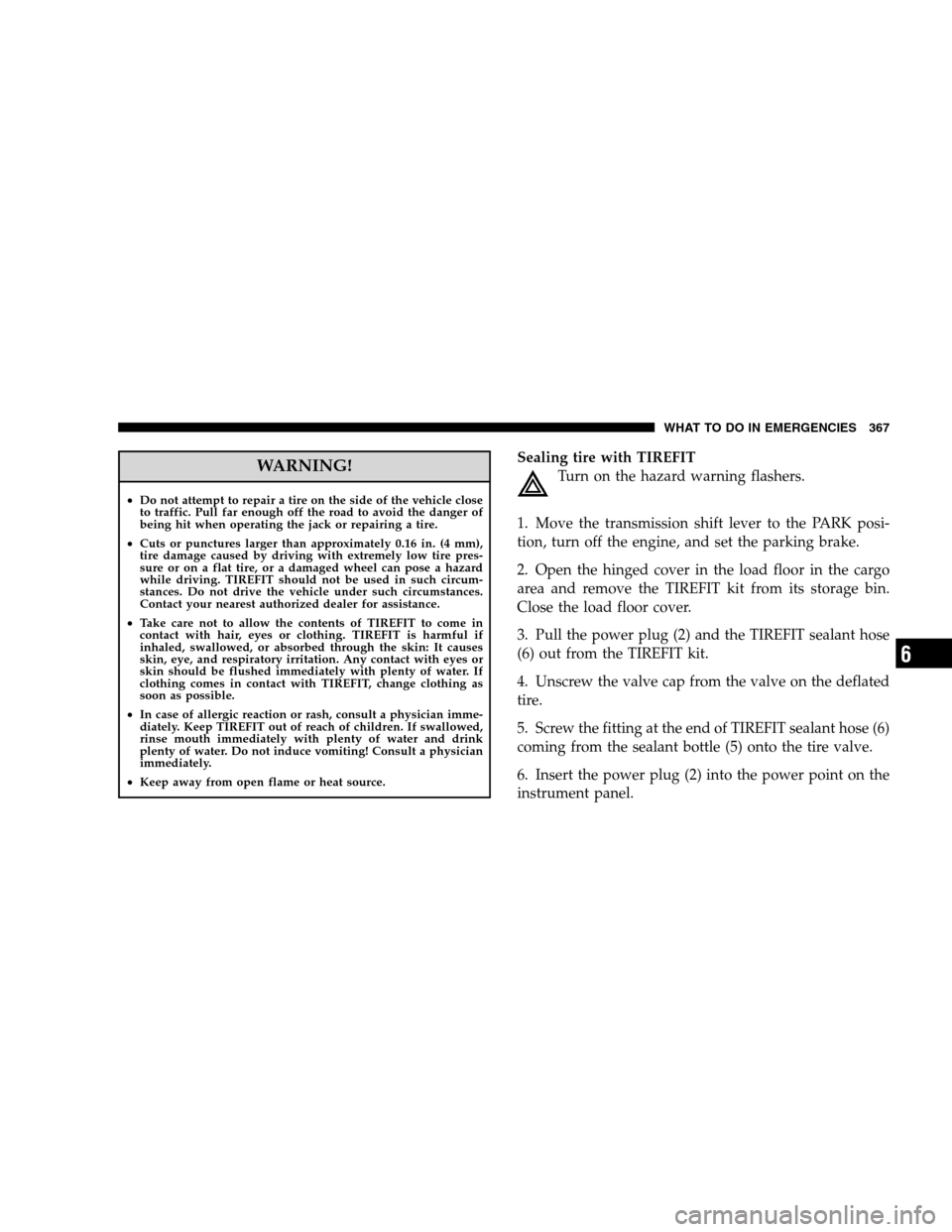

WARNING!
•Do not attempt to repair a tire on the side of the vehicle close
to traffic. Pull far enough off the road to avoid the danger of
being hit when operating the jack or repairing a tire.
•Cuts or punctures larger than approximately 0.16 in. (4 mm),
tire damage caused by driving with extremely low tire pres-
sure or on a flat tire, or a damaged wheel can pose a hazard
while driving. TIREFIT should not be used in such circum-
stances. Do not drive the vehicle under such circumstances.
Contact your nearest authorized dealer for assistance.
•Take care not to allow the contents of TIREFIT to come in
contact with hair, eyes or clothing. TIREFIT is harmful if
inhaled, swallowed, or absorbed through the skin: It causes
skin, eye, and respiratory irritation. Any contact with eyes or
skin should be flushed immediately with plenty of water. If
clothing comes in contact with TIREFIT, change clothing as
soon as possible.
•In case of allergic reaction or rash, consult a physician imme-
diately. Keep TIREFIT out of reach of children. If swallowed,
rinse mouth immediately with plenty of water and drink
plenty of water. Do not induce vomiting! Consult a physician
immediately.
•Keep away from open flame or heat source.
Sealing tire with TIREFIT
Turn on the hazard warning flashers.
1. Move the transmission shift lever to the PARK posi-
tion, turn off the engine, and set the parking brake.
2. Open the hinged cover in the load floor in the cargo
area and remove the TIREFIT kit from its storage bin.
Close the load floor cover.
3. Pull the power plug (2) and the TIREFIT sealant hose
(6) out from the TIREFIT kit.
4. Unscrew the valve cap from the valve on the deflated
tire.
5. Screw the fitting at the end of TIREFIT sealant hose (6)
coming from the sealant bottle (5) onto the tire valve.
6. Insert the power plug (2) into the power point on the
instrument panel.
WHAT TO DO IN EMERGENCIES 367
6

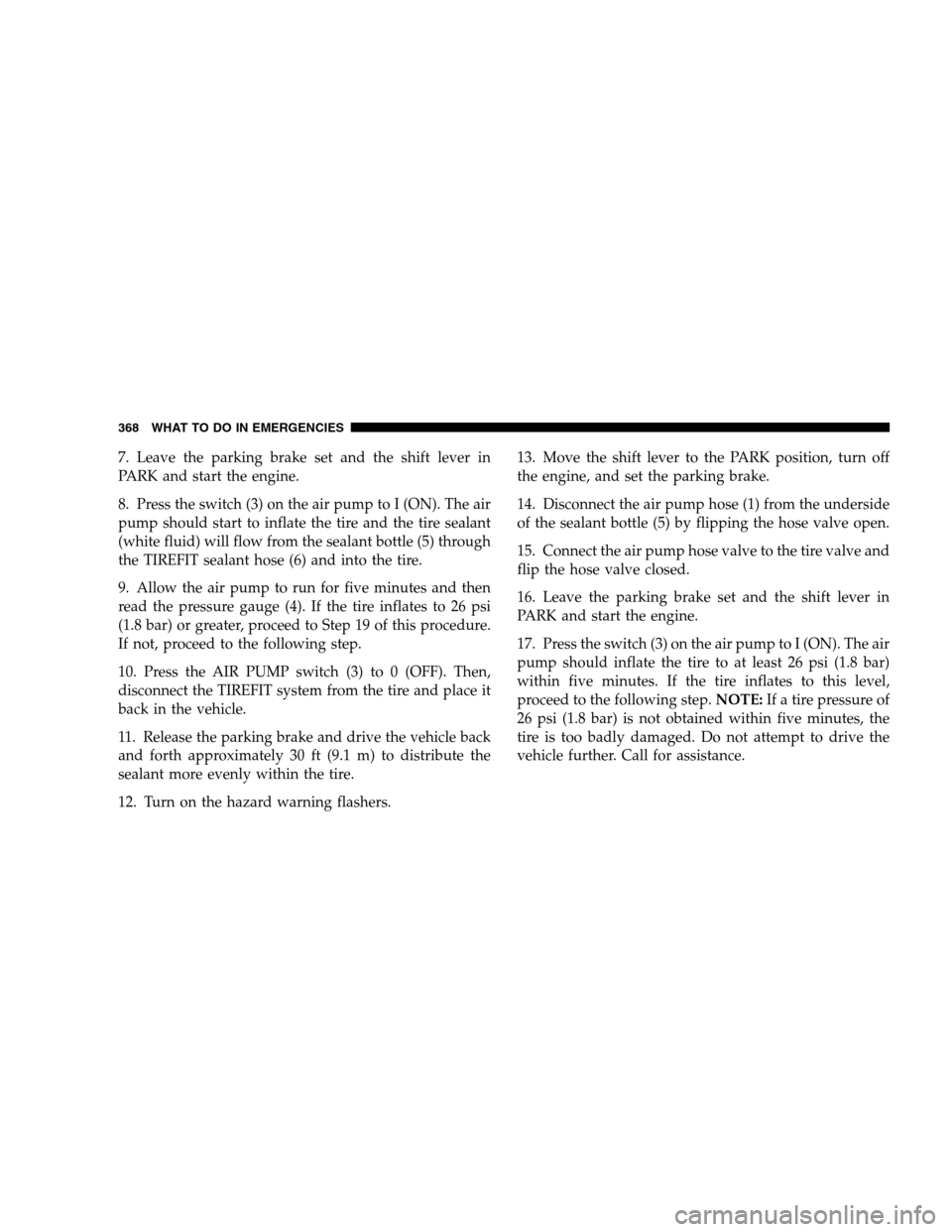

7. Leave the parking brake set and the shift lever in
PARK and start the engine.
8. Press the switch (3) on the air pump to I (ON). The air
pump should start to inflate the tire and the tire sealant
(white fluid) will flow from the sealant bottle (5) through
the TIREFIT sealant hose (6) and into the tire.
9. Allow the air pump to run for five minutes and then
read the pressure gauge (4). If the tire inflates to 26 psi
(1.8 bar) or greater, proceed to Step 19 of this procedure.
If not, proceed to the following step.
10. Press the AIR PUMP switch (3) to 0 (OFF). Then,
disconnect the TIREFIT system from the tire and place it
back in the vehicle.
11. Release the parking brake and drive the vehicle back
and forth approximately 30 ft (9.1 m) to distribute the
sealant more evenly within the tire.
12. Turn on the hazard warning flashers.13. Move the shift lever to the PARK position, turn off
the engine, and set the parking brake.
14. Disconnect the air pump hose (1) from the underside
of the sealant bottle (5) by flipping the hose valve open.
15. Connect the air pump hose valve to the tire valve and
flip the hose valve closed.
16. Leave the parking brake set and the shift lever in
PARK and start the engine.
17. Press the switch (3) on the air pump to I (ON). The air
pump should inflate the tire to at least 26 psi (1.8 bar)
within five minutes. If the tire inflates to this level,
proceed to the following step.NOTE:If a tire pressure of
26 psi (1.8 bar) is not obtained within five minutes, the
tire is too badly damaged. Do not attempt to drive the
vehicle further. Call for assistance.
