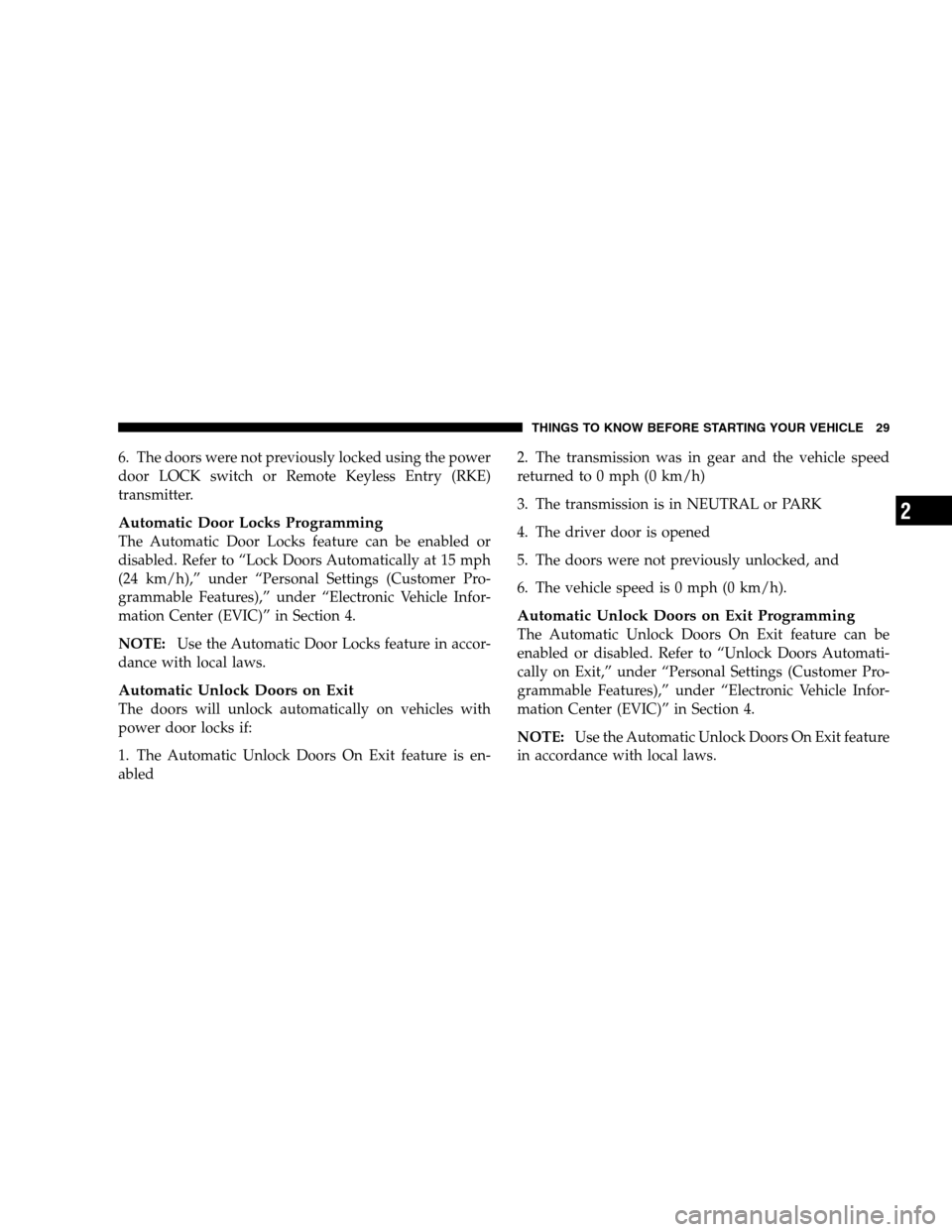

Page 31 of 476

6. The doors were not previously locked using the power
door LOCK switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The Automatic Door Locks feature can be enabled or
disabled. Refer to “Lock Doors Automatically at 15 mph
(24 km/h),” under “Personal Settings (Customer Pro-
grammable Features),” under “Electronic Vehicle Infor-
mation Center (EVIC)” in Section 4.
NOTE:Use the Automatic Door Locks feature in accor-
dance with local laws.
Automatic Unlock Doors on Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The Automatic Unlock Doors On Exit feature is en-
abled2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h)
3. The transmission is in NEUTRAL or PARK
4. The driver door is opened
5. The doors were not previously unlocked, and
6. The vehicle speed is 0 mph (0 km/h).
Automatic Unlock Doors on Exit Programming
The Automatic Unlock Doors On Exit feature can be
enabled or disabled. Refer to “Unlock Doors Automati-
cally on Exit,” under “Personal Settings (Customer Pro-
grammable Features),” under “Electronic Vehicle Infor-
mation Center (EVIC)” in Section 4.
NOTE:Use the Automatic Unlock Doors On Exit feature
in accordance with local laws.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
Page 32 of 476

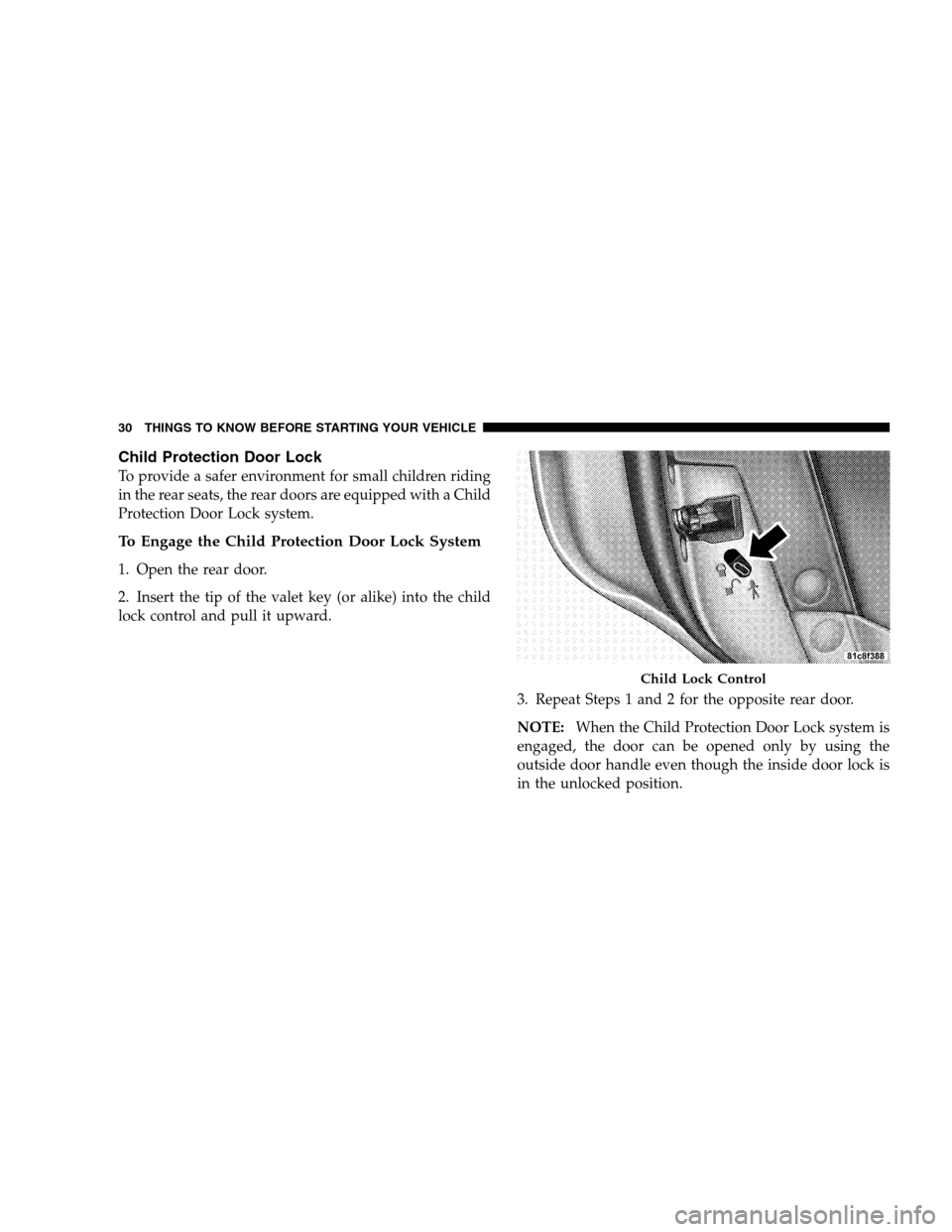

Child Protection Door Lock
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a Child
Protection Door Lock system.
To Engage the Child Protection Door Lock System
1. Open the rear door.
2. Insert the tip of the valet key (or alike) into the child
lock control and pull it upward.
3. Repeat Steps 1 and 2 for the opposite rear door.
NOTE:When the Child Protection Door Lock system is
engaged, the door can be opened only by using the
outside door handle even though the inside door lock is
in the unlocked position.
Child Lock Control
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

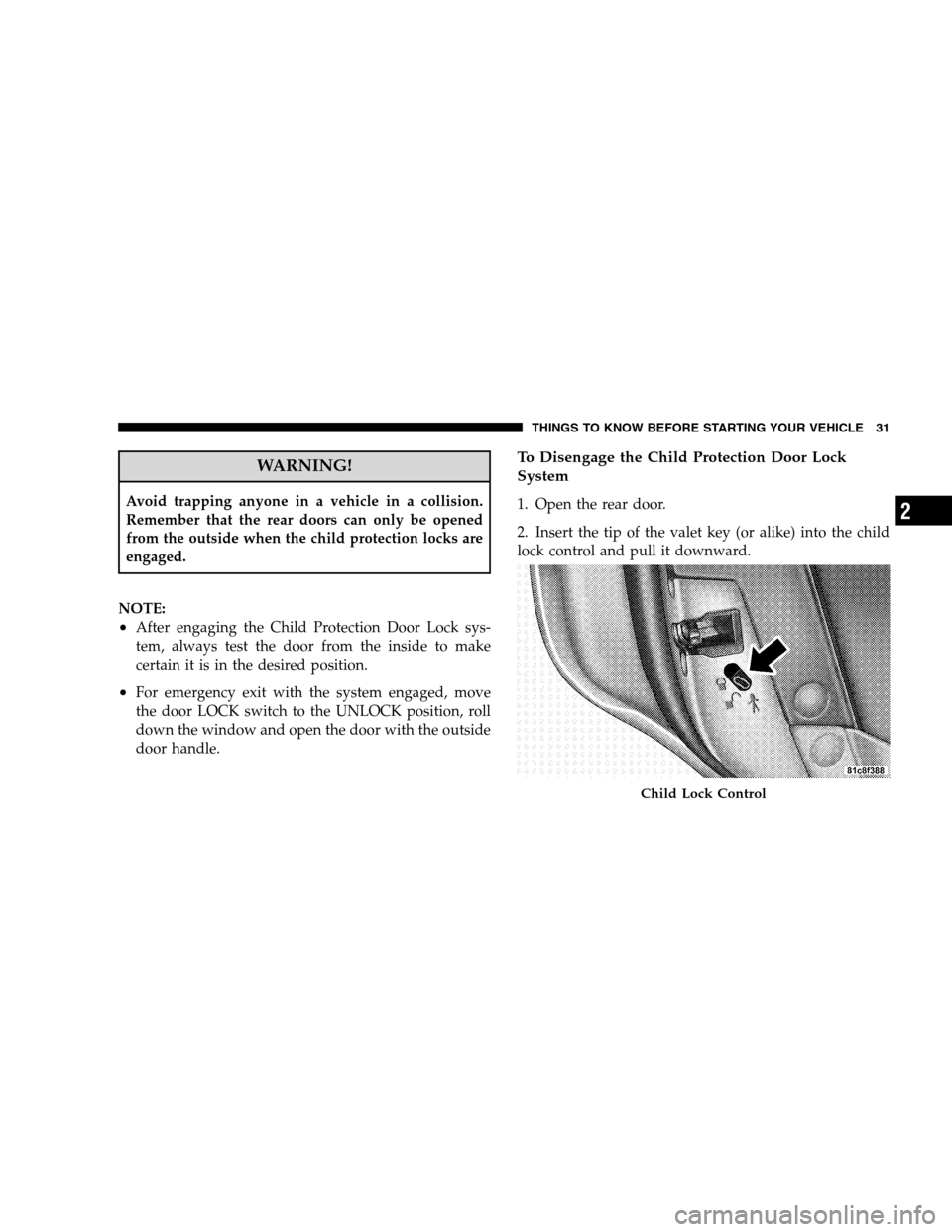

Page 33 of 476

WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
NOTE:
•After engaging the Child Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the desired position.
•For emergency exit with the system engaged, move
the door LOCK switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
To Disengage the Child Protection Door Lock
System
1. Open the rear door.
2. Insert the tip of the valet key (or alike) into the child
lock control and pull it downward.
Child Lock Control
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

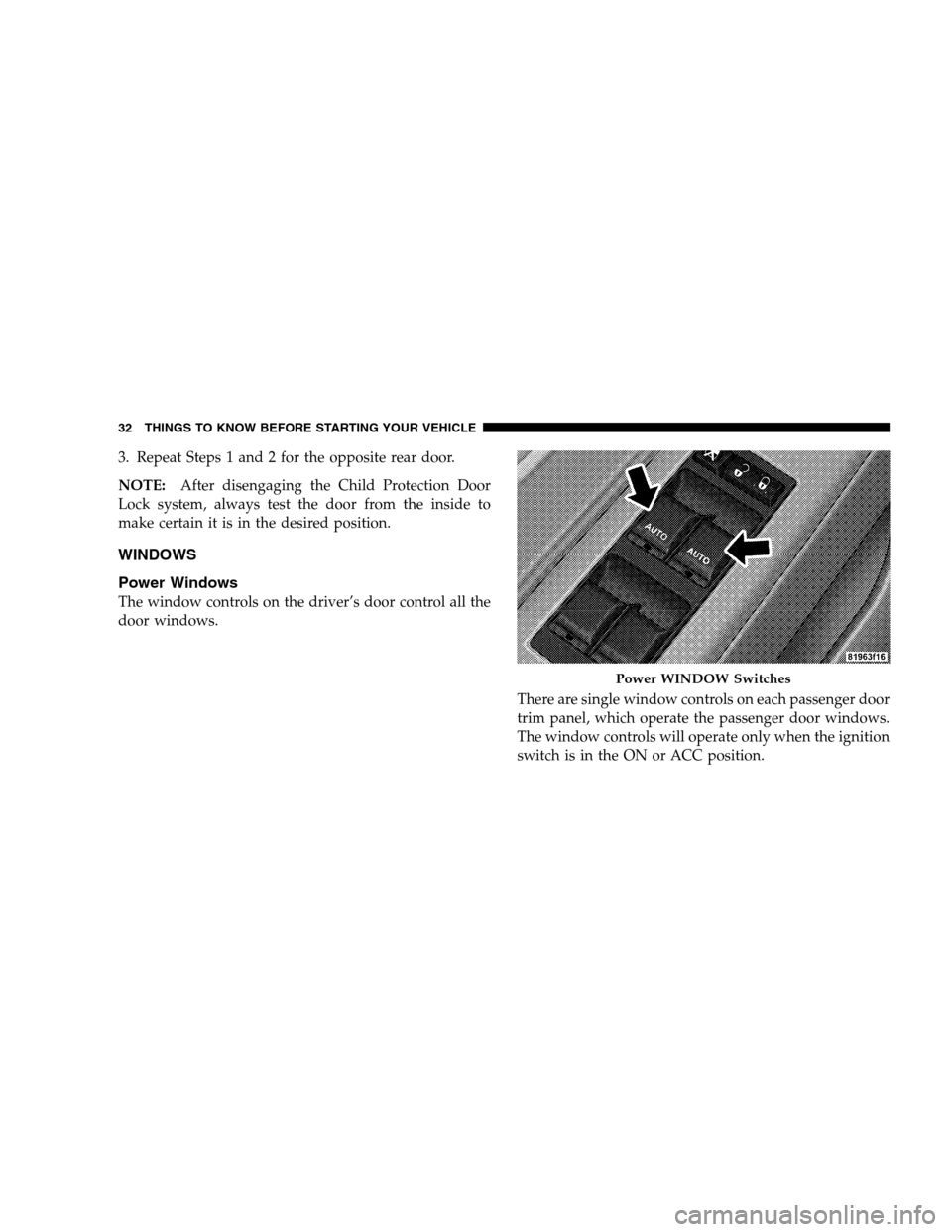

Page 34 of 476

3. Repeat Steps 1 and 2 for the opposite rear door.
NOTE:After disengaging the Child Protection Door
Lock system, always test the door from the inside to
make certain it is in the desired position.
WINDOWS
Power Windows
The window controls on the driver’s door control all the
door windows.
There are single window controls on each passenger door
trim panel, which operate the passenger door windows.
The window controls will operate only when the ignition
switch is in the ON or ACC position.
Power WINDOW Switches
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

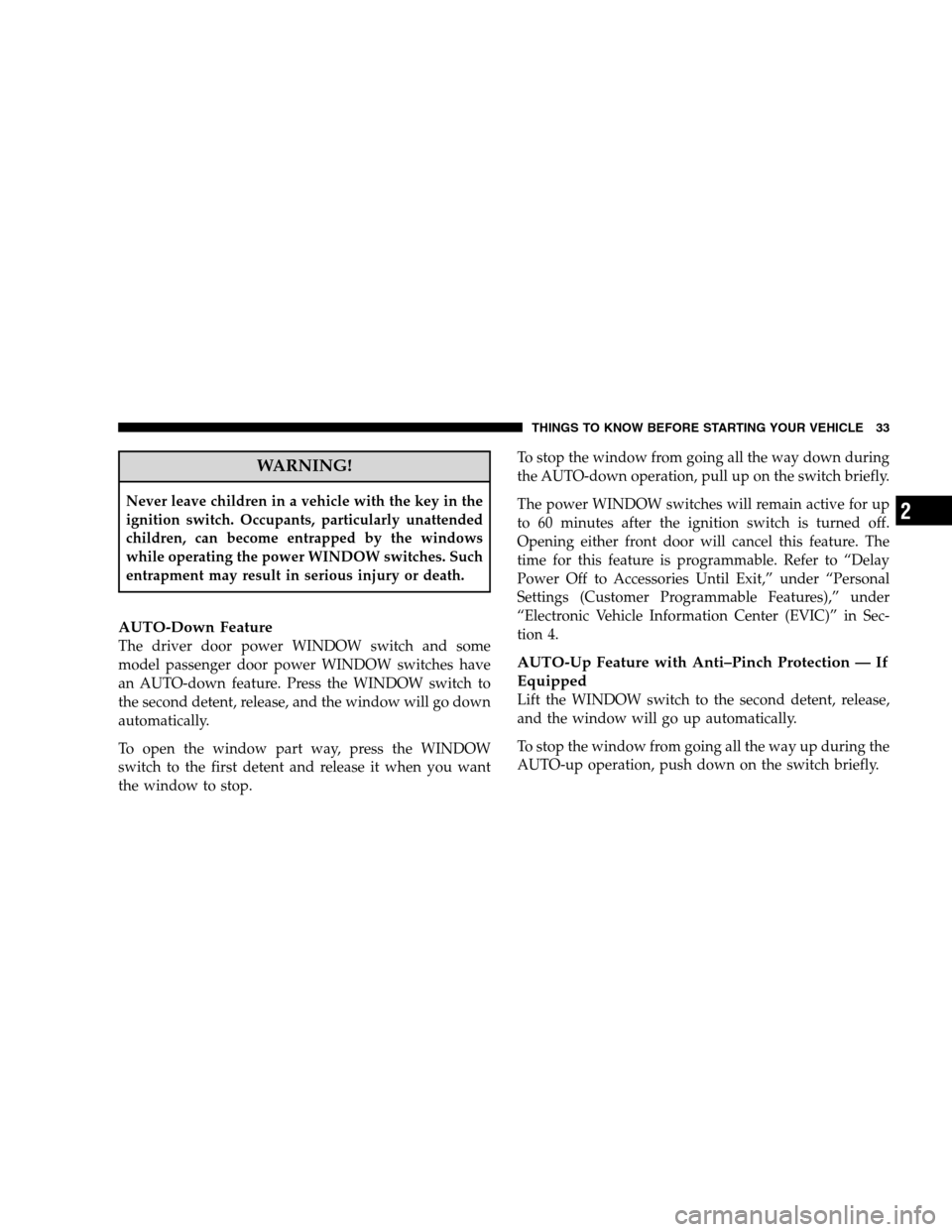

Page 35 of 476

WARNING!
Never leave children in a vehicle with the key in the
ignition switch. Occupants, particularly unattended
children, can become entrapped by the windows
while operating the power WINDOW switches. Such
entrapment may result in serious injury or death.
AUTO-Down Feature
The driver door power WINDOW switch and some
model passenger door power WINDOW switches have
an AUTO-down feature. Press the WINDOW switch to
the second detent, release, and the window will go down
automatically.
To open the window part way, press the WINDOW
switch to the first detent and release it when you want
the window to stop.To stop the window from going all the way down during
the AUTO-down operation, pull up on the switch briefly.
The power WINDOW switches will remain active for up
to 60 minutes after the ignition switch is turned off.
Opening either front door will cancel this feature. The
time for this feature is programmable. Refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
AUTO-Up Feature with Anti–Pinch Protection — If
Equipped
Lift the WINDOW switch to the second detent, release,
and the window will go up automatically.
To stop the window from going all the way up during the
AUTO-up operation, push down on the switch briefly.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2

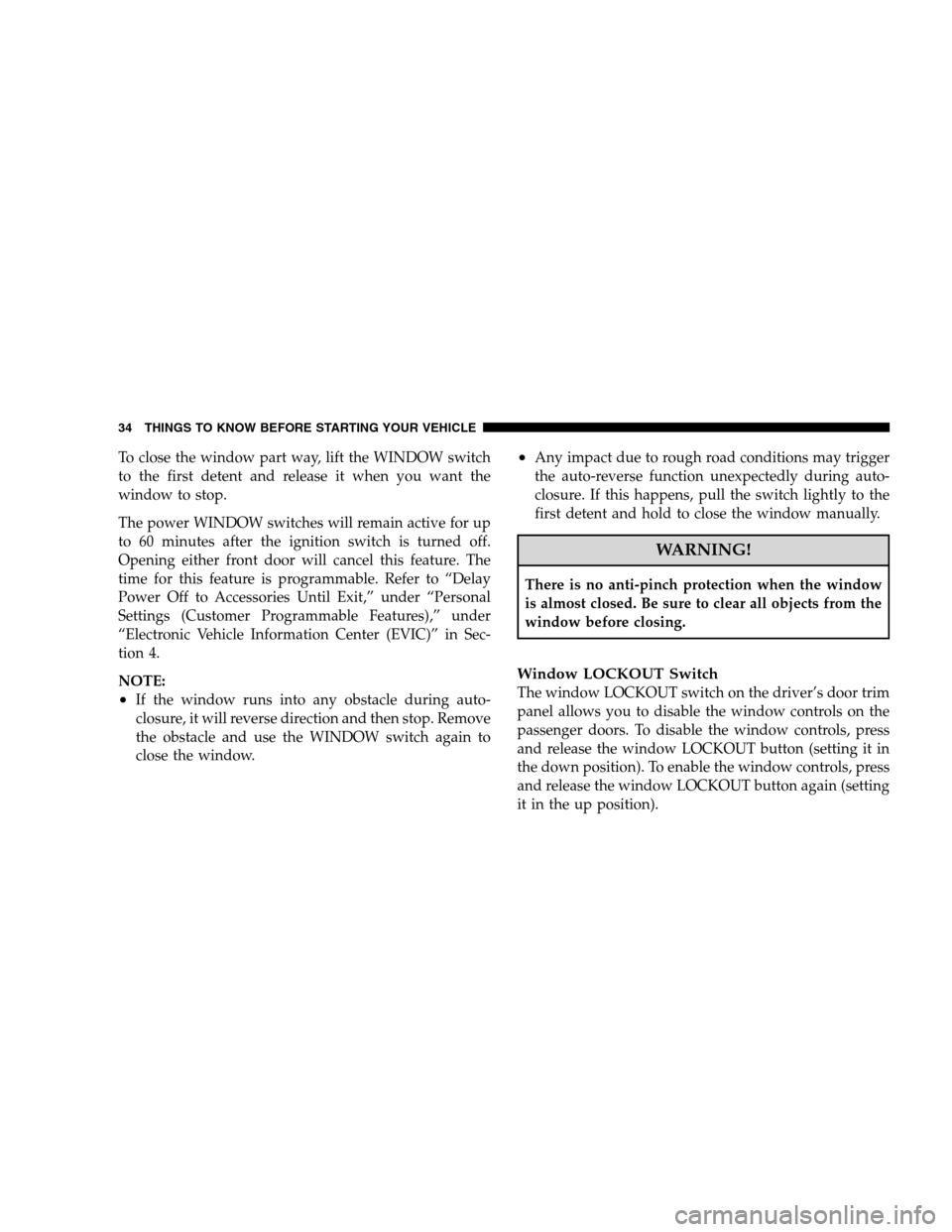

Page 36 of 476

To close the window part way, lift the WINDOW switch
to the first detent and release it when you want the
window to stop.
The power WINDOW switches will remain active for up
to 60 minutes after the ignition switch is turned off.
Opening either front door will cancel this feature. The
time for this feature is programmable. Refer to “Delay
Power Off to Accessories Until Exit,” under “Personal
Settings (Customer Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
NOTE:
•If the window runs into any obstacle during auto-
closure, it will reverse direction and then stop. Remove
the obstacle and use the WINDOW switch again to
close the window.
•Any impact due to rough road conditions may trigger
the auto-reverse function unexpectedly during auto-
closure. If this happens, pull the switch lightly to the
first detent and hold to close the window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Window LOCKOUT Switch
The window LOCKOUT switch on the driver’s door trim
panel allows you to disable the window controls on the
passenger doors. To disable the window controls, press
and release the window LOCKOUT button (setting it in
the down position). To enable the window controls, press
and release the window LOCKOUT button again (setting
it in the up position).
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

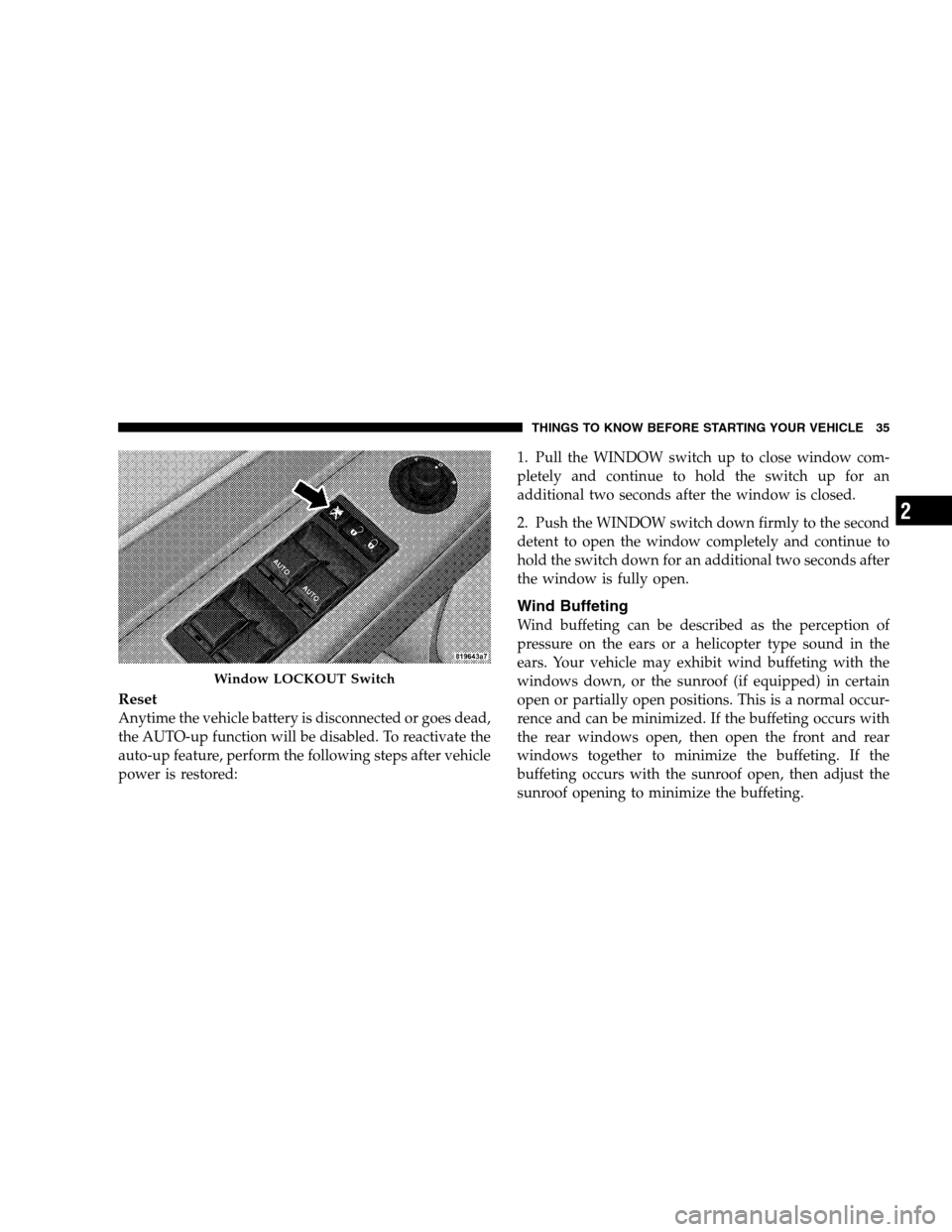

Page 37 of 476

Reset
Anytime the vehicle battery is disconnected or goes dead,
the AUTO-up function will be disabled. To reactivate the
auto-up feature, perform the following steps after vehicle
power is restored:1. Pull the WINDOW switch up to close window com-
pletely and continue to hold the switch up for an
additional two seconds after the window is closed.
2. Push the WINDOW switch down firmly to the second
detent to open the window completely and continue to
hold the switch down for an additional two seconds after
the window is fully open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, then adjust the
sunroof opening to minimize the buffeting.
Window LOCKOUT Switch
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2

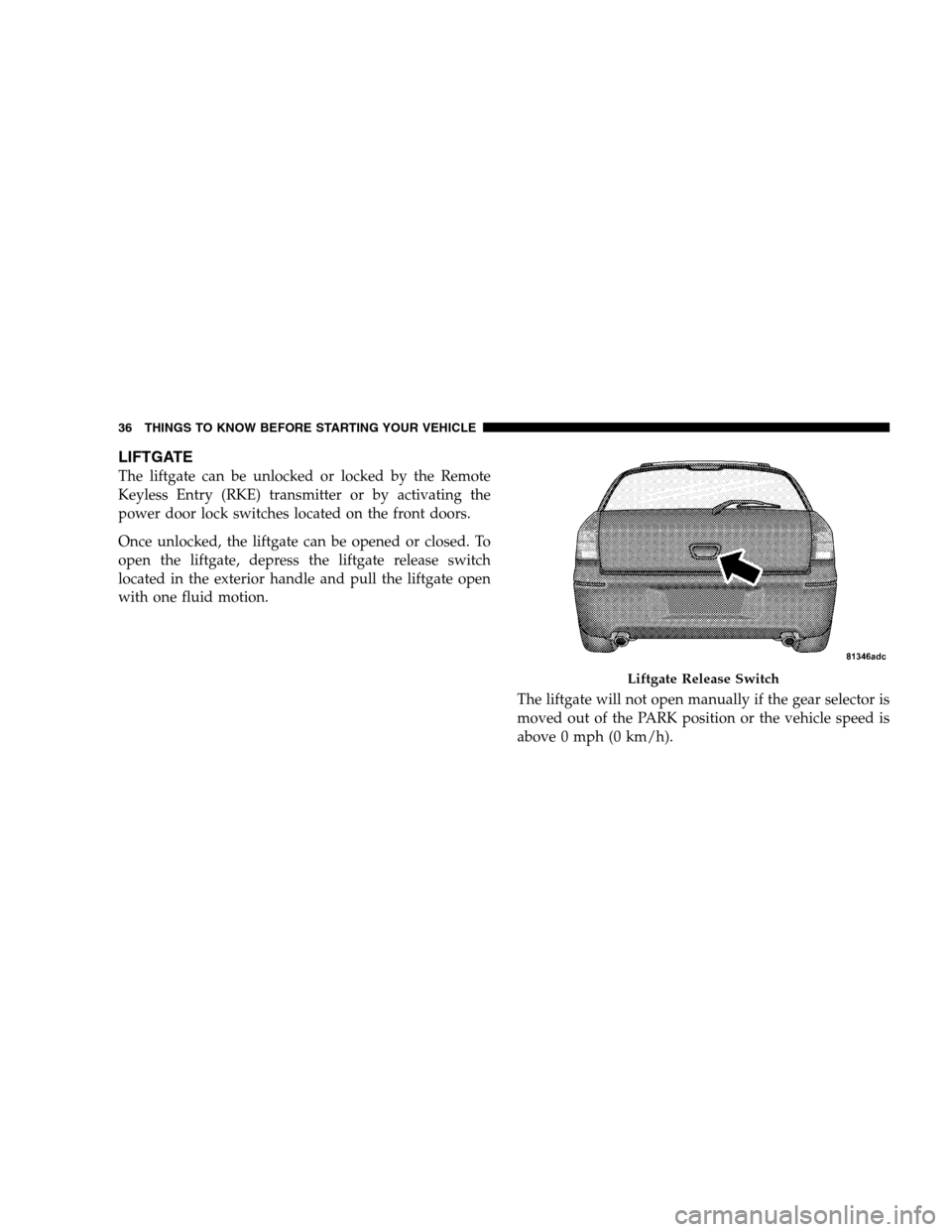

Page 38 of 476

LIFTGATE
The liftgate can be unlocked or locked by the Remote
Keyless Entry (RKE) transmitter or by activating the
power door lock switches located on the front doors.
Once unlocked, the liftgate can be opened or closed. To
open the liftgate, depress the liftgate release switch
located in the exterior handle and pull the liftgate open
with one fluid motion.
The liftgate will not open manually if the gear selector is
moved out of the PARK position or the vehicle speed is
above 0 mph (0 km/h).
Liftgate Release Switch
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 476

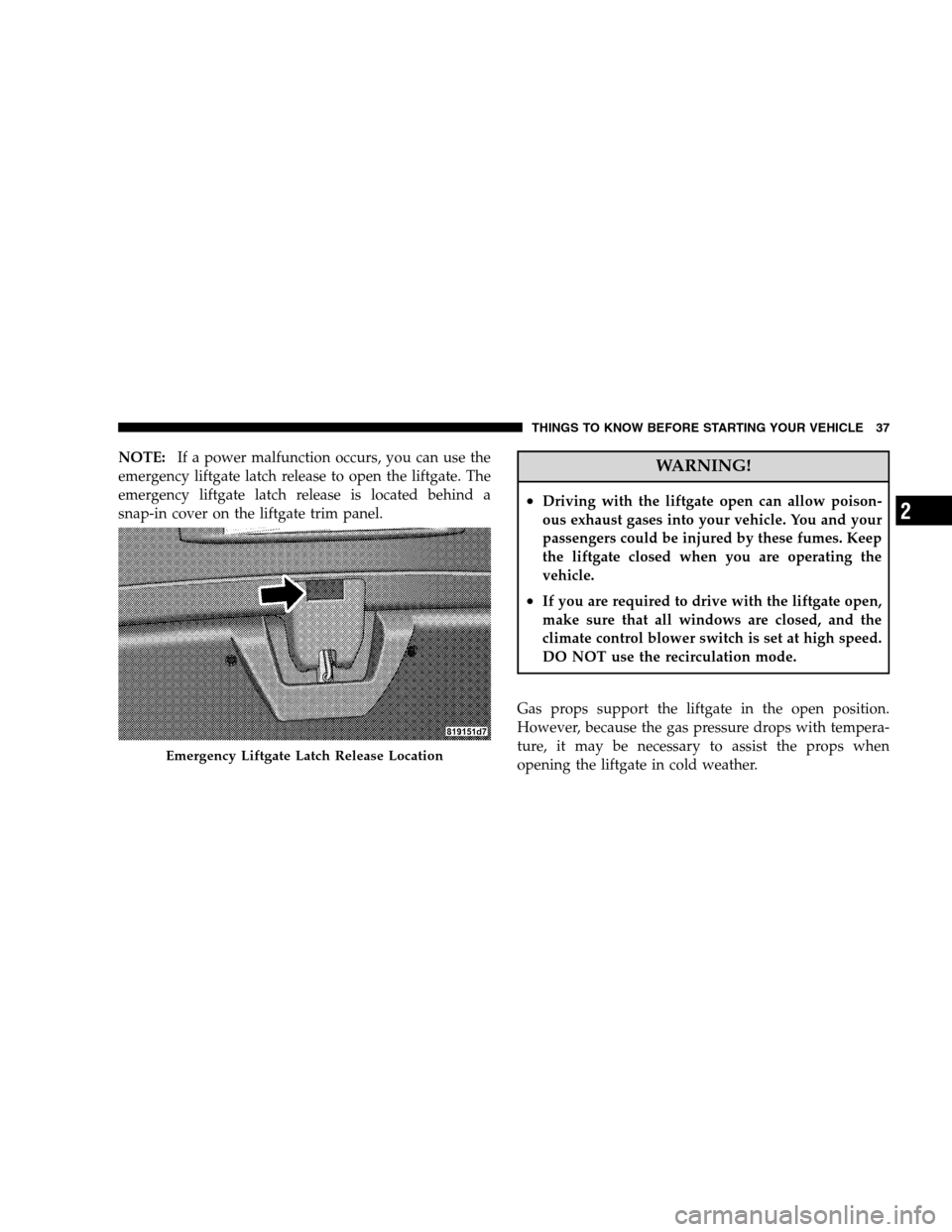

NOTE:If a power malfunction occurs, you can use the
emergency liftgate latch release to open the liftgate. The
emergency liftgate latch release is located behind a
snap-in cover on the liftgate trim panel.WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
Emergency Liftgate Latch Release Location
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2

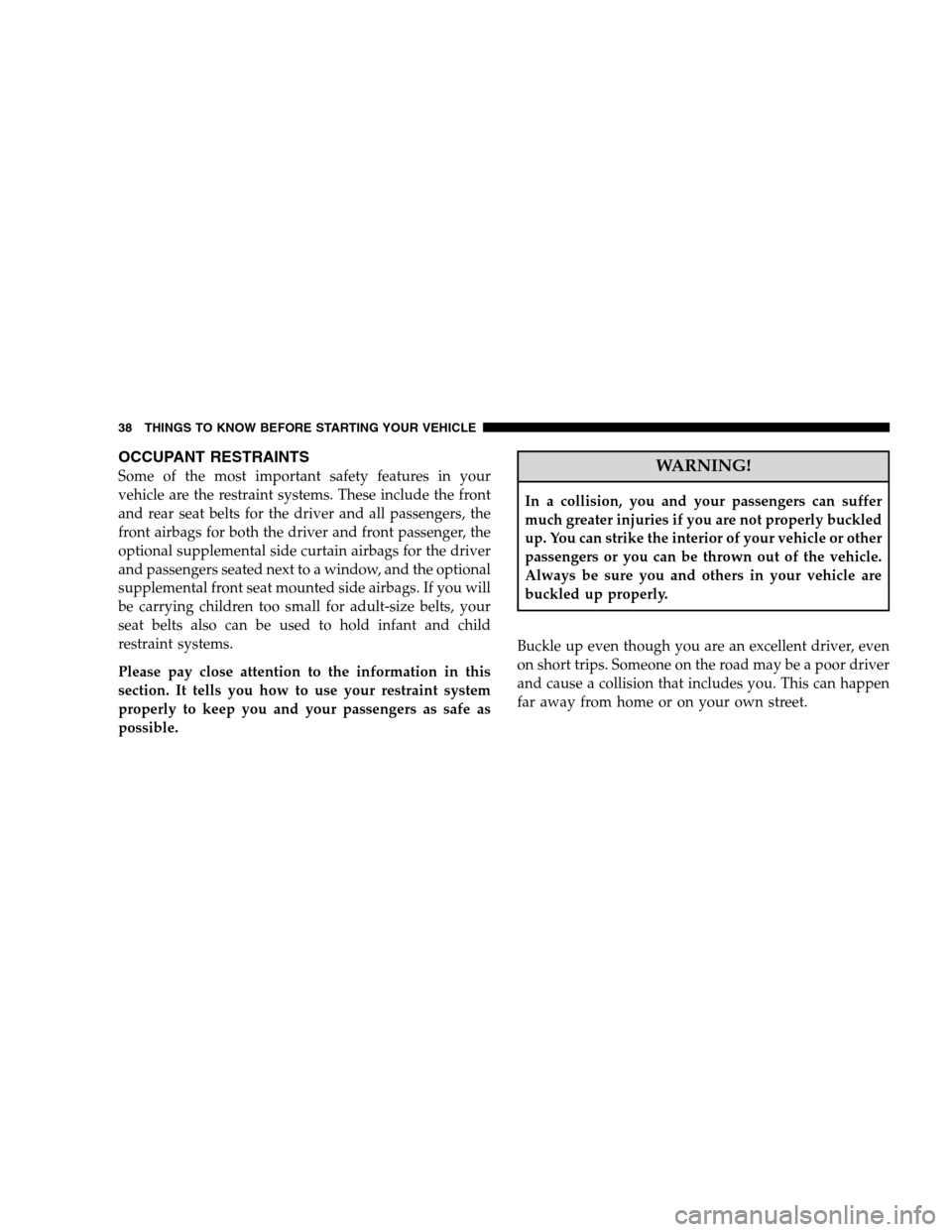

Page 40 of 476

OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, the
front airbags for both the driver and front passenger, the
optional supplemental side curtain airbags for the driver
and passengers seated next to a window, and the optional
supplemental front seat mounted side airbags. If you will
be carrying children too small for adult-size belts, your
seat belts also can be used to hold infant and child
restraint systems.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.WARNING!
In a collision, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.
