Cavity Car-
tridge
FuseMini-
FuseDescription
34 — — —
35 — 5 Amp
OrangeAntenna Module - if
equipped/Power Mir-
rors
36 — 20 Amp
YellowHands-Free Phone - if
equipped/Video Moni-
tor - if equipped/Radio
37 — 15 Amp
BlueTransmission
38 — 10 Amp
RedCargo Light/Satellite
Receiver (SDARS) Video
- if equipped/Vehicle
Information Module - if
equipped
39 — 10 Amp
RedHeated Mirrors - if
equippedCavity Car-
tridge
FuseMini-
FuseDescription
40 — 5 Amp
OrangeAuto Inside Rearview
Mirror/Heated Seats - if
equipped/Switch Bank
41 — 10 Amp
RedAC Heater Control/
Headlights/Tire Pres-
sure Monitoring - if
equipped
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Rear Window Defroster
44 20 Amp
Blue— Amplifier - if equipped/
Sunroof - if equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver SEAT switch are
MAINTAINING YOUR VEHICLE 419
7

fused by the 25-amp circuit breaker in cavity 11. The
passenger SEAT switch is fused by the 25-amp circuit
breaker in cavity 12. The door modules, the driver power
WINDOW switch, and the passenger power WINDOW
switch are fused by the 25-amp circuit breaker in cavity
13. If you experience temporary or permanent loss of
these systems, see your authorized dealer for service.

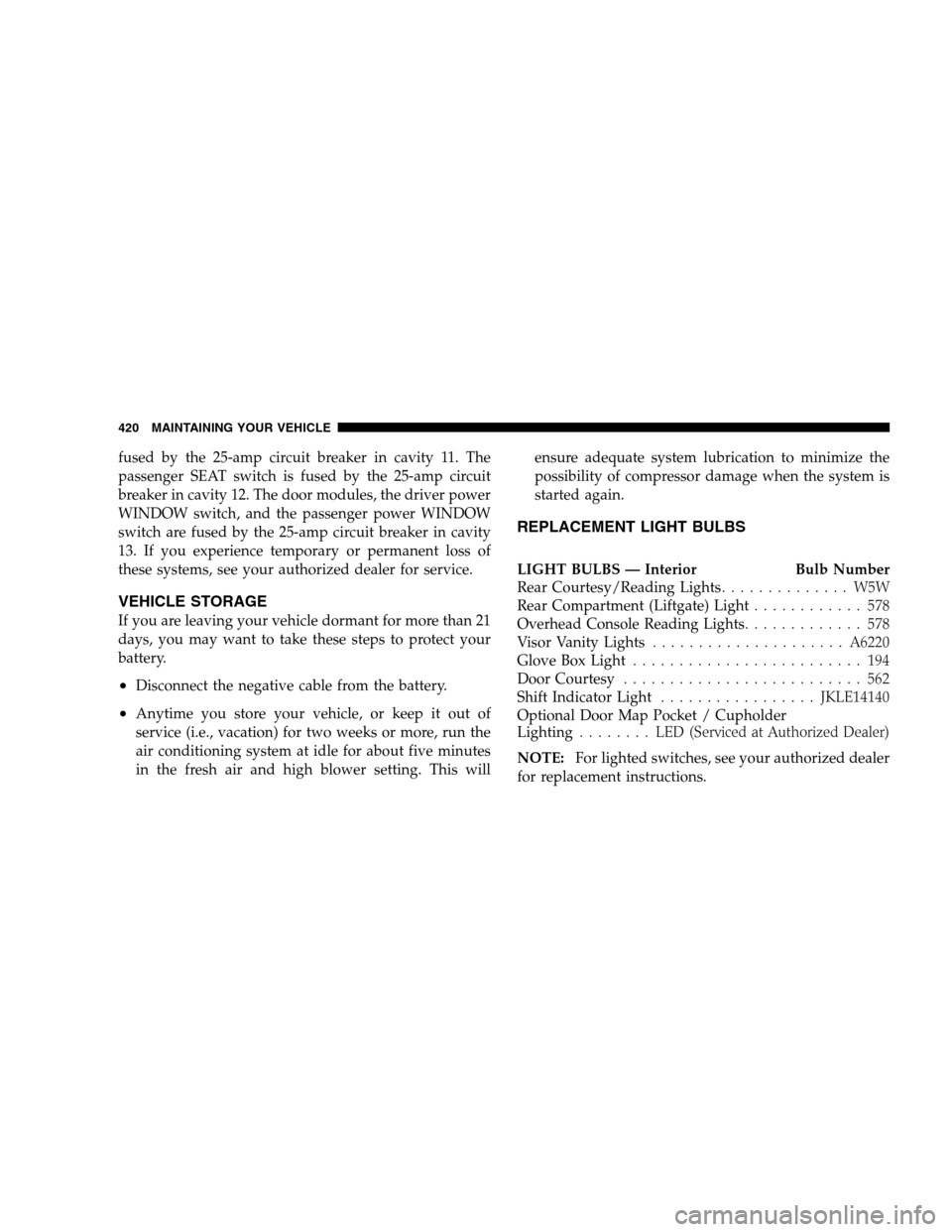

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This willensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Liftgate) Light............ 578
Overhead Console Reading Lights............. 578
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194
Door Courtesy.......................... 562
Shift Indicator Light................. JKLE14140
Optional Door Map Pocket / Cupholder
Lighting........ LED(ServicedatAuthorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
420 MAINTAINING YOUR VEHICLE

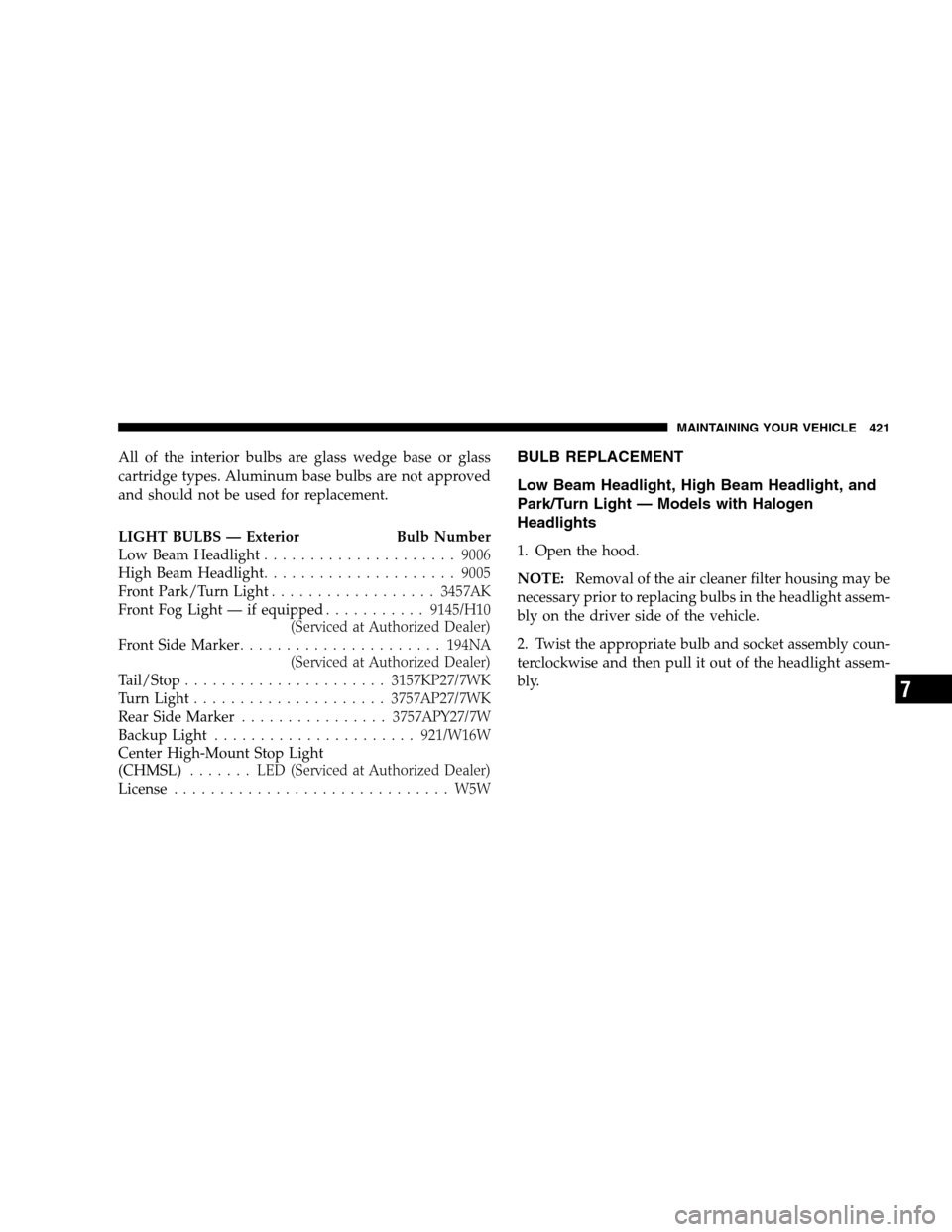

All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
LIGHT BULBS — Exterior Bulb Number
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Light..................3457AK
Front Fog Light — if equipped...........9145/H10
(Serviced at Authorized Dealer)
Front Side Marker......................194NA
(Serviced at Authorized Dealer)
Tail/Stop......................3157KP27/7WK
Turn Light.....................3757AP27/7WK
Rear Side Marker................3757APY27/7W
Backup Light......................921/W16W
Center High-Mount Stop Light
(CHMSL)....... LED(Serviced at Authorized Dealer)
License.............................. W5WBULB REPLACEMENT
Low Beam Headlight, High Beam Headlight, and
Park/Turn Light — Models with Halogen
Headlights
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlight assem-
bly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise and then pull it out of the headlight assem-
bly.
MAINTAINING YOUR VEHICLE 421
7

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.

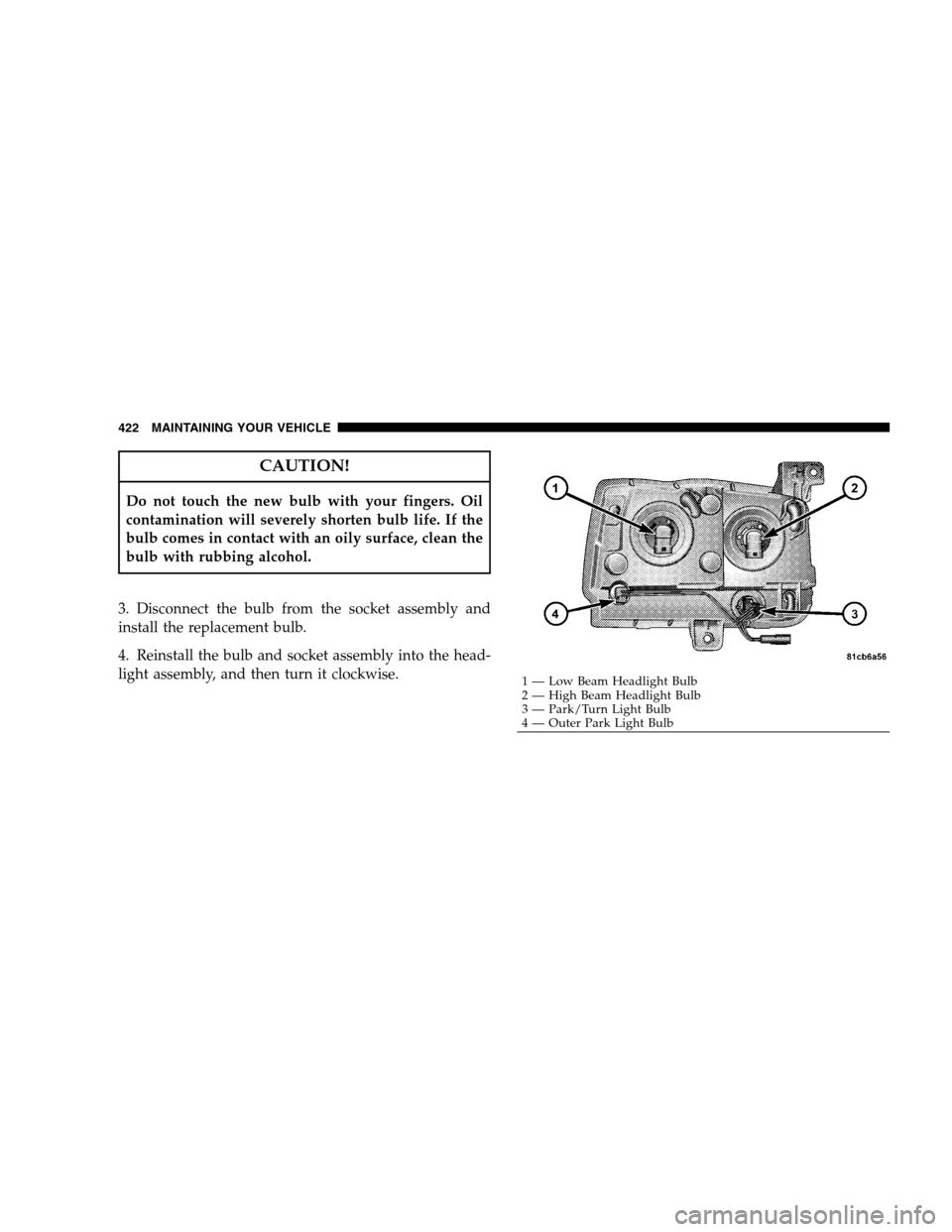

1 — Low Beam Headlight Bulb
2 — High Beam Headlight Bulb
3 — Park/Turn Light Bulb
4 — Outer Park Light Bulb 422 MAINTAINING YOUR VEHICLE

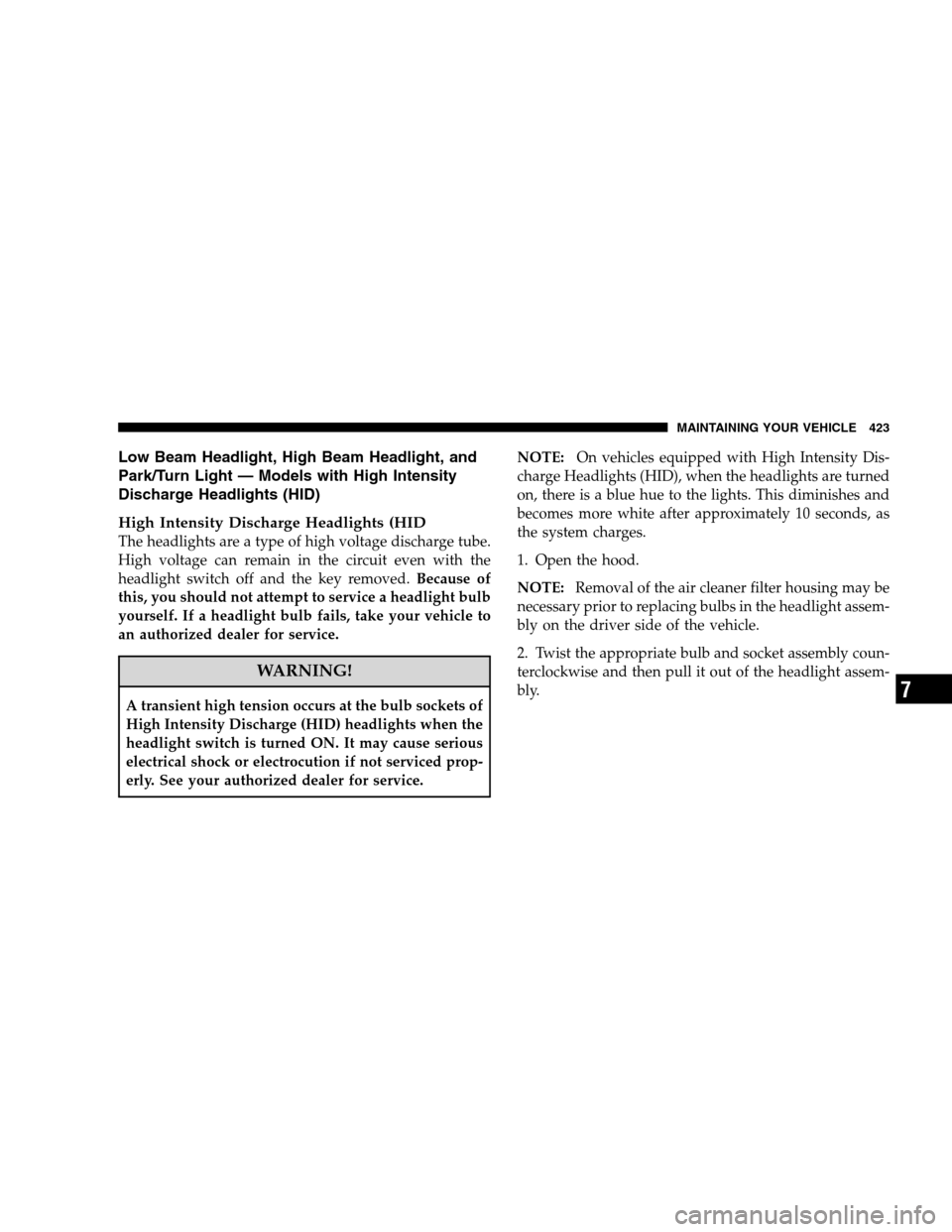

Low Beam Headlight, High Beam Headlight, and
Park/Turn Light — Models with High Intensity
Discharge Headlights (HID)
High Intensity Discharge Headlights (HID
The headlights are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlight switch off and the key removed.Because of
this, you should not attempt to service a headlight bulb
yourself. If a headlight bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb sockets of
High Intensity Discharge (HID) headlights when the
headlight switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.NOTE:On vehicles equipped with High Intensity Dis-
charge Headlights (HID), when the headlights are turned
on, there is a blue hue to the lights. This diminishes and
becomes more white after approximately 10 seconds, as
the system charges.
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlight assem-
bly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise and then pull it out of the headlight assem-
bly.
MAINTAINING YOUR VEHICLE 423
7

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.

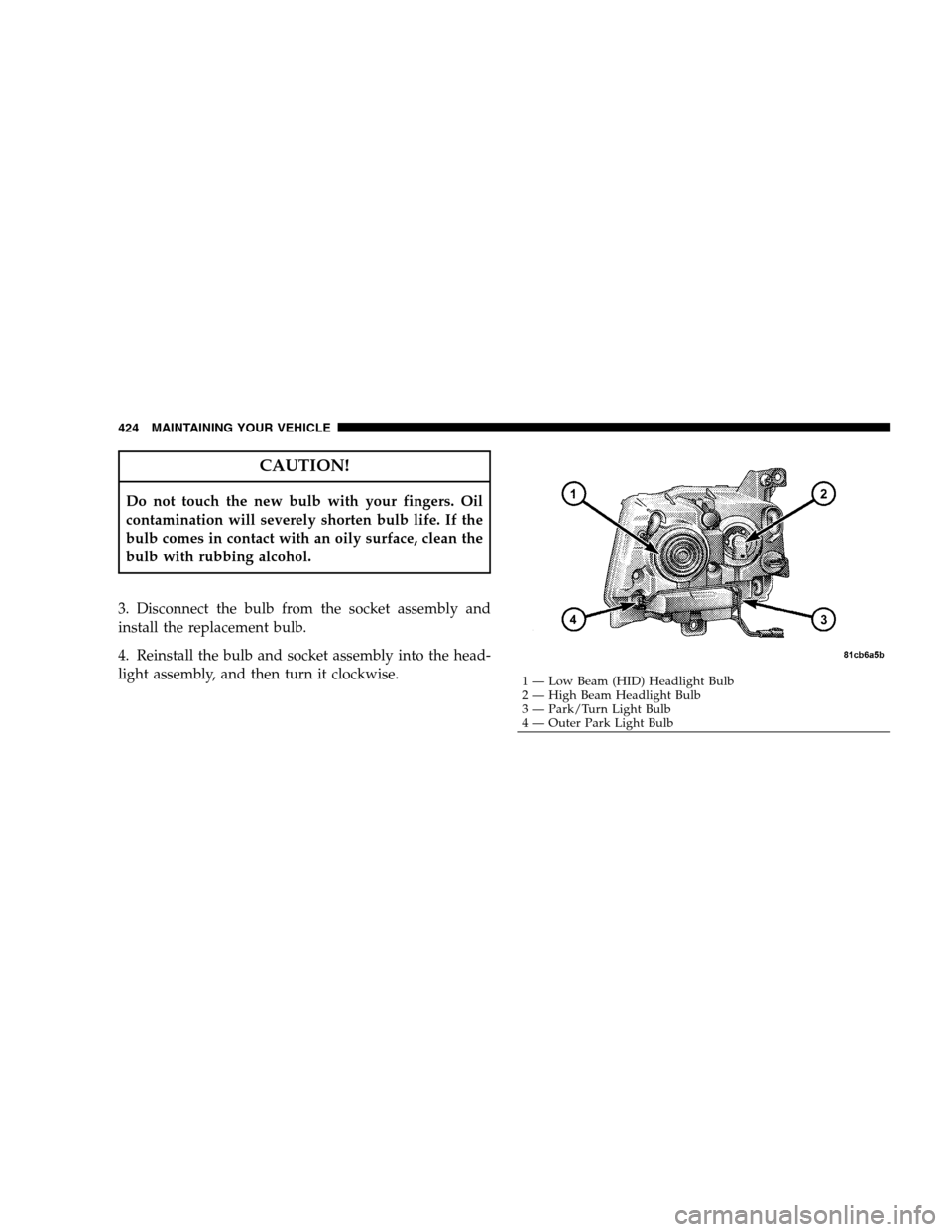

1 — Low Beam (HID) Headlight Bulb
2 — High Beam Headlight Bulb
3 — Park/Turn Light Bulb
4 — Outer Park Light Bulb 424 MAINTAINING YOUR VEHICLE

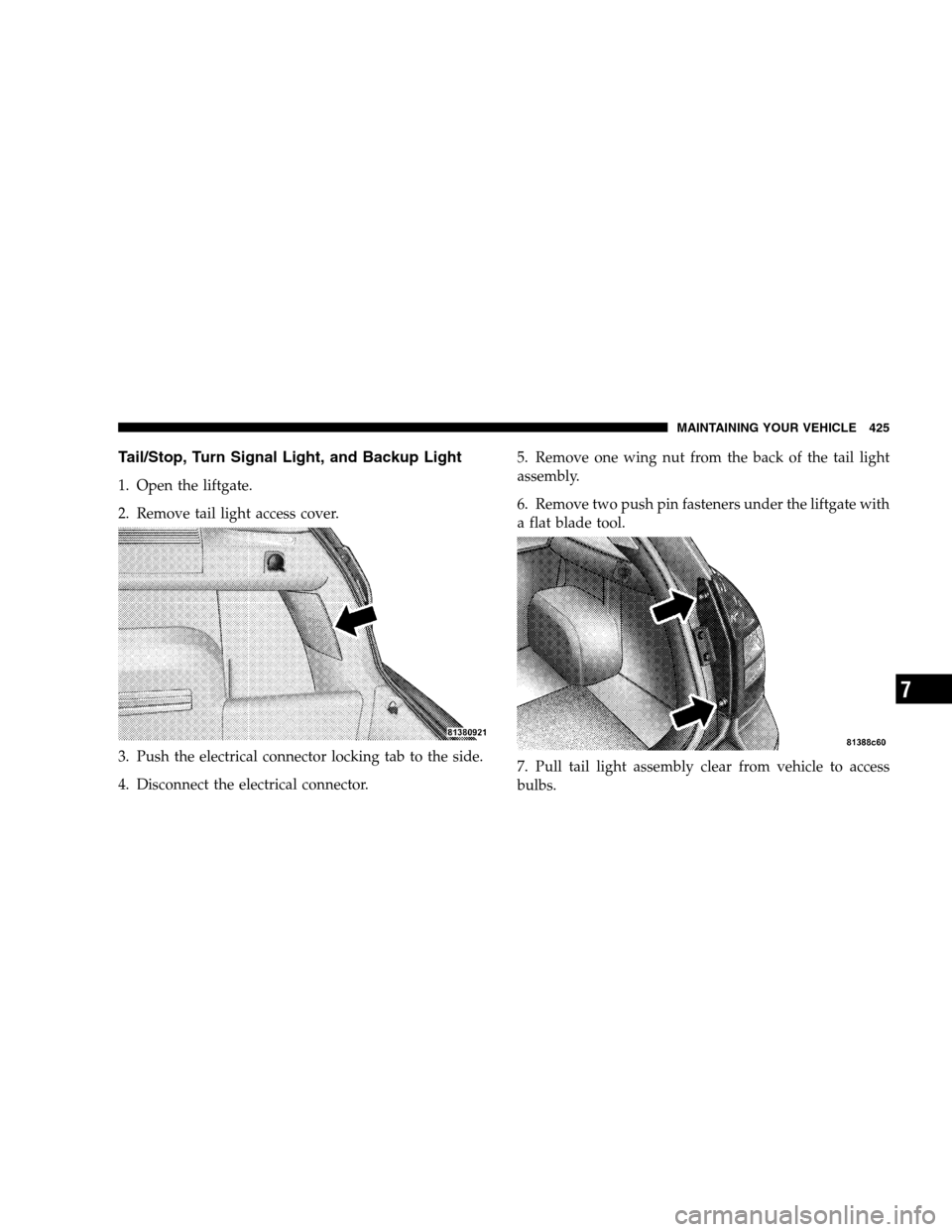

Tail/Stop, Turn Signal Light, and Backup Light
1. Open the liftgate.
2. Remove tail light access cover.
3. Push the electrical connector locking tab to the side.
4. Disconnect the electrical connector.5. Remove one wing nut from the back of the tail light
assembly.
6. Remove two push pin fasteners under the liftgate with
a flat blade tool.
7. Pull tail light assembly clear from vehicle to access
bulbs.
MAINTAINING YOUR VEHICLE 425
7

8. Turn the appropriate bulb and socket assembly coun-
terclockwise to remove it from the tail light assembly.

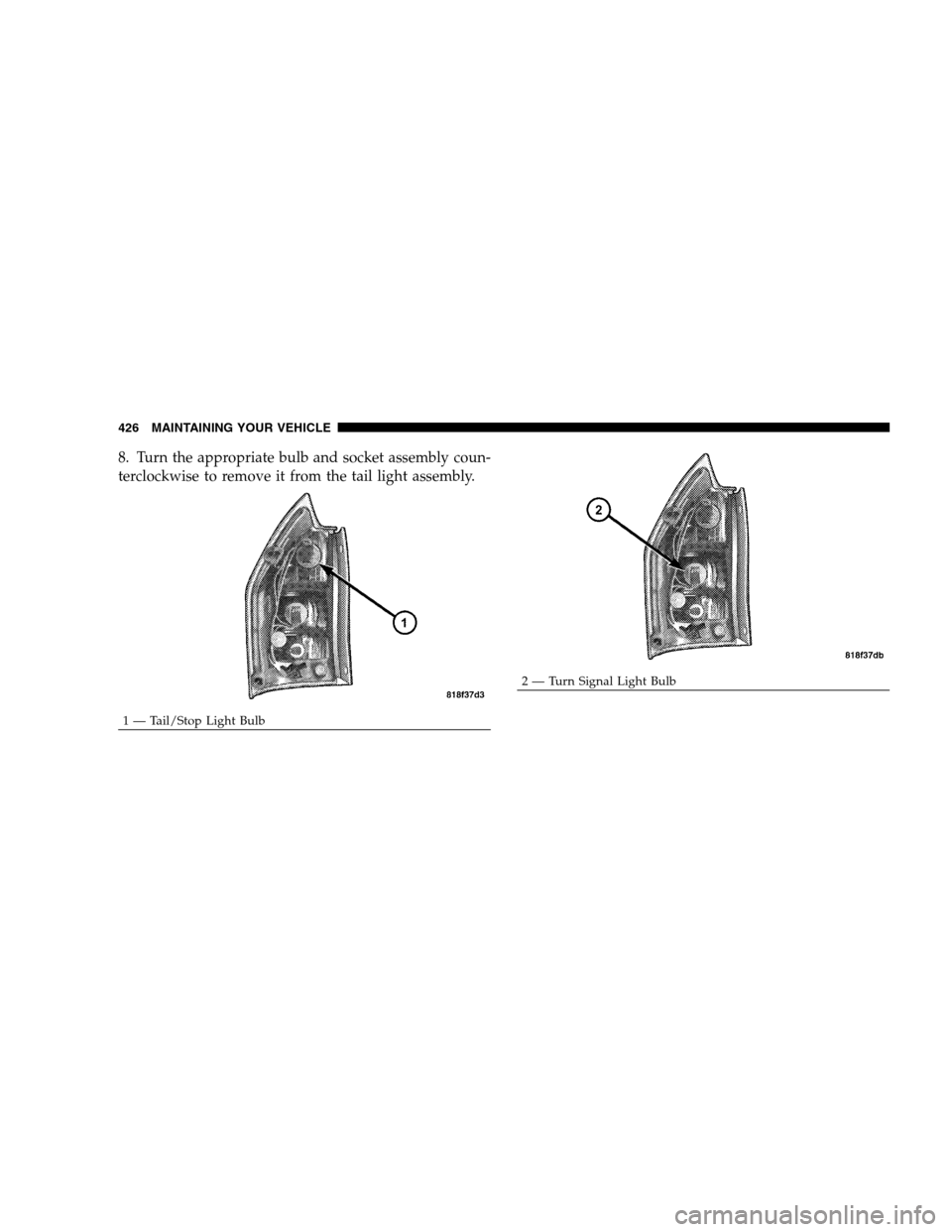

1 — Tail/Stop Light Bulb
2 — Turn Signal Light Bulb 426 MAINTAINING YOUR VEHICLE

9. Disconnect the bulb from the socket assembly and
install the replacement bulb.
10. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.
11. Reinstall the tail light assembly, fasteners, and elec-
trical connector.
12. Close the liftgate.

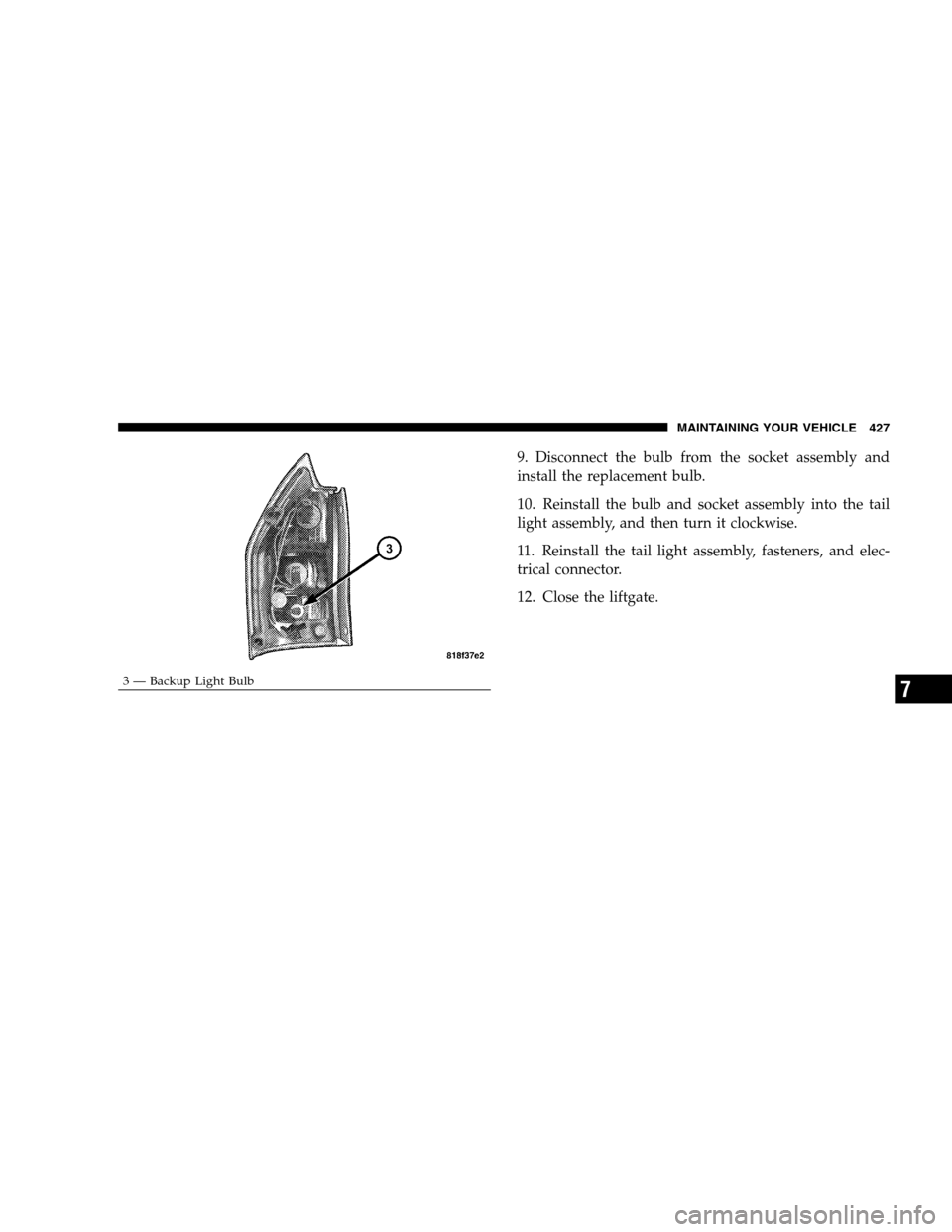

3 — Backup Light BulbMAINTAINING YOUR VEHICLE 4277

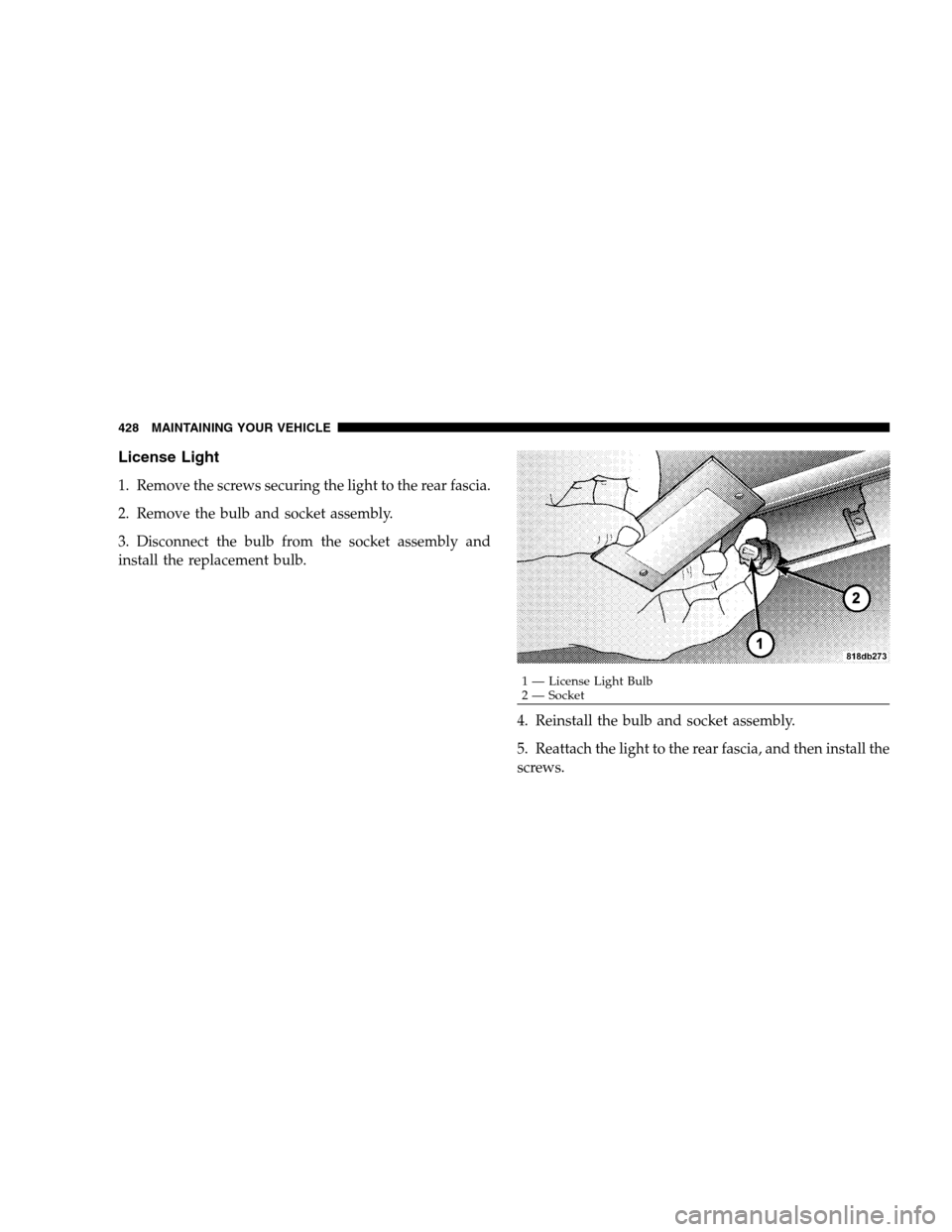

License Light
1. Remove the screws securing the light to the rear fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the light to the rear fascia, and then install the
screws.
1 — License Light Bulb
