To activate the UConnectsystem from idle, simply press
the PHONE button and follow the audible prompts for
directions. All UConnectsystem sessions begin with a
press of the PHONE button on the radio control head.
Cancel Command
At any prompt, after the beep, you can sayCanceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) UConnectSystem to a Cellular Phone
To begin using your UConnectsystem, you must pair
your compatible Bluetoothenabled cellular phone.
To complete the pairing process, you will need to refer-
ence your cellular phone owner’s manual. The
UConnectwebsite may also provide detailed instruc-
tions for pairing.The following are general phone to UConnectsystem
pairing instructions:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, sayPair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN number. You will not need to remember
this PIN number after the initial pairing process.
•For identification purposes, you will be prompted to
give the UConnectsystem a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

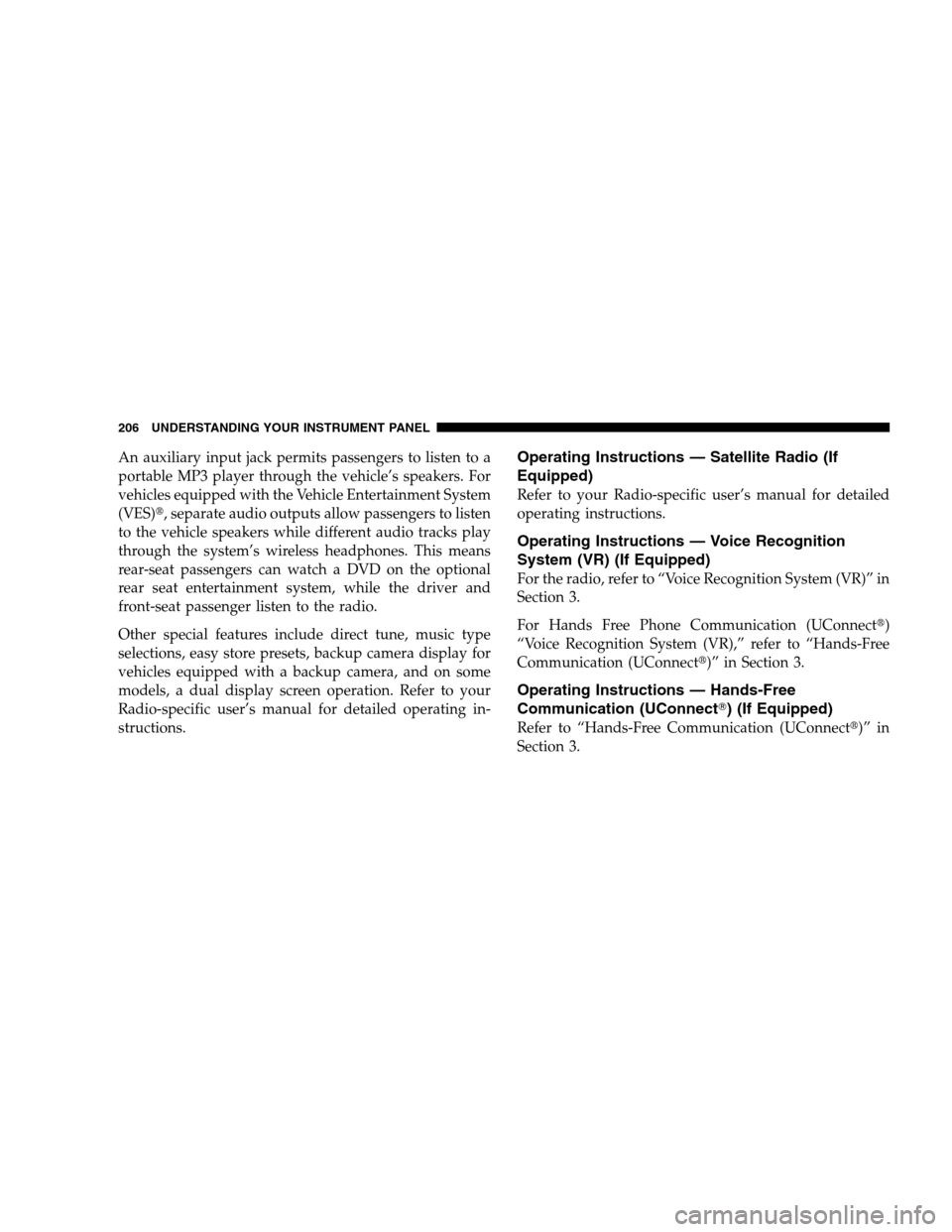

An auxiliary input jack permits passengers to listen to a
portable MP3 player through the vehicle’s speakers. For
vehicles equipped with the Vehicle Entertainment System
(VES), separate audio outputs allow passengers to listen
to the vehicle speakers while different audio tracks play
through the system’s wireless headphones. This means
rear-seat passengers can watch a DVD on the optional
rear seat entertainment system, while the driver and
front-seat passenger listen to the radio.
Other special features include direct tune, music type
selections, easy store presets, backup camera display for
vehicles equipped with a backup camera, and on some
models, a dual display screen operation. Refer to your
Radio-specific user’s manual for detailed operating in-
structions.Operating Instructions — Satellite Radio (If
Equipped)
Refer to your Radio-specific user’s manual for detailed
operating instructions.
Operating Instructions — Voice Recognition
System (VR) (If Equipped)
For the radio, refer to “Voice Recognition System (VR)” in
Section 3.
For Hands Free Phone Communication (UConnect)
“Voice Recognition System (VR),” refer to “Hands-Free
Communication (UConnect)” in Section 3.
Operating Instructions — Hands-Free
Communication (UConnect) (If Equipped)
Refer to “Hands-Free Communication (UConnect)” in
Section 3.
206 UNDERSTANDING YOUR INSTRUMENT PANEL

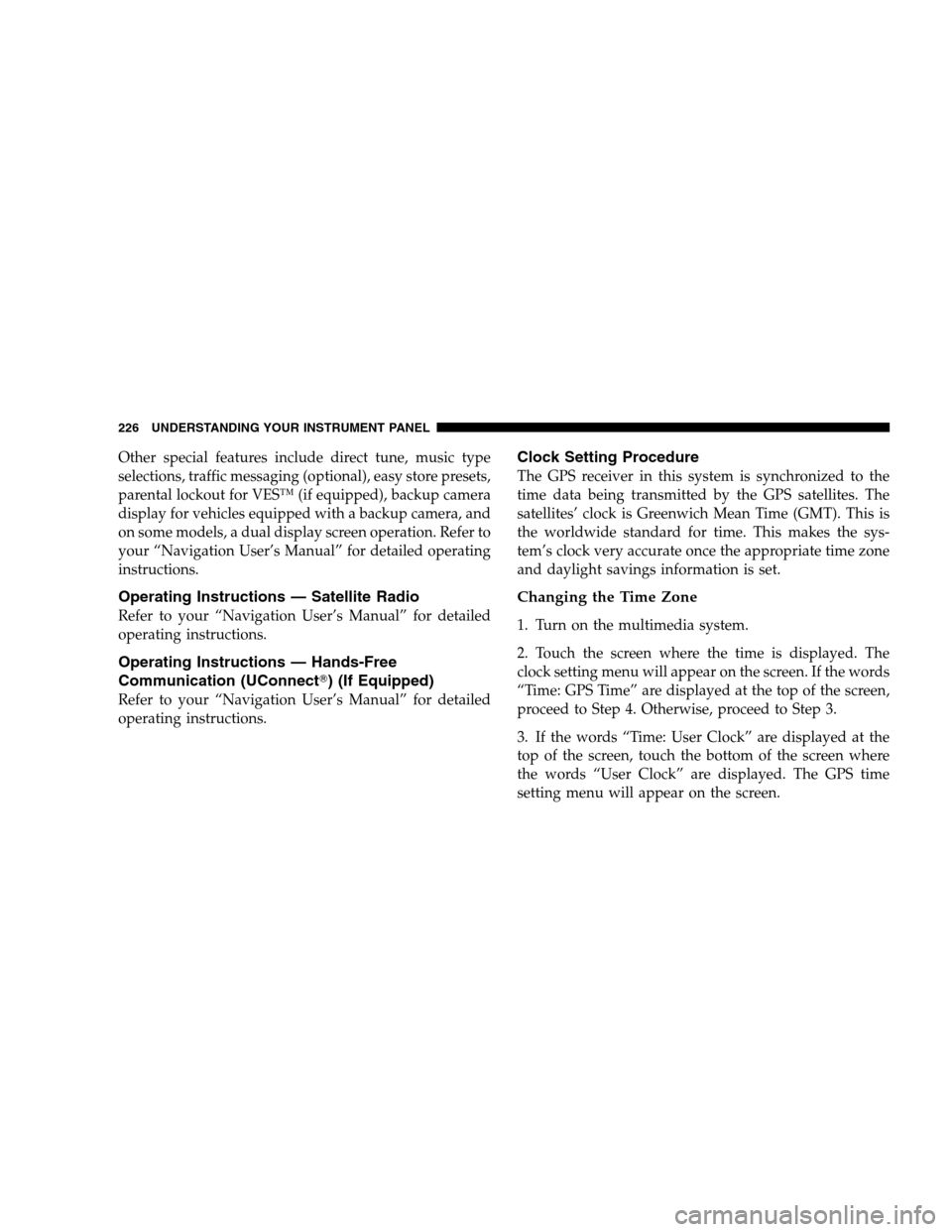

Other special features include direct tune, music type
selections, traffic messaging (optional), easy store presets,
parental lockout for VES™ (if equipped), backup camera
display for vehicles equipped with a backup camera, and
on some models, a dual display screen operation. Refer to
your “Navigation User’s Manual” for detailed operating
instructions.
Operating Instructions — Satellite Radio
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Operating Instructions — Hands-Free
Communication (UConnect) (If Equipped)
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
Clock Setting Procedure
The GPS receiver in this system is synchronized to the
time data being transmitted by the GPS satellites. The
satellites’ clock is Greenwich Mean Time (GMT). This is
the worldwide standard for time. This makes the sys-
tem’s clock very accurate once the appropriate time zone
and daylight savings information is set.
Changing the Time Zone
1. Turn on the multimedia system.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen. If the words
“Time: GPS Time” are displayed at the top of the screen,
proceed to Step 4. Otherwise, proceed to Step 3.
3. If the words “Time: User Clock” are displayed at the
top of the screen, touch the bottom of the screen where
the words “User Clock” are displayed. The GPS time
setting menu will appear on the screen.
226 UNDERSTANDING YOUR INSTRUMENT PANEL

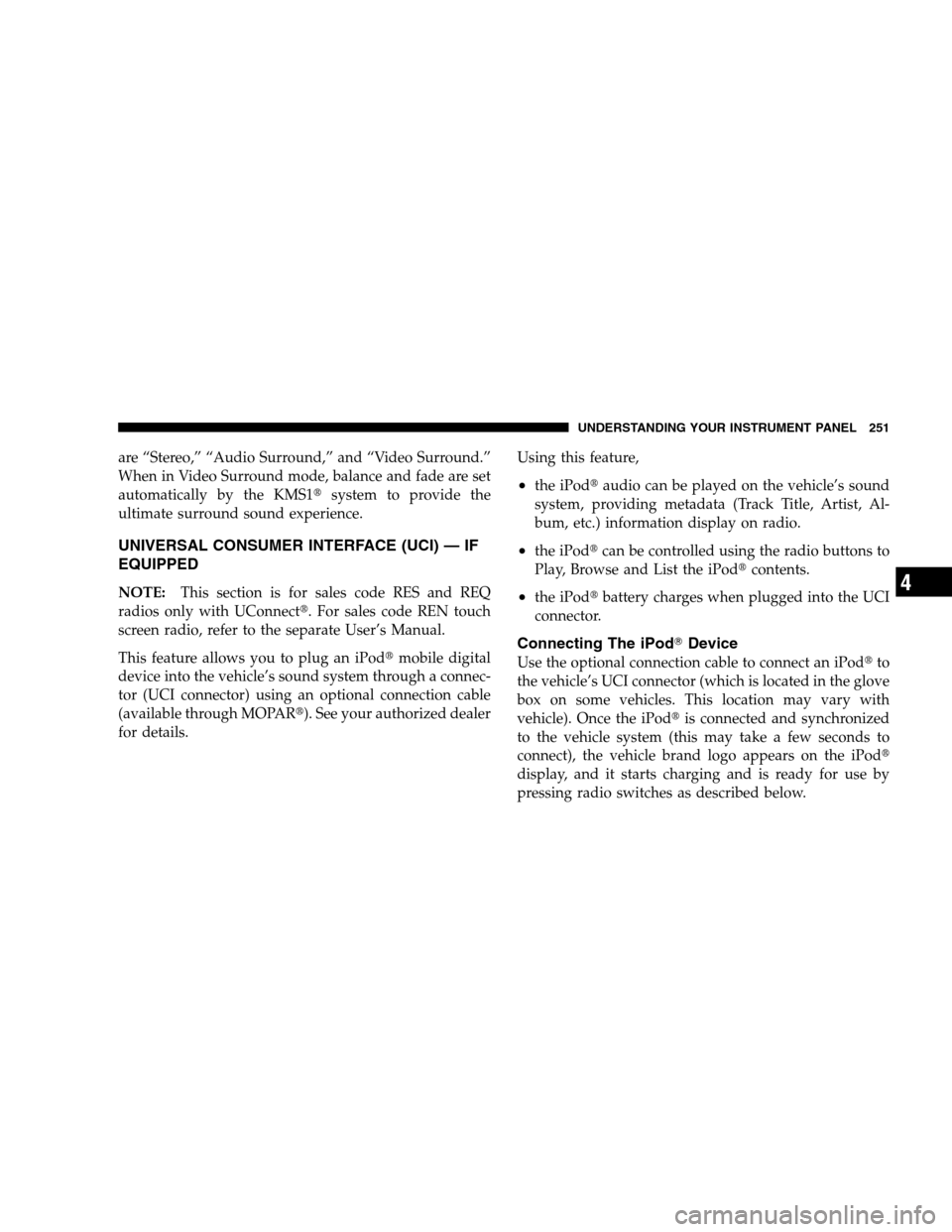

are “Stereo,” “Audio Surround,” and “Video Surround.”
When in Video Surround mode, balance and fade are set
automatically by the KMS1system to provide the
ultimate surround sound experience.
UNIVERSAL CONSUMER INTERFACE (UCI) — IF
EQUIPPED
NOTE:This section is for sales code RES and REQ
radios only with UConnect. For sales code REN touch
screen radio, refer to the separate User’s Manual.
This feature allows you to plug an iPodmobile digital
device into the vehicle’s sound system through a connec-
tor (UCI connector) using an optional connection cable
(available through MOPAR). See your authorized dealer
for details.Using this feature,
•the iPodaudio can be played on the vehicle’s sound
system, providing metadata (Track Title, Artist, Al-
bum, etc.) information display on radio.
•the iPodcan be controlled using the radio buttons to
Play, Browse and List the iPodcontents.
•the iPodbattery charges when plugged into the UCI
connector.
Connecting The iPodDevice
Use the optional connection cable to connect an iPodto
the vehicle’s UCI connector (which is located in the glove
box on some vehicles. This location may vary with
vehicle). Once the iPodis connected and synchronized
to the vehicle system (this may take a few seconds to
connect), the vehicle brand logo appears on the iPod
display, and it starts charging and is ready for use by
pressing radio switches as described below.
UNDERSTANDING YOUR INSTRUMENT PANEL 251
4

Sentry Key Replacement................... 16
Service Assistance....................... 443
Service Contract......................... 445
Service Engine Soon Light
(Malfunction Indicator).................... 184
Service Manuals........................ 447
Setting the Clock................207,210,226,231
Settings, Personal........................ 201
Shifting ............................... 281
Automatic Transmission...............281,285
Shoulder Belt Upper Anchorage.............. 44
Shoulder Belts........................... 39
Side Airbag........................... 50,56
Side Curtain (Window Airbag)............... 50
Signals, Turn...................... 77,130,177
Slippery Surfaces, Driving On............... 292
Snow Chains (Tire Chains)................. 323
Snow Tires............................ 324
Sound Systems (Radio).................205,225Spark Plugs.........................388,430
Specifications
Fuel (Gasoline)........................ 430
Oil ................................ 430
Speed Control (Cruise Control).............. 138
Speedometer........................... 175
Starting............................. 24,277
Automatic Transmission................. 278
Cold Weather......................... 279
Emergency (Jump Starting)............... 371
Engine Fails to Start.................... 280
Remote.............................. 24
Starting and Operating.................... 277
Starting Procedures...................... 277
Steering
Column Controls...................... 129
Column Lock......................... 136
Linkage............................. 395
Power...........................299,394
468 INDEX
