steering DODGE NEON 1997 1.G Wiring Diagrams Workshop Manual

Downloaded from www.Manualslib.com manuals search engine Component Page
Instrument Cluster....................8W-40
Instrument Panel Speakers..............8W-47
Intermittent Wipe/Wash Switch...........8W-53
Key-In Switch........................8W-40
Knock Sensor.........................8W-30
License Lamps........................8W-51
Low Oil Pressure Lamp.................8W-40
Map/Reading Lamps...................8W-44
Master Power Window Switch............8W-60
Mercury Switch.......................8W-44
Noise Supressor.......................8W-30
Park Brake Switch.....................8W-40
Park/Neutral Position Switch.............8W-51
Park/Turn Signal Lamps................8W-52
Passenger Side Airbag..................8W-43
Power Distribution Center...............8W-10
Power Folding Mirror Relay..............8W-62
Power Mirror Fuse Holder...............8W-62
Power Mirror Switch...................8W-62
Power Mirrors........................8W-62
Power Steering Pressure Switch..........8W-30
Power Sunroof Motor...................8W-64
Power Window Motors..................8W-60
Power Window Switches.................8W-60
Powertrain Control Module..............8W-30
PRNDL Lamp........................8W-44
Pump Motor Driver....................8W-35
Radiator Fan Motor....................8W-42Component Page
Radio...............................8W-47
Rear Fog Lamp Switch..................8W-51
Rear Window Defogger..................8W-48
Rear Window Defogger Switch............8W-48
Repeater Lamps....................8W-50, 52
Seat Belt Warning Lamp................8W-40
Solid State Fan Relay..................8W-42
Speakers............................8W-47
Splice Information.....................8W-30
Stop Lamp Switch.....................8W-30
Sunroof Slide Switch...................8W-64
Sunroof Vent Switch....................8W-64
Switch Illumination....................8W-48
Tail/Stop Lamps.......................8W-51
Throttle Position (TP) Sensor.............8W-30
Torque Converter Clutch Solenoid.........8W-30
Trunk Lamp..........................8W-44
Trunk Switch.........................8W-44
Turn Indicator Lamps..................8W-40
Turn Signal Lamps....................8W-52
Turn Signal/Hazard Switch..............8W-52
Underhood Lamp......................8W-44
Vapor Canister Leak Detector............8W-30
Vehicle Speed Sensor...................8W-30
Visor/Vanity Lamps....................8W-44
Wheel Speed Sensors...................8W-35
Windshield Washer Pump Motor..........8W-53
Wipe/Wash Switch.....................8W-53
Wiper Motor..........................8W-53
8W - 02 - 2 8W - 02 COMPONENT INDEXPL
SPECIAL TOOLS (Continued)

Downloaded from www.Manualslib.com manuals search engine 8W-15 GROUND DISTRIBUTION
INDEX
page
SCHEMATICS AND DIAGRAMS........................................................... 1
DESCRIPTION AND OPERATION......................................................... 10
Component Page
A/C Compressor Clutch................8W-15-4
A/C Compressor Clutch Relay...........8W-15-4
A/C Heater Control Switch.............8W-15-6
ABS Hydraulic Modulator..............8W-15-2
ABS Relay Box......................8W-15-2
Airbag Control Module................8W-15-5
Ash Receiver Lamp...................8W-15-7
Battery............................8W-15-5
Brake Warning Lamp Switch...........8W-15-2
Cigar Lighter Relay..................8W-15-7
Cigar Lighter/Power Outlet.............8W-15-7
Combination Flasher..................8W-15-5
Controller Anti-Lock Brake.............8W-15-3
Data Link Connector..................8W-15-3
Diode..............................8W-15-4
Downstream Heated Oxygen Sensor......8W-15-2
Engine Starter Motor Relay............8W-15-2
Front Fog Lamp Switch...............8W-15-7
Fuel Pump Module...................8W-15-9
G101..............................8W-15-2
G102..............................8W-15-3
G103..............................8W-15-4
G104..............................8W-15-5
G105..............................8W-15-5
G106..............................8W-15-5
G201..............................8W-15-5
G202..............................8W-15-5
G203..............................8W-15-6
G204..............................8W-15-7
G301..............................8W-15-9
G302..............................8W-15-8
G303..............................8W-15-9
Glove Box Lamp And Switch............8W-15-7
Headlamp Leveling Switch.............8W-15-7
Headlamp Switch....................8W-15-7
Horn No. 1.........................8W-15-4
Horn No. 2.........................8W-15-2
Ignition Switch......................8W-15-7
Instrument Cluster...................8W-15-7
Intermittent Wipe/Wash Switch.........8W-15-5
Left Back-Up Lamp...................8W-15-8
Left Fog Lamp......................8W-15-4
Left Headlamp......................8W-15-2
Left Headlamp Leveling Motor..........8W-15-2
Left License Lamp...................8W-15-8
Left Park/Turn Signal Lamp............8W-15-2
Left Rear Fog Lamp..................8W-15-8Component Page
Left Tail/Stop Lamp..................8W-15-8
Left Turn Signal Lamp................8W-15-8
Map/Reading Lamps..................8W-15-7
Master Power Window Switch...........8W-15-6
Power Folding Mirror Relay............8W-15-6
Power Mirror Switch..................8W-15-6
Power Steering Pressure Switch.........8W-15-3
Power Sunroof Motor.................8W-15-6
Powertrain Control Module...........8W-15-3, 5
PRNDL Lamp.......................8W-15-7
Radiator Fan Motor..................8W-15-2
Radio..............................8W-15-5
Rear Fog Lamp Switch................8W-15-7
Rear Window Defogger................8W-15-9
Rear Window Defogger Switch..........8W-15-5
Right Back-Up Lamp.................8W-15-9
Right Door Lock Switch...............8W-15-6
Right Fog Lamp.....................8W-15-4
Right Headlamp.....................8W-15-4
Right Headlamp Leveling Motor.........8W-15-4
Right License Lamp..................8W-15-8
Right Park/Turn Signal Lamp...........8W-15-4
Right Rear Fog Lamp.................8W-15-9
Right Repeater Lamp.................8W-15-4
Right Tail/Stop Lamp.................8W-15-9
Right Turn Signal Lamp...............8W-15-9
S104..............................8W-15-3
S107..............................8W-15-2
S108..............................8W-15-2
S111 ..............................8W-15-2
S117 ..............................8W-15-4
S119 ..............................8W-15-2
S127..............................8W-15-2
S201..............................8W-15-7
S202..............................8W-15-7
S205..............................8W-15-5
S307..............................8W-15-9
S308..............................8W-15-8
S310..............................8W-15-6
S314..............................8W-15-6
S315..............................8W-15-8
Solid State Fan Relay.................8W-15-2
Stop Lamp Switch....................8W-15-3
Sunroof Vent Switch..................8W-15-6
Upstream Heated Oxygen Sensor........8W-15-2
Windshield Washer Pump Motor.........8W-15-2
8W - 15 - 2 8W - 15 GROUND DISTRIBUTIONPL

Downloaded from www.Manualslib.com manuals search engine C14750C1C210
POWERTRAIN
CONTROL
MODULE
Z12
18
BK/TN
10C160
BK/TN20 Z12
Z12
20
BK/TN
Z11
20
BK/WT
2
SWITCH PRESSURE
STEERING
POWER
Z12
22
BK/TN
5
Z12
18
BK/OR
2
Z12
20
BK/TN
SWITCH LAMP
STOP
Z12
22
BK/TNZ12
22
BK/TN
Z12
18
BK/TN
G102S104
4
5
CONTROLLER
ANTI-LOCK
BRAKELINK DATA
CONNECTOR
(8W-30-2)
(8W-30-4)
(8W-35-4)
(8W-30-12)(8W-30-4)
PL-RHD8W-15 GROUND DISTRIBUTION 8W - 15 - 3
PLR01502978W-1

Downloaded from www.Manualslib.com manuals search engine 8W-30 FUEL/IGNITION SYSTEMS
INDEX
page
SCHEMATICS AND DIAGRAMS........................................................... 1
DESCRIPTION AND OPERATION......................................................... 14
Component Page
A/C Compressor Clutch Relay..........8W-30-11
A/C High Pressure Switch.............8W-30-11
Airbag Control Module................8W-30-4
Automatic Shut Down Relay..........8W-30-2, 3
Battery Temperature Sensor..........8W-30-3, 7
Camshaft Position Sensor...........8W-30-7, 13
Controller Anti-Lock Brake..........8W-30-4, 12
Crankshaft Position Sensor..........8W-30-7, 13
Data Link Connector................8W-30-2, 4
Downstream Heated Oxygen Sensor......8W-30-3
Duty Cycle Evap/Purge Solenoid.........8W-30-9
EGR Transducer Solenoid..............8W-30-9
Engine Coolant Temperature Sensor......8W-30-7
Fuel Injector No. 1...................8W-30-5
Fuel Injector No. 2...................8W-30-5
Fuel Injector No. 3...................8W-30-5
Fuel Injector No. 4...................8W-30-5
Fuel Pump Module..................8W-30-10
Fuel Pump Relay....................8W-30-10
Fuse 5 (FB)........................8W-30-12
Fuse 10 (FB).....................8W-30-9, 10
Fuse 10 (FB)........................8W-30-9
Fuse 21 (PDC)................8W-30-2, 3, 4, 10
Fuse 25 (PDC)......................8W-30-12
Fuse Block....................8W-30-9, 10, 12
G101..............................8W-30-3
G102.........................8W-30-2, 4, 12
G106..............................8W-30-2
G303.............................8W-30-10
Generator.........................8W-30-11
IAT/MAP Sensor.....................8W-30-6
Idle Air Control Motor.................8W-30-8
Ignition Coil Pack....................8W-30-5
Immobilizer Engine Sensor............8W-30-13
Immobilizer Sensor..............8W-30-3, 8, 13
Instrument Cluster...........8W-30-7, 8, 10, 11Component Page
Knock Sensor.......................8W-30-6
Noise Supressor.....................8W-30-5
Park/Neutral Position Switch..........8W-30-12
Power Distribution Center....8W-30-2, 3, 4, 10, 12
Power Steering Pressure Switch.........8W-30-4
Powertrain Control
Module . 8W-30-2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
S101.............................8W-30-12
S102..............................8W-30-4
S104...........................8W-30-2, 12
S104............................8W-30-2, 4
S105............................8W-30-2, 4
S106.............................8W-30-12
S107..............................8W-30-3
S109...........................8W-30-9, 10
S110 ......................8W-30-3, 6, 7, 8, 13
S118 ..........................8W-30-3, 7, 8
S119 ..............................8W-30-3
S120........................8W-30-3, 6, 7, 8
S121..............................8W-30-5
S122..........................8W-30-2, 3, 5
S123.............................8W-30-13
S123............................8W-30-7, 8
S124..............................8W-30-6
S126..............................8W-30-9
S127..............................8W-30-3
S129.............................8W-30-13
S134..............................8W-30-5
S211 .............................8W-30-12
Solid State Fan Relay................8W-30-11
Stop Lamp Switch...................8W-30-12
Throttle Position Sensor...............8W-30-6
Torque Converter Clutch Solenoid........8W-30-9
Upstream Heated Oxygen Sensor........8W-30-3
Vapor Canister Leak Detector...........8W-30-9
Vehicle Speed Sensor...............8W-30-8, 13
8W - 30 - 2 8W - 30 FUEL/IGNITION SYSTEMSPL

Downloaded from www.Manualslib.com manuals search engine 4
C145
Z12
22
BK/TN
Z12
22
BK/TN
SWITCH PRESSURE
STEERING
POWER
1
2
K10
20
WT
POWER
STEERING
PRESSURE
SWITCH
SENSE
76
75C165C1
SCI
RECEIVESCI
TRANSMIT
S102
D21
20
PK
D20
20
LG
D21
20
PK
BK/TN22 Z12
5
Z12
18
BK/TN
G102
S104
51
MODULE CONTROL
POWERTRAINCONTROLLER
ANTI-LOCK
BRAKE
PK20 D21
CONNECTORLINK DATA
S105
19 18
AIRBAG
CONTROL
MODULE
113
D1
20
VT/BR
11C10112
D1
20
VT/BR
D2
20
WT/BK
D2
20
WT/BK
16
22
RD/WT16 A14
72
BATT A0
CENTER DISTRIBUTION
POWER
21
20A
FUSE
21
A14
16
RD/WT
(+) BUS CCD CCD
BUS
(-)SCI
TRANSMIT
PAIR TWISTED
(8W-15-3) (8W-15-3)
(8W-35-3) (8W-10-10)
(8W-43-2) (8W-10-4)
(8W-10-4)
(8W-10-10)
8W - 30 - 4 8W-30 FUEL/IGNITION SYSTEMPL-RHD
978W-1PLR03003

Downloaded from www.Manualslib.com manuals search engine 8W-30 FUEL/IGNITION SYSTEMS
INDEX
page page
DESCRIPTION AND OPERATION
AUTOMATIC SHUT DOWN RELAY.......... 15
BATTERY FEED........................ 14
BATTERY TEMPERATURE SENSOR......... 18
CAMSHAFT POSITION SENSOR........... 16
CRANKSHAFT POSITION SENSOR......... 16
DATA LINK CONNECTOR................. 15
DUTY CYCLE EVAP/PURGE SOLENOID...... 19
EGR TRANSDUCER (EET) SOLENOID....... 19
ENGINE COOLANT
TEMPERATURE SENSOR............... 16
FUEL INJECTORS....................... 18
FUEL PUMP MOTOR.................... 15
HEATED OXYGEN SENSORS.............. 16
IDLE AIR CONTROL MOTOR.............. 18
IGNITION COIL PACK.................... 18IGNITION SWITCH...................... 14
INTAKE AIR TEMPERATURE SENSOR....... 17
KNOCK SENSOR....................... 17
LOW FUEL DETECT INPUT............... 19
MANIFOLD ABSOLUTE
PRESSURE SENSOR.................. 17
PARK/NEUTRAL POSITION SWITCH INPUT
(3±SPD TRANSMISSION)................ 19
POWER (DEVICE) GROUND............... 14
POWER STEERING PRESSURE SWITCH..... 19
SIGNAL GROUND....................... 14
THROTTLE POSITION SENSOR............ 17
TORQUE CONVERTER CLUTCH SOLENOID
(TCC)............................... 19
VEHICLE SPEED SENSOR................ 15
DESCRIPTION AND OPERATION
IGNITION SWITCH
In the RUN position, the ignition switch connects
circuit A1 from the Power Distribution Center (PDC)
to circuit A21. A 30 amp fuse in the PDC protects cir-
cuits A1 and A21. Circuit A21 feeds a bus bar in the
fuse block. The bus bar feeds circuits G5, F12, and
F15.
²Circuit G5 powers the gauge cluster warning
lamps and the daytime running lamp (DRL) module.
Fuse cavity 11 (5 amp) in the fuse block protects cir-
cuit G5.
²Circuit F12 splices to the Powertrain Control
Module (PCM), duty cycle purge solenoid, EGR sole-
noid, ABS system, and a bus bar in the PDC. The
bus bar in the PDC feeds the coil side of the radiator
fan relay, A/C compressor clutch relay, and the fuel
pump relay. A 15 amp fuse in the fuse block, cavity
10, protects circuit F12.
²Circuit F15 feeds the Airbag Control Module
(ACM). A 10 amp fuse in the fuse block, cavity 9, pro-
tects circuit F15.
BATTERY FEED
Circuit A14 from the Power Distribution Center
(PDC) supplies battery voltage to cavity 46 of the
Powertrain Control Module (PCM). A 20 amp fuse in
the PDC protects circuit A14.
HELPFUL INFORMATION
Circuit A14 connects to a bus bar in the PDC that
the battery feeds. Circuit A14 powers the AutomaticShut Down (ASD) relay and fuel pump relay. The
A14 circuit also splices to the data link connector.
POWER (DEVICE) GROUND
Circuit Z12 connects to cavities 10 and 50 of the
Powertrain Control Module (PCM). The Z12 circuit
provides ground for PCM internal drivers that oper-
ate high current devices like the injectors and igni-
tion coils.
Internal to the PCM, the power (device) ground cir-
cuit connects to the PCM sensor return circuit (from
circuit K4) and the signal ground circuit (Z11).
HELPFUL INFORMATION
Circuit Z12 which supplies ground for the PCM
high current drivers, has the same termination point
as circuit Z11. The termination point is the left side
of the radiator closure panel.
If the system loses ground for the ganged circuits,
at the left side of the radiator closure panel, the vehi-
cle will not operate. Check the connection at the
ganged ground circuit eyelet.
SIGNAL GROUND
The signal ground circuit Z11 connects to cavity 47
of the PCM. The Z11 circuit provides ground for the
sensors that provide inputs to the PCM. Internal to
the PCM, the signal ground circuit connects to the
PCM sensor return circuit (from circuit K4) and the
power (device) ground circuit (Z12).
The termination point for circuit Z11 is an eyelet
attached to the left side of the radiator closure panel.
8W - 30 - 14 8W - 30 FUEL/IGNITION SYSTEMSPL

Downloaded from www.Manualslib.com manuals search engine ²Circuit K59 connects to cavity 58 of the PCM
connector.
²Circuit K60 connects to cavity 49 of the PCM
connector.
POWER STEERING PRESSURE SWITCH
The power steering pressure switch opens and
closes circuit K10 between the Powertrain Control
Module (PCM) and ground. Circuit K10 connects to
cavity 45 of the PCM connector.
Circuit Z12 provides ground for the power steering
pressure switch. The grounding point for circuit Z12
is the left side of the radiator closure panel.
TORQUE CONVERTER CLUTCH SOLENOID (TCC)
The Powertrain Control Module (PCM) operates
the TCC solenoid by providing a ground path on cir-
cuit K54. Circuit K54 connects to PCM cavity 79.
Circuit F12 supplies battery voltage to the TCC
solenoid. Circuit F12 connects to a bus bar in the
fuse block fed by circuit A21. A 15 amp fuse in the
fuse block, cavity 10, protects circuit F12. Circuit F12
connects to cavity 20 of the PCM connector.
HELPFUL INFORMATION
Circuit F12 splices to feed the ABS control module,
PCM, EGR solenoid, leak detection pump, and the
duty cycle EVAP/Purge solenoid. The F12 circuit also
connects to a bus bar in the PDC that supplies volt-
age to the coil side of radiator fan relay, A/C clutch
relay, and fuel pump relay.
In the RUN or START position, the ignition switch
connects circuit A1 from the fuse block and circuit
A21. Circuit A1 connects to battery voltage and is
protected by a 30 amp fuse in the PDC.
DUTY CYCLE EVAP/PURGE SOLENOID
Circuit F12 supplies battery voltage to the Duty
Cycle EVAP/Purge solenoid. The Powertrain Control
Module (PCM) switches ground path for the solenoid
ON and OFF through circuit K52.
Circuit F12 connects to a bus bar in the fuse block
fed by circuit A21. A 15 amp fuse in the fuse block,
cavity 10, protects circuit F12. Circuit F12 also con-
nects to cavity 20 of the PCM connector.
Circuit K52 connects to cavity 68 of the PCM, and
cavity 1 of the solenoid connector.
HELPFUL INFORMATION
Circuit F12 splices to feed the ABS control module,
PCM, EET solenoid, leak detection pump, and the
TCC solenoid. The F12 circuit also connects to a bus
bar in the PDC that supplies voltage to the coil side
of radiator fan relays, A/C clutch relay, and fuel
pump relay.
In the START or RUN position, the ignition switch
connects circuit A1 from the fuse block and circuitA21. Circuit A1 connects to battery voltage and is
protected by a 30 amp fuse in the PDC.
EGR TRANSDUCER (EET) SOLENOID
Circuit F12 supplies battery voltage to the EET
solenoid. The Powertrain Control Module (PCM)
switches ground path for the solenoid ON and OFF
through circuit K35.
Circuit F12 connects to a bus bar in the fuse block
fed by circuit A21. A 15 amp fuse in the fuse block,
cavity 10, protects circuit F12. Circuit F12 also con-
nects to cavity 20 of the PCM.
Circuit K35 connects to cavity 40 of the PCM con-
nector.
HELPFUL INFORMATION
Circuit F12 splices to feed the ABS control module,
PCM, Duty Cycle EVAP/Purge solenoid, leak detec-
tion pump, and the TCC solenoid. The F12 circuit
also connects to a bus bar in the PDC that supplies
voltage to the coil side of radiator fan relays, A/C
clutch relay, and fuel pump relay.
In the START or RUN position, the ignition switch
connects circuit A1 from the fuse block and circuit
A21. Circuit A1 connects to battery voltage and is
protected by a 30 amp fuse in the PDC.
LOW FUEL DETECT INPUT
Circuit G4 provides an input to the Powertrain Con-
trol Module (PCM) indicating fuel tank level. This cir-
cuit connects to cavity 23 of the PCM connector.
The G4 circuit is also used for the fuel gauge
located in the instrument cluster. For operation of
the fuel gauge, refer to section 8W-40.
PARK/NEUTRAL POSITION SWITCH INPUT (3±SPD
TRANSMISSION)
On vehicles equipped with the 3±spd automatic
transmission the park/neutral switch provides an
input to the Powertrain Control Module (PCM).
When CLOSED, the park/neutral position switch
provides a ground path on circuit T41 for the coil
side of the engine starter motor relay. The case
grounded switch provides ground for circuit T41.
Circuit A41 from the ignition switch provides bat-
tery voltage to the coil side of the relay.
Circuit T41 splices to cavity 76 of the PCM. The
park/neutral position switch provides an input to the
Powertrain Control Module (PCM).
HELPFUL INFORMATION
In the START position, the ignition switch connects
circuit A1 from the Power Distribution Center (PDC)
to circuit A41. A 30 amp fuse protects circuits A1 and
A41.
PL8W - 30 FUEL/IGNITION SYSTEMS 8W - 30 - 19
DESCRIPTION AND OPERATION (Continued)

Downloaded from www.Manualslib.com manuals search engine 8W-44 INTERIOR LIGHTING
INDEX
page page
DESCRIPTION AND OPERATION
ASH RECEIVER LAMP.................... 6
DOME LAMP............................ 5
GLOVE BOX LAMP....................... 6
HALO LAMP/TIME DELAY RELAY............ 5
HELPFUL INFORMATION.................. 6
INTRODUCTION......................... 5MAP/READING LAMPS.................... 6
PRNDL (TRANSMISSION RANGE INDICATOR)
LAMP................................ 5
TIME OUT RELAY........................ 5
TRUNK LAMP........................... 6
UNDERHOOD LAMP...................... 6
VISOR/VANITY LAMPS.................... 5
DESCRIPTION AND OPERATION
INTRODUCTION
The courtesy lamp system is powered at all times
by the 10 amp fuse located in the Power Distribution
Center (PDC). The M1 circuit feeds the courtesy
lamps, which include the trunk lamp, underhood
lamp, visor/vanity lamps, dome lamp, time delay
relay, and the glove box lamp.
HALO LAMP/TIME DELAY RELAY
The time delay relay is used to allow a time-ON
function for the ignition switch halo lamp. Power for
the relay is received on the M1 circuit from the 10
amp fuse located in the Power Distribution Center
(PDC). This is the Ignition-Off Draw (IOD) fuse and
HOT at all times.
When a door is OPENED, or the headlamp switch
is moved to the dome lamp position, a ground path is
provided for the relay on the M23 circuit. This ener-
gizes the relay, CLOSING the contacts. When the
relay contacts are CLOSED, power is provided
through the relay to the M50 circuit.
The M50 circuit supplies current to the ignition
switch lamp in the steering column. Ground for the
lamp is provided on the Z3 circuit. This circuit
splices with the glove box lamp, the ash receiver
lamp, and the PRNDL lamp. The Z3 circuit termi-
nates at the instrument panel left center support.
Circuit M23 is also spliced with the Remote Key-
less Entry (RKE) module and the time out relay
located in the fuse block.
TIME OUT RELAY
The time out relay is located in the fuse block and
is used to control the ground path for various interior
lamps. It will also turn the lamps OFF after a spec-
ified period of time, and works with the Remote Key-
less Entry (RKE) system for illuminated entry.
Cirucit M2 connects to the relay and supplied a
ground path through the door ajar switches.Circuit M1 is used to supply battery voltage to the
relay. This circuit is proteced by a 10 amp fuse
located in cavity 13 of the Power Distribution Center
(PDC).
Circuit M32 is connected from the relay to the var-
ious interior lamps and RKE module.
PRNDL (TRANSMISSION RANGE INDICATOR)
LAMP
The PRNDL lamp receives power on the E2 circuit
from the 4 amp fuse located in the fuse block in cav-
ity 12. The fuse receives power from the headlamp
switch. Circuit E2 also powers the ash receiver lamp.
When the headlamp switch is moved to the PARK
or ON position, current flows through the fuse to the
PRNDL lamp. The ground for the lamp is supplied
on the Z3 circuit, and terminates at the instrument
panel left center support. This circuit is also spliced
in with the ash receiver lamp, the ignition switch
lamp, and the glove box lamp.
VISOR/VANITY LAMPS
The visor/vanity lamps are case-grounded, and are
operated by a switch internal to the assembly. Power
for the lamps is on the M1 circuit from the Power
Distribution Center (PDC). When the operator opens
the cover, the switch CLOSES, completing a path to
ground illuminating the lamp.
DOME LAMP
The dome lamp receives power from the 10 amp
fuse located in the Power Distribution Center on the
M1 circuit. This circuit is HOT at all times and the
Ignition-Off Draw (IOD) fuse. The ground path for
the lamp is provided in two different ways.
One way is through the door ajar switches and the
time out relay. Circuit M2 connects to all the door
ajar switches from the time out relay. The switches
are case-grounded to the body. When a door is
OPENED, the plunger in the switch CLOSES, com-
pleting a path to ground.
PL8W - 44 INTERIOR LIGHTING 8W - 44 - 5

Downloaded from www.Manualslib.com manuals search engine Component Page
Left Power Mirror...................8W-80-23
Left Power Window Switch............8W-80-23
Left Rear Door Lock Motor............8W-80-23
Left Rear Fog Lamp.................8W-80-23
Left Rear Speaker...................8W-80-23
Left Rear Wheel Speed Sensor.........8W-80-23
Left Repeater Lamp.................8W-80-24
Left Tail/Stop Lamp.................8W-80-24
Left Turn Signal Lamp...............8W-80-24
Map/Reading Lamps.................8W-80-24
Master Power Window Switch..........8W-80-24Component Page
Park/Neutral Position Switch (ATX).....8W-80-25
Passenger Side Airbag................8W-80-25
Power Folding Mirror Relay...........8W-80-25
Power Mirror Fuse Holder............8W-80-25
Power Mirror Switch - C1.............8W-80-25
Power Mirror Switch - C2.............8W-80-26
Power Steering Pressure Switch........8W-80-26
Power Sunroof Motor.................8W-80-26
Powertrain Control Module - C1........8W-80-26
Powertrain Control Module - C2........8W-80-27
PRNDL Lamp......................8W-80-28
Radiator Fan Motor..................8W-80-28
Radio - C1.........................8W-80-28
Radio - C2.........................8W-80-29
Rear Fog Lamp Switch...............8W-80-29
Rear Window Defogger Switch.........8W-80-29
Right Airbag Impact Sensor...........8W-80-29
Right Back-Up Lamp.................8W-80-29
Right Door Lock Switch...............8W-80-30
Right Door Window Motor.............8W-80-30
Right Fog Lamp....................8W-80-30
Right Front Door Lock Motor..........8W-80-30
Right Front Door Speaker.............8W-80-30
Right Front Wheel Speed Sensor........8W-80-31
Right Headlamp....................8W-80-31
Right Headlamp Leveling Motor........8W-80-31
PL8W - 80 CONNECTOR PIN-OUTS 8W - 80 - 3
DESCRIPTION AND OPERATION (Continued)

Downloaded from www.Manualslib.com manuals search engine 978W-1

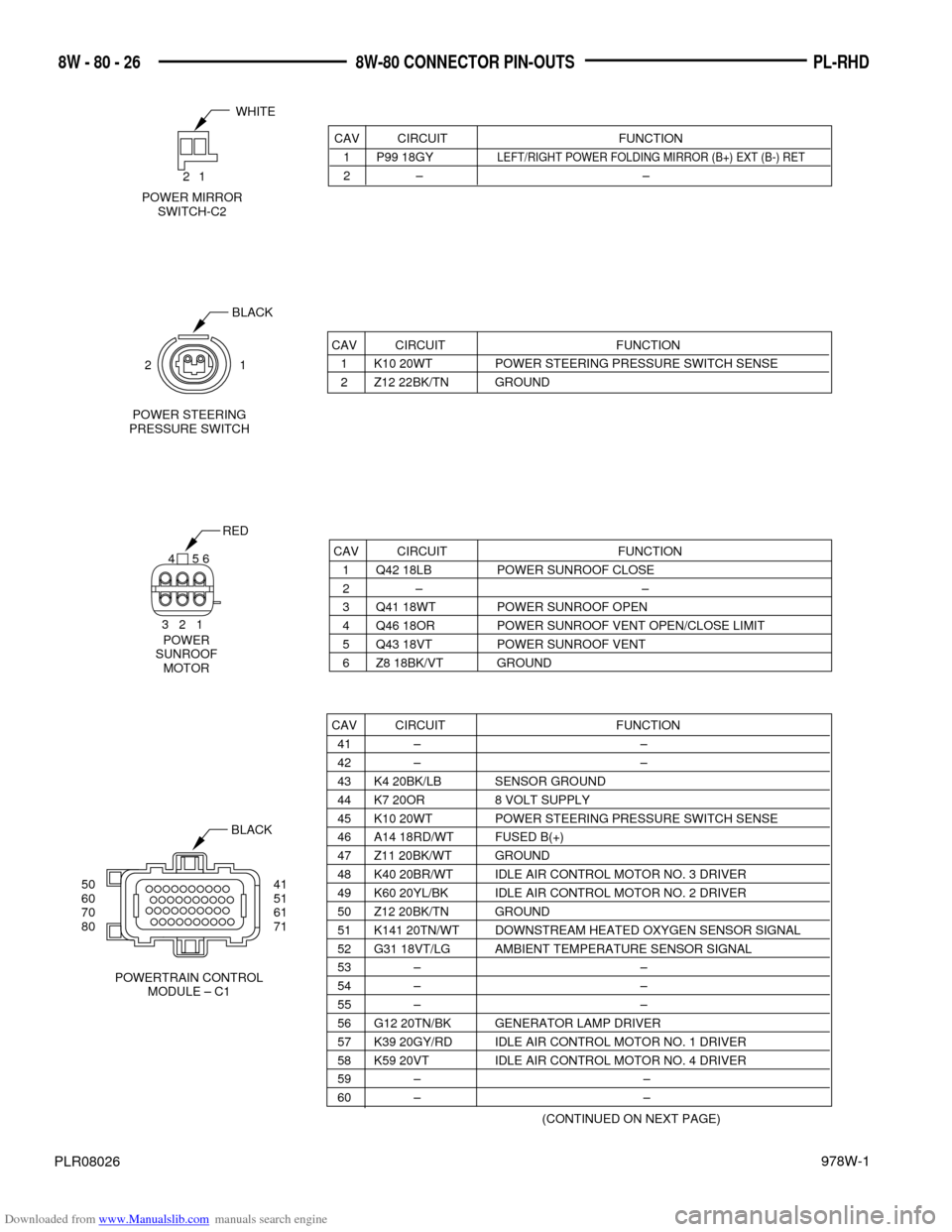

PL-RHD 8W - 80 - 26 8W-80 CONNECTOR PIN-OUTS
PLR08026
CAV CIRCUIT FUNCTION
1 P99 18GYLEFT/RIGHT POWER FOLDING MIRROR (B+) EXT (B-) RET
2Ð Ð
POWER MIRROR
SWITCH-C2
CAV CIRCUIT FUNCTION
1 Q42 18LB POWER SUNROOF CLOSE
2Ð Ð
3 Q41 18WT POWER SUNROOF OPEN
4 Q46 18OR POWER SUNROOF VENT OPEN/CLOSE LIMIT
5 Q43 18VT POWER SUNROOF VENT
6 Z8 18BK/VT GROUND
RED
POWER
SUNROOF
MOTOR 3 2 1 4 5 6
CAV CIRCUIT FUNCTION
1 K10 20WT POWER STEERING PRESSURE SWITCH SENSE
2 Z12 22BK/TN GROUND
BLACK
21
POWER STEERING
PRESSURE SWITCH
CAV CIRCUIT FUNCTION
41 Ð Ð
42 Ð Ð
43 K4 20BK/LB SENSOR GROUND
44 K7 20OR 8 VOLT SUPPLY
45 K10 20WT POWER STEERING PRESSURE SWITCH SENSE
46 A14 18RD/WT FUSED B(+)
47 Z11 20BK/WT GROUND
48 K40 20BR/WT IDLE AIR CONTROL MOTOR NO. 3 DRIVER
49 K60 20YL/BK IDLE AIR CONTROL MOTOR NO. 2 DRIVER
50 Z12 20BK/TN GROUND
51 K141 20TN/WT DOWNSTREAM HEATED OXYGEN SENSOR SIGNAL
52 G31 18VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
53 Ð Ð
54 Ð Ð
55 Ð Ð
56 G12 20TN/BK GENERATOR LAMP DRIVER
57 K39 20GY/RD IDLE AIR CONTROL MOTOR NO. 1 DRIVER
58 K59 20VT IDLE AIR CONTROL MOTOR NO. 4 DRIVER
59 Ð Ð
60 Ð Ð
50 41
60 51
70 61
80 71
POWERTRAIN CONTROL
MODULE Ð C1BLACK
(CONTINUED ON NEXT PAGE)
21
WHITE
