ESP DODGE NITRO 2009 1.G Owners Manual

VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler LLC shall be deemed to be deleted and the
name Chrysler Canada Inc. used in substitution there-
fore.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler LLC reserves the right to make changes in
design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
Copyright © 2008 Chrysler LLC

NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak batteries in RKE transmitter. The expected life of
the batteries is from one to two years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
REMOTE STARTING SYSTEM — IF EQUIPPED
Your vehicle may be equipped with a remote starting
system. This system allows the vehicle to be started from
distances up to 300 ft (91 m) using the Remote Keyless
Entry (RKE) transmitter, which is part of your ignition
key.
In order to start your vehicle remotely, the hood, liftgate,
and all of the doors must be closed.To start your vehicle remotely, press and release the
REMOTE START button on the RKE transmitter twice
within three seconds. To indicate that the vehicle is about
to start, the parking lights will flash and the horn will
sound briefly (if programmed).
Remote Start Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

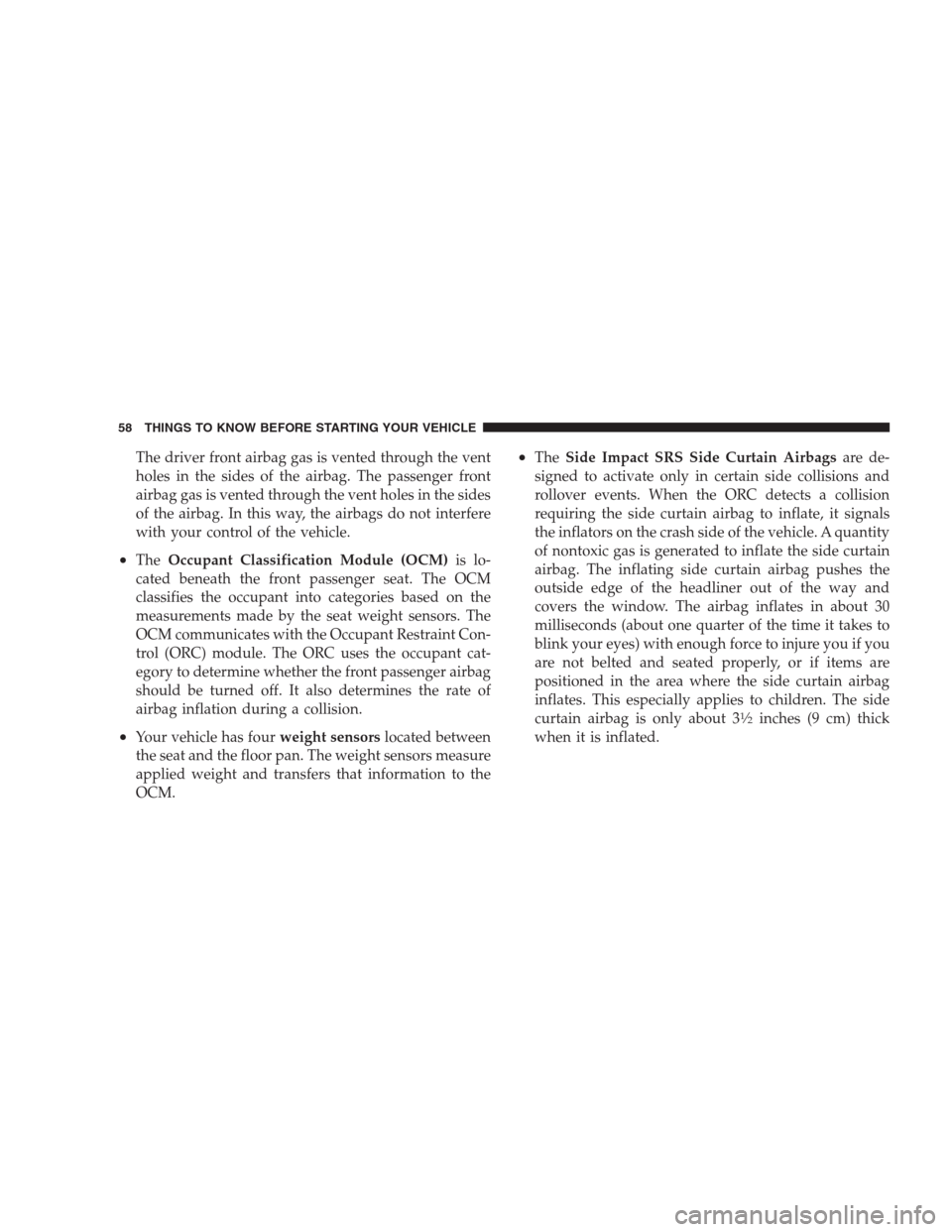

The driver front airbag gas is vented through the vent
holes in the sides of the airbag. The passenger front
airbag gas is vented through the vent holes in the sides
of the airbag. In this way, the airbags do not interfere
with your control of the vehicle.
•TheOccupant Classification Module (OCM)is lo-
cated beneath the front passenger seat. The OCM
classifies the occupant into categories based on the
measurements made by the seat weight sensors. The
OCM communicates with the Occupant Restraint Con-
trol (ORC) module. The ORC uses the occupant cat-
egory to determine whether the front passenger airbag
should be turned off. It also determines the rate of
airbag inflation during a collision.
•Your vehicle has fourweight sensorslocated between
the seat and the floor pan. The weight sensors measure
applied weight and transfers that information to the
OCM.
•TheSide Impact SRS Side Curtain Airbagsare de-
signed to activate only in certain side collisions and
rollover events. When the ORC detects a collision
requiring the side curtain airbag to inflate, it signals
the inflators on the crash side of the vehicle. A quantity
of nontoxic gas is generated to inflate the side curtain
airbag. The inflating side curtain airbag pushes the
outside edge of the headliner out of the way and
covers the window. The airbag inflates in about 30
milliseconds (about one quarter of the time it takes to
blink your eyes) with enough force to injure you if you
are not belted and seated properly, or if items are
positioned in the area where the side curtain airbag
inflates. This especially applies to children. The side
curtain airbag is only about 3
12inches (9 cm) thick
when it is inflated.
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

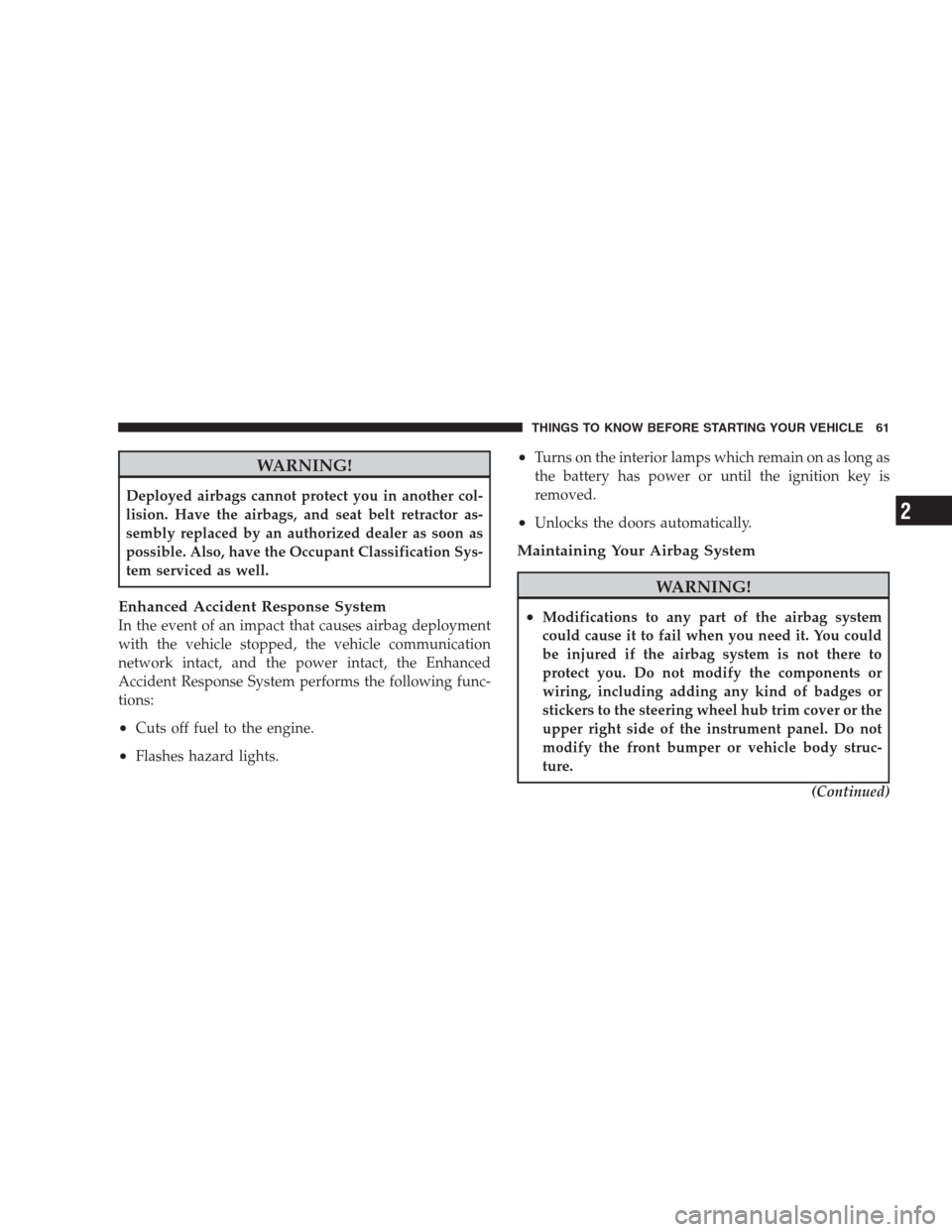

WARNING!
Deployed airbags cannot protect you in another col-
lision. Have the airbags, and seat belt retractor as-
sembly replaced by an authorized dealer as soon as
possible. Also, have the Occupant Classification Sys-
tem serviced as well.
Enhanced Accident Response System
In the event of an impact that causes airbag deployment
with the vehicle stopped, the vehicle communication
network intact, and the power intact, the Enhanced
Accident Response System performs the following func-
tions:
•Cuts off fuel to the engine.
•Flashes hazard lights.
•Turns on the interior lamps which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlocks the doors automatically.
Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper or vehicle body struc-
ture.
(Continued)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
2

Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say234-567-8901.
•The UConnectsystem will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnectphonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer toAdd Names to Your
UConnectPhonebook,in the phonebook.
•The UConnectsystem will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

UConnectSystem Features
Language Selection
To change the language that the UConnectsystem is
using:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
the name of the language you wish to switch to
English, Espanol, or Francais.
•Continue to follow the system prompts to complete
the language selection.
After selecting one of the languages, all prompts and
voice commands will be in that language.
NOTE:After every UConnectlanguage change opera-
tion, only the language-specific 32-name phonebook is
usable. The paired phone name is not language-specific
and usable across all languages.
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
•Pick up the phone and manually dial the emergency
number for your area.
If the phone is not reachable and the UConnectsystem
is operational, you may reach the emergency number as
follows:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Emergencyand the UConnectsystem will instruct
the paired cellular phone to call the emergency num-
ber. This feature is supported in the U.S., Canada, and
Mexico.
NOTE:
•The emergency number dialed is based on the country
where the vehicle is purchased (911 for the U.S. and
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

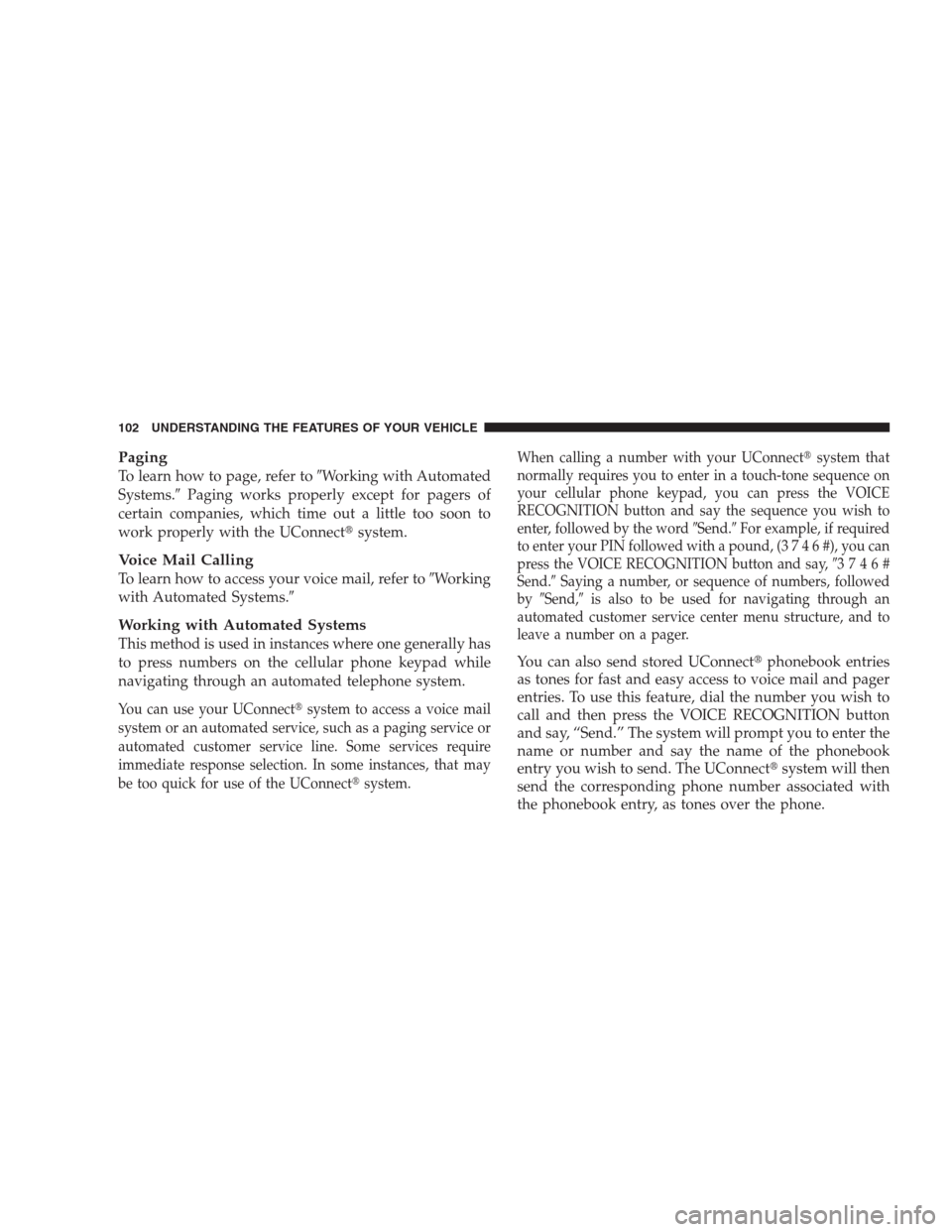

Paging
To learn how to page, refer toWorking with Automated
Systems.Paging works properly except for pagers of
certain companies, which time out a little too soon to
work properly with the UConnectsystem.
Voice Mail Calling
To learn how to access your voice mail, refer toWorking
with Automated Systems.
Working with Automated Systems
This method is used in instances where one generally has
to press numbers on the cellular phone keypad while
navigating through an automated telephone system.
You can use your UConnectsystem to access a voice mail
system or an automated service, such as a paging service or
automated customer service line. Some services require
immediate response selection. In some instances, that may
be too quick for use of the UConnectsystem.When calling a number with your UConnectsystem that
normally requires you to enter in a touch-tone sequence on
your cellular phone keypad, you can press the VOICE
RECOGNITION button and say the sequence you wish to
enter, followed by the wordSend.For example, if required
to enter your PIN followed with a pound, (3746#),youcan
press the VOICE RECOGNITION button and say,3746#
Send.Saying a number, or sequence of numbers, followed
bySend,is also to be used for navigating through an
automated customer service center menu structure, and to
leave a number on a pager.
You can also send stored UConnectphonebook entries
as tones for fast and easy access to voice mail and pager
entries. To use this feature, dial the number you wish to
call and then press the VOICE RECOGNITION button
and say, “Send.” The system will prompt you to enter the
name or number and say the name of the phonebook
entry you wish to send. The UConnectsystem will then
send the corresponding phone number associated with
the phonebook entry, as tones over the phone.
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

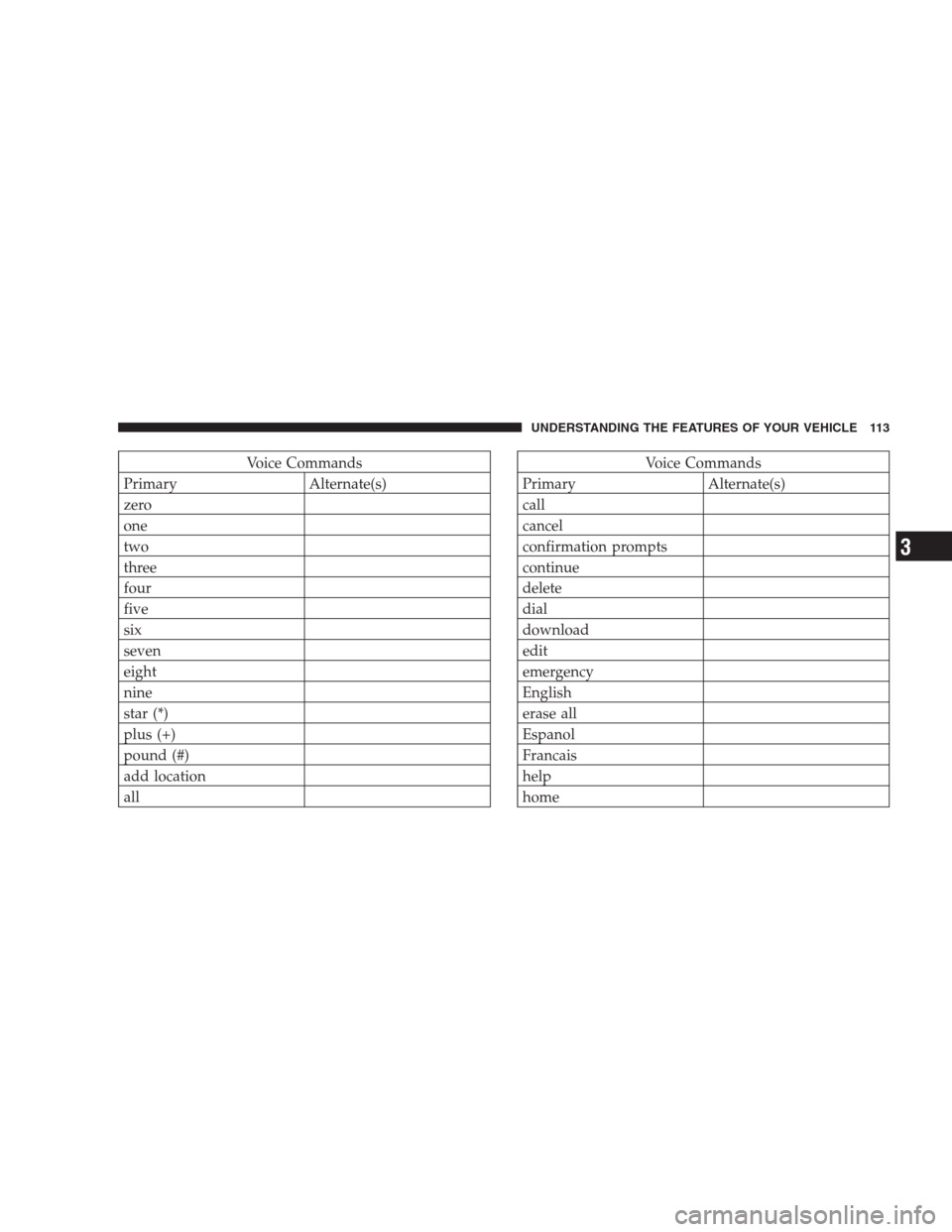

Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
allVoice Commands
Primary Alternate(s)
call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3

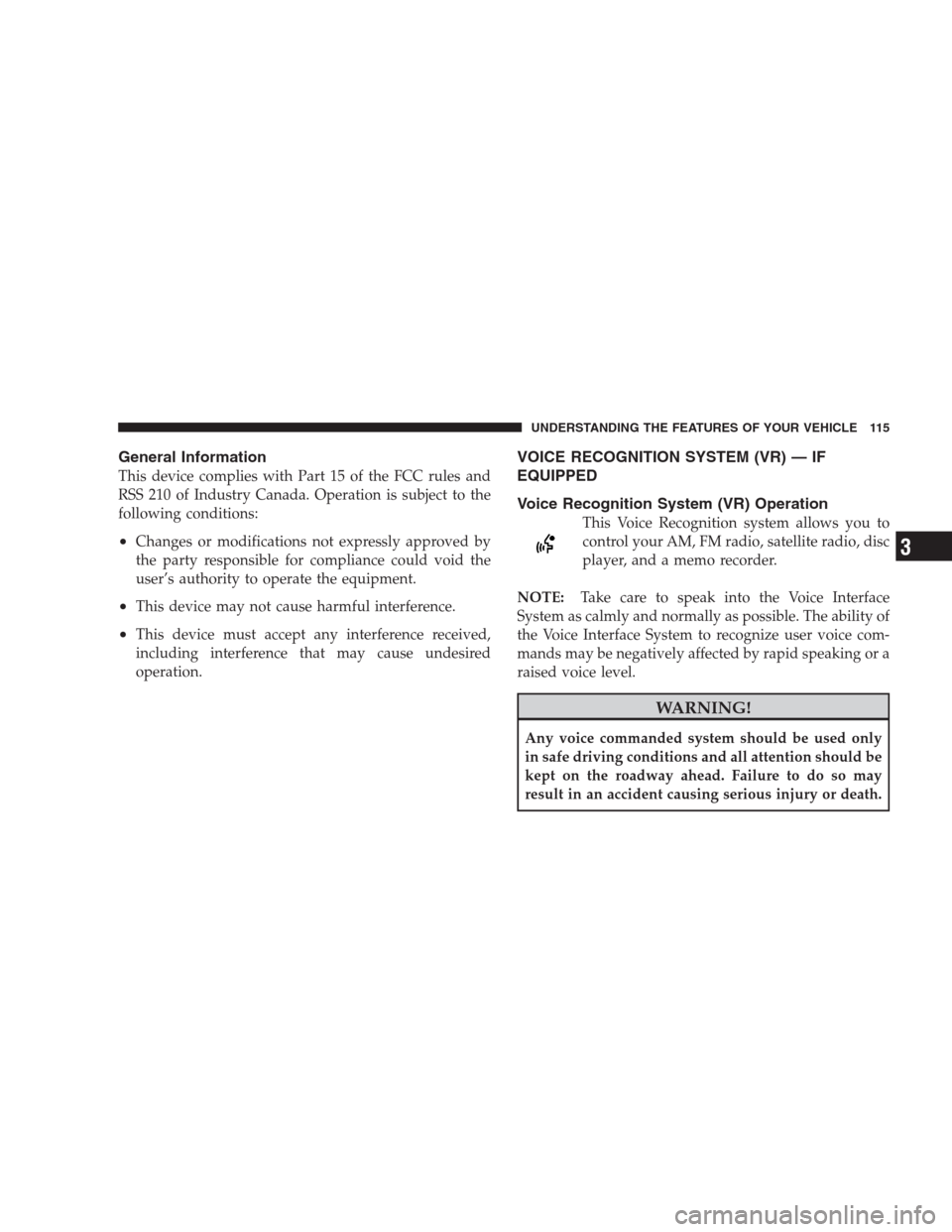

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
VOICE RECOGNITION SYSTEM (VR) — IF
EQUIPPED
Voice Recognition System (VR) Operation
This Voice Recognition system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.
NOTE:Take care to speak into the Voice Interface
System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice com-
mands may be negatively affected by rapid speaking or a
raised voice level.
WARNING!
Any voice commanded system should be used only
in safe driving conditions and all attention should be
kept on the roadway ahead. Failure to do so may
result in an accident causing serious injury or death.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

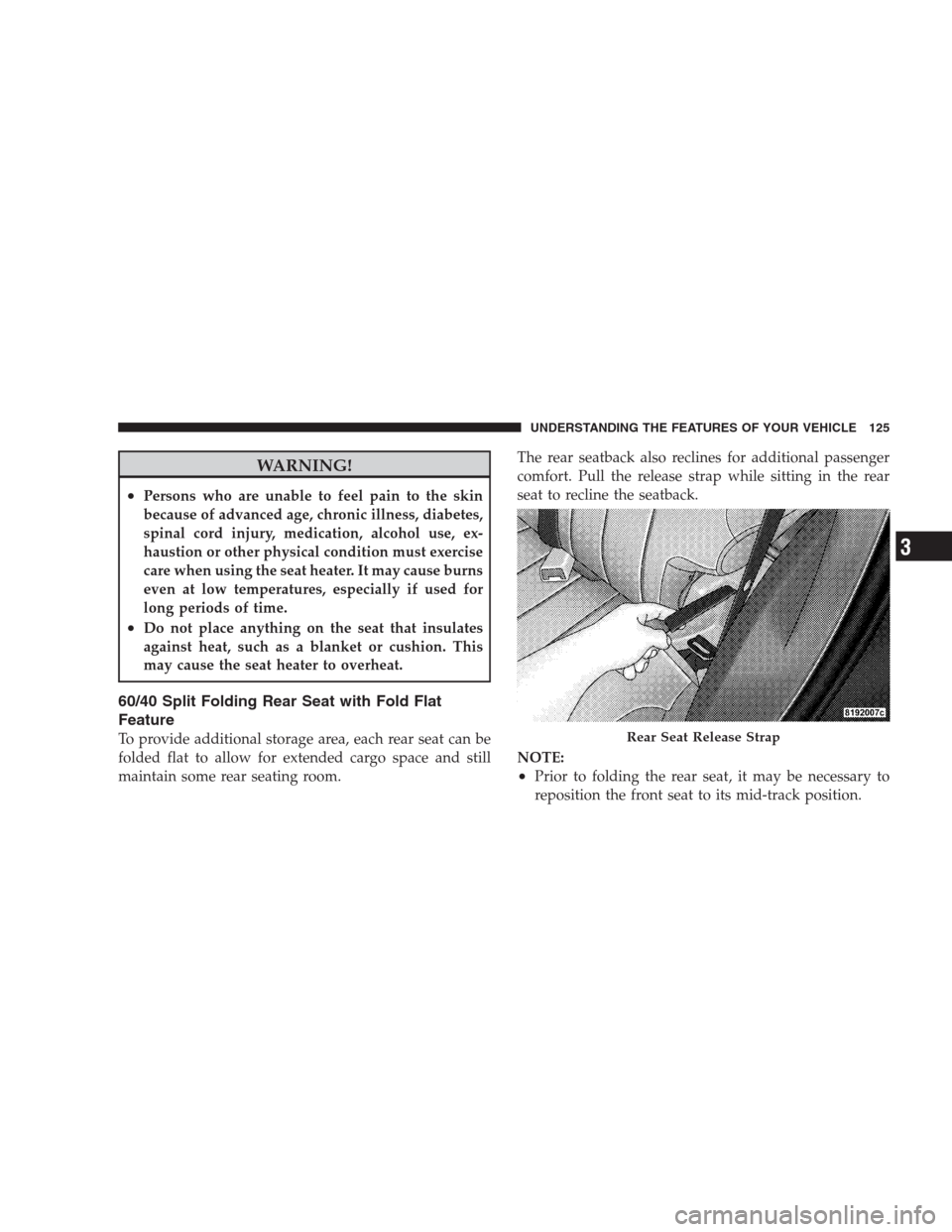

WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat.
60/40 Split Folding Rear Seat with Fold Flat
Feature
To provide additional storage area, each rear seat can be
folded flat to allow for extended cargo space and still
maintain some rear seating room.The rear seatback also reclines for additional passenger
comfort. Pull the release strap while sitting in the rear
seat to recline the seatback.
NOTE:
•Prior to folding the rear seat, it may be necessary to
reposition the front seat to its mid-track position.
Rear Seat Release Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3
