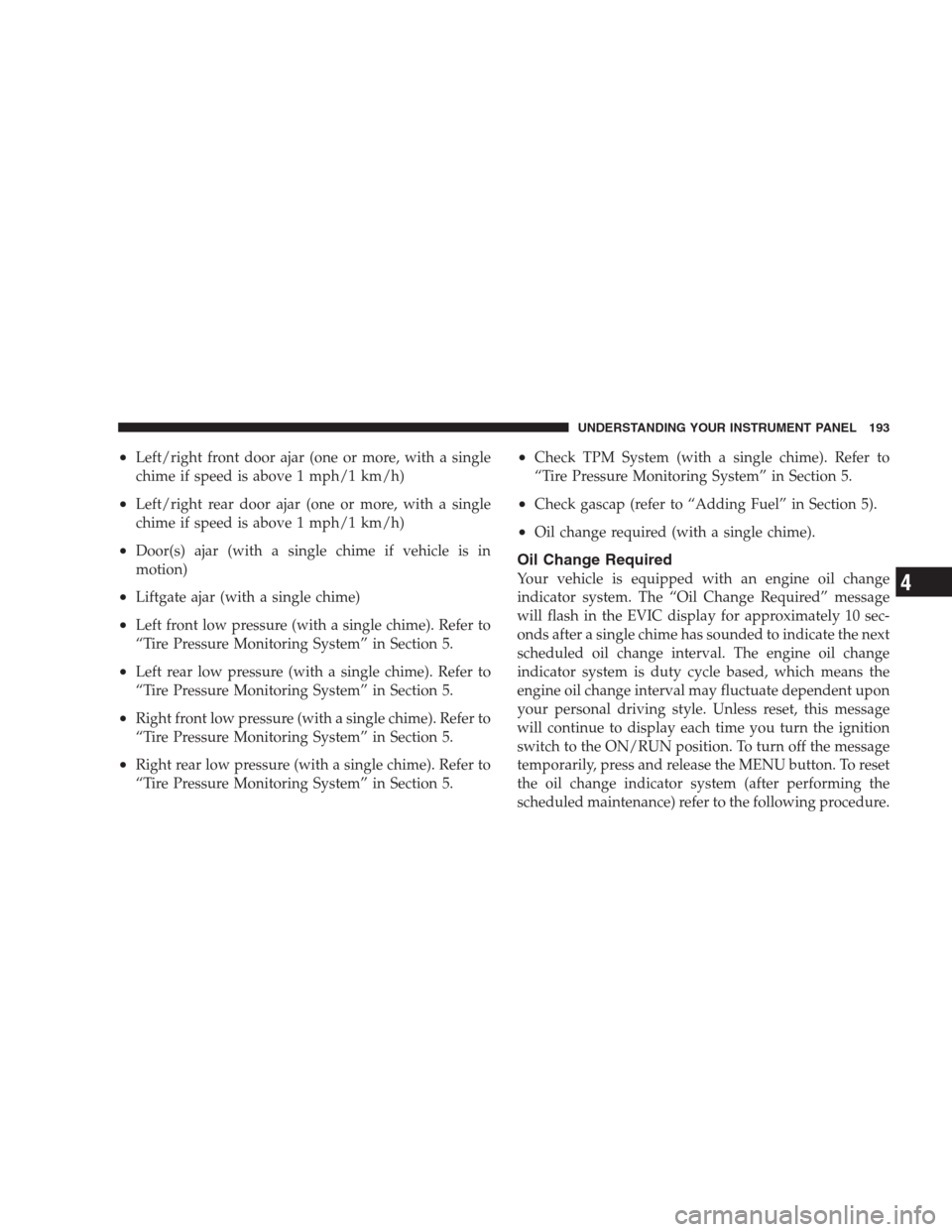

•Left/right front door ajar (one or more, with a single
chime if speed is above 1 mph/1 km/h)
•Left/right rear door ajar (one or more, with a single
chime if speed is above 1 mph/1 km/h)
•Door(s) ajar (with a single chime if vehicle is in
motion)
•Liftgate ajar (with a single chime)
•Left front low pressure (with a single chime). Refer to
“Tire Pressure Monitoring System” in Section 5.
•Left rear low pressure (with a single chime). Refer to
“Tire Pressure Monitoring System” in Section 5.
•Right front low pressure (with a single chime). Refer to
“Tire Pressure Monitoring System” in Section 5.
•Right rear low pressure (with a single chime). Refer to
“Tire Pressure Monitoring System” in Section 5.
•Check TPM System (with a single chime). Refer to
“Tire Pressure Monitoring System” in Section 5.
•Check gascap (refer to “Adding Fuel” in Section 5).
•Oil change required (with a single chime).
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately 10 sec-
onds after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style. Unless reset, this message
will continue to display each time you turn the ignition
switch to the ON/RUN position. To turn off the message
temporarily, press and release the MENU button. To reset
the oil change indicator system (after performing the
scheduled maintenance) refer to the following procedure.
UNDERSTANDING YOUR INSTRUMENT PANEL 193
4

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.7L............. 367
Engine Compartment — 4.0L............. 368
Onboard Diagnostic System — OBD II....... 369
▫Loose Fuel Filler Cap Message........... 370
Emissions Inspection And Maintenance
Programs............................ 370
Replacement Parts..................... 372
Dealer Service........................ 372
Maintenance Procedures................. 373▫Engine Oil......................... 373
▫Engine Air Cleaner Filter............... 376
▫Maintenance-Free Battery............... 377
▫Air Conditioner Maintenance............ 378
▫Body Lubrication..................... 379
▫Windshield Wiper Blades............... 379
▫Adding Washer Fluid.................. 379
▫Exhaust System...................... 380
▫Cooling System...................... 382
7

MAINTENANCE PROCEDURES
The pages that follow contain therequiredmaintenance
services determined by the engineers who designed your
vehicle.
Besides the maintenance items for which there are fixed
maintenance intervals, there are other items that should
operate satisfactorily without periodic maintenance.
However, if a malfunction of these items does occur, it
could adversely affect the engine or vehicle performance.
These items should be inspected if a malfunction is
observed or suspected.
Engine Oil
Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained at the correct level. Check
the oil level at regular intervals, such as every fuel stop.The best time to check the engine oil level is about five
minutes after a fully warmed up engine is shut off.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Always
maintain the oil level within the SAFE zone on the
dipstick. Adding one quart of oil when the reading is at
the bottom of the SAFE zone will result in a reading at the
top of the safe zone on these engines.
CAUTION!
Overfilling or underfilling the crankcase will cause
aeration or loss of oil pressure. This could damage
your engine.
MAINTAINING YOUR VEHICLE 373
7

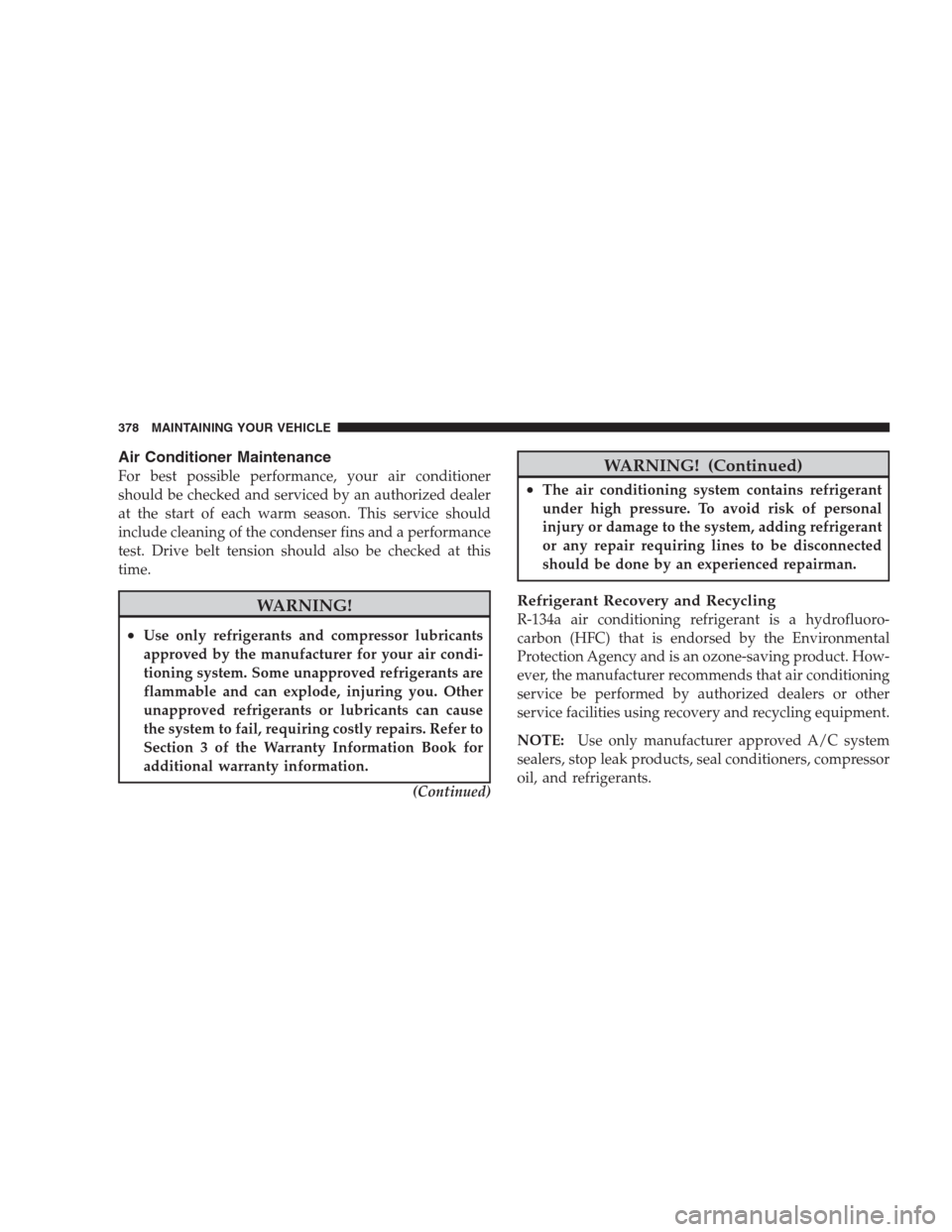

Air Conditioner Maintenance
For best possible performance, your air conditioner
should be checked and serviced by an authorized dealer
at the start of each warm season. This service should
include cleaning of the condenser fins and a performance
test. Drive belt tension should also be checked at this
time.
WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Section 3 of the Warranty Information Book for
additional warranty information.
(Continued)
WARNING! (Continued)
•The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced repairman.
Refrigerant Recovery and Recycling
R-134a air conditioning refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealers or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C system
sealers, stop leak products, seal conditioners, compressor
oil, and refrigerants.
378 MAINTAINING YOUR VEHICLE

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease such as
MOPARSpray White Lube to assure quiet, easy opera-
tion and to protect against rust and wear. Prior to the
application of any lubricant, the parts concerned should
be wiped clean to remove dust and grit; after lubricating
excess oil and grease should be removed. Particular
attention should also be given to hood latching compo-
nents to insure proper function. When performing other
underhood services, the hood latch, release mechanism
and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild non-abrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
Adding Washer Fluid
The fluid reservoir in the engine compartment should be
checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent/antifreeze (not
radiator antifreeze). Operate the system for a few seconds
to flush out the residual water.
MAINTAINING YOUR VEHICLE 379
7

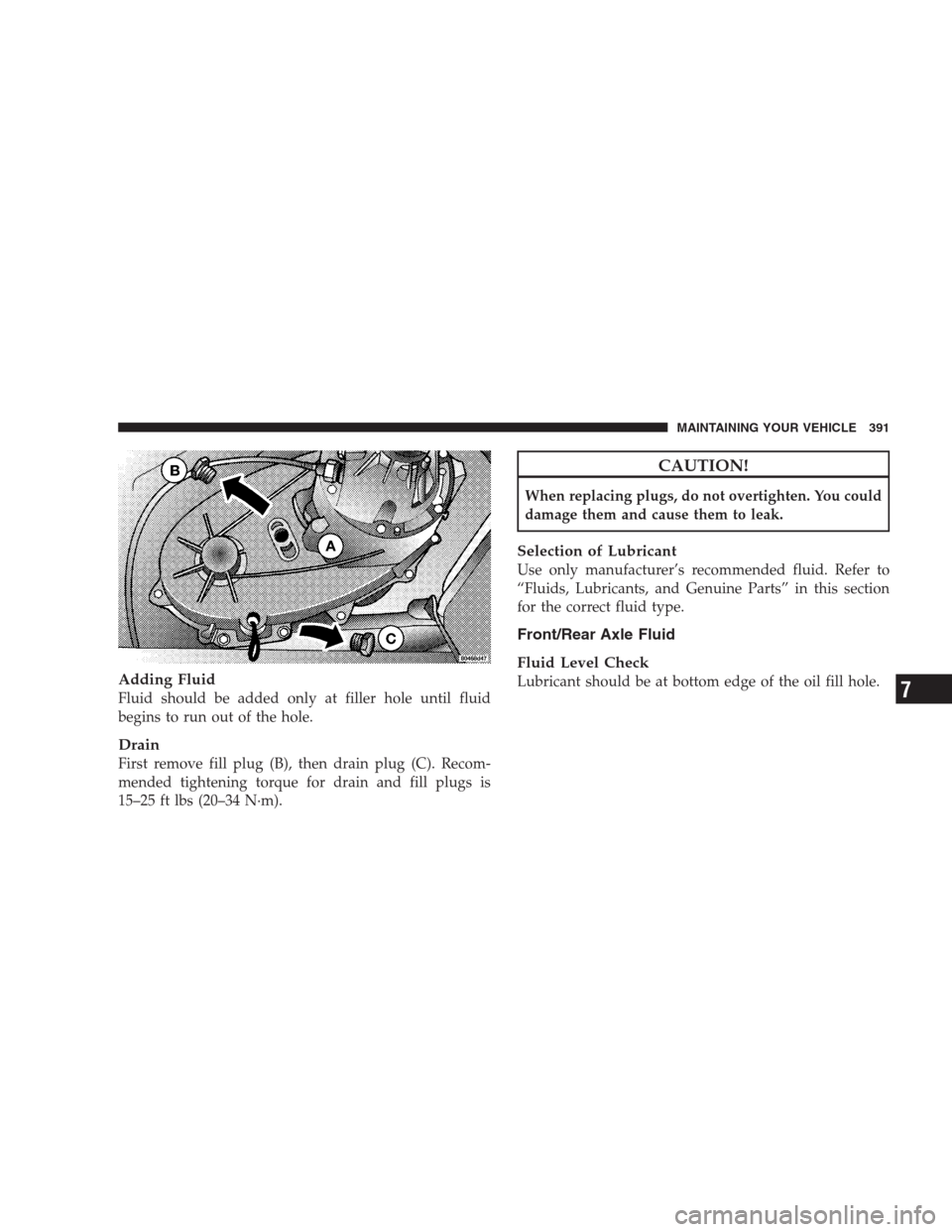

Adding Fluid
Fluid should be added only at filler hole until fluid
begins to run out of the hole.
Drain
First remove fill plug (B), then drain plug (C). Recom-
mended tightening torque for drain and fill plugs is
15–25 ft lbs (20–34 N·m).
CAUTION!
When replacing plugs, do not overtighten. You could
damage them and cause them to leak.
Selection of Lubricant
Use only manufacturer’s recommended fluid. Refer to
“Fluids, Lubricants, and Genuine Parts” in this section
for the correct fluid type.
Front/Rear Axle Fluid
Fluid Level Check
Lubricant should be at bottom edge of the oil fill hole.
MAINTAINING YOUR VEHICLE 391
